Article-No.:
99934
LED Recessed luminaire
Calla Swivelling
IP65 round 90mm 30° 5W 400lm 230V White Switch Matt white
IP65 round 90mm 30° 5W 400lm 230V White Switch Matt white

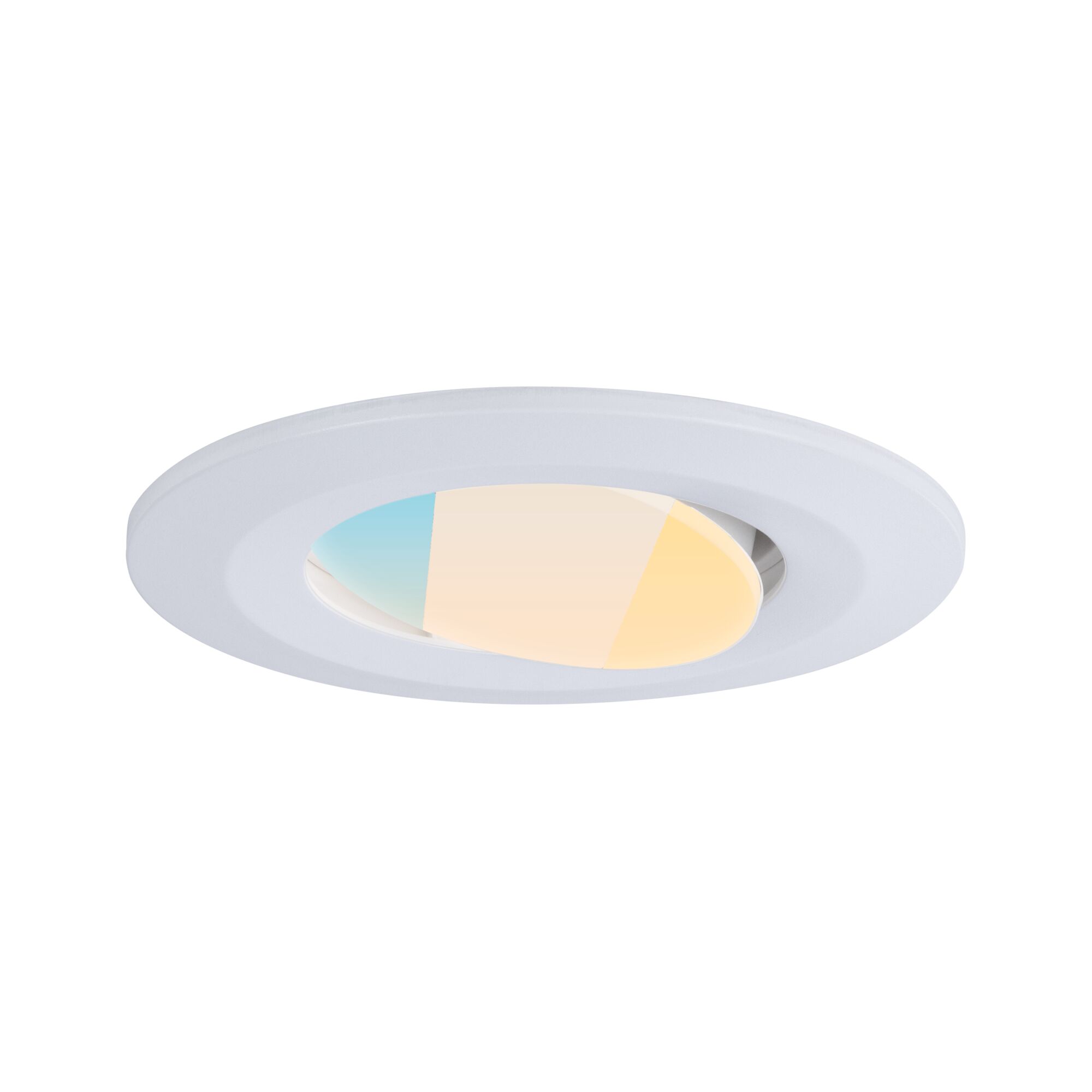

- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination
LED Recessed luminaire Calla Swivelling IP65 round 90mm 30° 5W 400lm 230V White Switch Matt white
The recessed Calla spotlights 1x5W in Matt white, are glare-free recessed spotlights made of Plastic, which are suitable for new installations, as well as for the renewal of older installations. The luminaires can be interlinked very simply thanks to the 230 V direct mains connection. The scope of delivery includes WhiteSwitch lamps for three-step colour temperature adjustment that can be controlled by repeatedly pressing the wall switch.
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination

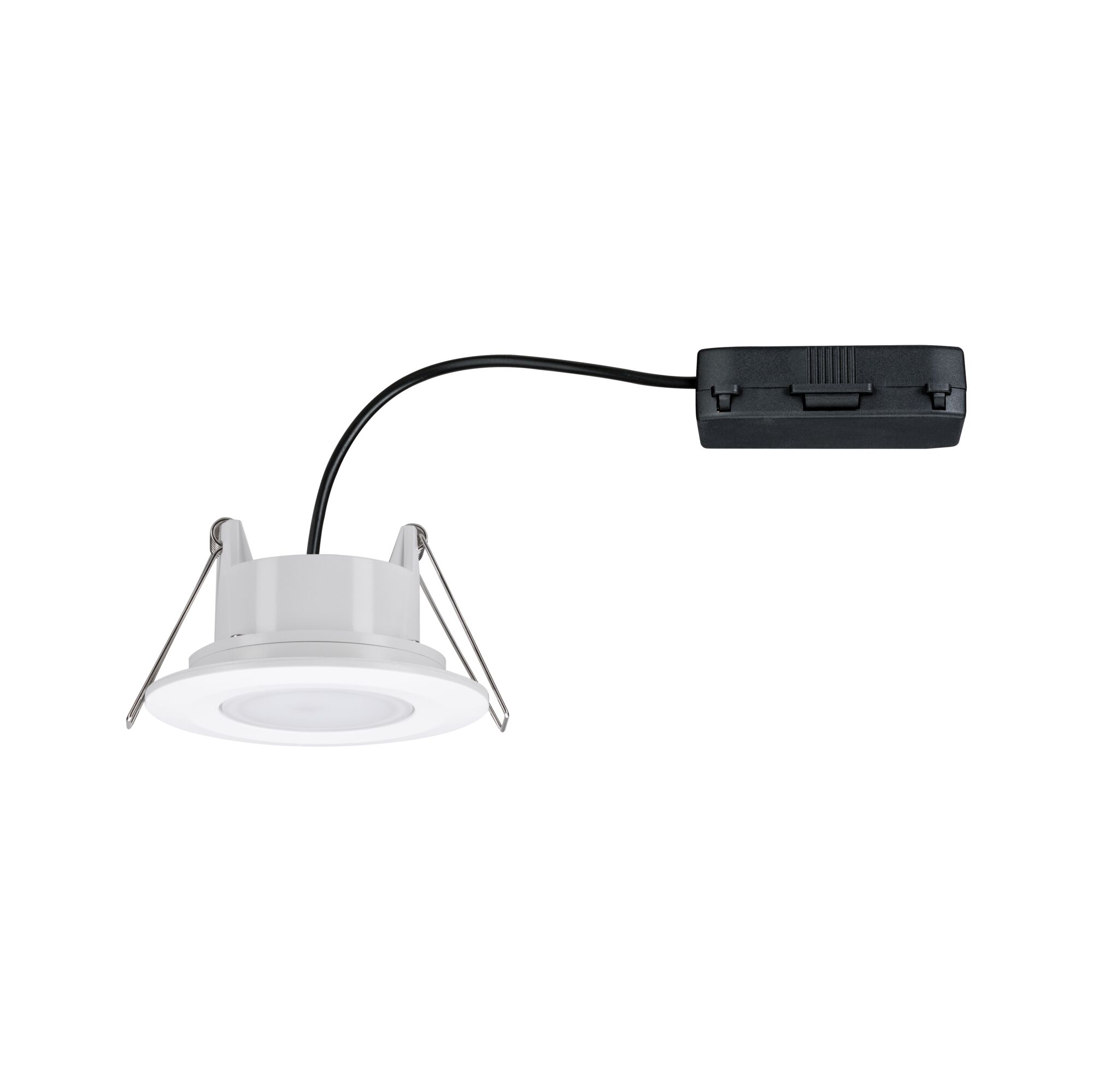

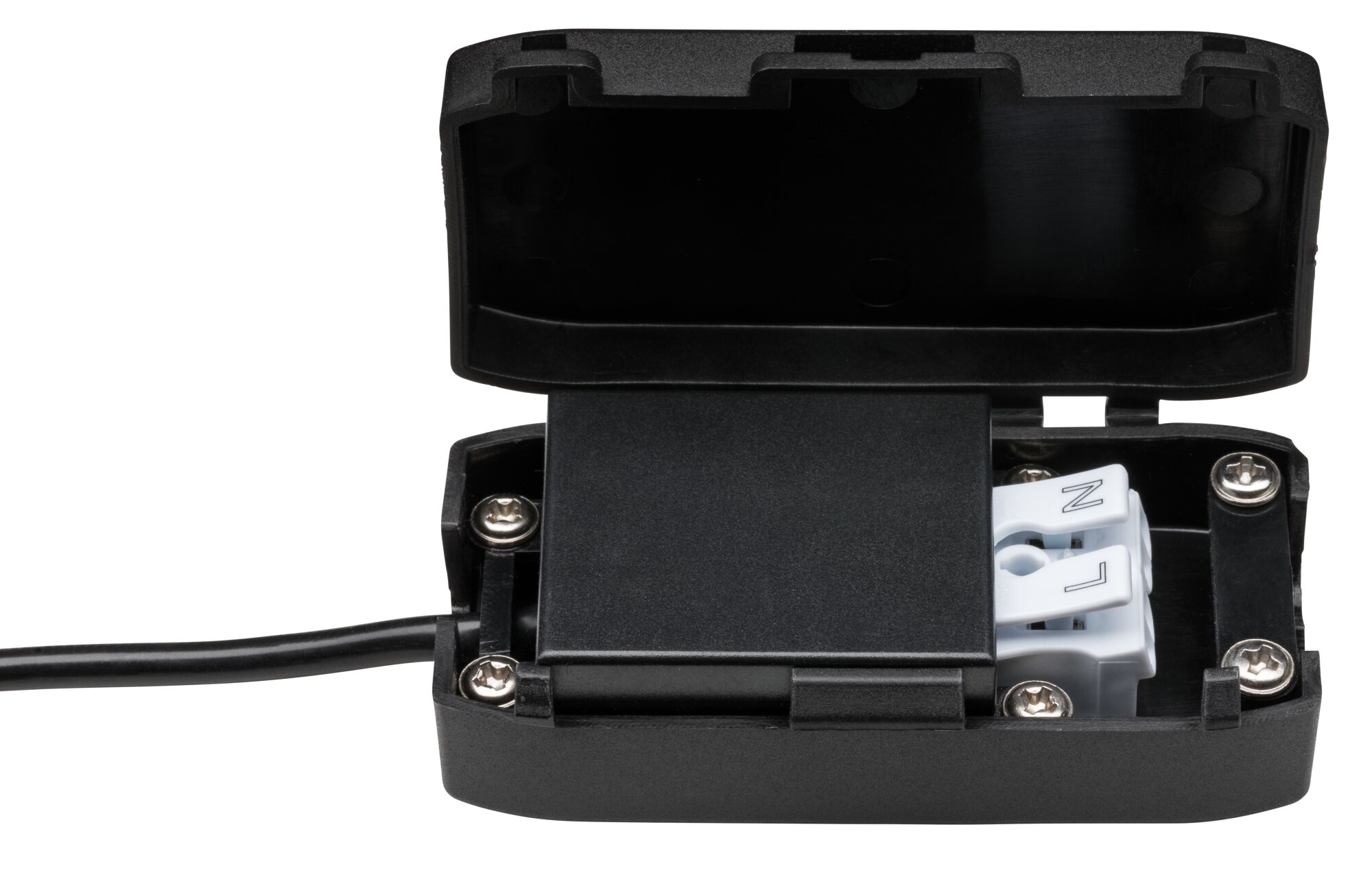

- For 230 V direct connection

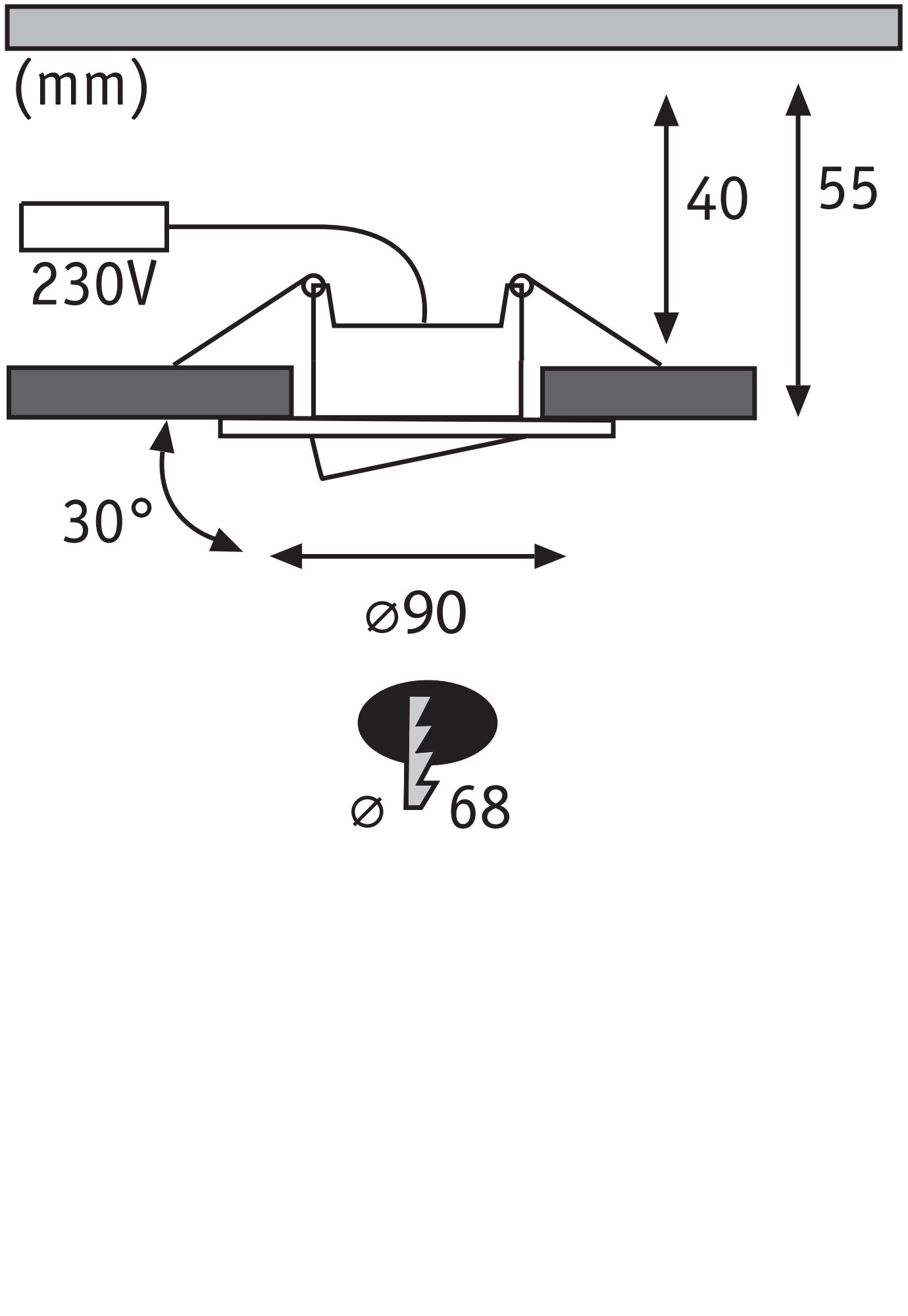

| Dimension | |
|---|---|
| Depth of hollow wall | 40 mm, 40 mm |
| Total Mounting depth | 55 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| colour temperature to | 6500 K |
| color temp | 3000 - 6500 K |
| Colour change | White Switch |
| Beam angle | 100 ° |
| Usable luminous flux | 400 lm |
| Luminous flux LED module | 550 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Swivel range | 30 ° |
| Technique | LED |
| IP protection | IP65 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 45 W |
| Adjustability | swivelling/tilting |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 5 W |
| Transformer | |
|---|---|
| apparent power | 9 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
