Article-No.:
99935

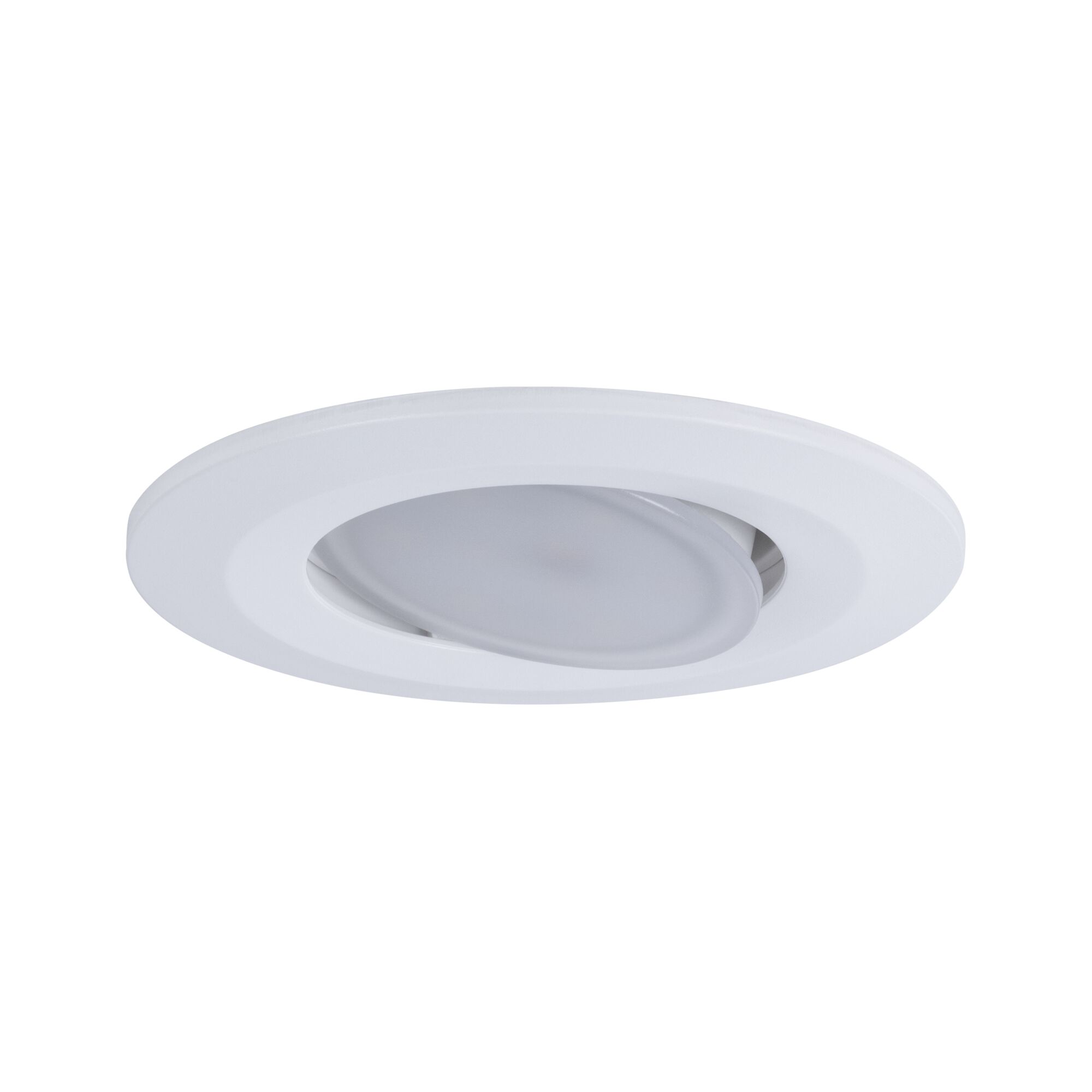

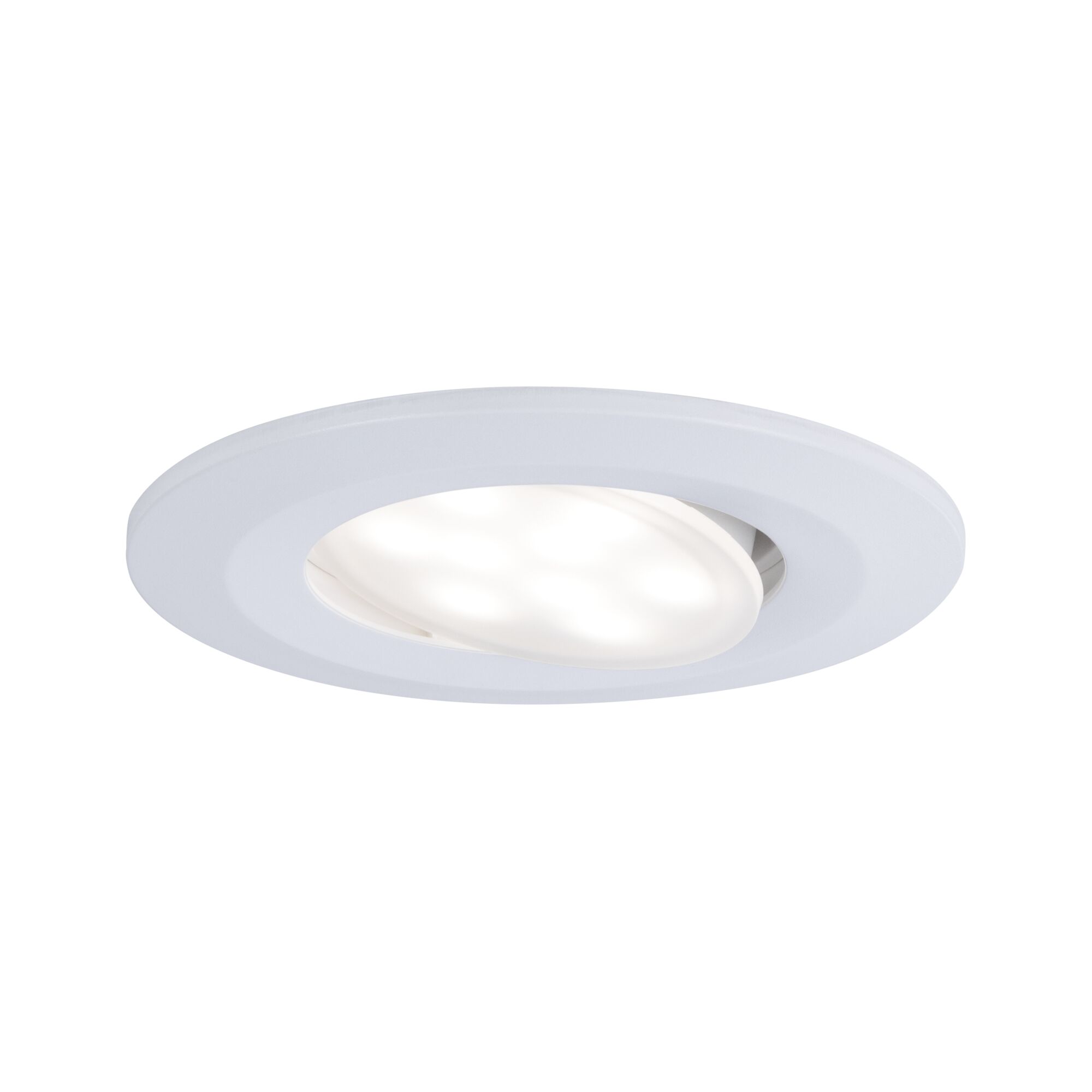

LED Recessed luminaire
Calla Basic Set Swivelling
IP65 round 90mm 30° 3x5W 3x400lm 230V White Switch Matt white
IP65 round 90mm 30° 3x5W 3x400lm 230V White Switch Matt white

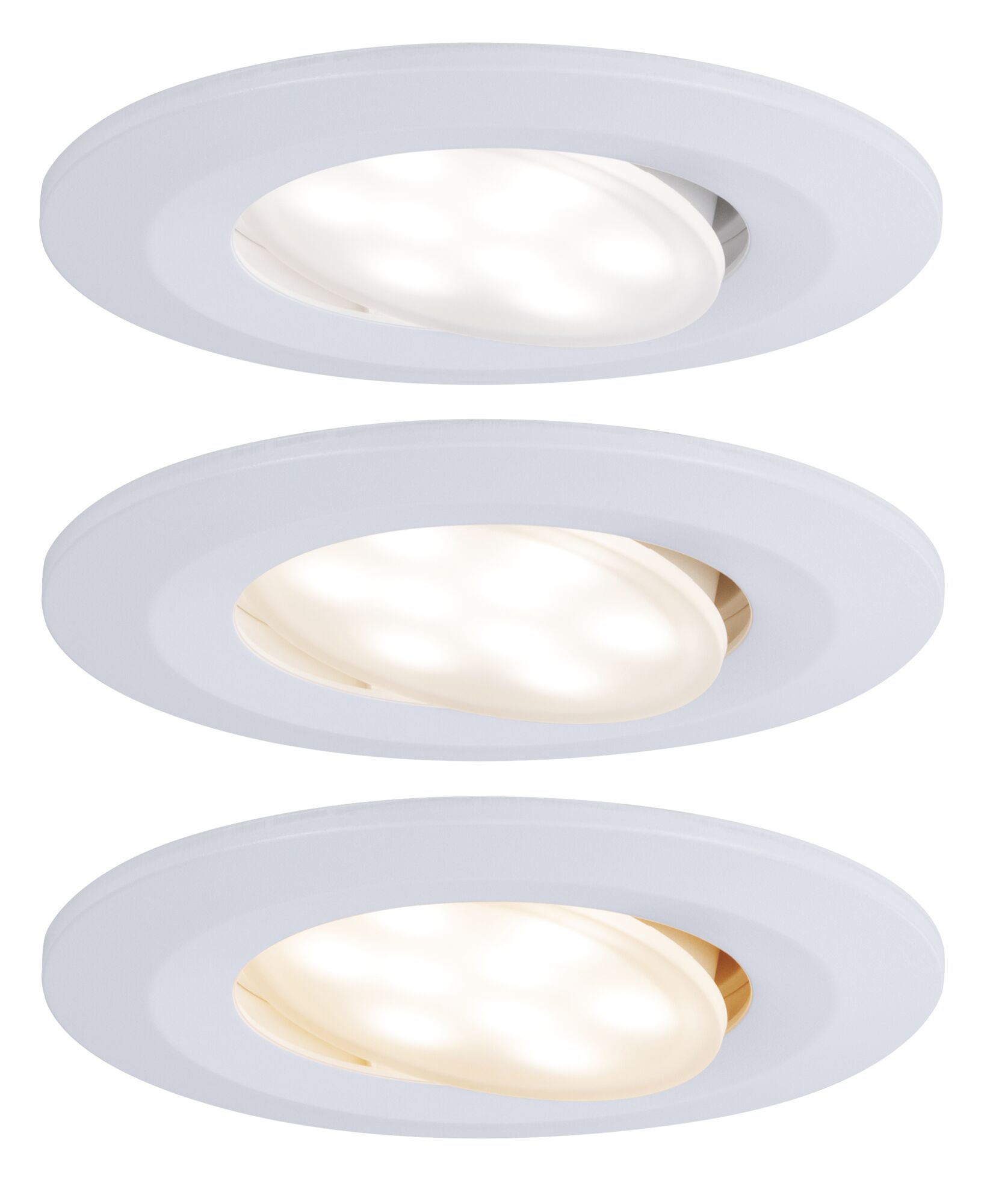

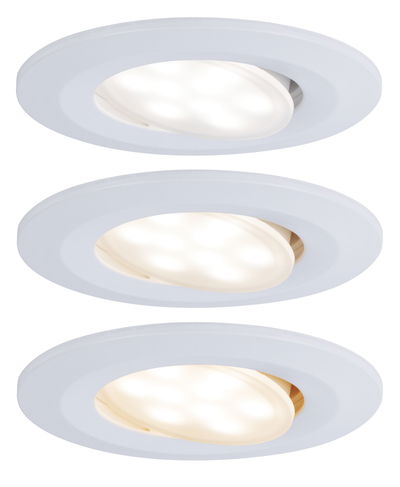

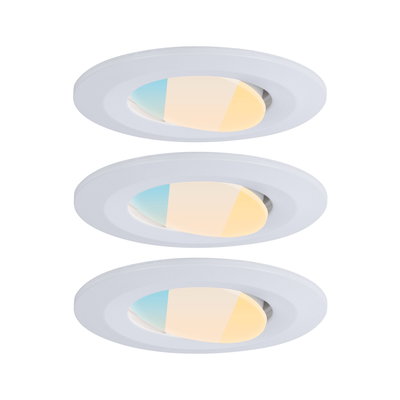

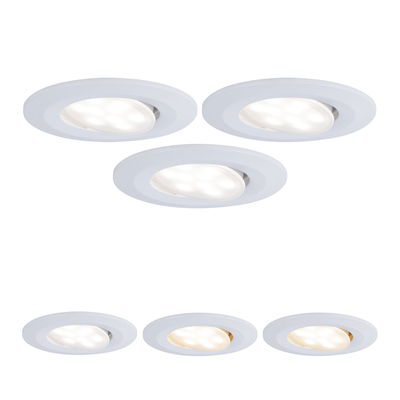

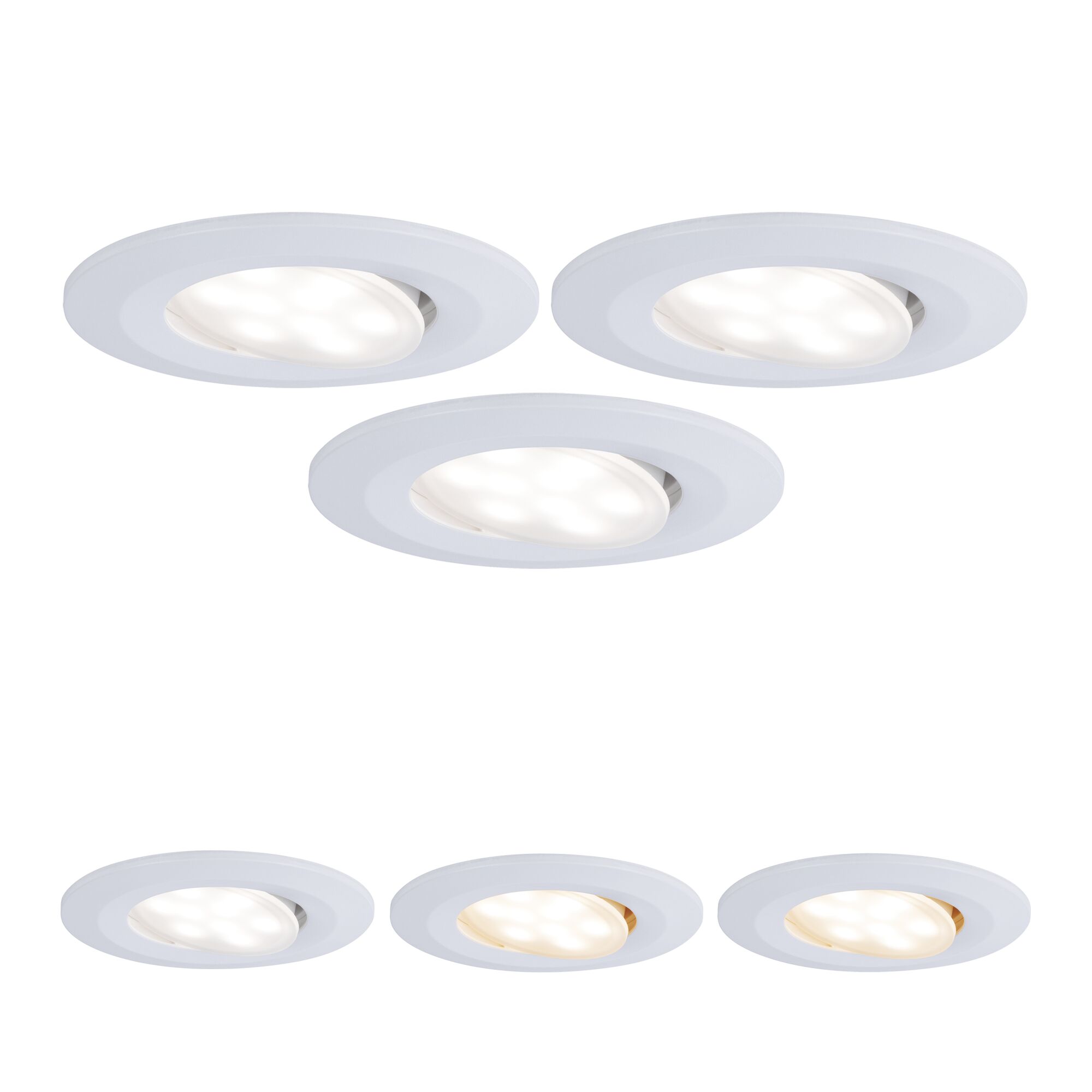

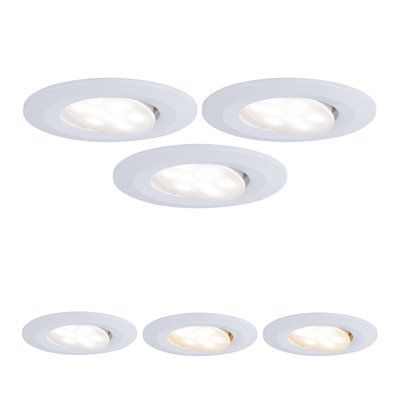

- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination
LED Recessed luminaire Calla Basic Set Swivelling IP65 round 90mm 30° 3x5W 3x400lm 230V White Switch Matt white

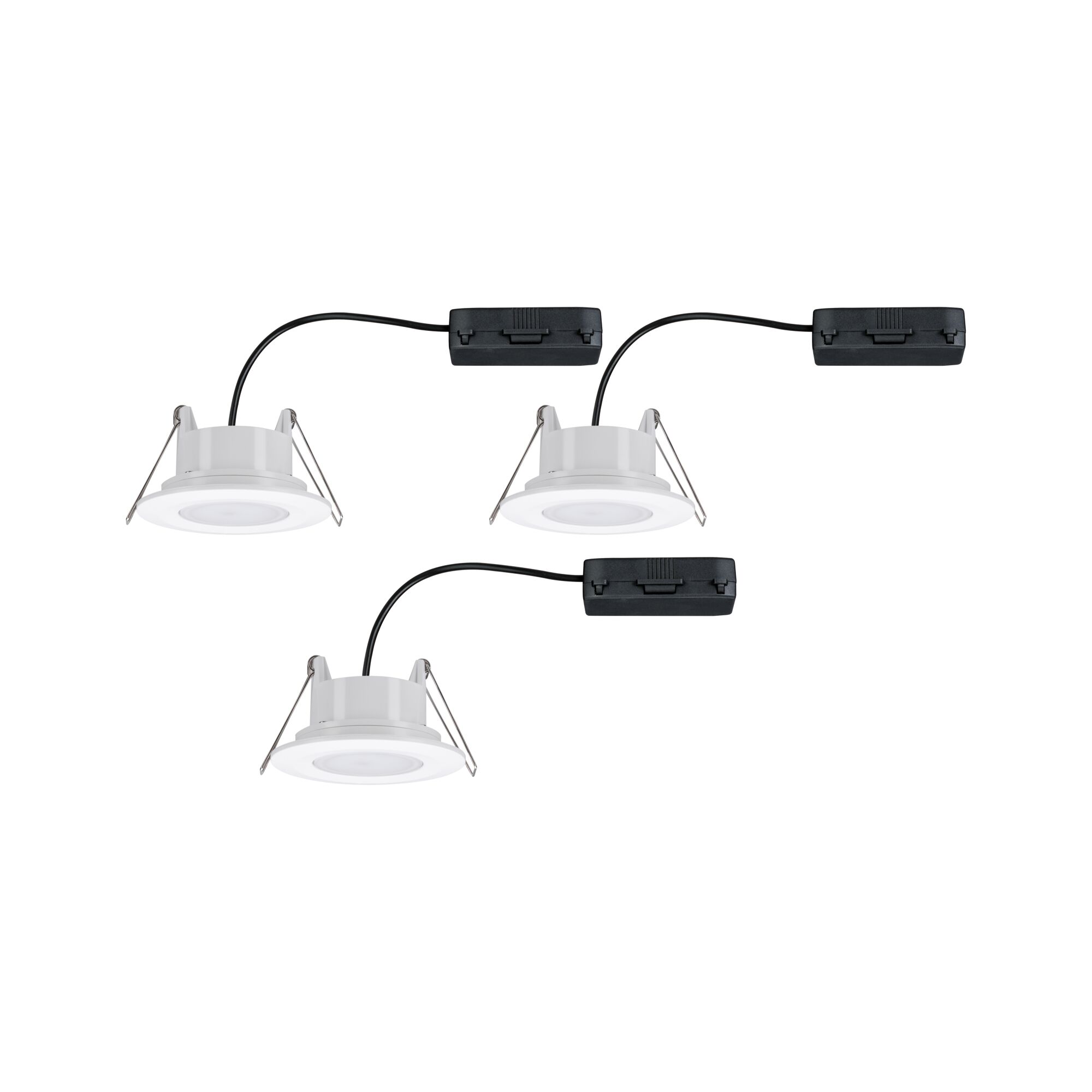

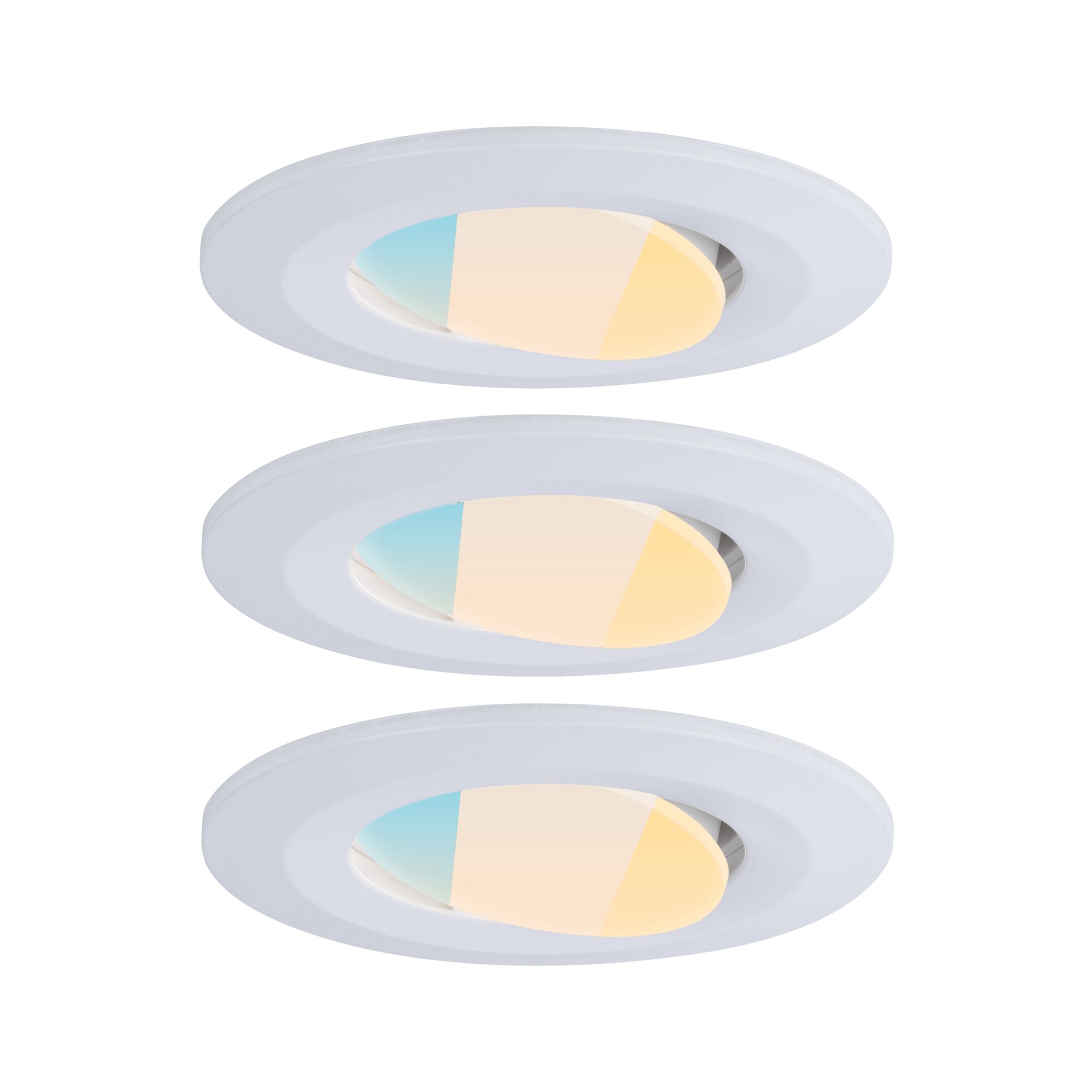

The recessed Calla spotlights 3x5W in Matt white, are glare-free recessed spotlights made of Plastic, which are suitable for new installations, as well as for the renewal of older installations. The luminaires can be interlinked very simply thanks to the 230 V direct mains connection. The scope of delivery includes WhiteSwitch lamps for three-step colour temperature adjustment that can be controlled by repeatedly pressing the wall switch.
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination

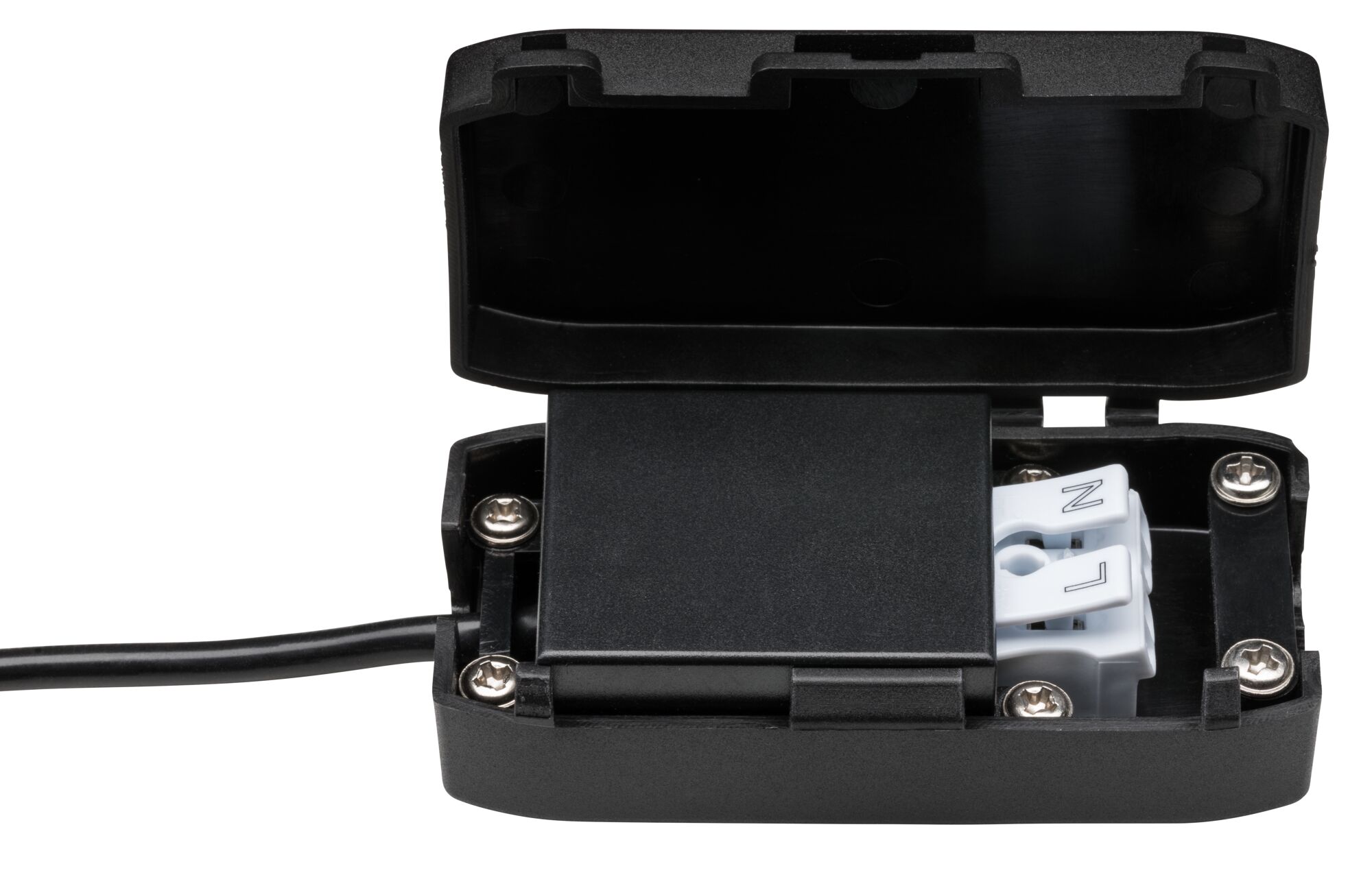

- For 230 V direct connection

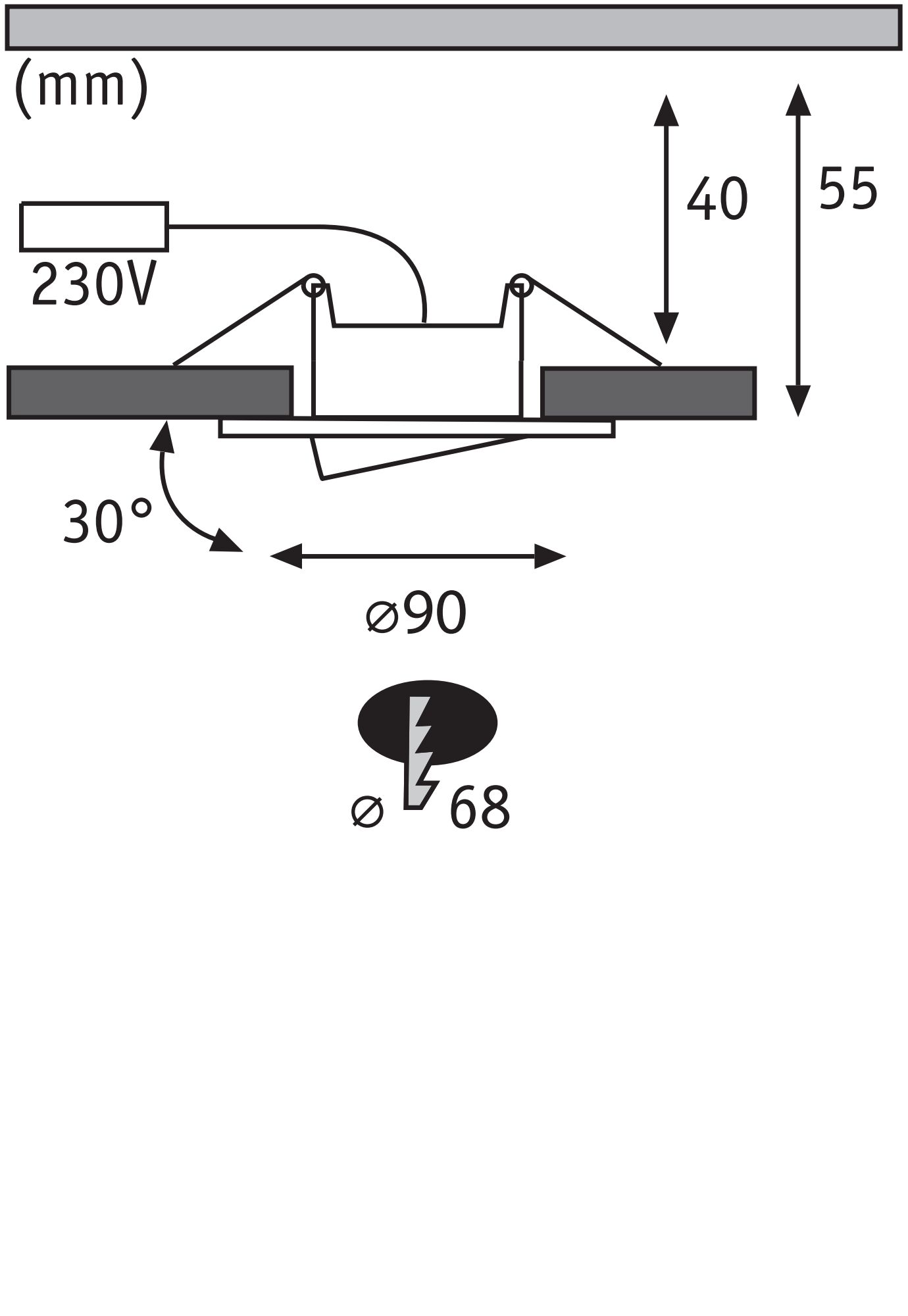

| Dimension | |
|---|---|
| Diameter | 90 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 55 mm |
| Depth of hollow wall | 40 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 400 lm |
| Luminous flux LED module | 550 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 100 ° |
| Colour change | White Switch |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Swivel range | 30 ° |
| Incandescent Equivalent | 45 W |
| IP protection | IP65 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 5 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 5 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 9 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
