Article-No.:
93086
LED Recessed luminaire3-Step-Dim
Turnal
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white

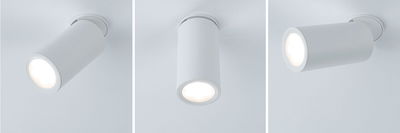

- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white

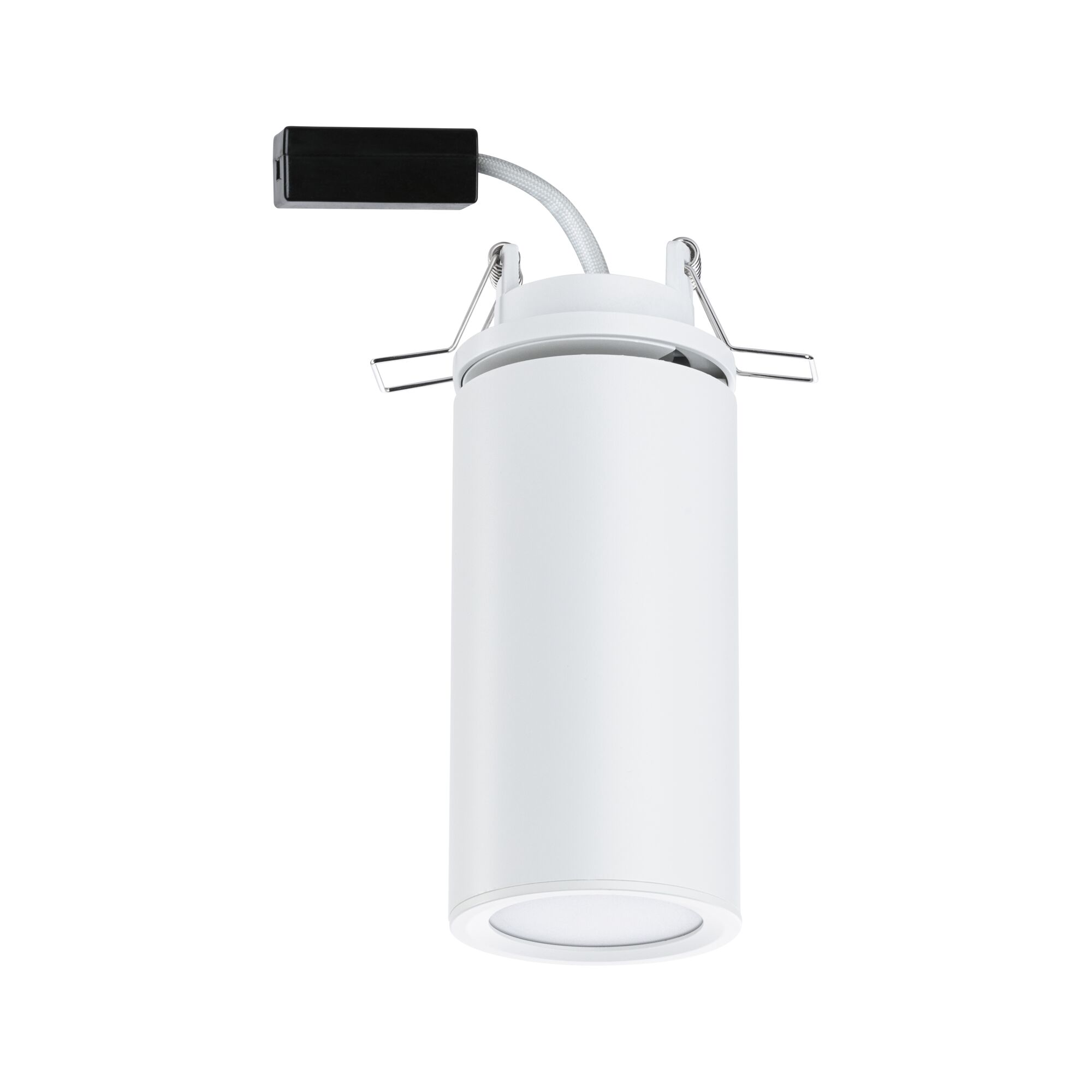

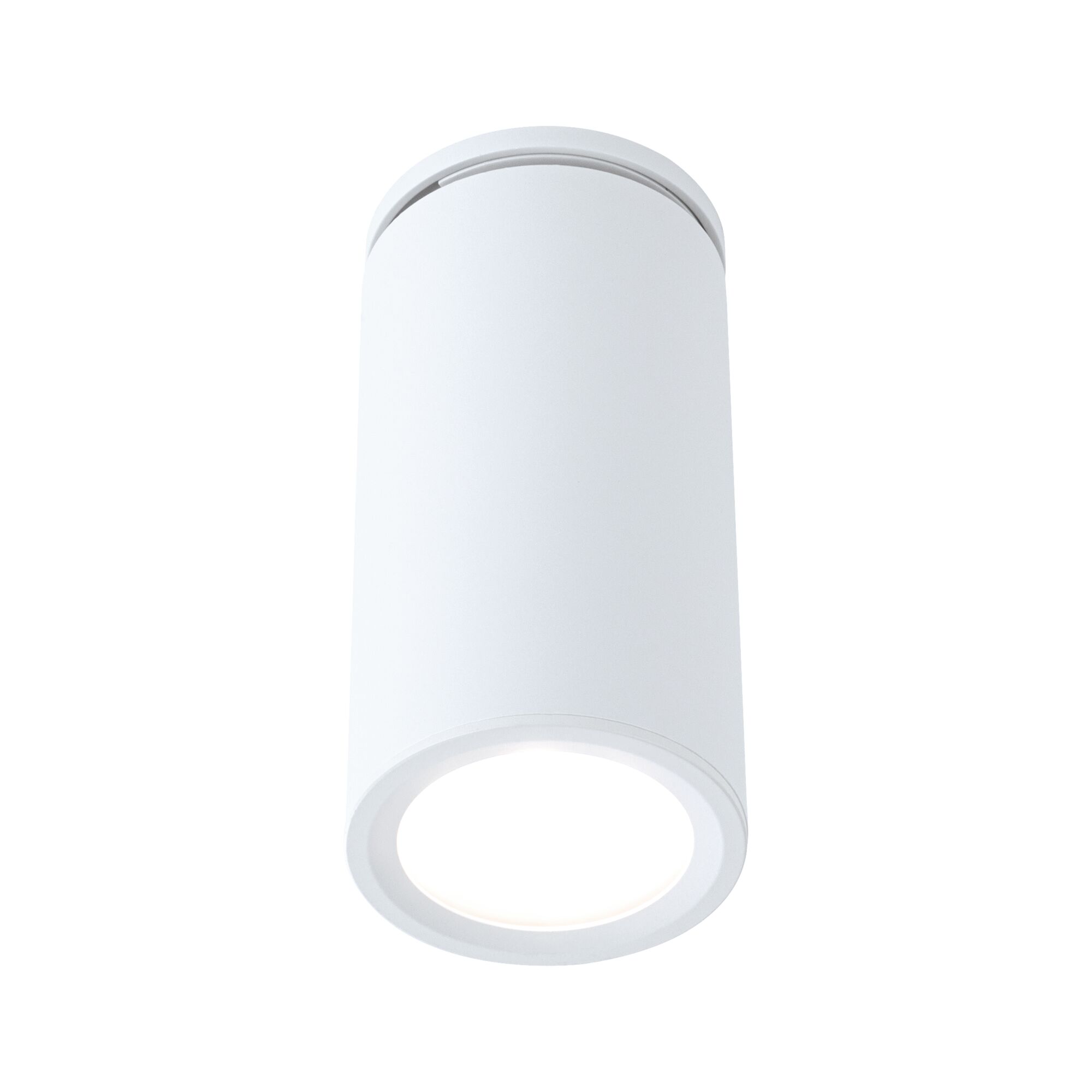

LED Recessed luminaire 3-Step-Dim Turnal round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white

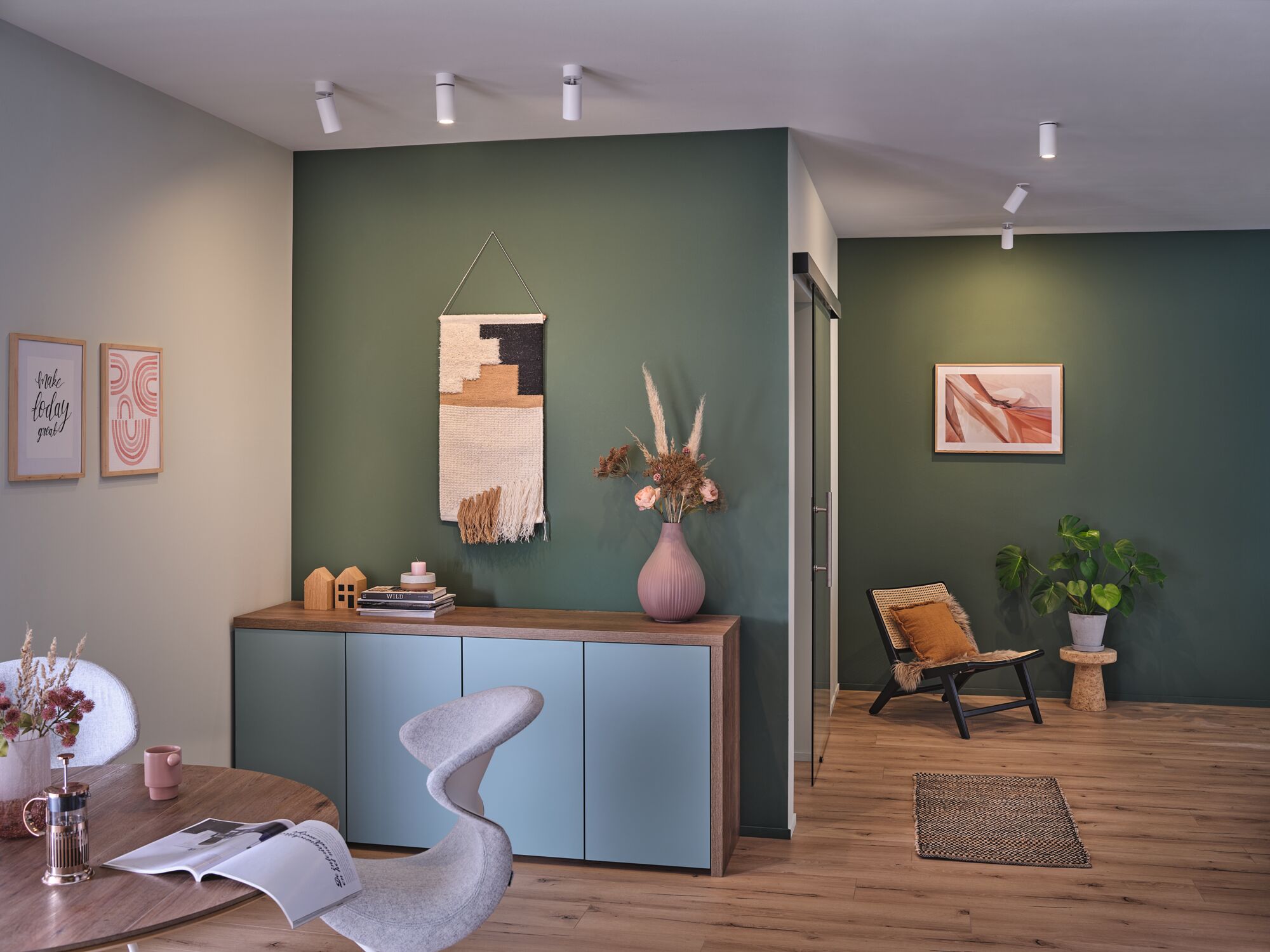

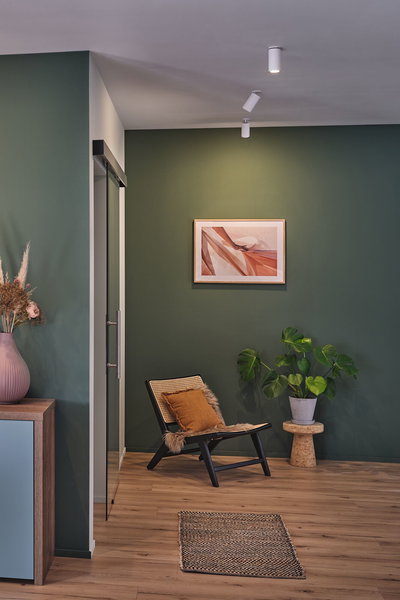

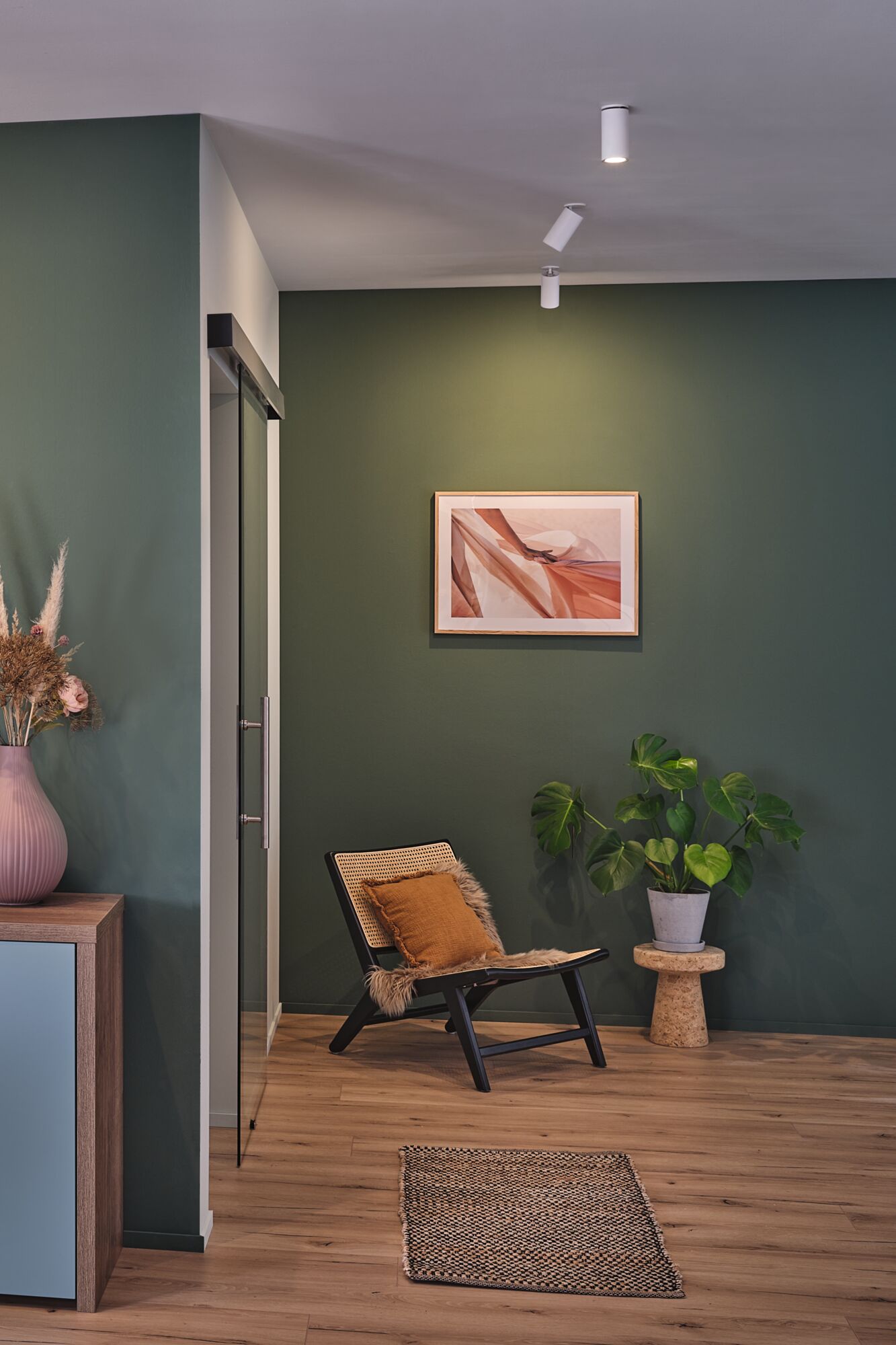

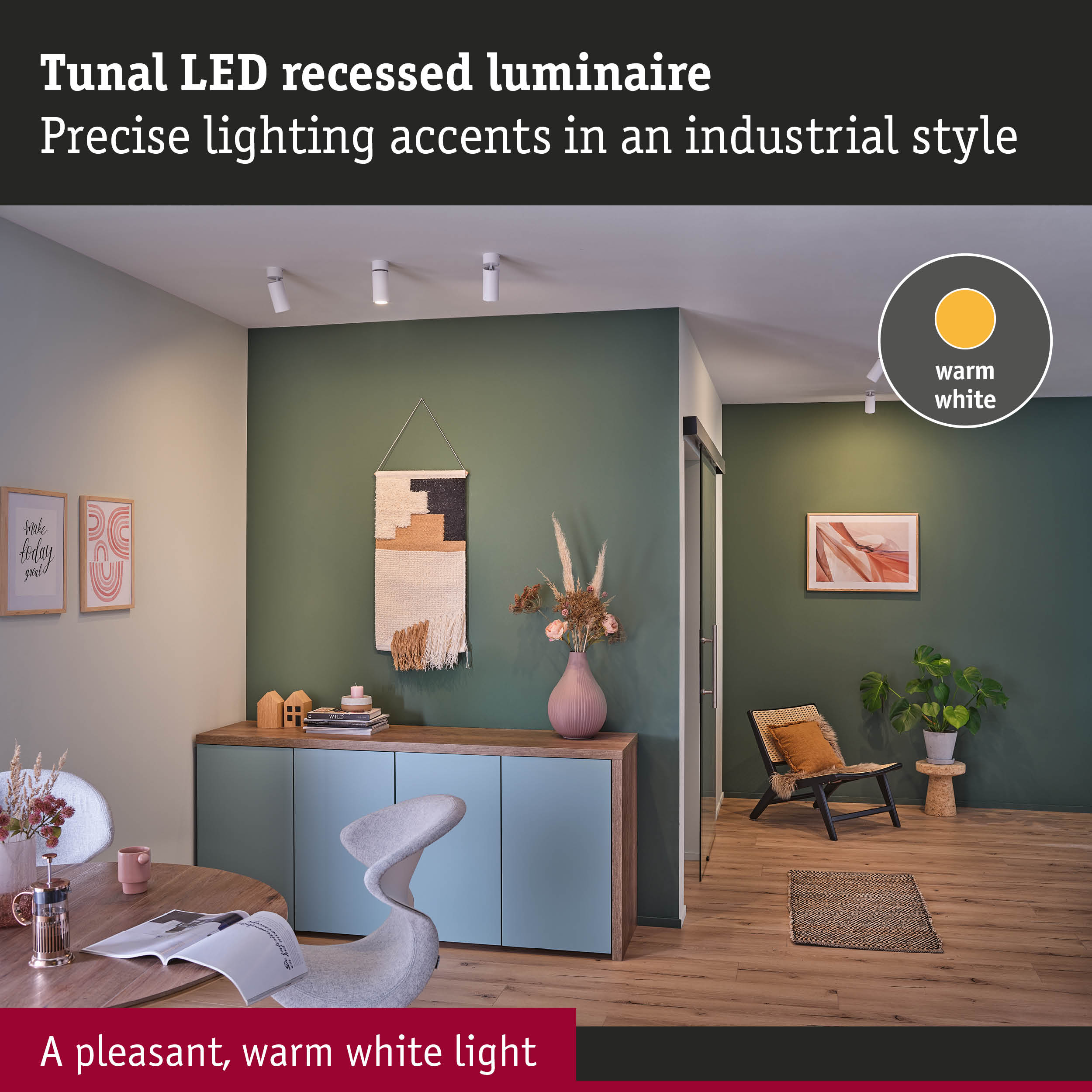

The white recessed luminaire set Turnal Coin in an industrial look provides targeted illumination of zones and objects in your living space. With its simple design, the luminaire fits in with any interior style and can be flexibly aligned using its rotating and swivelling function to highlight your favourite decorative features.

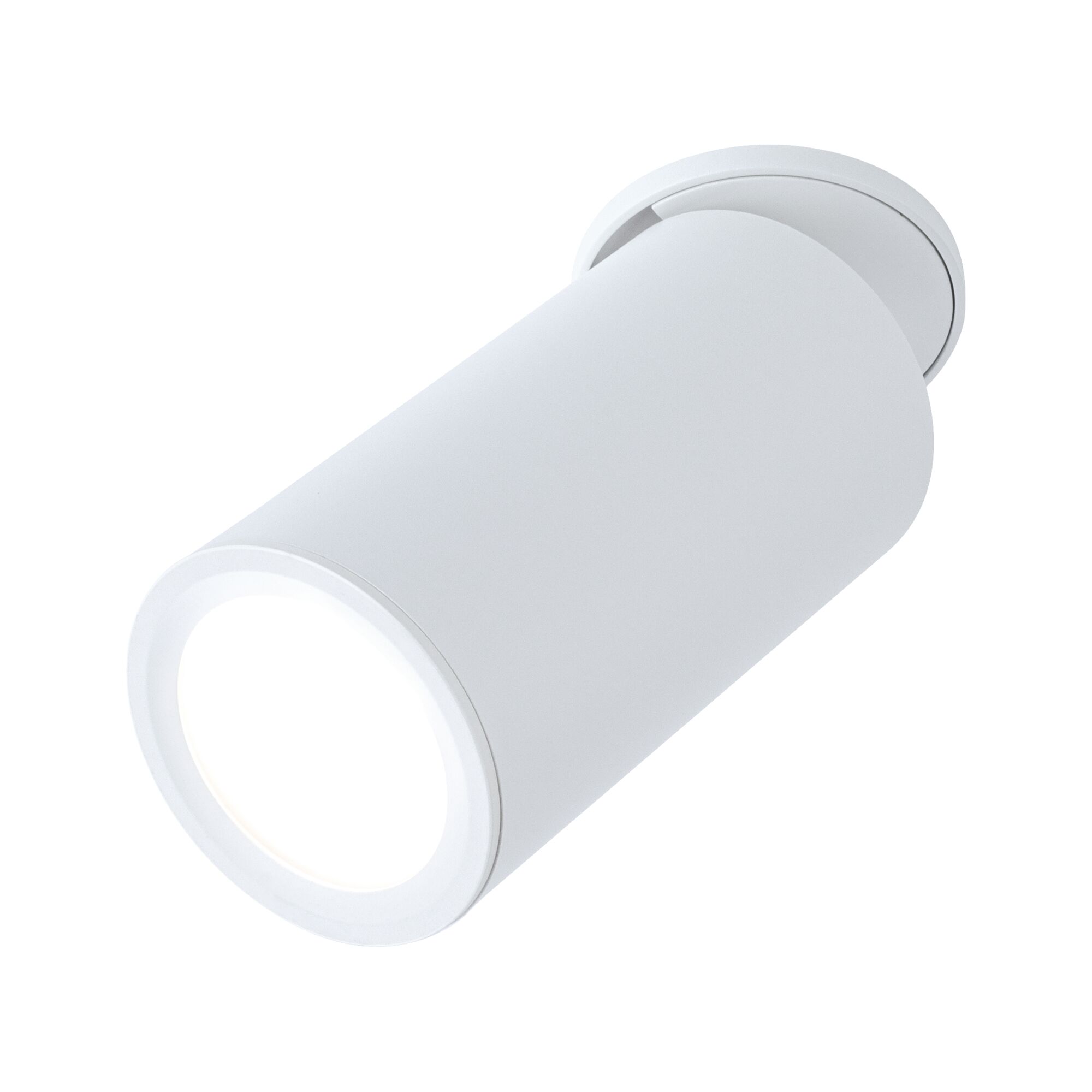

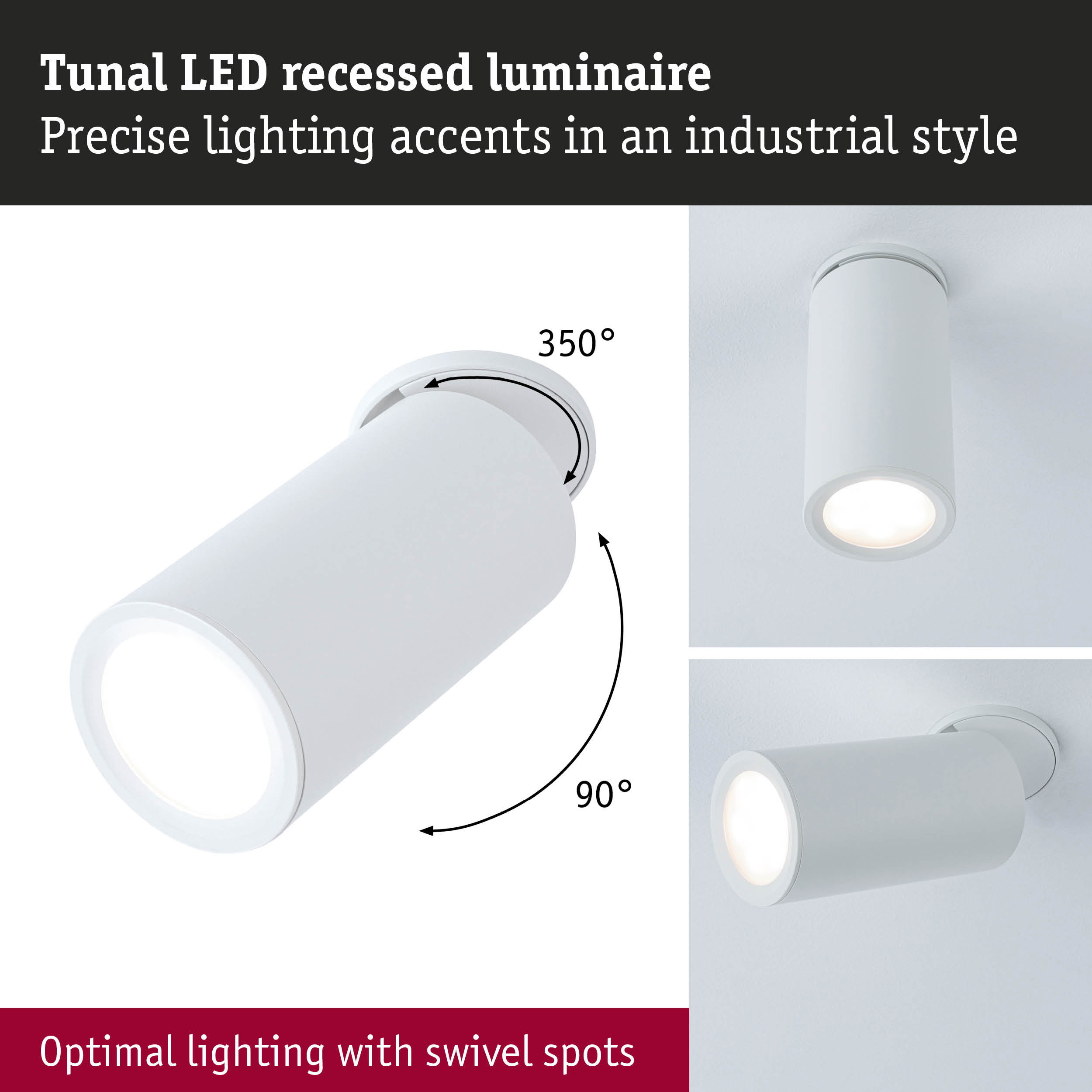

- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white

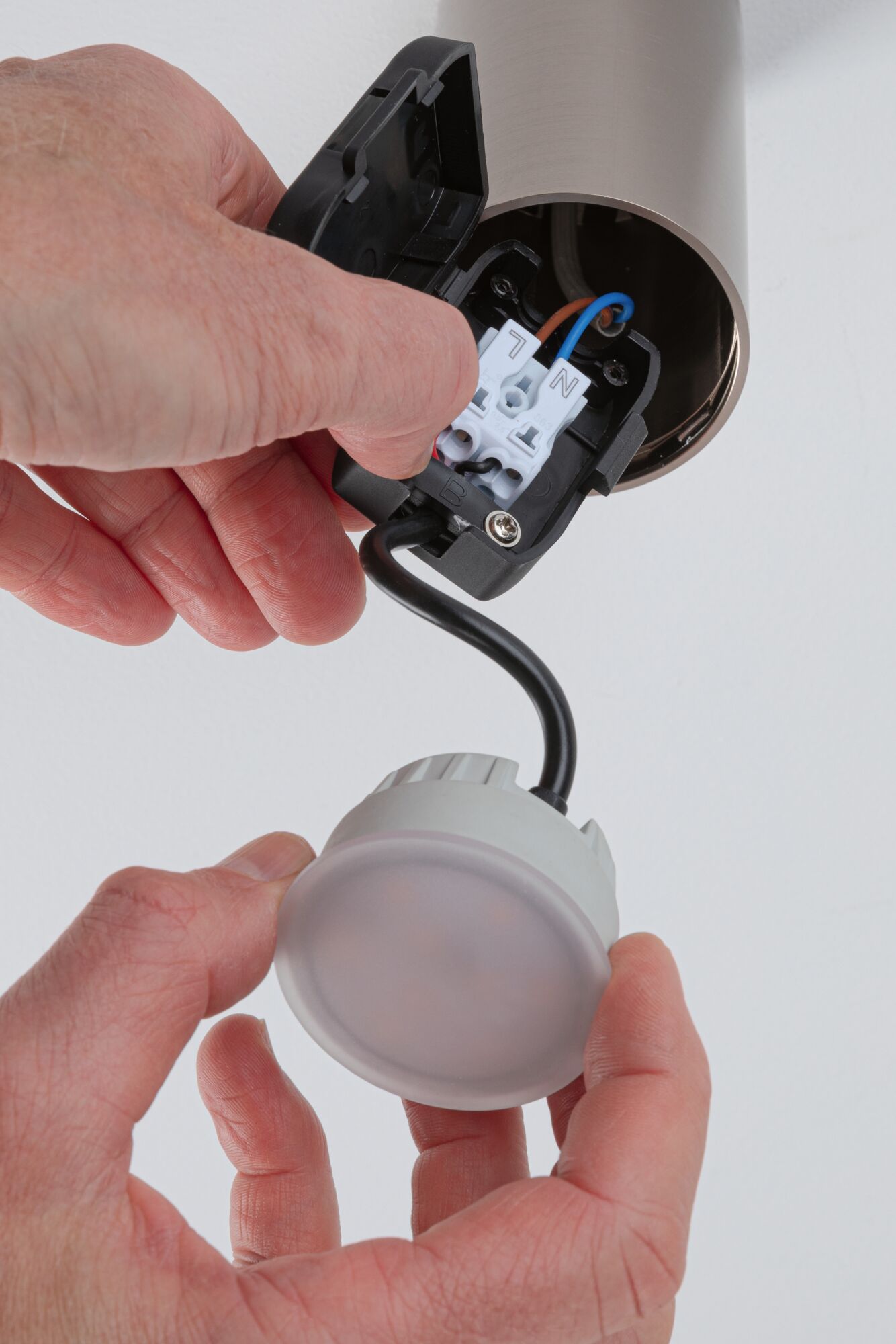

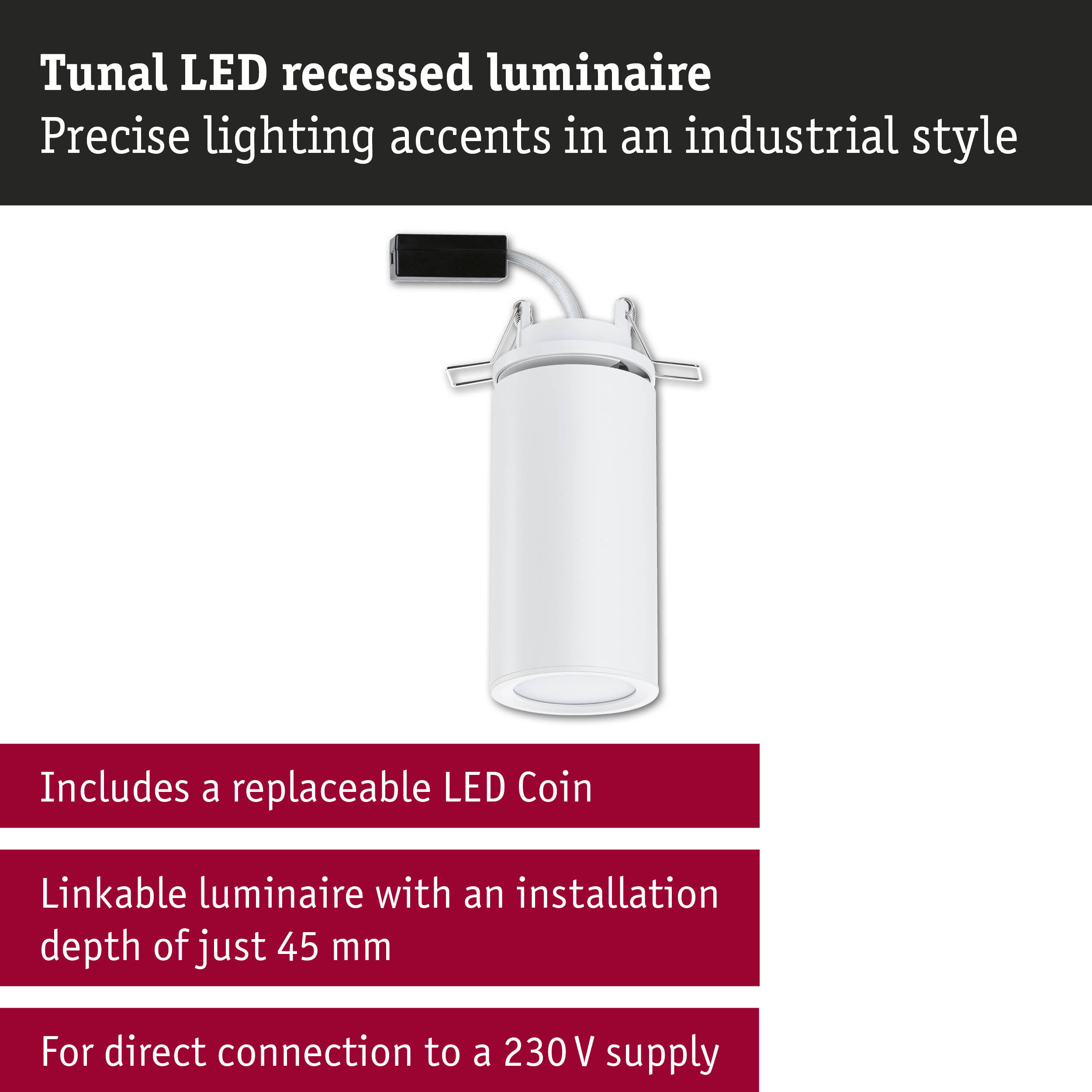

- Incl. replaceable LED lamp

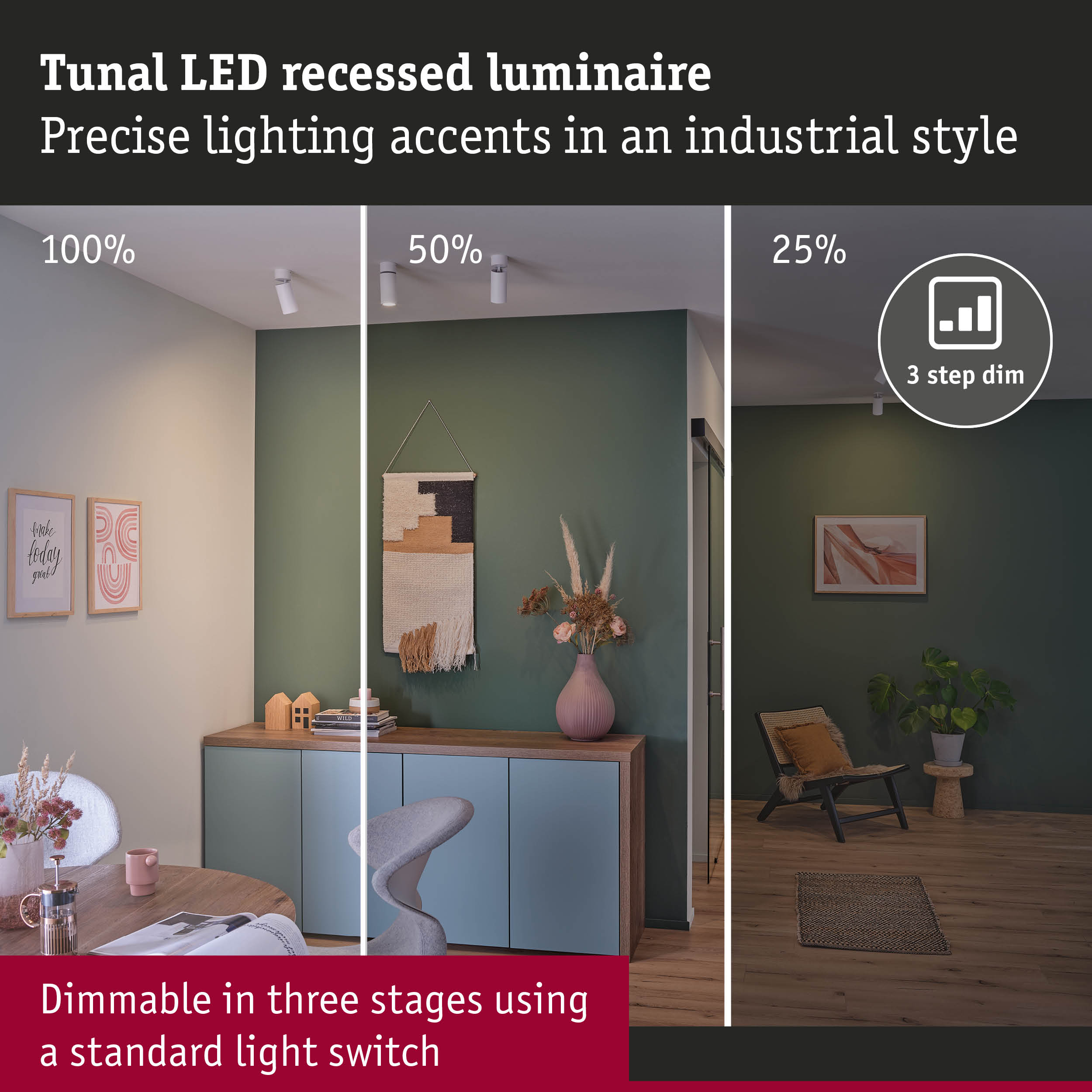

- 3 brightness levels

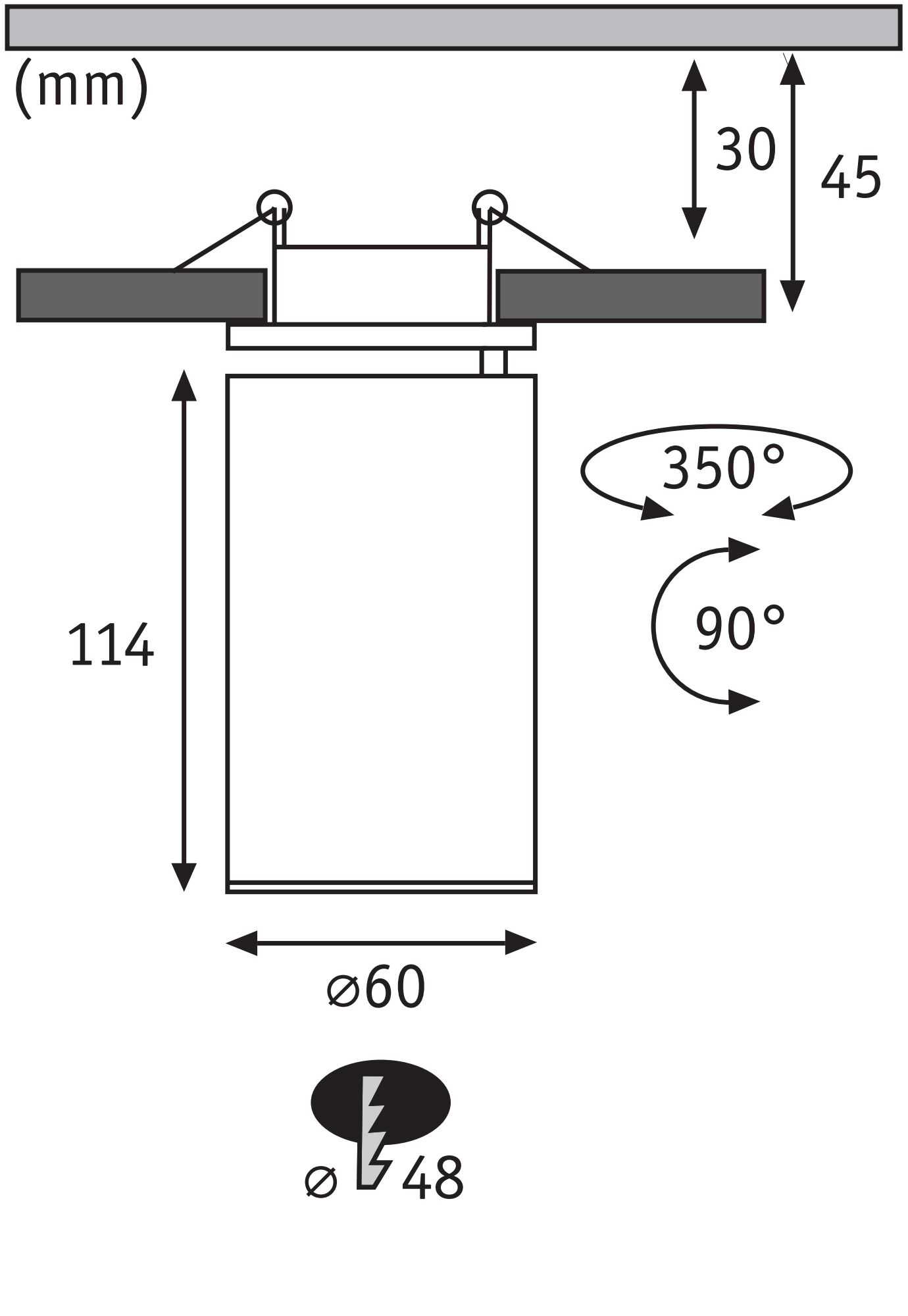

| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | H: 115 mm |
| Ø | 60 mm |
| Mounting hole | 48 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy consumption | 7 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Colour consistency (SDCM) | 6 |
| Beam angle LED module | 100 ° |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 90 ° |
| Technique | LED |
| Socket | Coin |
| Dim | dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |

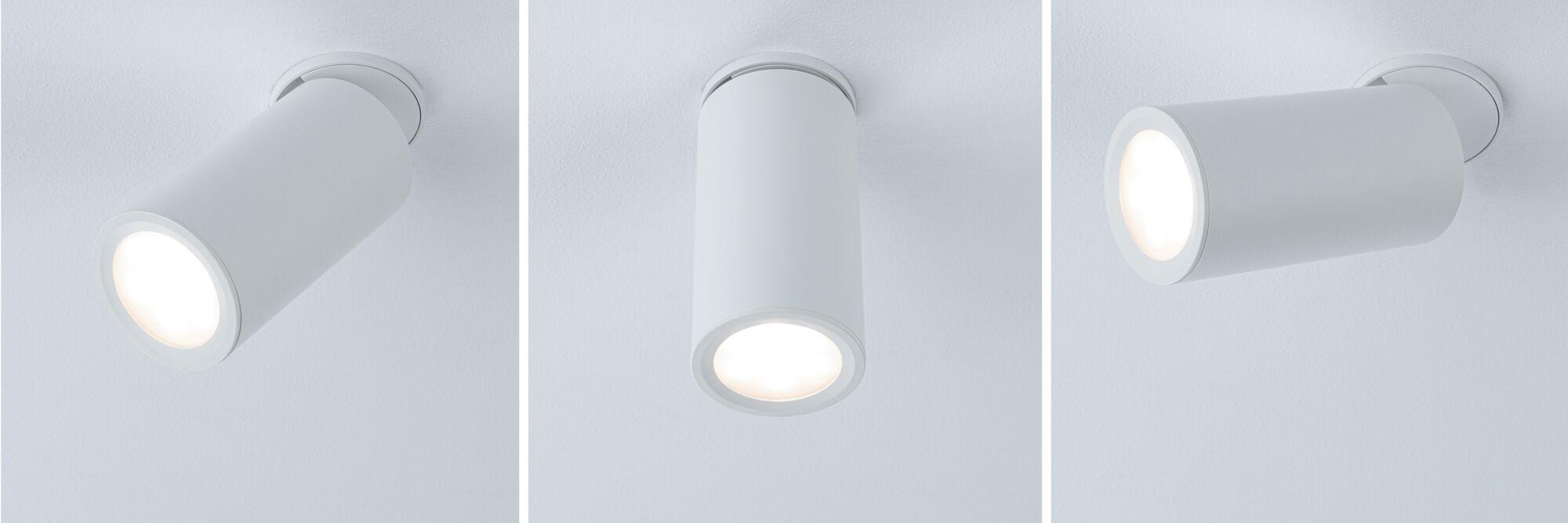

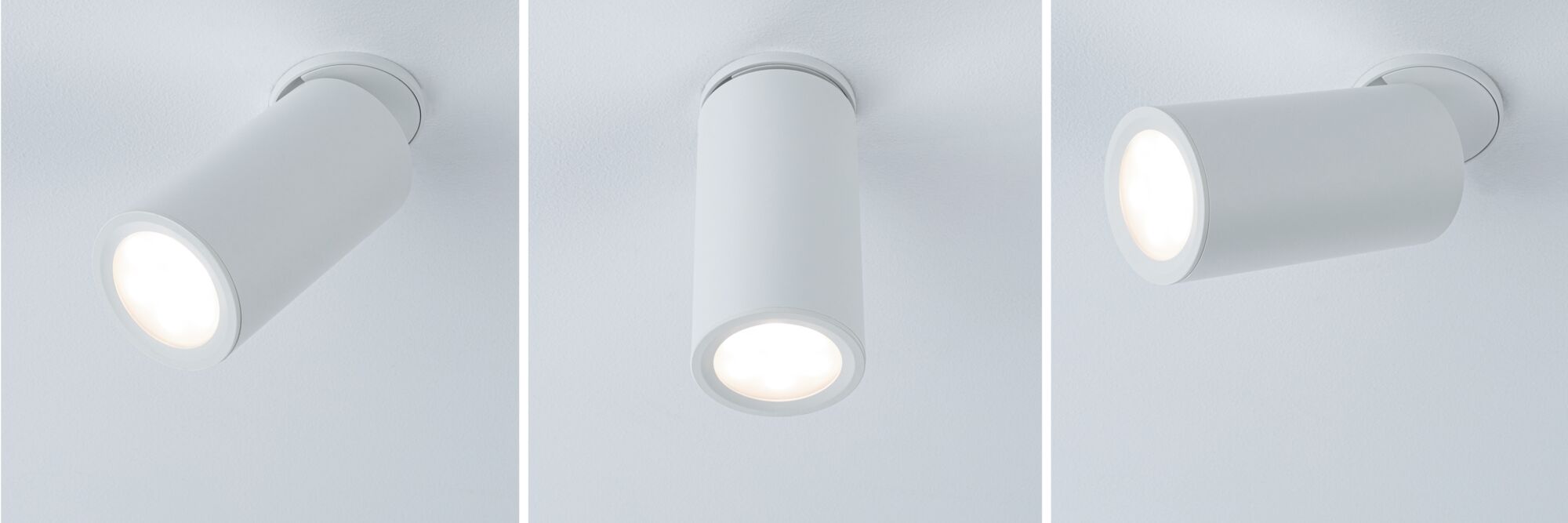

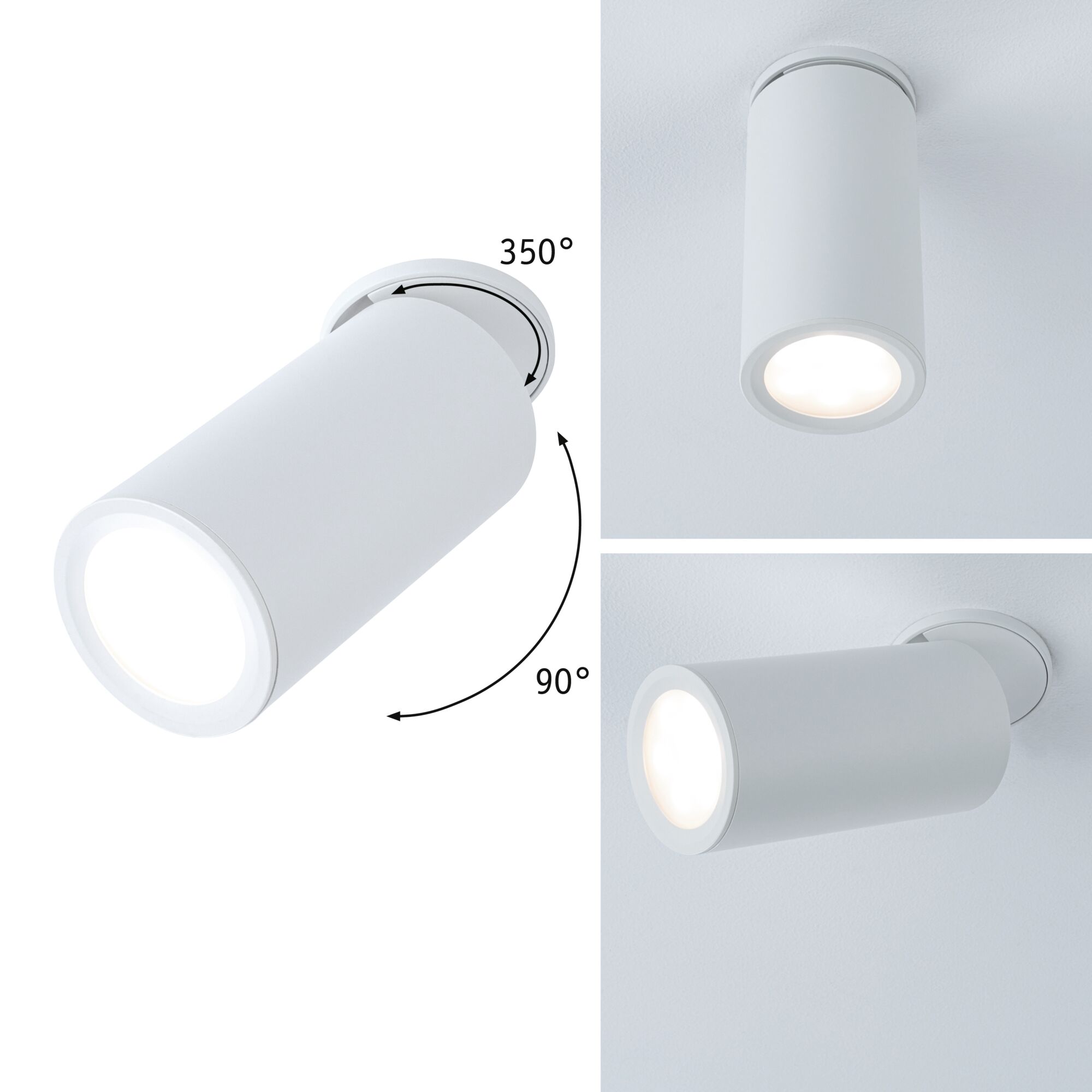

| Adjustability | rotating and tilting |
| Dimmable | Yes |
| IP protection | IP20 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 6 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads

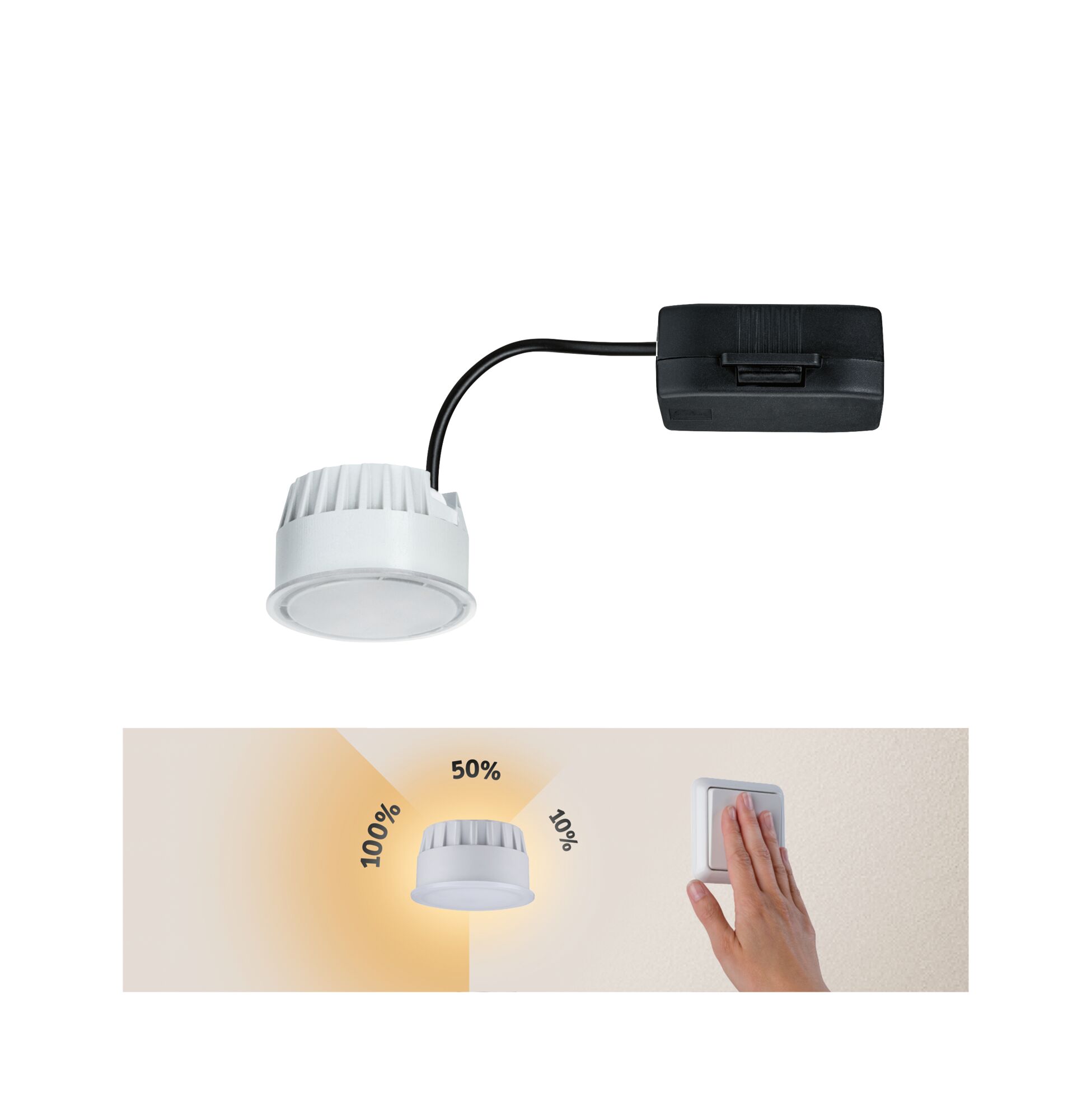

- LED Module recessed luminaire
