Article-No.:
93406

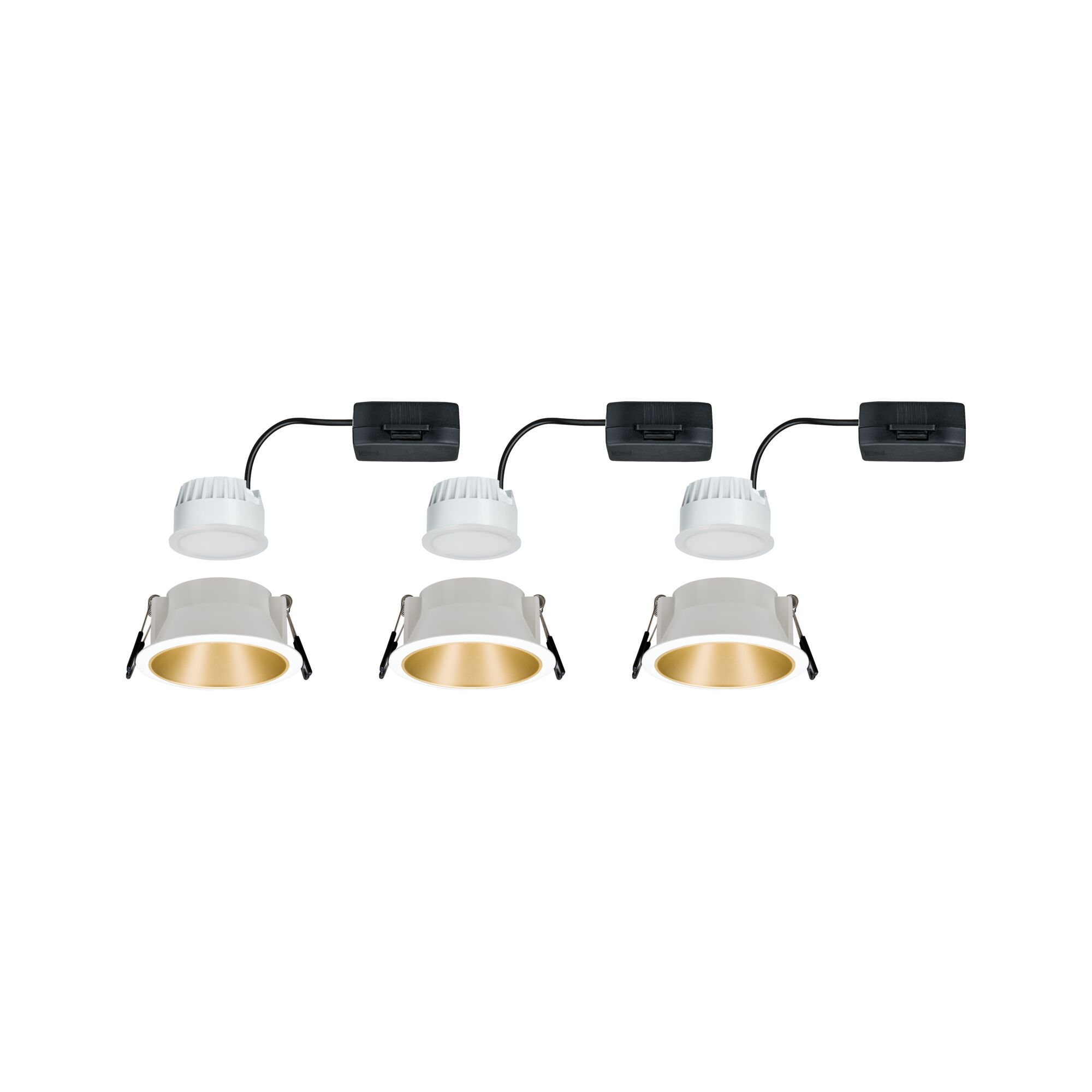

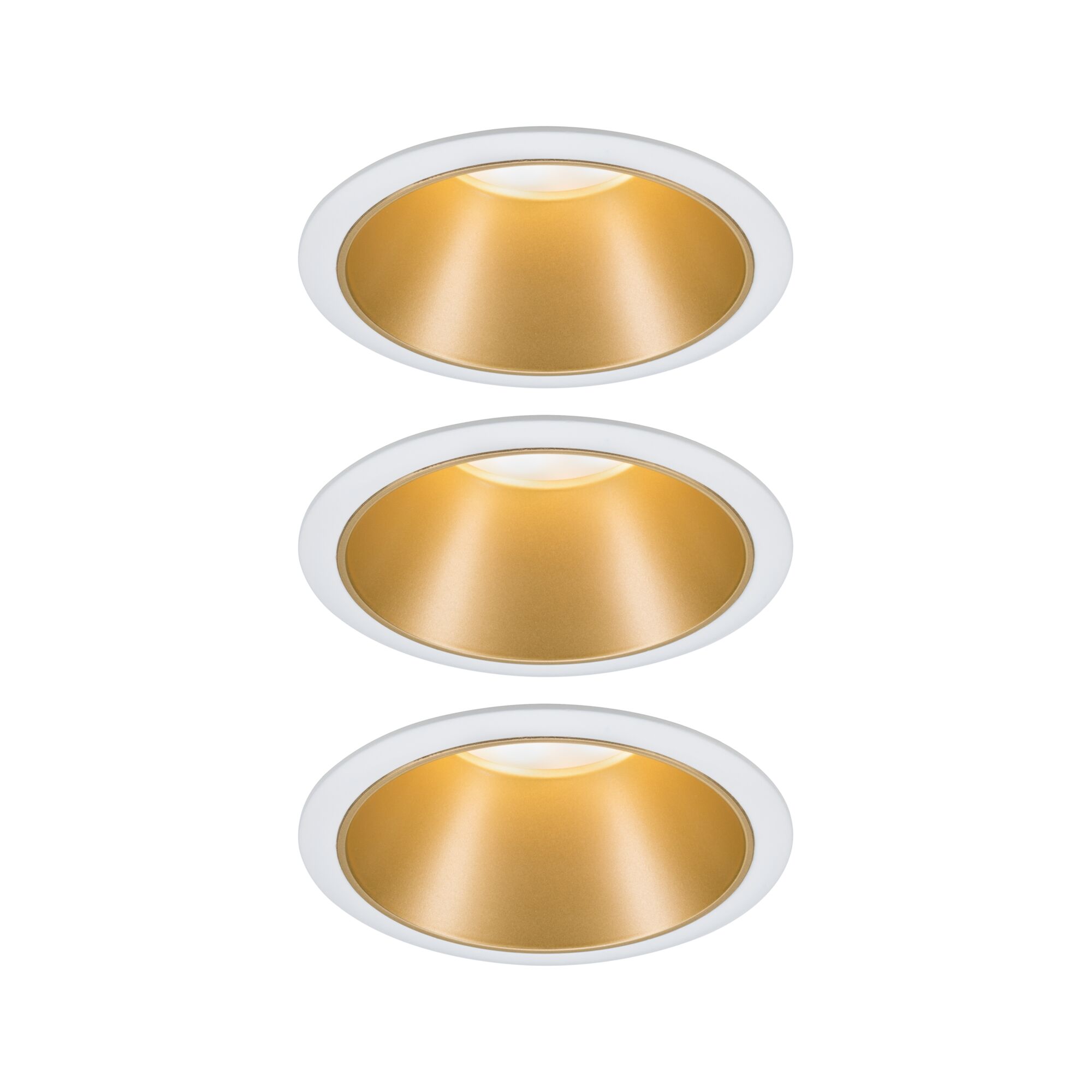

LED Recessed luminaire3-Step-Dim
Cole Coin 3-piece set
IP44 round 88mm Coin 3x6W 3x460lm 230V dimmable 2700K White/Gold matt
IP44 round 88mm Coin 3x6W 3x460lm 230V dimmable 2700K White/Gold matt
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp

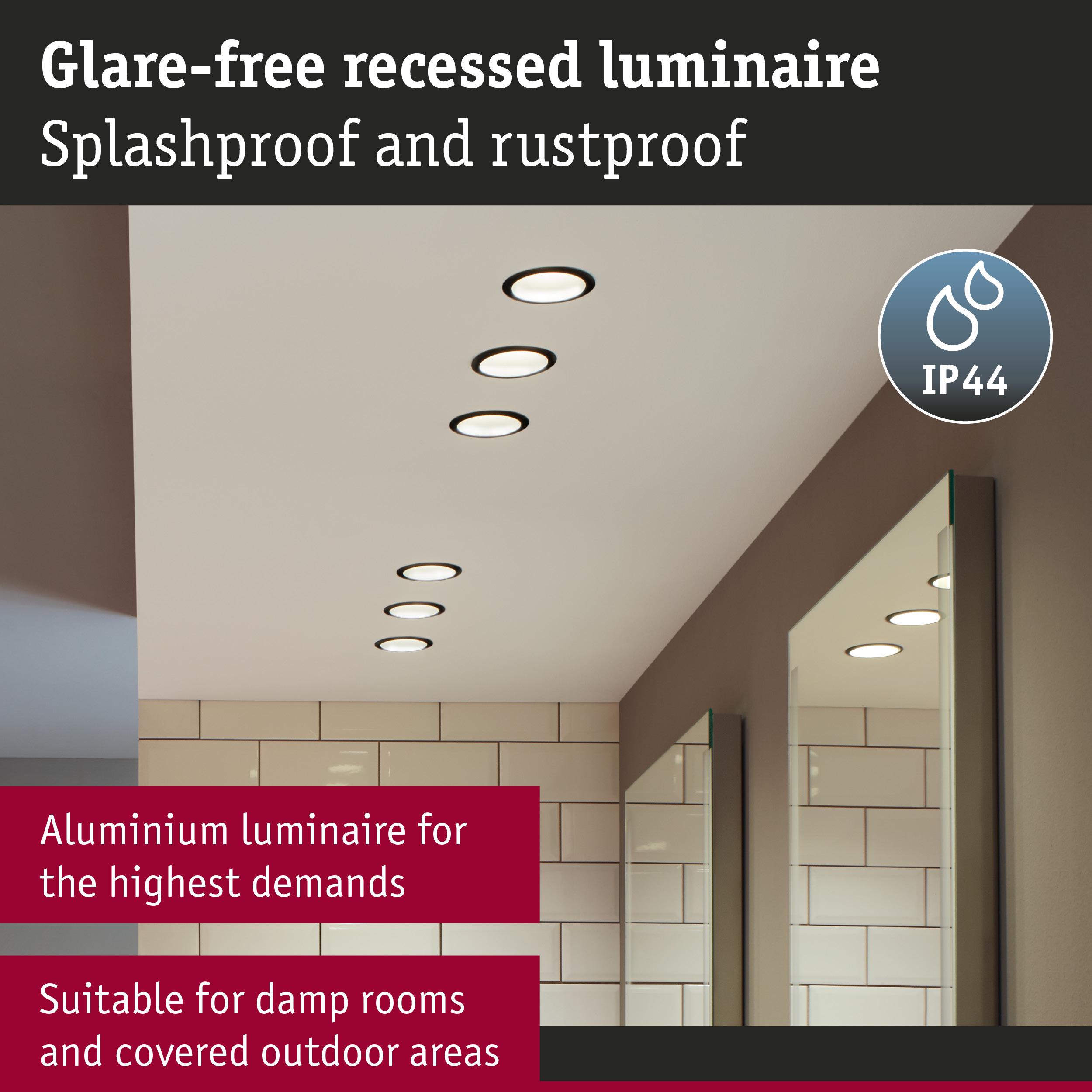

- IP protection: IP44 splash-protected
LED Recessed luminaire 3-Step-Dim Cole Coin 3-piece set IP44 round 88mm Coin 3x6W 3x460lm 230V dimmable 2700K White/Gold matt

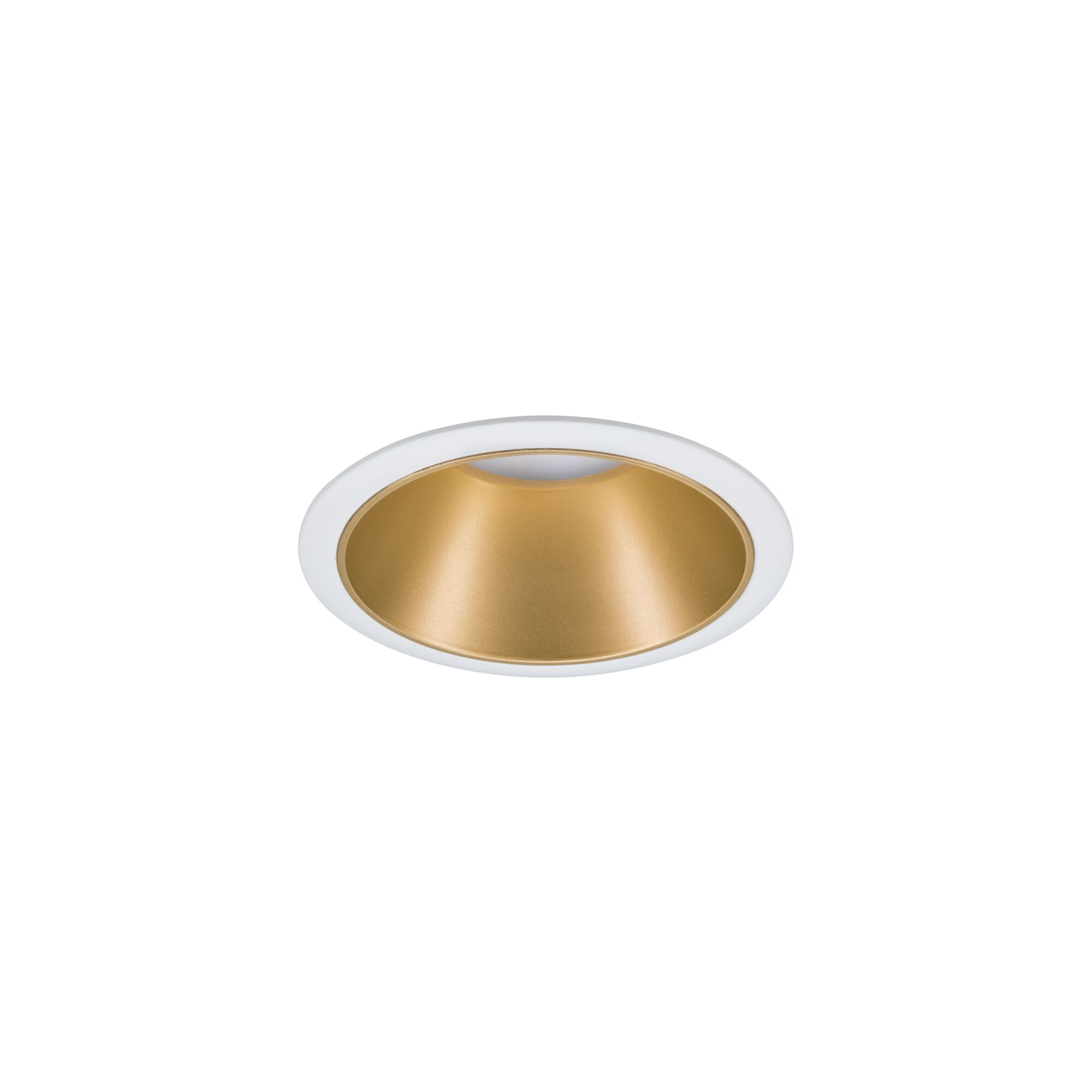

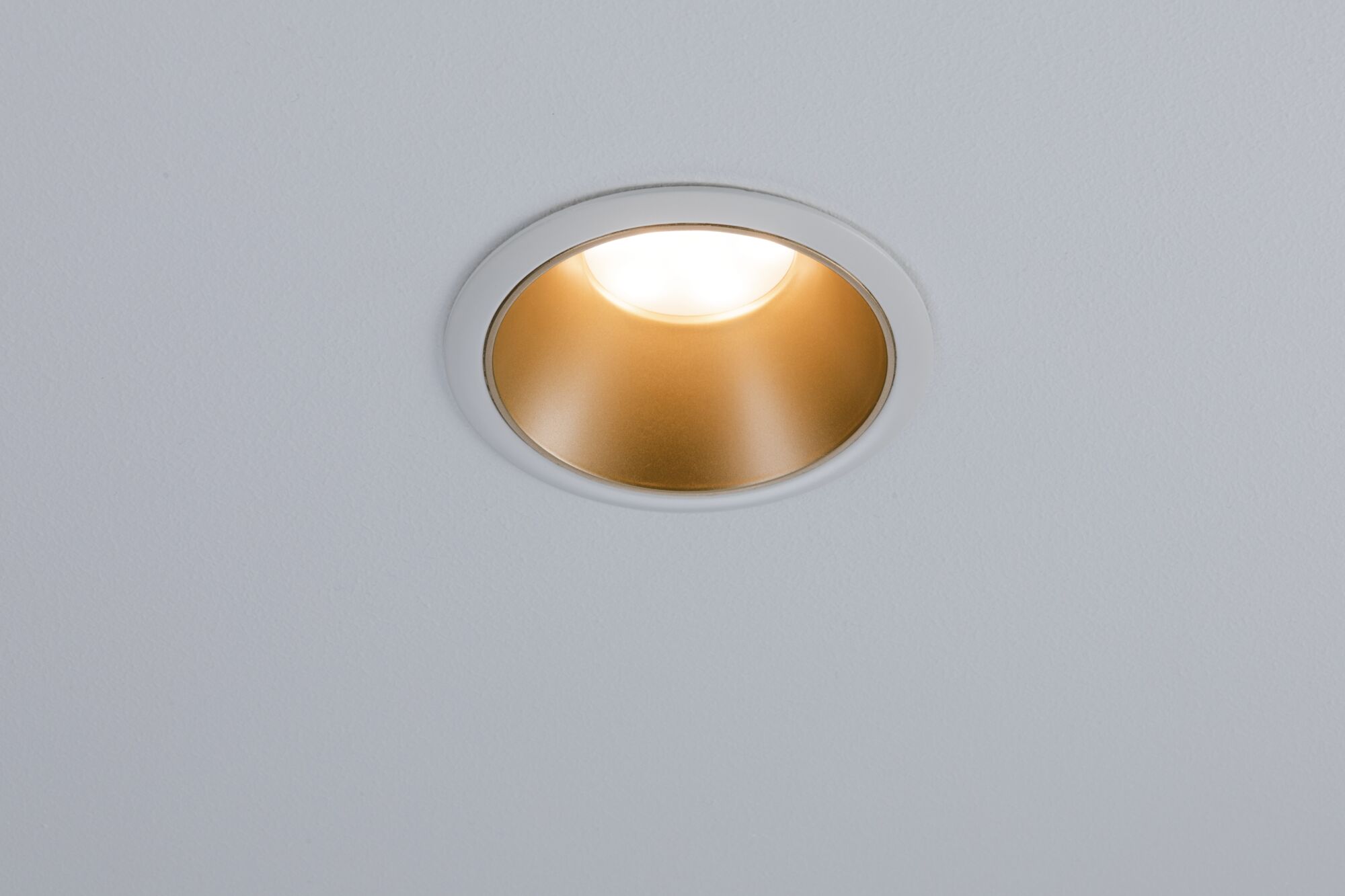

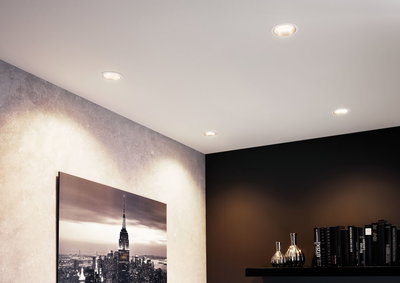

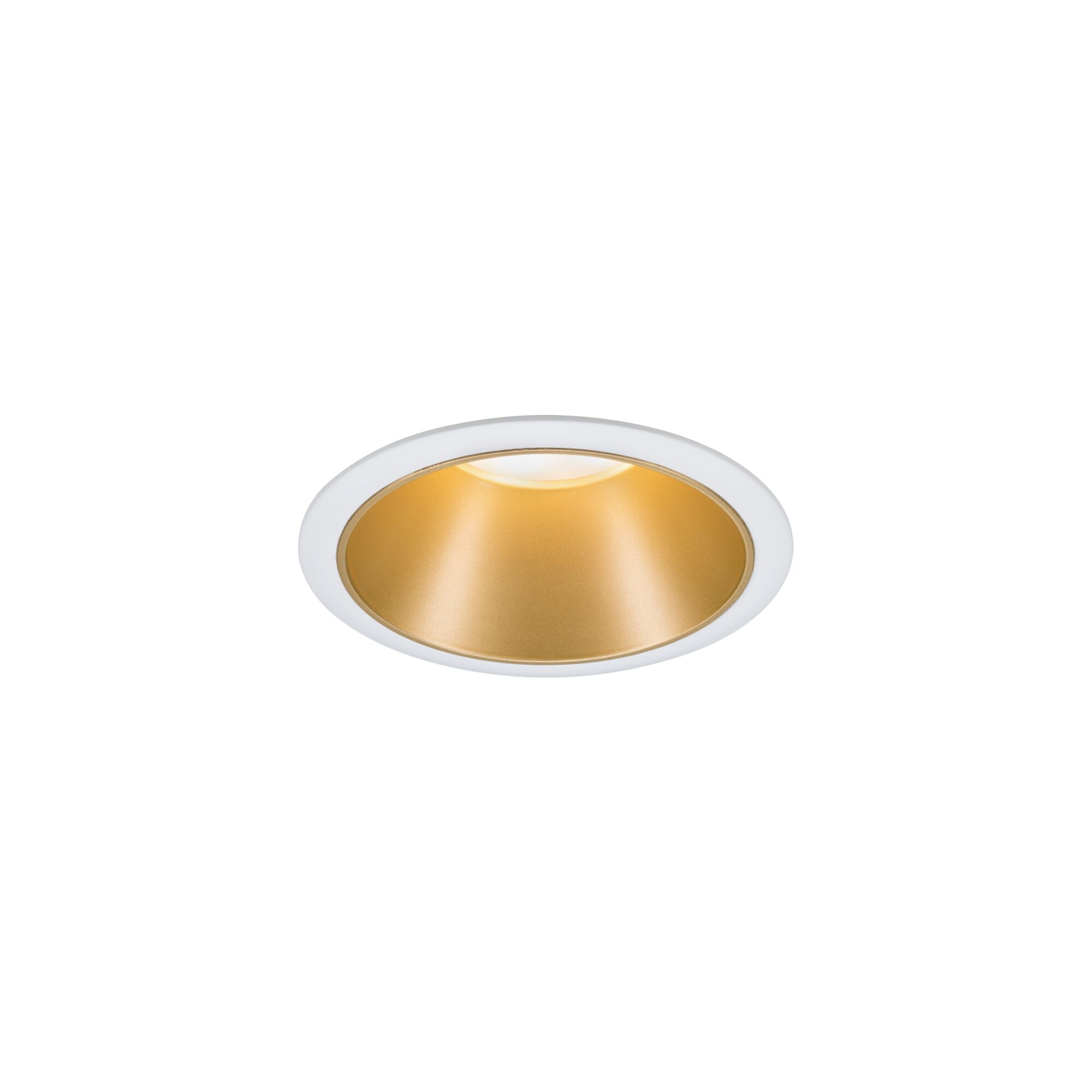

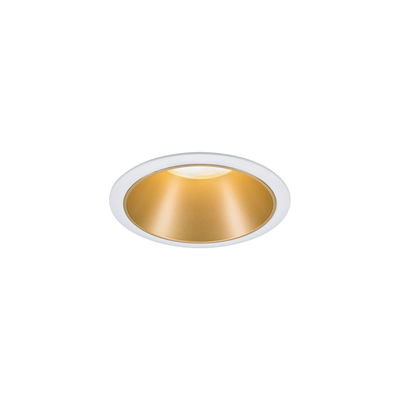

Love at second glance! The recessed luminaires Cole in white/gold blend almost seamlessly into the ceiling, thanks to the recessed lamps. Once you have spotted it though, you can hardly take your eyes off it. The light of the recessed coins on the matt gold surface provides soft, glare-free lighting. What’s more, they feature brilliant technology: The replaceable LED coins provide pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- IP protection: IP44 splash-protected

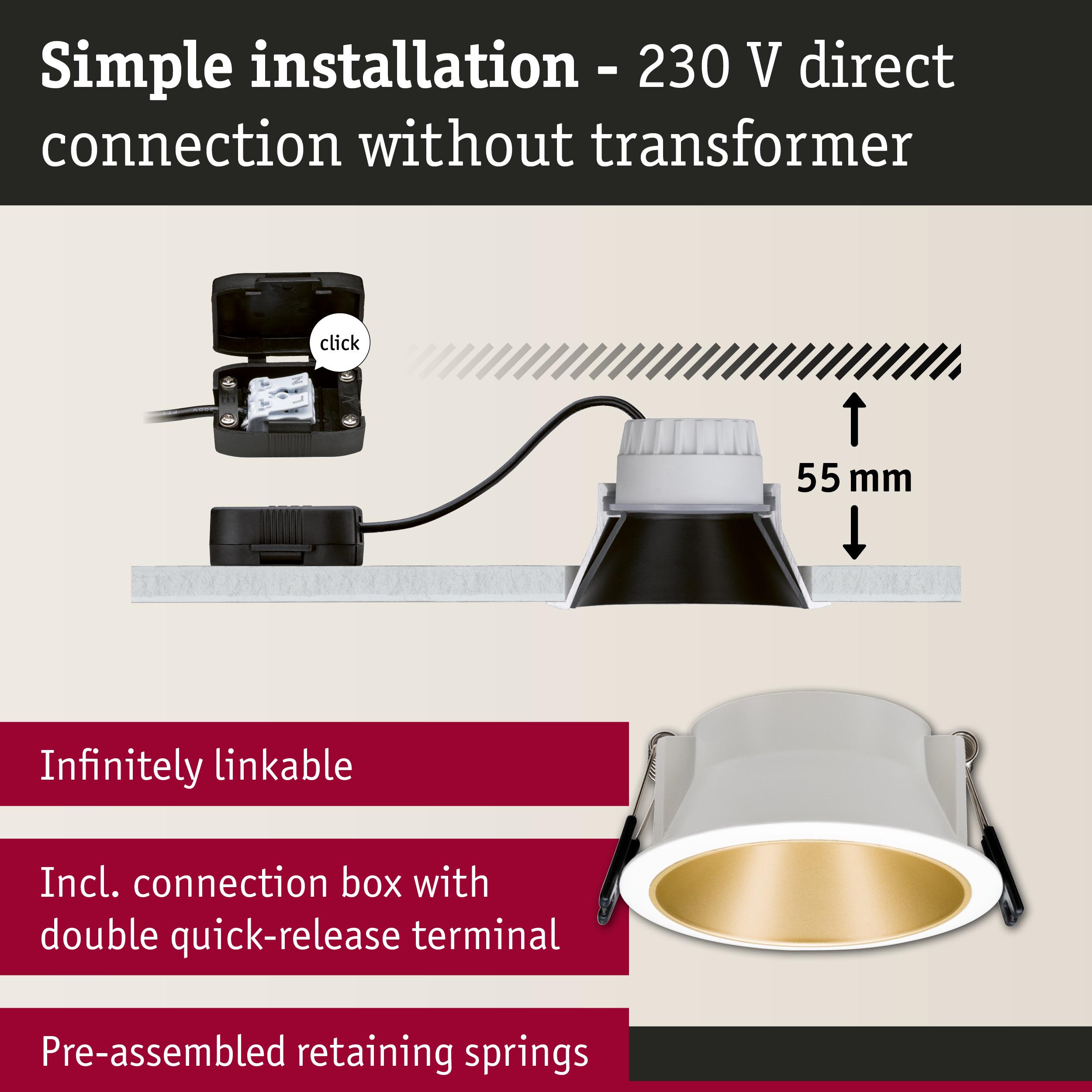

- For 230 V direct connection

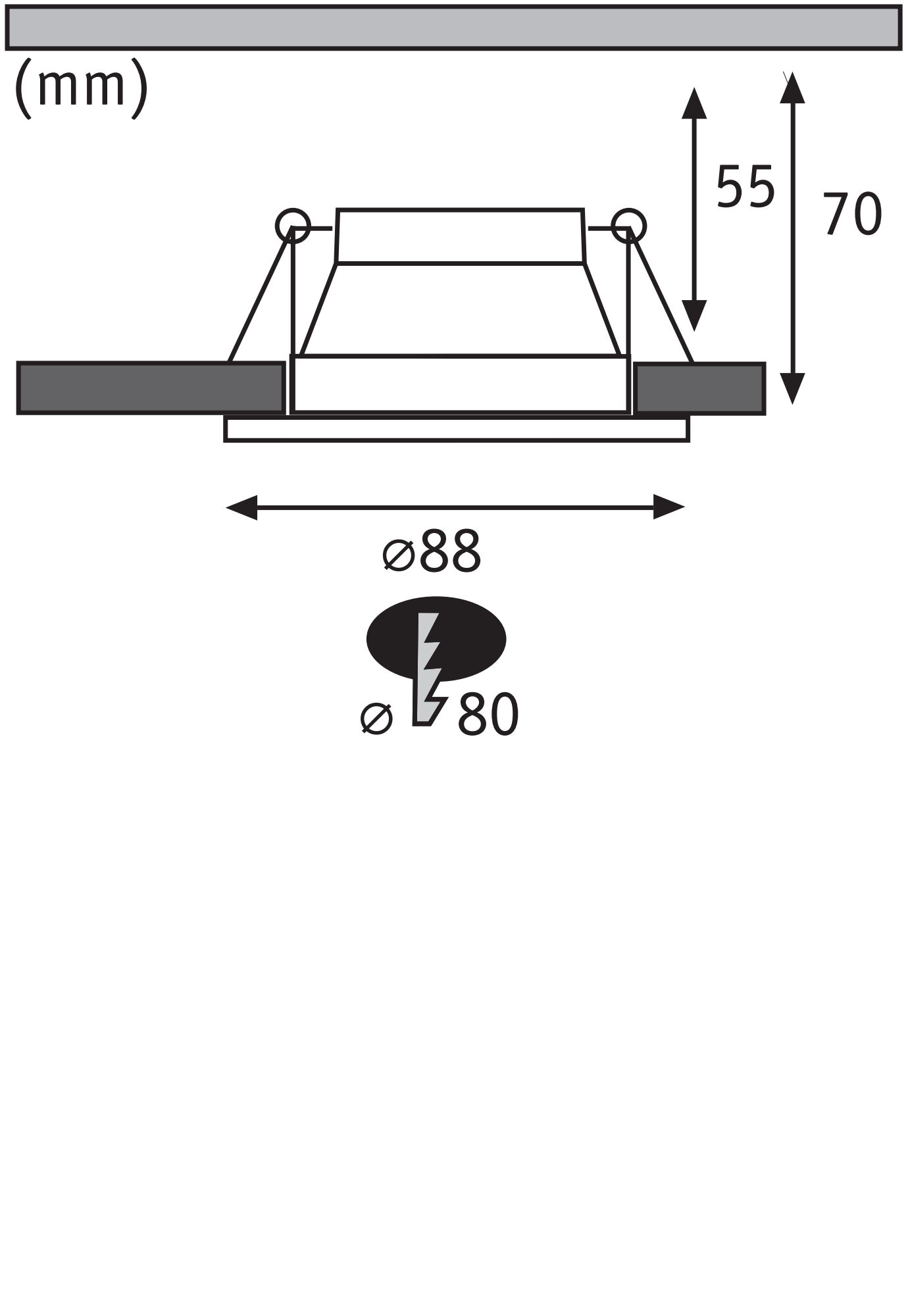

| Dimension | |
|---|---|
| Total Mounting depth | 70 mm |
| Ø | 88 mm |
| Mounting hole | 80 mm |
| Form | round |
| Depth of hollow wall | 55 mm, 55 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | White, Gold matt |
| Material | Plastic, Aluminium zinc |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 460 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 39 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
