Article-No.:
93586

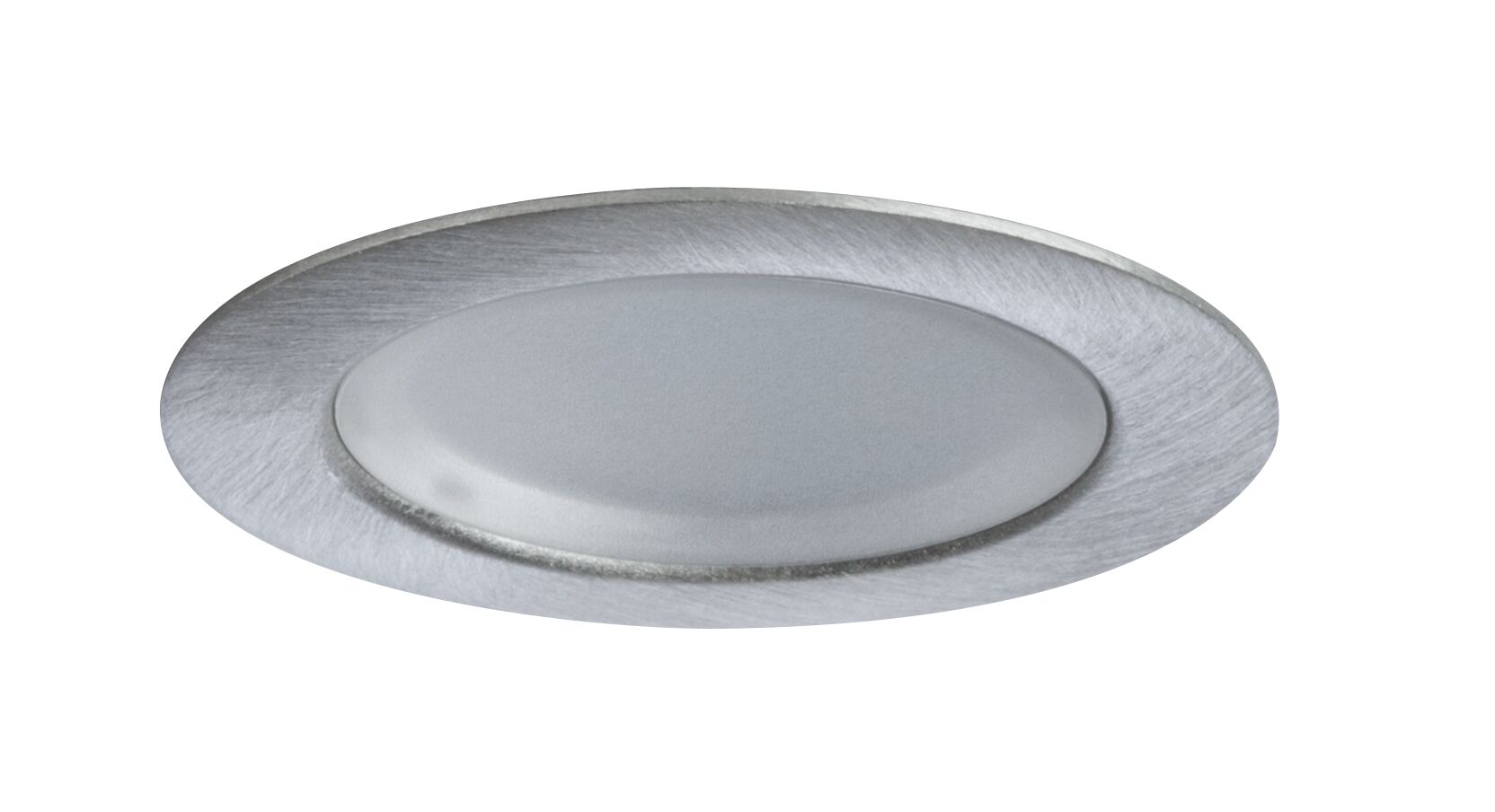

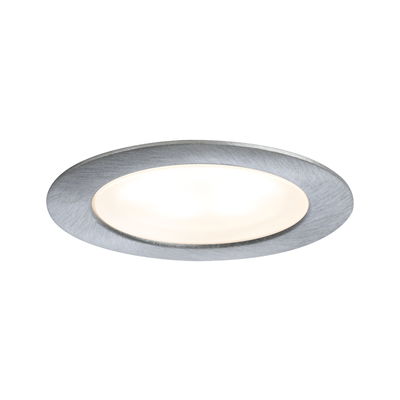

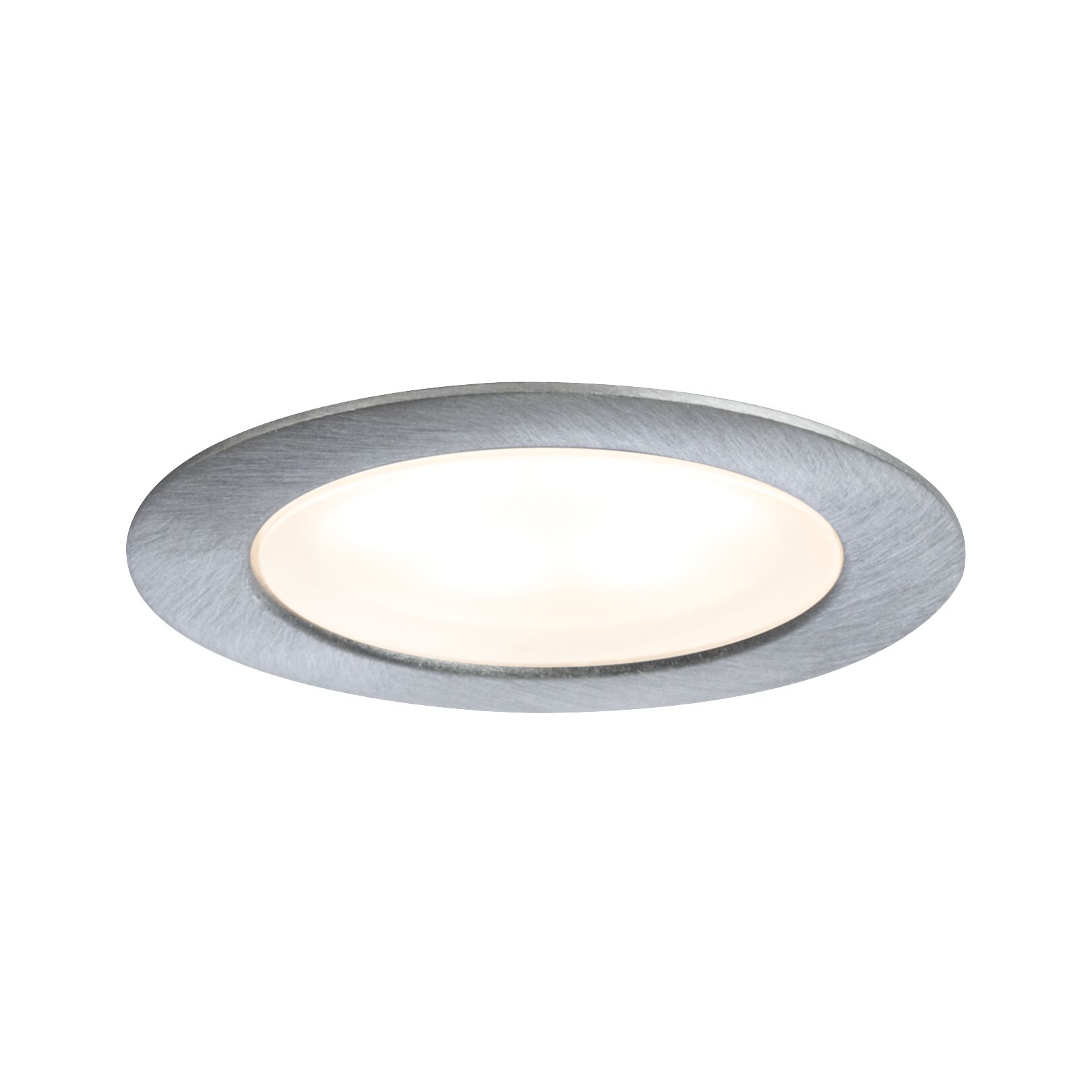

LED Recessed furniture luminaire
Micro Line Mini
round 35mm 5x0,4W 5x20lm 230/12V 2700K Brushed iron
round 35mm 5x0,4W 5x20lm 230/12V 2700K Brushed iron

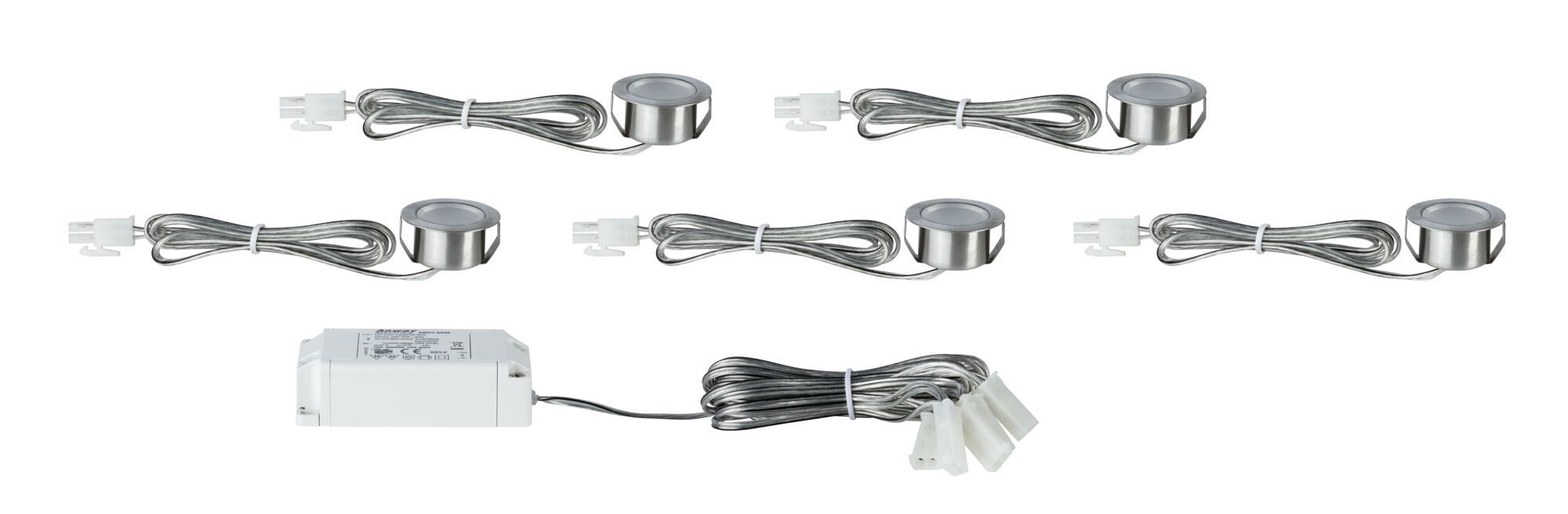

- Set of 5 luminaires incl. LED, 5 x 0.4 W
- Material: Metal
- Color: Brushed iron
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x0,4W 5x20lm 230/12V 2700K Brushed iron

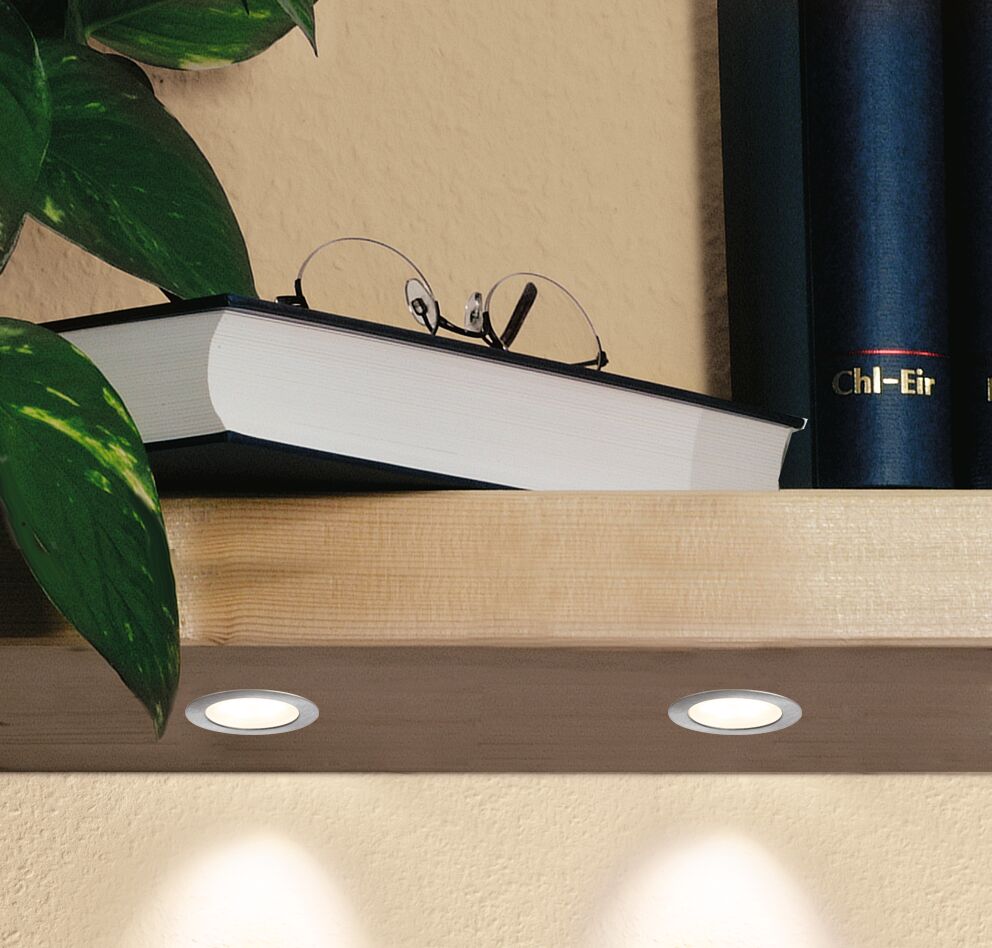

The right choice for display cases, furniture and the like: The Micro Line Mini LED furniture recessed lighting set needs an installation depth of just 20 mm and provides for decorative effects in particular in small display cases and cabinets, thanks to its small dimensions.
- Set of 5 luminaires incl. LED, 5 x 0.4 W
- Material: Metal
- Color: Brushed iron
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Low installation depth: only 20mm
- Diameter: 35mm
- protection class II
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Diameter | 35 mm |
| Built-in diameter | 28 mm |
| Mounting depth | 18 mm |
| Depth of hollow wall | 3 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Metal |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 20 lm |
| Luminous flux LED module | 20 lm |
| Beam angle | 90 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 0,4 W |
| Number of component parts | 5x |
| Maximum load | 130 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 3 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 3,6 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
