Article-No.:
93992

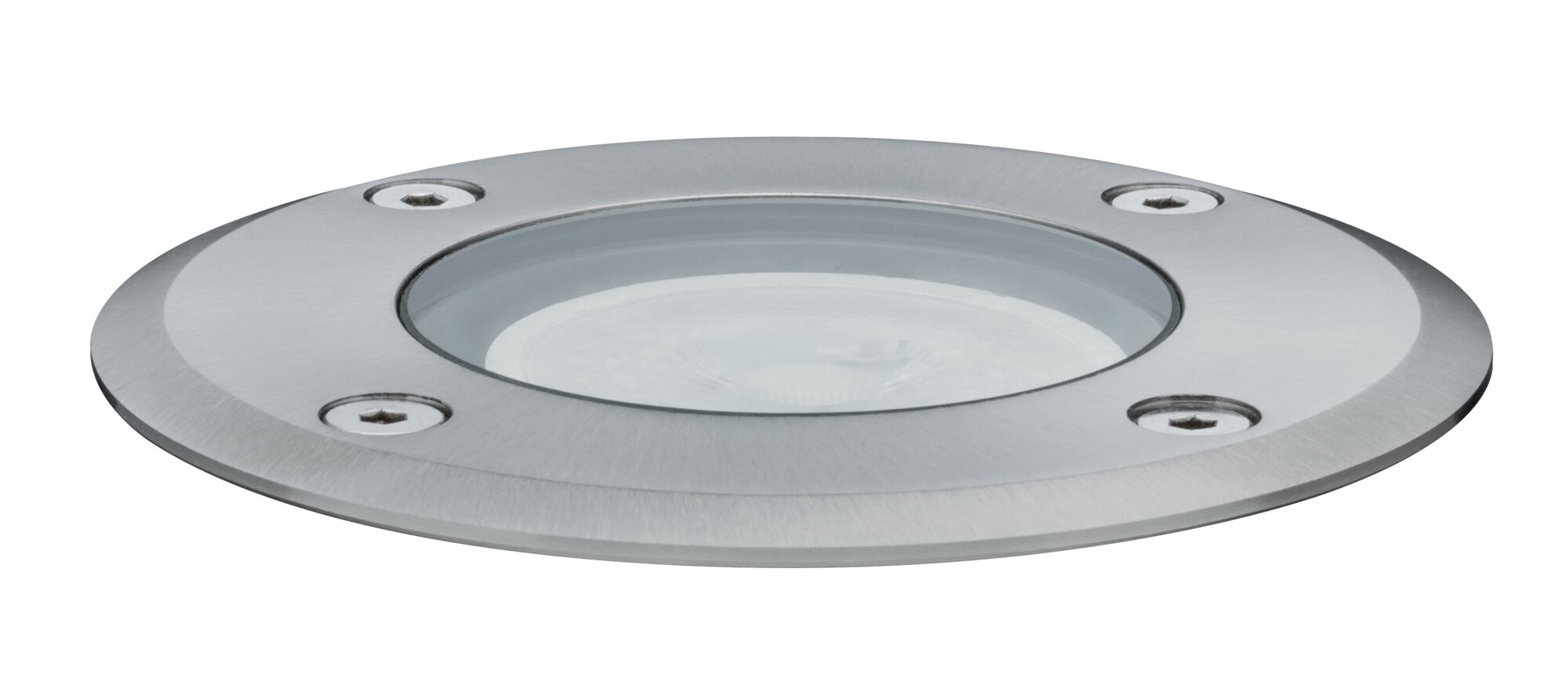

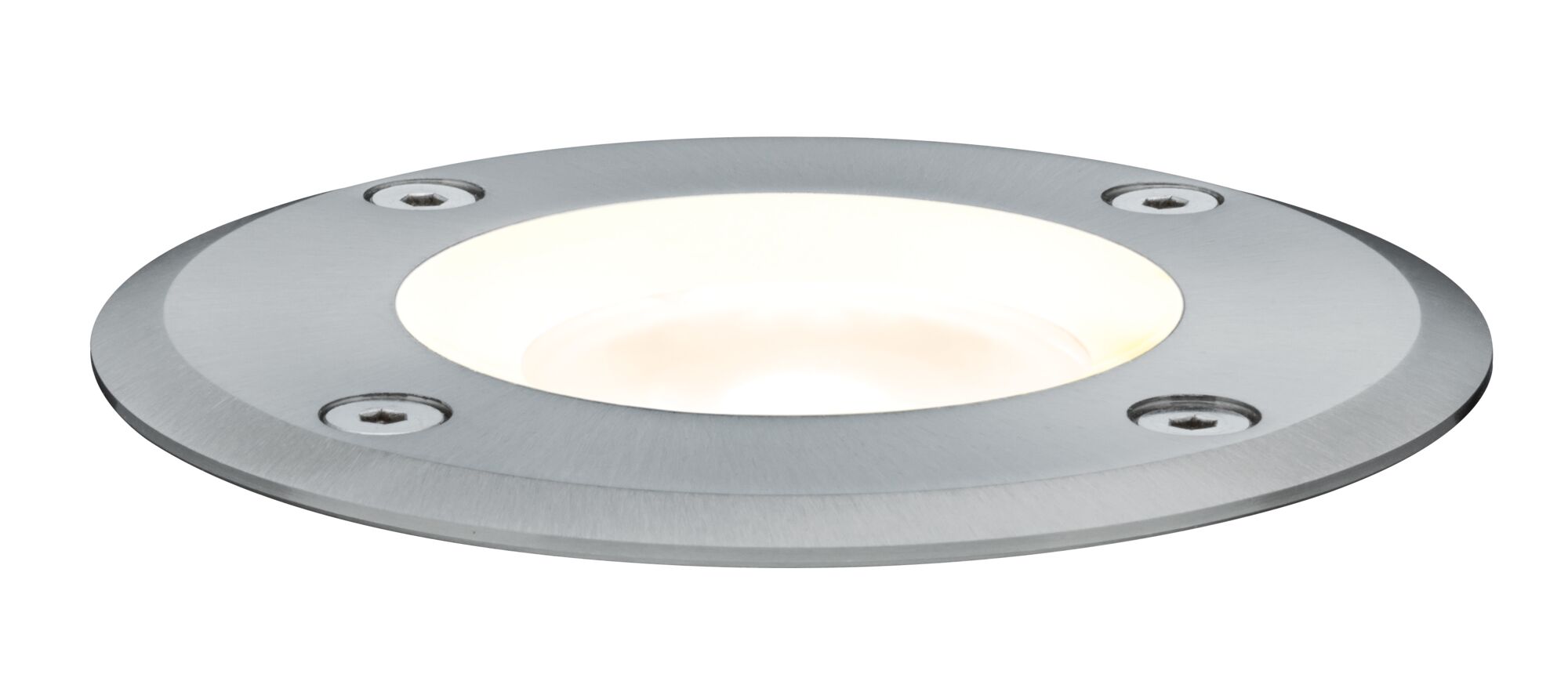

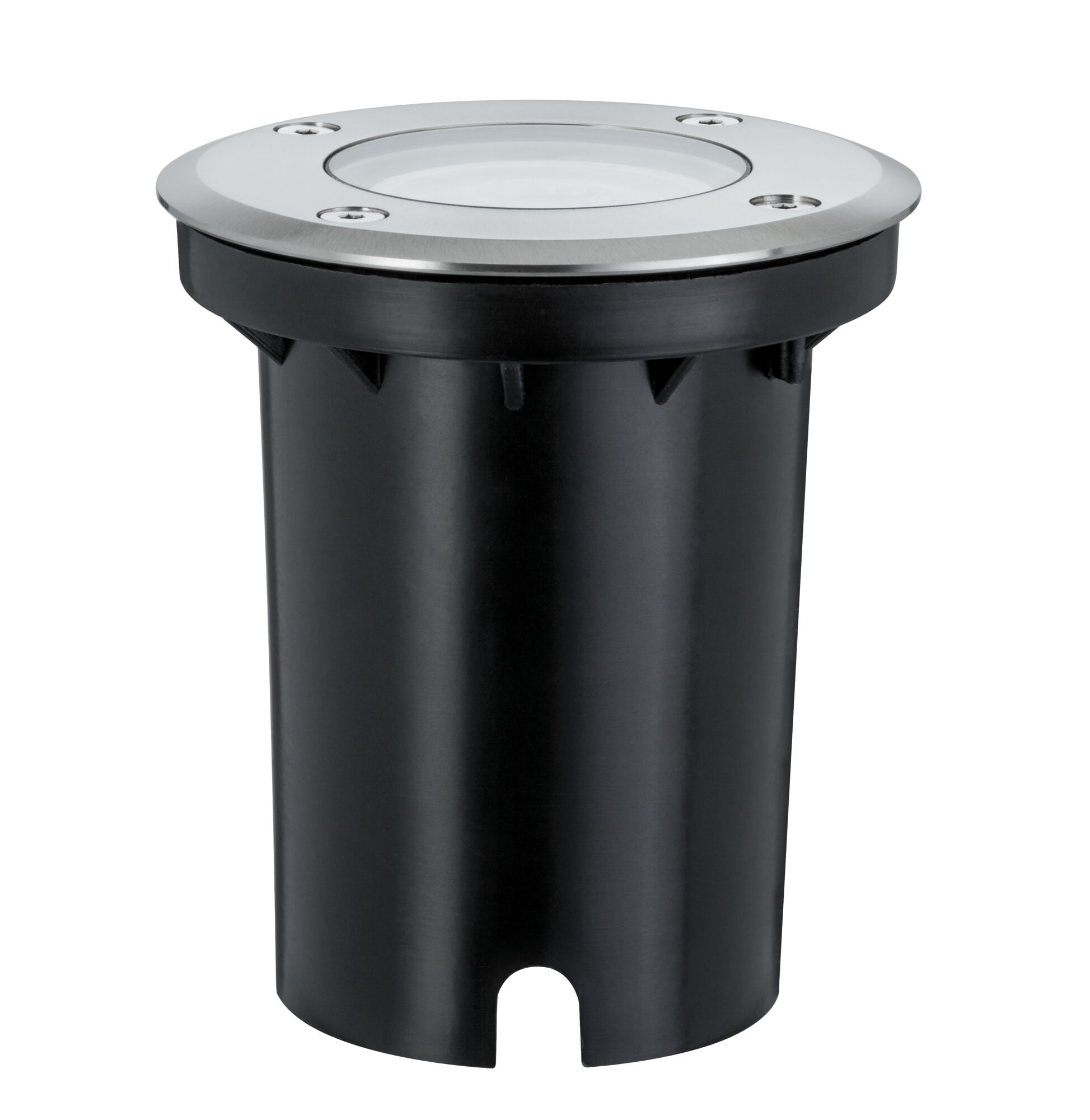

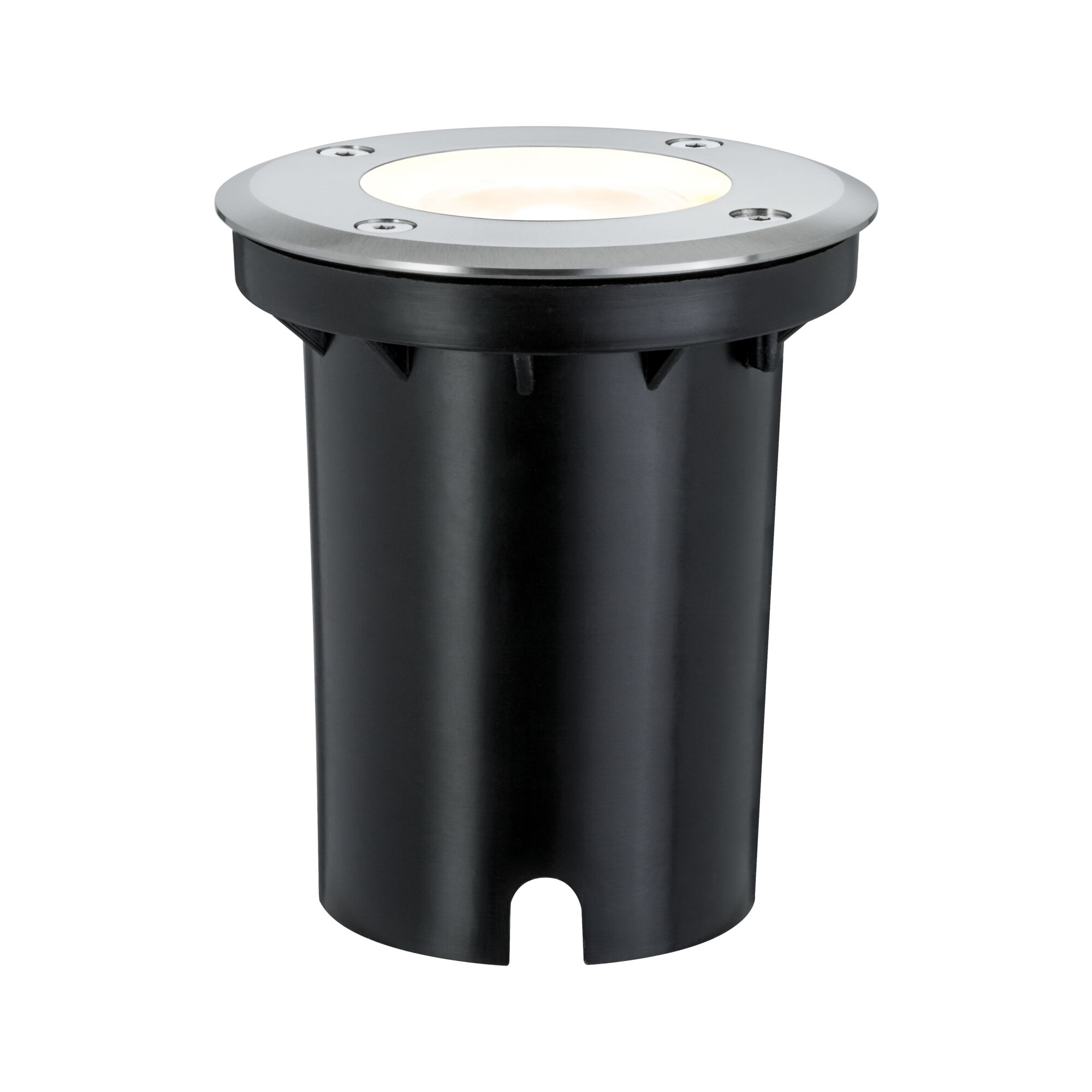

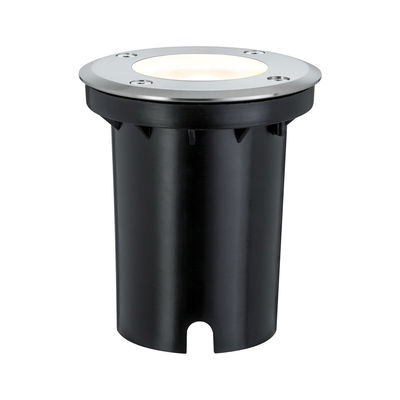

LED Recessed floor luminaire
LED Recessed floor luminaire
IP67 round 108mm 3000K 3,5W 230lm 230V Stainless steel Metal
IP67 round 108mm 3000K 3,5W 230lm 230V Stainless steel Metal
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection
LED Recessed floor luminaire IP67 round 108mm 3000K 3,5W 230lm 230V Stainless steel Metal

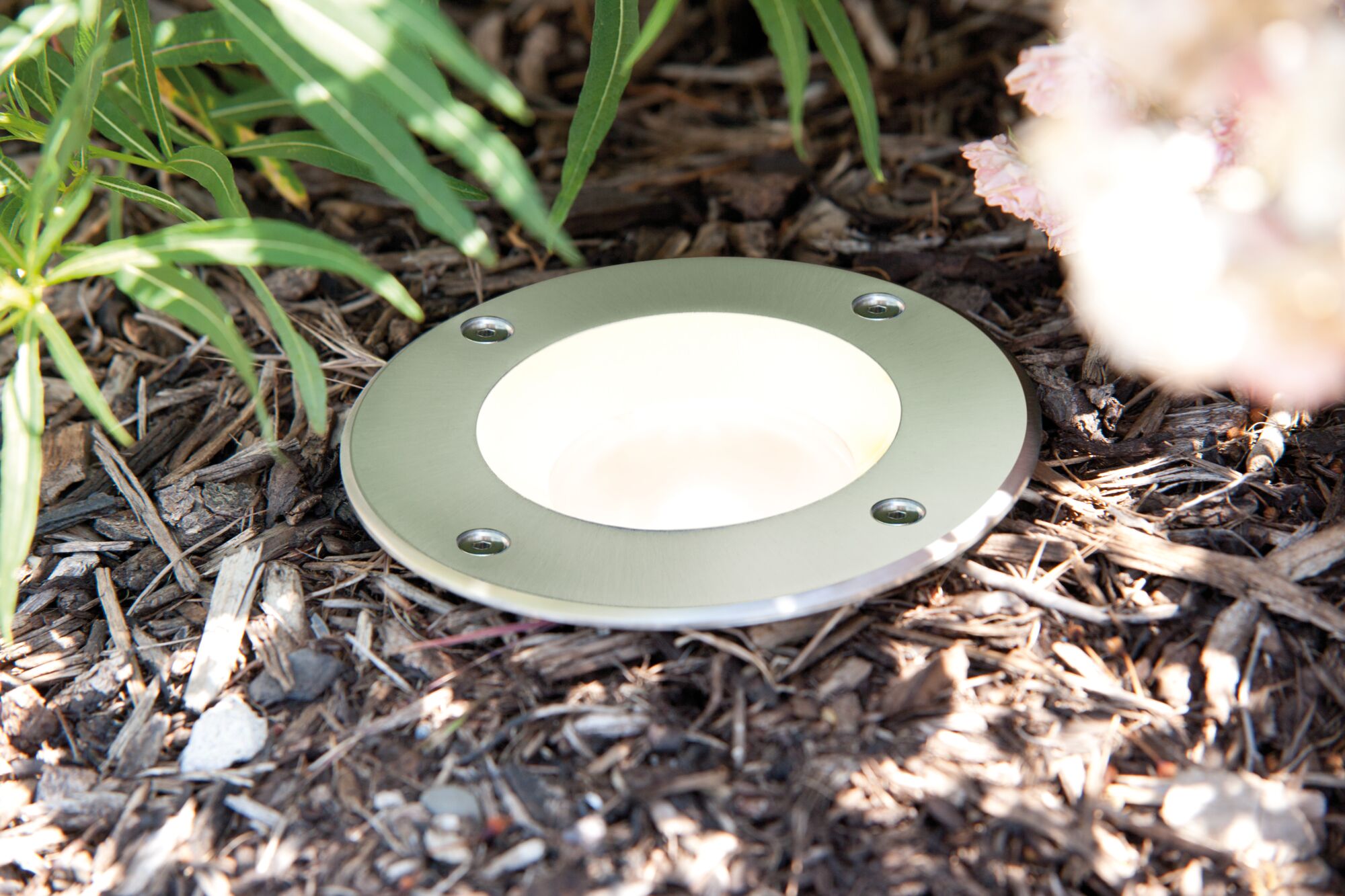

This round floor recessed spotlight can bear loads of up to 500 kilograms, making it suitable for walkable outdoor spaces. Corrosion-resistant, waterproof and dust-proof, it emits warm white light in all weather conditions. The lamp supplied on delivery can be changed as required.
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection
- Max. load up to 500 kg
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 124 mm |
| Diameter | 108 mm |
| Built-in diameter | 105 mm |
| Mounting depth | 115 mm |
| Depth of hollow wall | 100 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Stainless steel |
| Material | Metal |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 230 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Maximum wattage range | max. 10 W |
| IP protection | IP67 |
| Protection class | Protection class I |
| Base/Socket | GU10 |
| Technique | LED |
| Component parts | 3,5 W |
| Number of component parts | 1x |
| Maximum load | 500 kg |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
