Article-No.:
94656

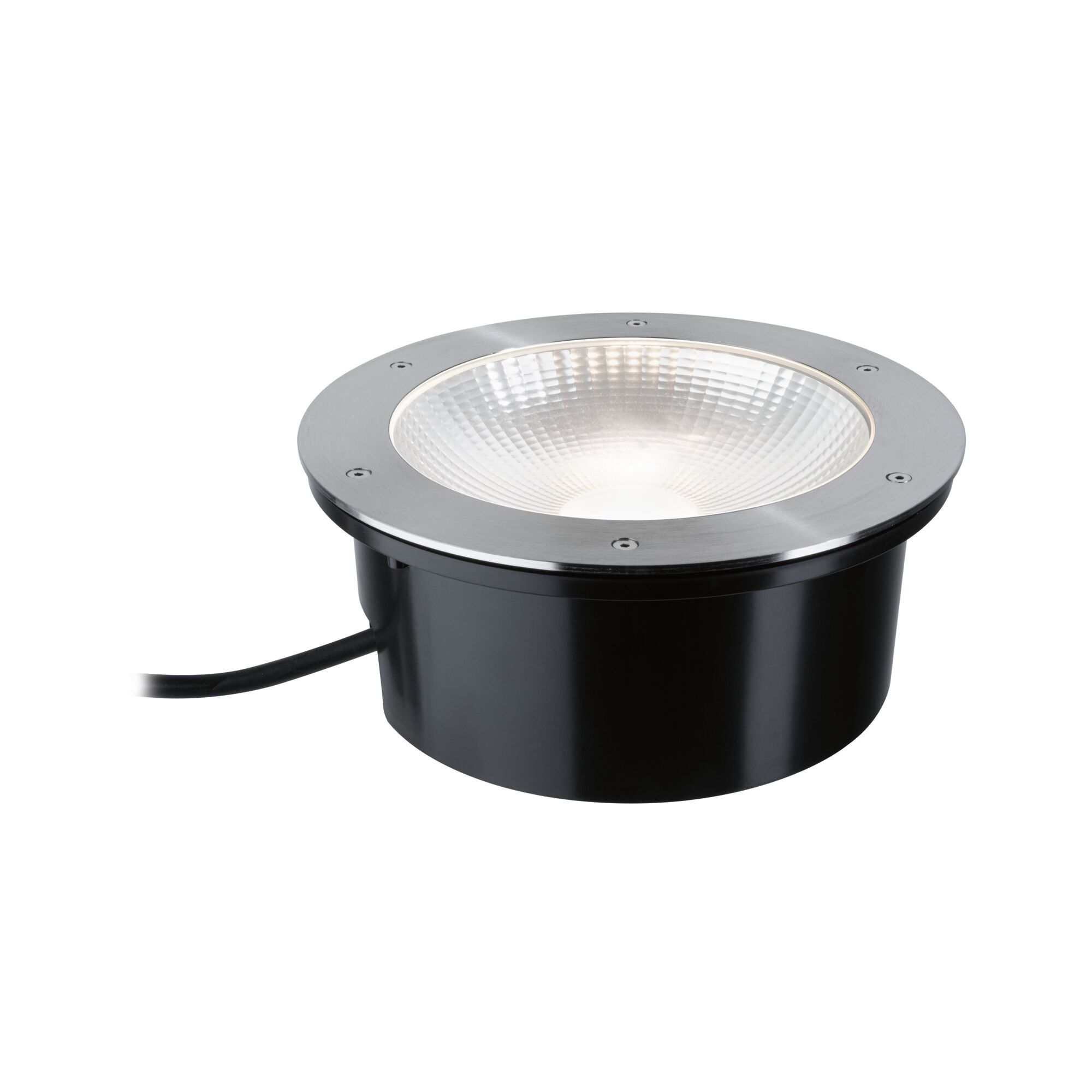

LED Recessed floor luminaire
Durea
IP67 round 273mm 3000K 15W 1040lm 230V 80° Stainless steel Metal
IP67 round 273mm 3000K 15W 1040lm 230V 80° Stainless steel Metal
- Maximum load 2000 kg
- Incl. replaceable LED lamp
- For 230 V direct connection
LED Recessed floor luminaire Durea IP67 round 273mm 3000K 15W 1040lm 230V 80° Stainless steel Metal

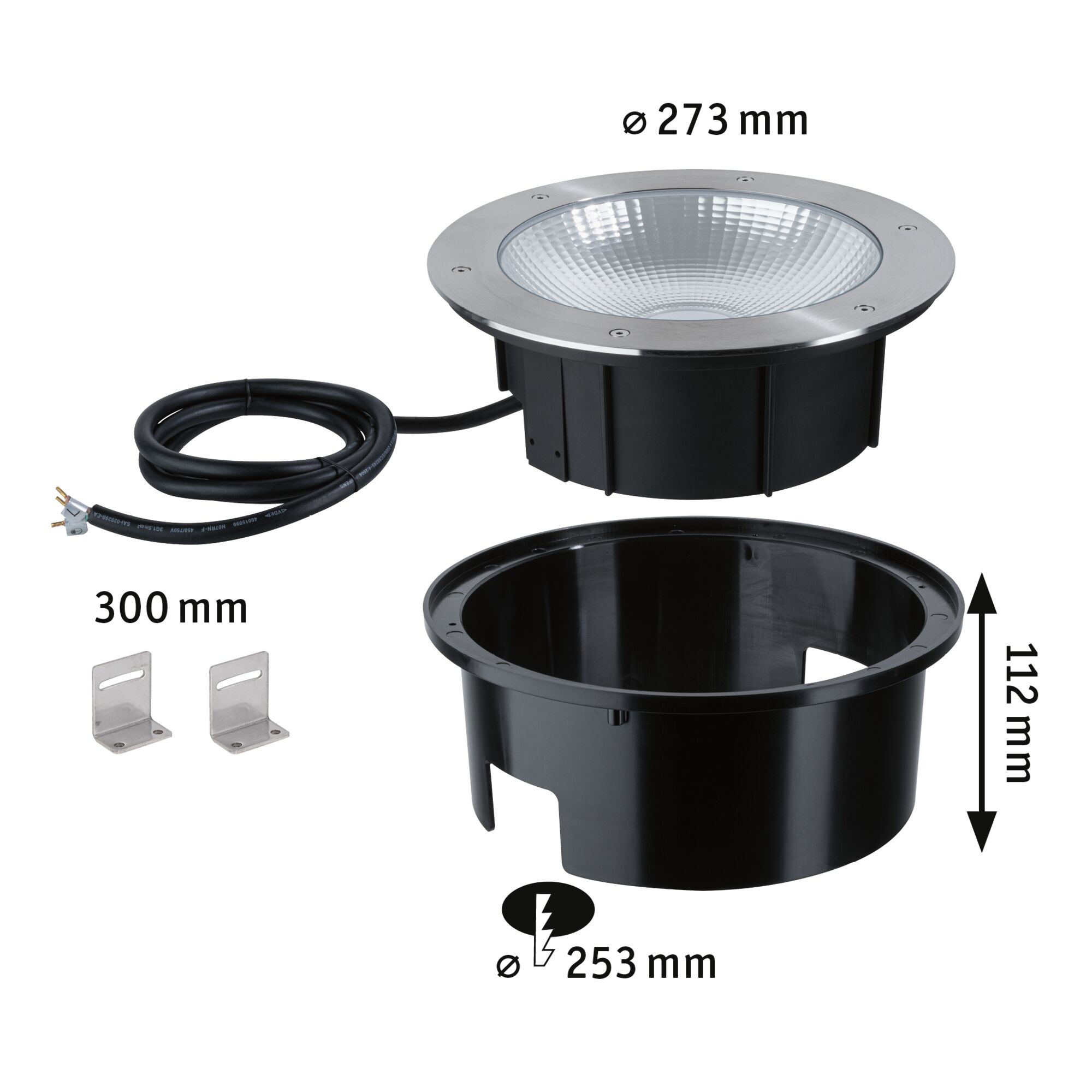

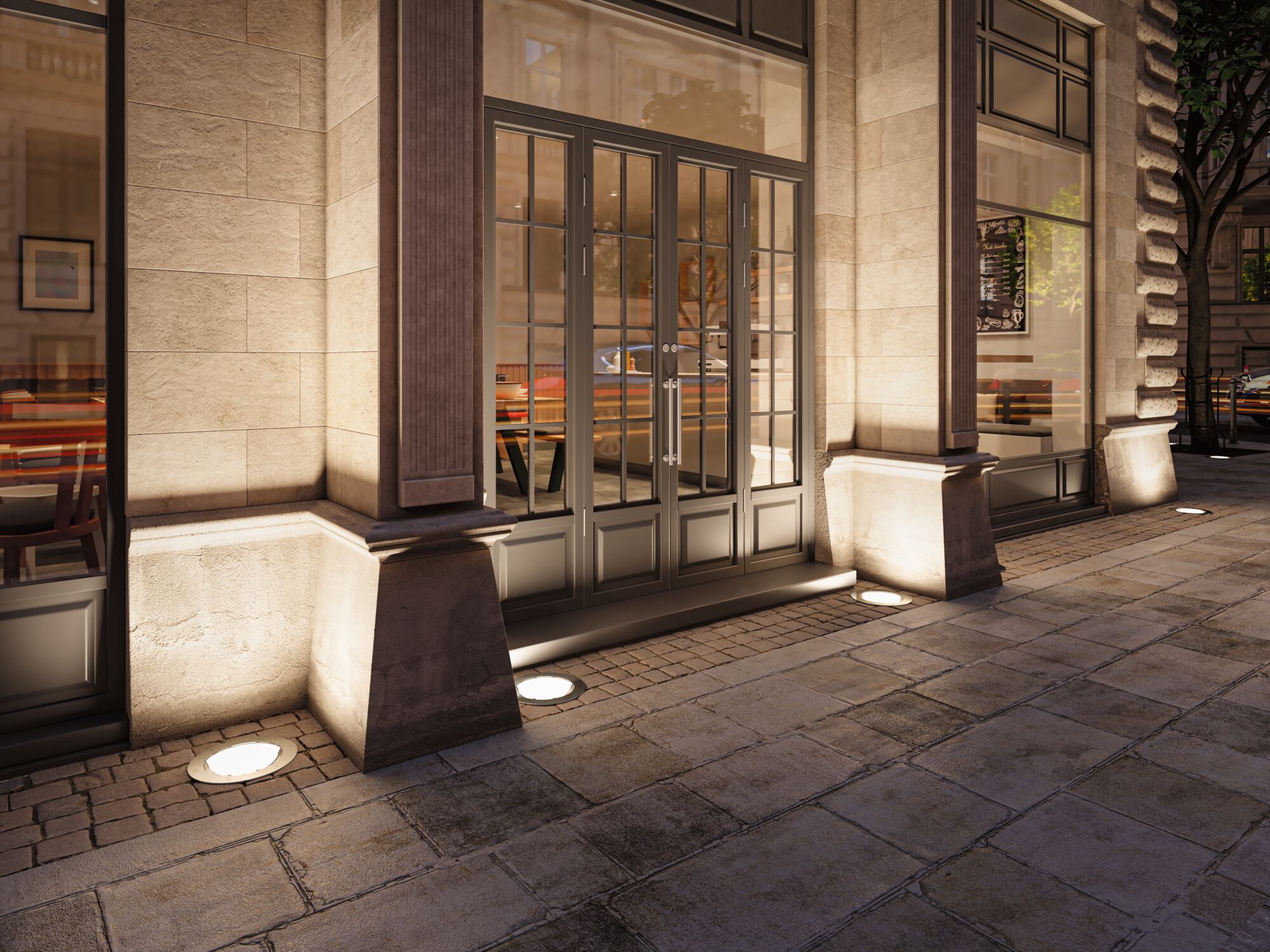

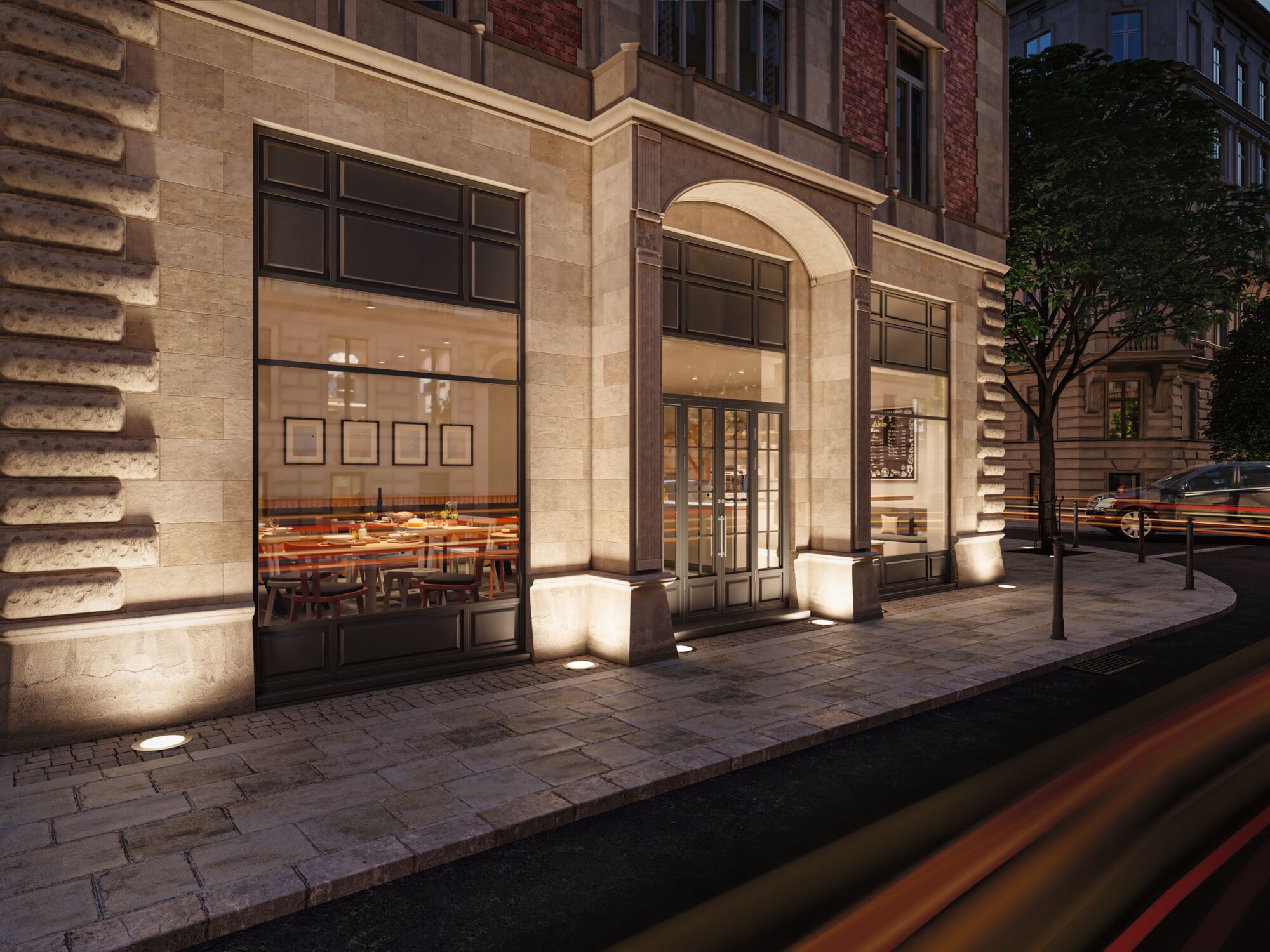

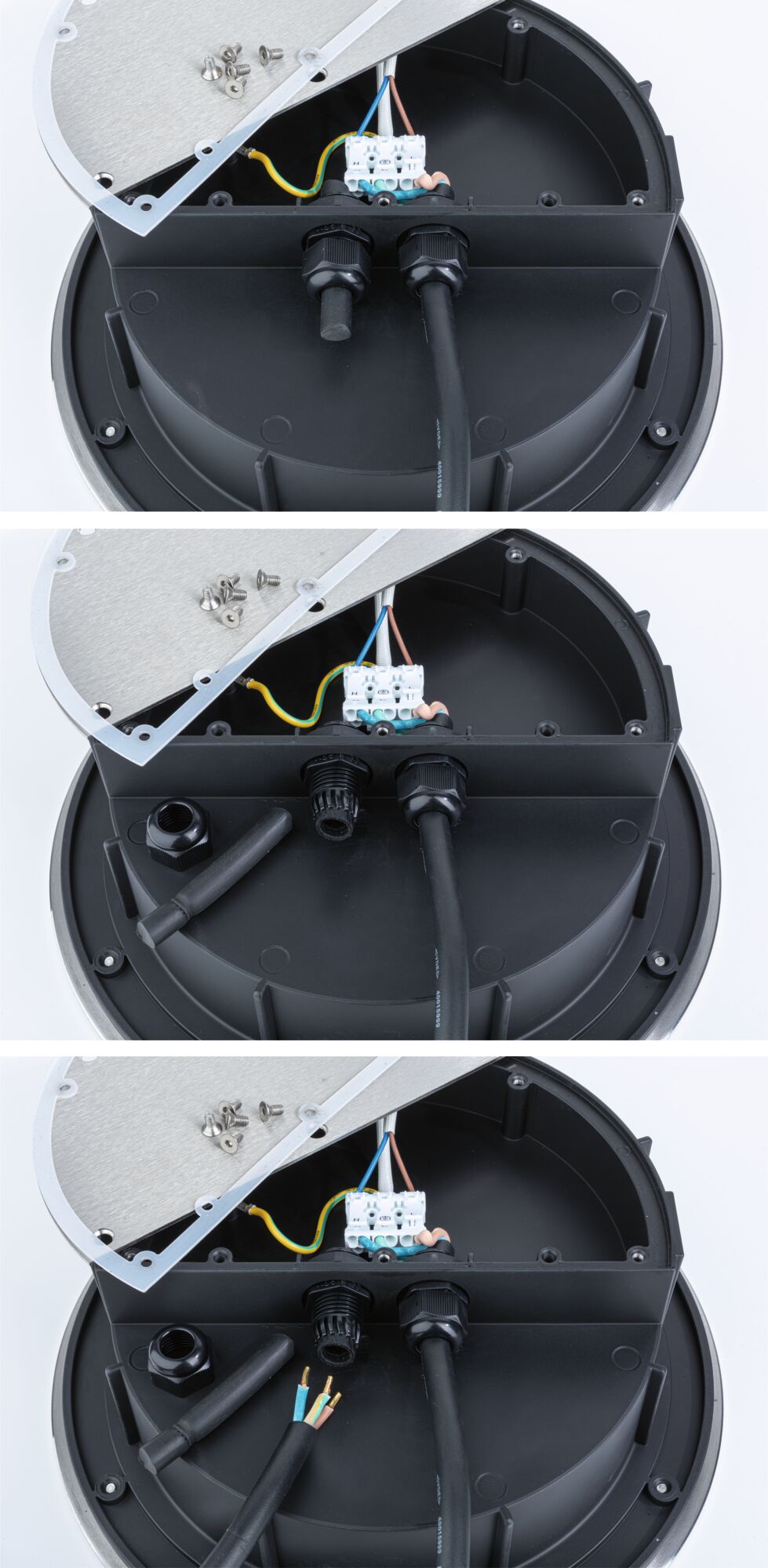

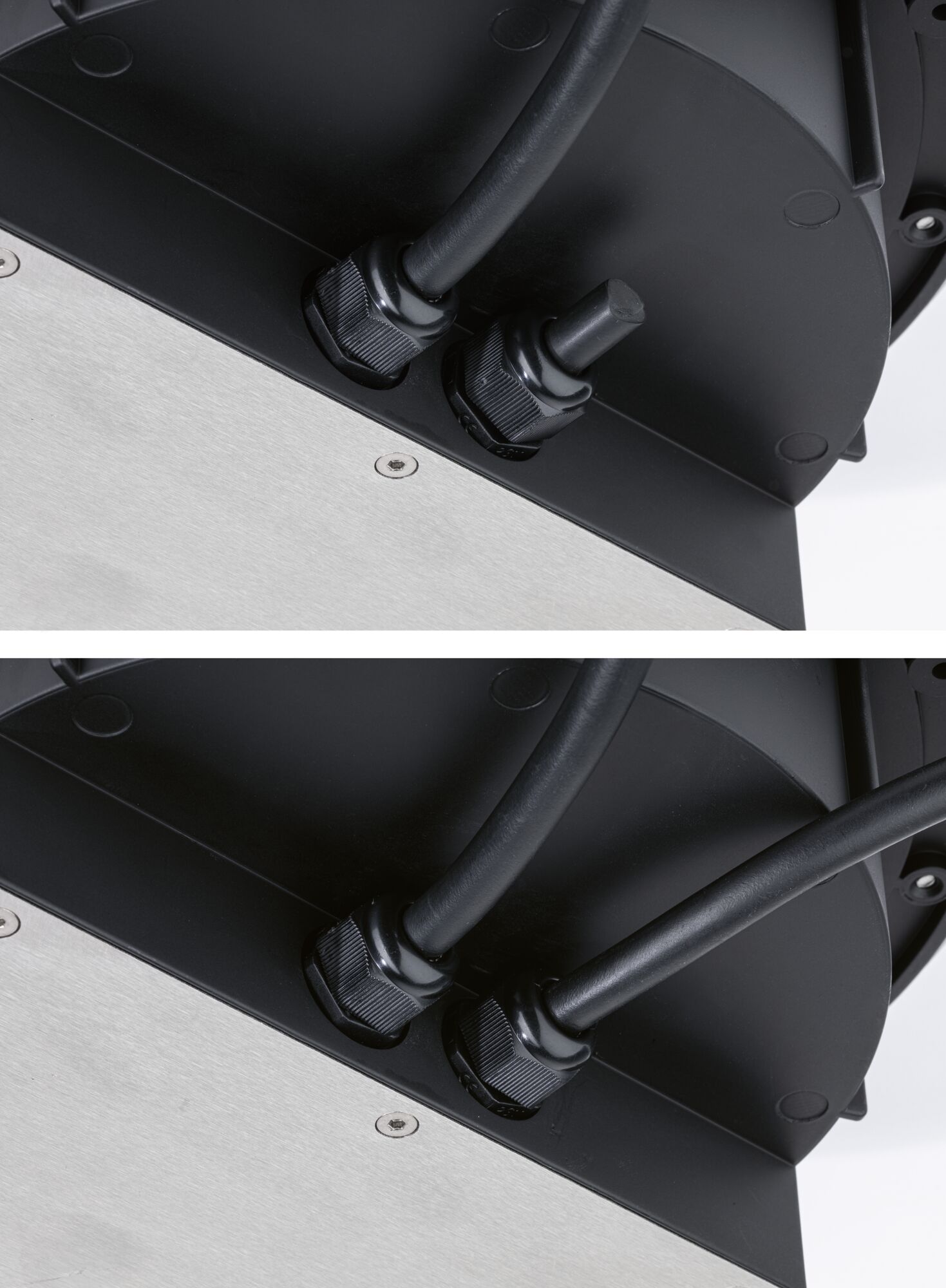

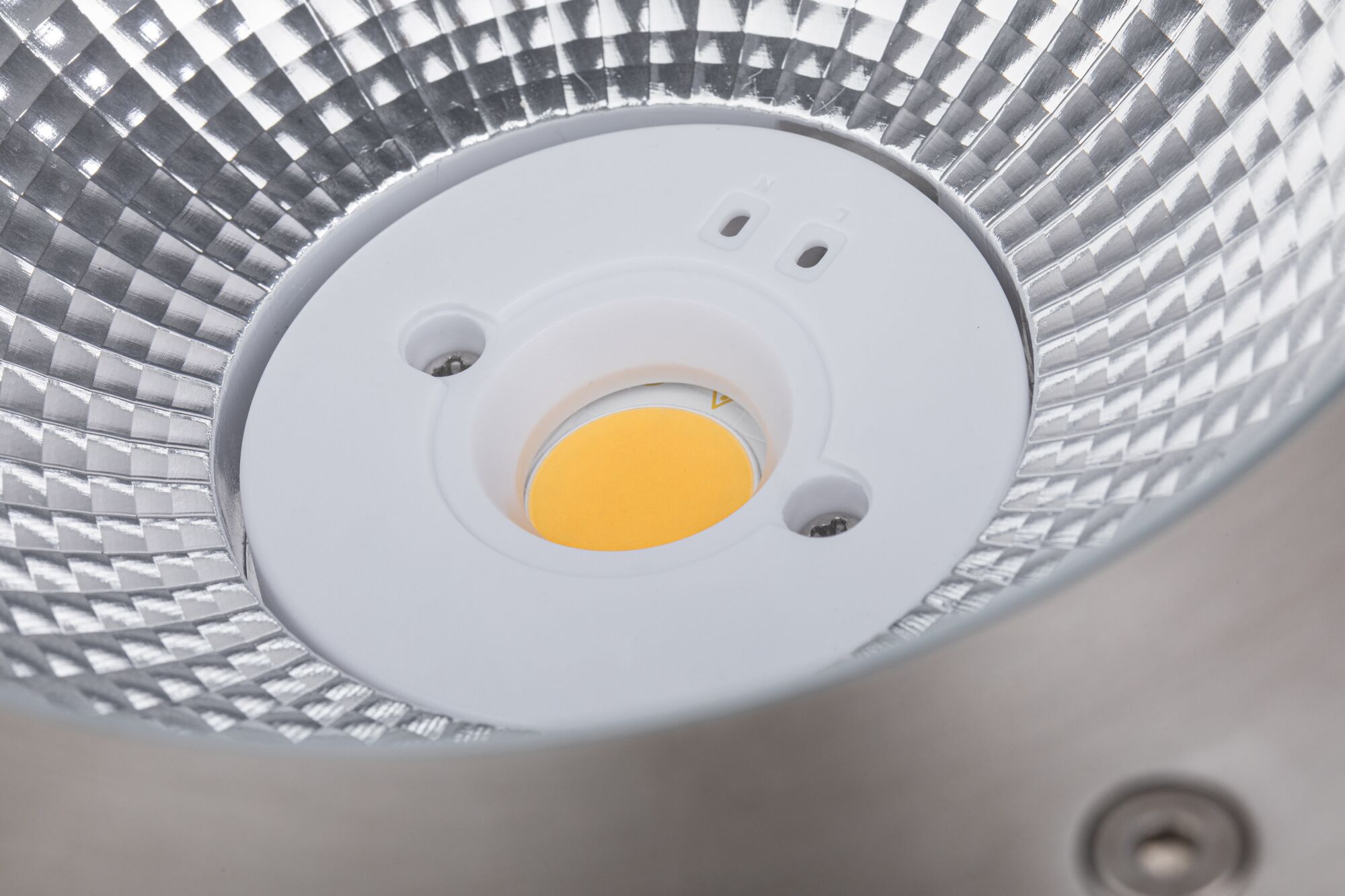

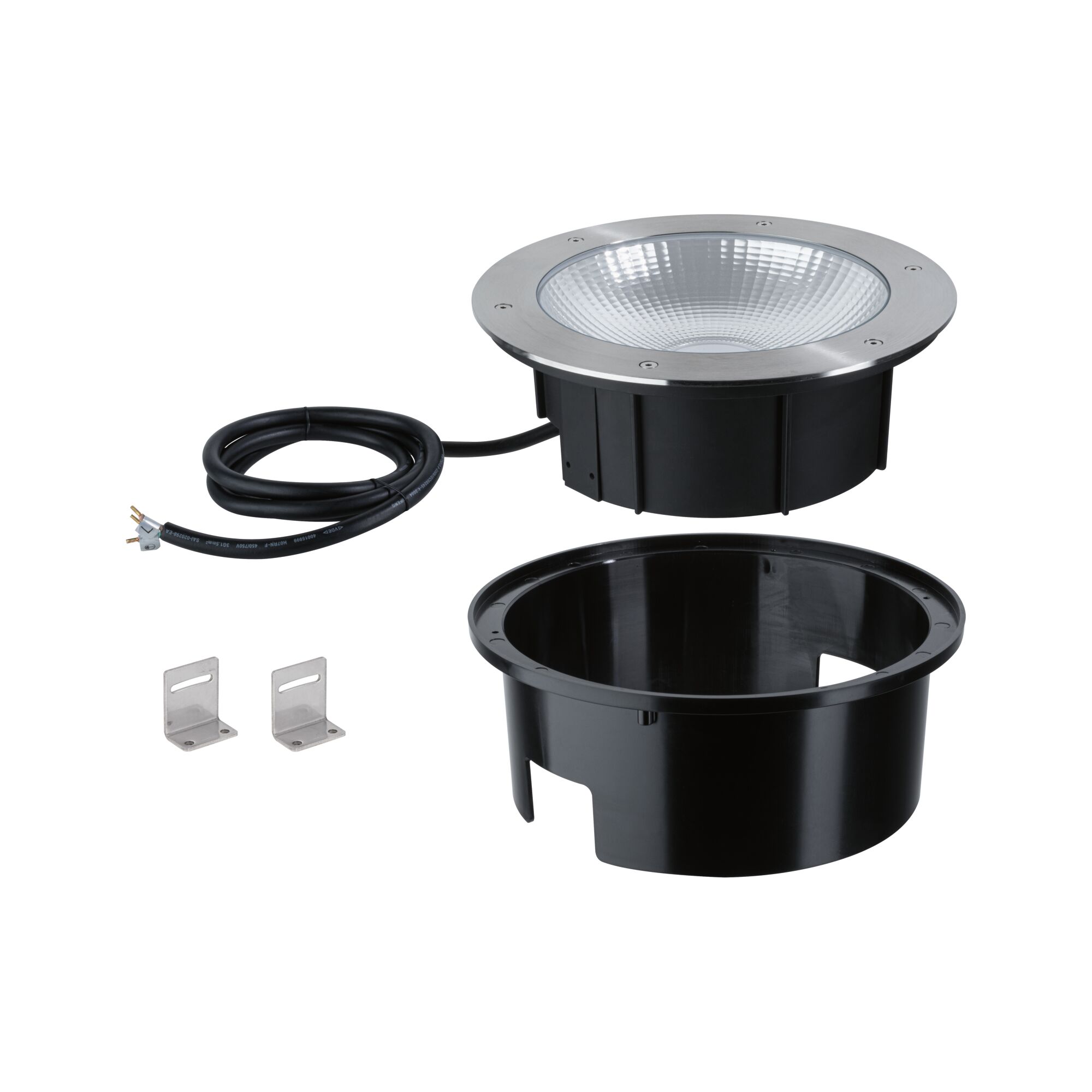

Perfect for facades, driveways or the route to the house – the LED ground recessed spotlight Durea with a diameter of 273 mm safely illuminates your outdoor area. Thanks to a high load capacity of 2000 kg, the recessed floor luminaire is ideal for outdoor areas that are subject to foot traffic. Corrosion-resistant, waterproof and dust-proof, it emits warm white light in all weather conditions. The built-in LED module can be replaced if necessary. The spotlights can be connected together quickly and easily using the quick clips, without the need for tools. This has the advantage that the floor luminaires do not have to be individually connected to the power supply. An installation housing is included in the delivery.
- Maximum load 2000 kg
- Incl. replaceable LED lamp
- For 230 V direct connection
- IP Protection: IP67 - protected against temporary immersion
- Color temperatur: 3000K - Warm white

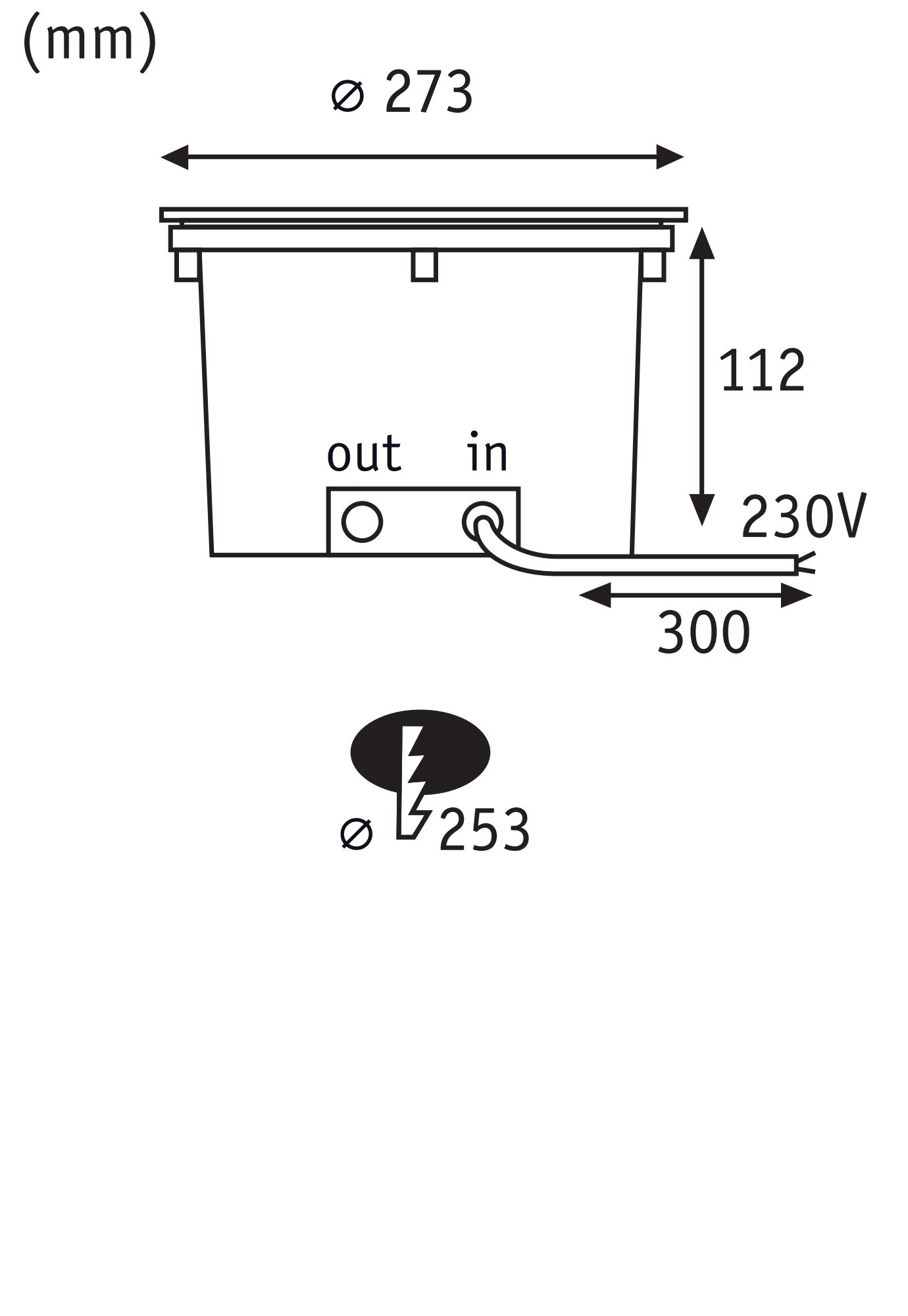

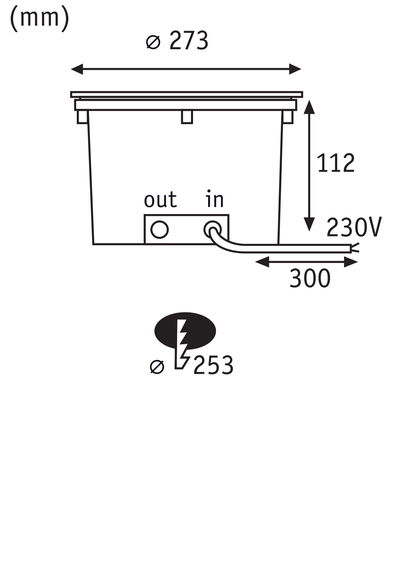

| Dimension | |
|---|---|
| Depth of hollow wall | 95 mm, 95 mm |
| Total Mounting depth | 110 mm |
| Dimensions (Height x Width x Depth) | H: 112 mm |
| Ø | 273 mm |
| Mounting hole | 253 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Kopp 8035.0208.0 /8078, RC Merten MEG 5136-0000, RC Jung 225 T DE, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 80 ° |
| Usable luminous flux | 1.040 lm |
| Luminous flux LED module | 1600 lm |
| color temp | 3.000 K |
| Lamp Features | |
|---|---|
| Component parts | 15 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 104 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 15 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
