Article-No.:
94337

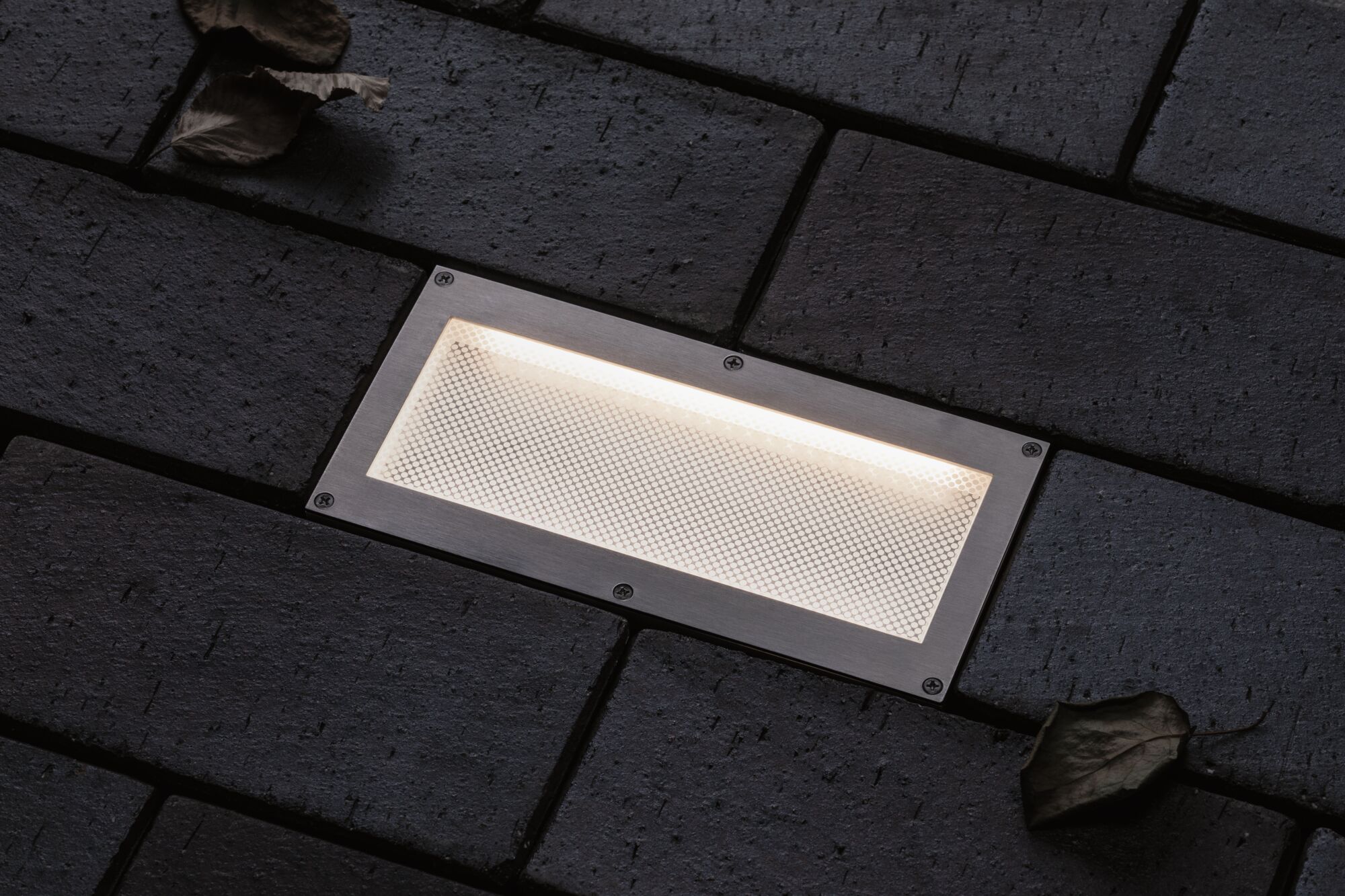

LED Recessed floor luminaire
Brick Motion detector
IP67 200x100mm 3000K 1,6W 50lm 230V Aluminium/Grey Metal/Stainless steel
IP67 200x100mm 3000K 1,6W 50lm 230V Aluminium/Grey Metal/Stainless steel
- Automatic switching with integrated motion detector
- A dusk sensor automatically switches on the light as soon as darkness begins to fall.
- For 230 V direct connection
LED Recessed floor luminaire Brick Motion detector IP67 200x100mm 3000K 1,6W 50lm 230V Aluminium/Grey Metal/Stainless steel

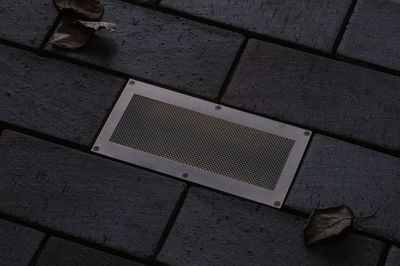

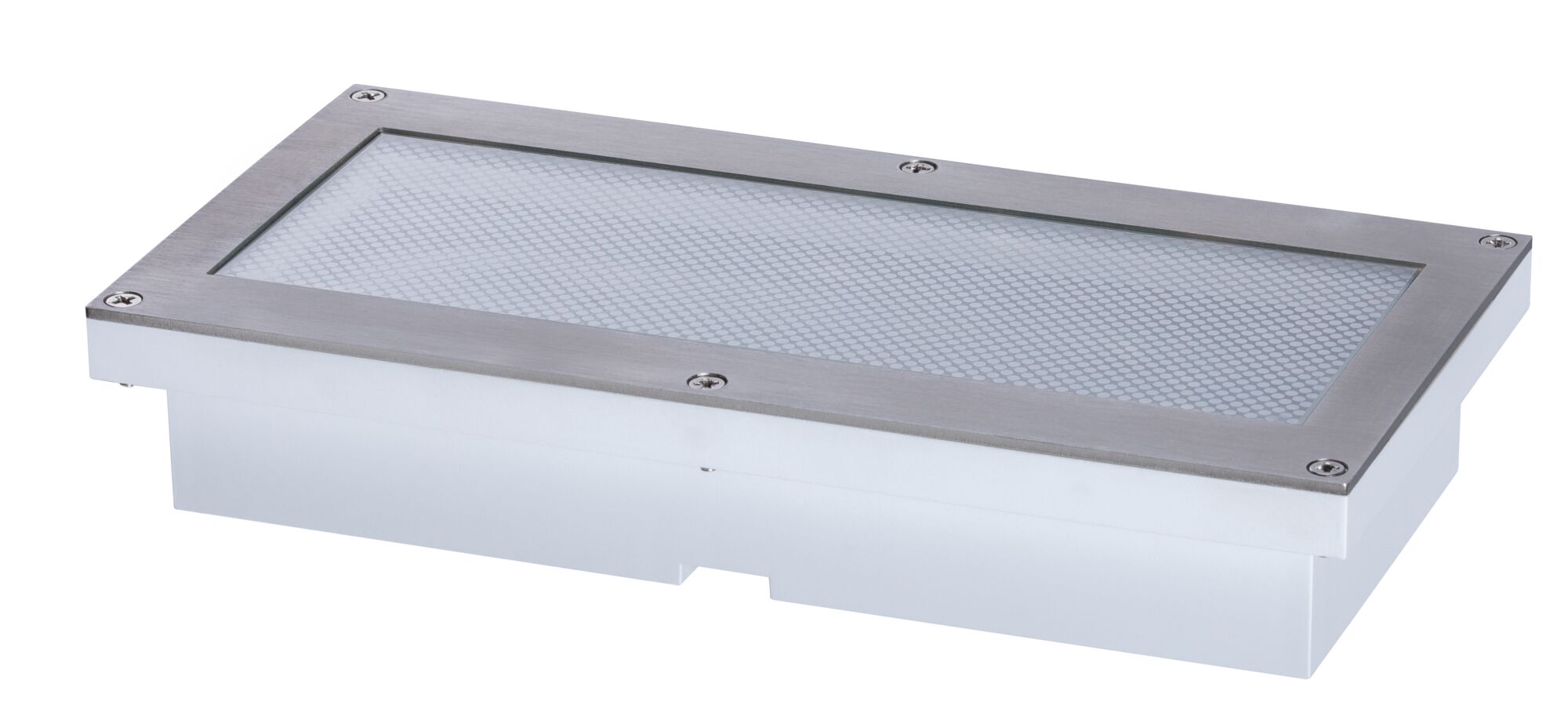

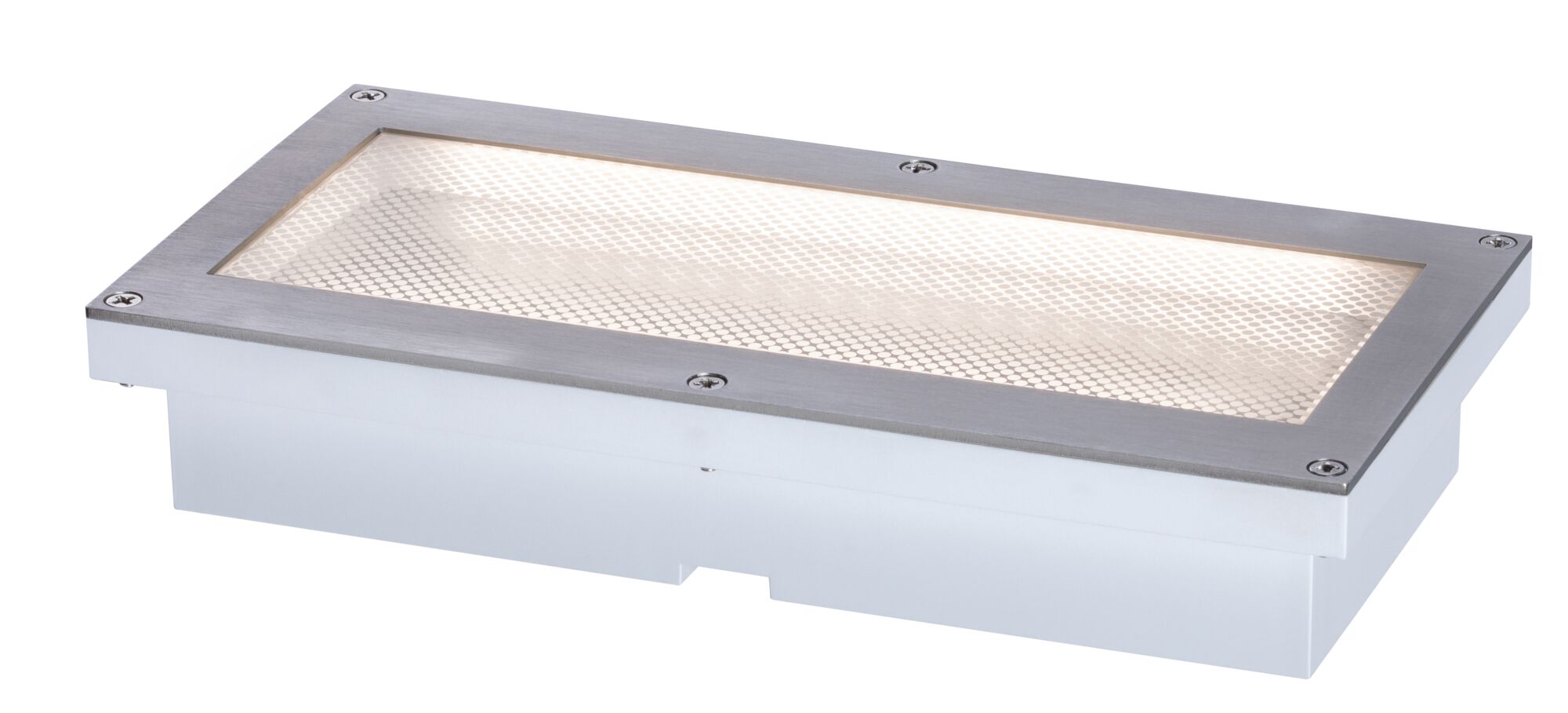

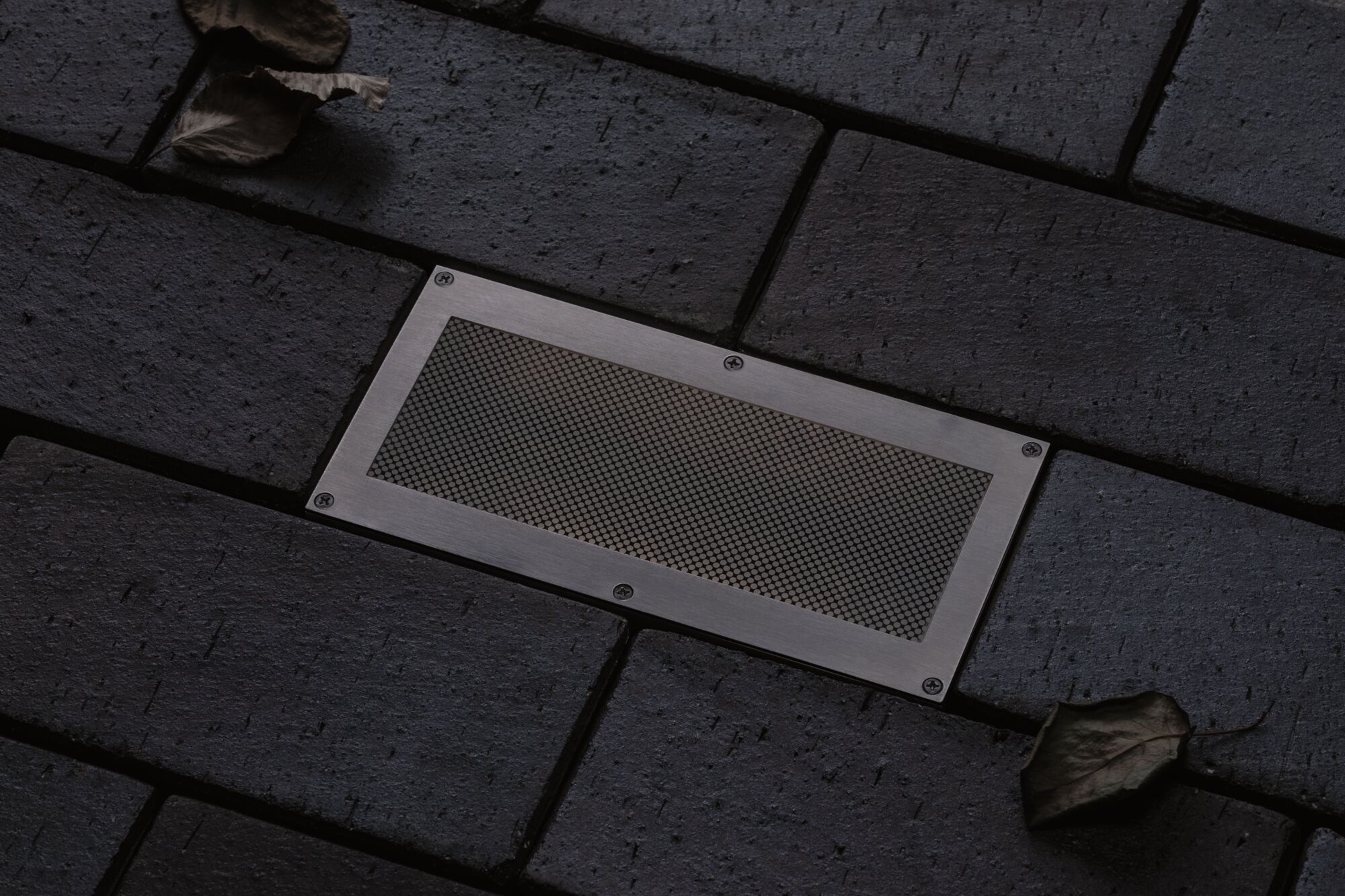

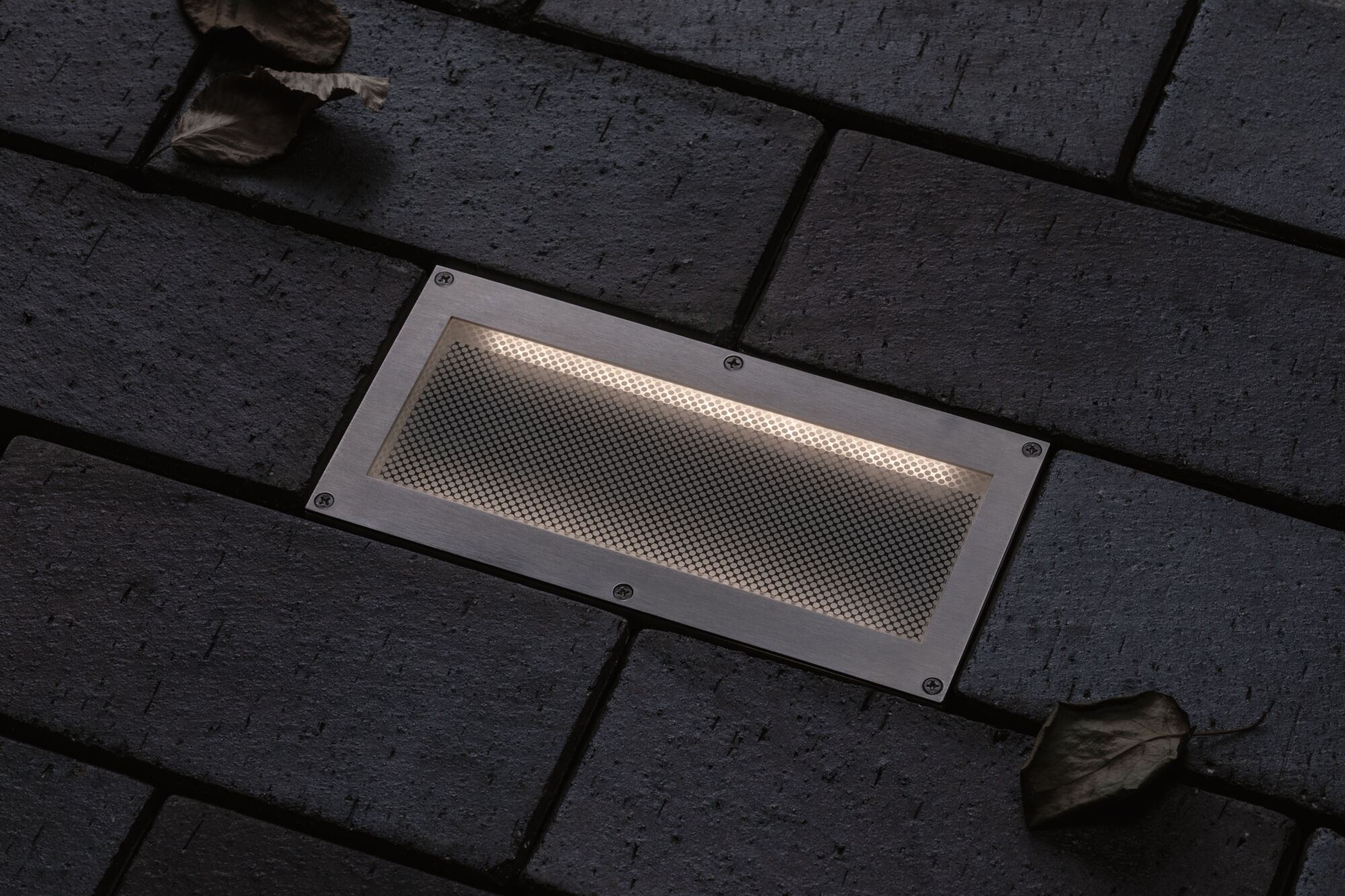

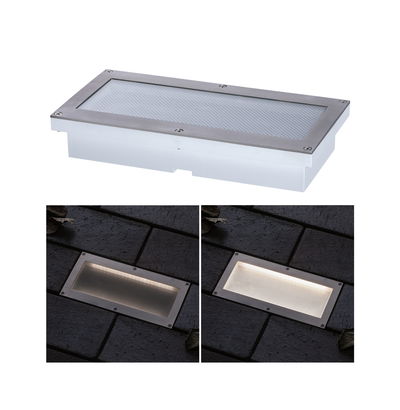

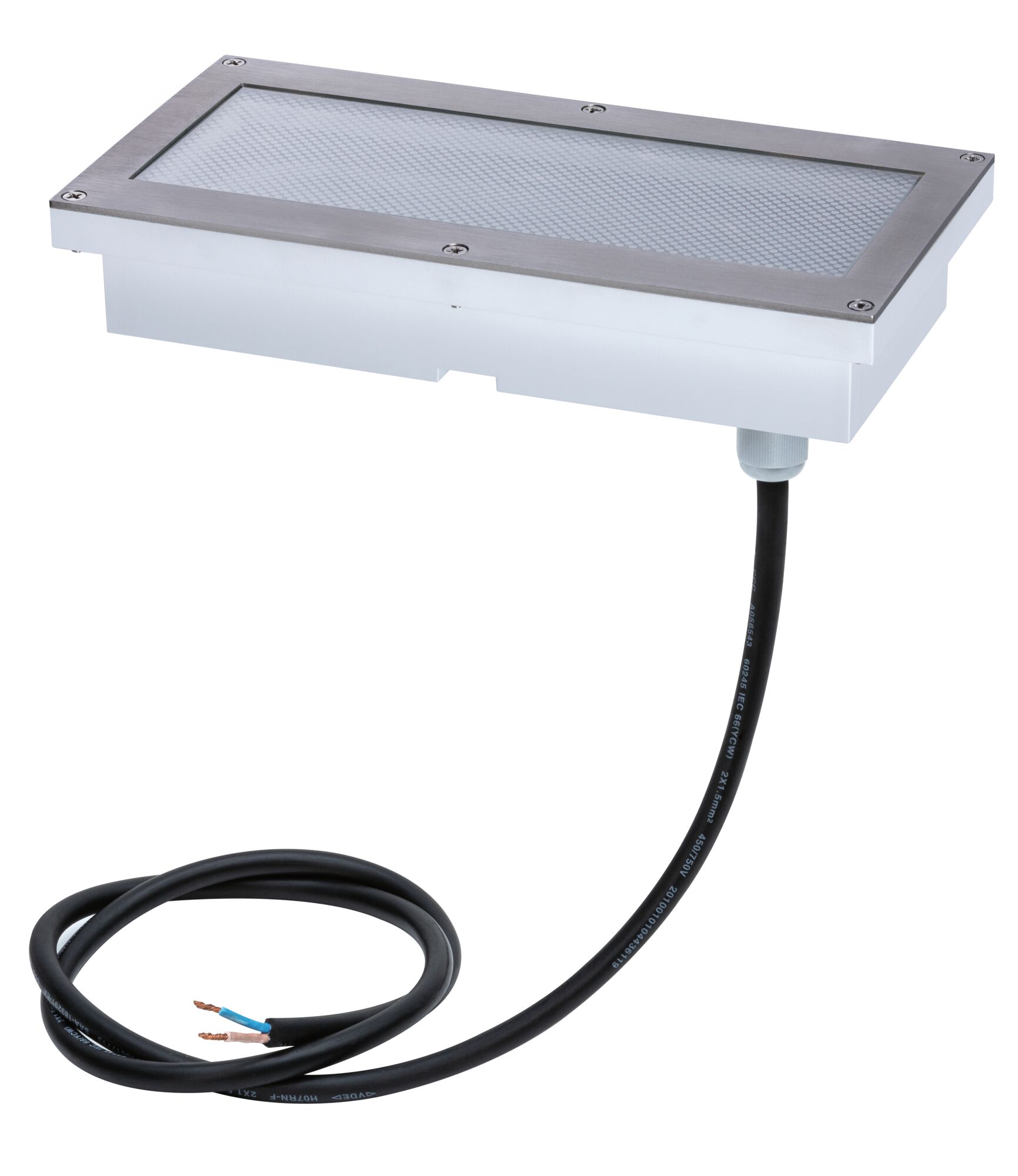

The Brick recessed floor luminaire made of Metal/stainless steel, in the dimensions 100 mm x 200 mm x 38 mm, activates at dusk to provide a functional orientation light when the motion sensor detects people in the immediate vicinity. The functions can be adjusted using a switch on the luminaire. It is virtually invisible, creating the overall effect of a uniformly lit area. Thanks to its IP67 protection class, the floor recessed luminaire is guaranteed waterproof, stainless and suited for installation in walkable outdoor areas – and can easily withstand up to 500 kg in weight. The recessed luminaire emits a pleasant light colour of 3,000 K at night.
- Automatic switching with integrated motion detector
- A dusk sensor automatically switches on the light as soon as darkness begins to fall.
- For 230 V direct connection
- Color temperatur: 3000K - Warm white
- IP Protection: IP67 - protected against temporary immersion
| Dimension | |
|---|---|
| Depth of hollow wall | 21,5 mm, 21,5 mm |
| Total Mounting depth | 36,5 mm |

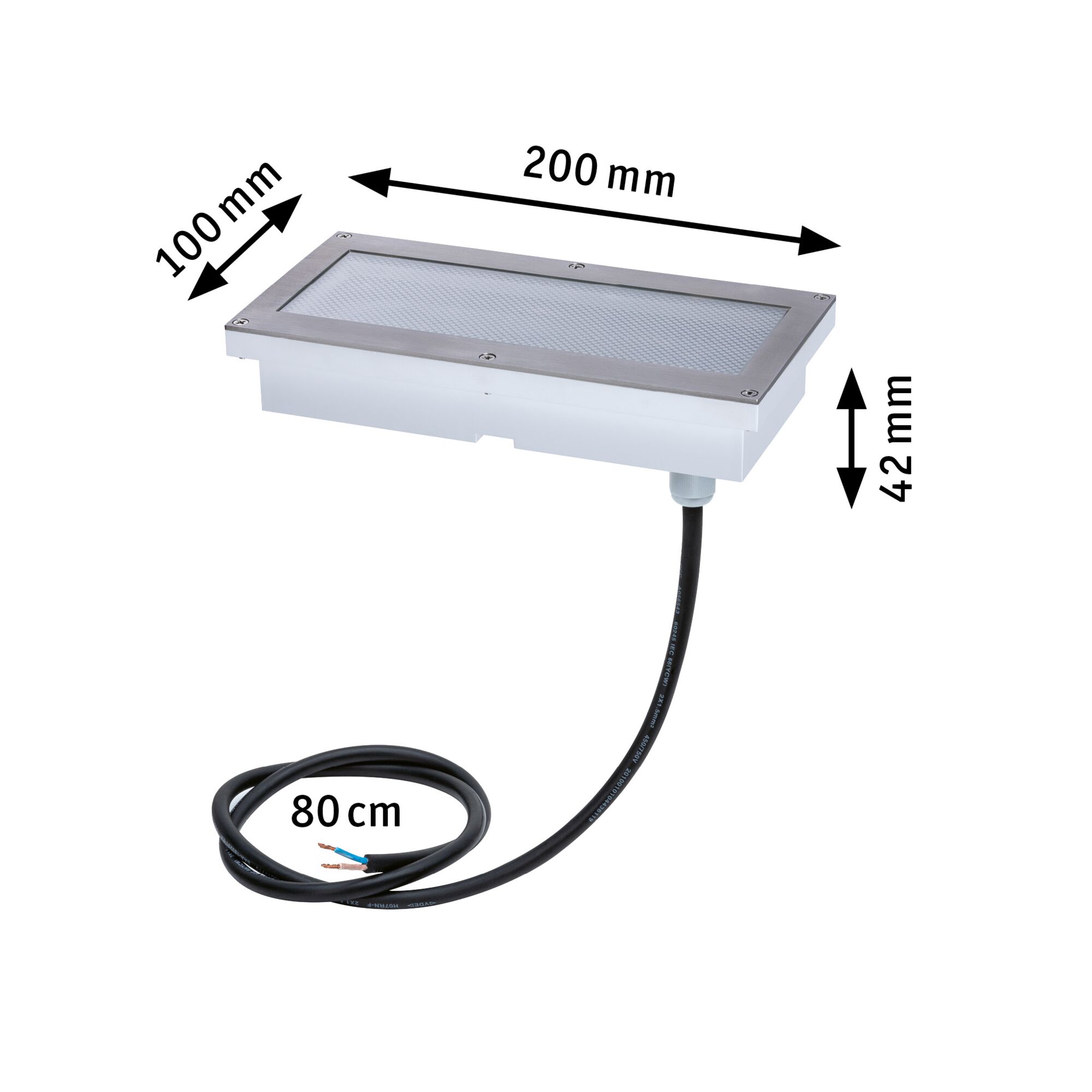

| Dimensions (Height x Width x Depth) | H: 42 x B: 200 x T: 100 mm |
| Mounting hole | 100 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Aluminium, Grey |
| Material | Metal, Stainless steel |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Features | |
|---|---|
| Sensors | Motion detector |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 160 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 1,6 W |
| Technique | LED |
| IP protection | IP67 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 200 mm |
| Incandescent Equivalent | 17 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5 W |
| Transformer | |
|---|---|
| apparent power | 9.2 VA |
| Transformer height | 22 mm |
| Transformer width | 28 mm |
| Transformer depth | 53 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
