Article-No.:
79784
LED Pendant luminaireSmart Home Zigbee 3.0
Puric Pane
2700K 6x450lm 6x6W Black dimmable
2700K 6x450lm 6x6W Black dimmable

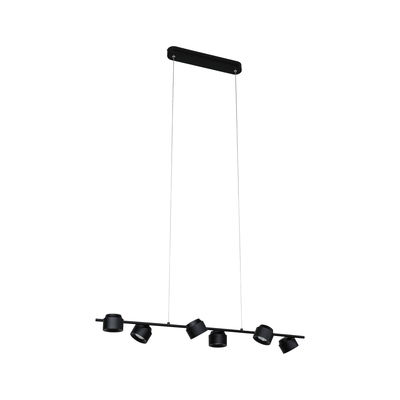

LED Pendant luminaire Smart Home Zigbee 3.0 Puric Pane 2700K 6x450lm 6x6W Black dimmable

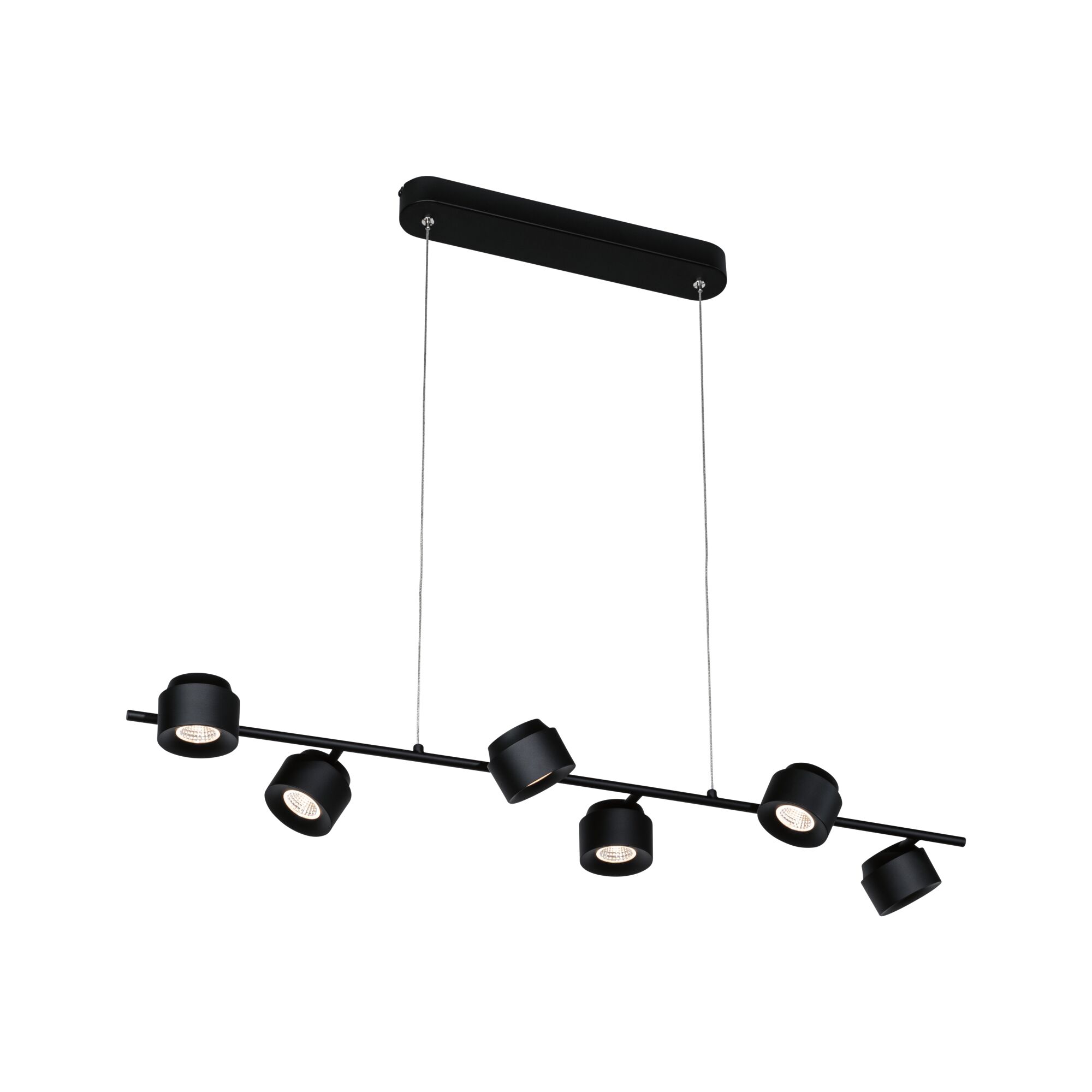

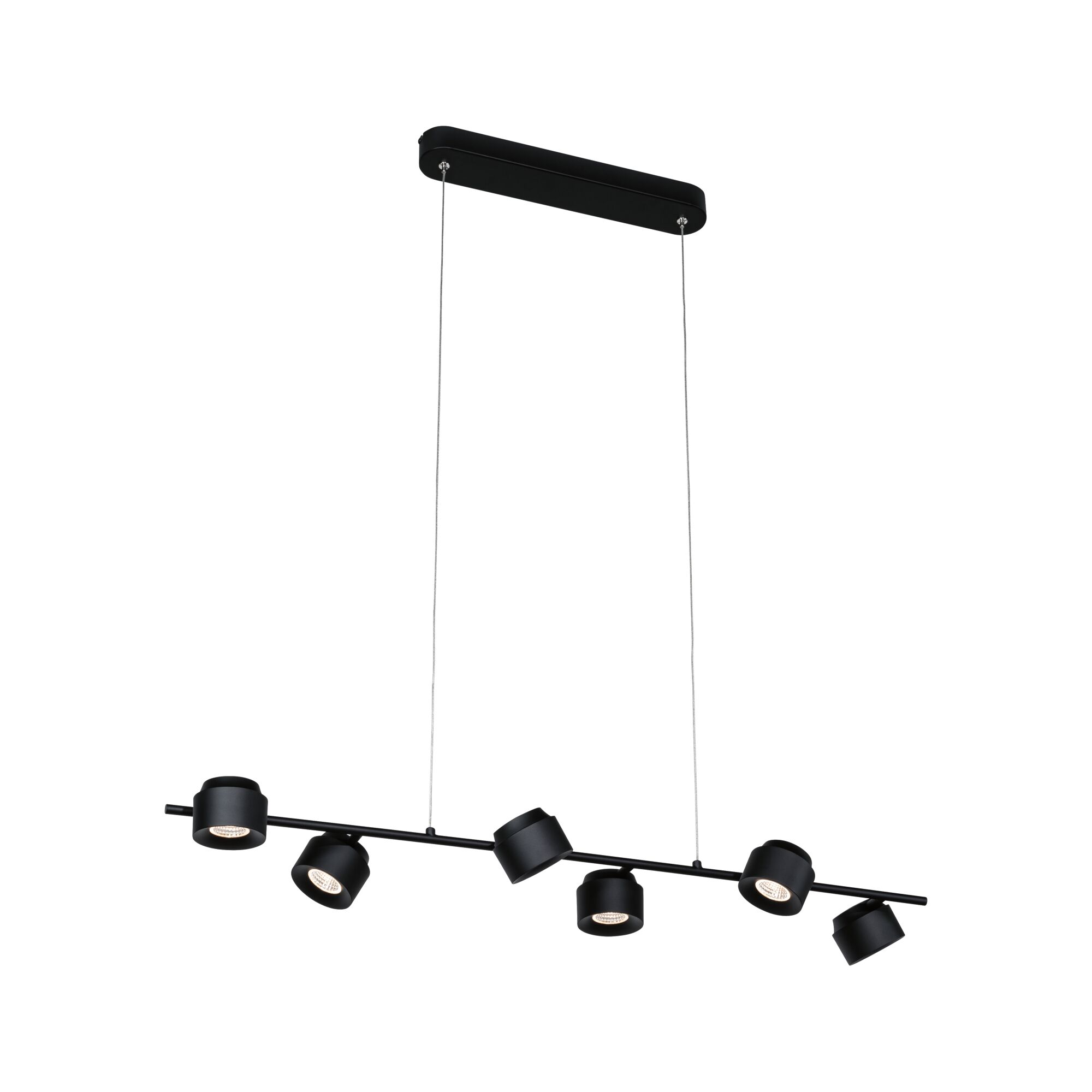

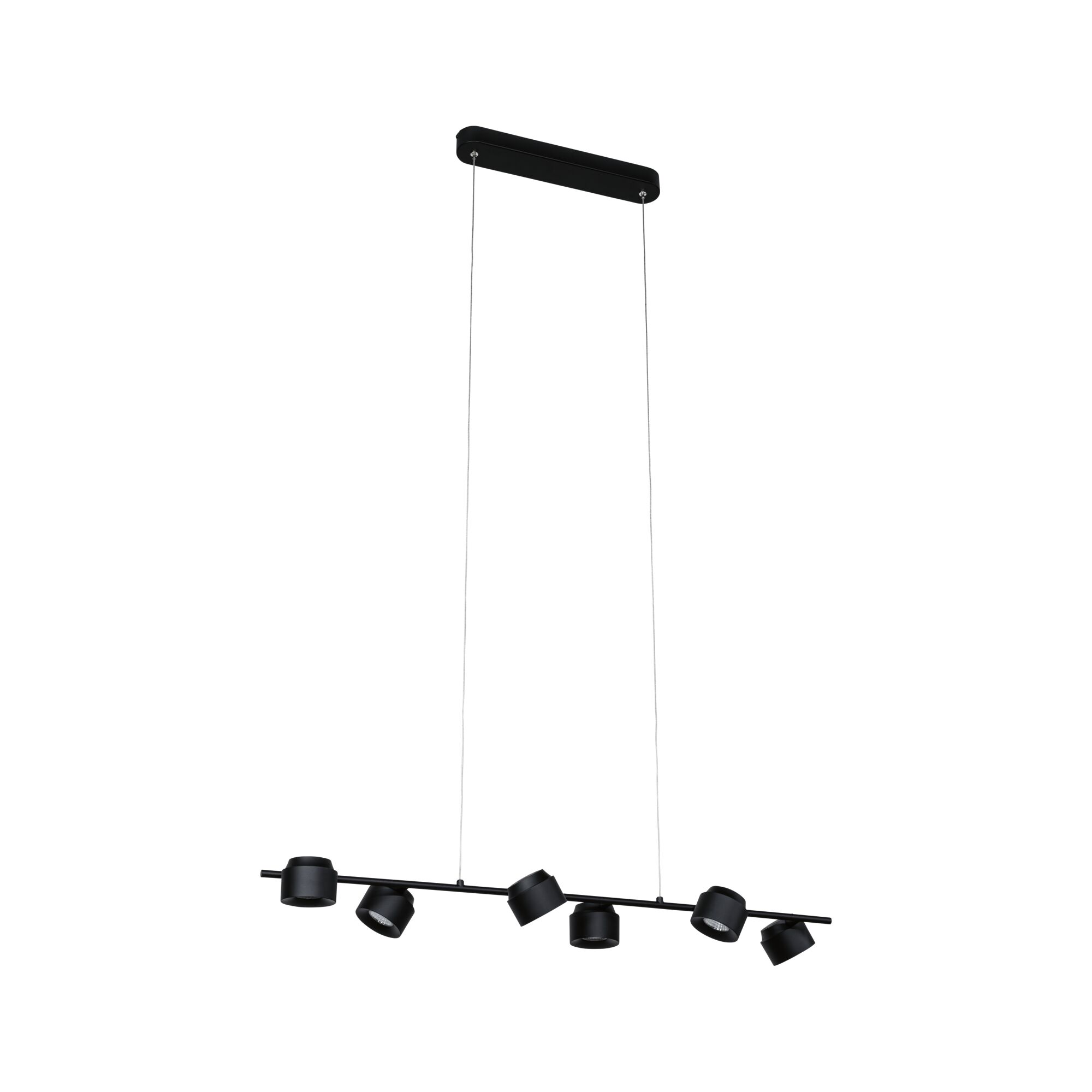

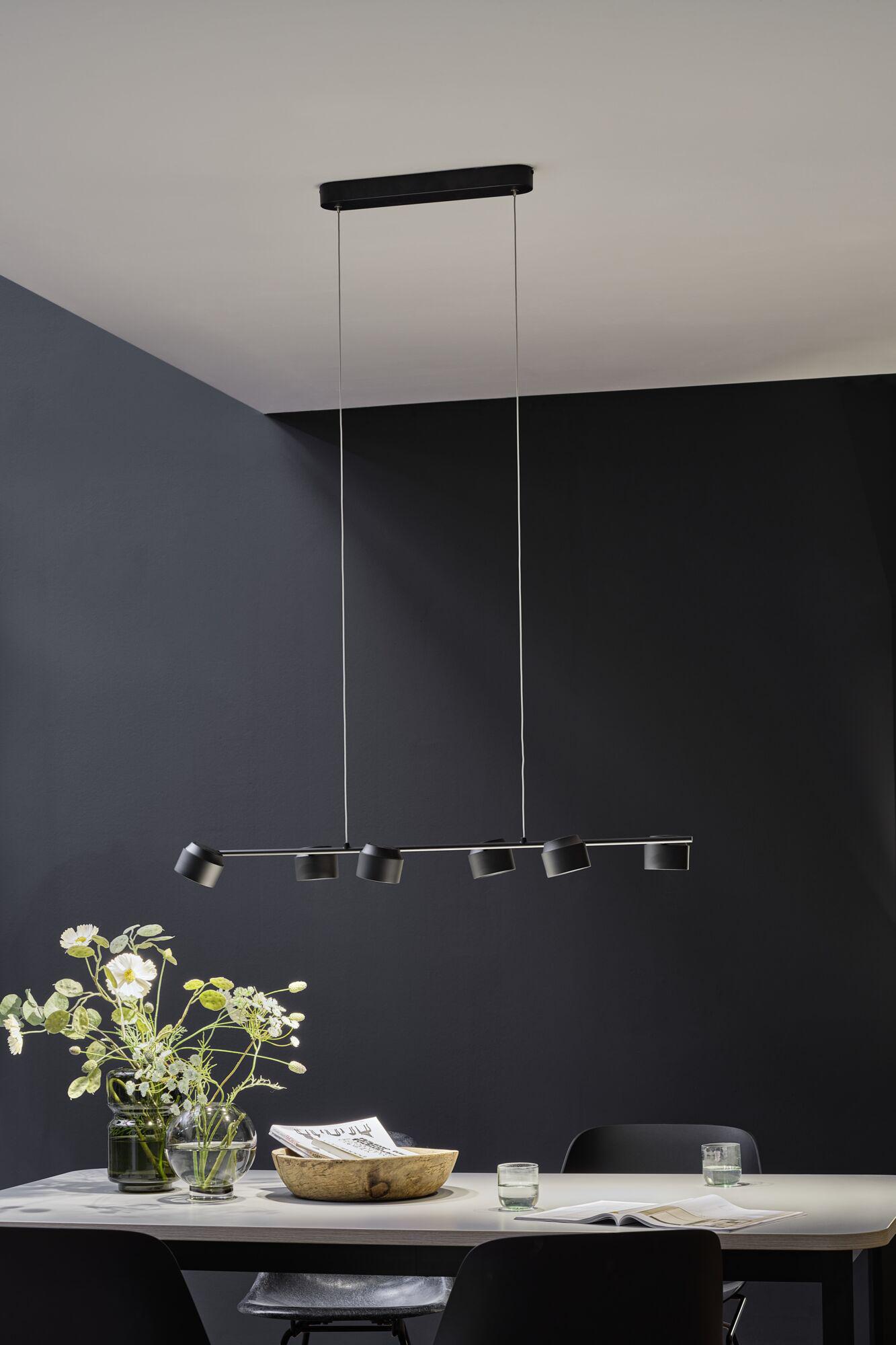

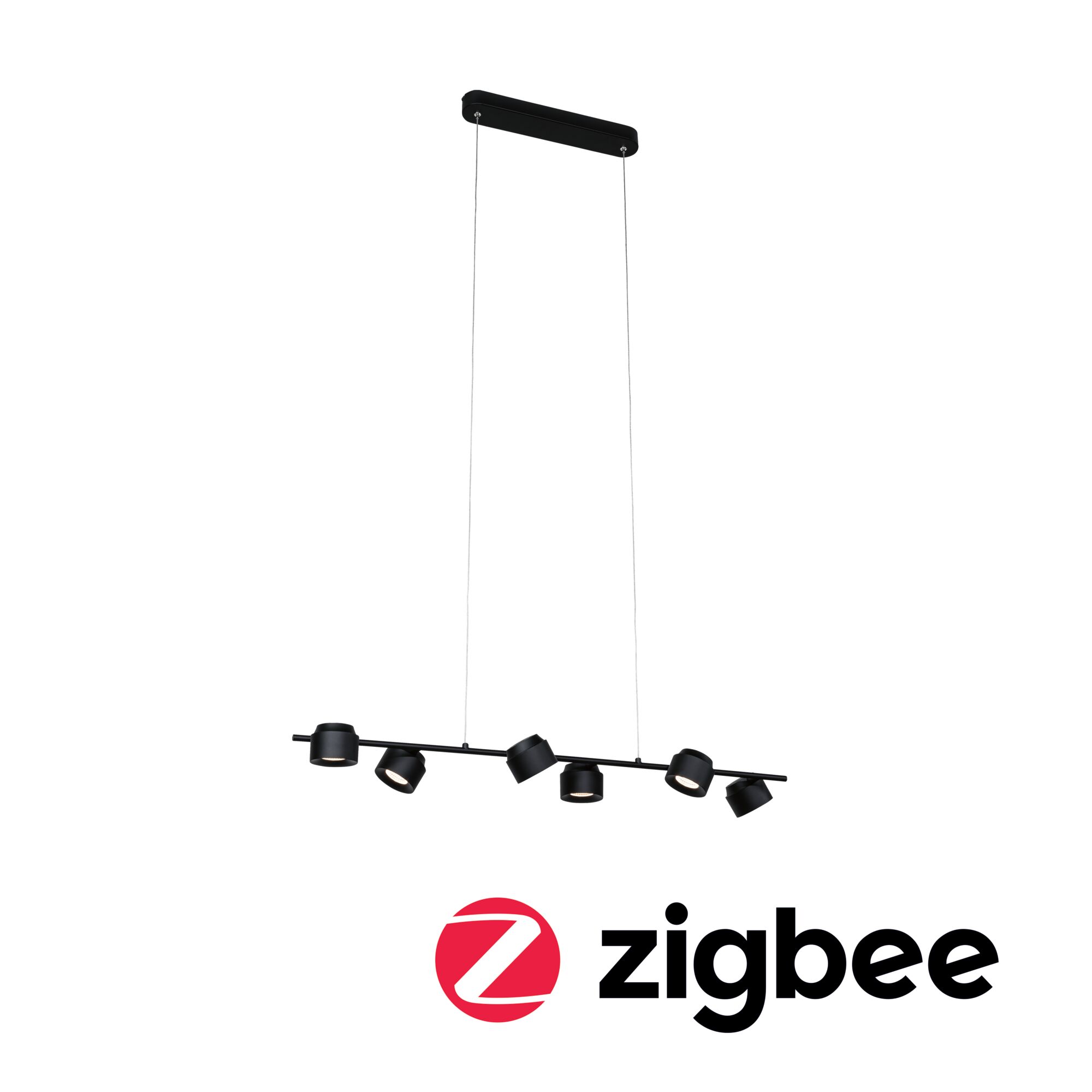

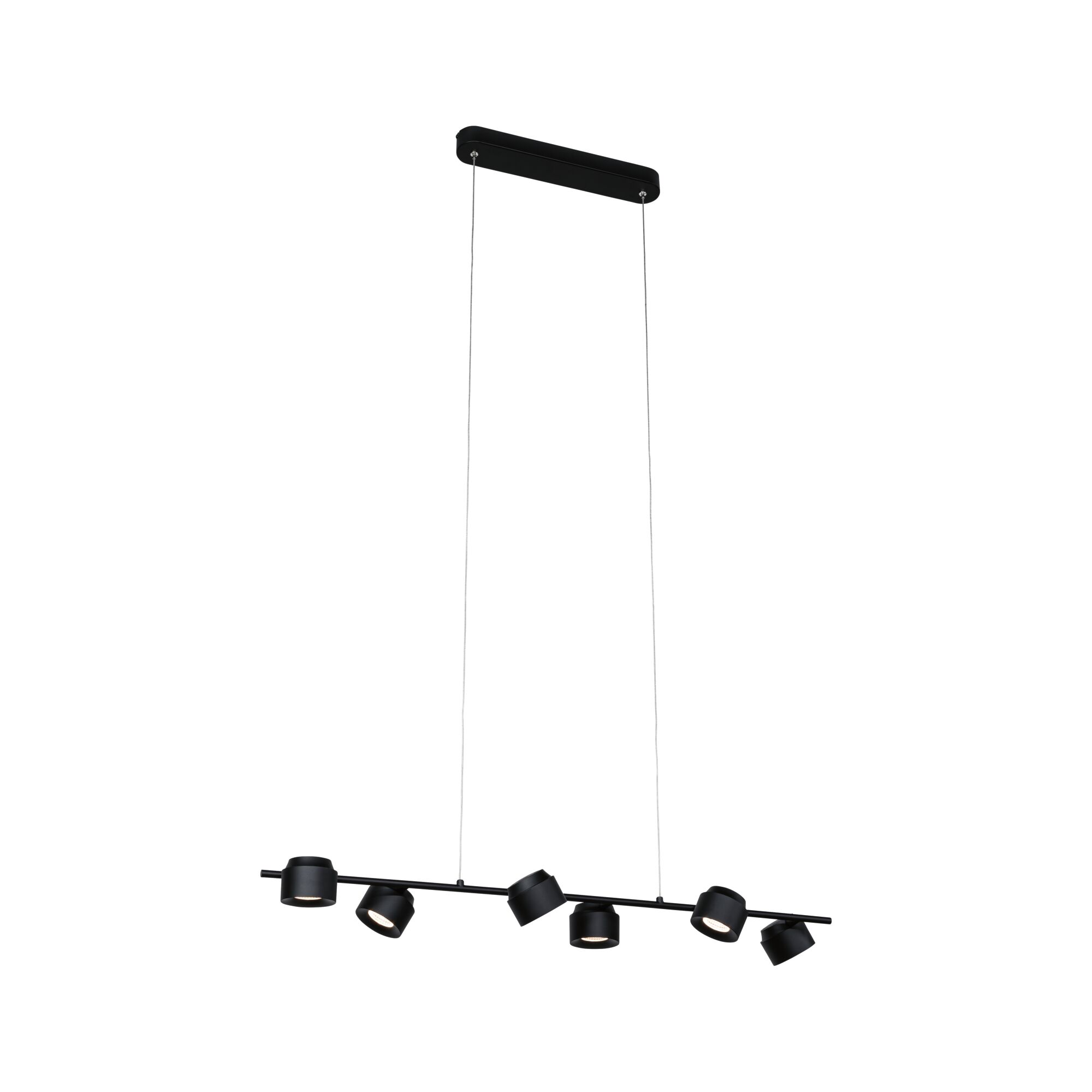

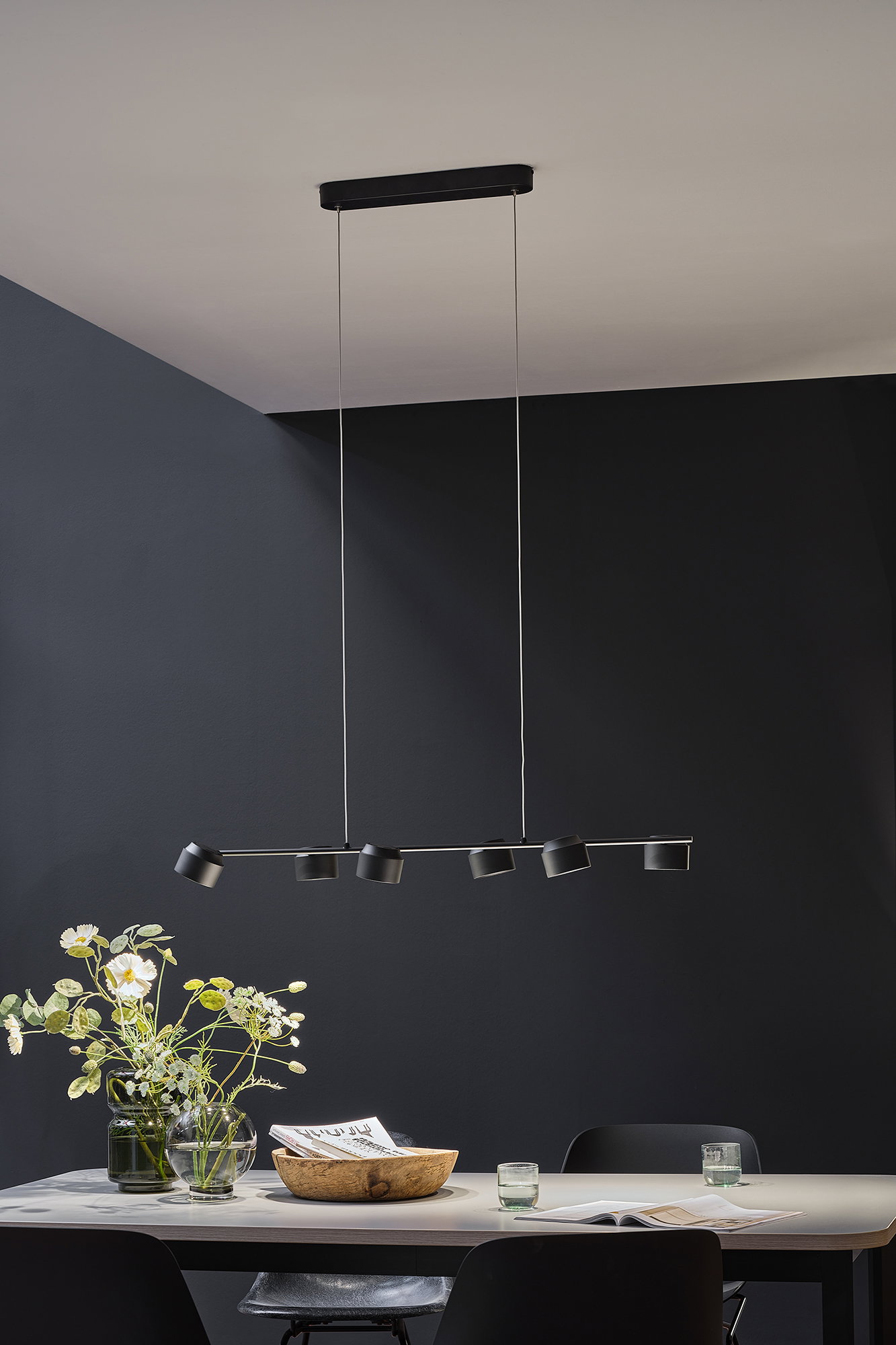

The 6-lamp, smart Puric Pane pendant luminaire in black impresses with its modern, scaled-back design. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot head and the adjustable pendant height allow for flexible lighting design. With direct or indirect lighting, the pendant luminaire provides captivating lighting effects and is a visual highlight in any room. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Dimmable

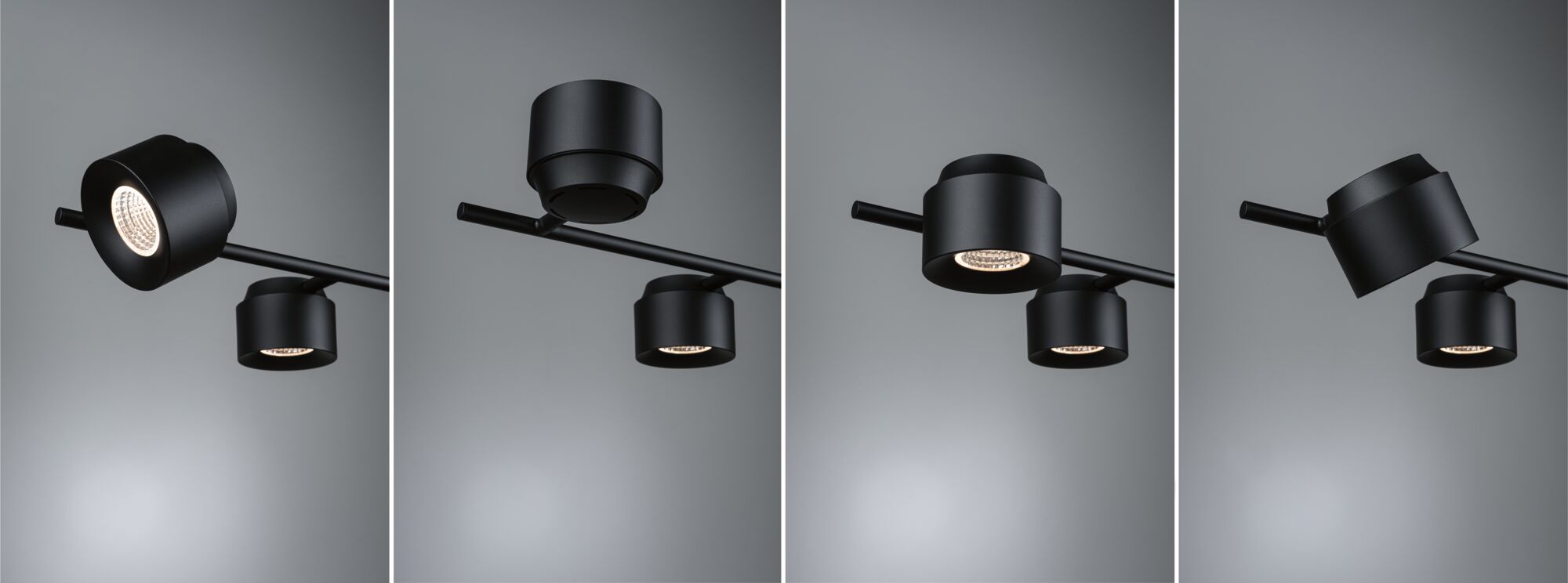

- swivelling
- Color temperatur: 2700K - Warm white

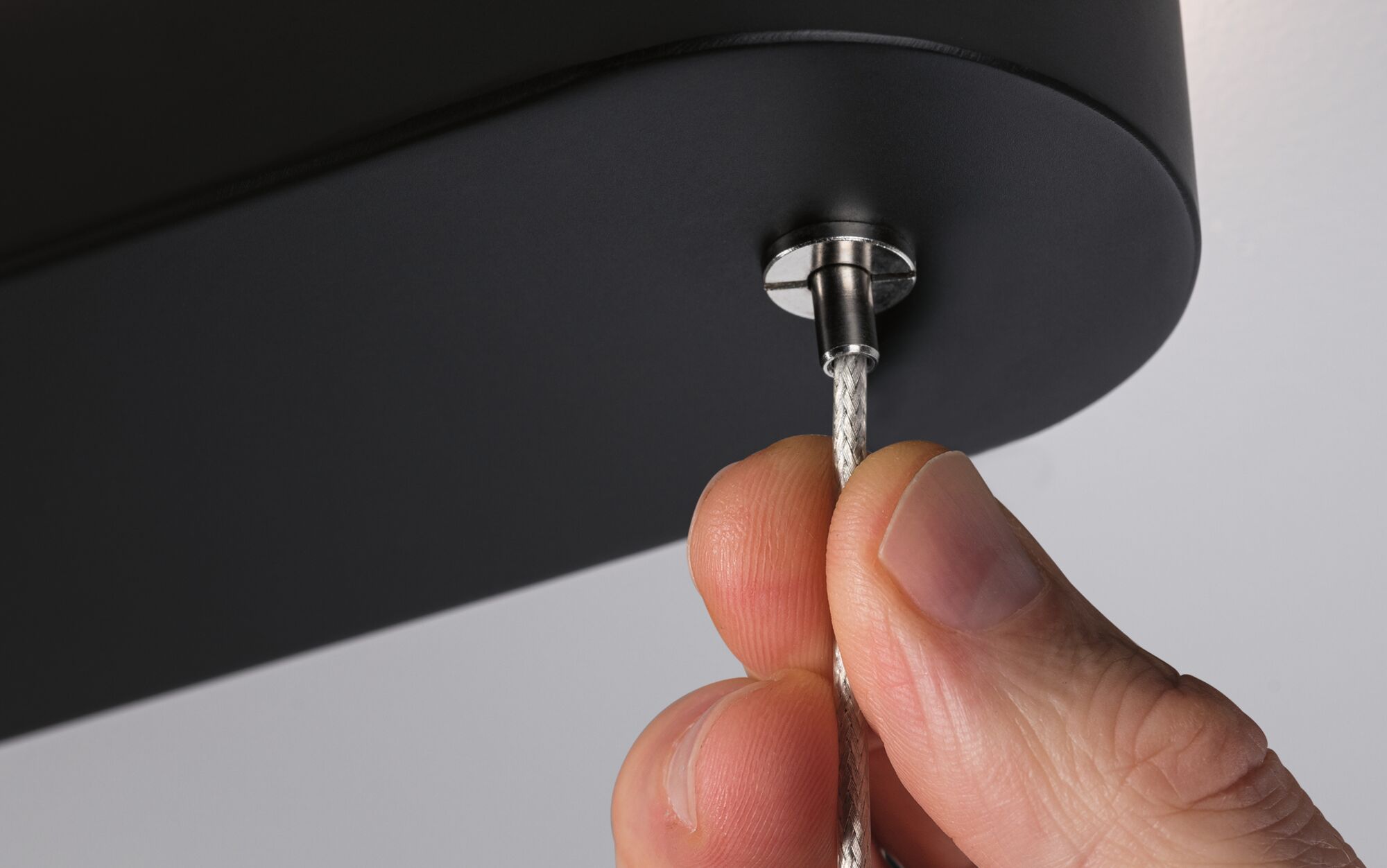

- Pendant length individually adjustable
- LED lamp (fixed) included in scope of delivery
- Controllable with Paulmann Zigbee remote control Gent 500.67
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|

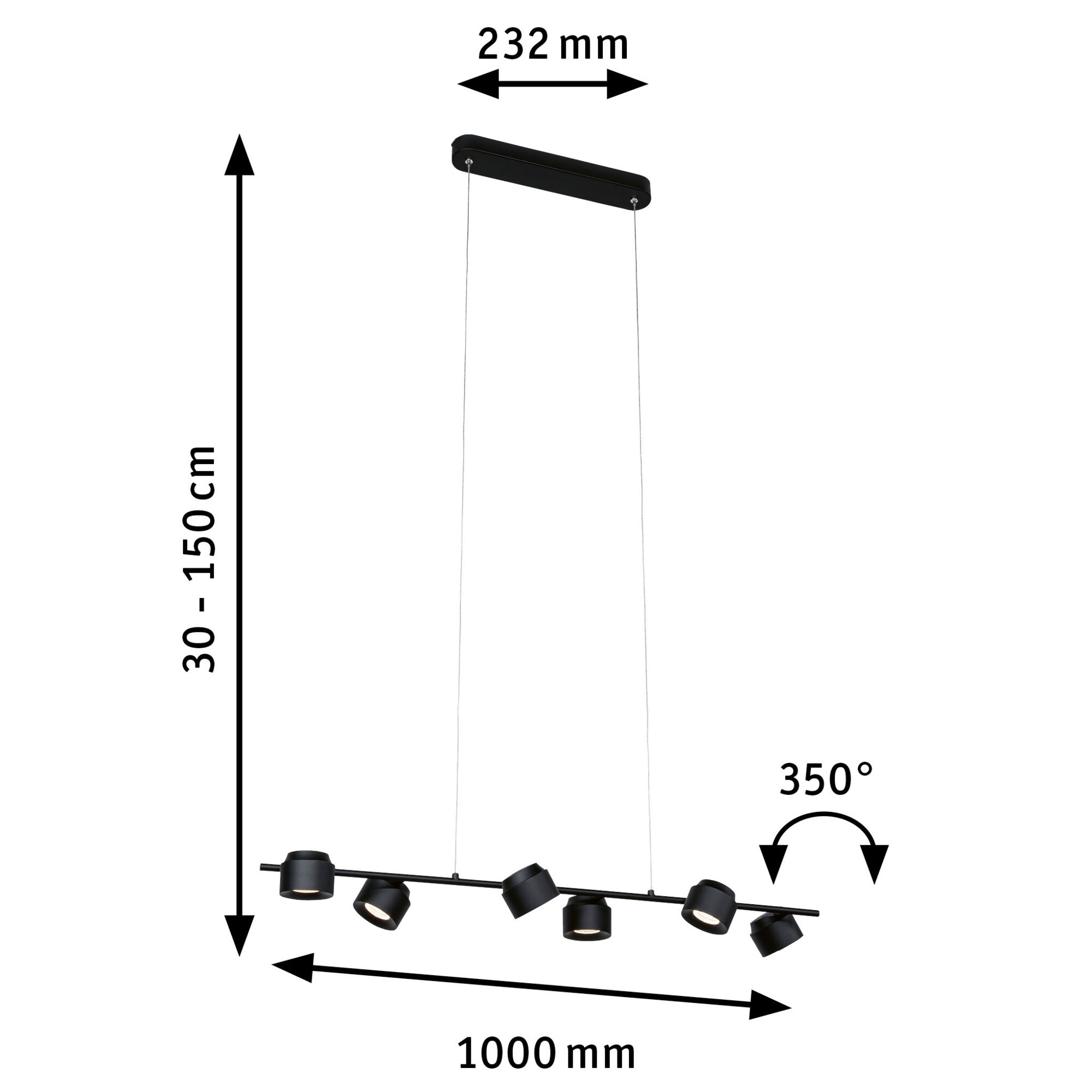

| Dimensions (Height x Width x Depth) | H: 1500 x B: 1000 x T: 232 mm |
| Pendulum length range | 30-150 cm |
| Canopy depth | 70 mm |
| Canopy width | 422 mm |
| net weight | 2620 g |
| Design and Material | |
|---|---|
| Form | elongated |
| Colour | Black |
| Material | Metal, Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 450 lm |
| Luminous flux LED module | 600 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 55 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 210 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 6x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 38 W |
| Adjustability | height adjustable |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 41 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
