Article-No.:
79773
LED Pendant luminaire3-Step-Dim
Puric Pane
2700K 6x350lm 6x4,5W Black dimmable
2700K 6x350lm 6x4,5W Black dimmable

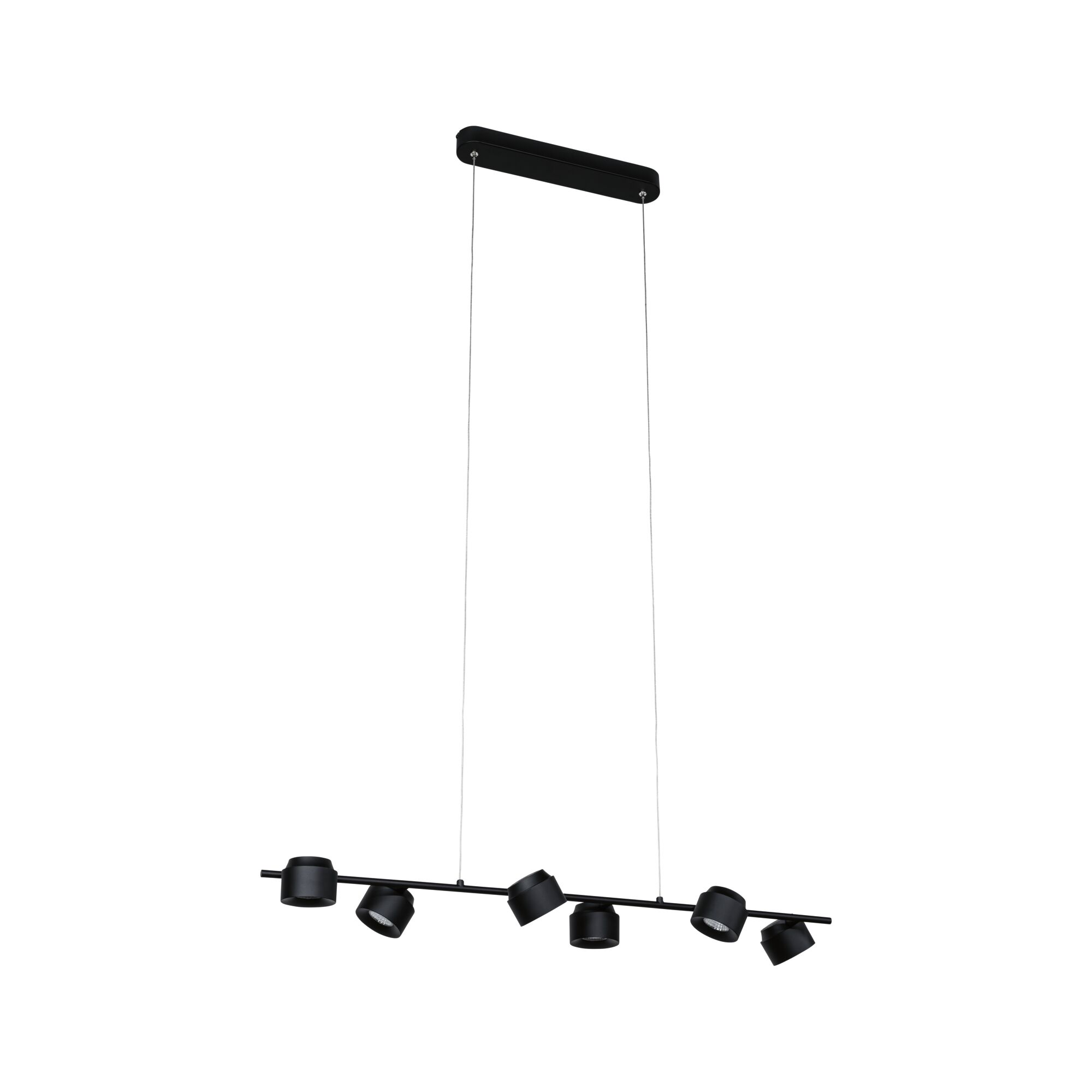

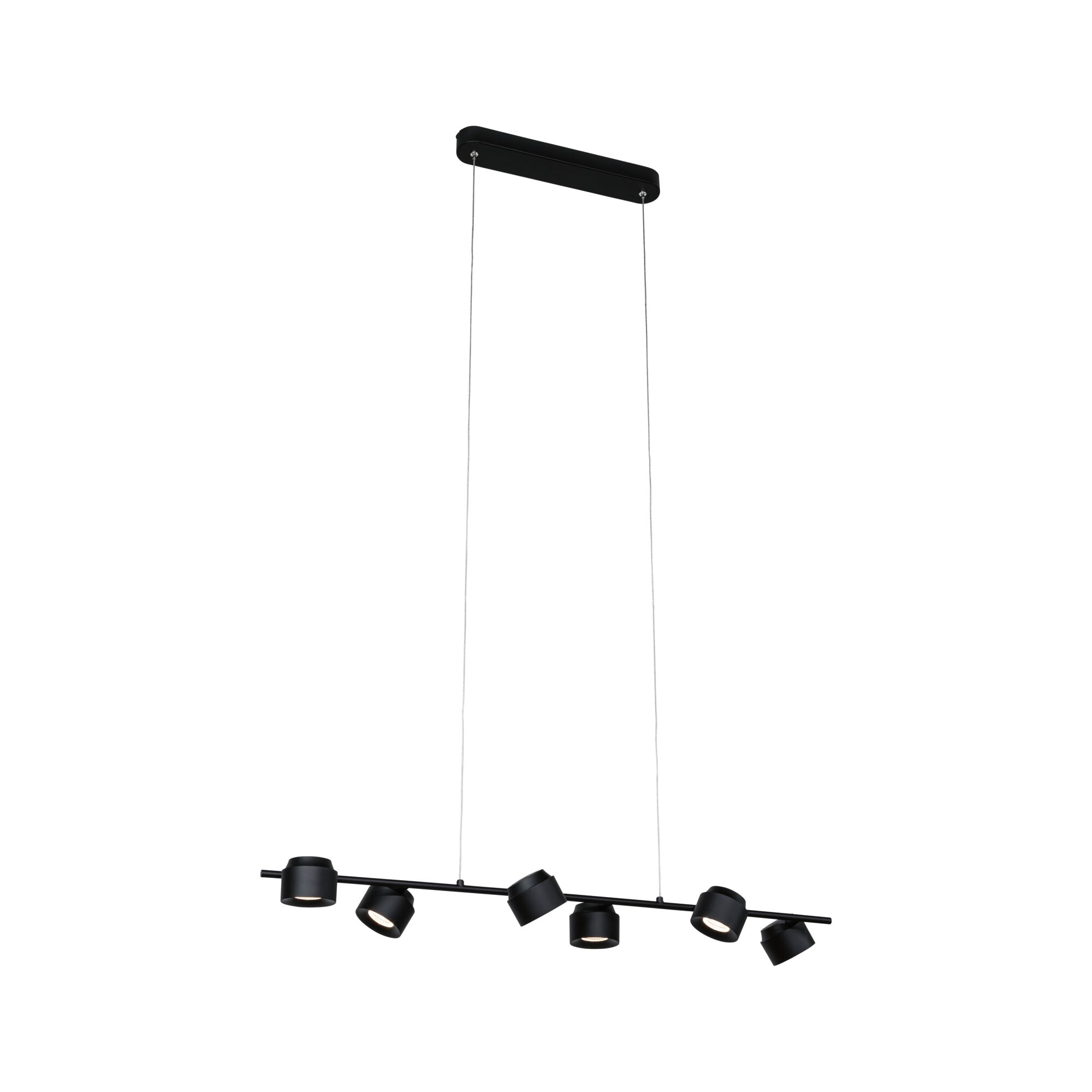

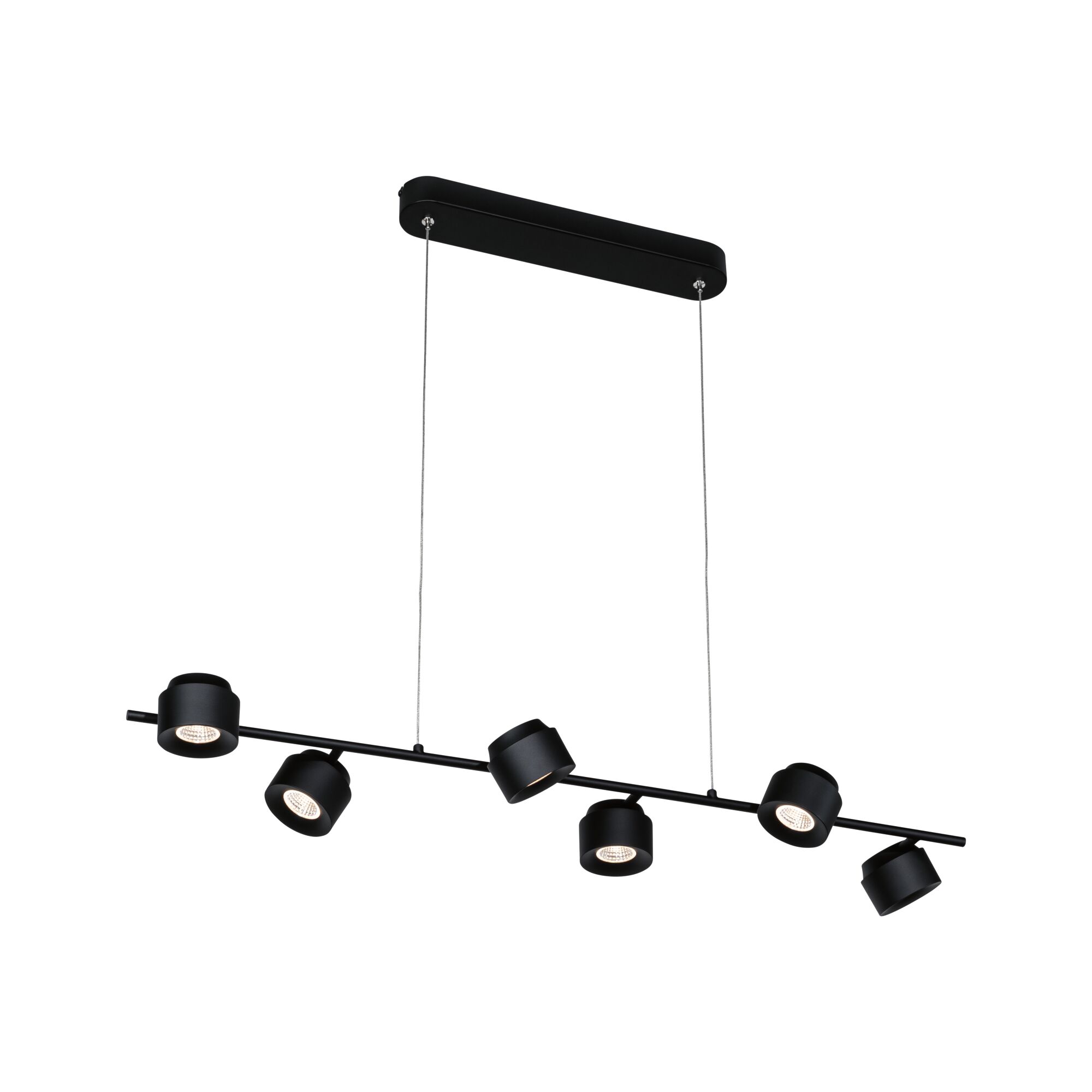

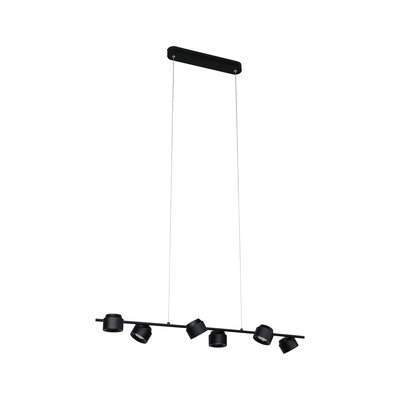

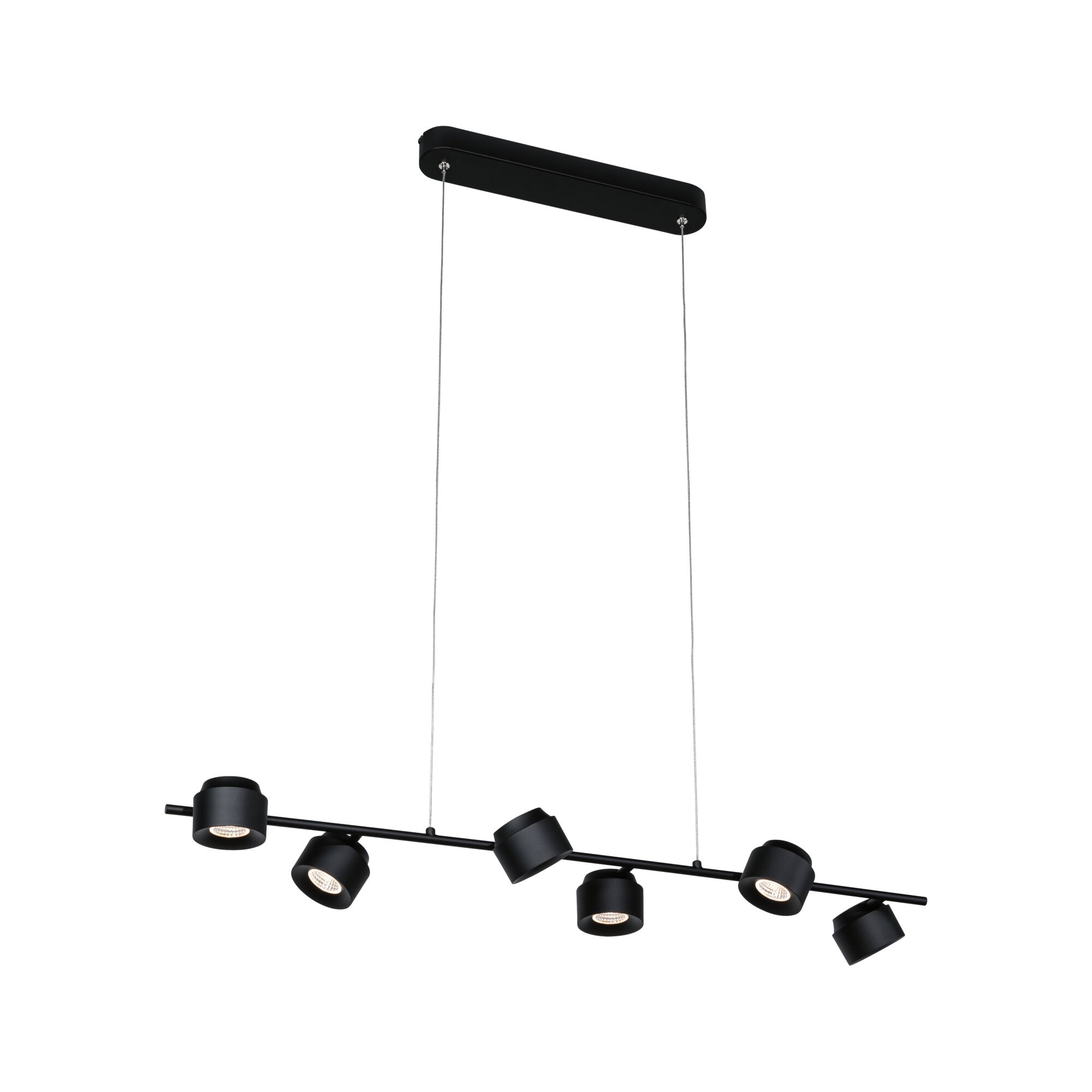

LED Pendant luminaire 3-Step-Dim Puric Pane 2700K 6x350lm 6x4,5W Black dimmable

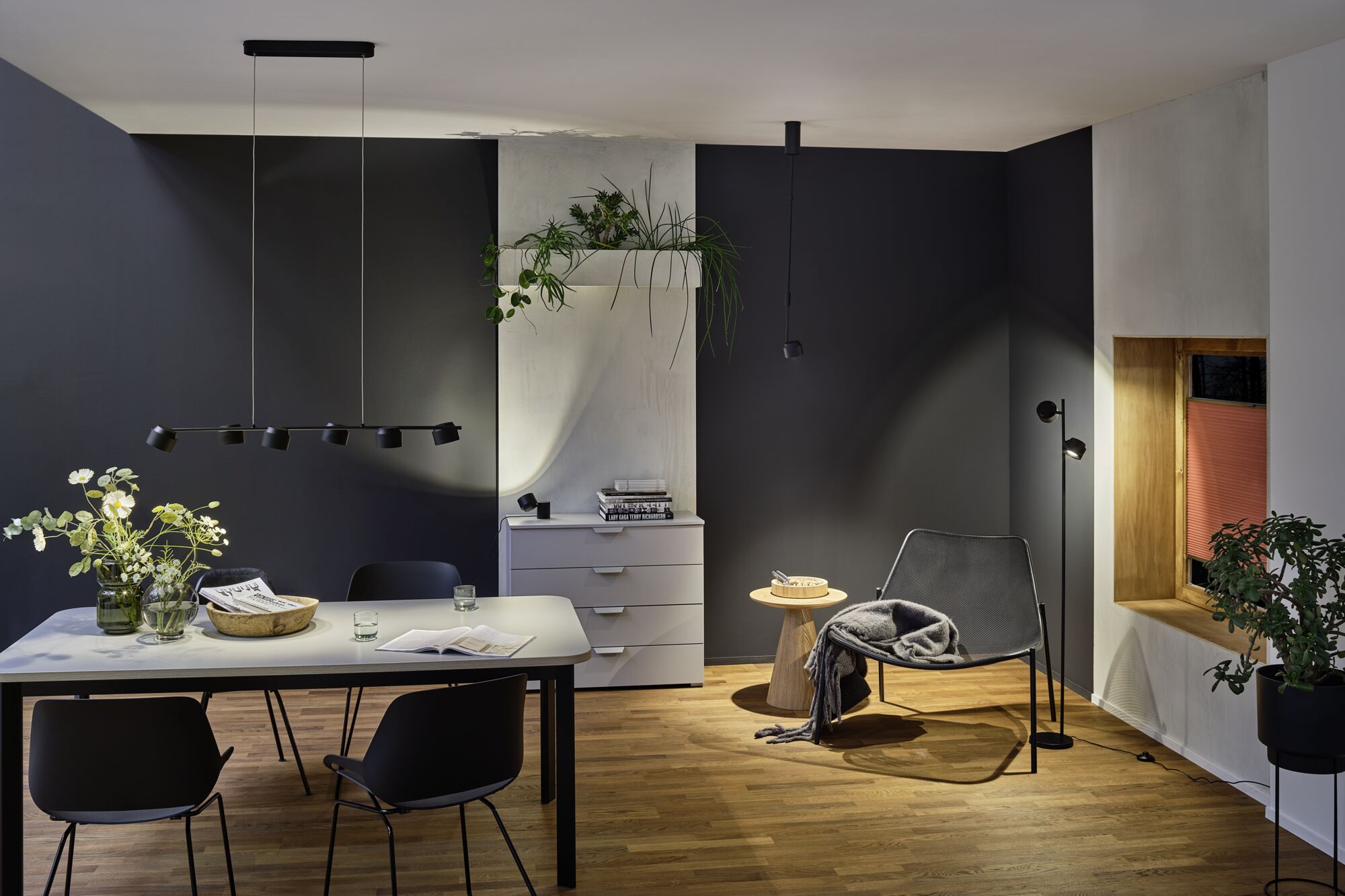

The 6-lamp Puric Pane pendant luminaire in black impresses with its modern, scaled-back design. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot heads and the adjustable pendant height allow for flexible lighting design. The pendant luminaire provides captivating lighting effects and a visual highlight in any room. The luminaire can be dimmed in 3 steps via a wall switch, which allows for a variety of lighting designs.
- Dimmable

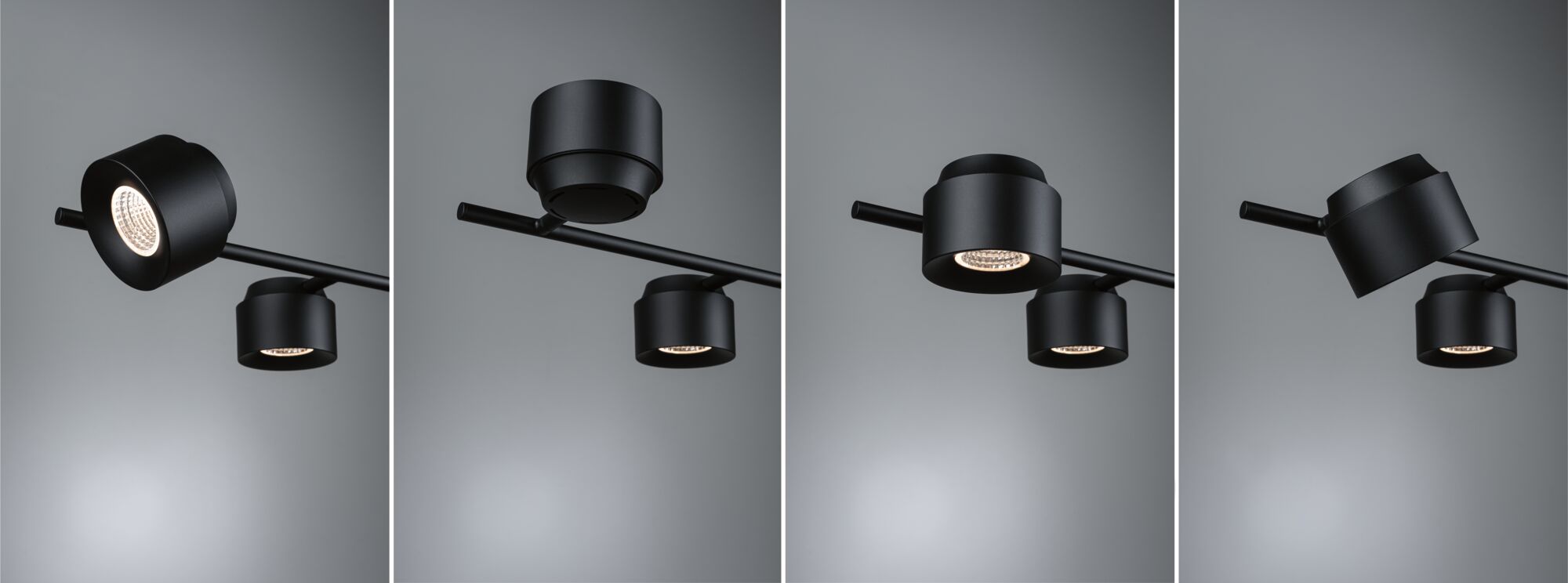

- swivelling
- 3 brightness levels
- Suitable for ceiling mounting

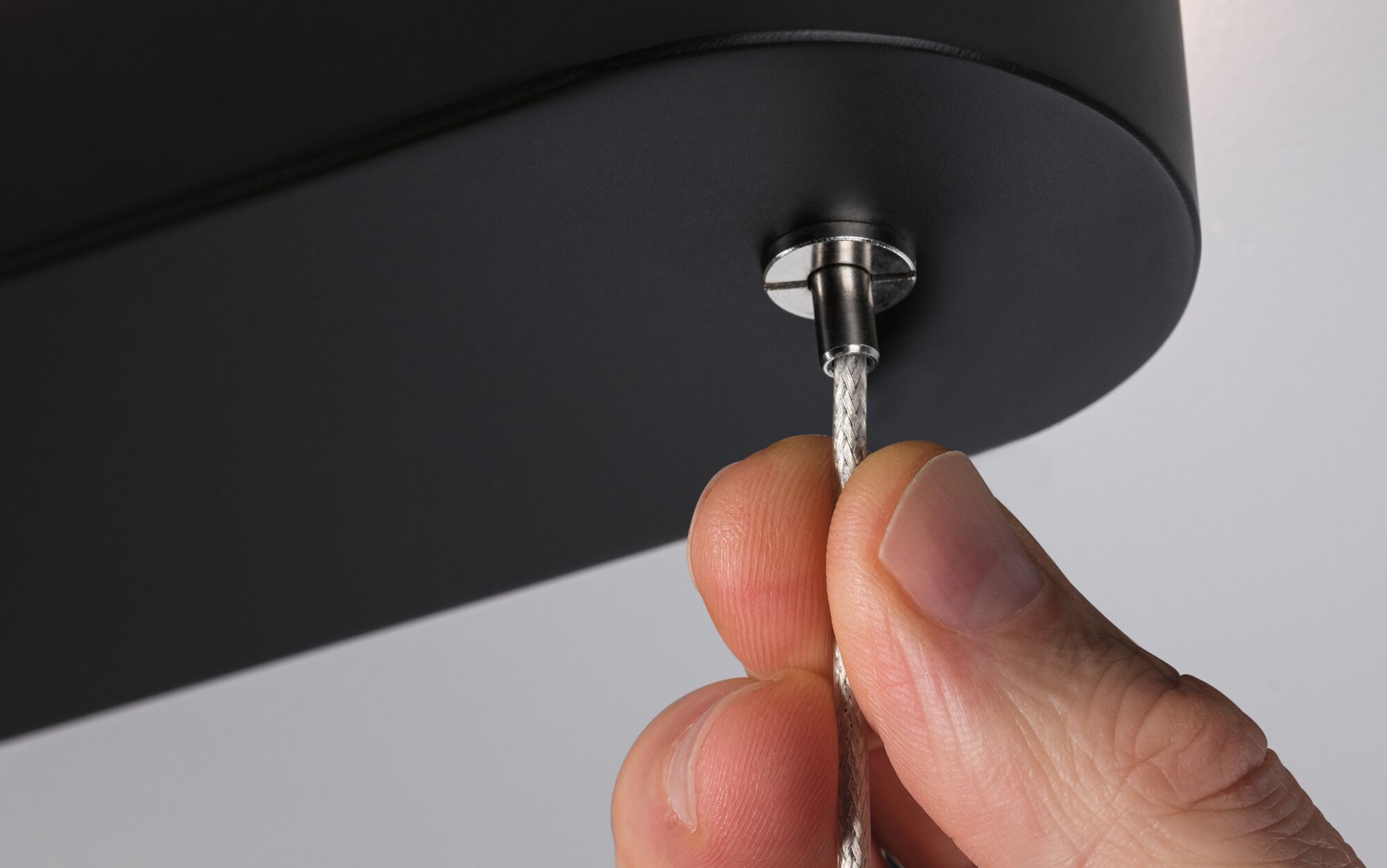

- Pendant height adjustable during installation
- LED lamp (fixed) included in scope of delivery
- Even room light based on cutting-edge LED technology
| Dimension | |
|---|---|

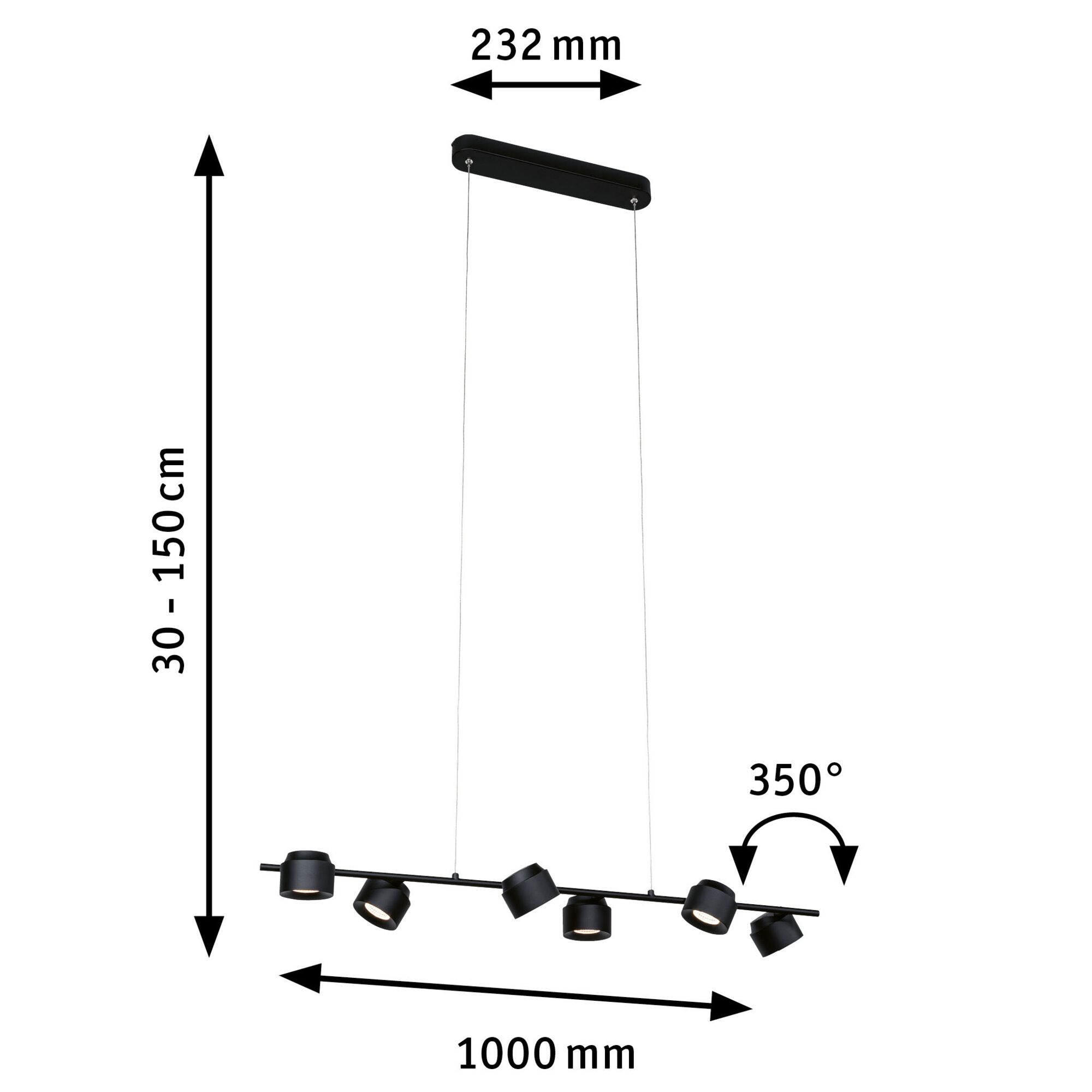

| Dimensions (Height x Width x Depth) | H: 1500 x B: 1000 x T: 232 mm |
| Pendulum length range | 30-150 cm |
| Design and Material | |
|---|---|
| Form | elongated |
| Colour | Black |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 350 lm |
| Luminous flux LED module | 450 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 55 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 160 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 4,5 W |
| Number of component parts | 6x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 28 W |
| Adjustability | height adjustable |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 30 VA |
| Transformer height | 27 mm |
| Transformer width | 45 mm |
| Transformer depth | 133 mm |
| Accessories | |
|---|---|
| Radio control included | no |
