Article-No.:
79810
LED PanelSmart Home Zigbee 3.0
Amaris
angular 1195x295mm 35W 2500lm RGBW+ White dimmable
angular 1195x295mm 35W 2500lm RGBW+ White dimmable
- Usable with smart home gateways that have a Zigbee interface
- Even room light based on cutting-edge LED technology
- Can be controlled with the Smart Home Zigbee remote control

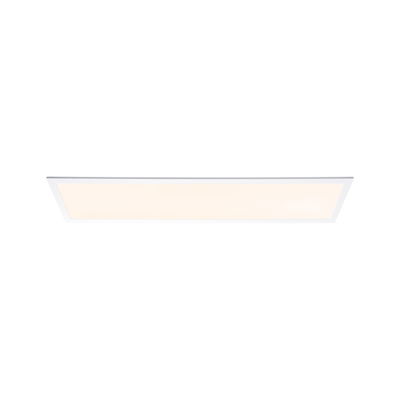

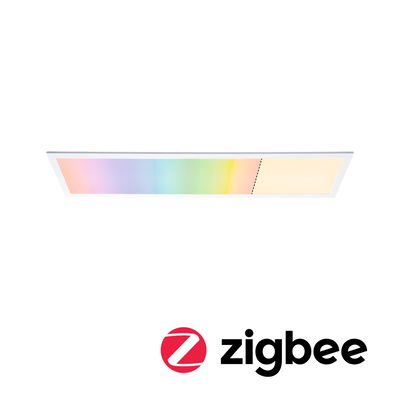

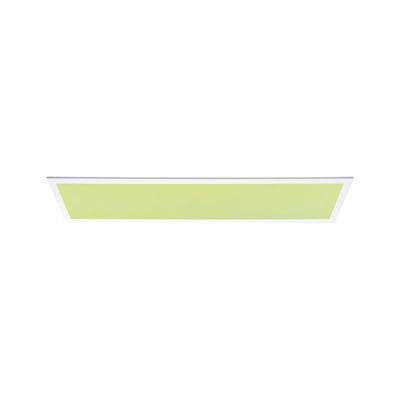

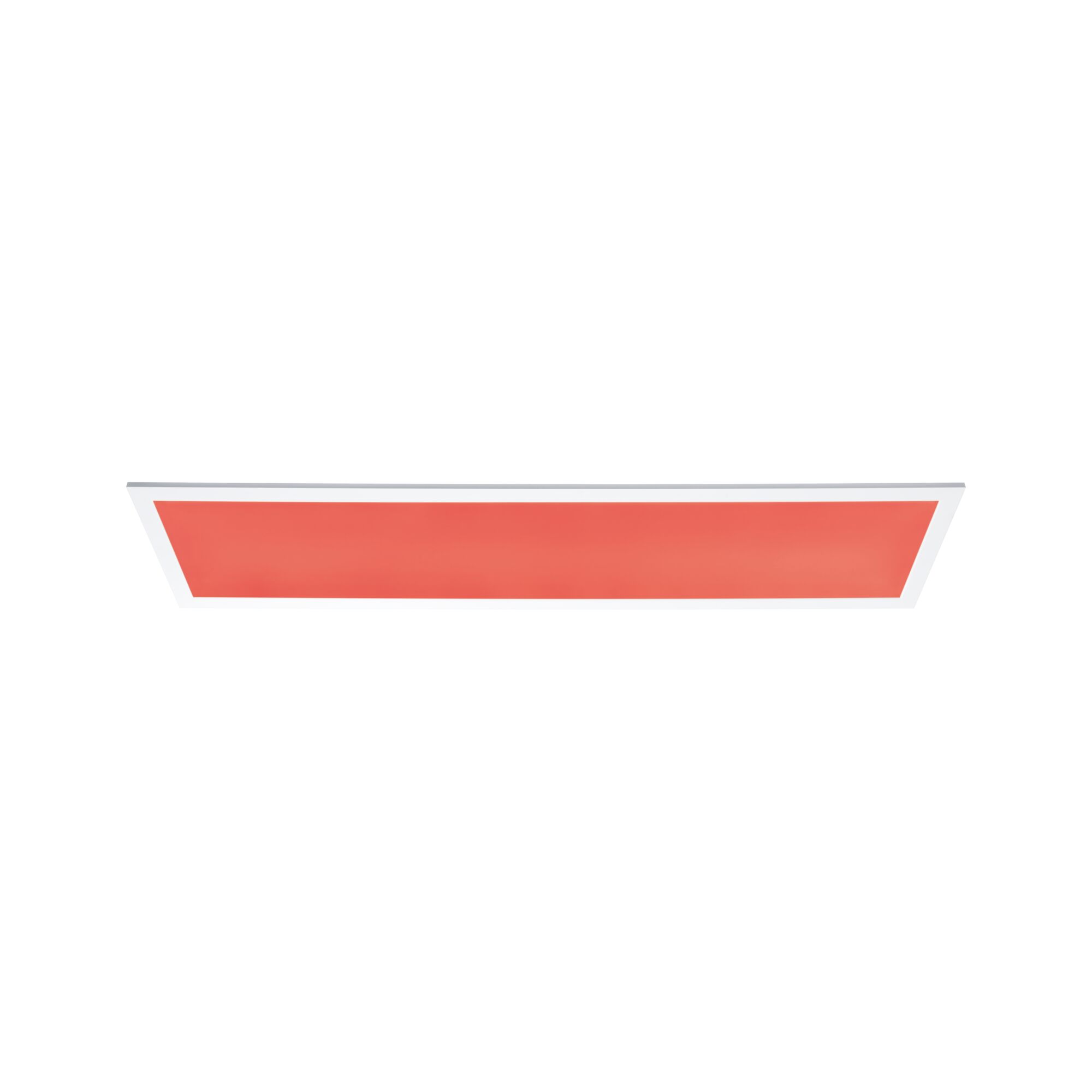

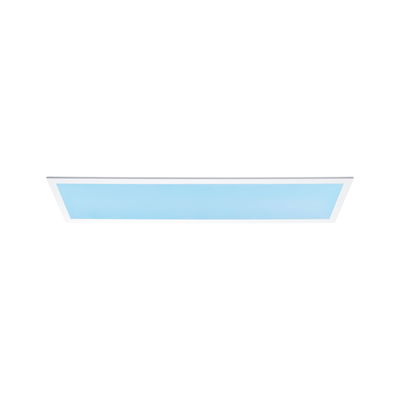

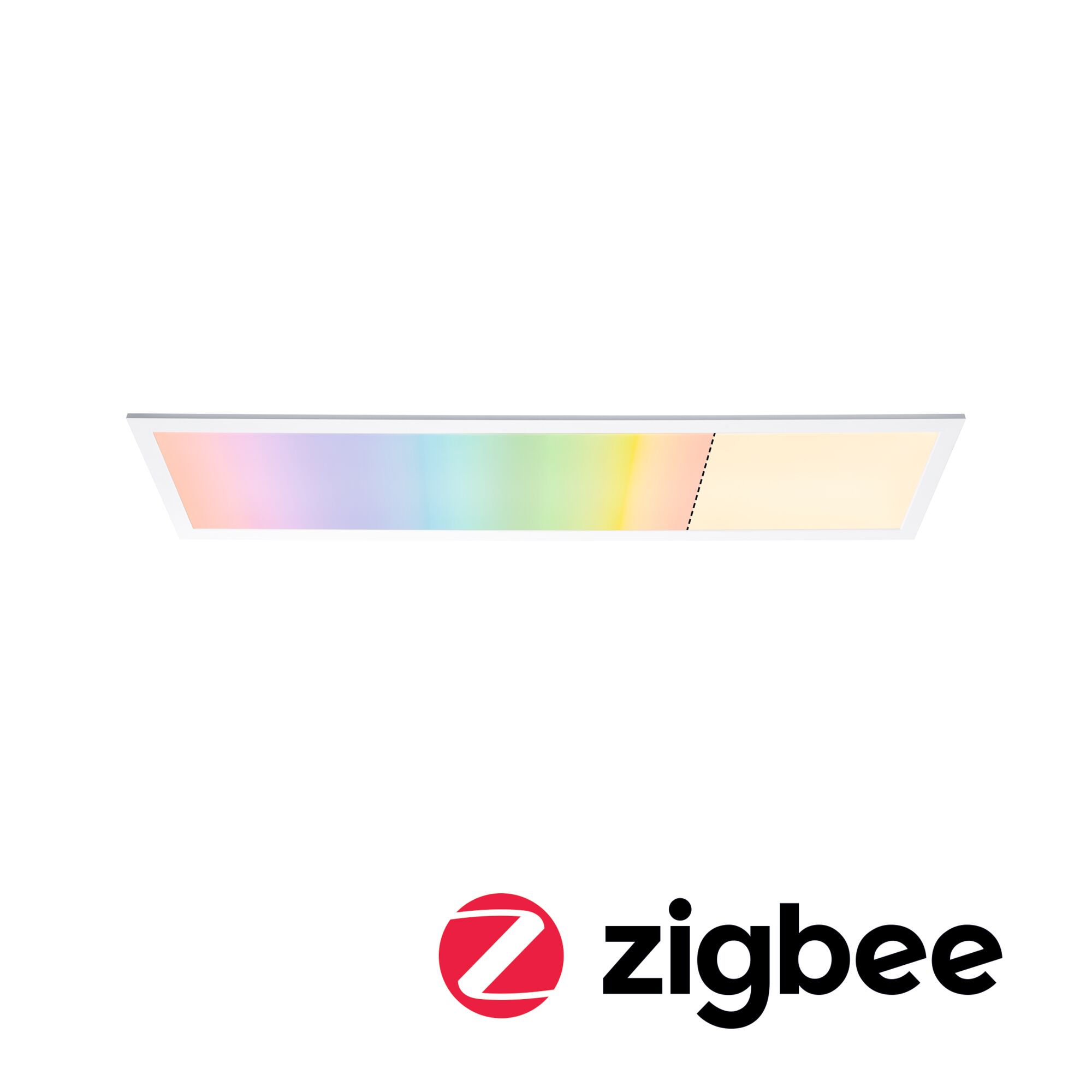

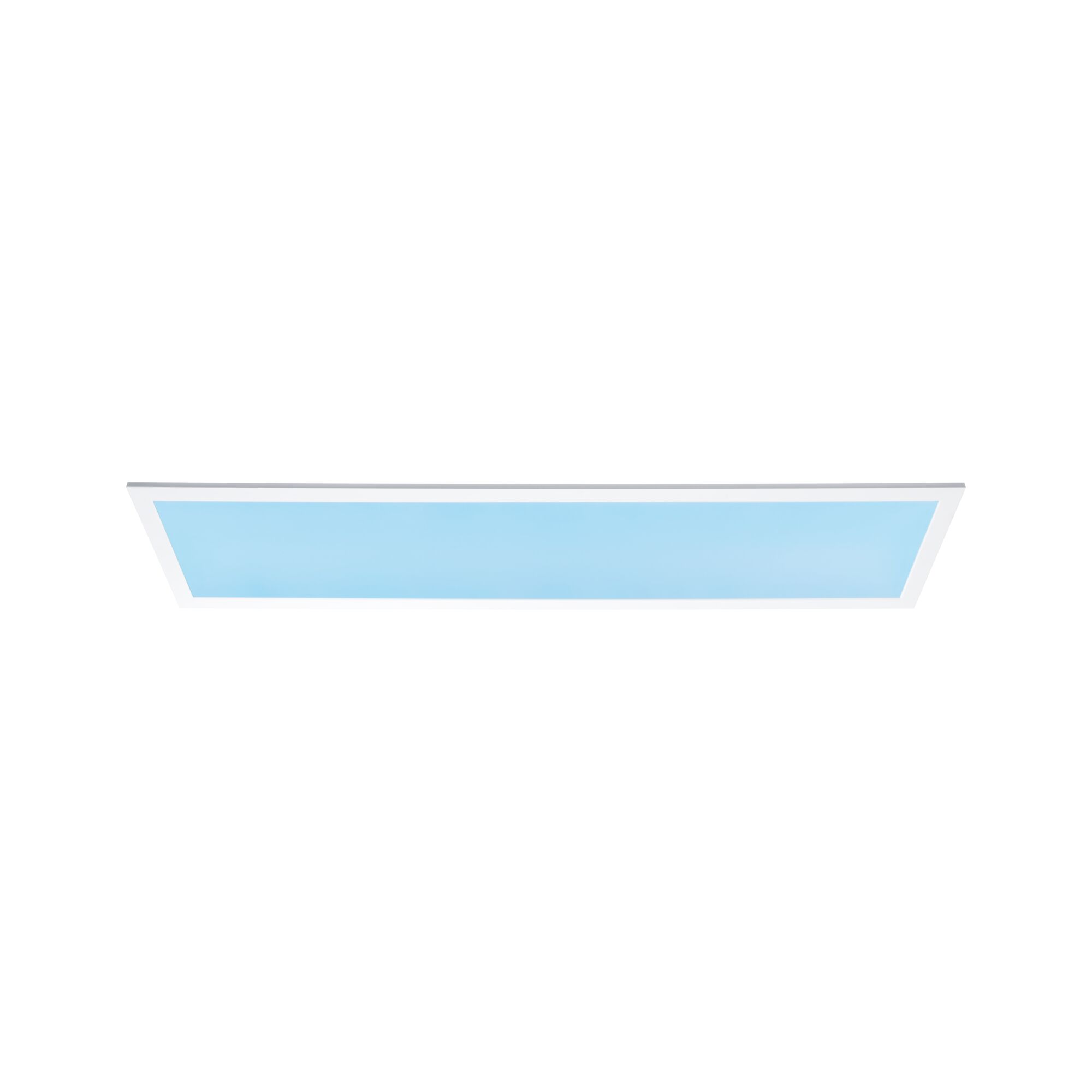

LED Panel Smart Home Zigbee 3.0 Amaris angular 1195x295mm 35W 2500lm RGBW+ White dimmable

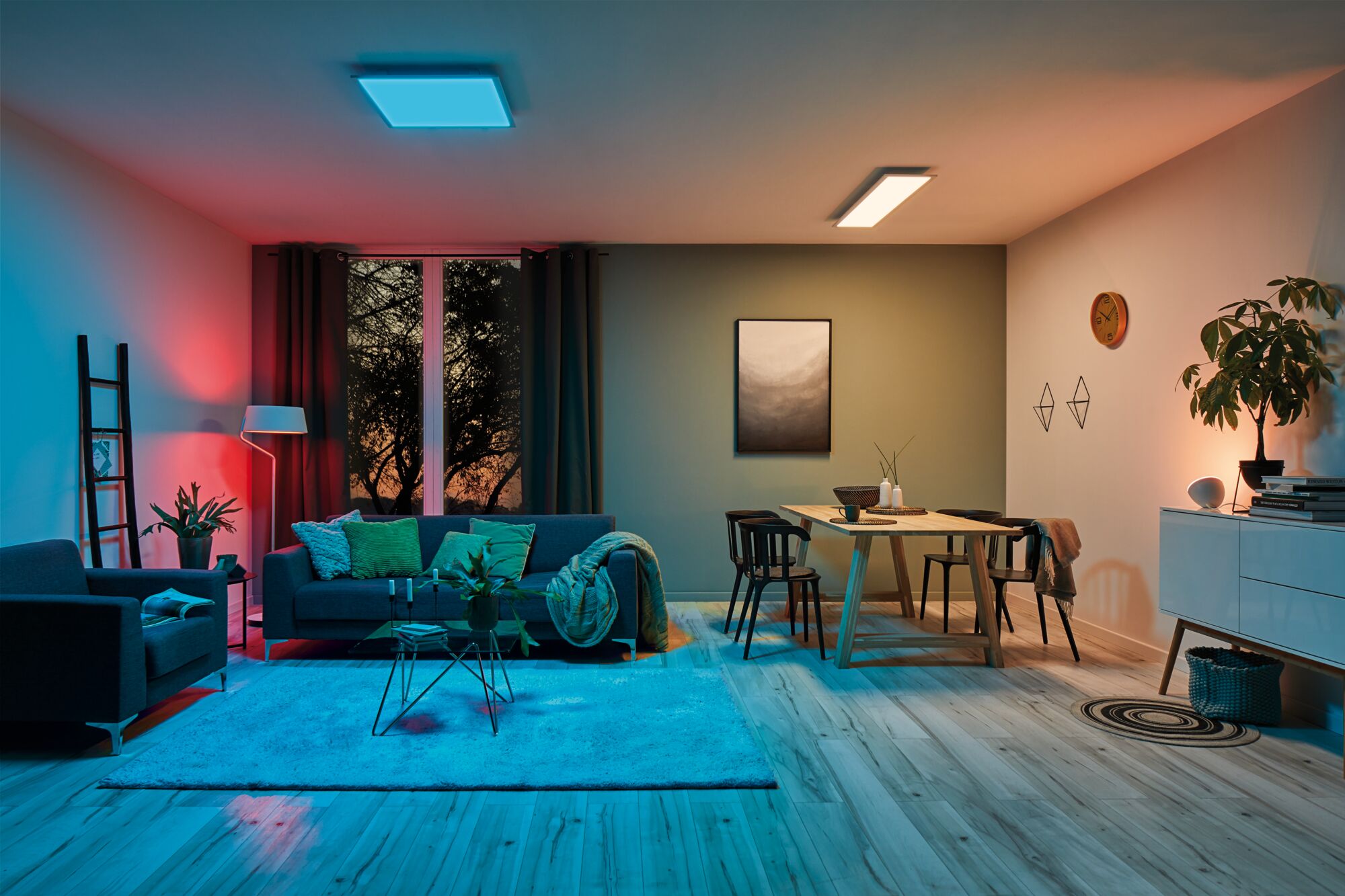

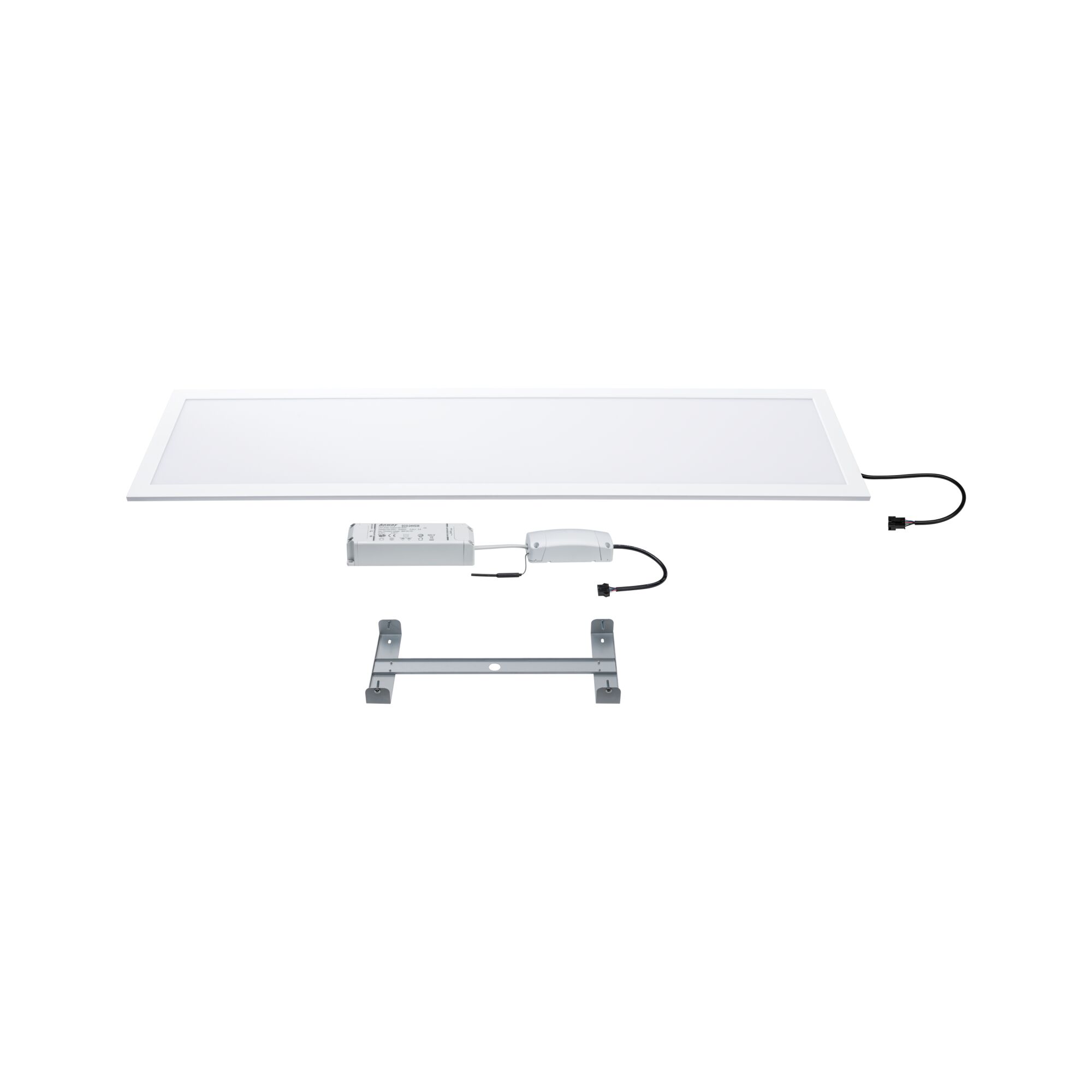

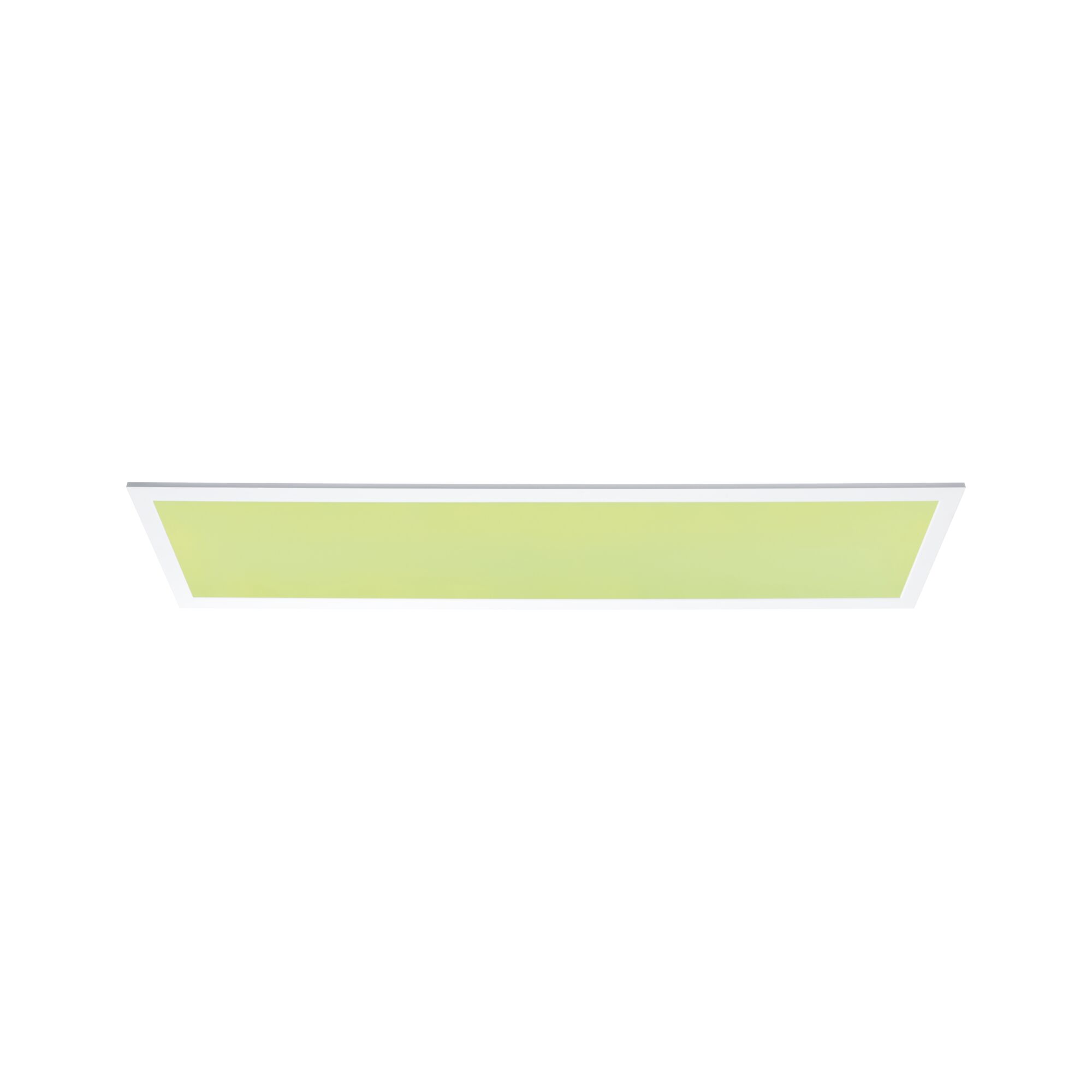

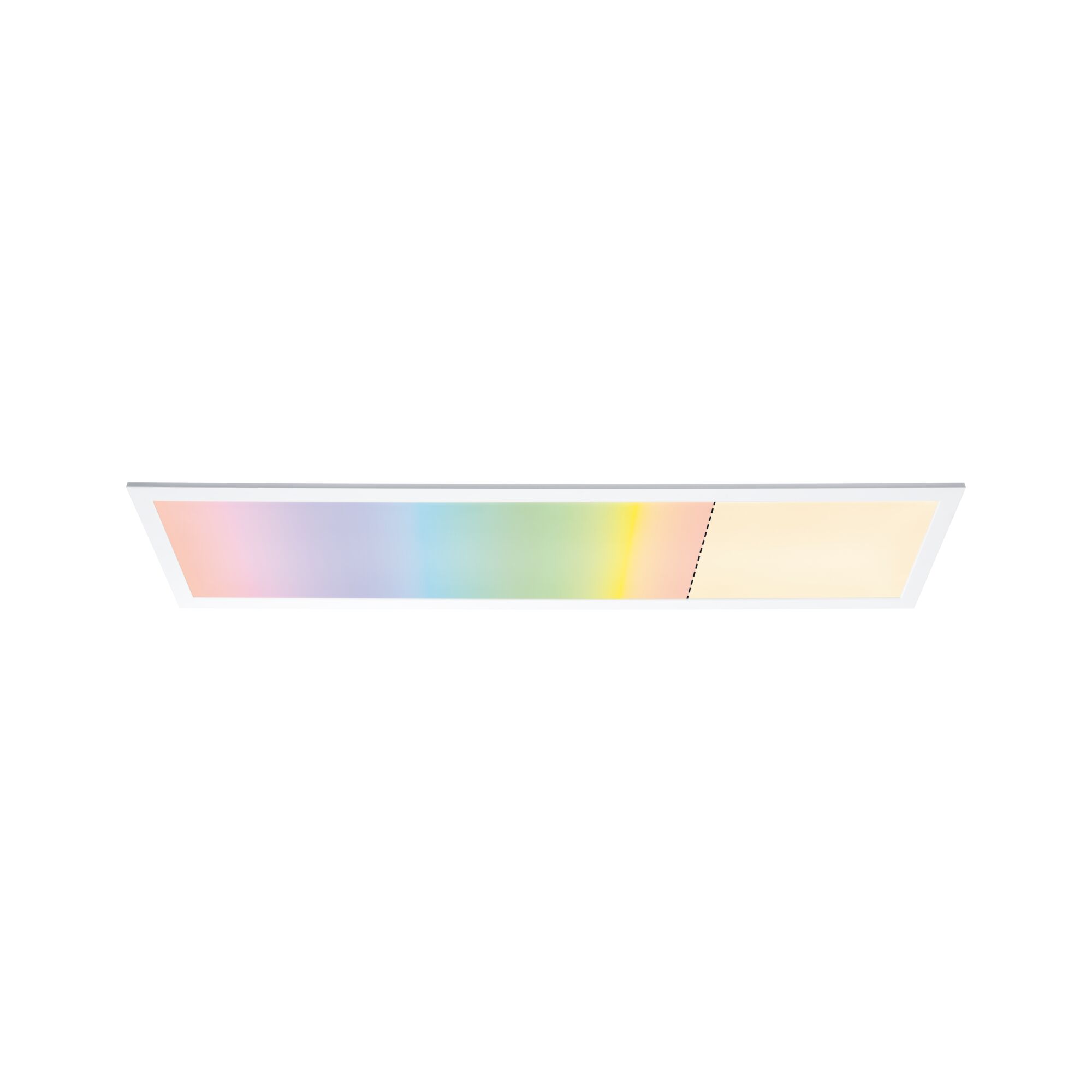

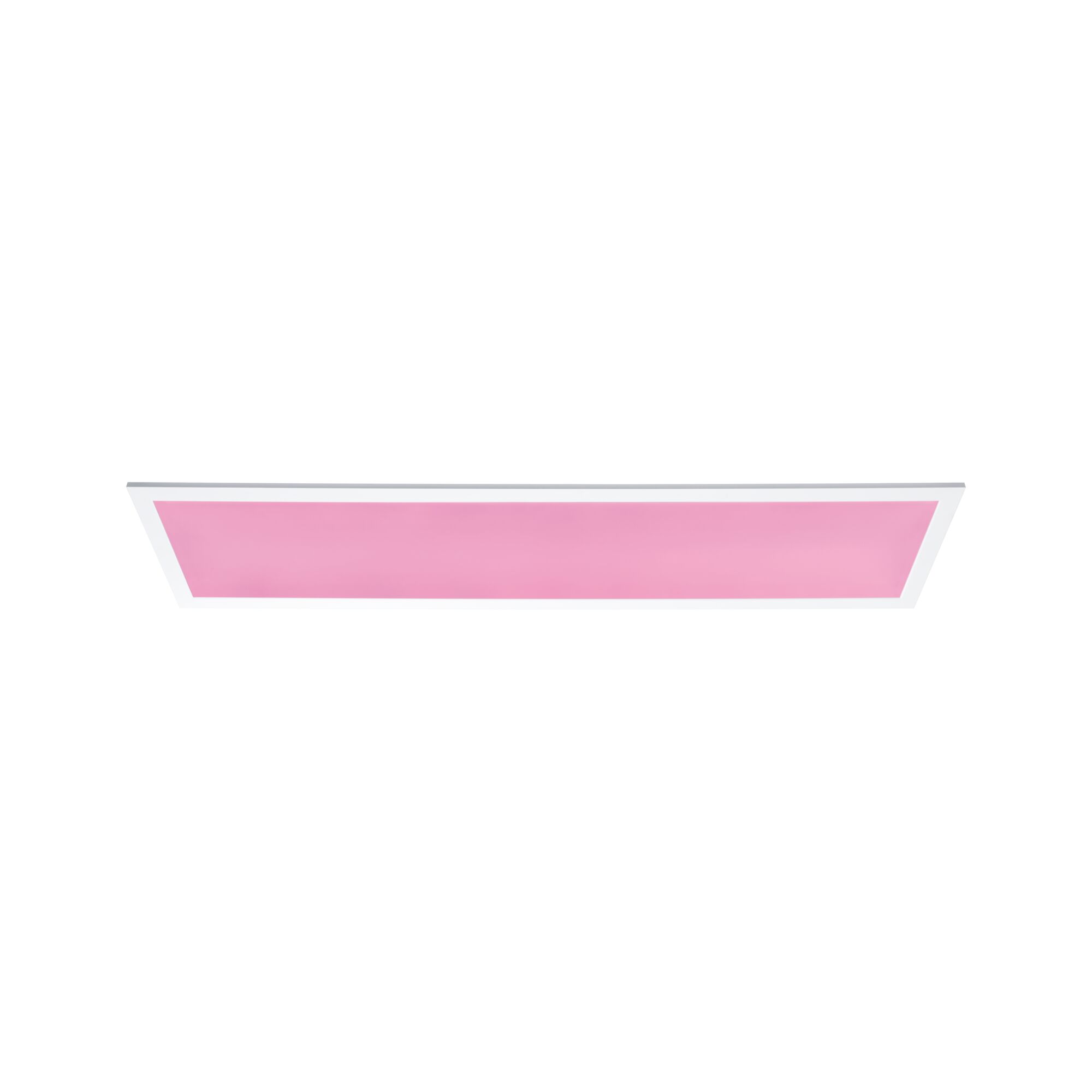

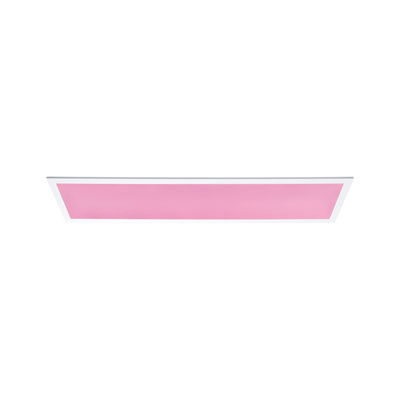

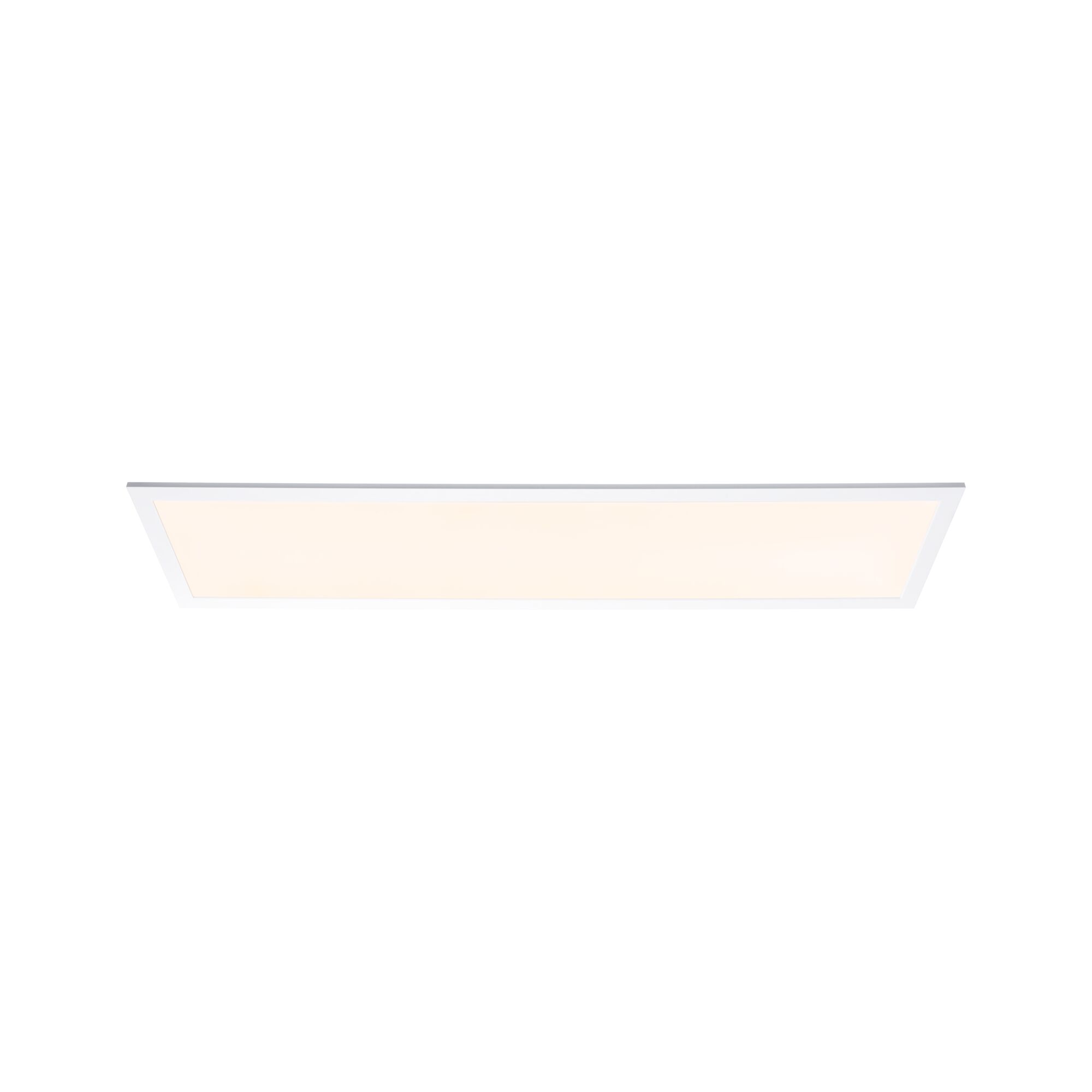

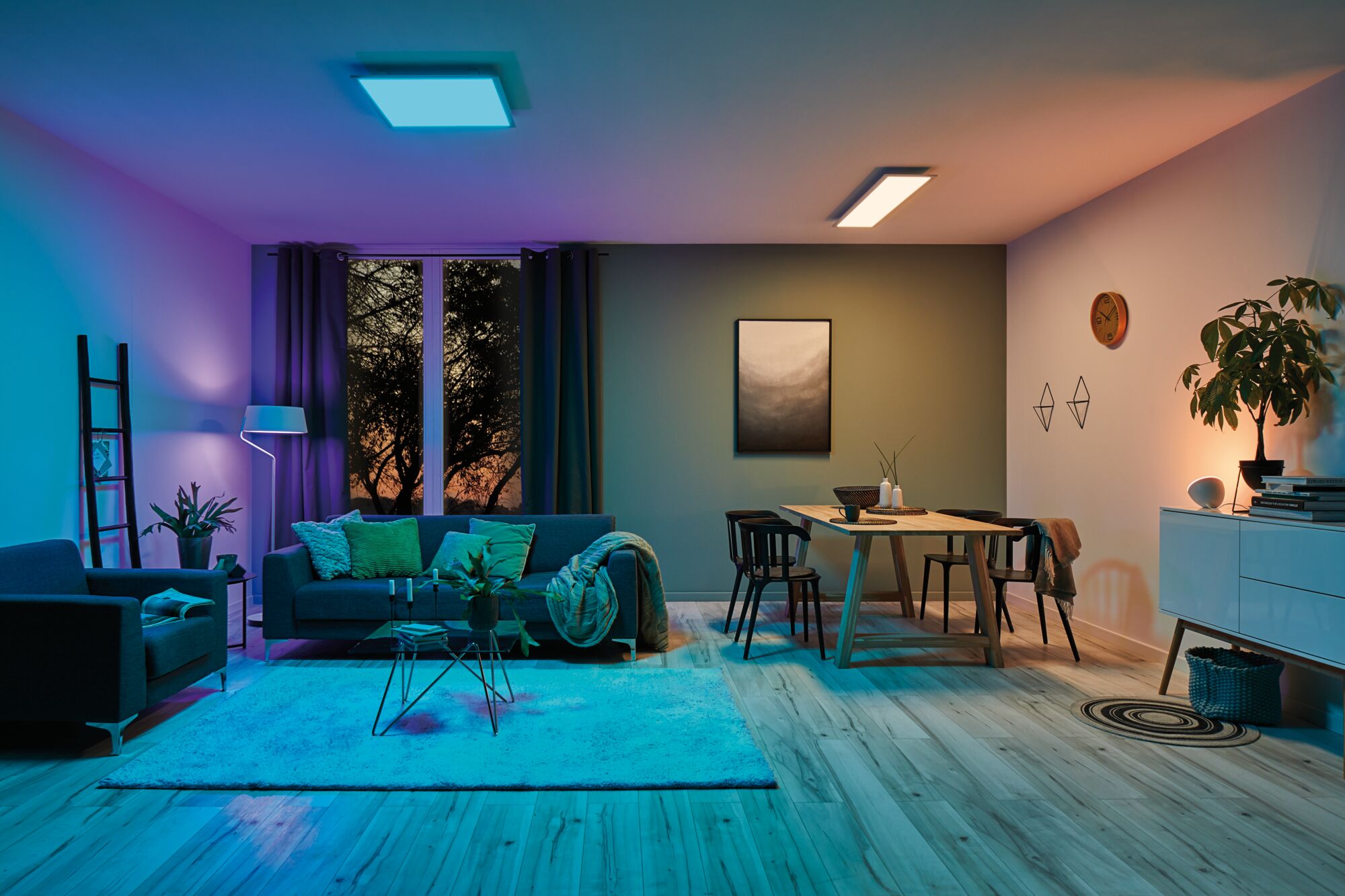

Measuring 1195 x 295 mm, the flat Amaris Zigbee 3.0 panel is particularly understated due to its ultra-flat design. The satined finish of the diffuser plate provides pleasant wide-area room lighting. Depending on your mood, you can choose between true warm white, coloured light and various effects. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links devices from different manufacturers. Thanks to the sturdy metal substructure, installation is extremely easy and the panel appears to float.
- Usable with smart home gateways that have a Zigbee interface
- Even room light based on cutting-edge LED technology
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
| Dimension | |
|---|---|

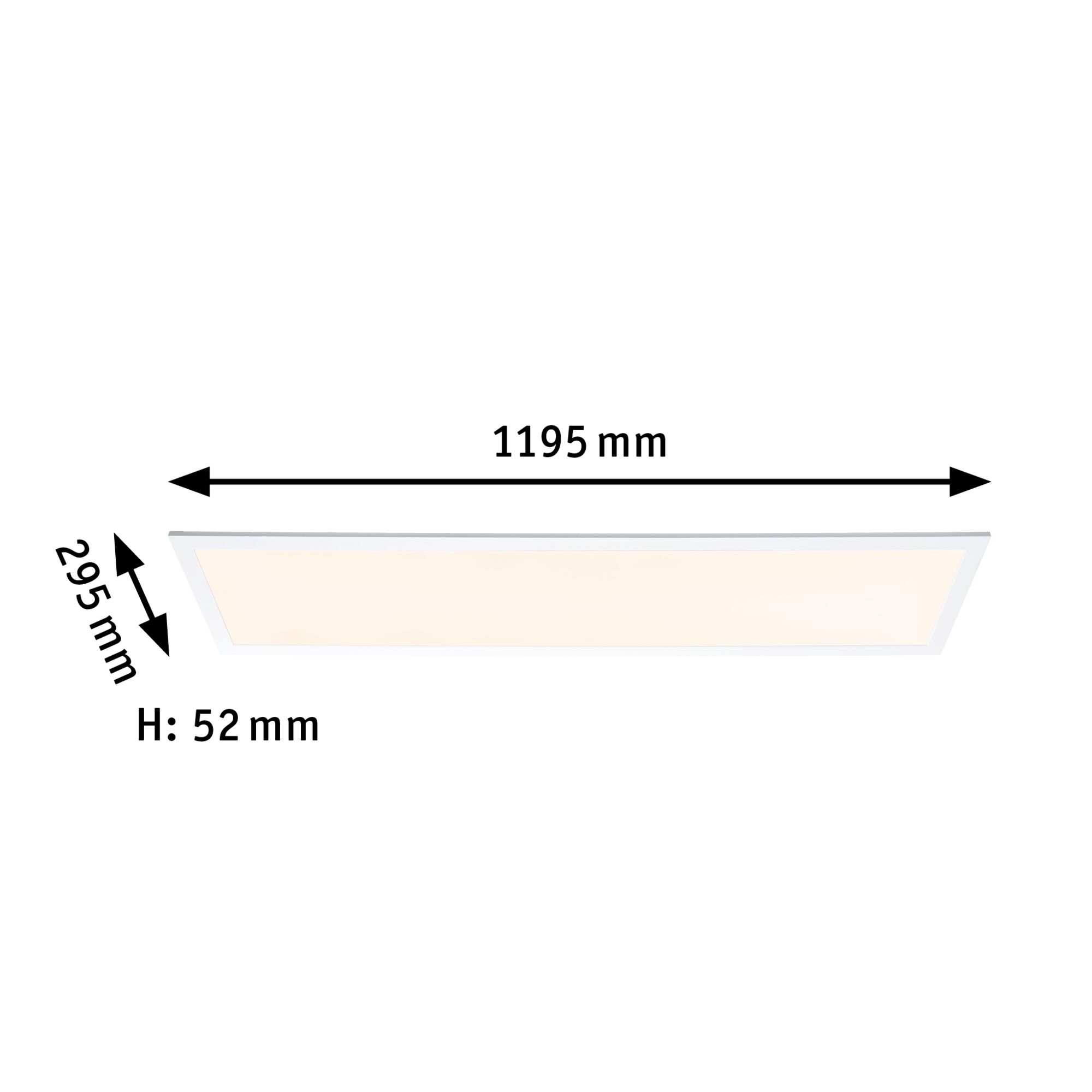

| Dimensions (Height x Width x Depth) | H: 52 x B: 1195 x T: 295 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 2500 lm |
| Luminous flux LED module | 4100 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 230 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 35 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 36 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
Downloads
Flyer and Safety instructions
Safety instructions

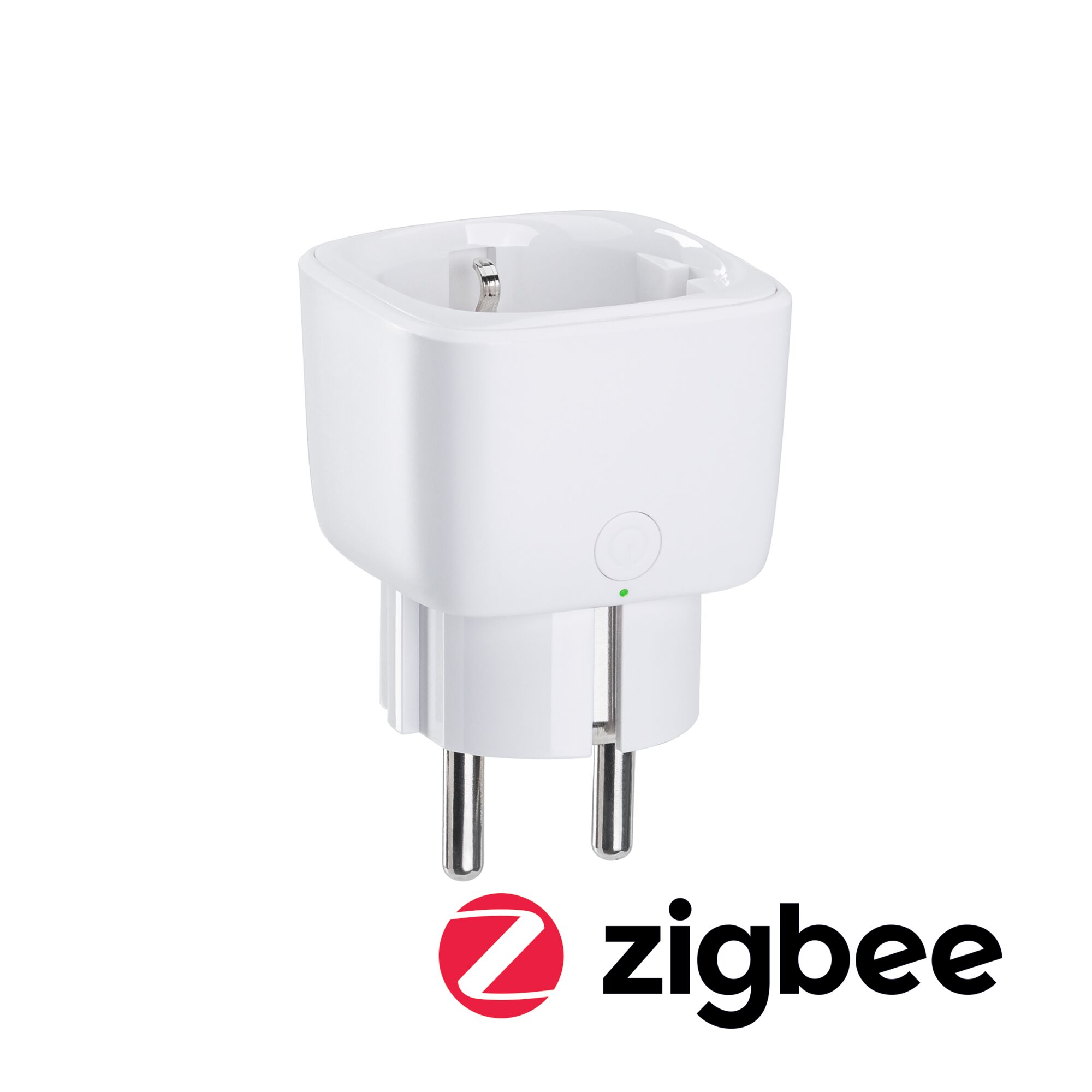

- Plug adapter
