Article-No.:
70644
LED Panel
Lunar
square 170x170mm 11W 760lm 3000K Matt white
square 170x170mm 11W 760lm 3000K Matt white
- Especially flat construction in square design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
LED Panel Lunar square 170x170mm 11W 760lm 3000K Matt white
With the Lunar wall and ceiling luminaires, modern LED technology enables a combination of very flat assembly and very even light distribution. The quiet, sleek design will harmonise with comfortable modern styles as well as interiors with more daring architectural features.
- Especially flat construction in square design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- For 230 V direct connection
- With integrated LED bulb
- Satined plastic cover for fine diffusion of light
| Dimension | |
|---|---|

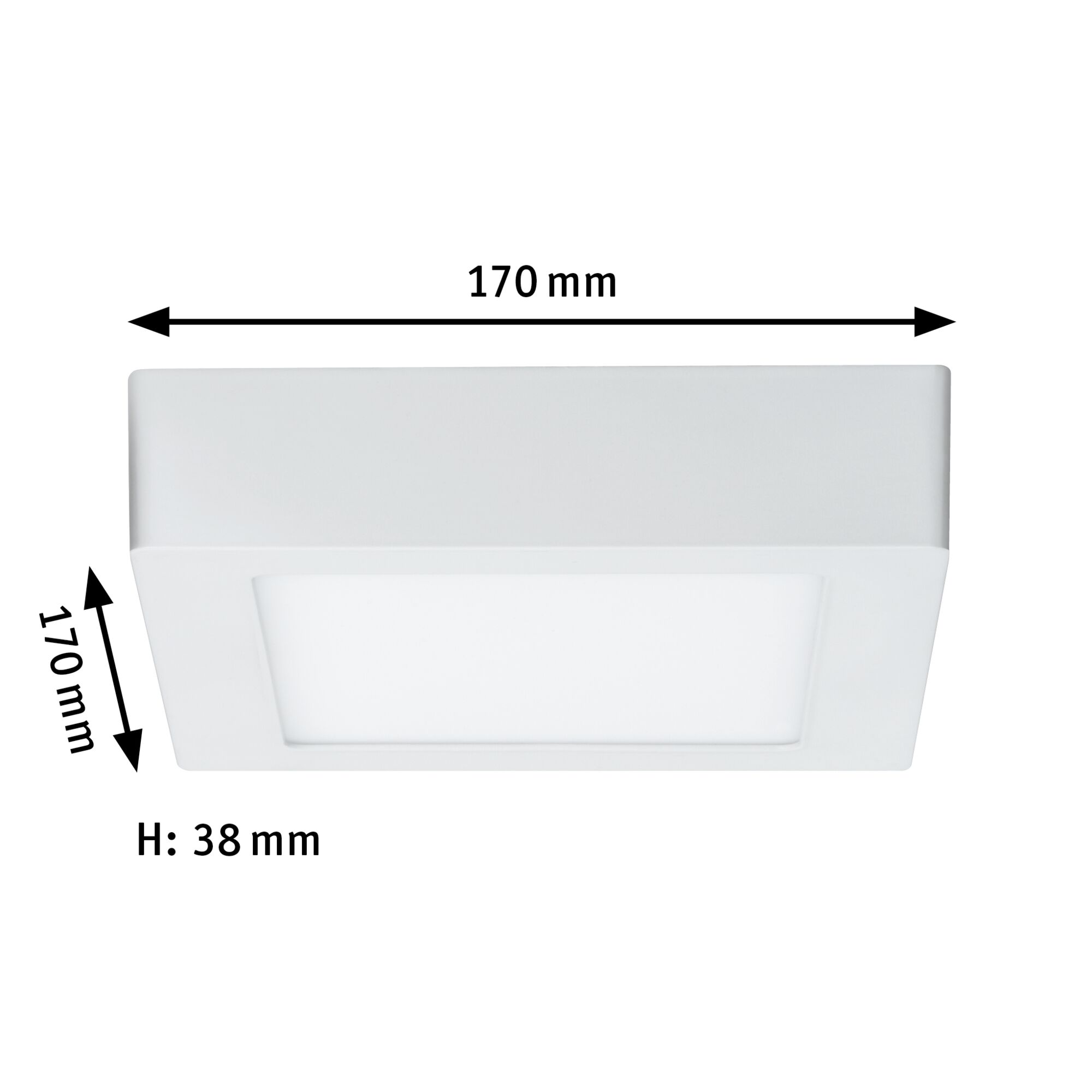

| Dimensions (Height x Width x Depth) | H: 38 x B: 170 x T: 170 mm |
| Form | square |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Matt white |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | wall and ceiling mounting |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | E |
| Service life | |
|---|---|
| lifetime | 30.000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 3000 K |
| Useful luminous flux | 760 lm |
| Luminous flux LED module | 1300 lm |
| color temp | 3.000 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 760 lm |
| Lamp Features | |
|---|---|
| Component parts | 11 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Incandescent Equivalent | 88 W |
| Inclusive lamp | ✓ |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 13 W |
| Transformer | |
|---|---|
| Transformer power | 12,6 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
