Article-No.:
70642

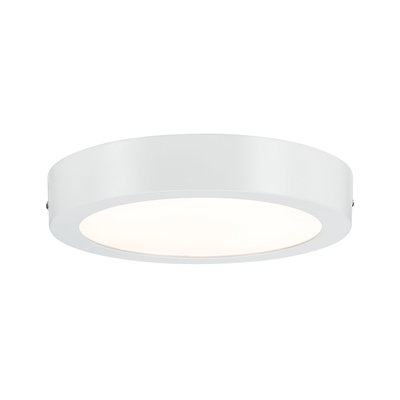

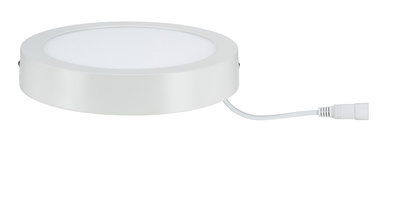

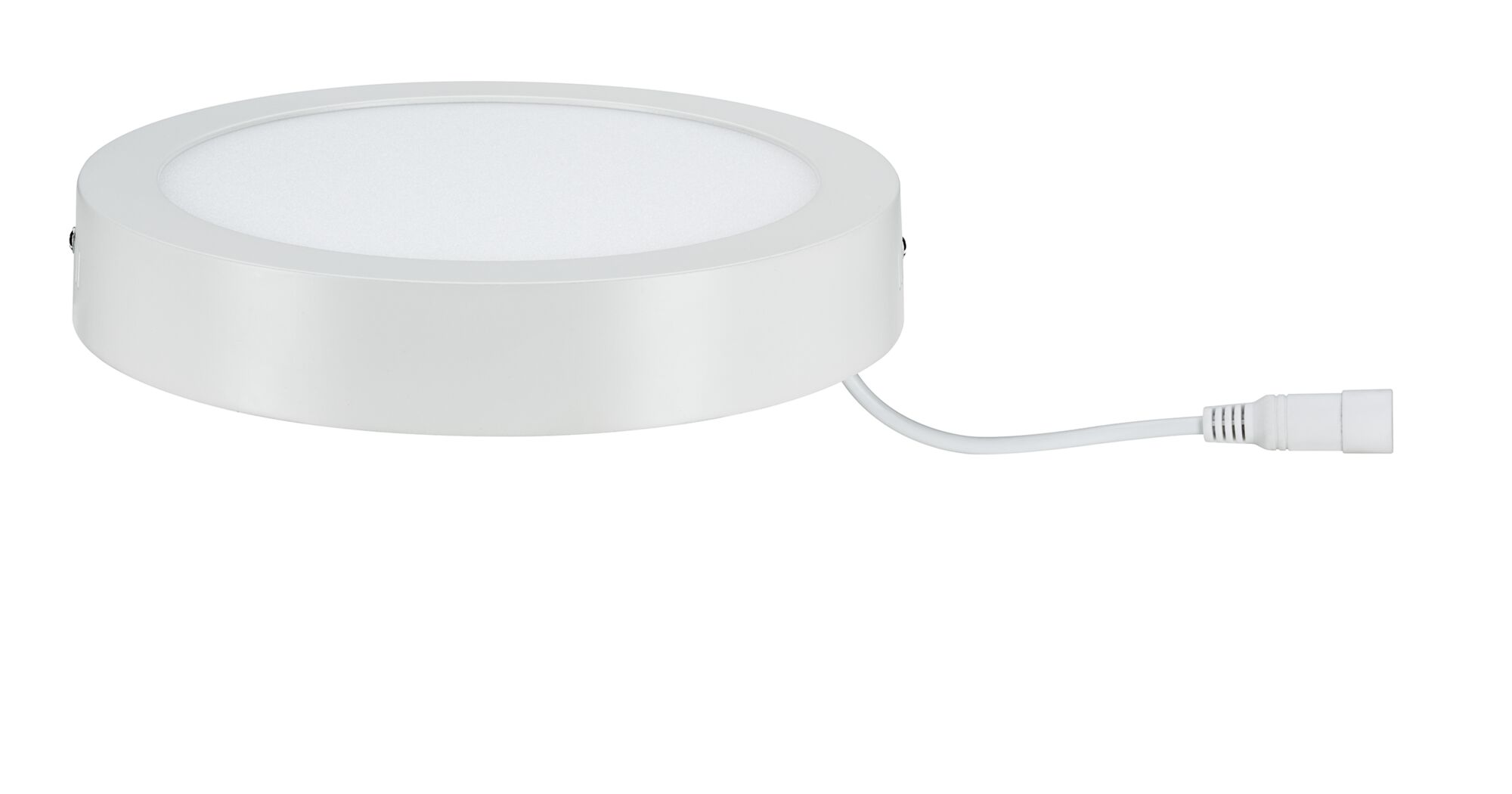

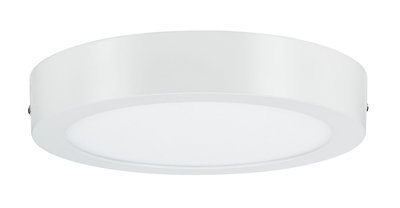

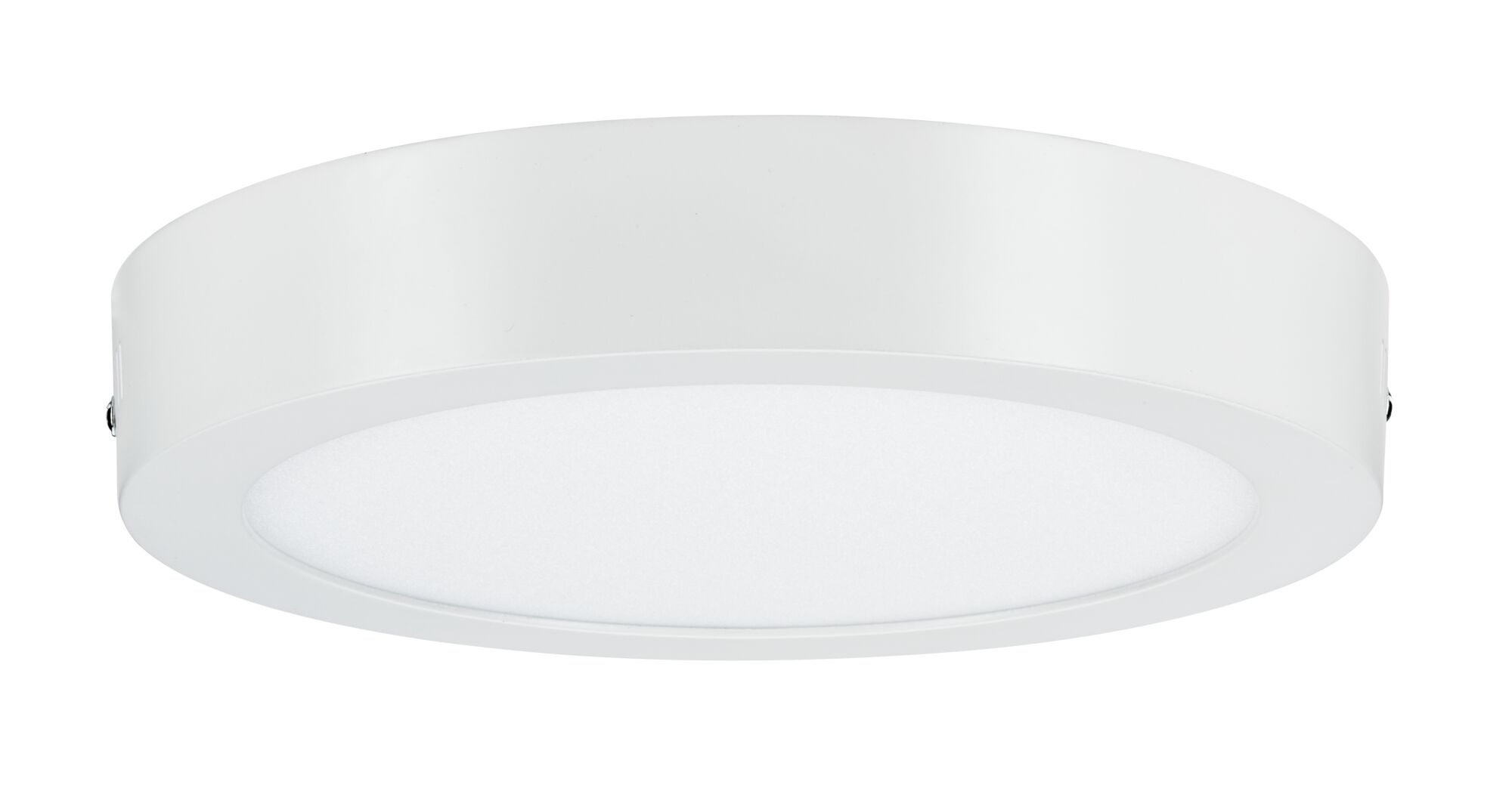

LED Panel
Lunar
round 225mm 12,5W 1140lm 3000K Matt white
round 225mm 12,5W 1140lm 3000K Matt white
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology

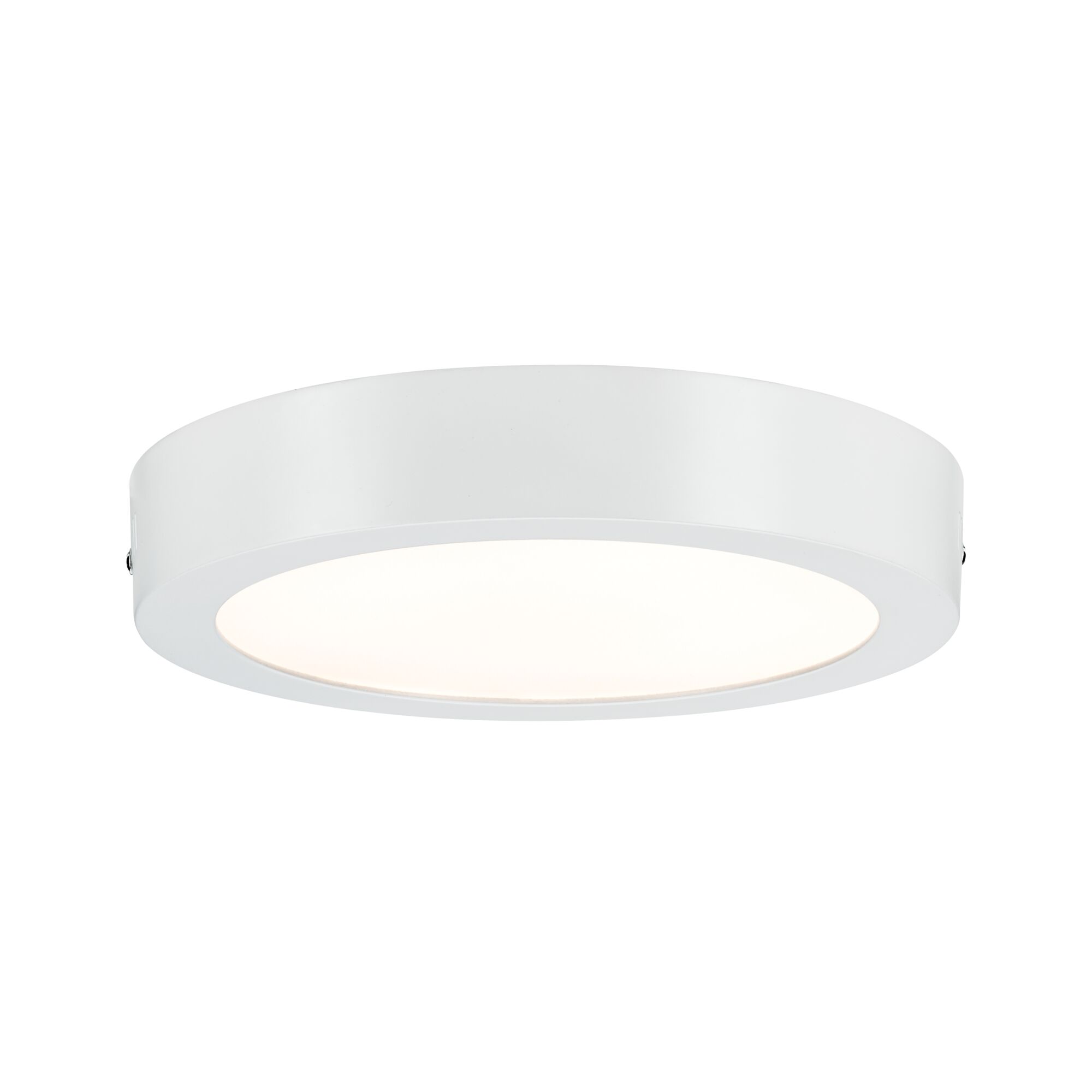

LED Panel Lunar round 225mm 12,5W 1140lm 3000K Matt white
With the Lunar wall and ceiling luminaires, modern LED technology enables a combination of very flat assembly and very even light distribution. The quiet, sleek design will harmonise with comfortable modern styles as well as interiors with more daring architectural features.
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- For 230 V direct connection
- With integrated LED bulb
- Satined plastic cover for fine diffusion of light
| Dimension | |
|---|---|

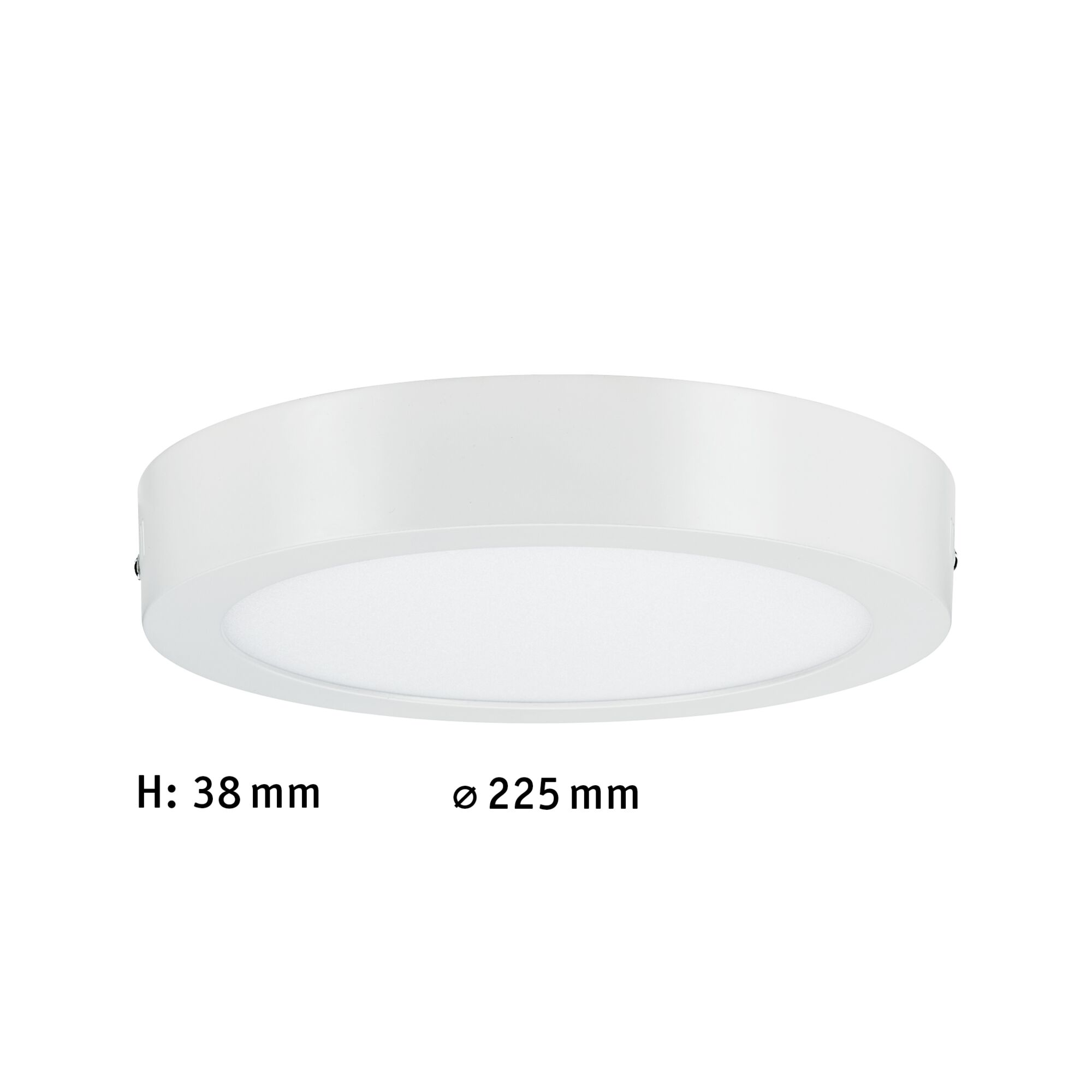

| Dimensions (Height x Width x Depth) | H: 38 mm |
| Ø | 225 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Matt white |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 1140 lm |
| Luminous flux LED module | 1550 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 1140 lm |
| Lamp Features | |
|---|---|
| Component parts | 12,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 99.9 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 14,5 W |
| Transformer | |
|---|---|
| Transformer power | 17,5 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
