Article-No.: 70882

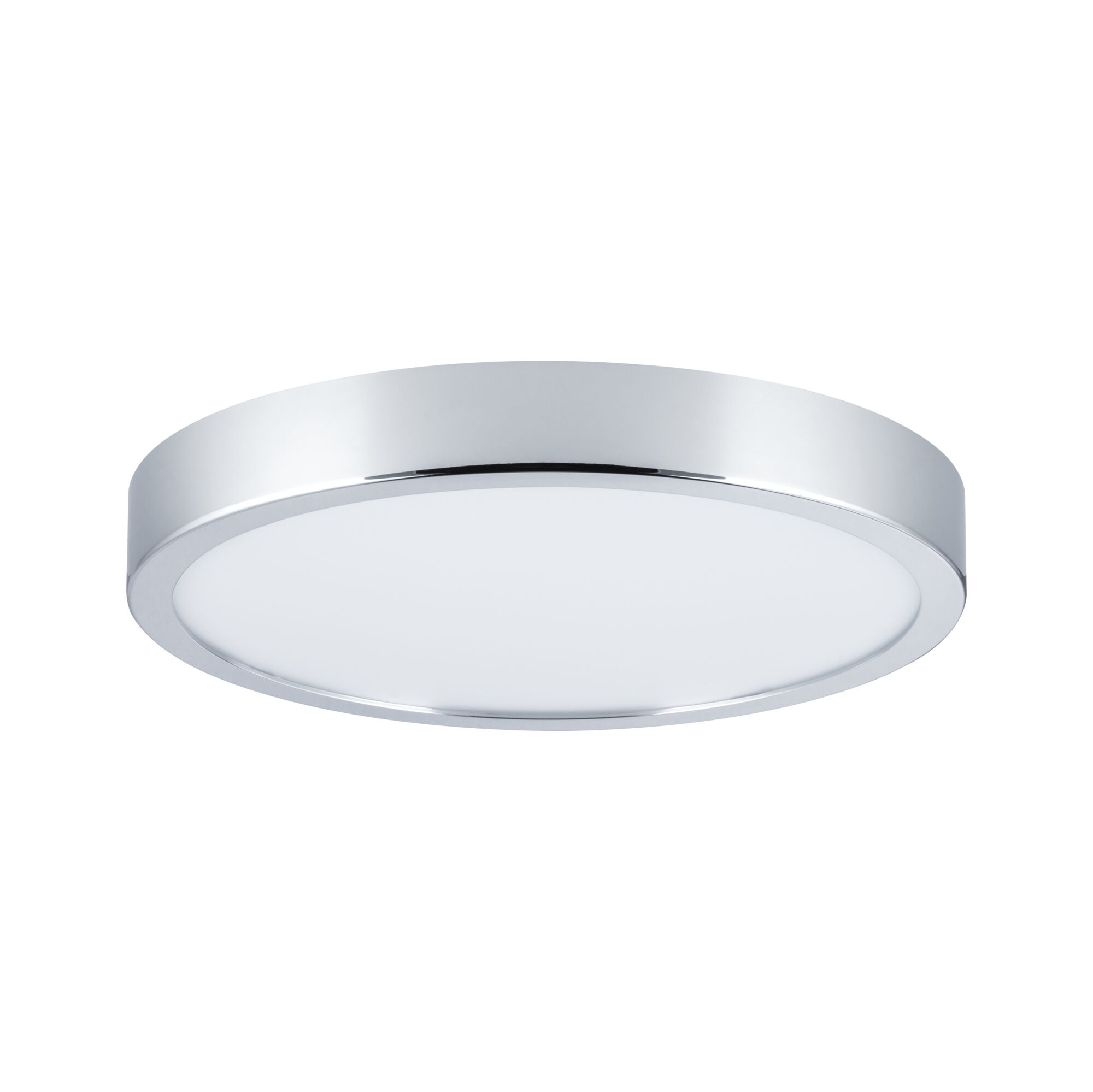

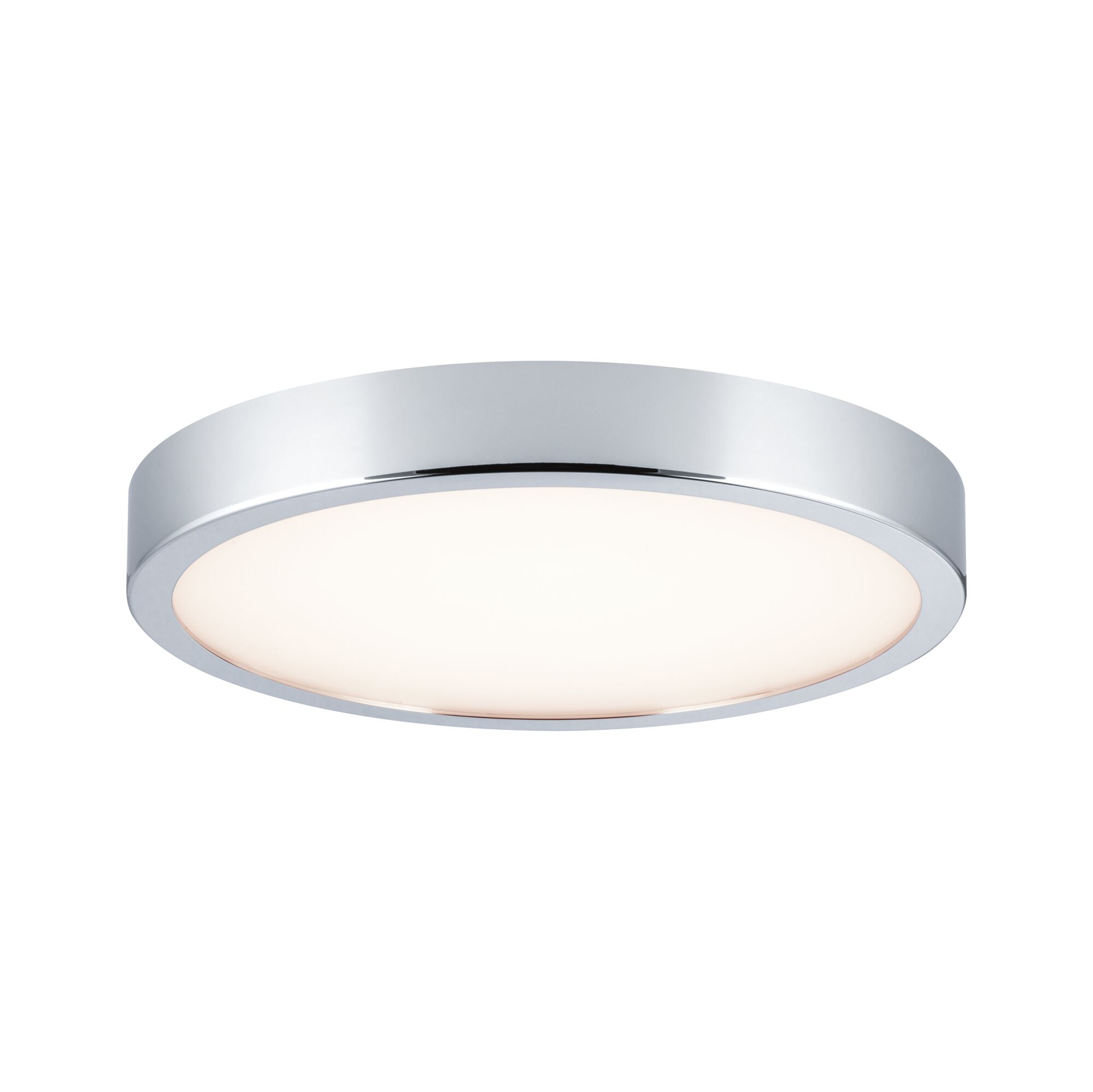

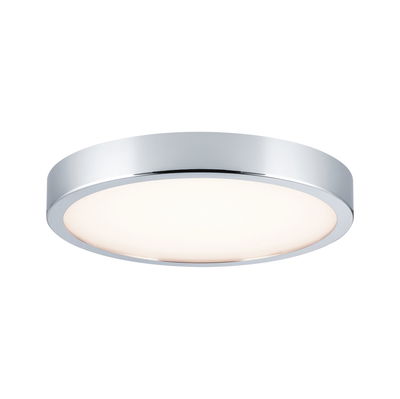

LED Panel Aviar

IP44 300mm 20W 1800lm 2700K Chrome dimmable

Colour: Chrome
Dimension: 300mm
Light colour: Warm white

  • Single luminaire incl. LED module
  • Efficient LED technology
  • IP protection: IP44 splash-protected
Questions about the product

LED Panel Aviar IP44 300mm 20W 1800lm 2700K Chrome dimmable

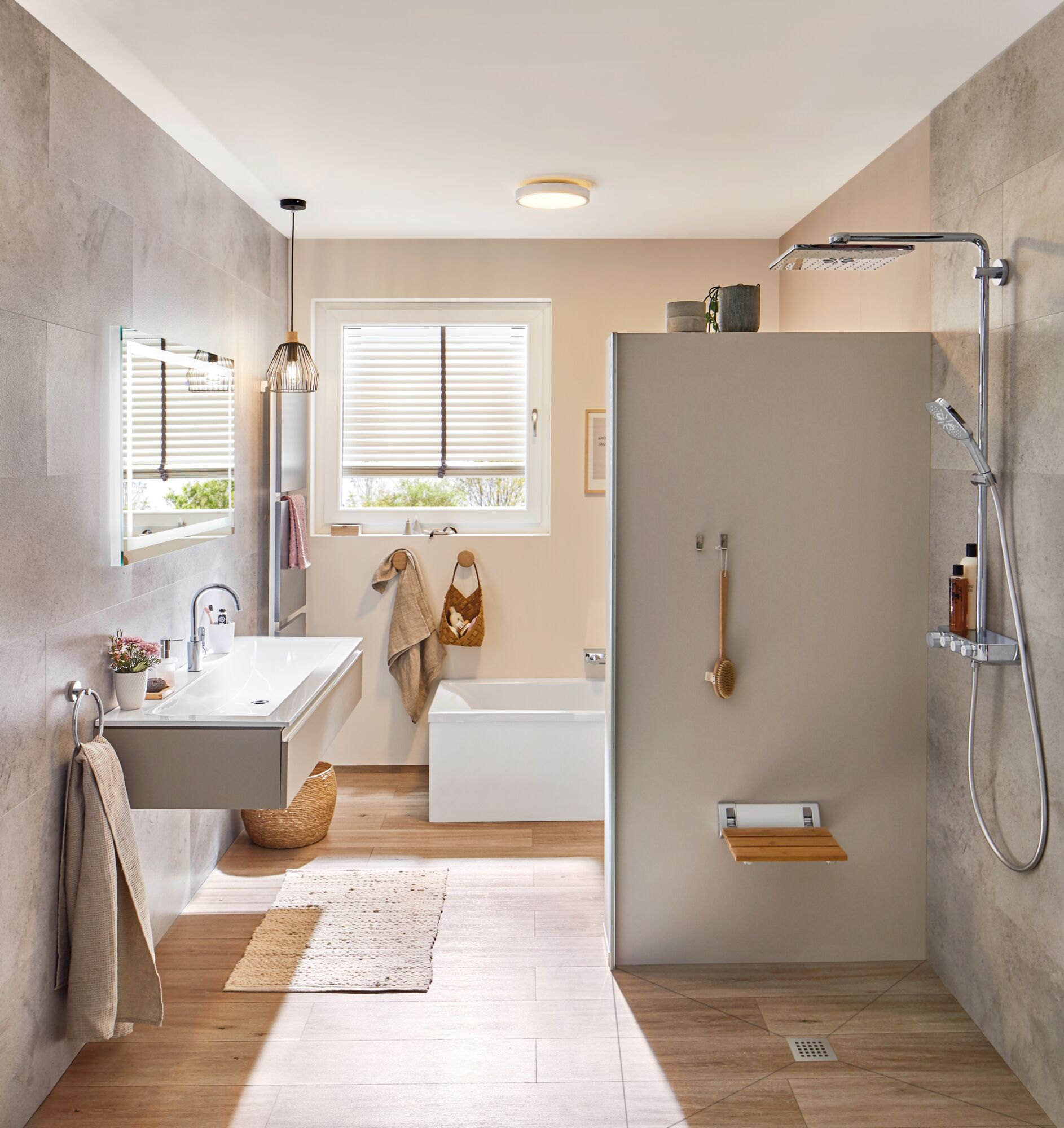

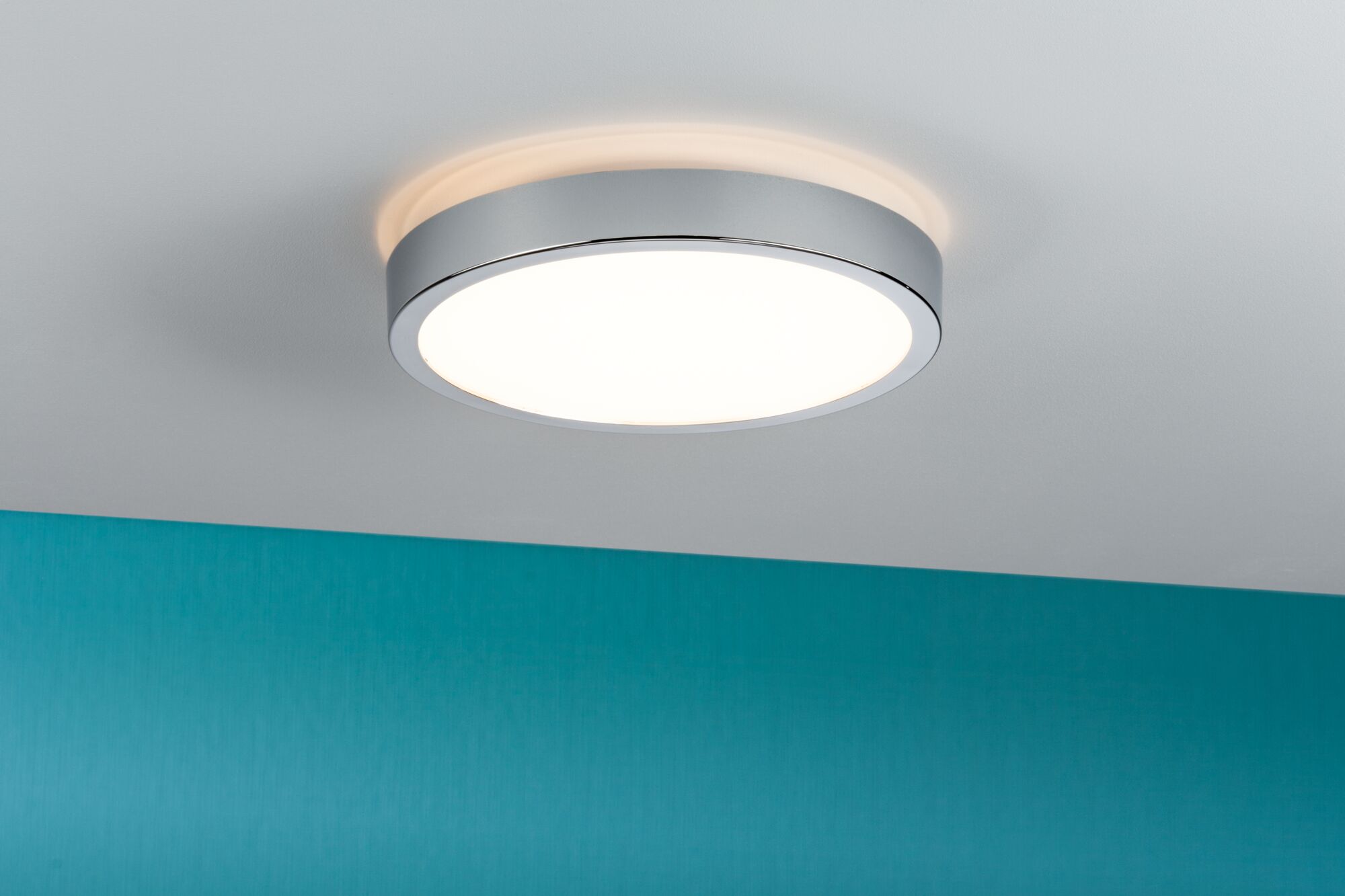

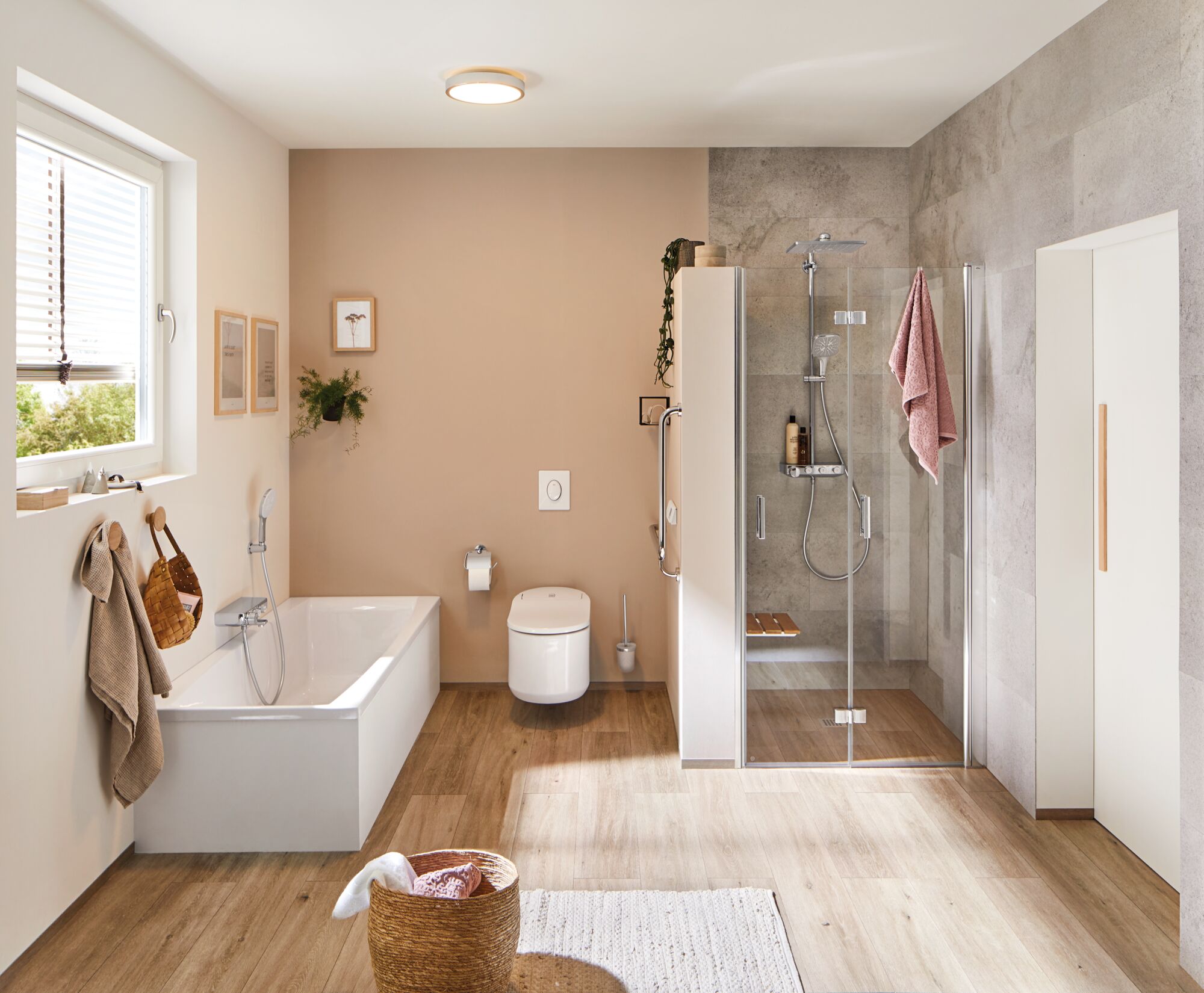

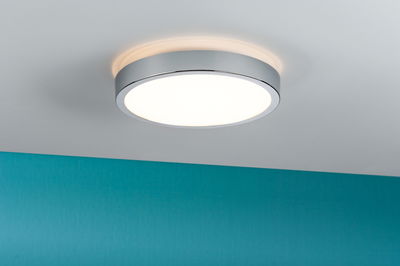

The Aviar LED panel with IP44 protection is specially protected against the ingress of splash water into the luminaire, making it ideal for use in wet rooms. In windowless bathrooms it compensates for the lack of daylight – the bathroom is evenly and brightly lit, without glare. The elegant chrome style makes the luminaire visually eye-catching as well. The plastic housing is particularly durable, easy to clean and, thanks to its low weight, easy to install.
  • Single luminaire incl. LED module
  • Efficient LED technology
  • IP protection: IP44 splash-protected
  • Color temperatur: 2700K - Warm white

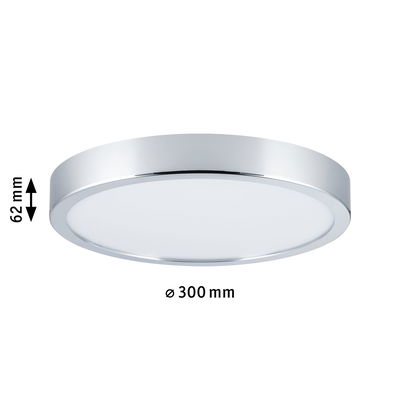

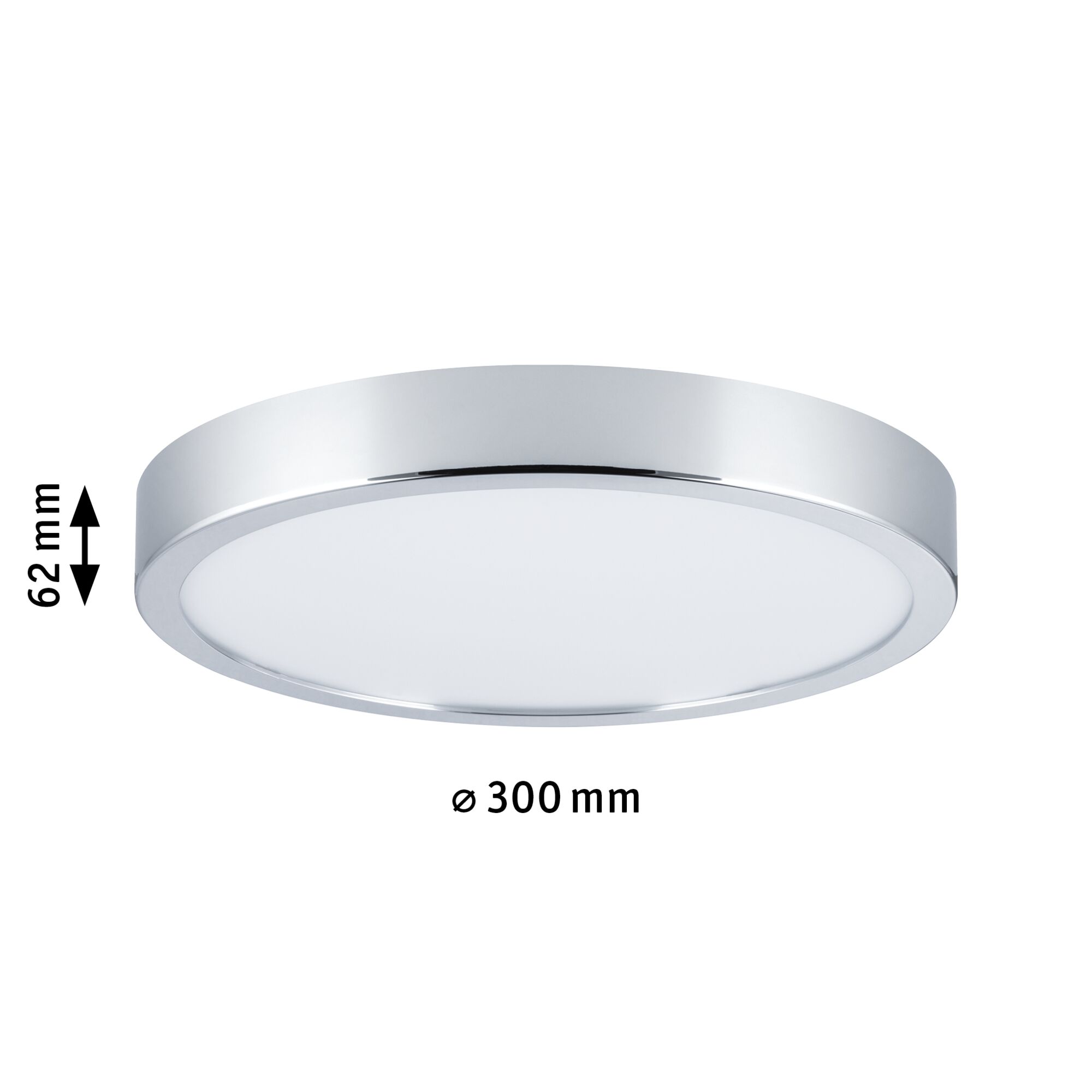

Dimension
Dimensions (Height x Width x Depth) H: 62 mm
Ø 300 mm
Design and Material
Colour Chrome
Material Plastic
Installation
can be used with the following dimmers RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Gira 0307 00/I02
Installation site (recommendation) Wall and ceiling mounting
Energy consumption
Energy efficiency (A to G) F
Service life
Lifetime 30000 h
Light Characteristics
Colour temp. 2700 K
Usable luminous flux 1800 lm
Luminous flux LED module 2500 lm
color temp 2700 K
Lamp Features
Component parts 20 W
Technique LED
IP protection IP44
Dimmable with dimmer R+C f.elect.trafos+230V bulbs
Inclusive lamp yes
Incandescent Equivalent 147 W
Number of component parts 1x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption 21 W
Transformer
apparent power 23 VA
Labelling
WEEE-Reg.-No DE 39236390

Downloads

Manuals
Download Installation/Montage
Flyer and Safety instructions
Safety instructions
