Article-No.:
71189
LED Panel
Atria Shine
round 290mm 19W / 2W 1500lm / 0lm 3000K White
round 290mm 19W / 2W 1500lm / 0lm 3000K White
- A memory function saves the selected lighting scenario for the next time the luminaire is switched on

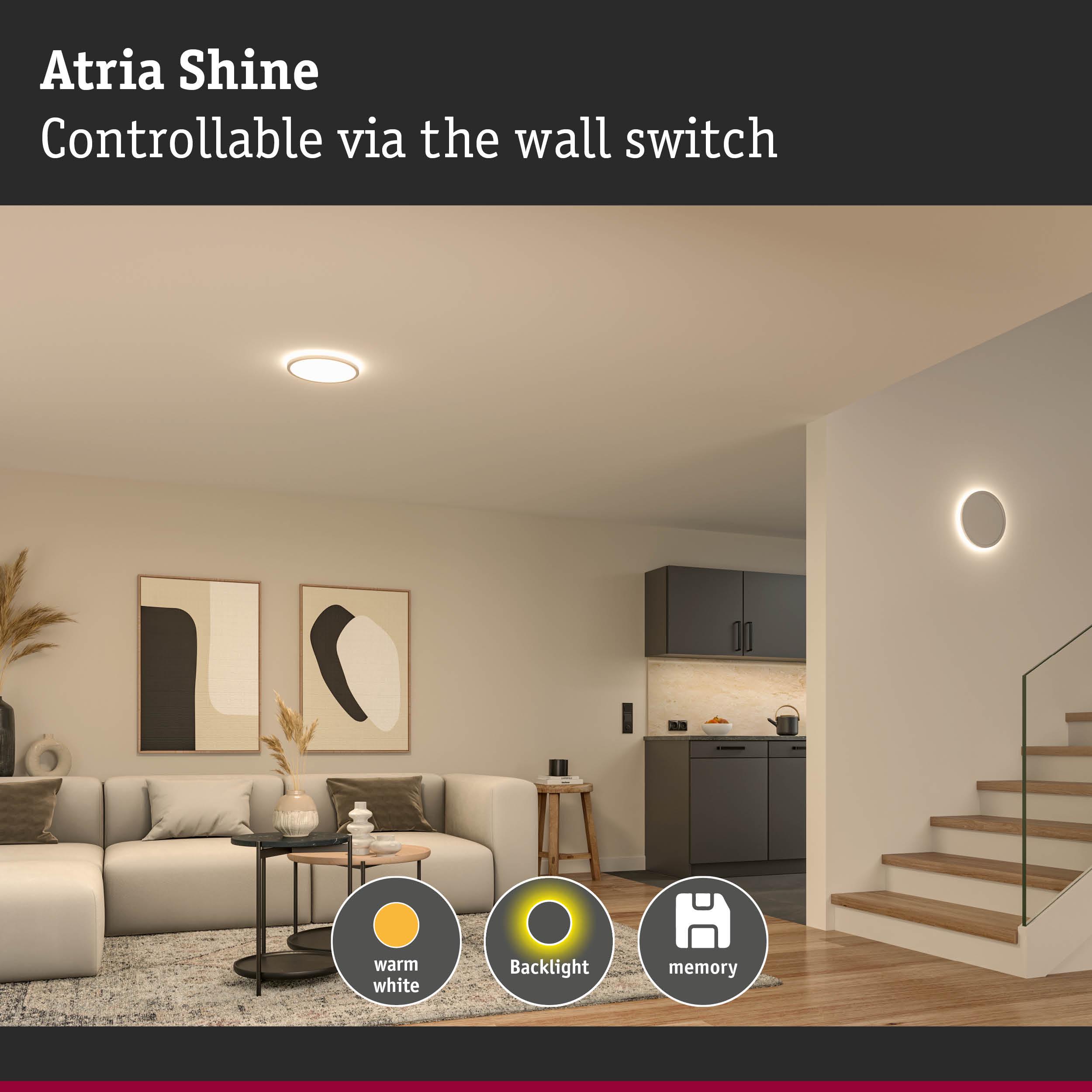

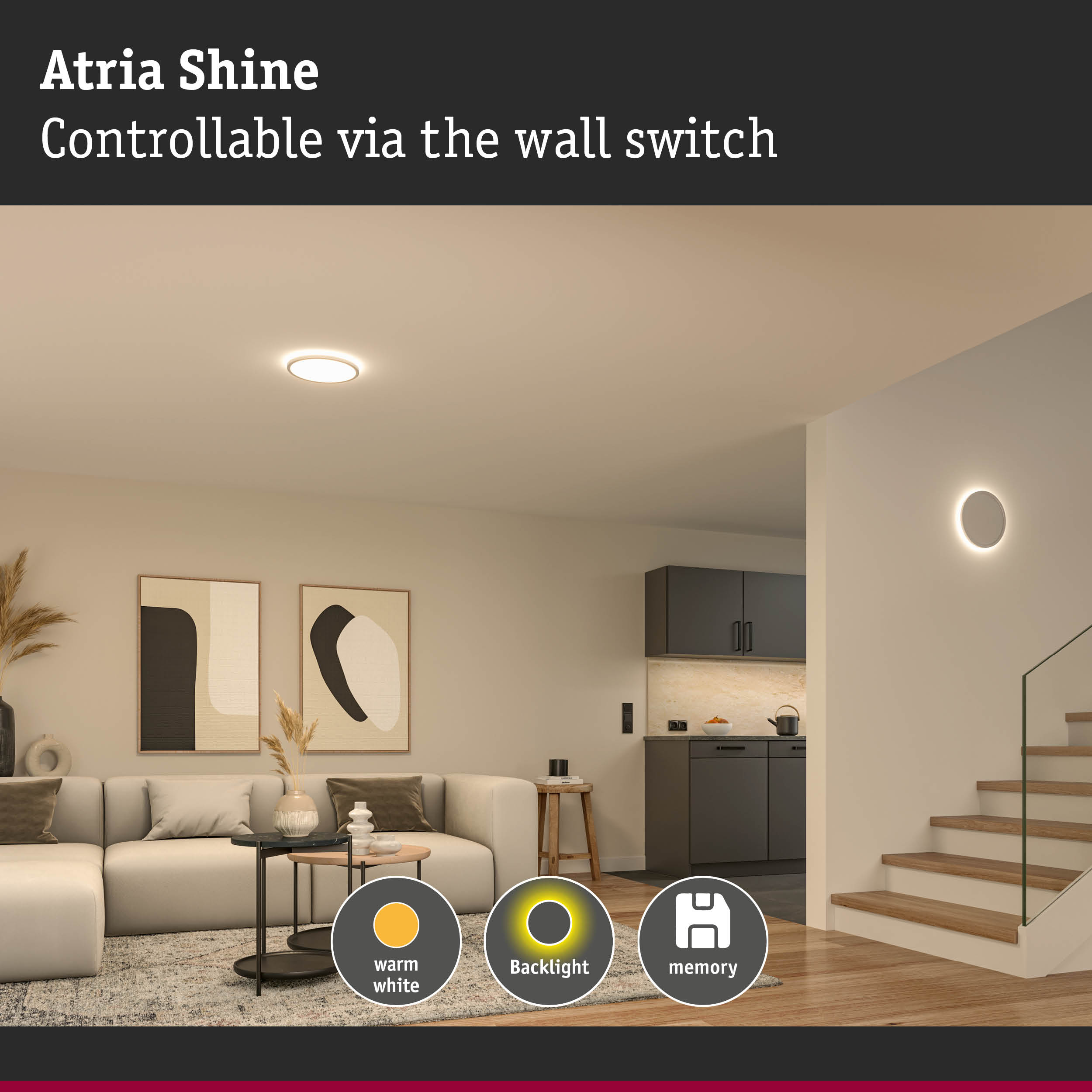

- Direct frontlight and indirect backlight technology, controlled individually via wall switch
- Uniform 3000K warm white illumination for interior spaces
LED Panel Atria Shine round 290mm 19W / 2W 1500lm / 0lm 3000K White
The versatile Atria Shine panel luminaire with a diameter of 290mm offers direct and indirect lighting based on the separately controlled frontlight and backlight technology. Multiple on and off switching on the wall switch will toggle between the two functions. The user can therefore easily choose between full lighting with only the frontlight, or atmospheric illumination with just the backlight. A memory function saves the selected lighting scenario for the next time the luminaire is switched on. The panel luminaire emits uniform illumination for indoor spaces, while the warm white 3000K light colour ensures an attractive ambience. The understated design of the panel luminaire features an extra flat design. The atmospheric backlight technology adds an almost floating appearance. The quick clip and twist lock design make a wall or ceiling installation particularly easy.
- A memory function saves the selected lighting scenario for the next time the luminaire is switched on

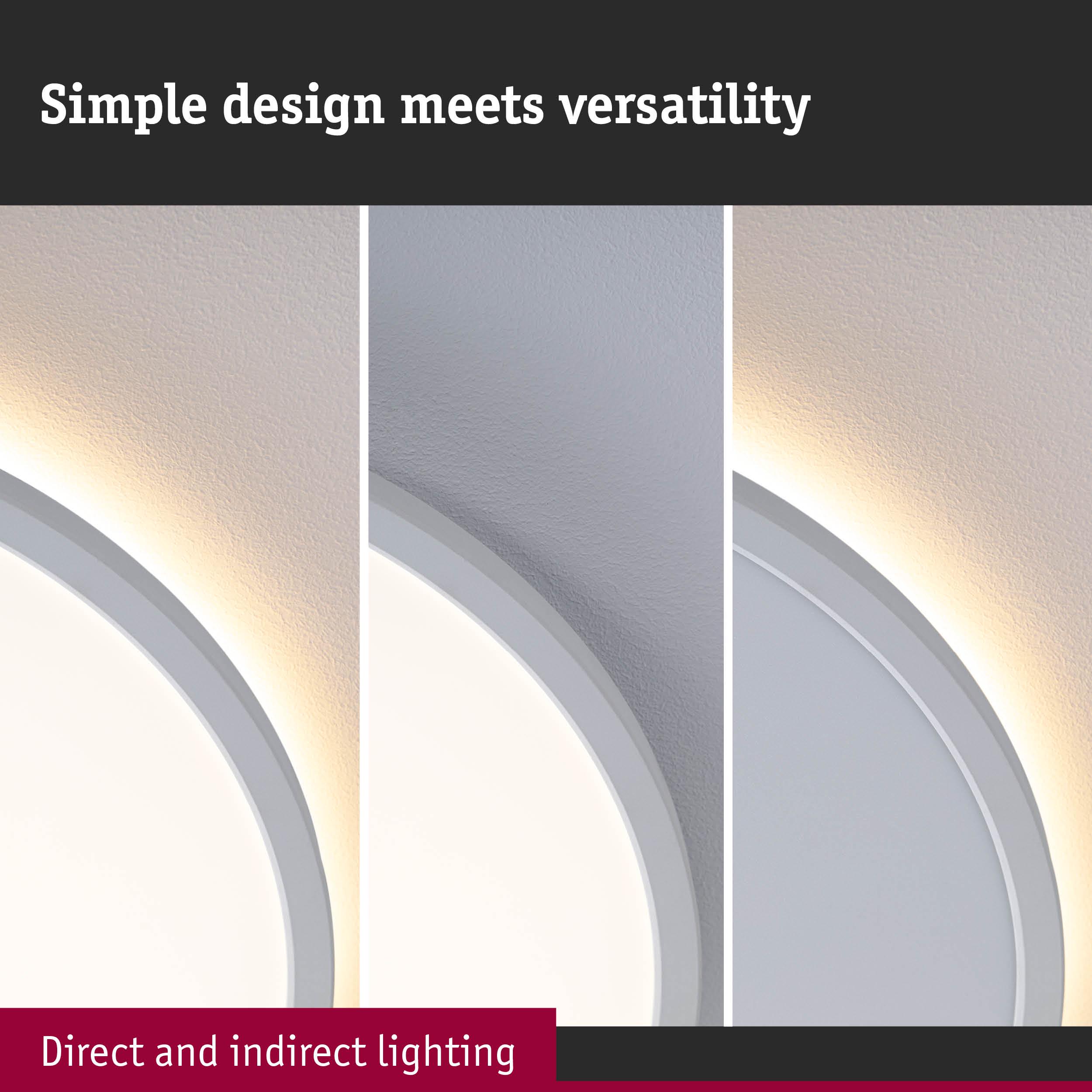

- Direct frontlight and indirect backlight technology, controlled individually via wall switch
- Uniform 3000K warm white illumination for interior spaces

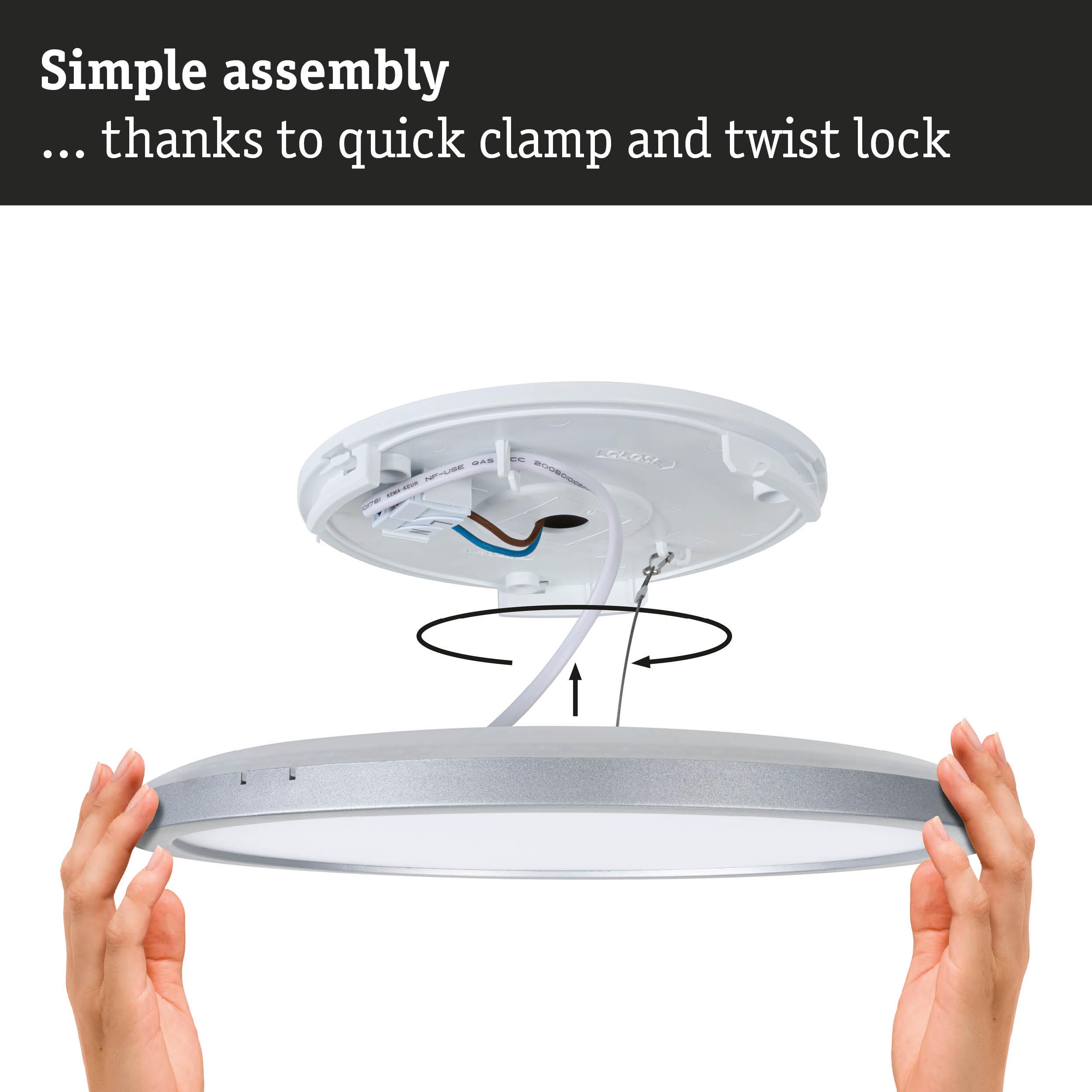

- Easy installation of the luminaire with twist lock and quick clip
- An understated look in an exceptionally flat design with backlight technology for an unobtrusive, almost floating luminaire appearance
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 25 mm |
| Diameter | 290 mm |
| net weight | 570 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | White |
| Material | Plastic |
| Stainless | stainless |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Features | |
|---|---|
| Backlight | Backlight (separately switchable) |
| Light sources separately switchable | Yes, with switch |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 1500 lm |
| Luminous flux LED module | 2400 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 19 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24,8 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 36 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
