Article-No.:
71266
LED Panel
Atria Shine
IP44 angular 190x190mm 8W 1160lm 3000 - 6500K White
IP44 angular 190x190mm 8W 1160lm 3000 - 6500K White

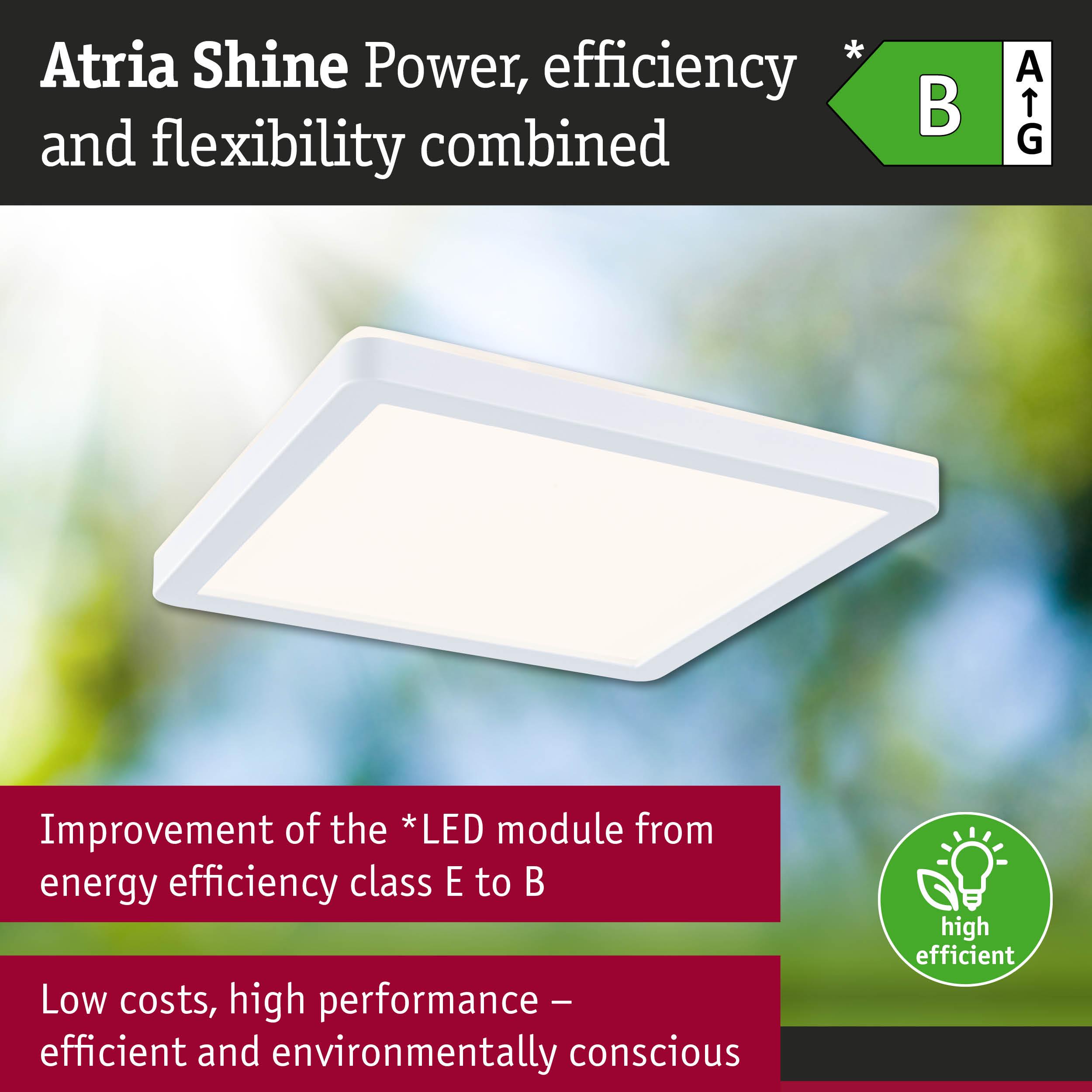

- Panel with energy efficiency class B (LED module)

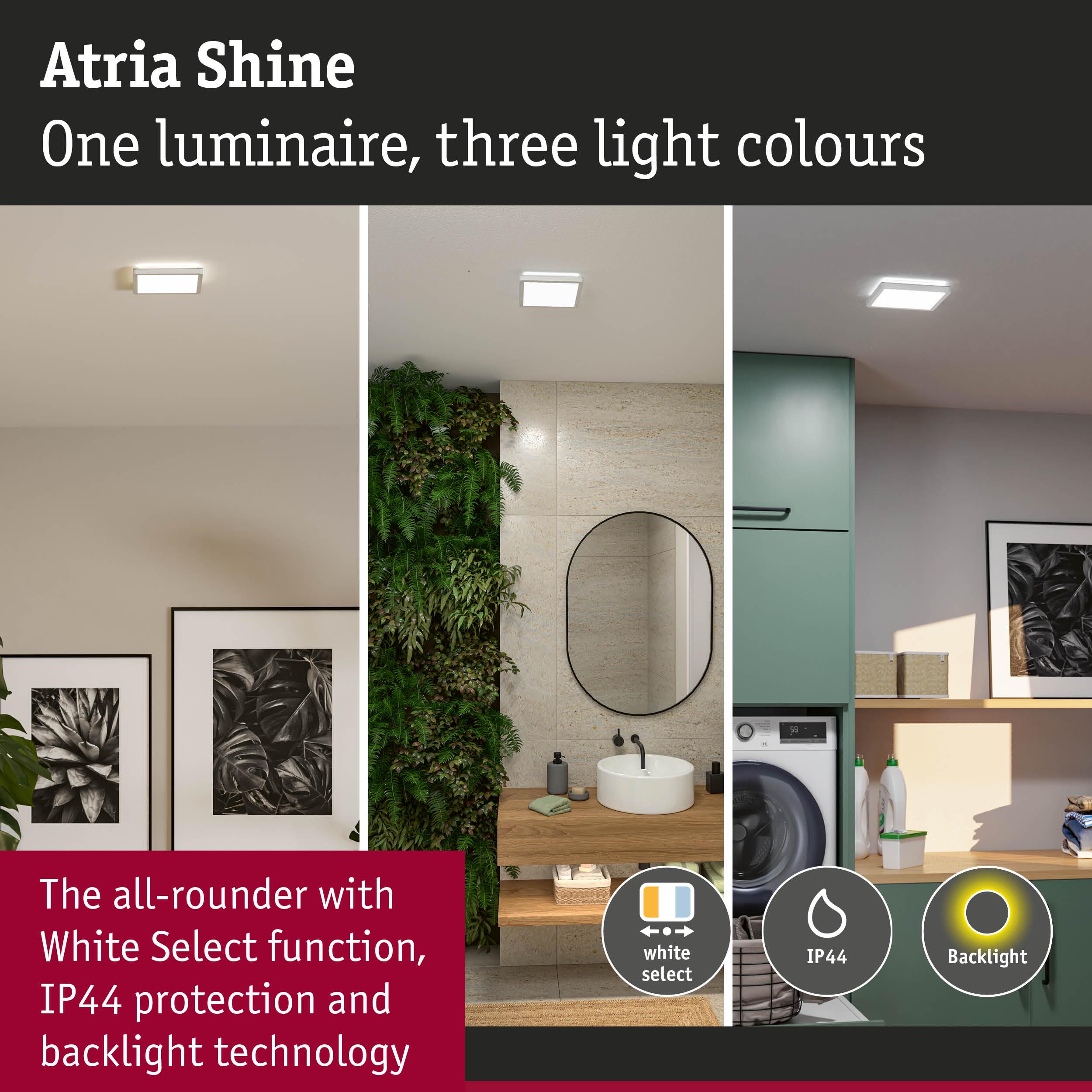

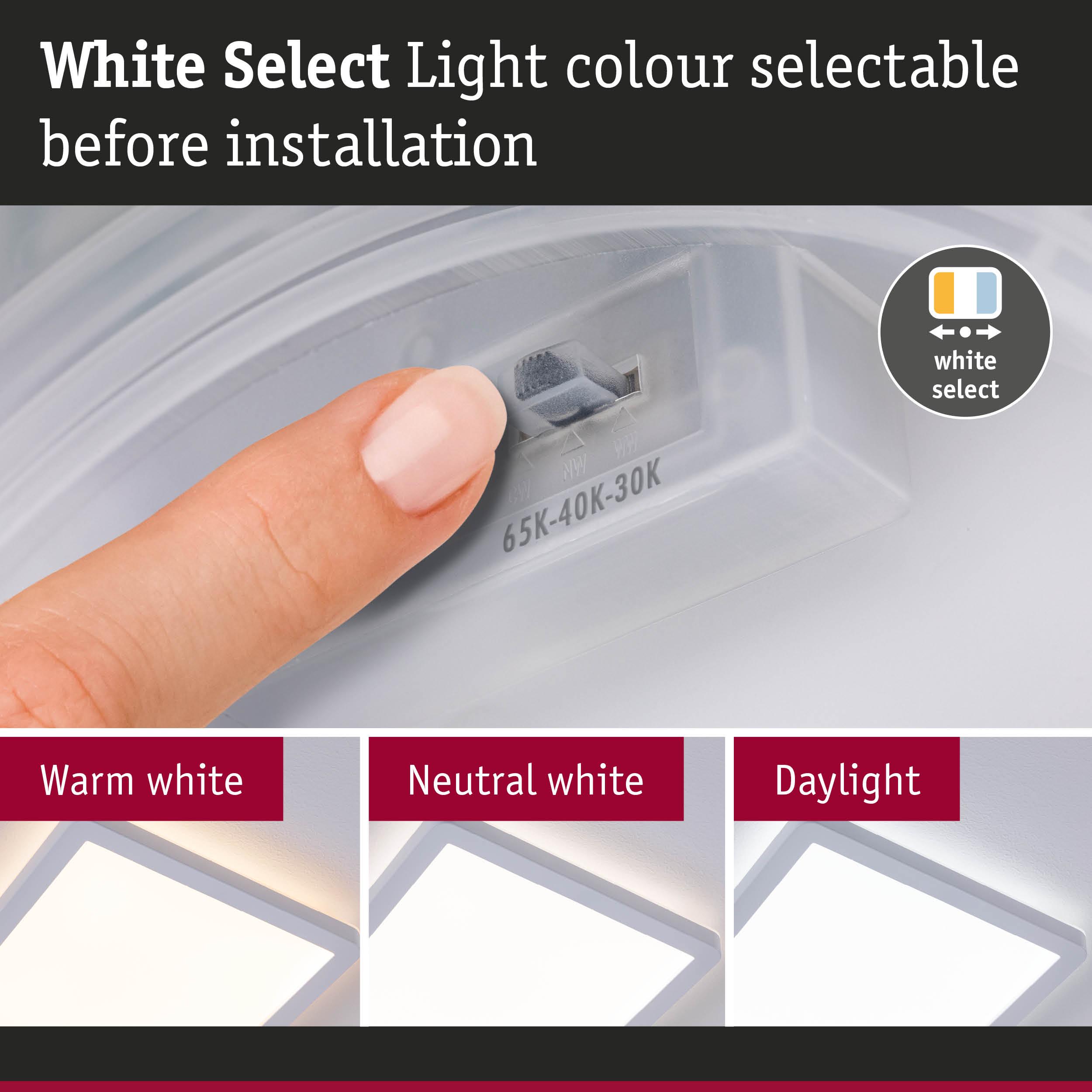

- White Select function for customisable colour selection (3000 K, 4000 K, 6500 K)
- IP44 splash-proof for bathrooms and similar rooms
LED Panel Atria Shine IP44 angular 190x190mm 8W 1160lm 3000 - 6500K White
The angular Atria Shine panel luminaire in White is a true all-rounder, offering high energy efficiency and a choice of light colours! Its energy efficiency was improved (Class E to Class B), making the new Atria Shine panel luminaire an innovative and future-proof lighting solution. This significantly reduced consumption is not only good for the environment, but for your wallet too, thanks to lower energy costs. At ${Abmessung} and an output of 9.5W, this LED panel luminaire is a great choice for basic lighting in living and bedrooms, in bathrooms, kitchens, or other wet rooms. Before installation, it’s possible to choose between three light colours using the White Select switch: warm white (3000K), neutral white (4000K) or daylight white (6500K). The right light ambience for any space: an inviting living area, functional kitchen lighting, or a brightly lit workspace in the home office. The high-effect backlight technology adds an almost floating aspect to the luminaire’s appearance. Its simple design pairs well with individual interior styles and it can even be used in the bathroom, thanks to IP44 protection. The easy-to-use twist lock and quick clip ensure an uncomplicated installation on the wall or ceiling..
- Panel with energy efficiency class B (LED module)
- White Select function for customisable colour selection (3000 K, 4000 K, 6500 K)
- IP44 splash-proof for bathrooms and similar rooms
- Floating appearance
- Can be mounted on wall or ceiling
- Flat design: Installation height of only 35 mm

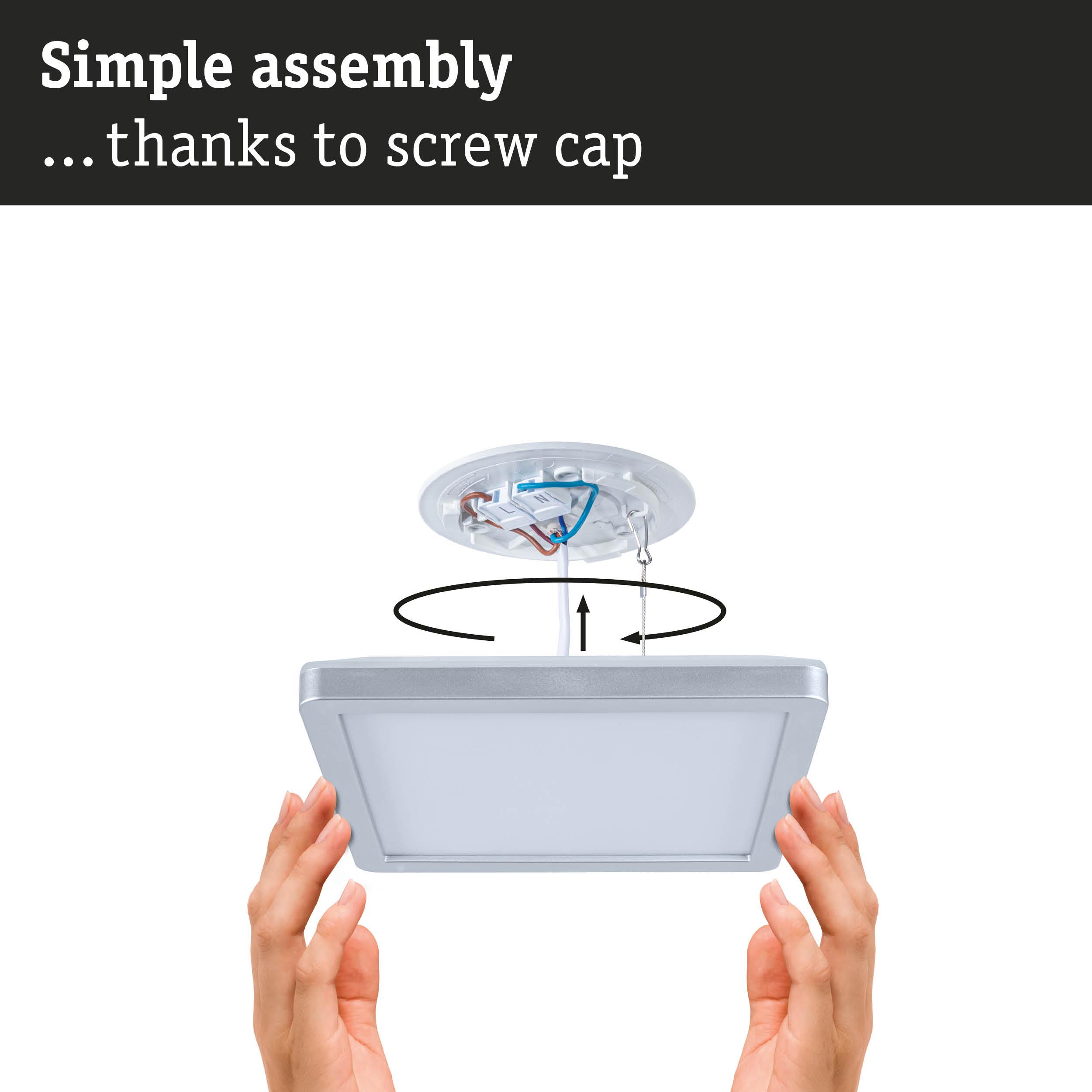

- Easy to install, thanks to twist lock and quick clip
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 32 x B: 190 x T: 190 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | B |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 1160 lm |
| Luminous flux LED module | 1600 lm |
| Color rendering index | > 80 Ra |
| Colour change | White Select |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 104 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 8 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 9,5 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
