Article-No.:
71000
LED Panel
Atria Shine Backlight
angular 190x190mm 11,2W 900lm 3000K Black
angular 190x190mm 11,2W 900lm 3000K Black

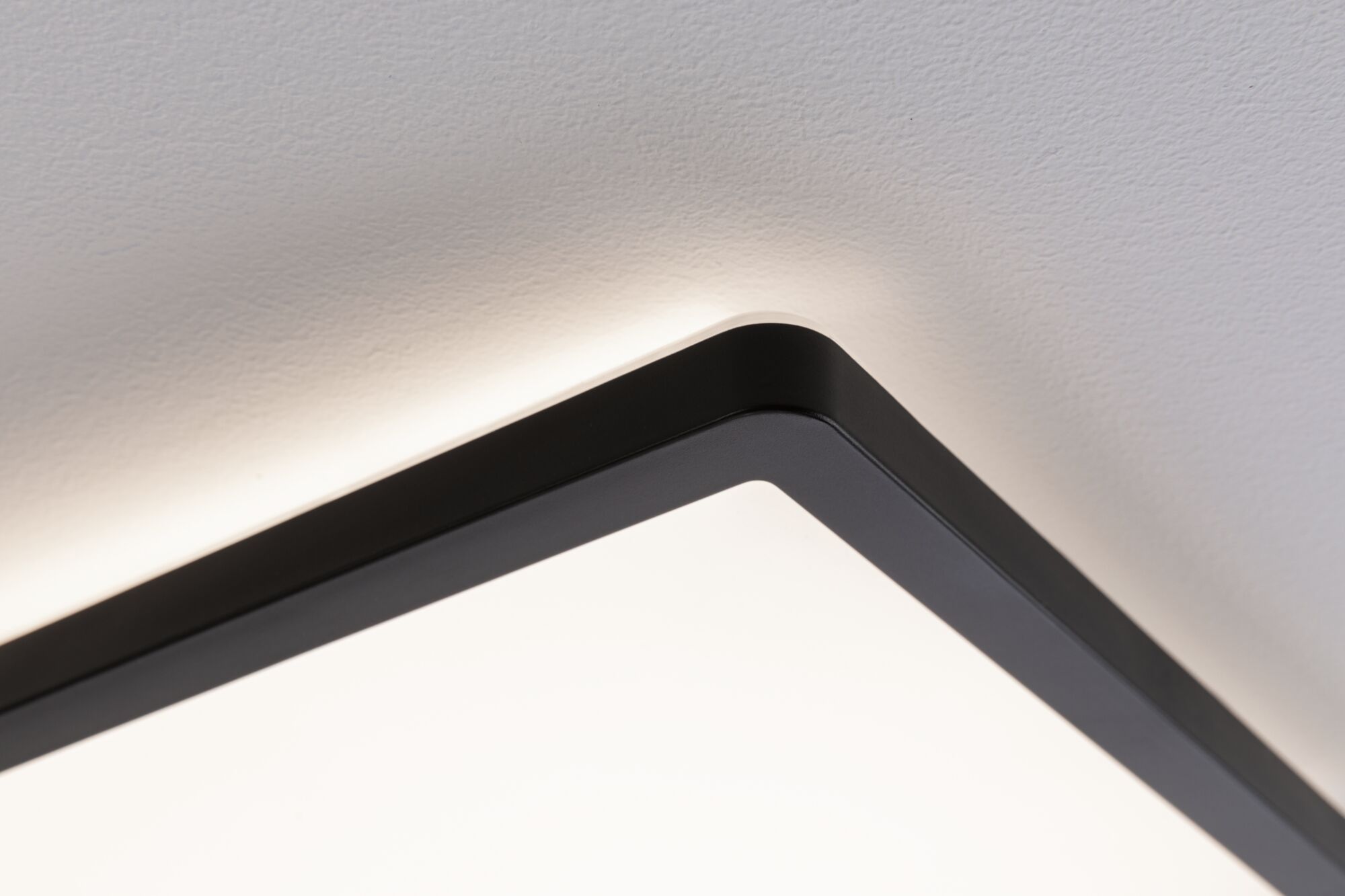

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology

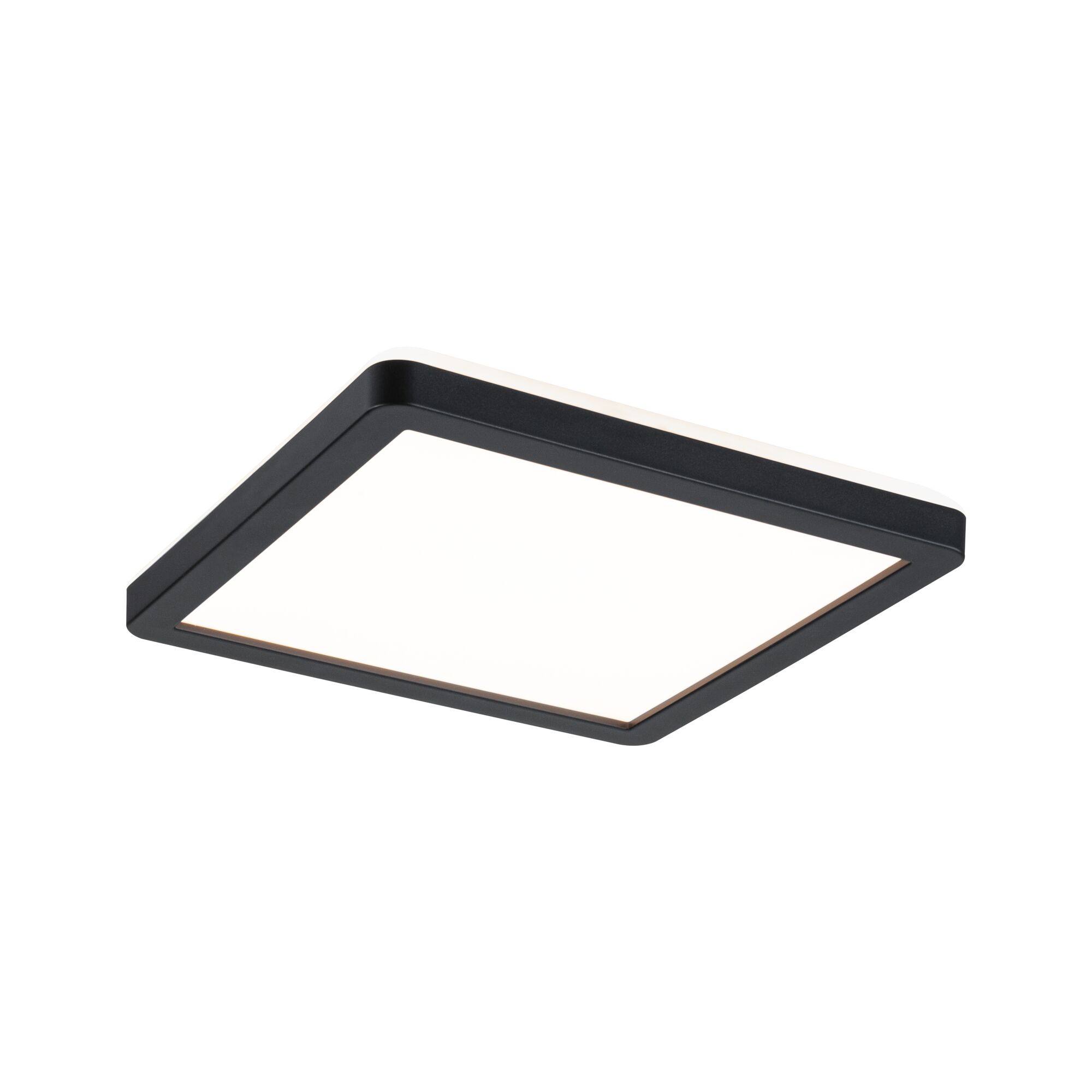

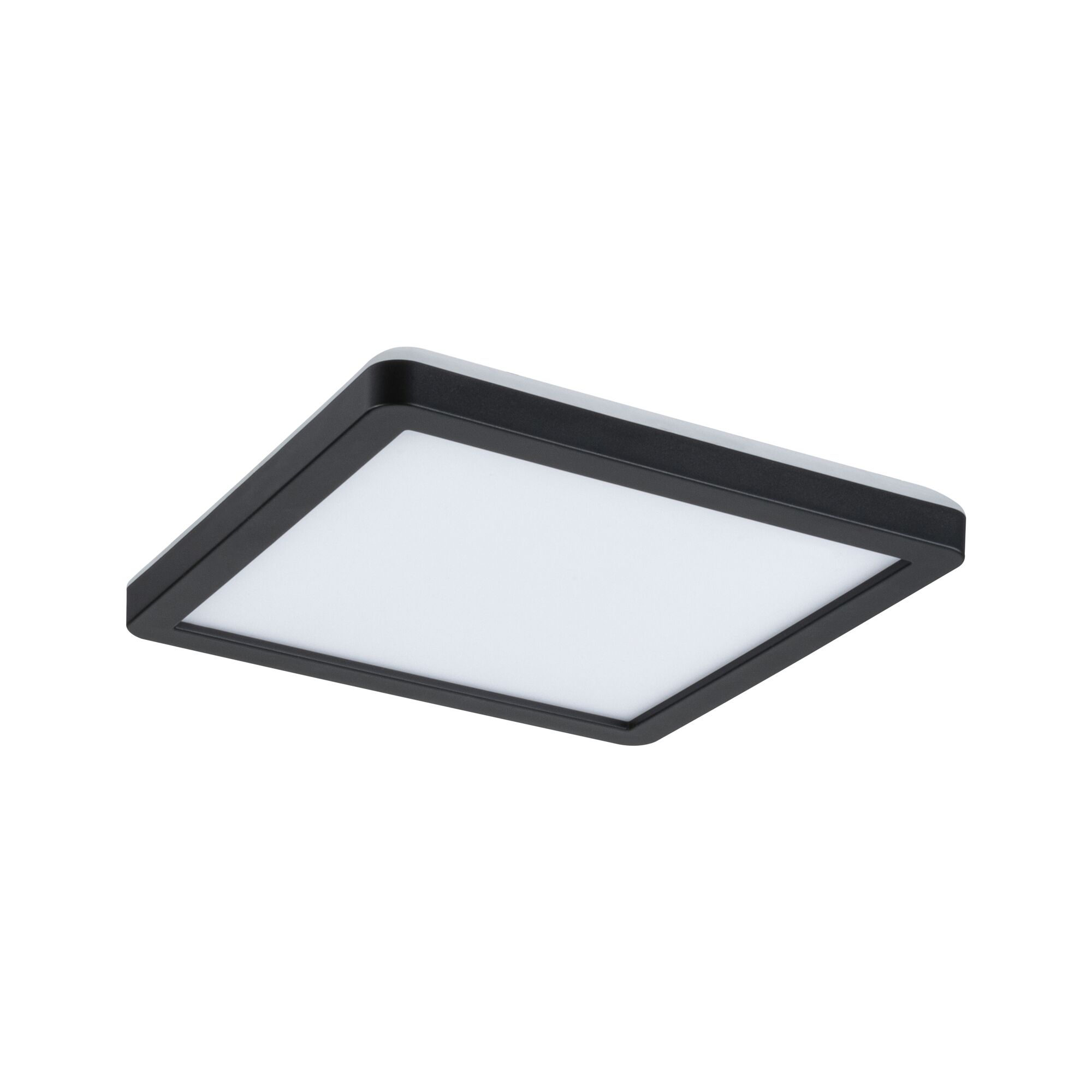

LED Panel Atria Shine Backlight angular 190x190mm 11,2W 900lm 3000K Black

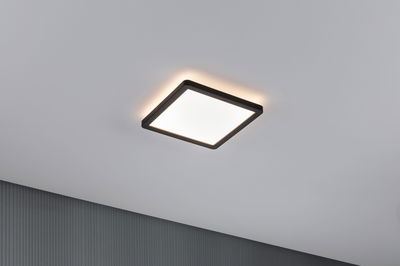

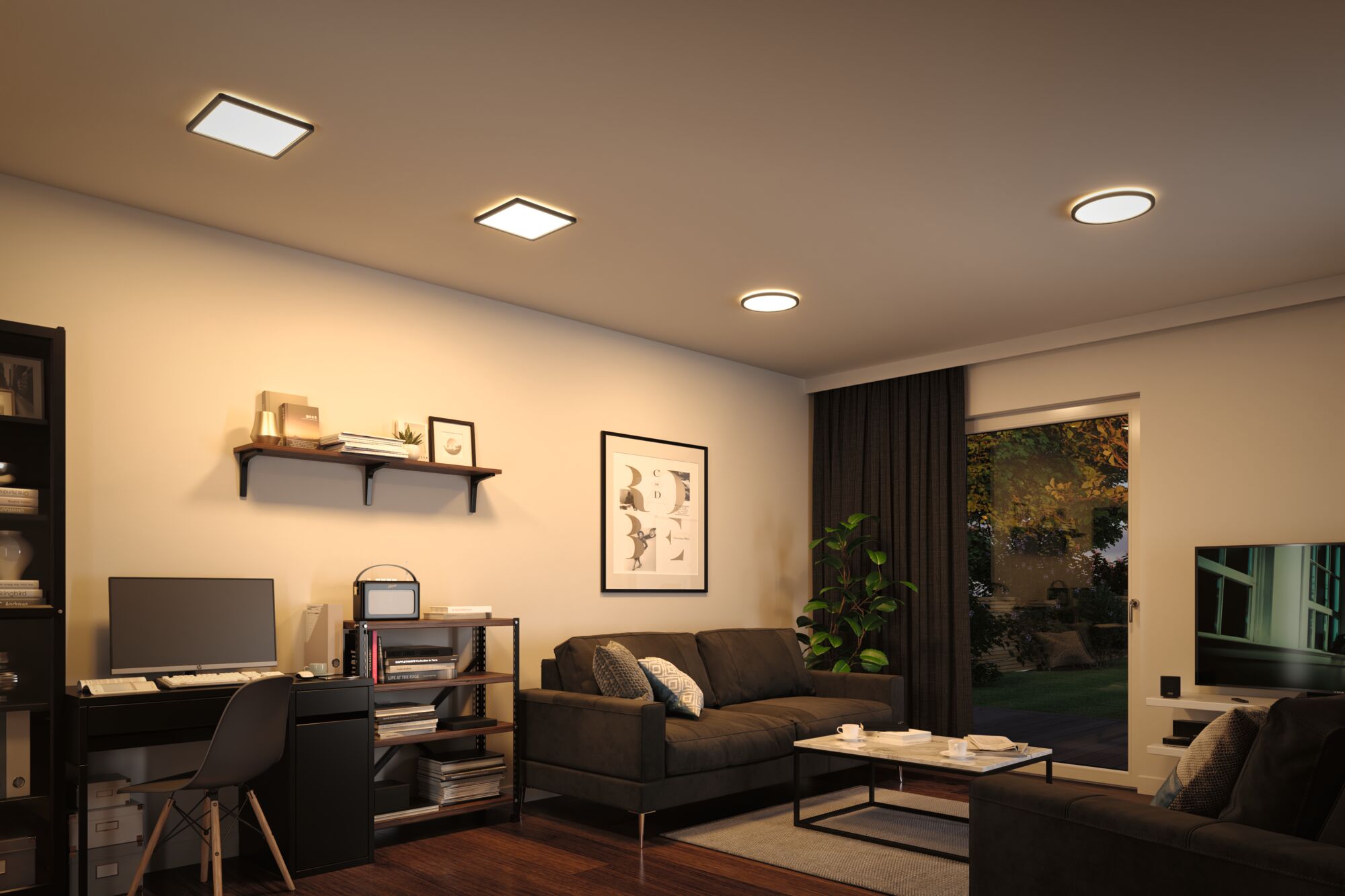

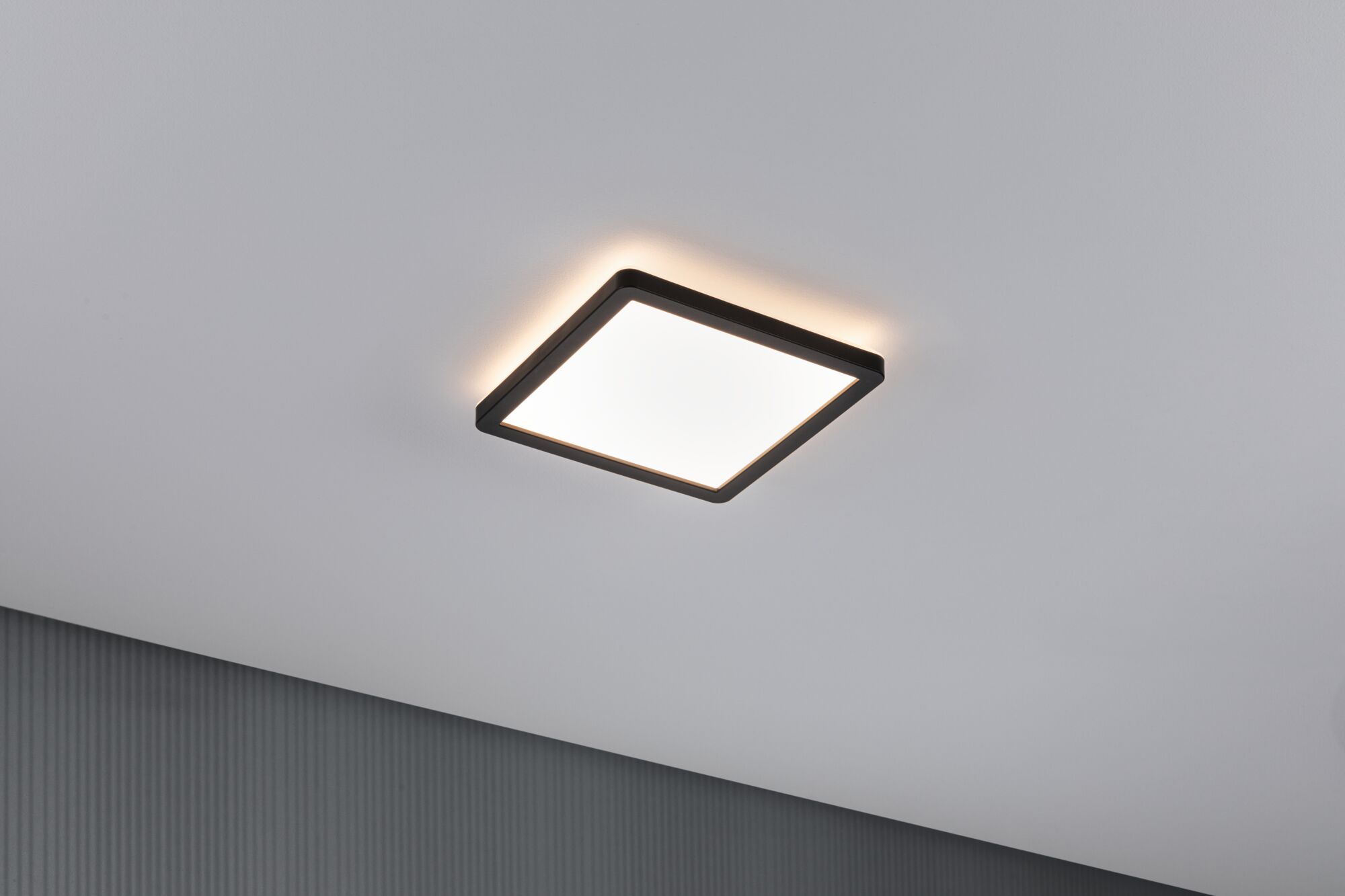

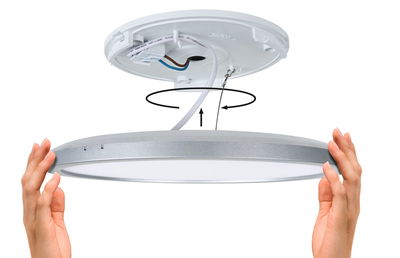

With an output of 11,2W, the angulare Atria Shine LED panel in Black and 190x190mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Especially flat construction
| Dimension | |
|---|---|

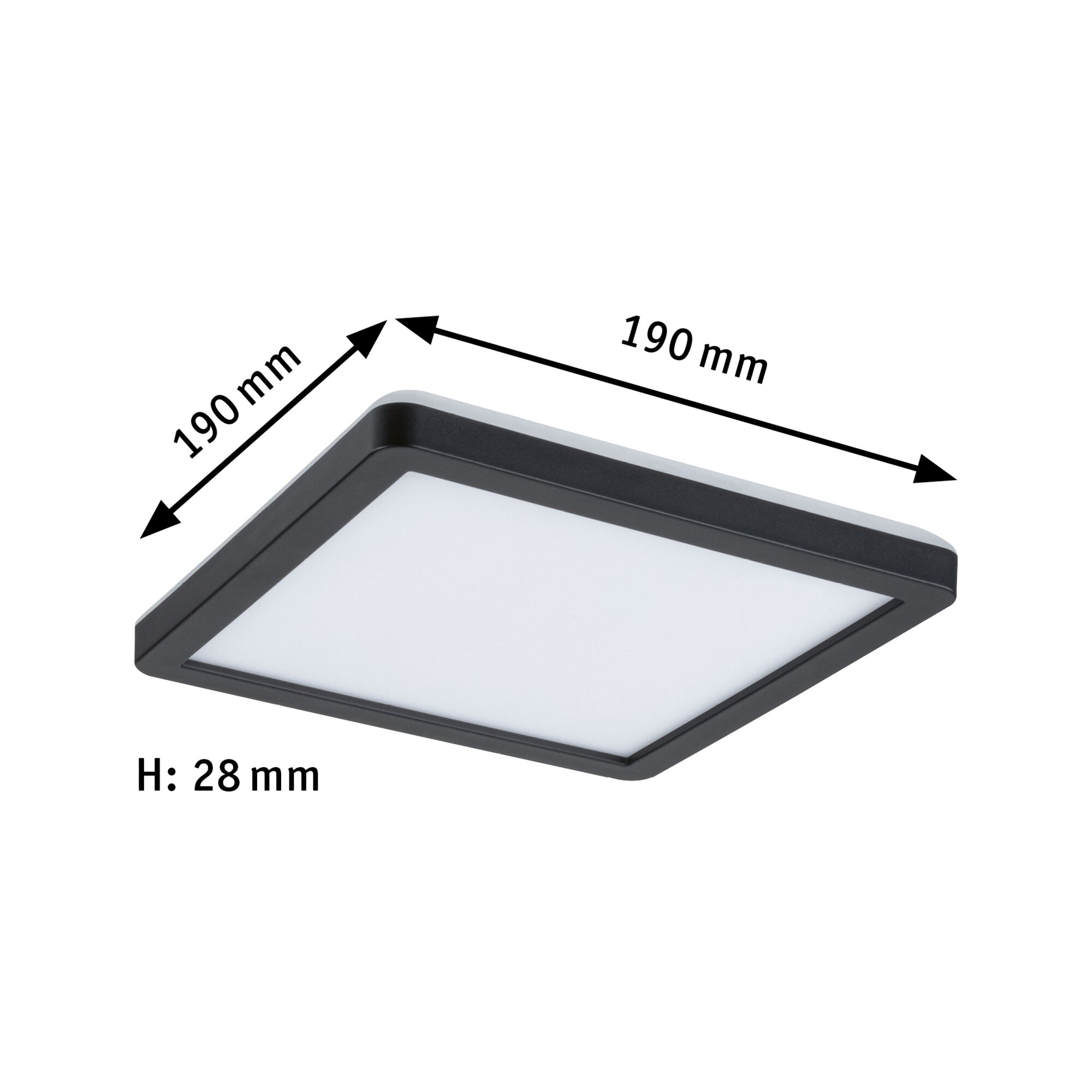

| Dimensions (Height x Width x Depth) | H: 28 x B: 190 x T: 190 mm |
| Form | angular |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Usable luminous flux | 900 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 1360 lm |
| Lamp Features | |
|---|---|
| Component parts | 11,2 W |
| Technique | LED |
| Inclusive lamp | yes |
| Incandescent Equivalent | 91 W |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP20 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12,5 W |
| Transformer | |
|---|---|
| apparent power | 22 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
