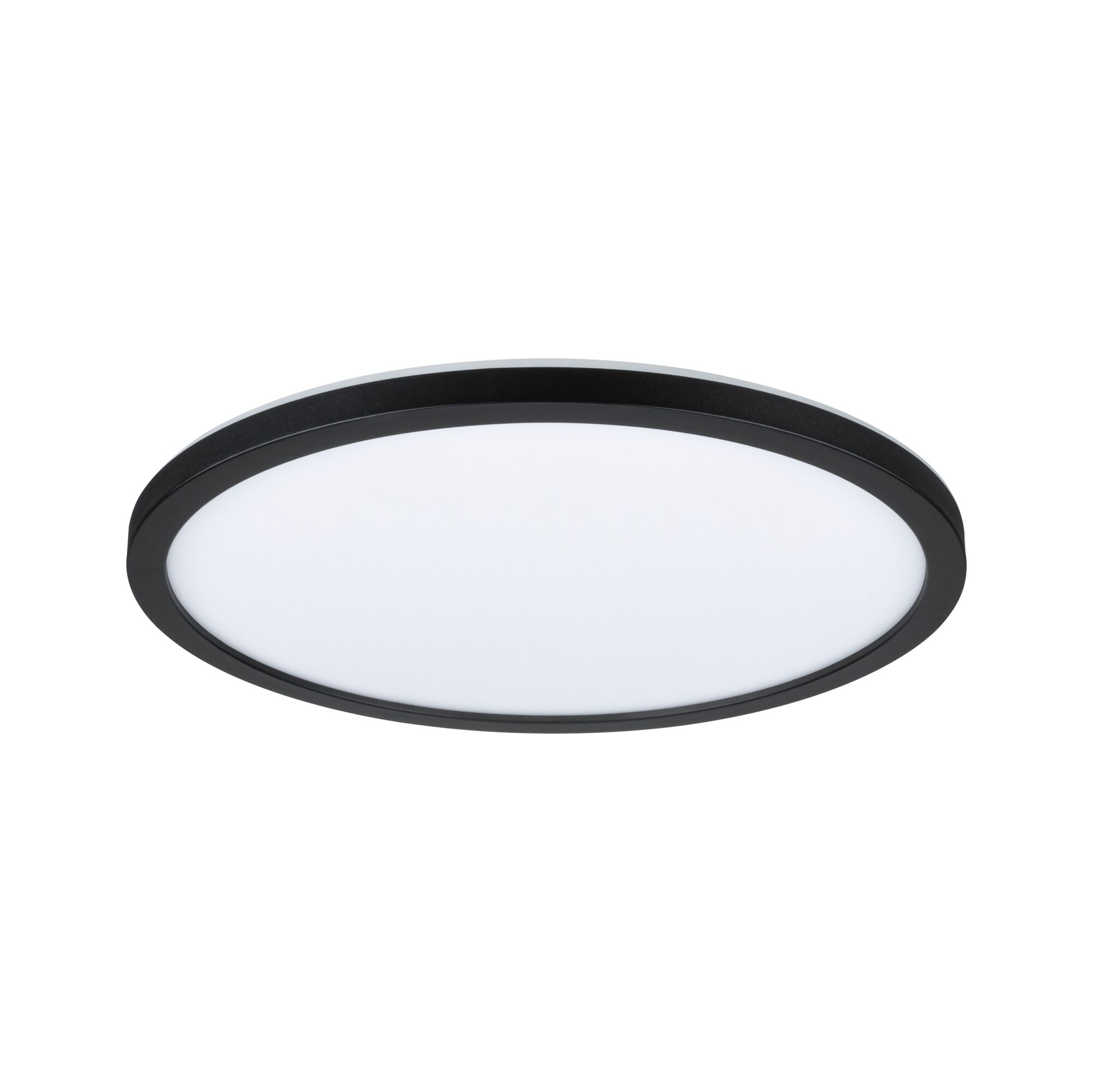

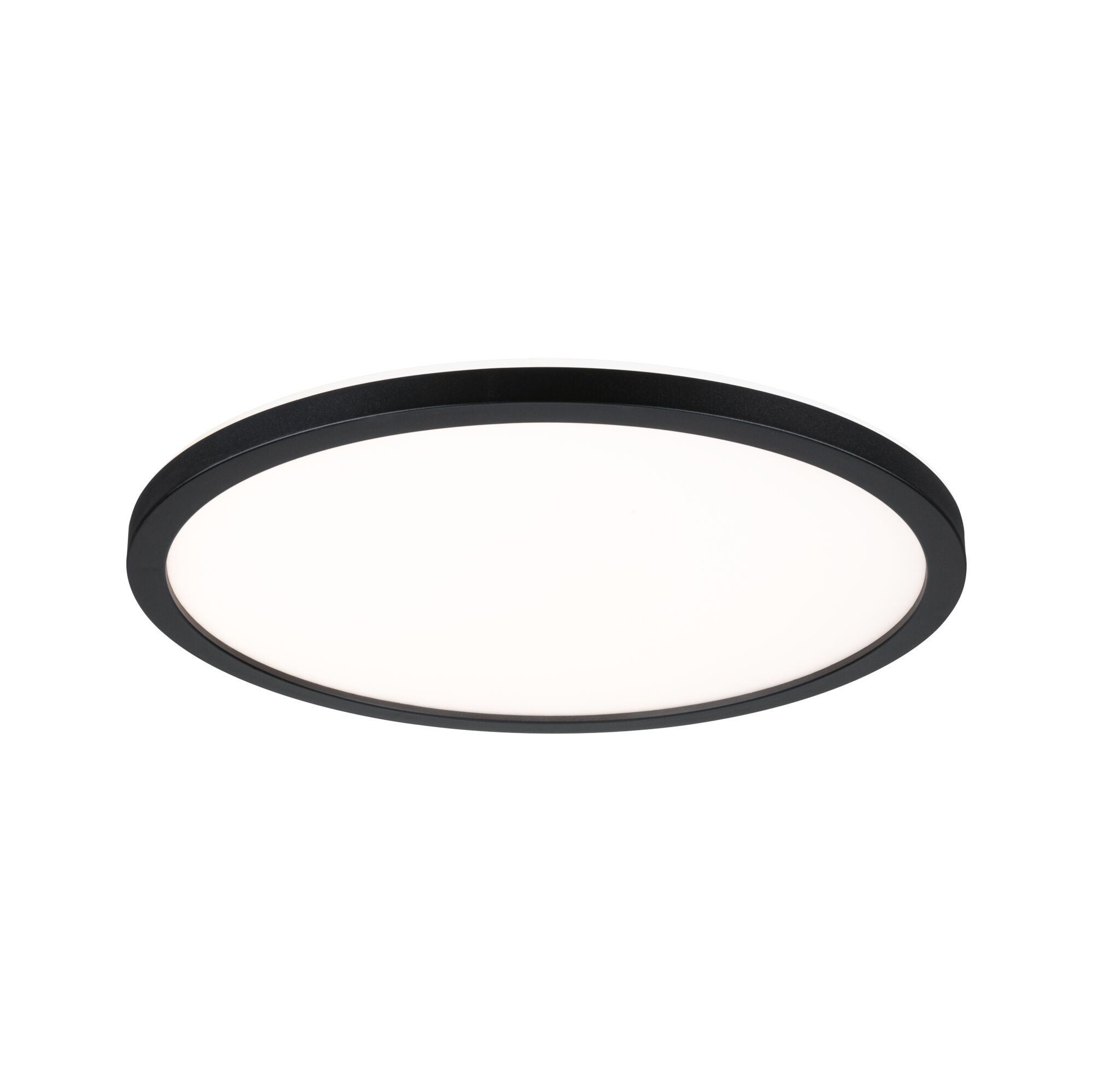

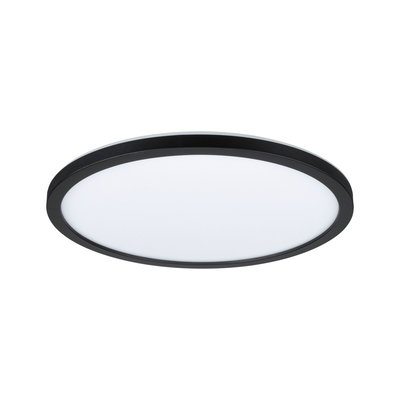

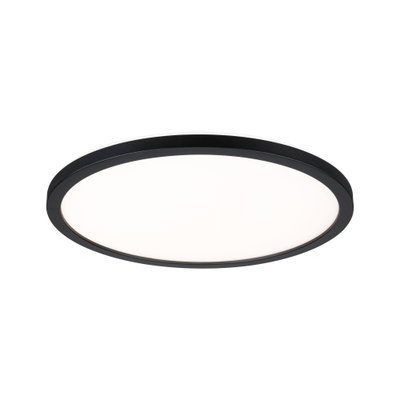

LED Panel Atria Shine Backlight round 293mm 16W 1600lm 3000K Black

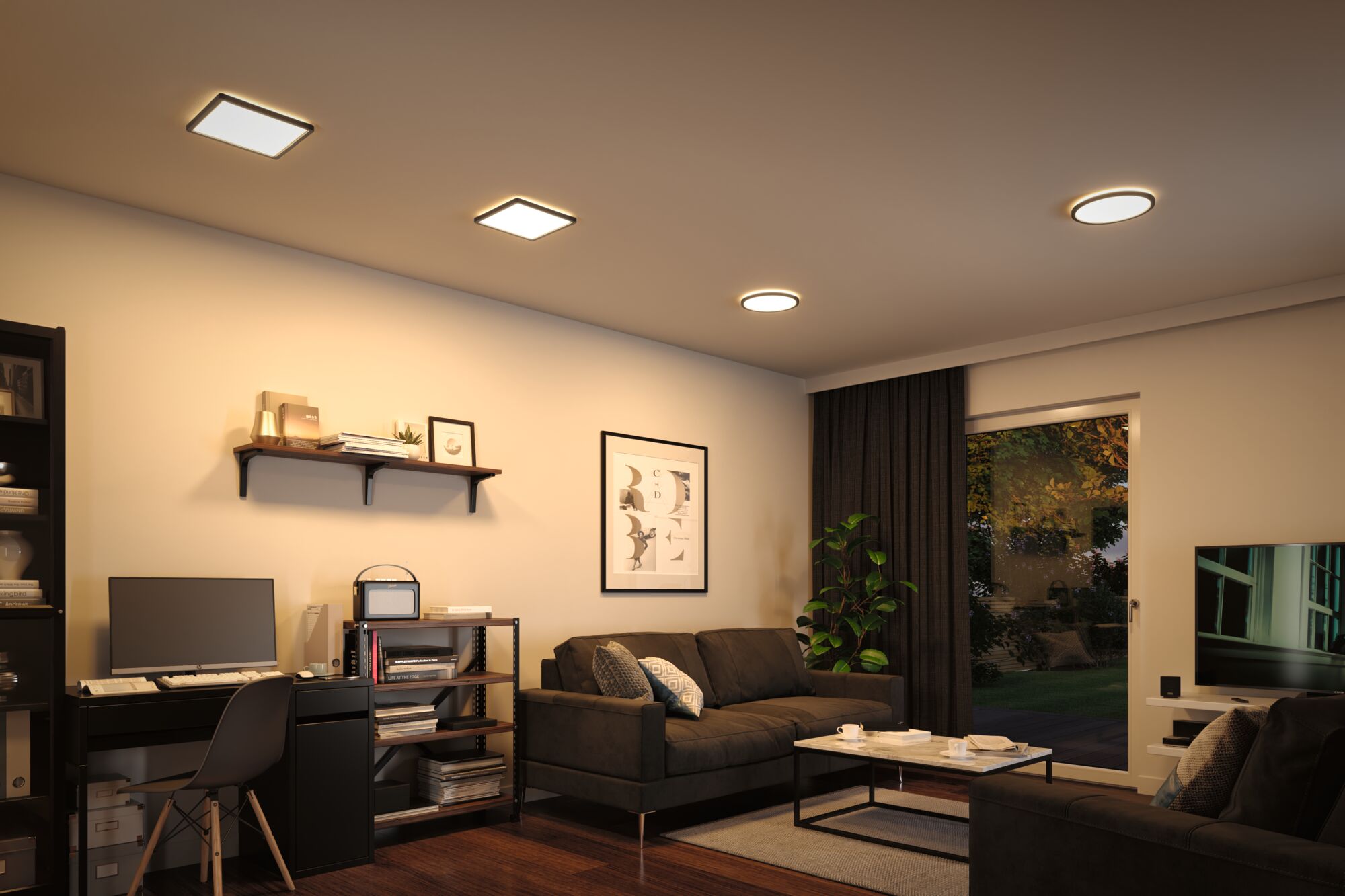

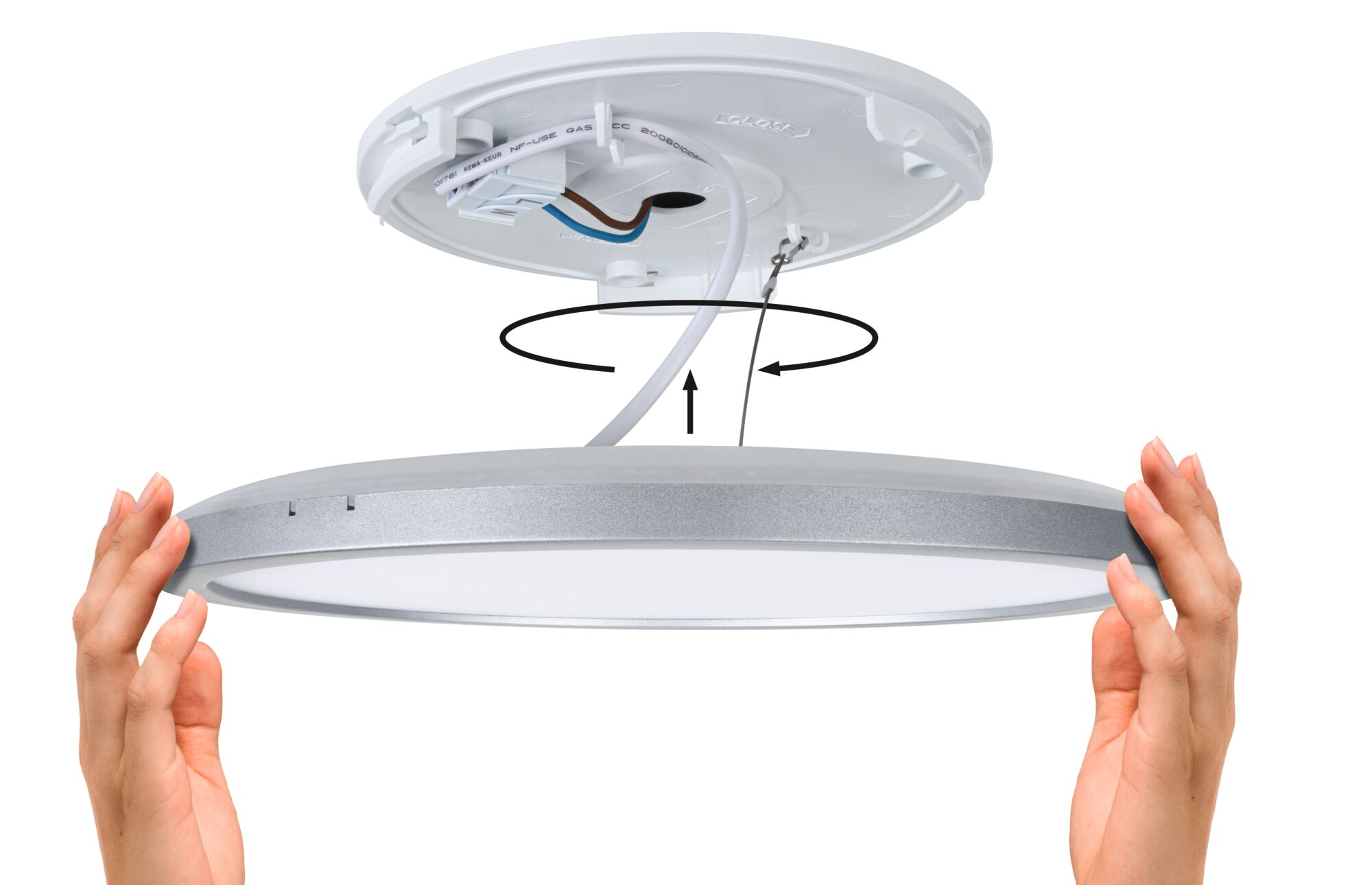

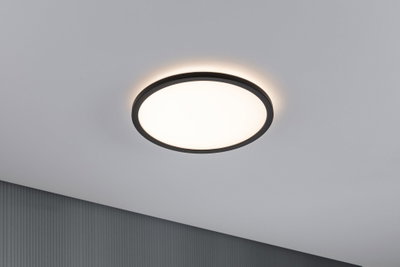

With an output of 16W, the rounde Atria Shine LED panel in Black and 293mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.

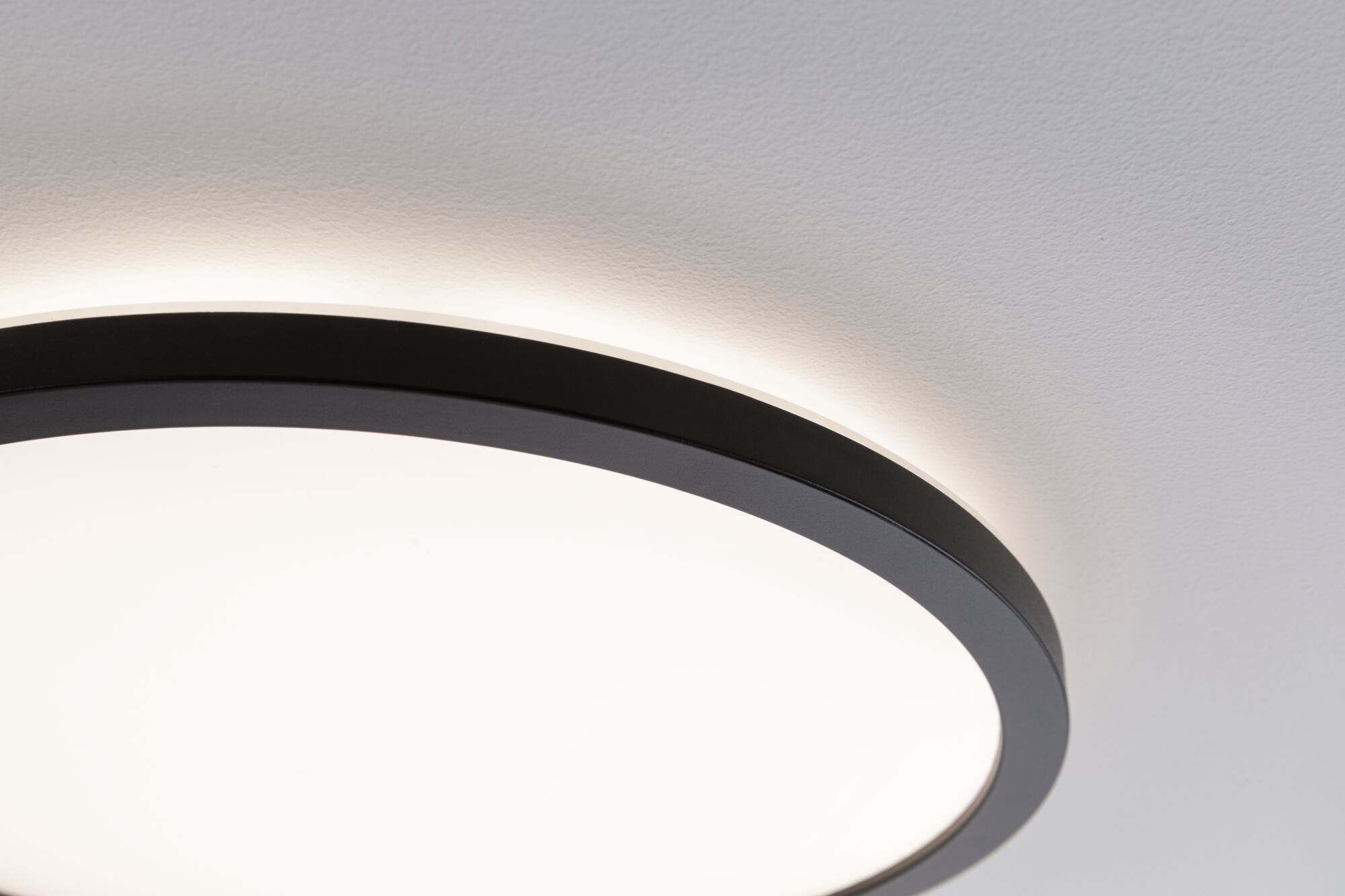

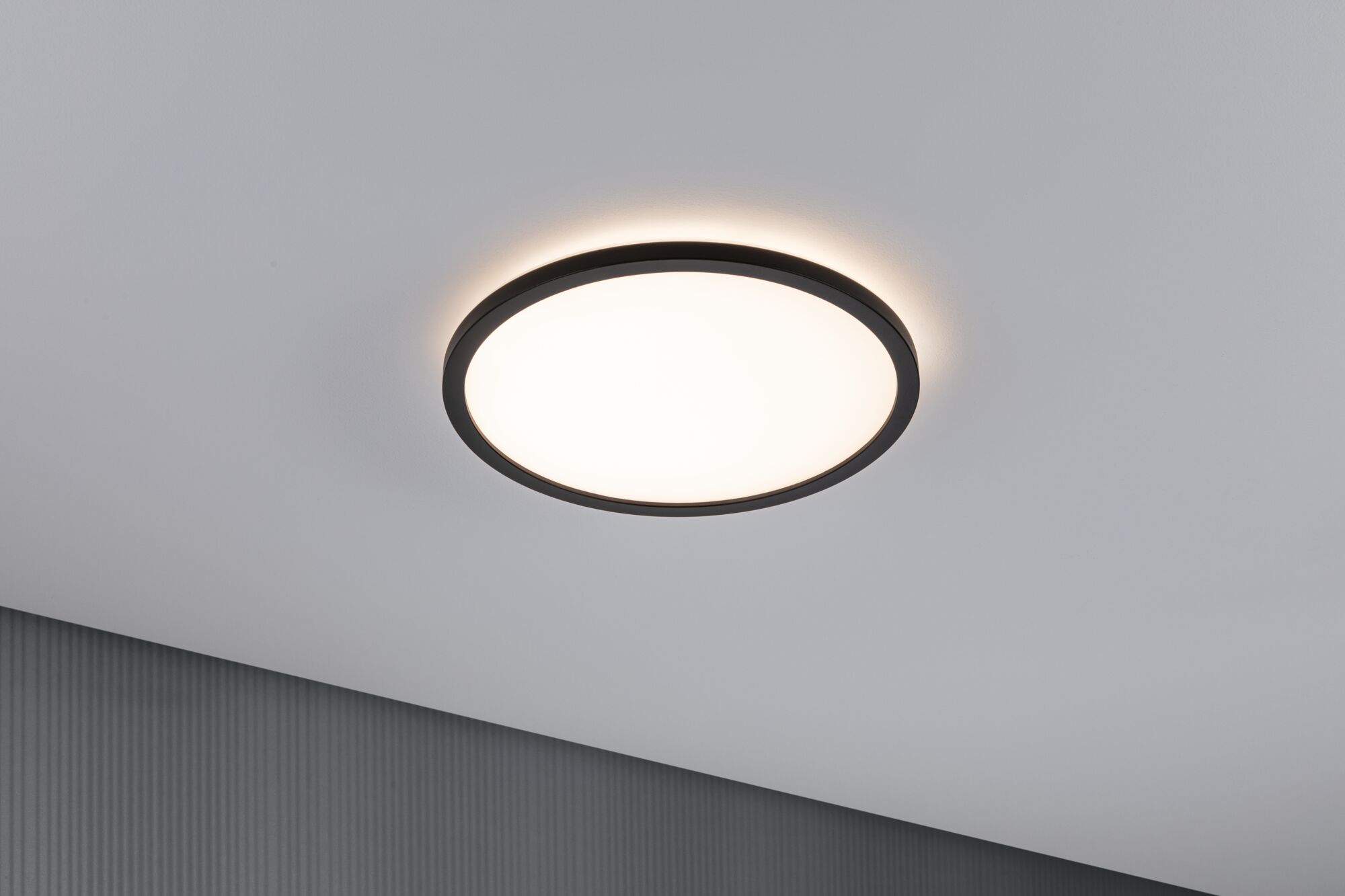

Backlight technology for subtle, almost floating appearance of the luminaire
Ultra-flat design: Installation height of only 28 mm
Even room light based on cutting-edge LED technology
Color temperatur: 3000K - Warm white
Can be mounted on wall or ceiling
Especially flat construction

Dimension

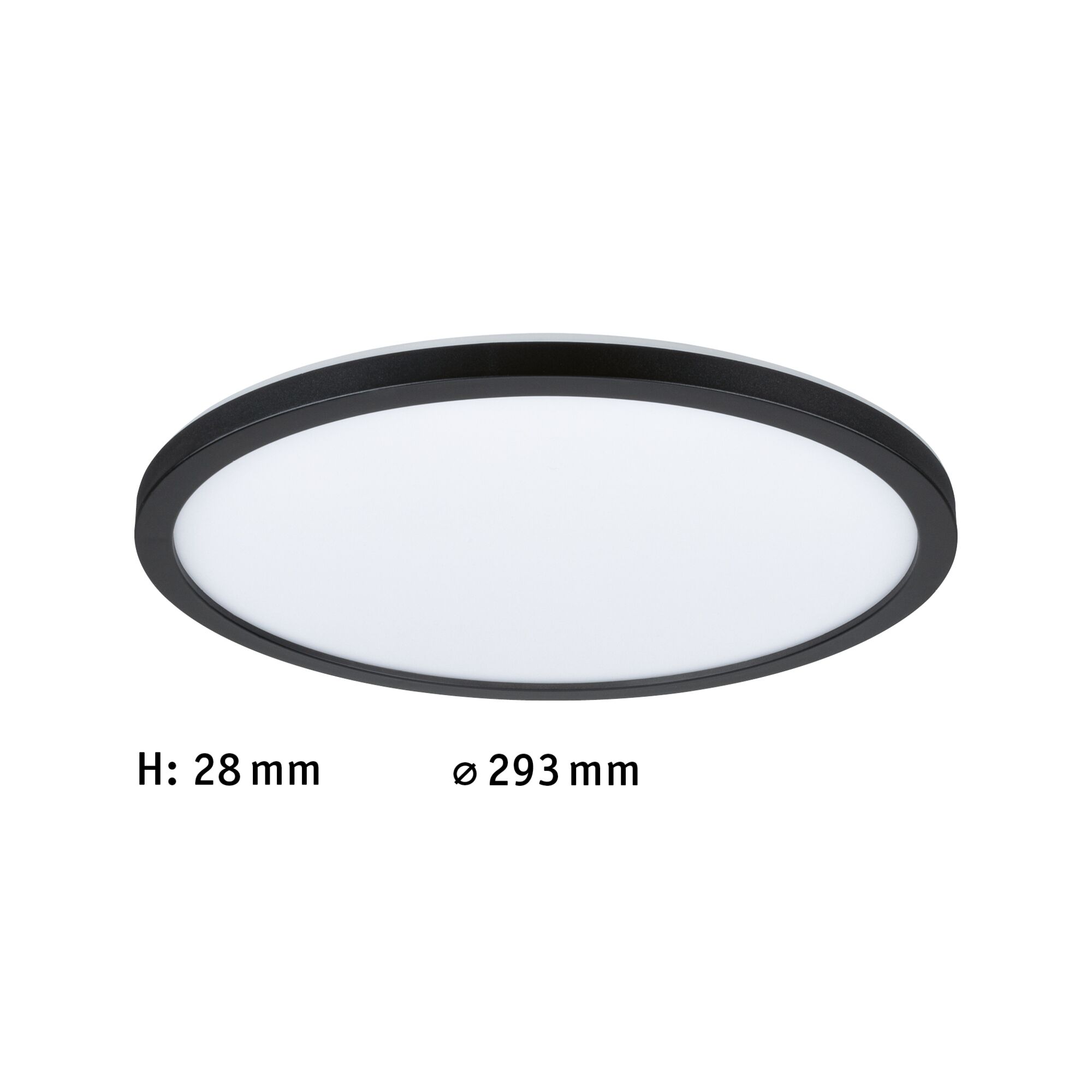

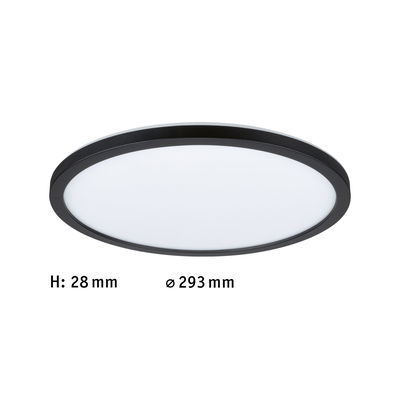

Dimensions (Height x Width x Depth)	H: 28 mm
Ø	293 mm
Form	round

Design and Material
Colour	Black
Material	Plastic

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	3000 K
Usable luminous flux	1600 lm
Luminous flux LED module	2000 lm
color temp	3000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	16 W
Technique	LED
IP protection	IP20
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	125.7 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	19 W

Transformer
apparent power	36 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

LED Panel Atria Shine Backlight

round 293mm 16W 1600lm 3000K Black
