Article-No.:
71011
LED Panel
Atria Shine Backlight
round 190mm 11,2W 850lm 4000K Black
round 190mm 11,2W 850lm 4000K Black
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28Â mm
- Even room light based on cutting-edge LED technology

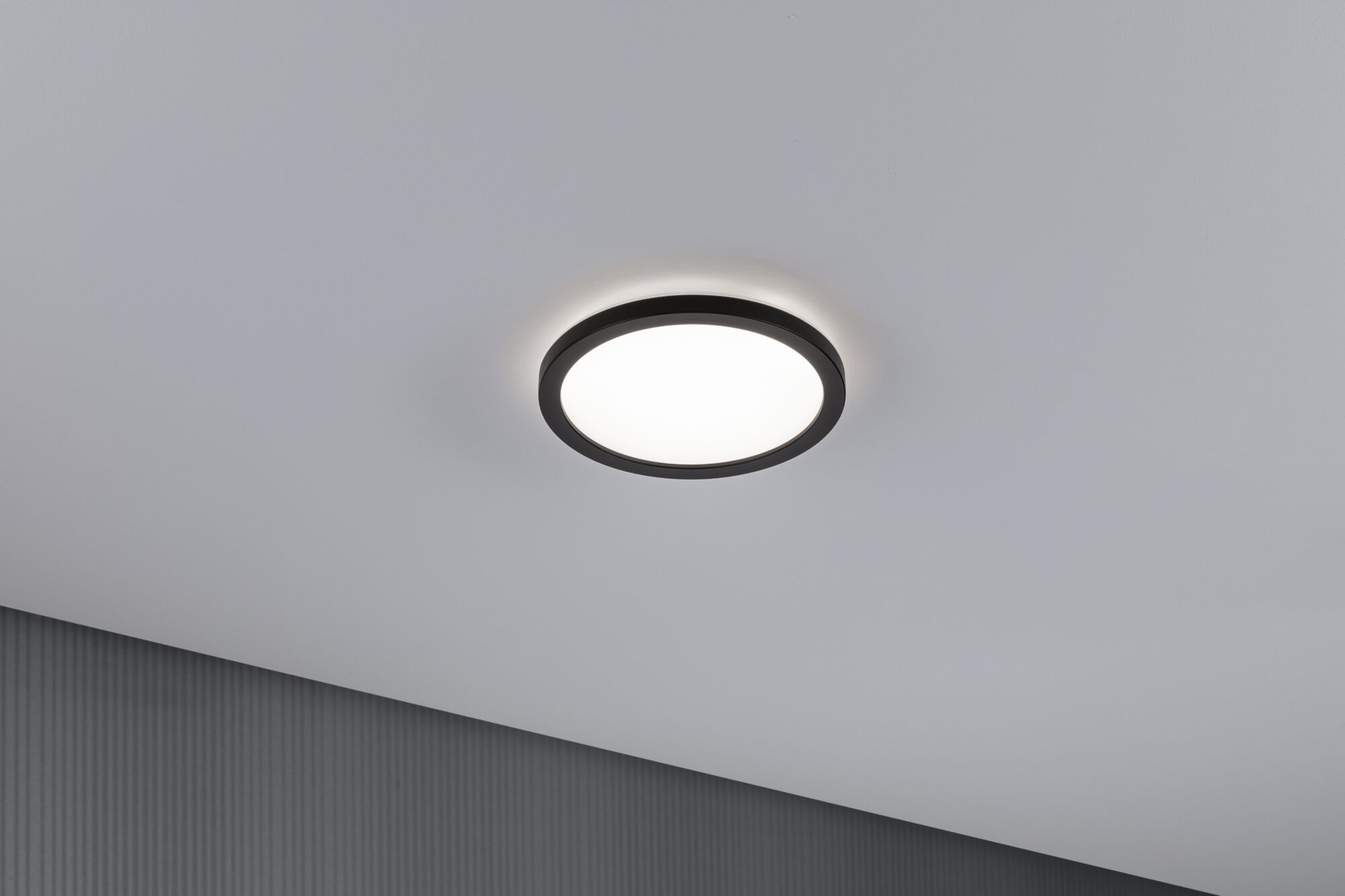

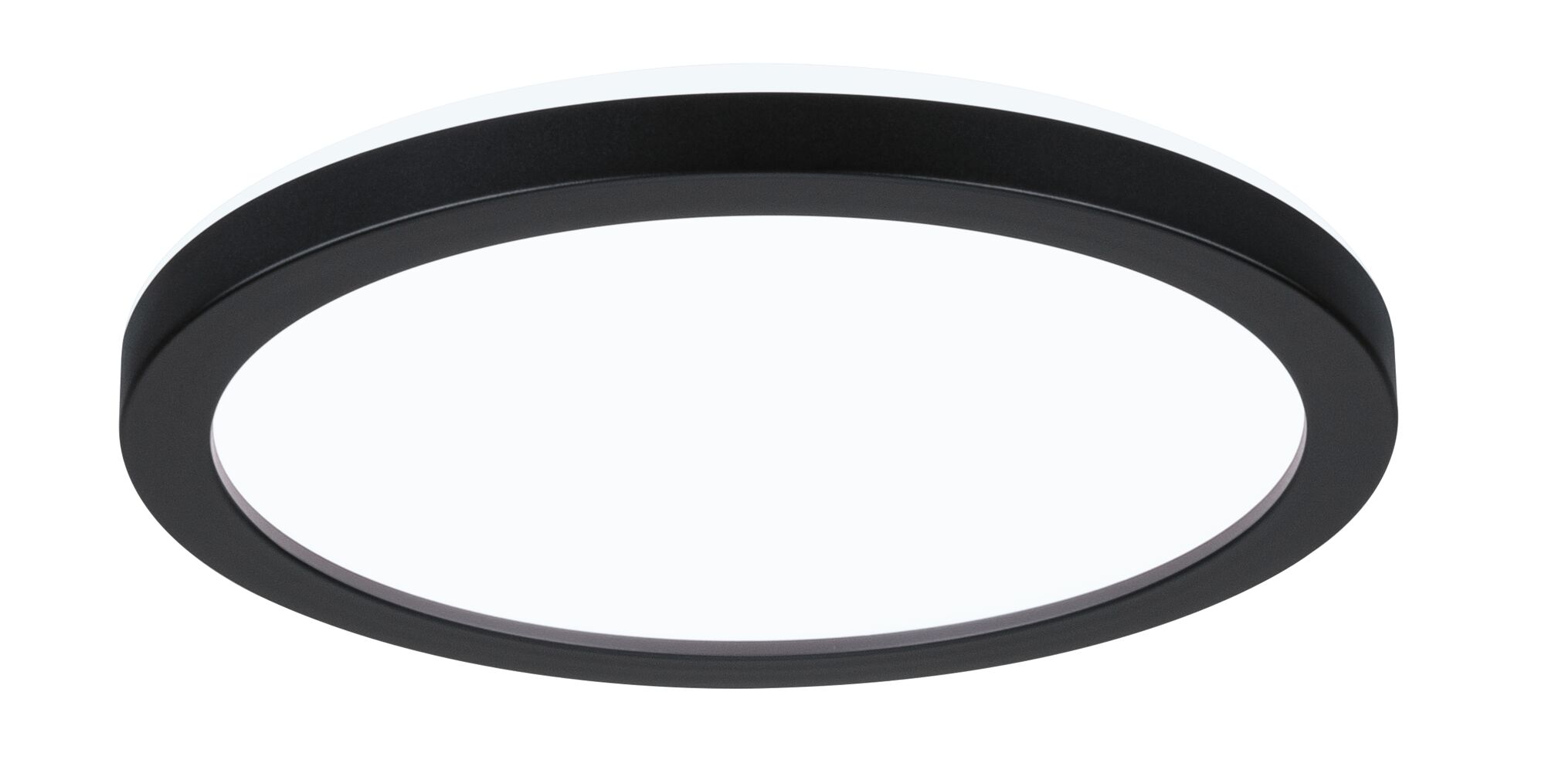

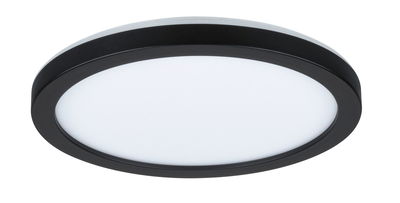

LED Panel Atria Shine Backlight round 190mm 11,2W 850lm 4000K Black

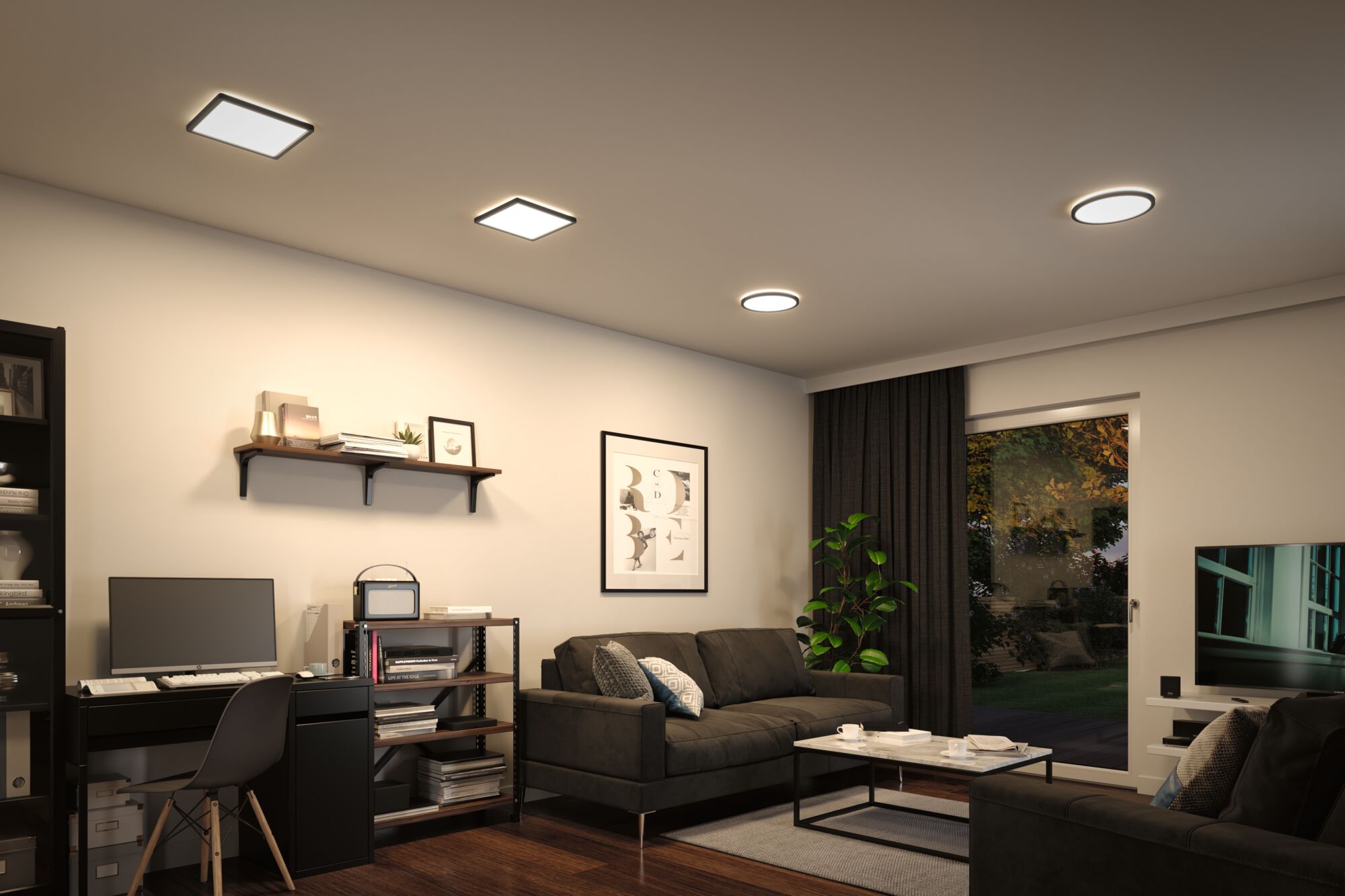

With an output of 11,2W, the rounde Atria Shine LED panel in Black and 190mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.

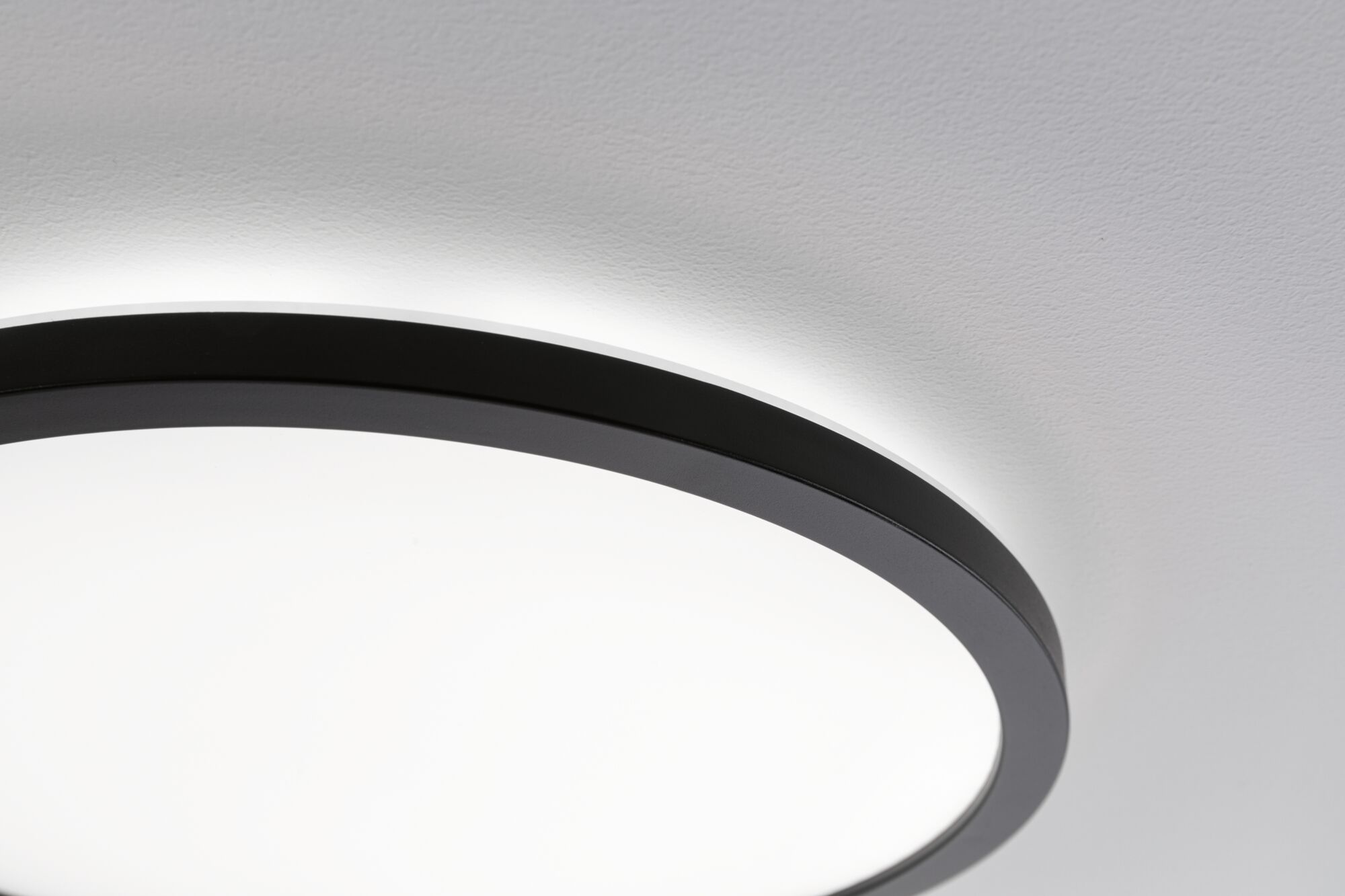

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28Â mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 4000K - Neutral white
- Can be mounted on wall or ceiling
- Especially flat construction
| Dimension | |
|---|---|

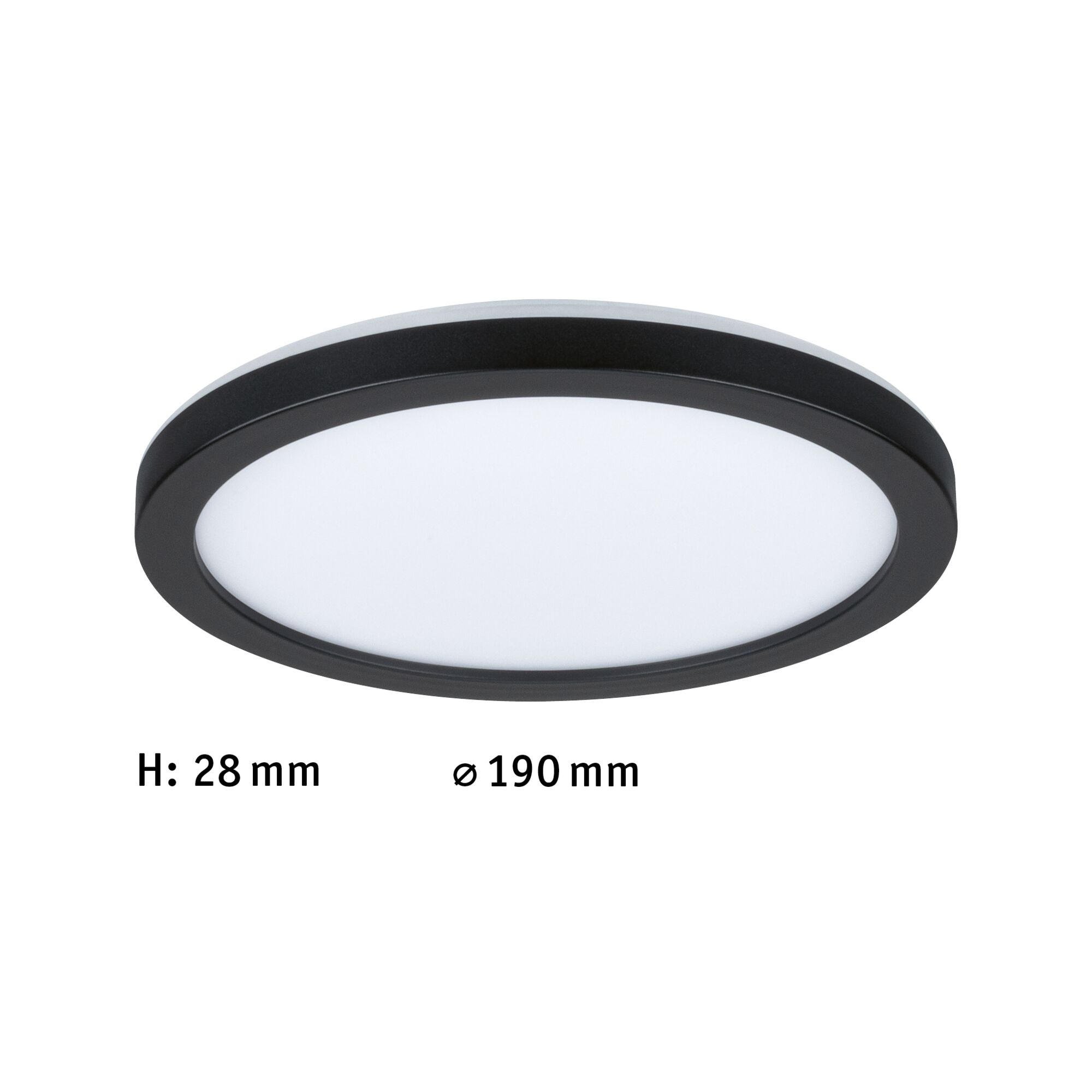

| Dimensions (Height x Width x Depth) | H: 28 mm |
| Ø | 190 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 850 lm |
| Luminous flux LED module | 1340 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 11,2 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 90 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12,5 W |
| Transformer | |
|---|---|
| apparent power | 22 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
