Article-No.:
71030
LED Panel
Atria Shine Backlight
IP44 square 293x293mm 16W 1600lm 3000K Wood look
IP44 square 293x293mm 16W 1600lm 3000K Wood look
- IP44 splash-protected for bathrooms and similar rooms

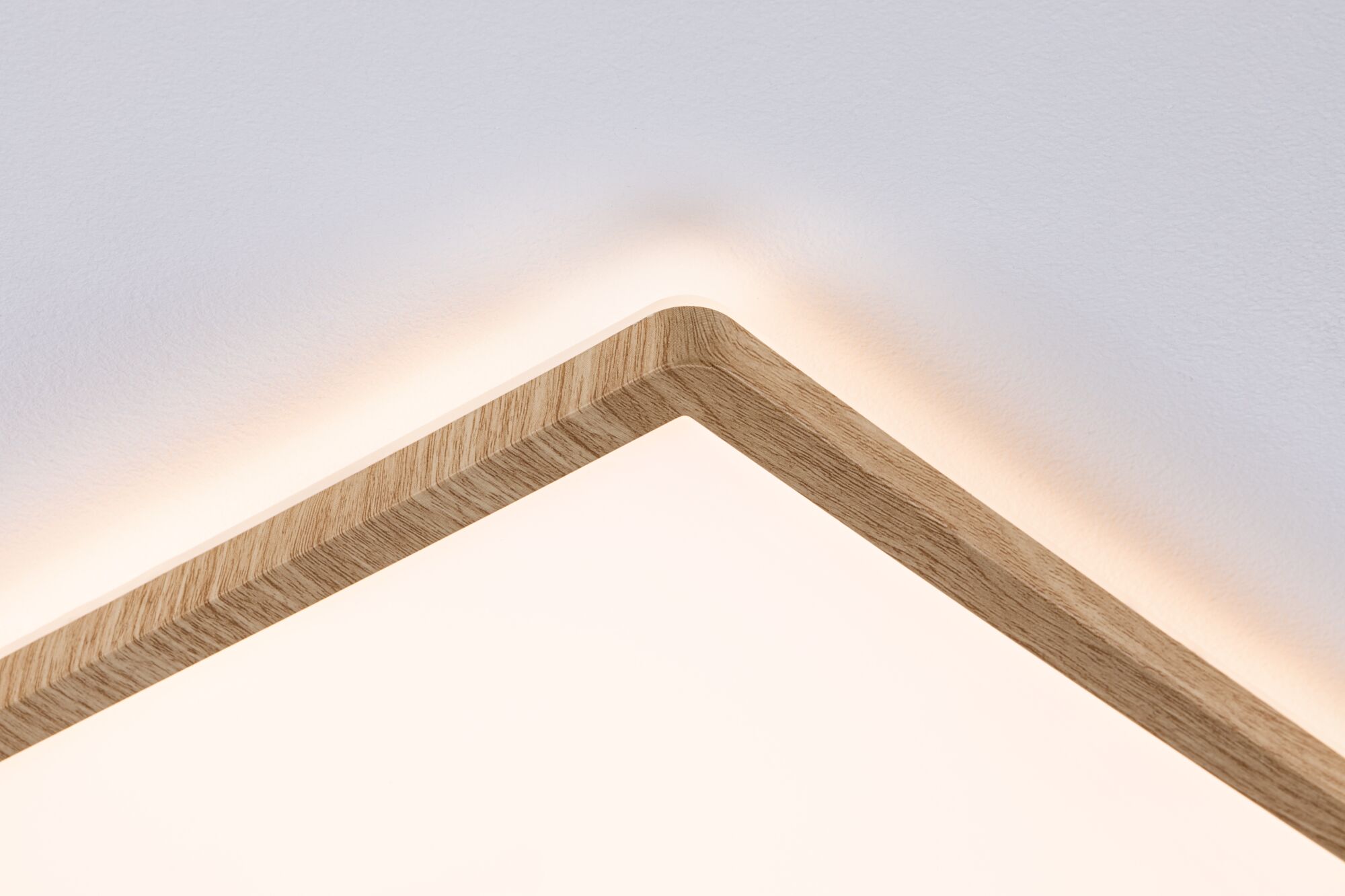

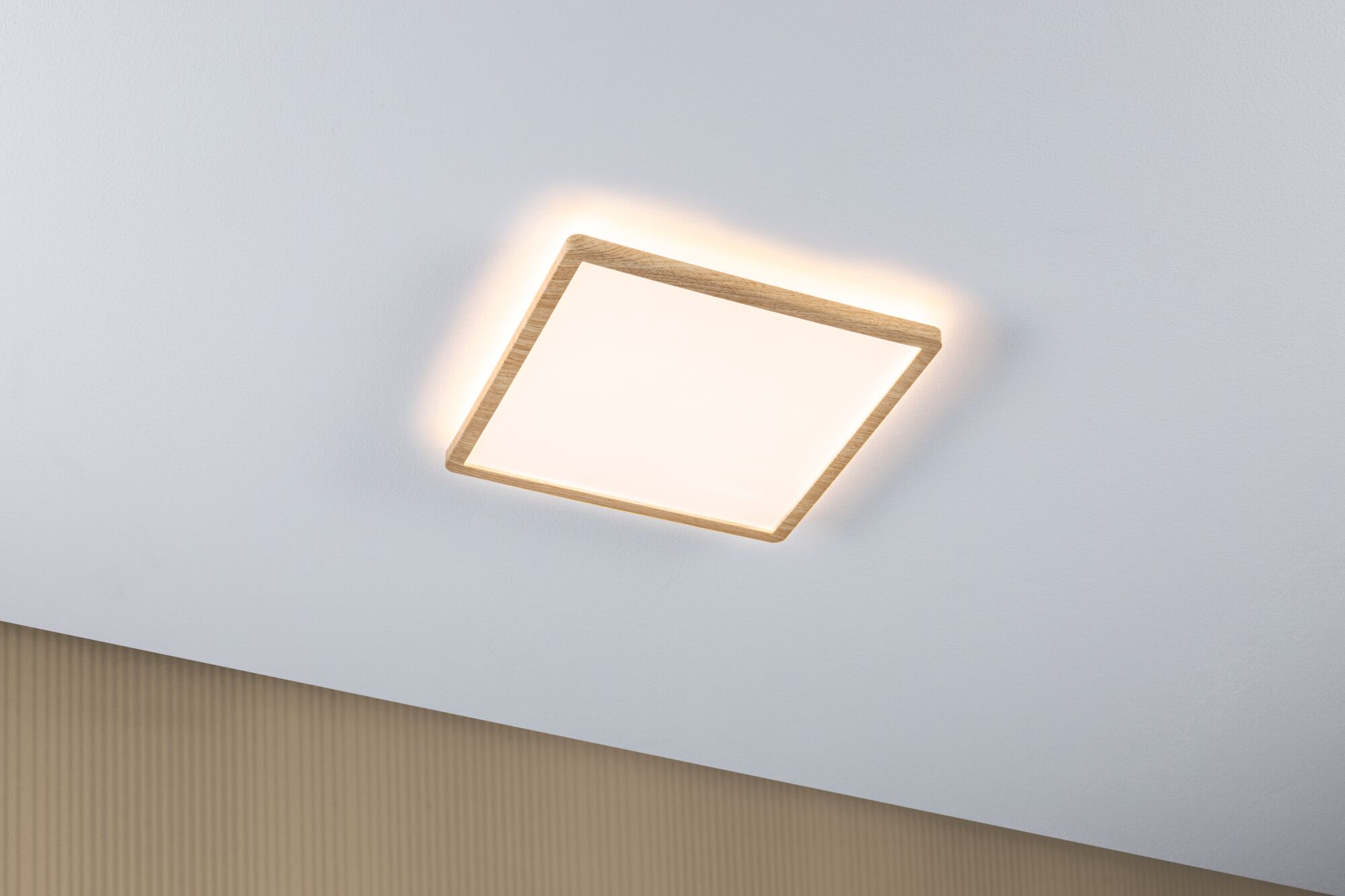

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm

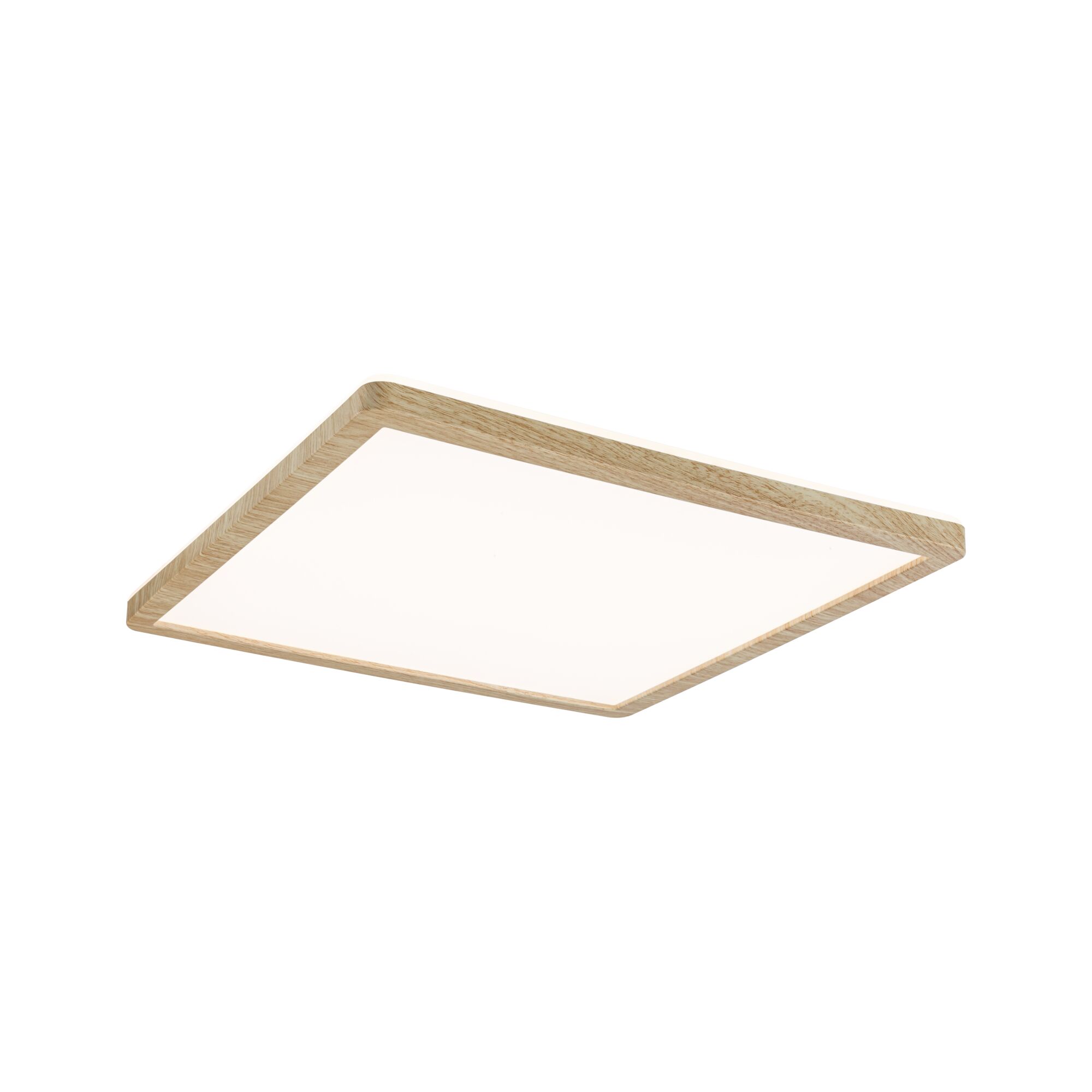

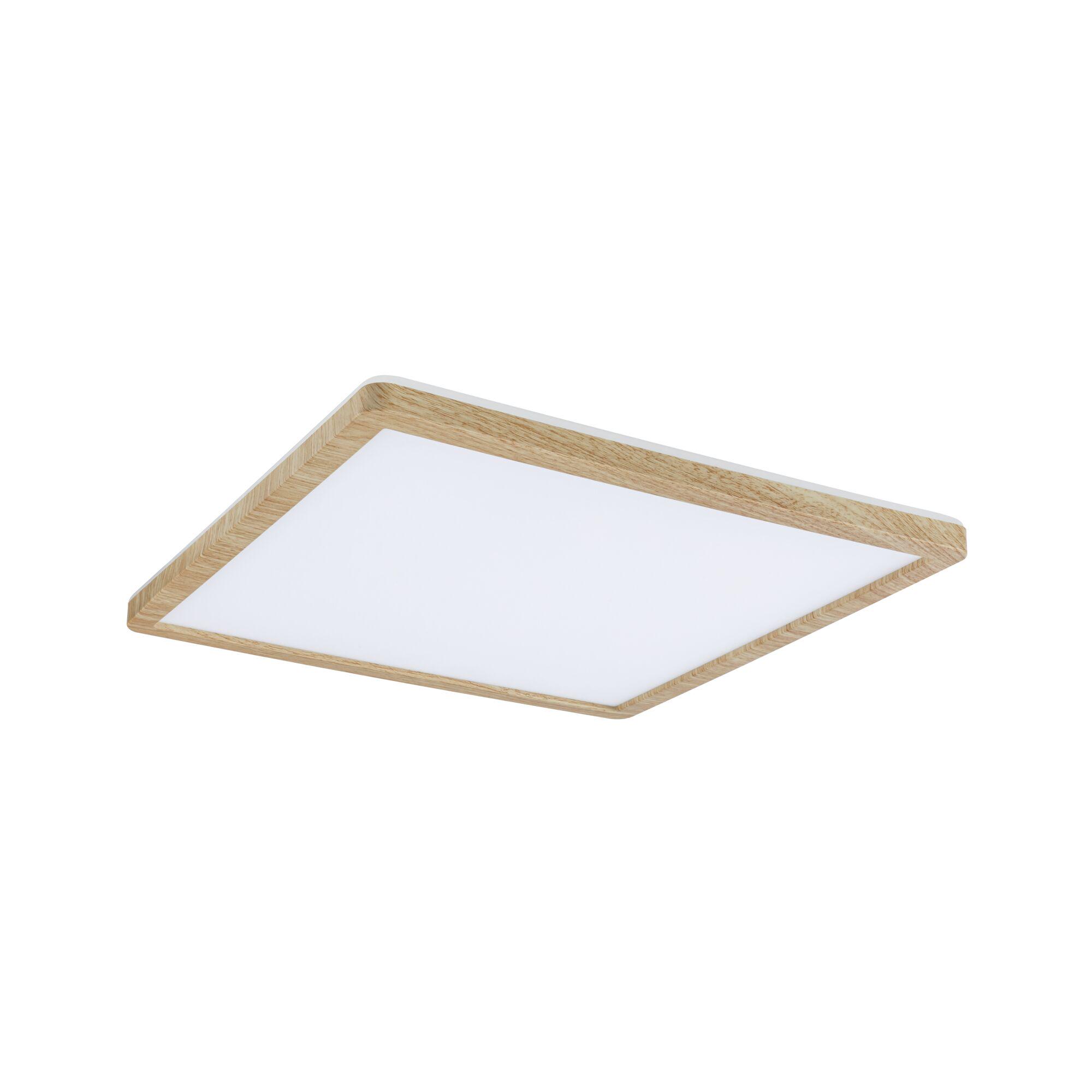

LED Panel Atria Shine Backlight IP44 square 293x293mm 16W 1600lm 3000K Wood look
With an output of 16W, the 293x293 mm rectangular LED panel luminaire Atria Shine is a perfect choice for basic lighting in living rooms, bedrooms and kitchens. The unique, wood look frame design gives the panel a natural, cosy character. The warm white light of the panel luminaire creates a uniform and wide-area room illumination. The additional bright backlight technology gives this panel luminaire an almost weightless appearance. The quick clip and special twist lock make this ultra-flat panel luminaire with an installation height of just 28 mm very easy to install.
- IP44 splash-protected for bathrooms and similar rooms
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Especially flat construction
| Dimension | |
|---|---|

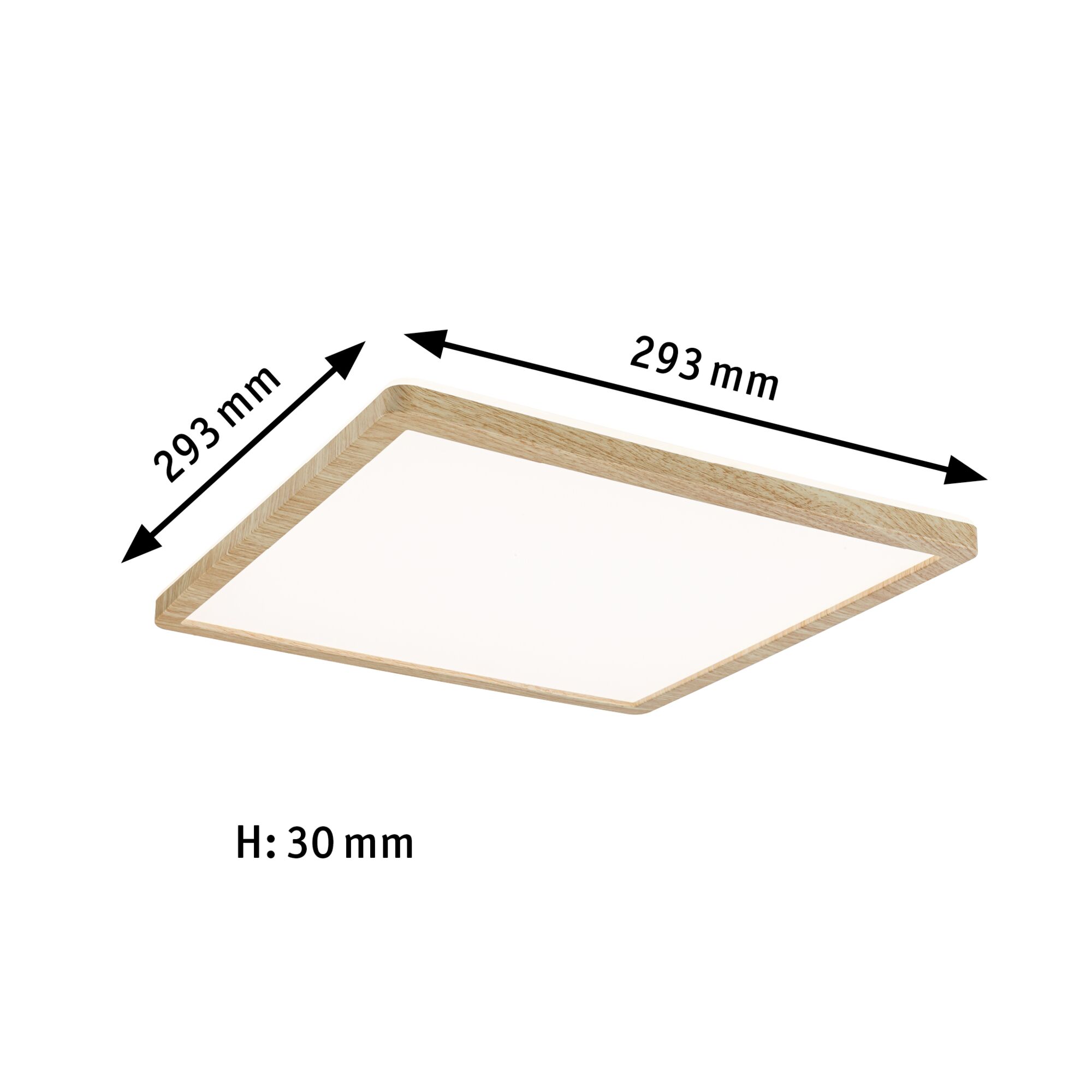

| Dimensions (Height x Width x Depth) | H: 30 x B: 293 x T: 293 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | Wood look |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 1.600 lm |
| Luminous flux LED module | 2000 lm |
| color temp | 3.000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 16 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 293 mm |
| Incandescent Equivalent | 125.7 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 19 W |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
