Article-No.:
71029
LED Panel
Atria Shine Backlight
IP44 round 420mm 22W 2300lm 3000K Wood look
IP44 round 420mm 22W 2300lm 3000K Wood look

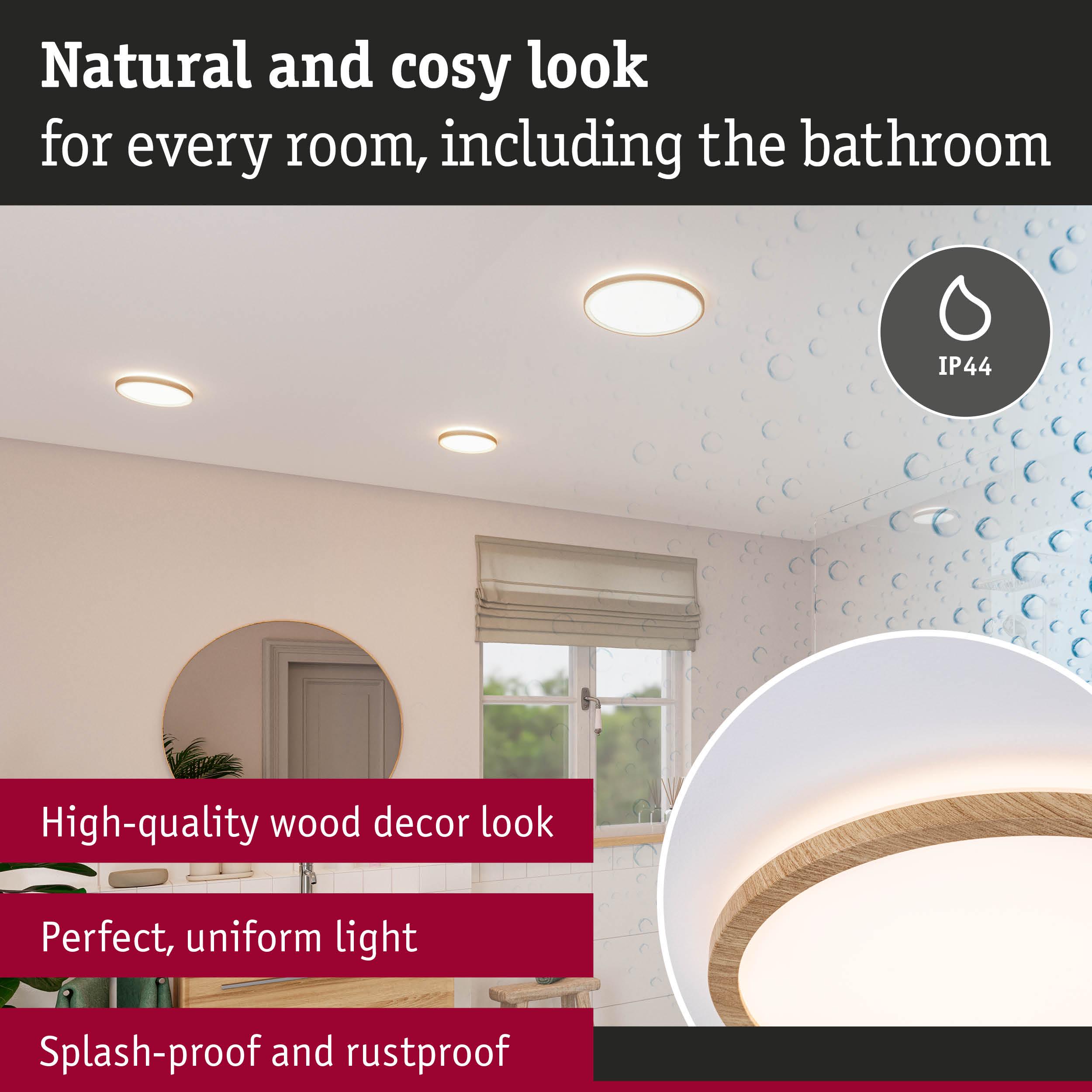

- IP44 splash-protected for bathrooms and similar rooms

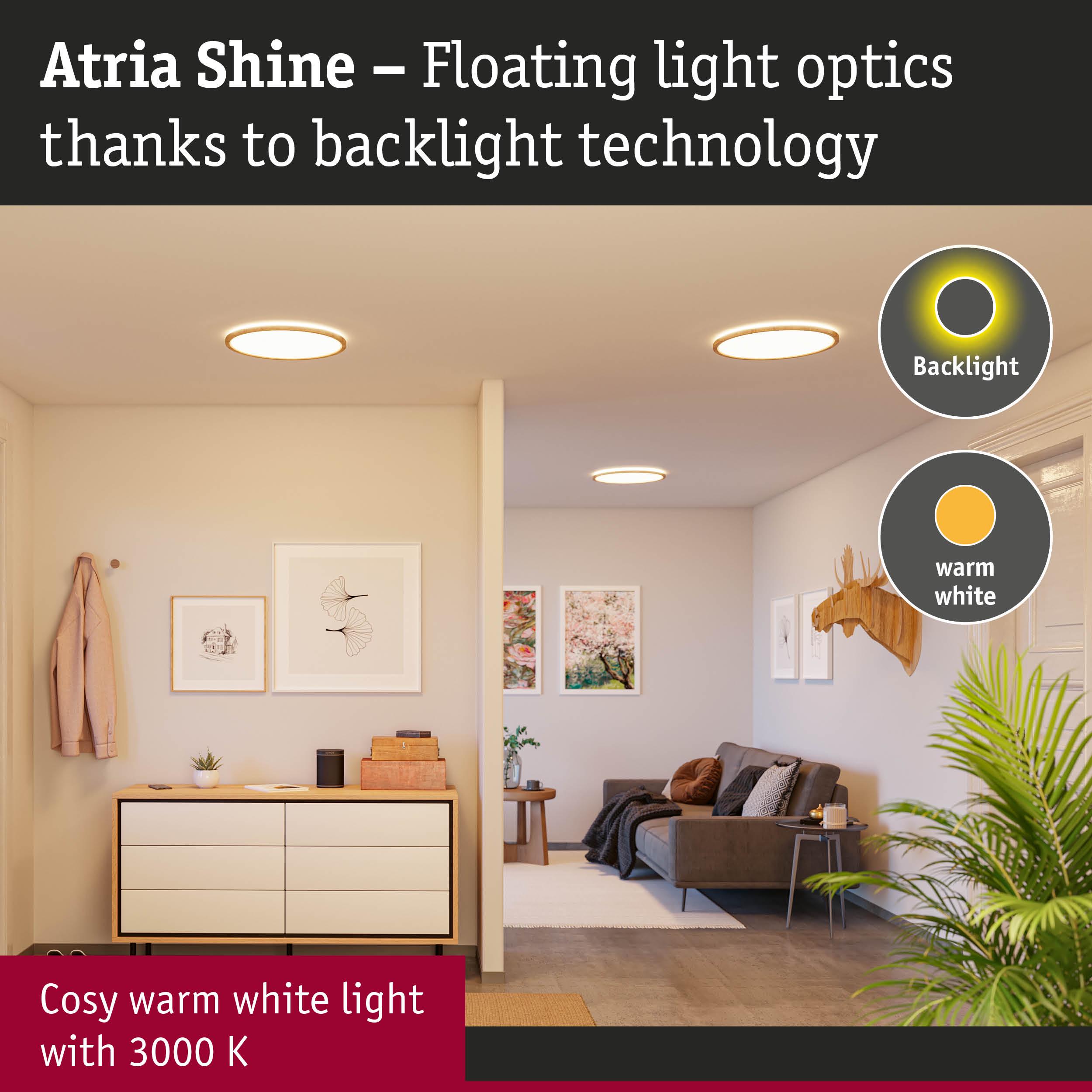

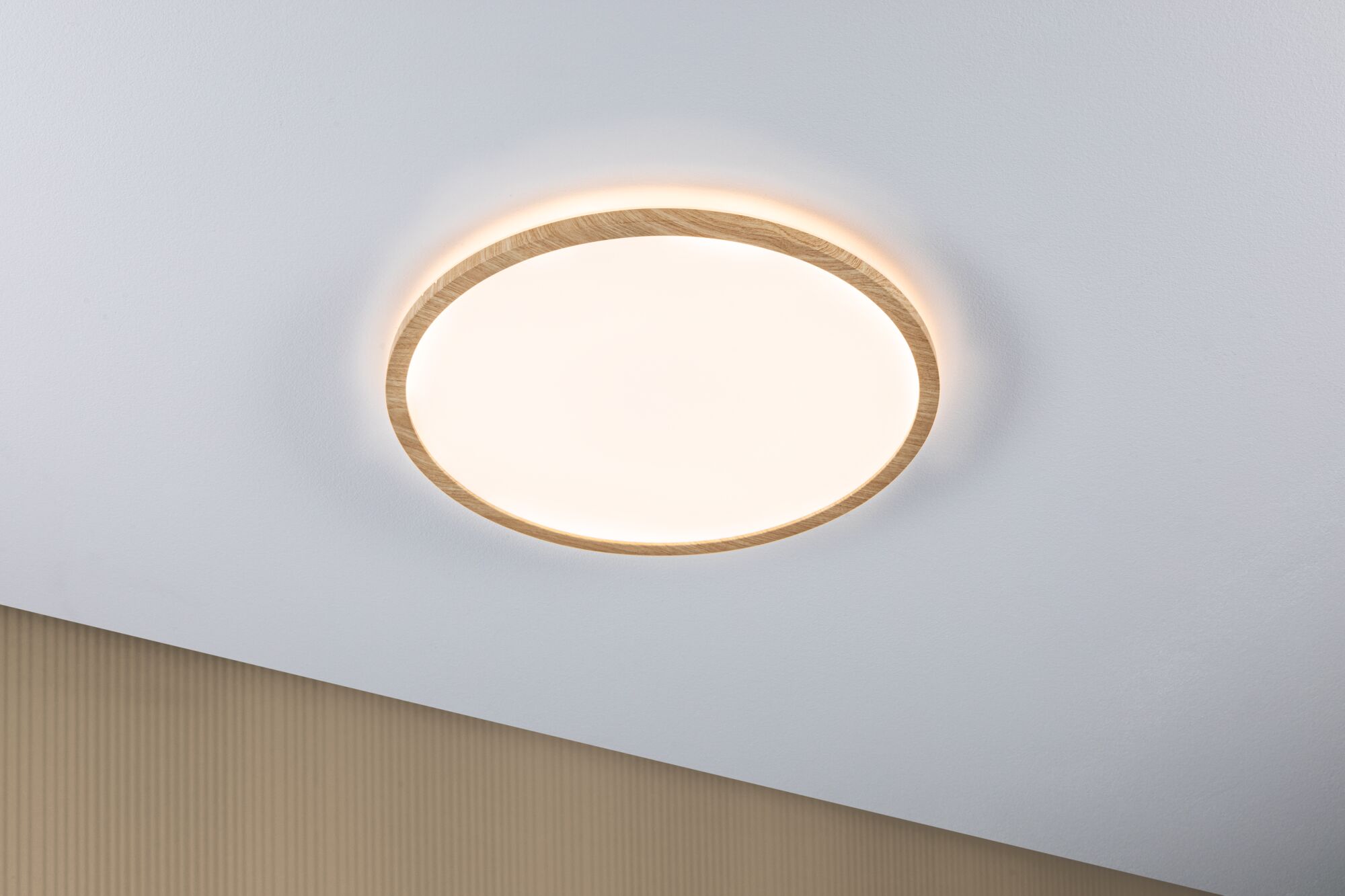

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm

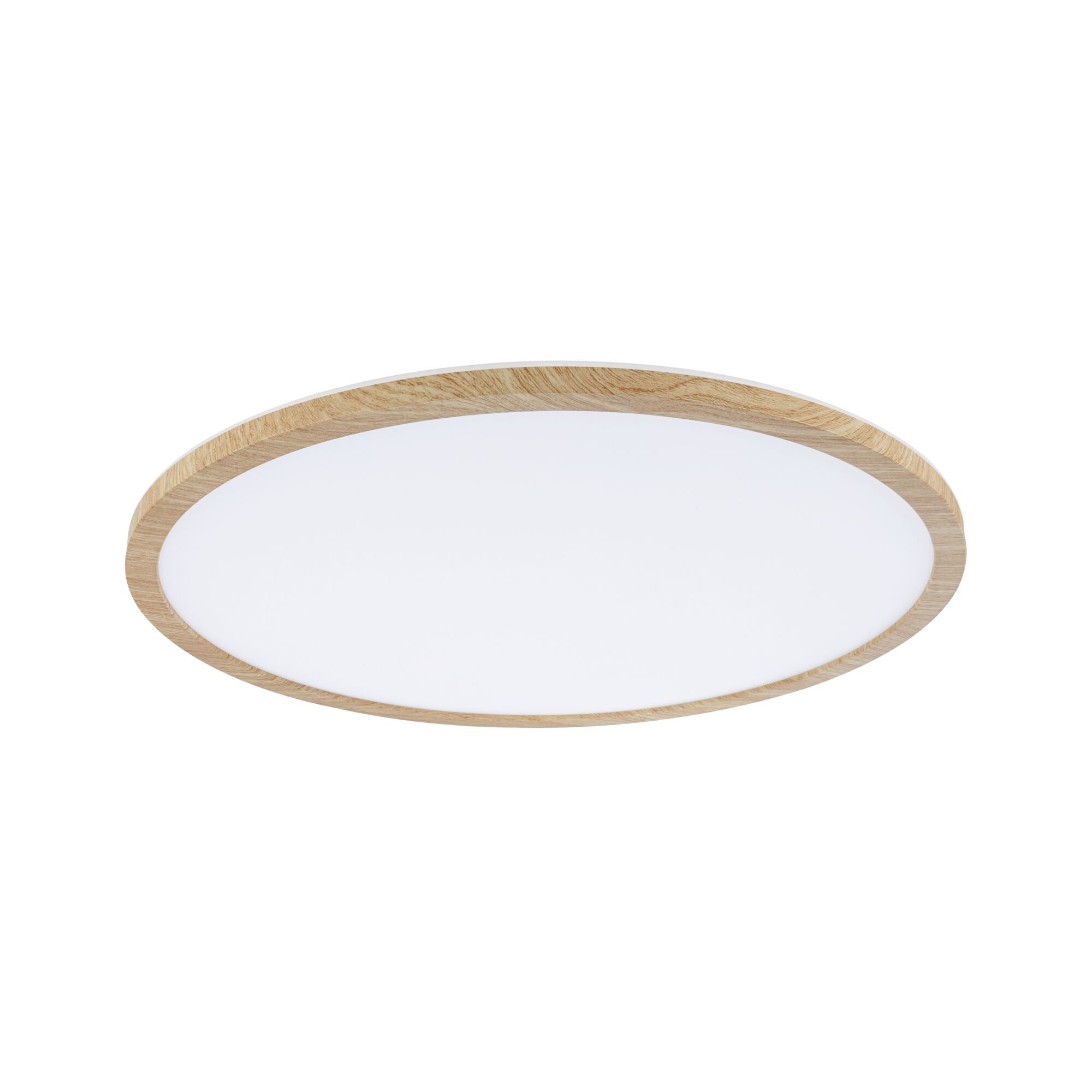

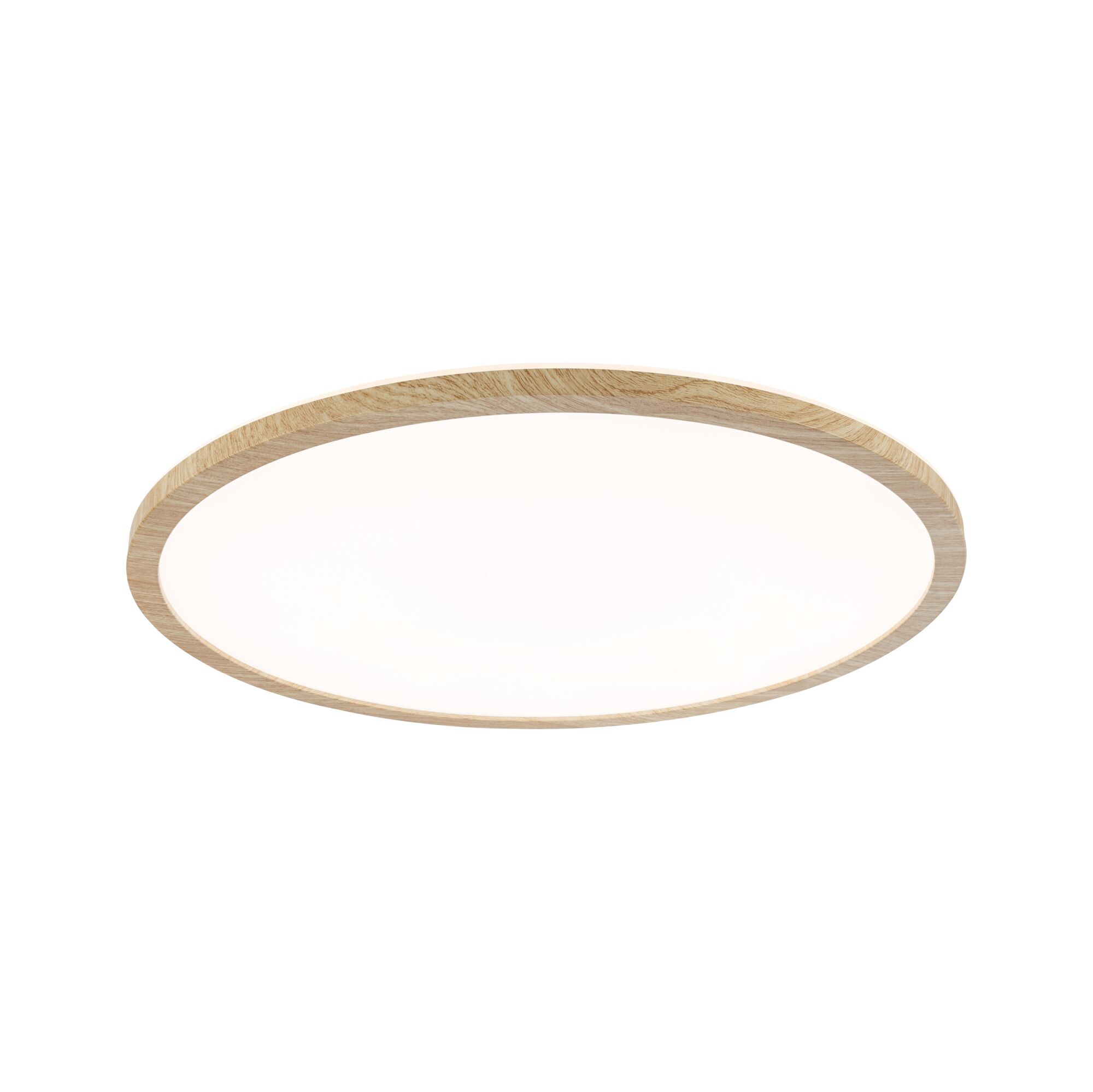

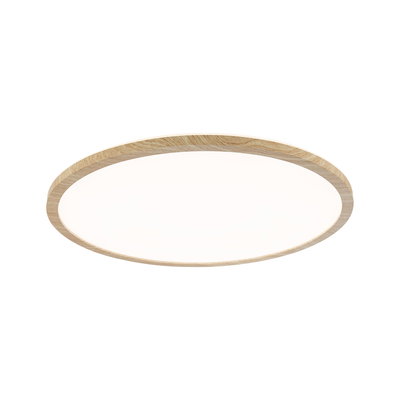

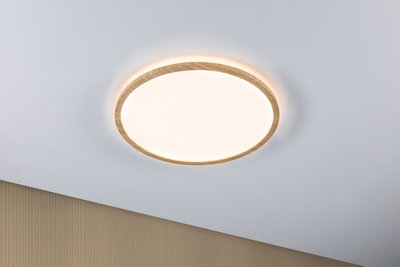

LED Panel Atria Shine Backlight IP44 round 420mm 22W 2300lm 3000K Wood look

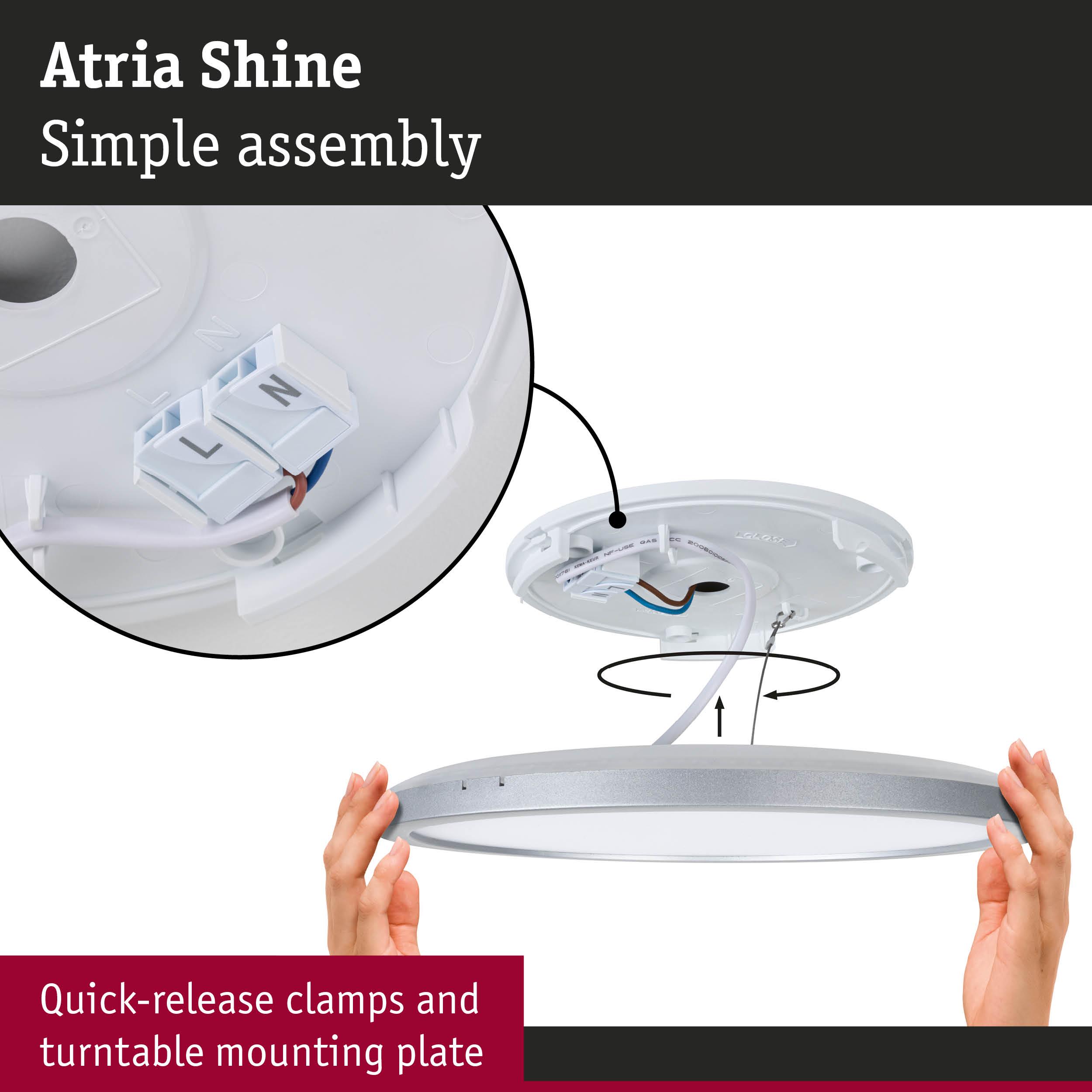

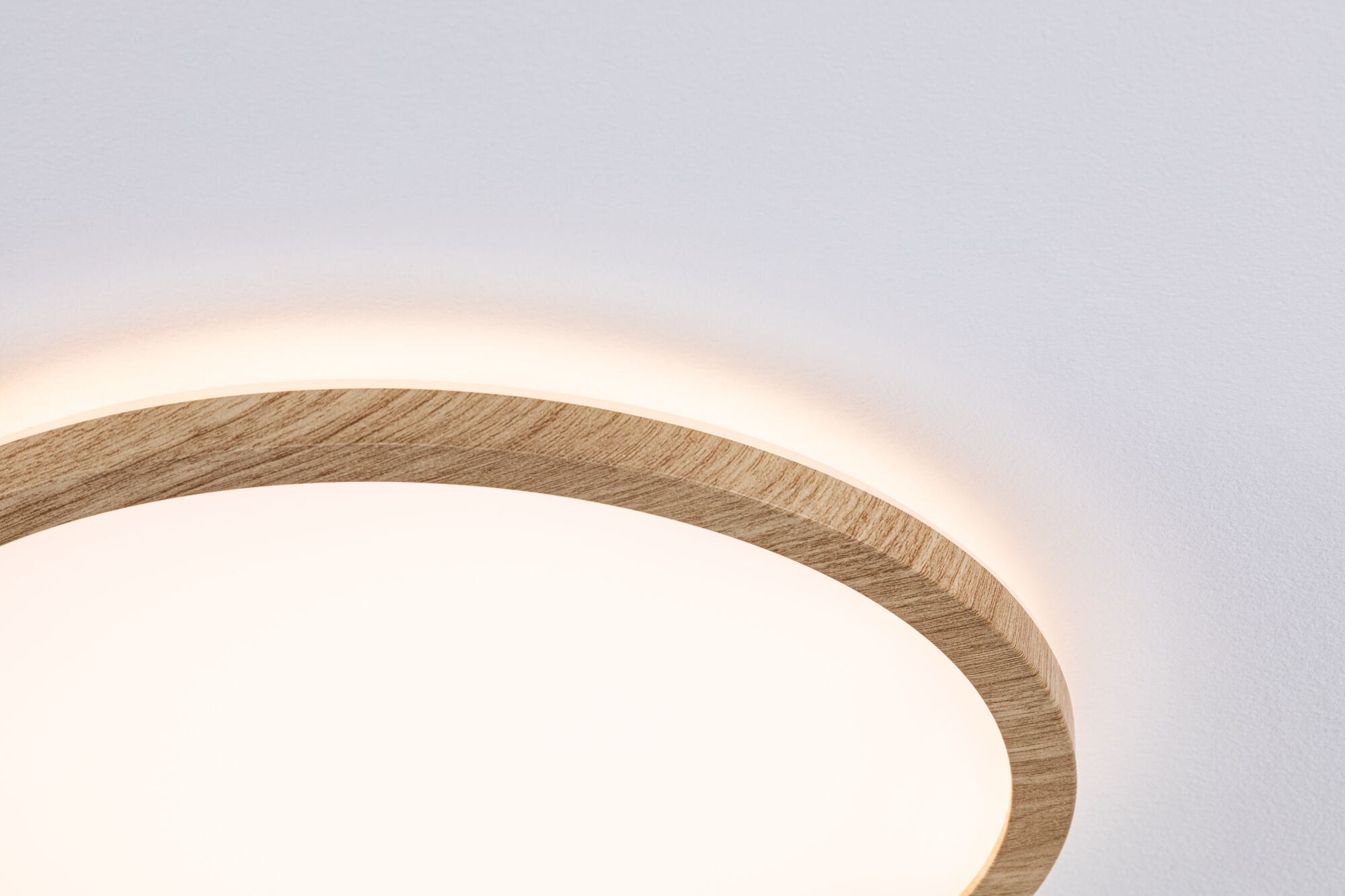

With its output of 22W, the 420 mm round LED panel luminaire Atria Shine is a perfect choice for basic lighting in living rooms, bedrooms and kitchens. The unique, wood look frame design gives the panel a natural, cosy character. The warm white light of the panel luminaire creates a uniform and wide-area room illumination. The additional bright backlight technology gives this panel luminaire an almost weightless appearance. The quick clip and special twist lock make this ultra-flat panel luminaire with an installation height of just 28 mm very easy to install.
- IP44 splash-protected for bathrooms and similar rooms
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Especially flat construction
| Dimension | |
|---|---|

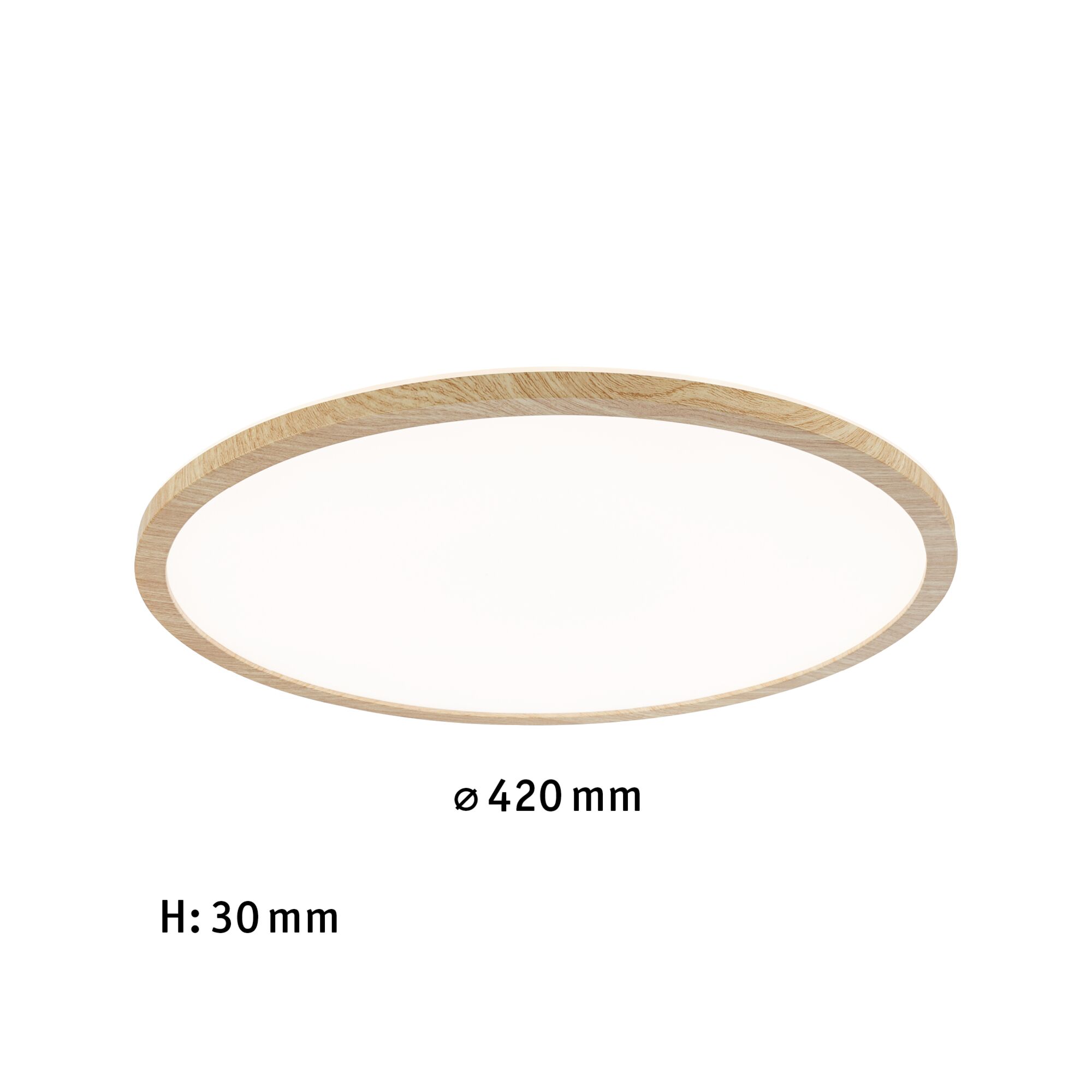

| Dimensions (Height x Width x Depth) | H: 30 mm |
| Diameter | 420 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Wood look |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Features | |
|---|---|
| Backlight | Backlight |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 2300 lm |
| Luminous flux LED module | 2800 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 160 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 22 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 23 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 26 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
