Article-No.:
79927
LED Panel
Atria Shine Backlight
angular 580x200mm 22W 1800lm White Switch White
angular 580x200mm 22W 1800lm White Switch White

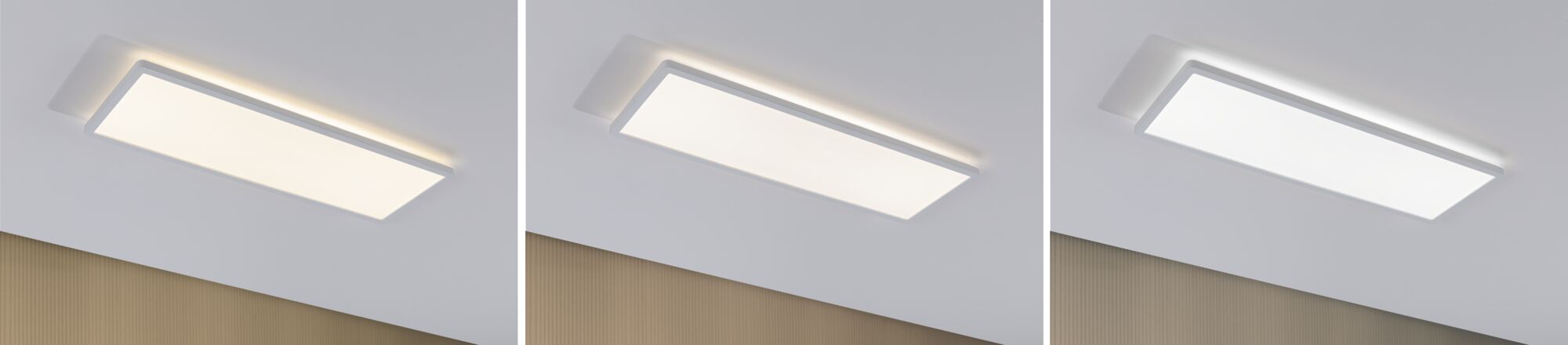

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Can be mounted on wall or ceiling

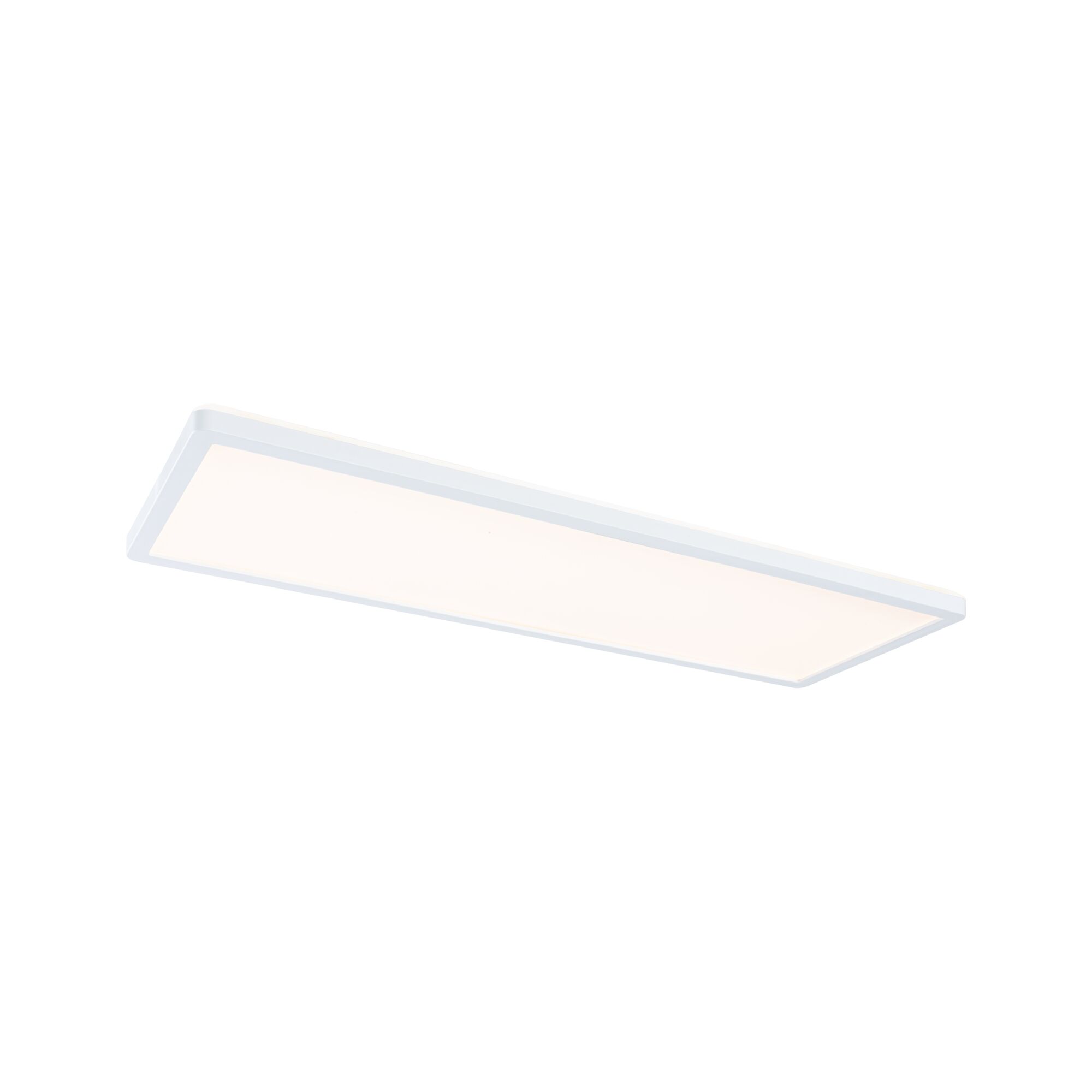

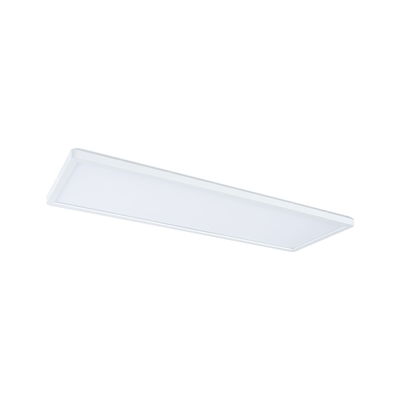

LED Panel Atria Shine Backlight angular 580x200mm 22W 1800lm White Switch White

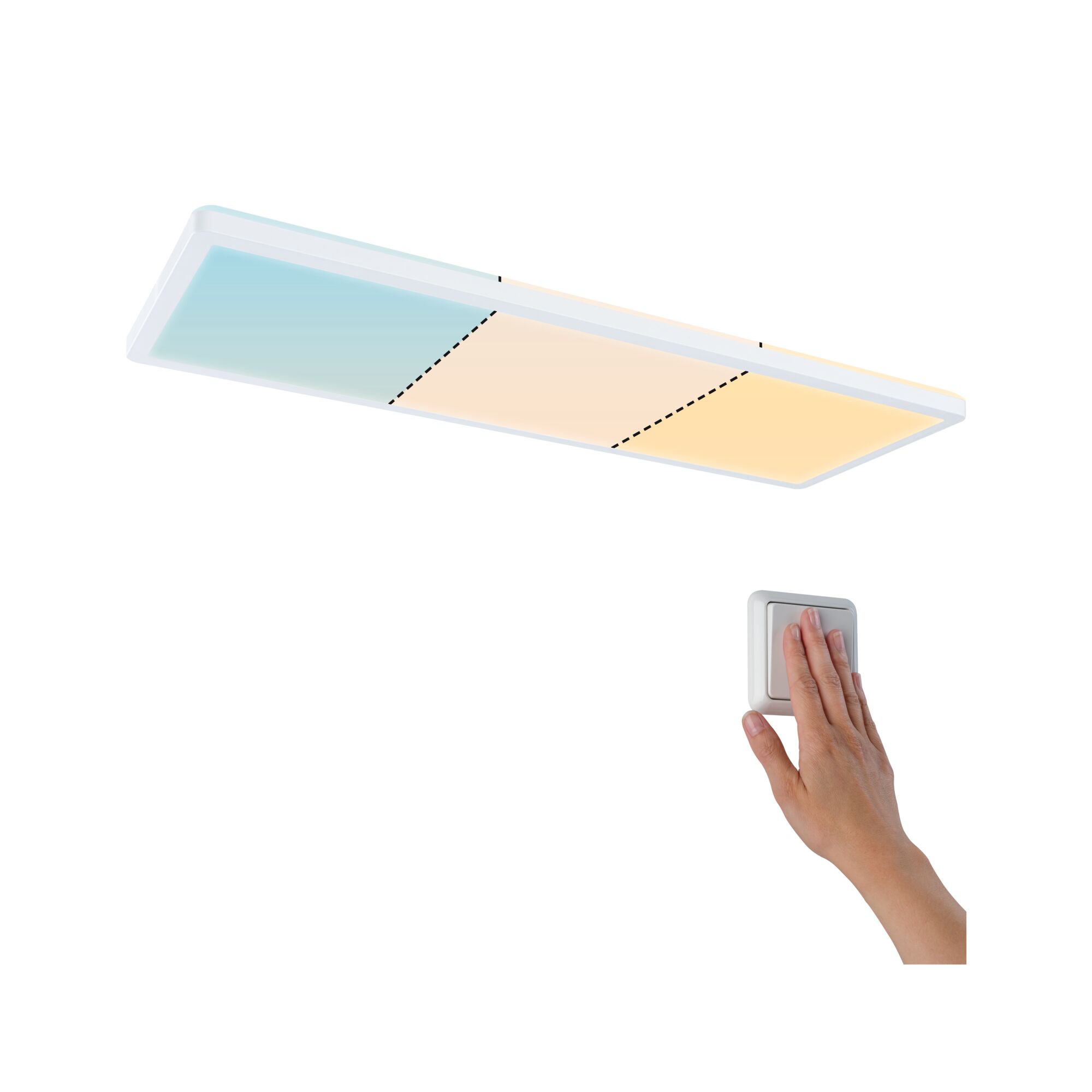

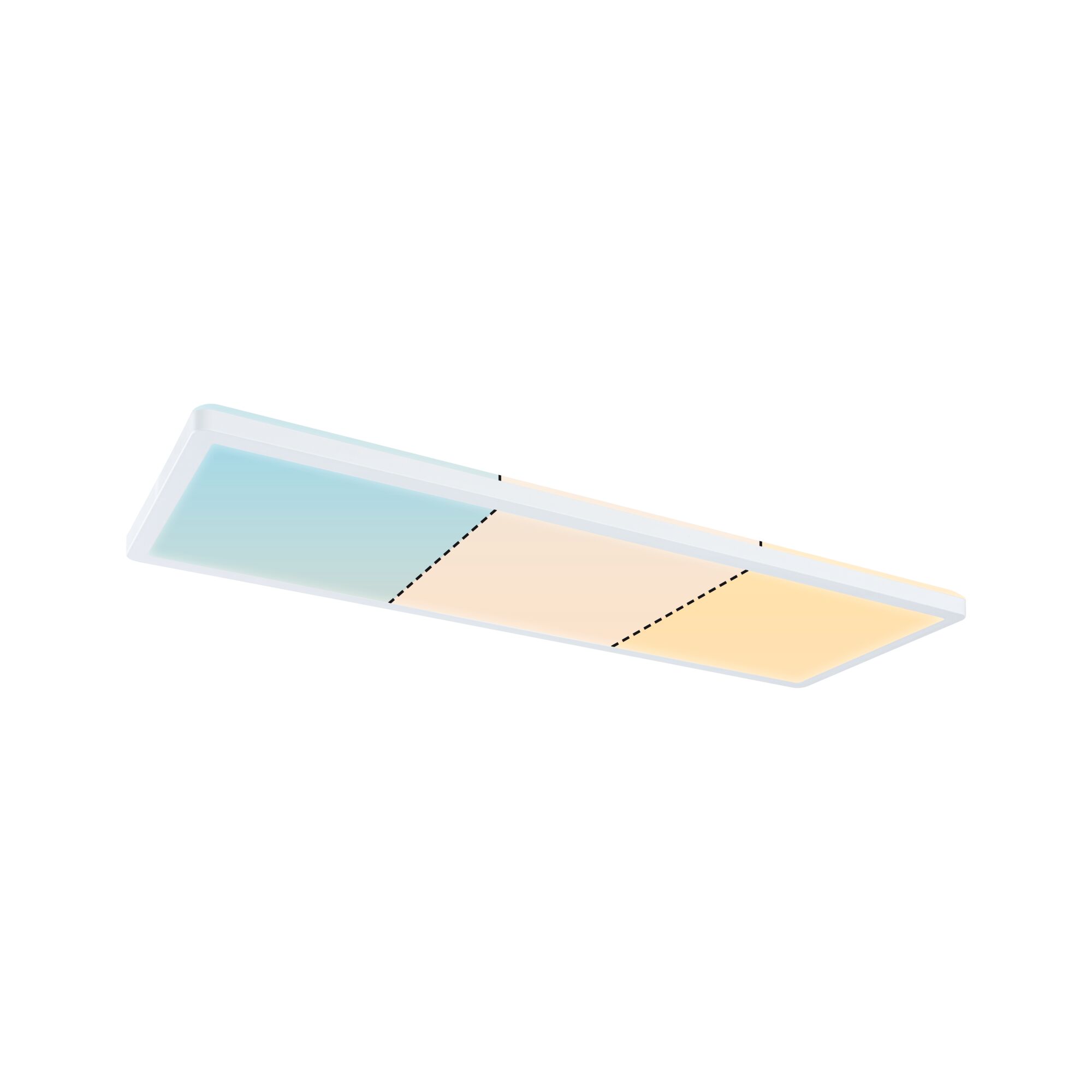

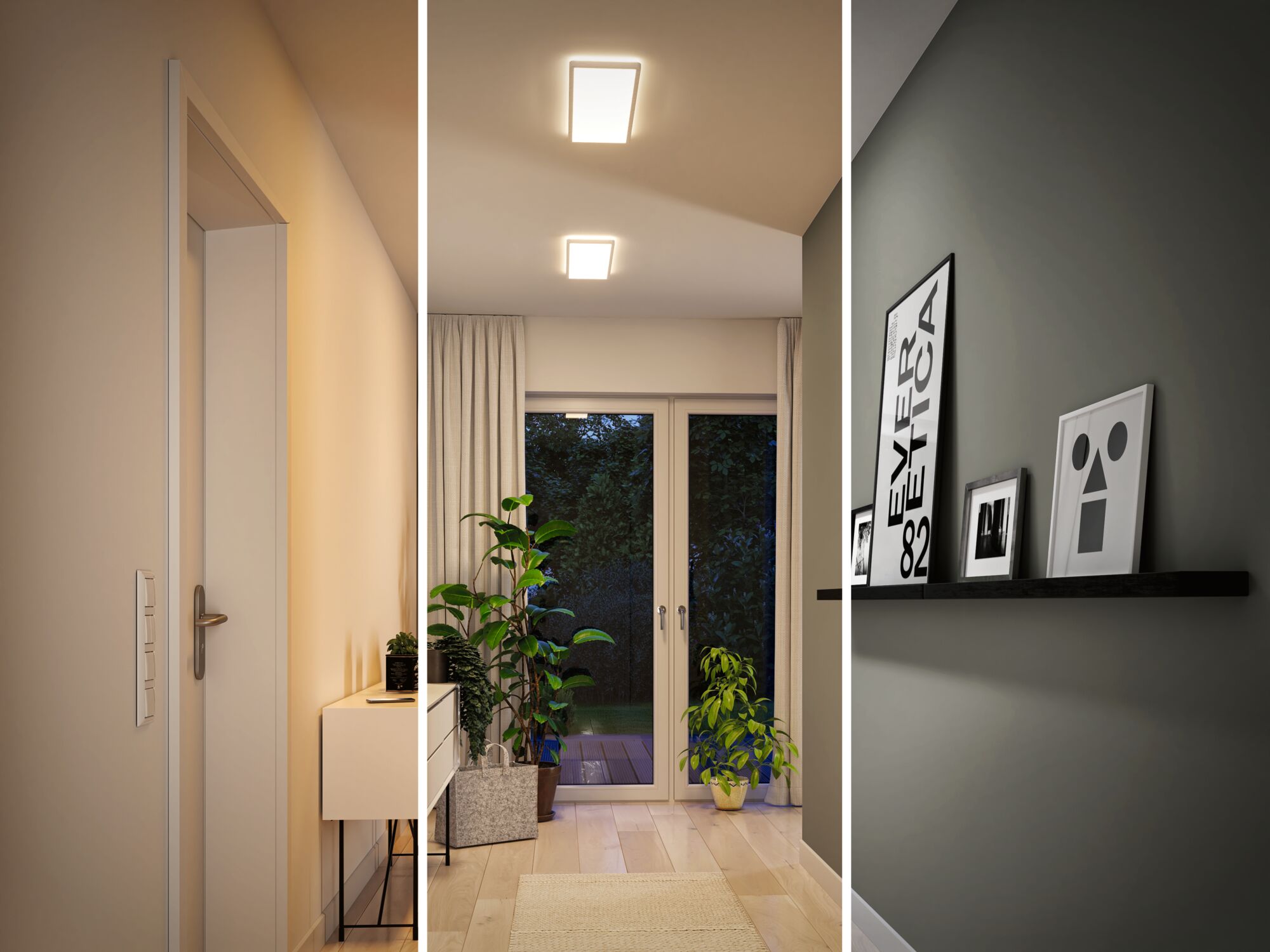

With an output of 22W, the angulare Atria Shine LED panel in White and 580x200mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. The integrated 3-stage dimming function allows you to dim the panels in three increments using a standard light switch. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Can be mounted on wall or ceiling
- Even room light based on cutting-edge LED technology
- Especially flat construction
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 28 x B: 580 x T: 200 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Features | |
|---|---|
| Backlight | Backlight |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 1800 lm |
| Luminous flux LED module | 2700 lm |
| Color rendering index | > 80 Ra |
| Colour change | White Switch |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 160 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 22 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 23 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 40 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
