Article-No.:
70865
LED Panel
Atria
round 300mm 16W 1450lm 2700K Chrome matt dimmable
round 300mm 16W 1450lm 2700K Chrome matt dimmable
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb

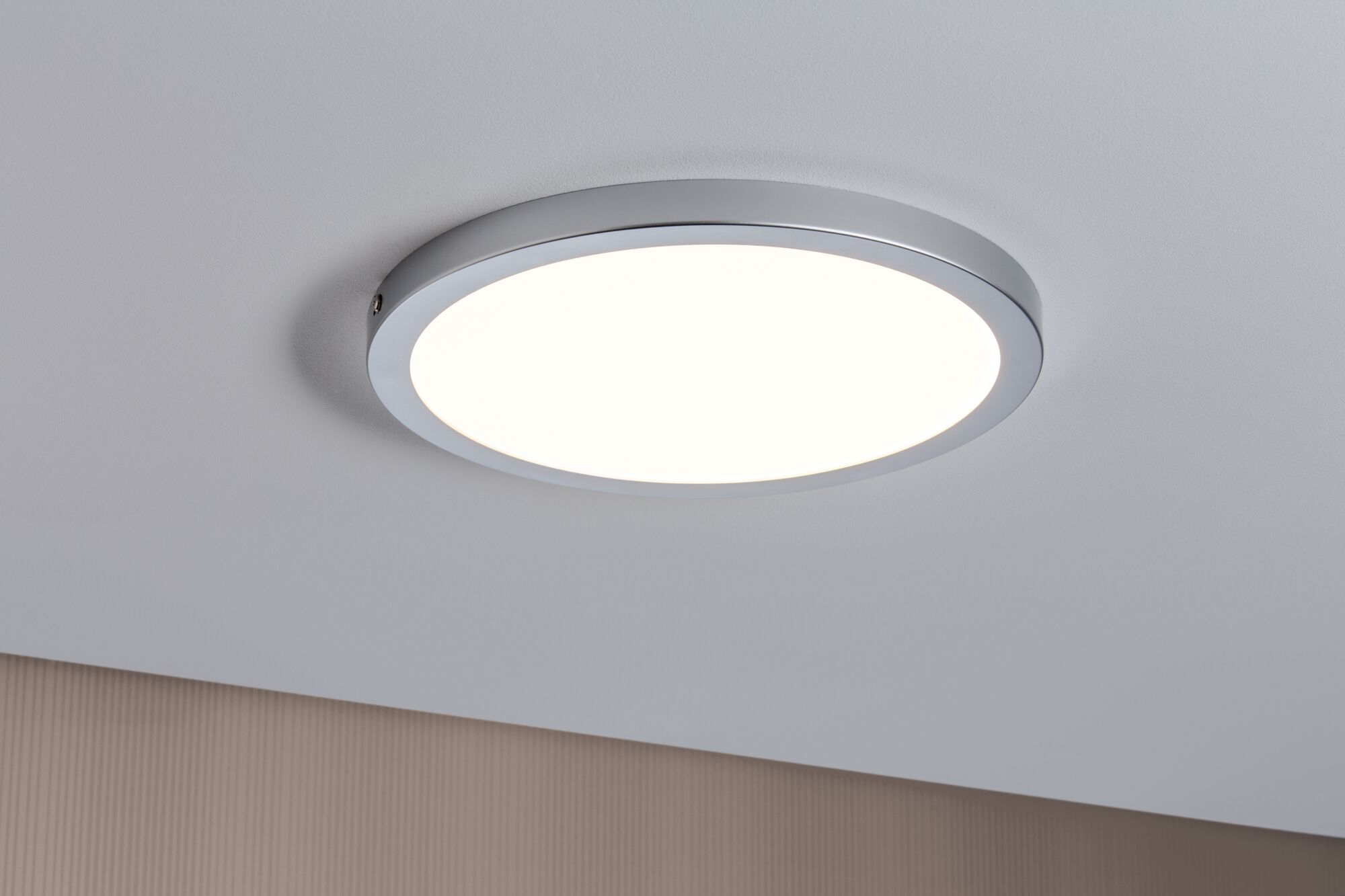

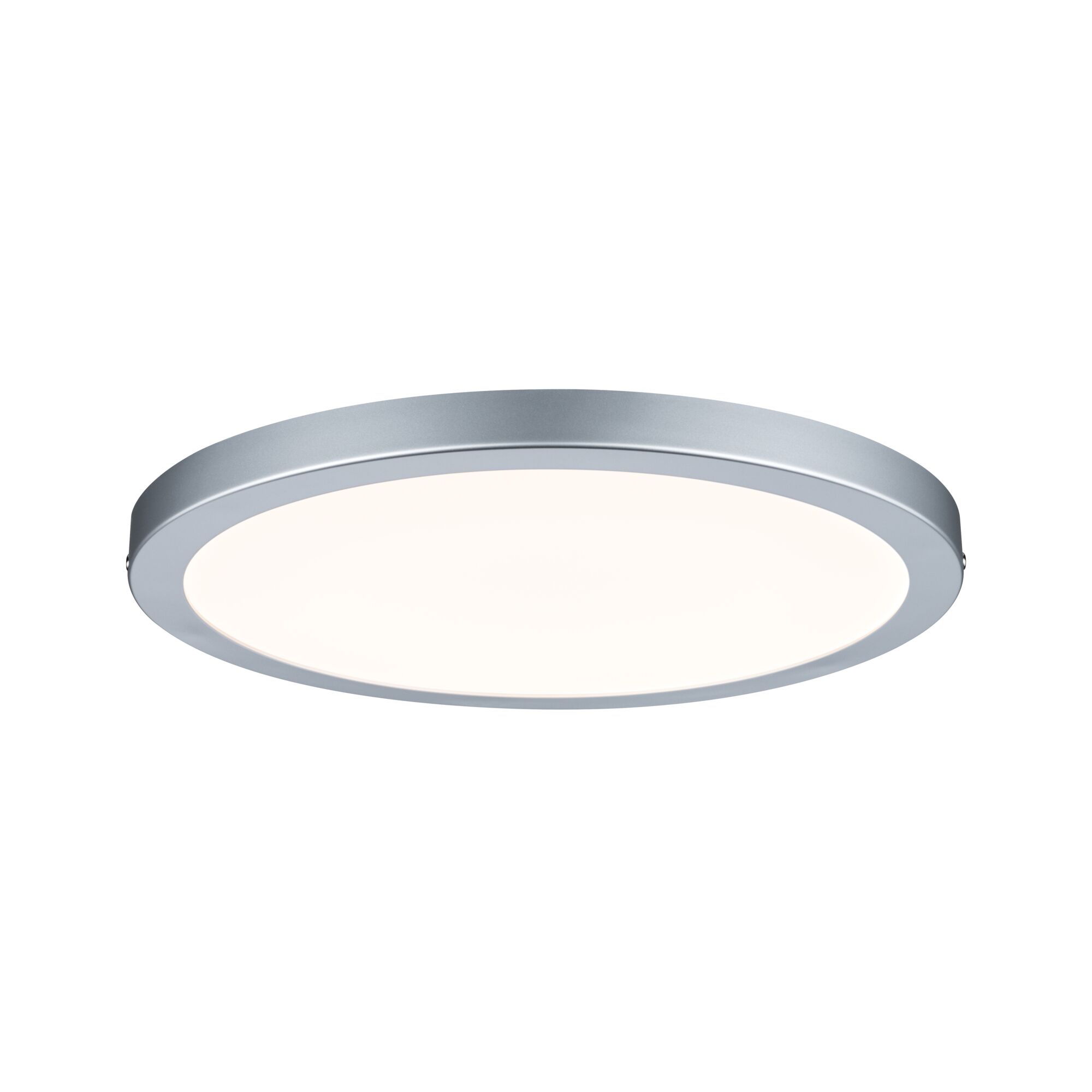

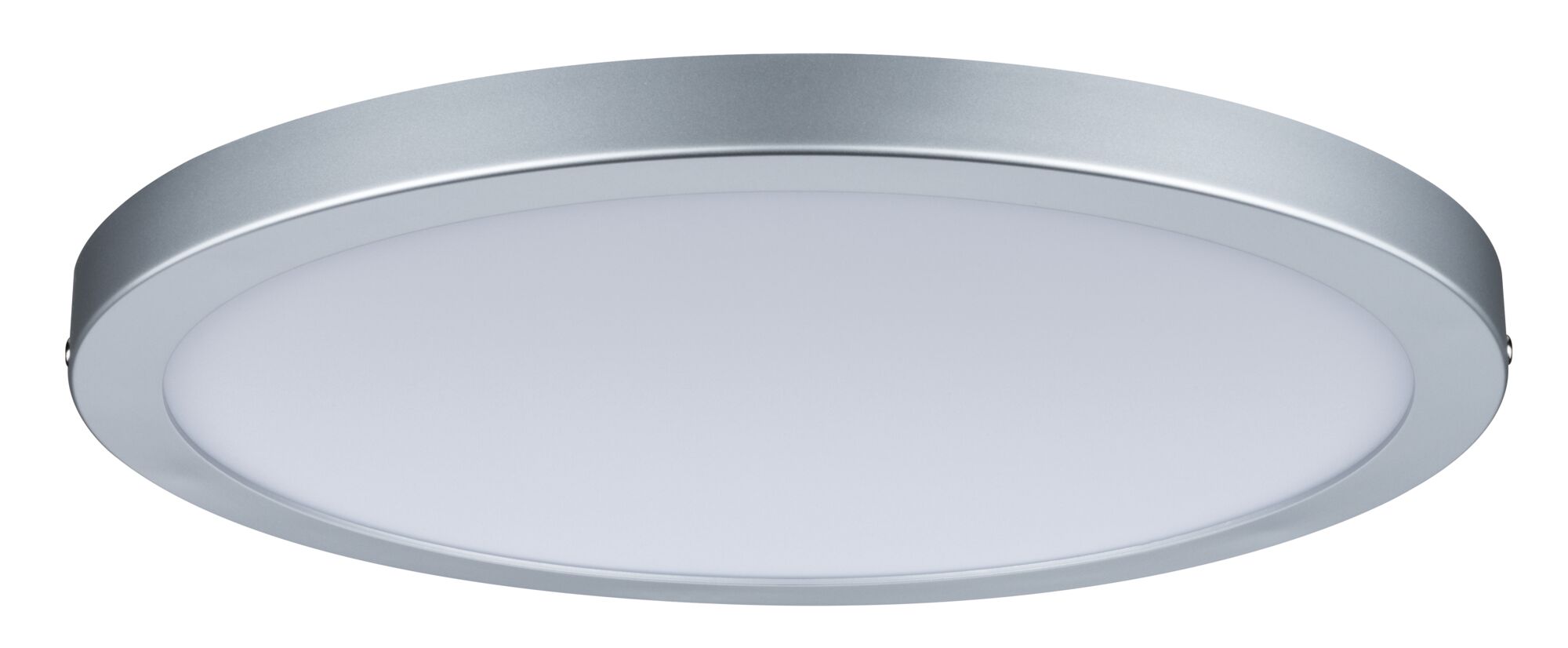

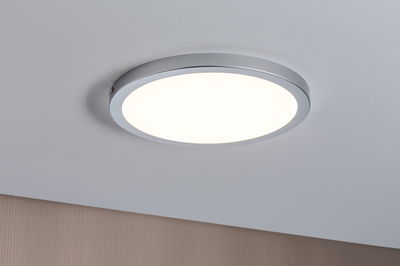

LED Panel Atria round 300mm 16W 1450lm 2700K Chrome matt dimmable
The Atria panels offer you uniform and wide-area room illumination, pleasant warm white light and variable brightness adjustment. With an installation height of 20 millimetres, they are especially flat and blend in with any living atmosphere. Thanks to their low weight, these plastic luminaires can be mounted on practically all surfaces. They are also especially easy to clean.
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
| Dimension | |
|---|---|

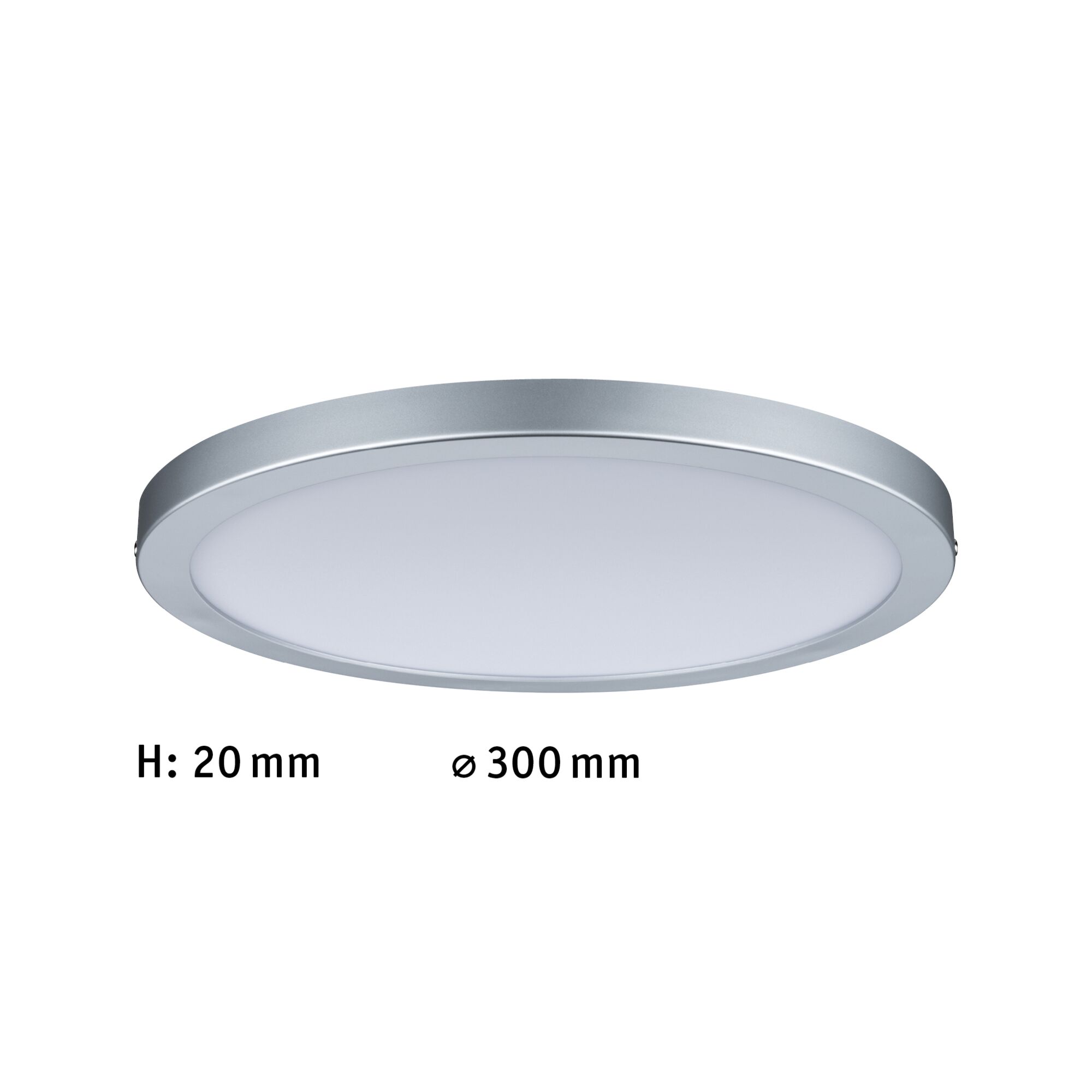

| Dimensions (Height x Width x Depth) | H: 20 mm |
| Ø | 300 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, RC Merten MEG 5136-0000, RC Jung 225 T DE, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Usable luminous flux | 1450 lm |
| Luminous flux LED module | 1800 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 16 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 115 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 22 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
