Article-No.: 70985

LED Panel Abia
angular 300x300mm 22W 2200lm 2700K Black matt

Form: angular

angular

round

Set: Single Luminaire

2-piece set

3-piece set

Single Luminaire

Colour: Black matt

Black

Black matt

Chrome matt

Dark grey

Matt white

Night Blue

White

Light colour: Warm white

Neutral white

Warm white

Satined plastic cover for fine diffusion of light
Even room light based on cutting-edge LED technology
Especially flat construction

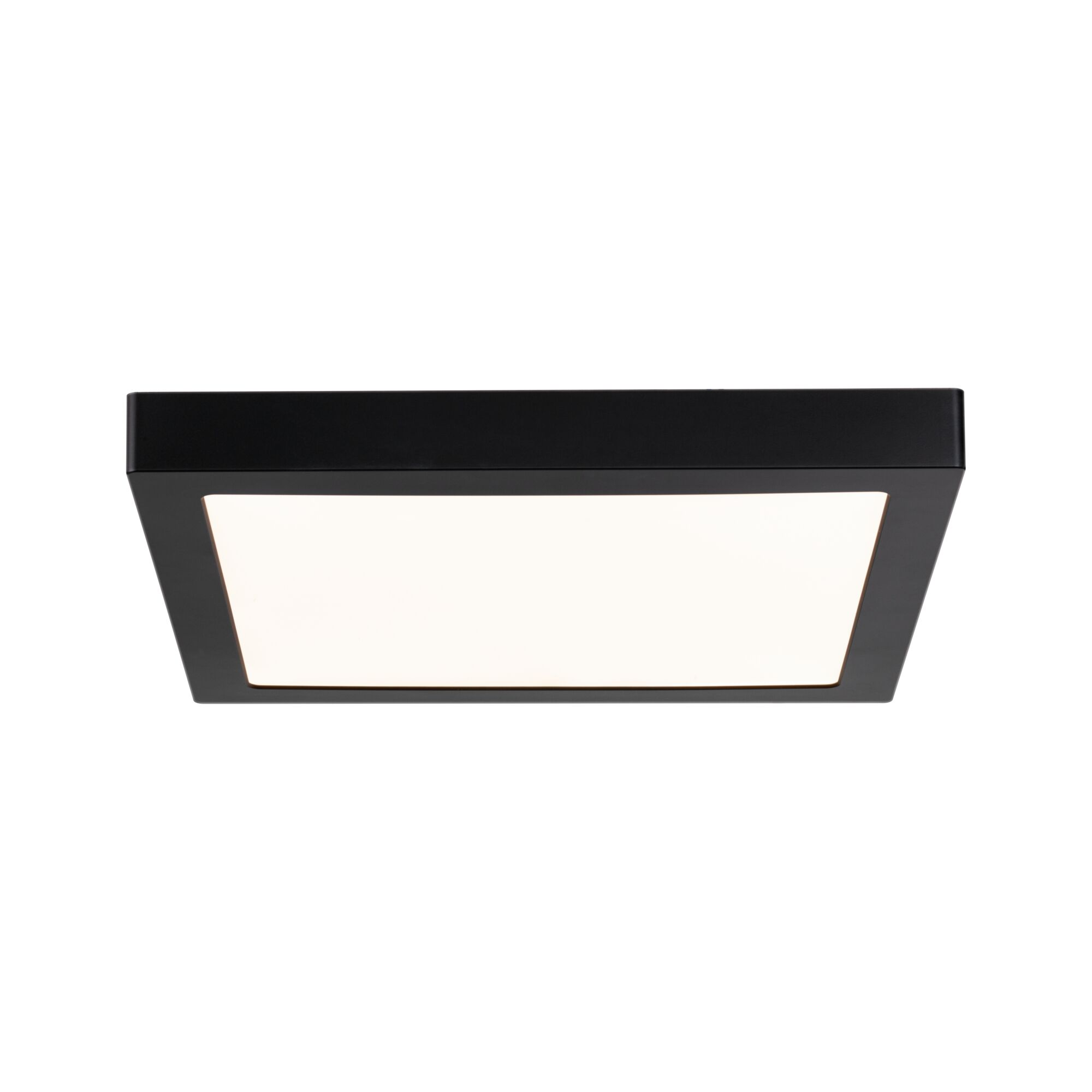

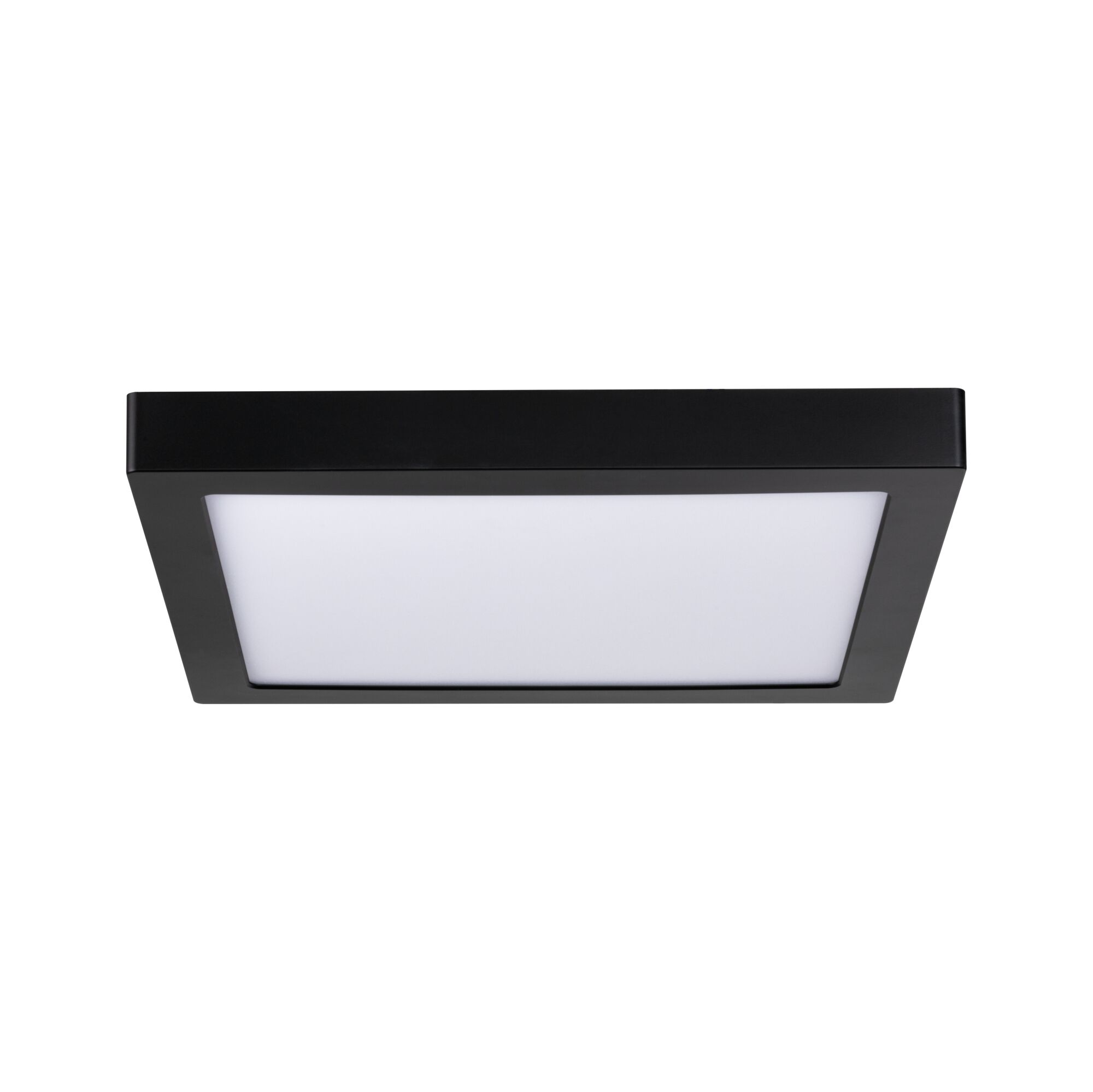

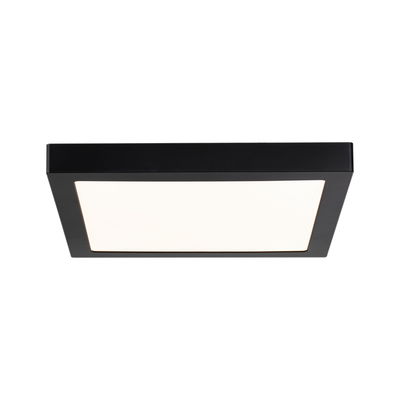

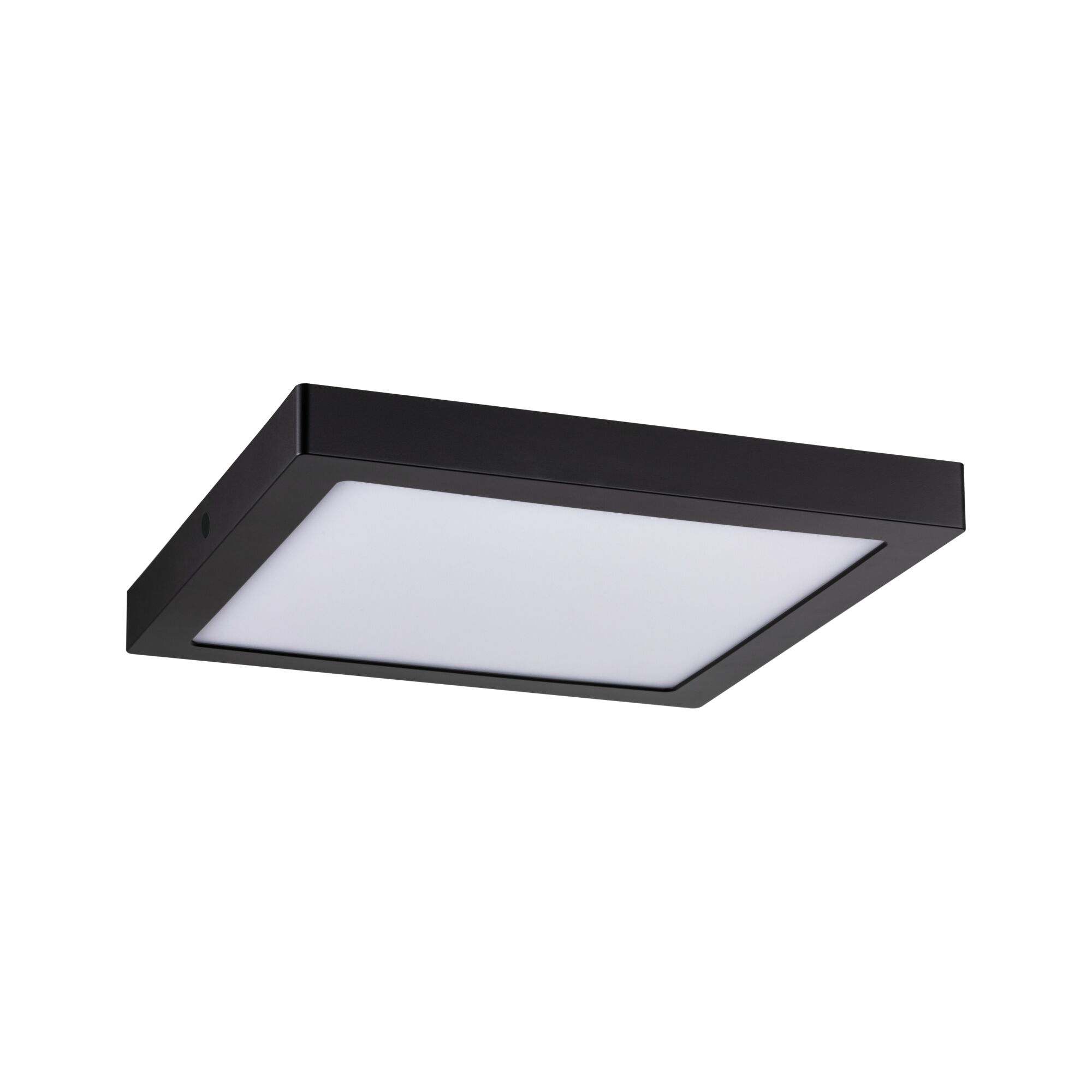

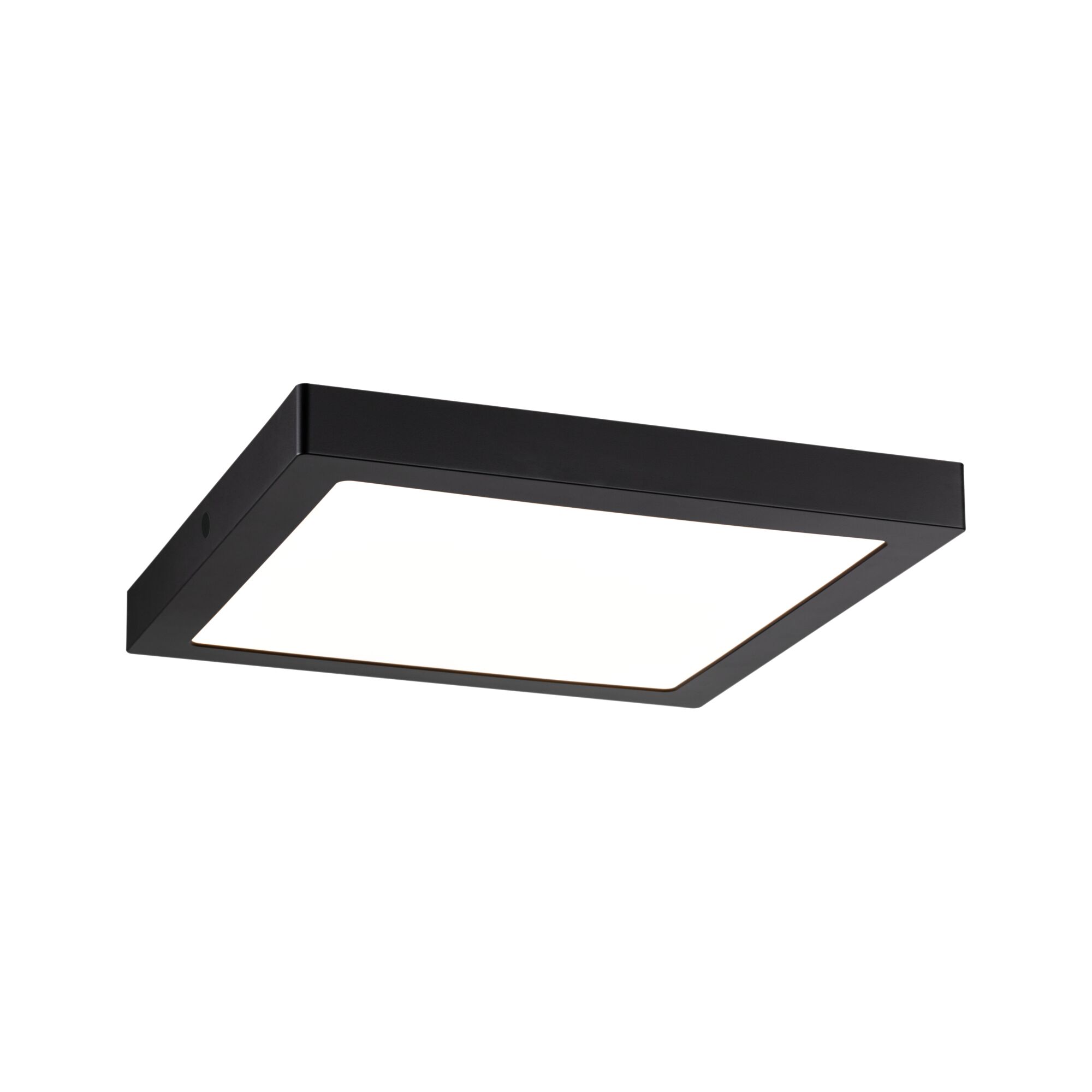

LED Panel Abia angular 300x300mm 22W 2200lm 2700K Black matt

Modern LED technology enables the rectangular Abia panel in matt black to combine a very flat design with outstanding uniform light distribution. The understated design and clean lines are in keeping with modern homely styles and an architecture-oriented ambience.

Satined plastic cover for fine diffusion of light
Even room light based on cutting-edge LED technology
Especially flat construction
LED lamp (fixed) included in scope of delivery
For 230 V direct connection

Dimension

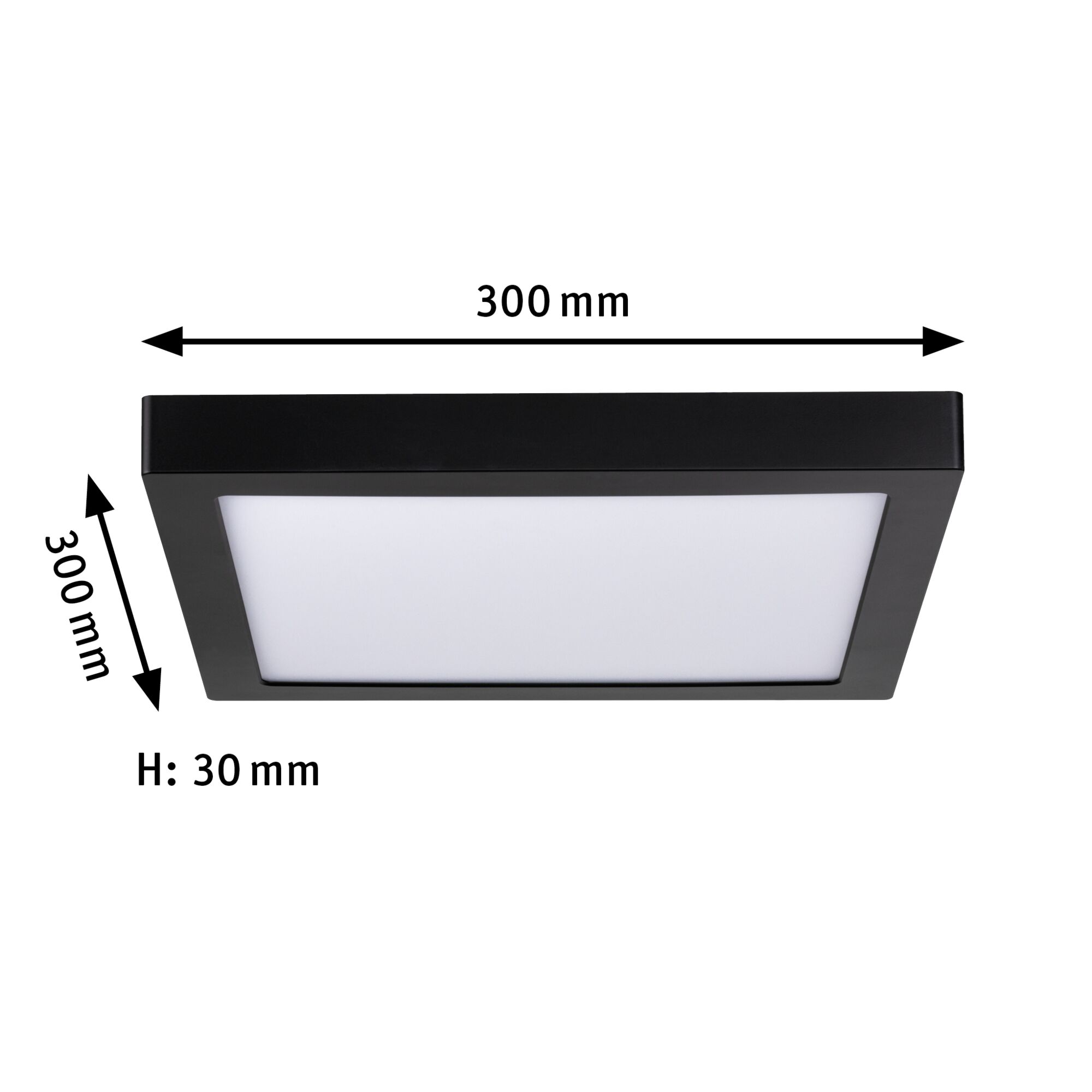

Dimensions (Height x Width x Depth)	H: 30 x B: 300 x T: 300 mm
Form	angular

Design and Material
Colour	Black matt
Material	Plastic

Installation

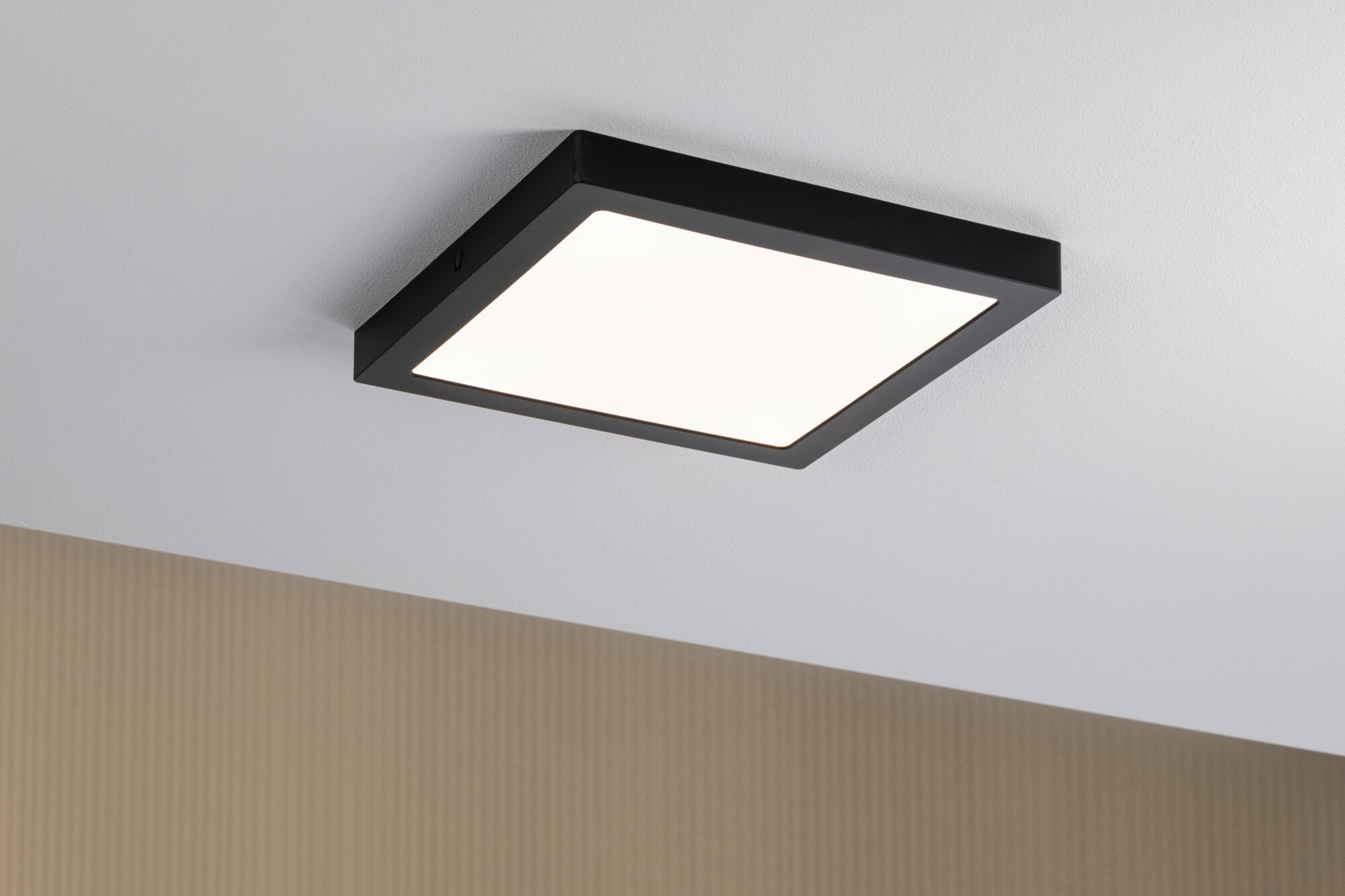

Installation site (recommendation)	Ceiling mounting

Energy consumption
Energy efficiency	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
color temp	Warm white
Usable luminous flux	2200 lm
Color rendering index	> 80 Ra
Luminous flux LED module	3200 lm

Lamp Features
Component parts	22 W
Technique	LED
Inclusive lamp	yes
Incandescent Equivalent	186 W
Adjustability	fixed
Dimmable	No
IP protection	IP20
Number of component parts	1x
protection class	Protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	22 W

Transformer
apparent power	46 VA

Accessories
Radio control included	no

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions
