Price advantage
Article-No.:
5226

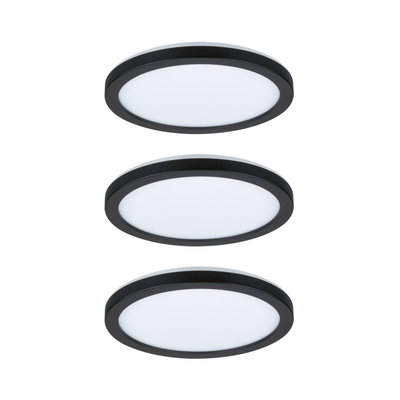

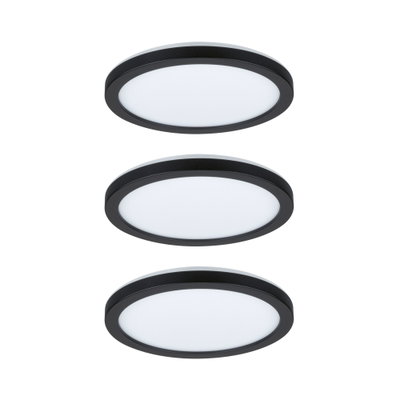

LED Panel
Abia
round 300mm 3x22W 3x2200lm 2700K Black matt
round 300mm 3x22W 3x2200lm 2700K Black matt
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

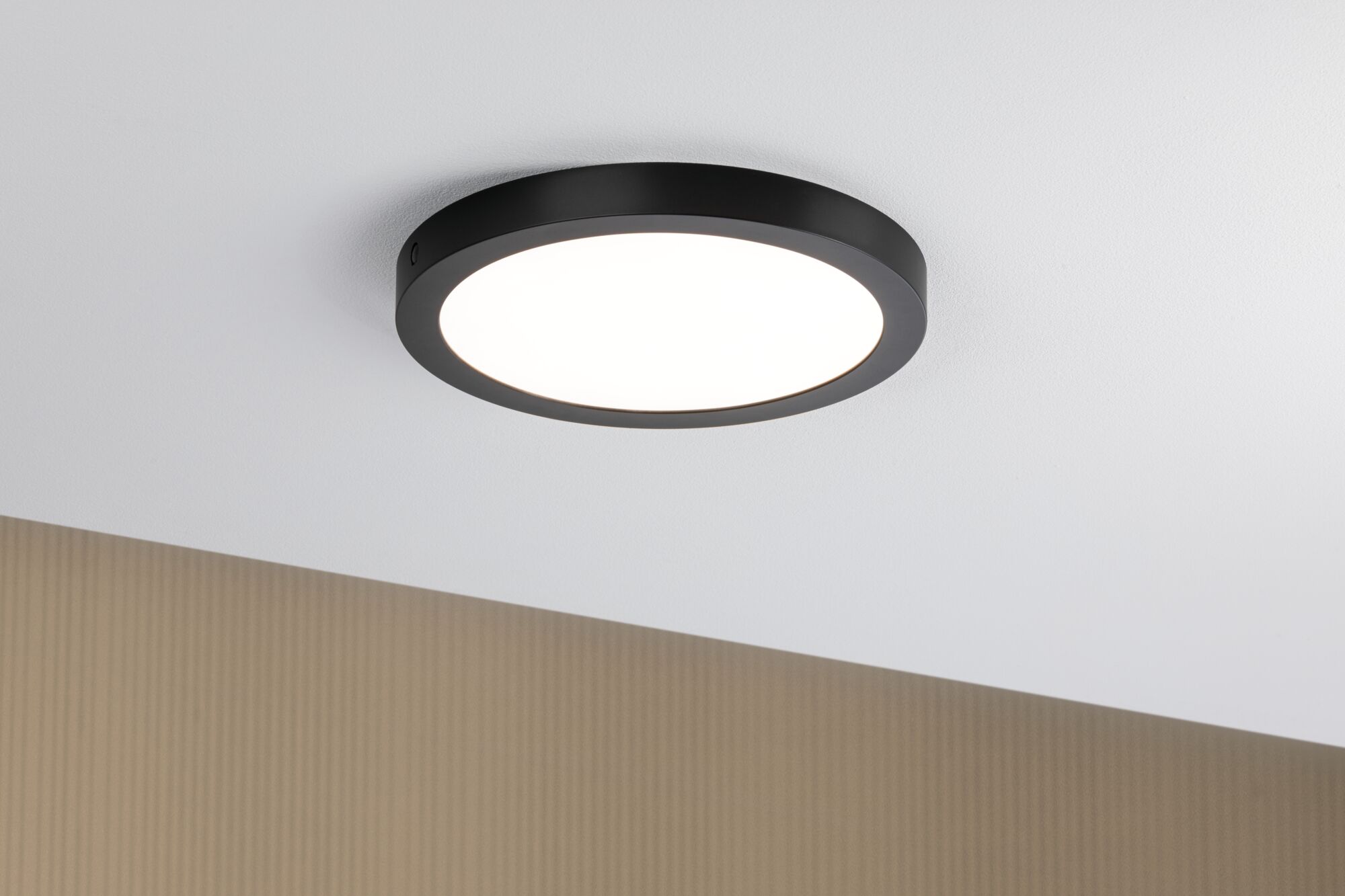

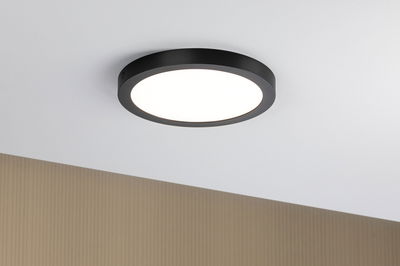

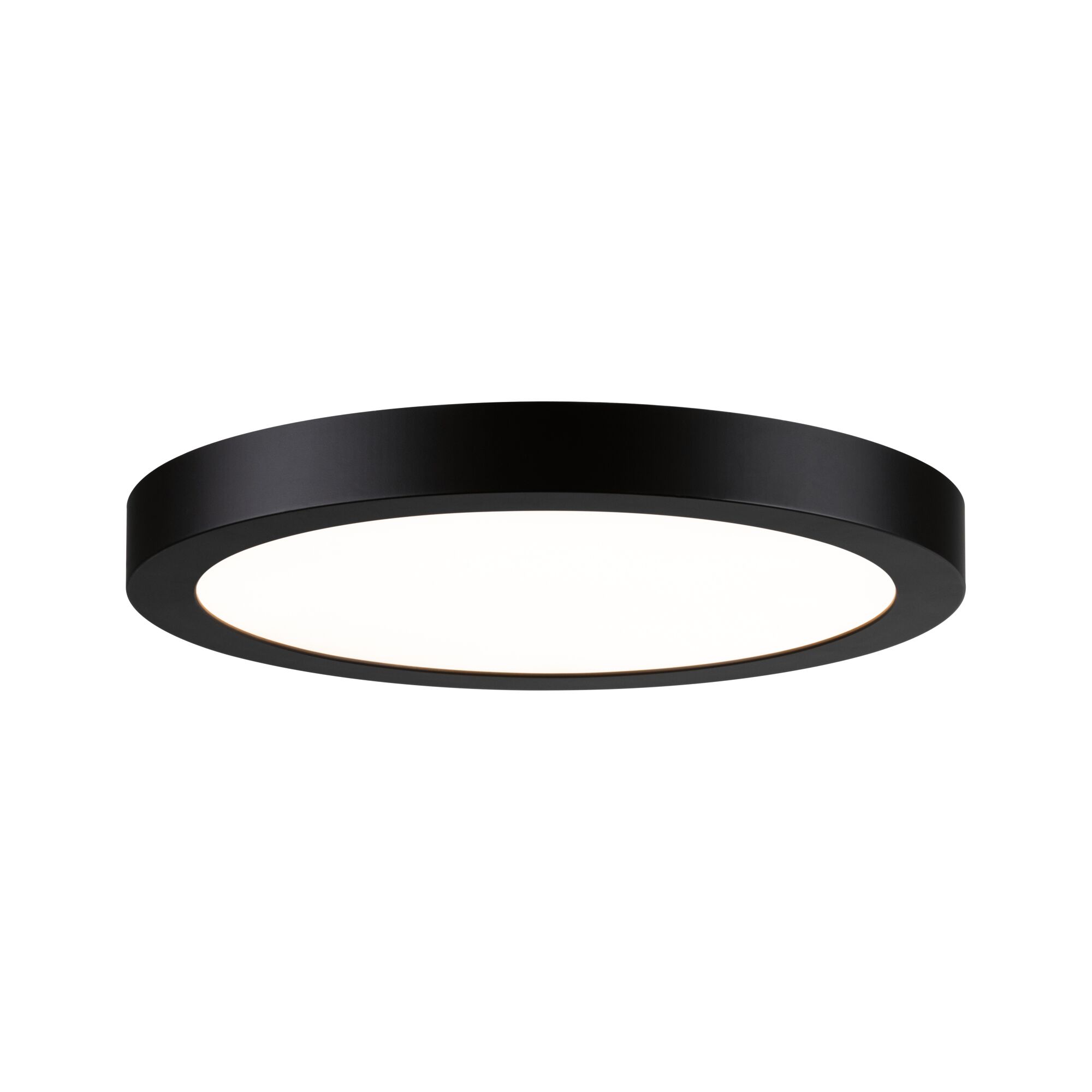

LED Panel Abia round 300mm 3x22W 3x2200lm 2700K Black matt

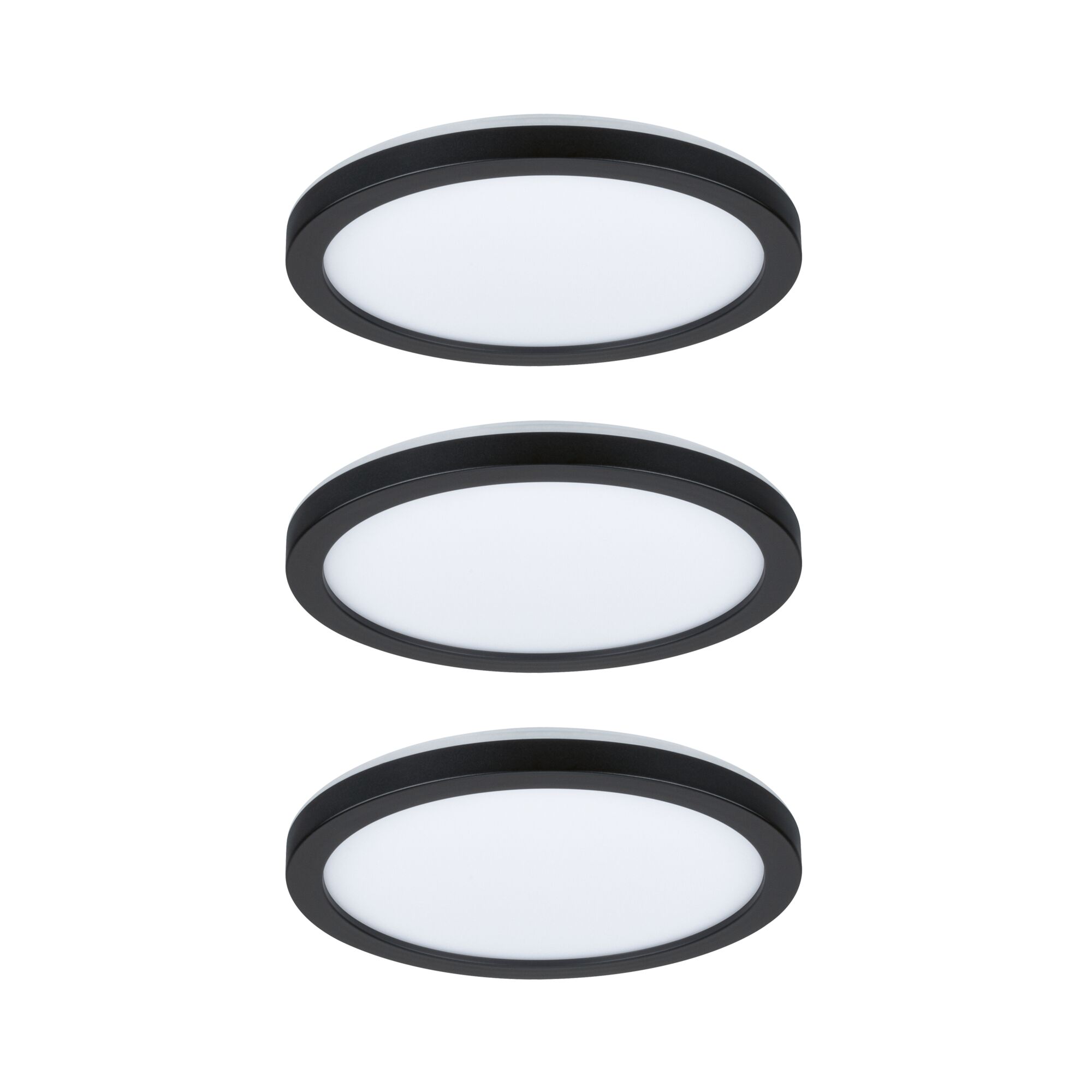

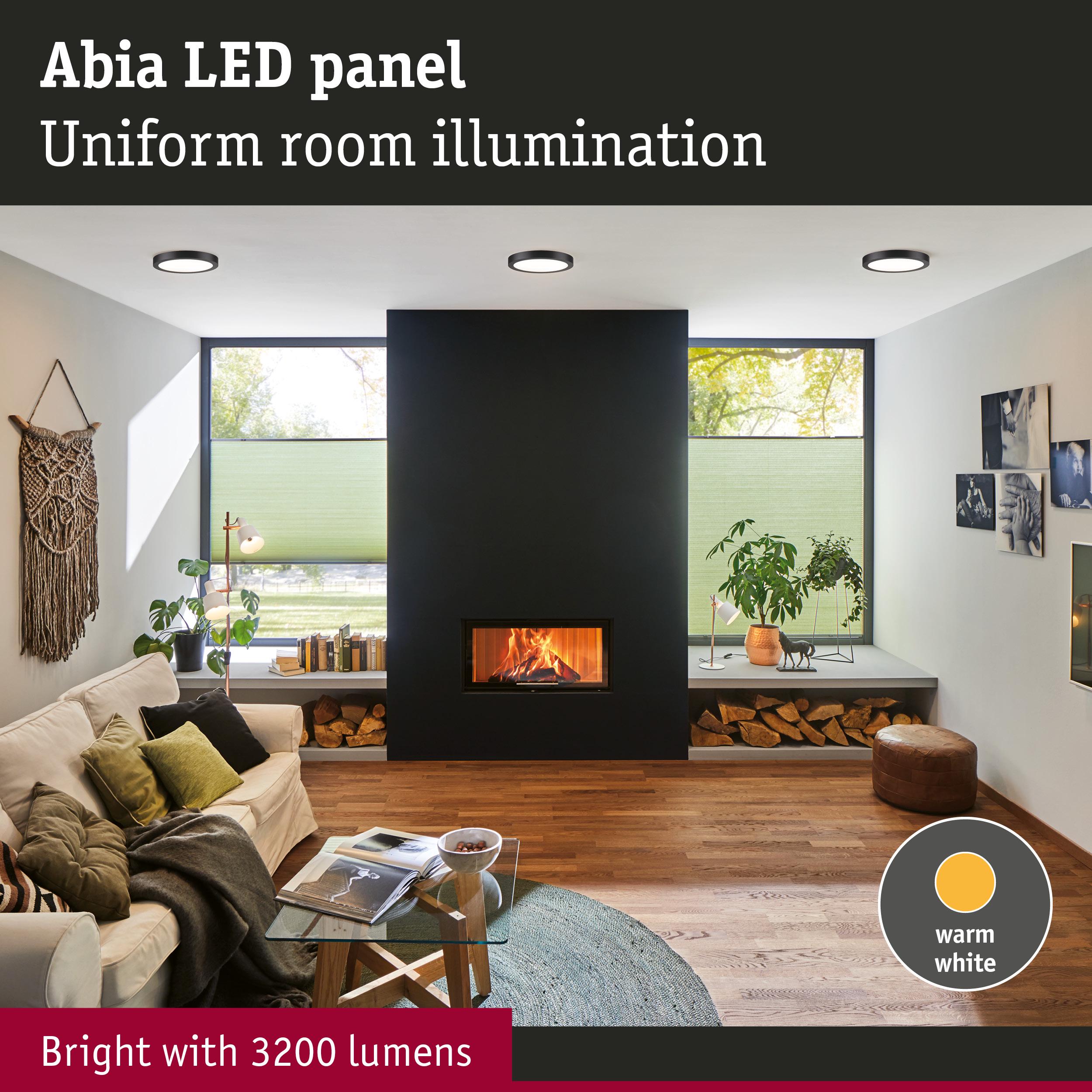

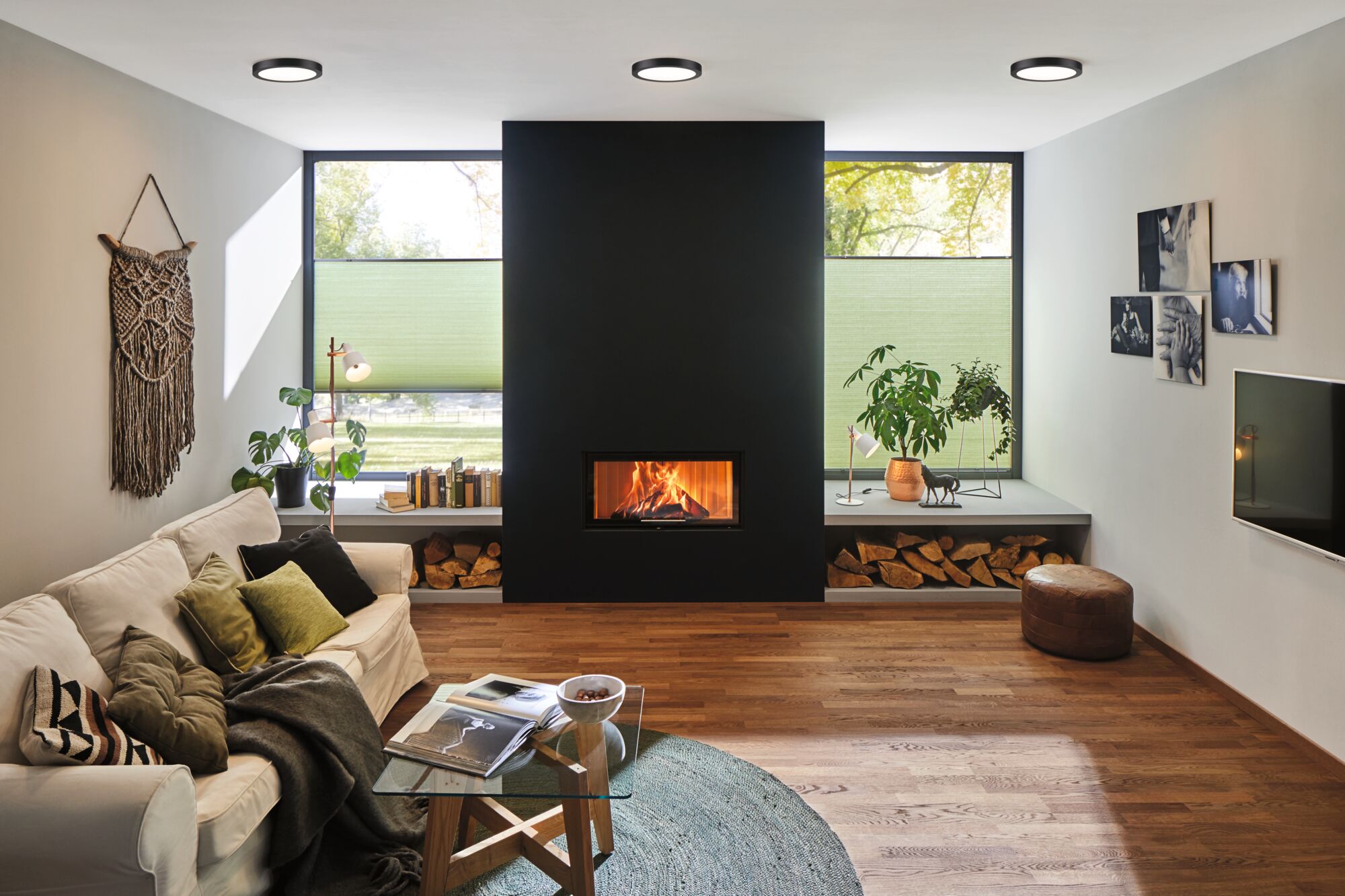

The rounde Abia panel in Black matt in a practical set of 3 offers a very flat installation height and ensures a fine and uniform diffusion of light with the satinised plastic cover. The unobtrusive design and clear lines harmonize with homely, modern styles and architectural ambience and are particularly suitable for use in living rooms, hallways or offices. With a color temperature of 2700 K, the panels provide a pleasant warm white light ambience.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery

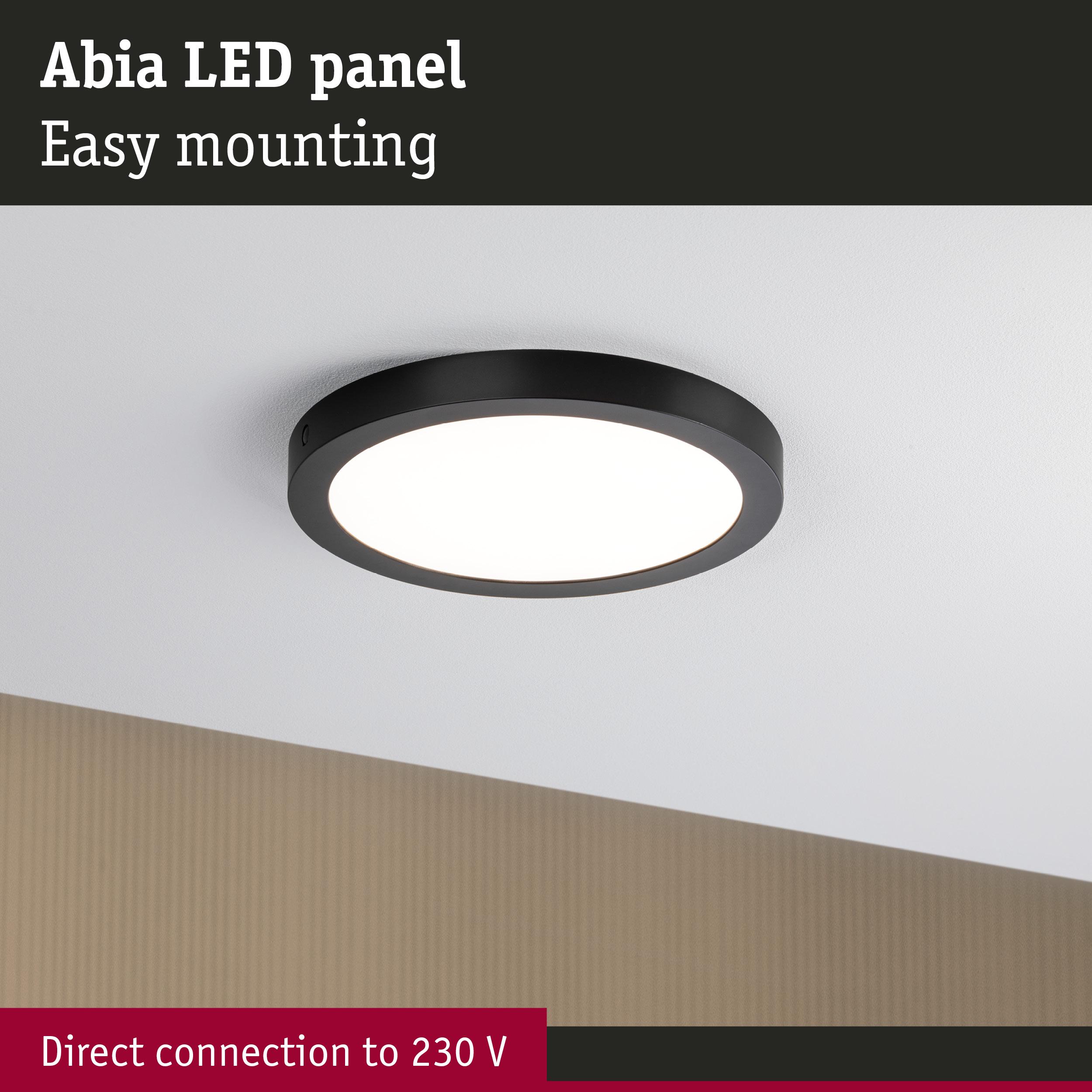

- For 230 V direct connection
| Dimension | |
|---|---|

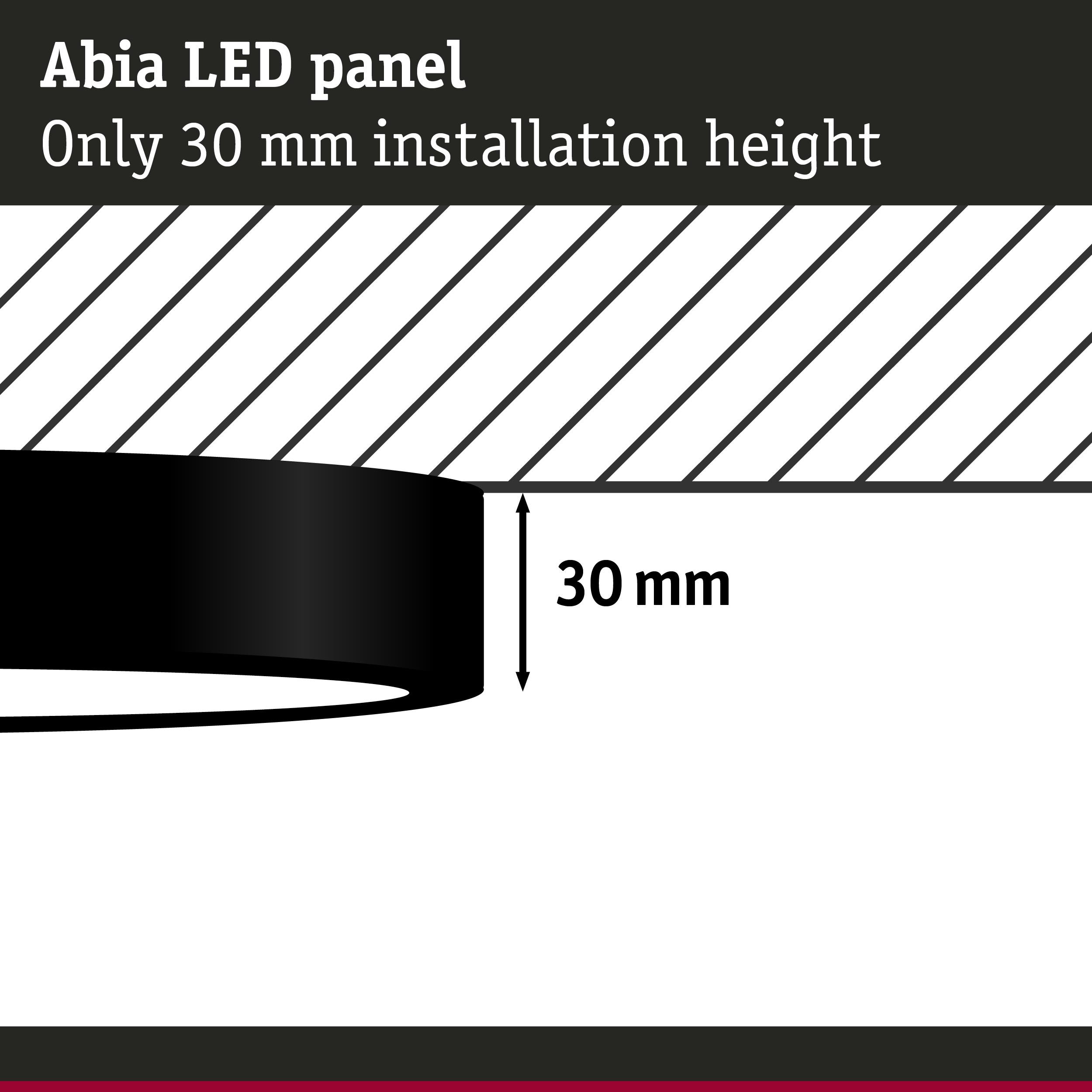

| Dimensions (Height x Width x Depth) | H: 30 mm |
| Diameter | 300 mm |
| net weight | 3018 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Black matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 2200 lm |
| Luminous flux LED module | 3200 lm |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 186 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 22 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 46 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
