Price advantage
Article-No.:
5225

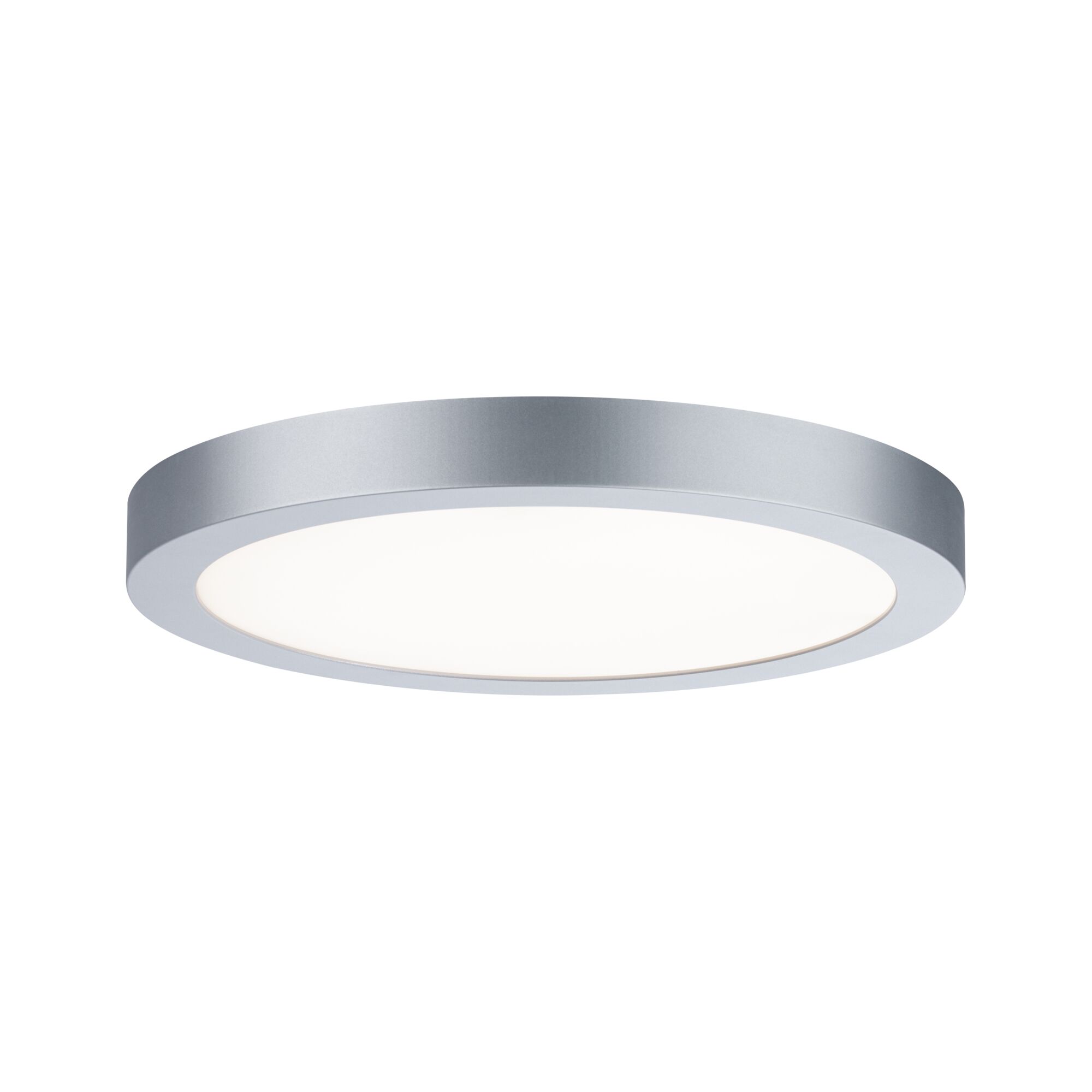

LED Panel
Abia
round 300mm 2x22W 2x2200lm 2700K Chrome matt
round 300mm 2x22W 2x2200lm 2700K Chrome matt
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

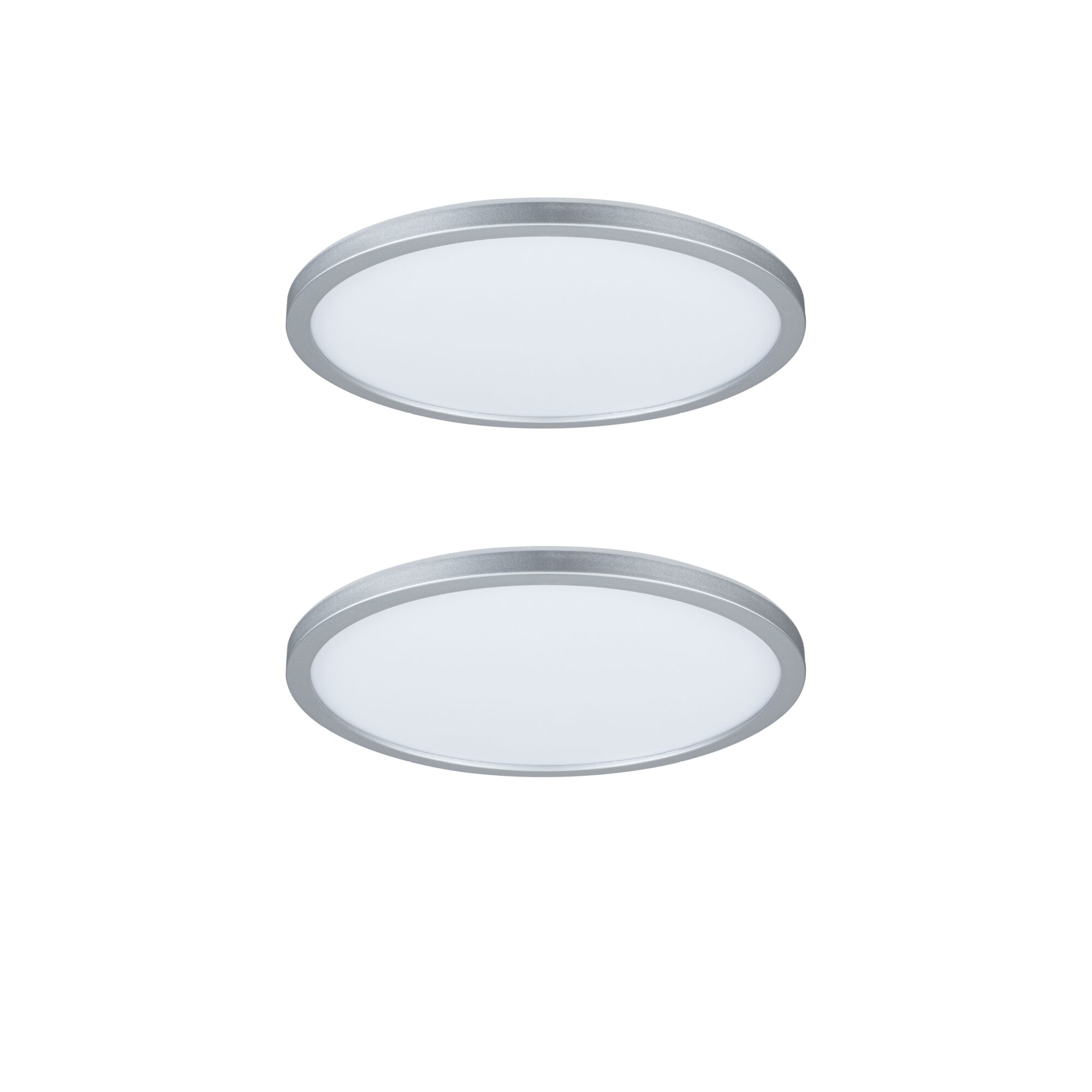

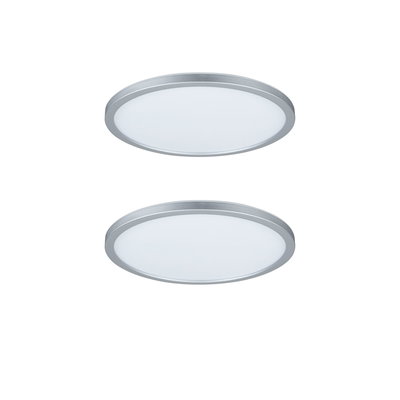

LED Panel Abia round 300mm 2x22W 2x2200lm 2700K Chrome matt
The rounde Abia panel in Chrome matt in a practical set of 2 offers a very flat installation height and ensures a fine and uniform diffusion of light with the satinised plastic cover. The unobtrusive design and clear lines harmonize with homely, modern styles and architectural ambience and are particularly suitable for use in living rooms, hallways or offices. With a color temperature of 2700 K, the panels provide a pleasant warm white light ambience.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection
| Dimension | |
|---|---|
| Diameter | 300 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| net weight | 2034 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Chrome matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2200 lm |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 3200 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 186 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 2x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 46 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
