Article-No.:
71022
LED Panel
Abia
angular 300x300mm 22W 2000lm 4000K White
angular 300x300mm 22W 2000lm 4000K White
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

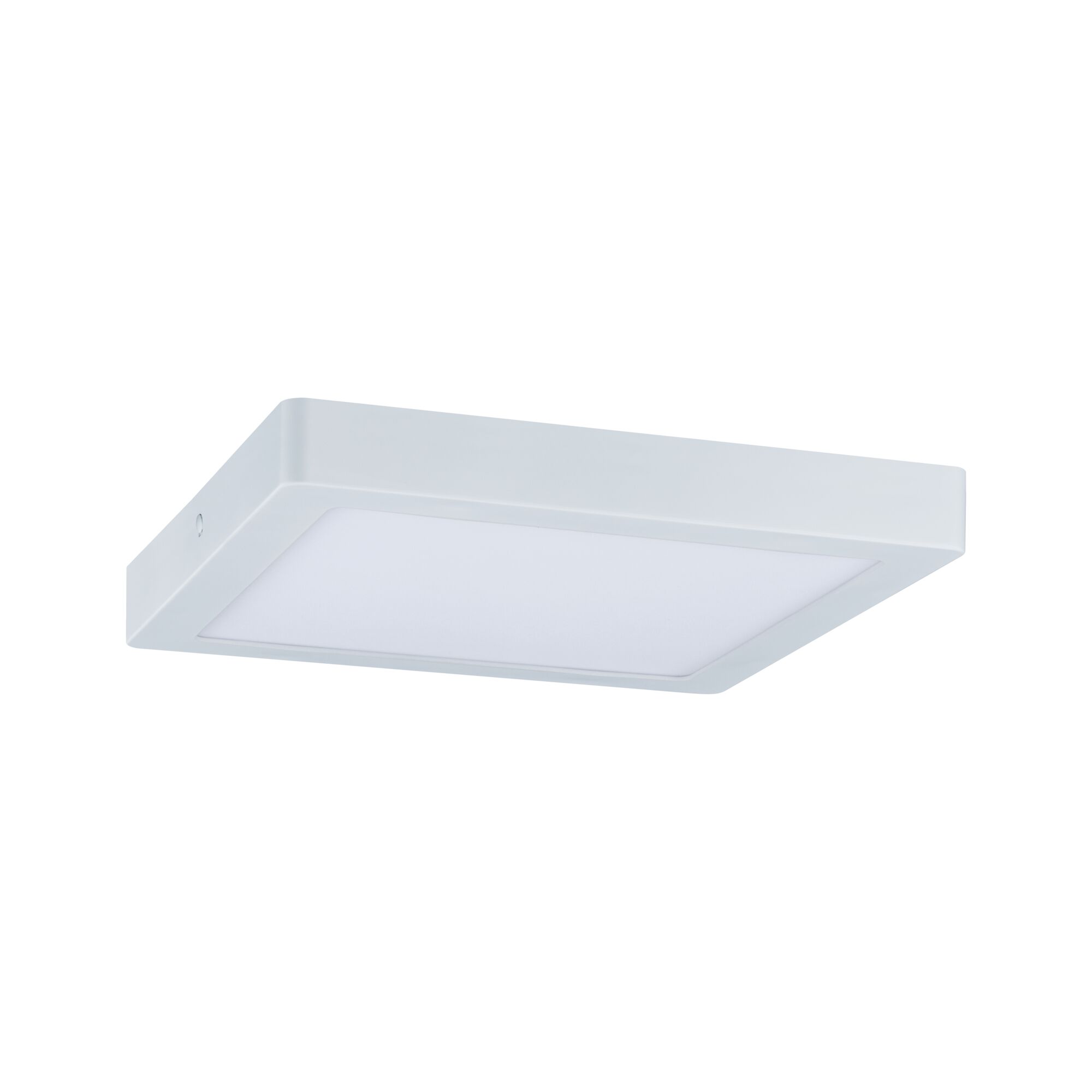

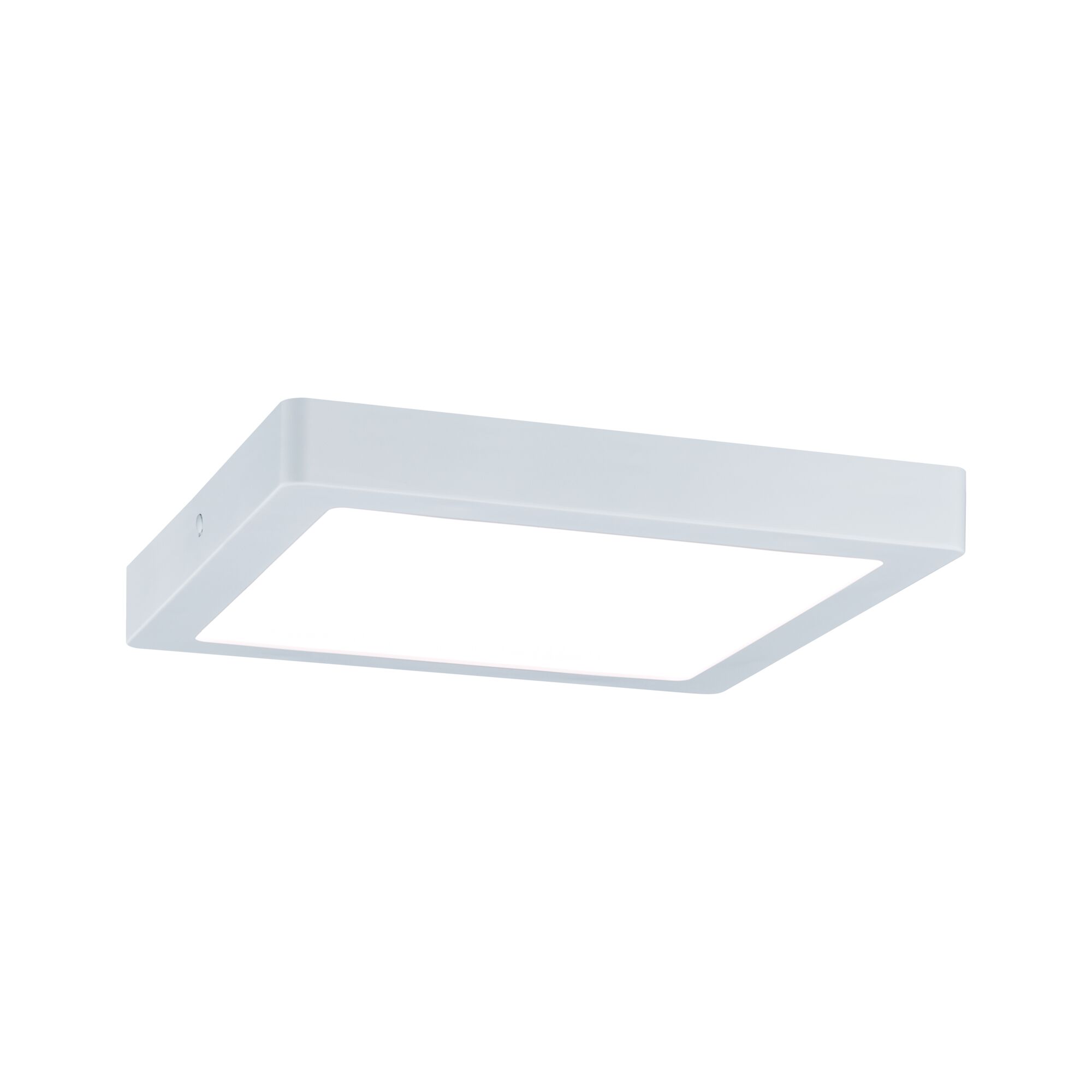

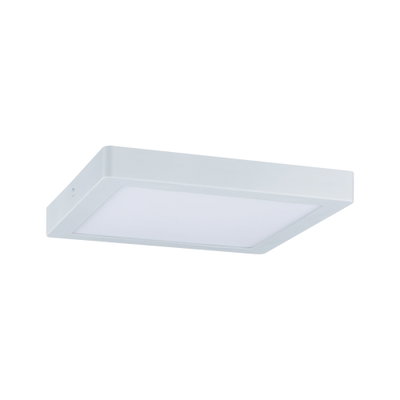

LED Panel Abia angular 300x300mm 22W 2000lm 4000K White

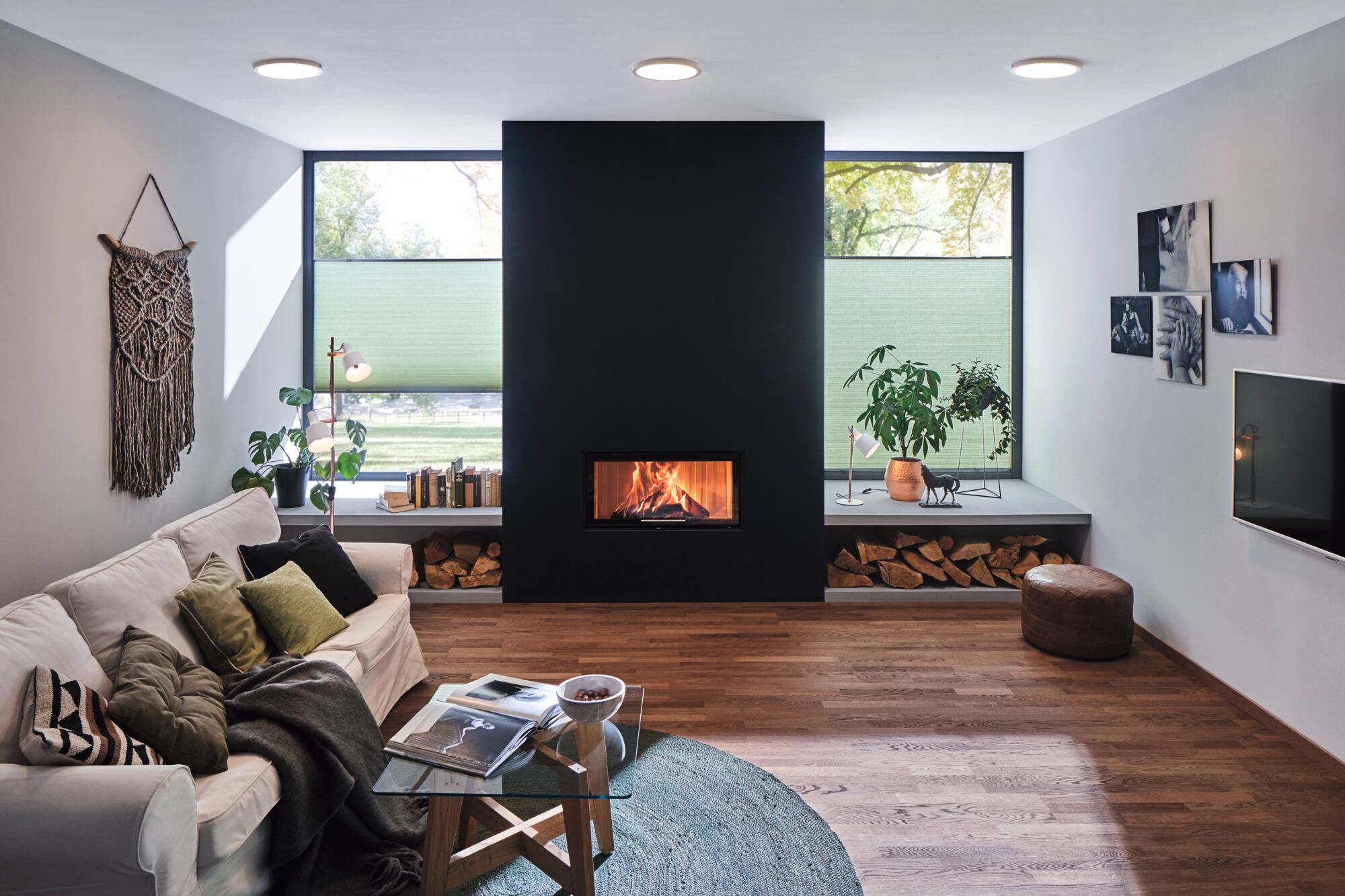

The square Abia panel in white has a very low profile and, thanks to its satinised plastic cover, ensures fine diffusion of light. The understated design and clear lines complement cosy, modern styles as well as architecturally-focused interiors, making it particularly suitable for use in living rooms, hallways or offices. With a colour temperature of 4000 K, the panel provides a neutral white, predominantly functional light.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- For 230 V direct connection
- Color temperatur: 4000K - Neutral white
| Dimension | |
|---|---|

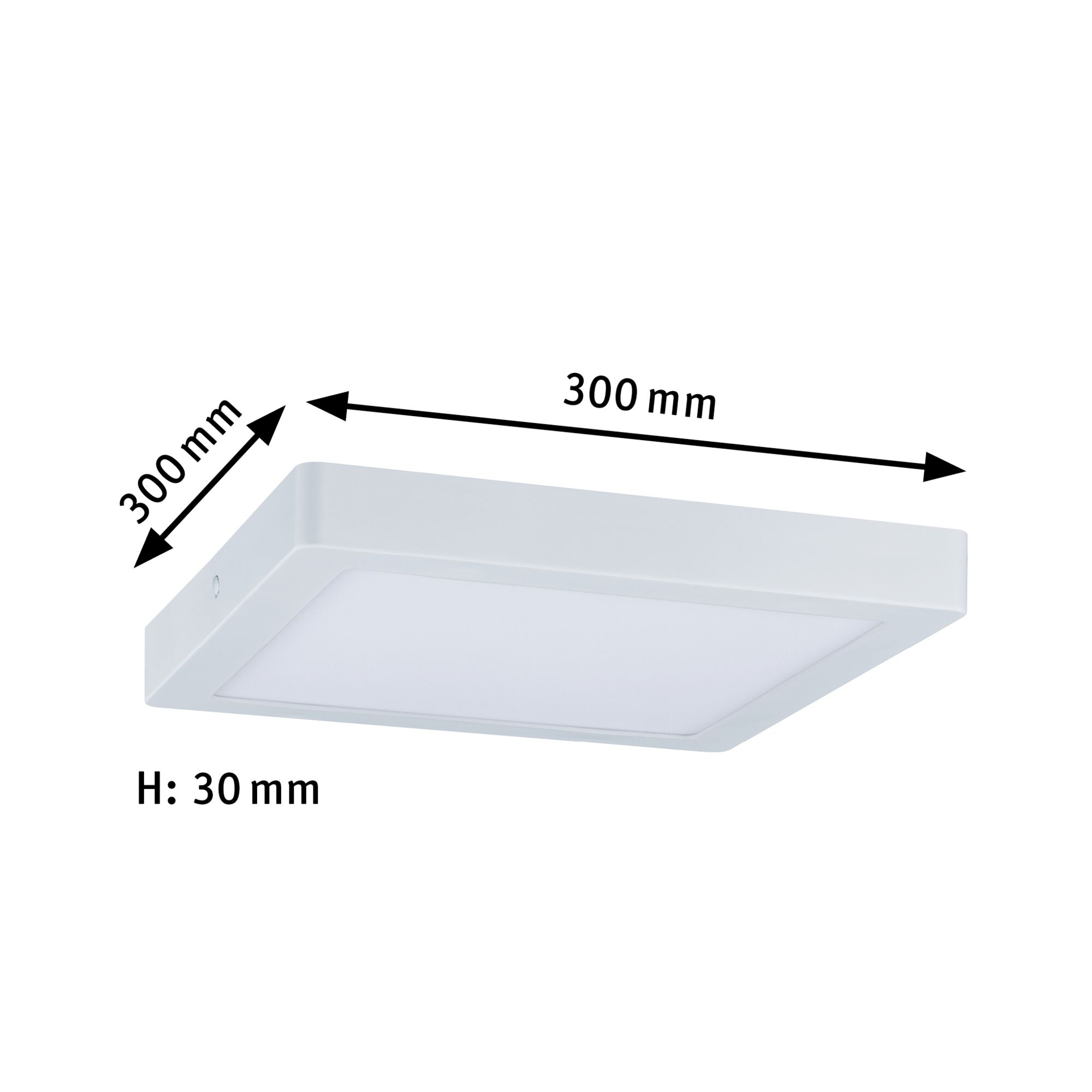

| Dimensions (Height x Width x Depth) | H: 30 x B: 300 x T: 300 mm |
| Net weight | 916 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 186 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 26 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2000 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Neutral white, 4000 K |
| Luminous flux LED module | 3200 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 30 x 300 x 300 mm |
