Article-No.:
71026
LED Panel
Abia
angular 300x300mm 22W 2000lm 4000K Black
angular 300x300mm 22W 2000lm 4000K Black
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

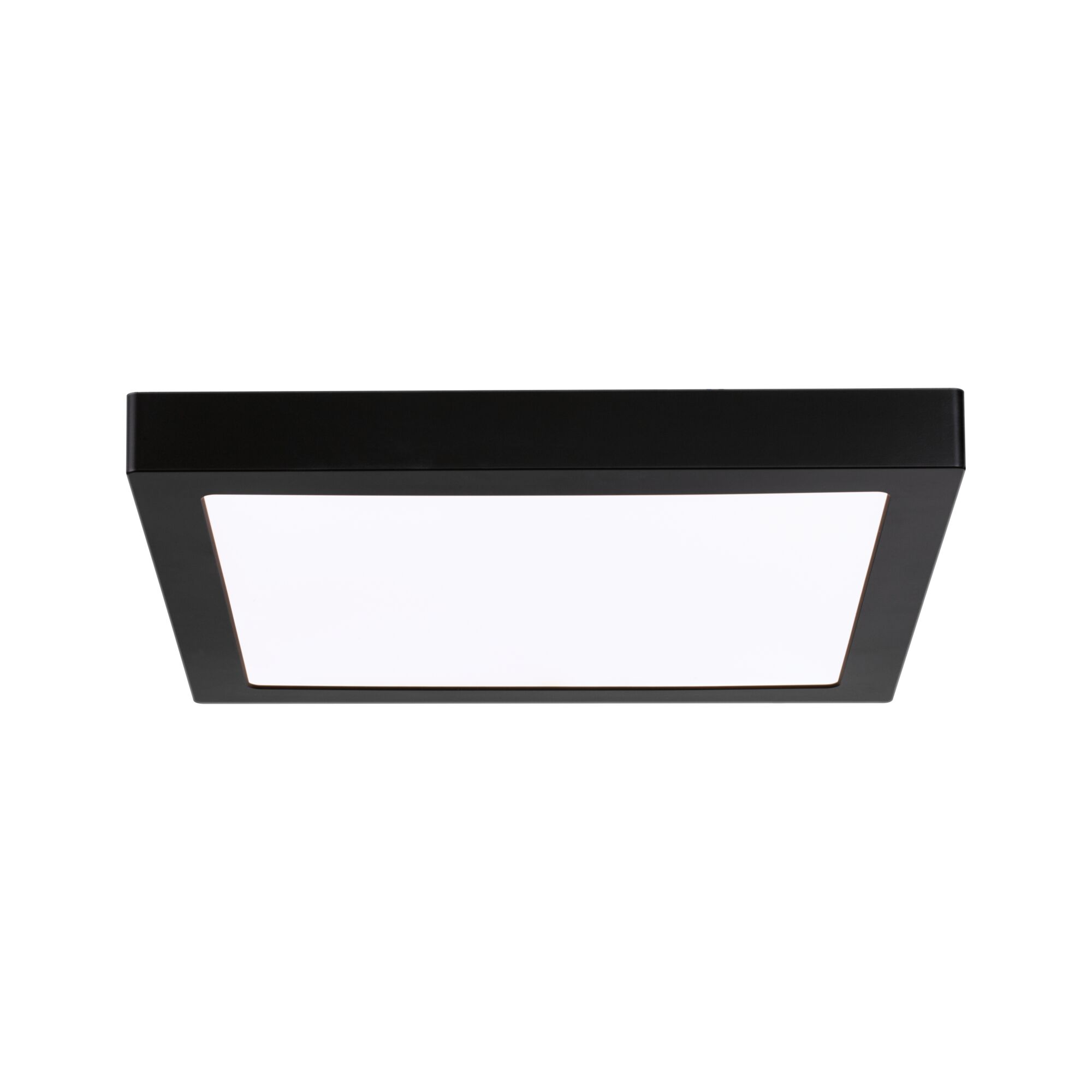

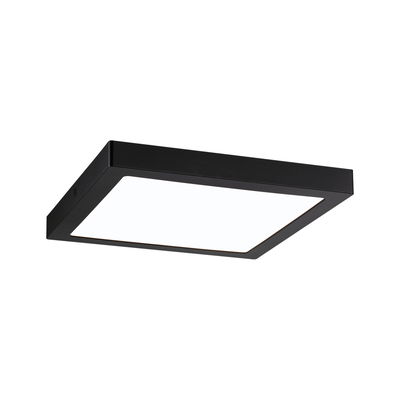

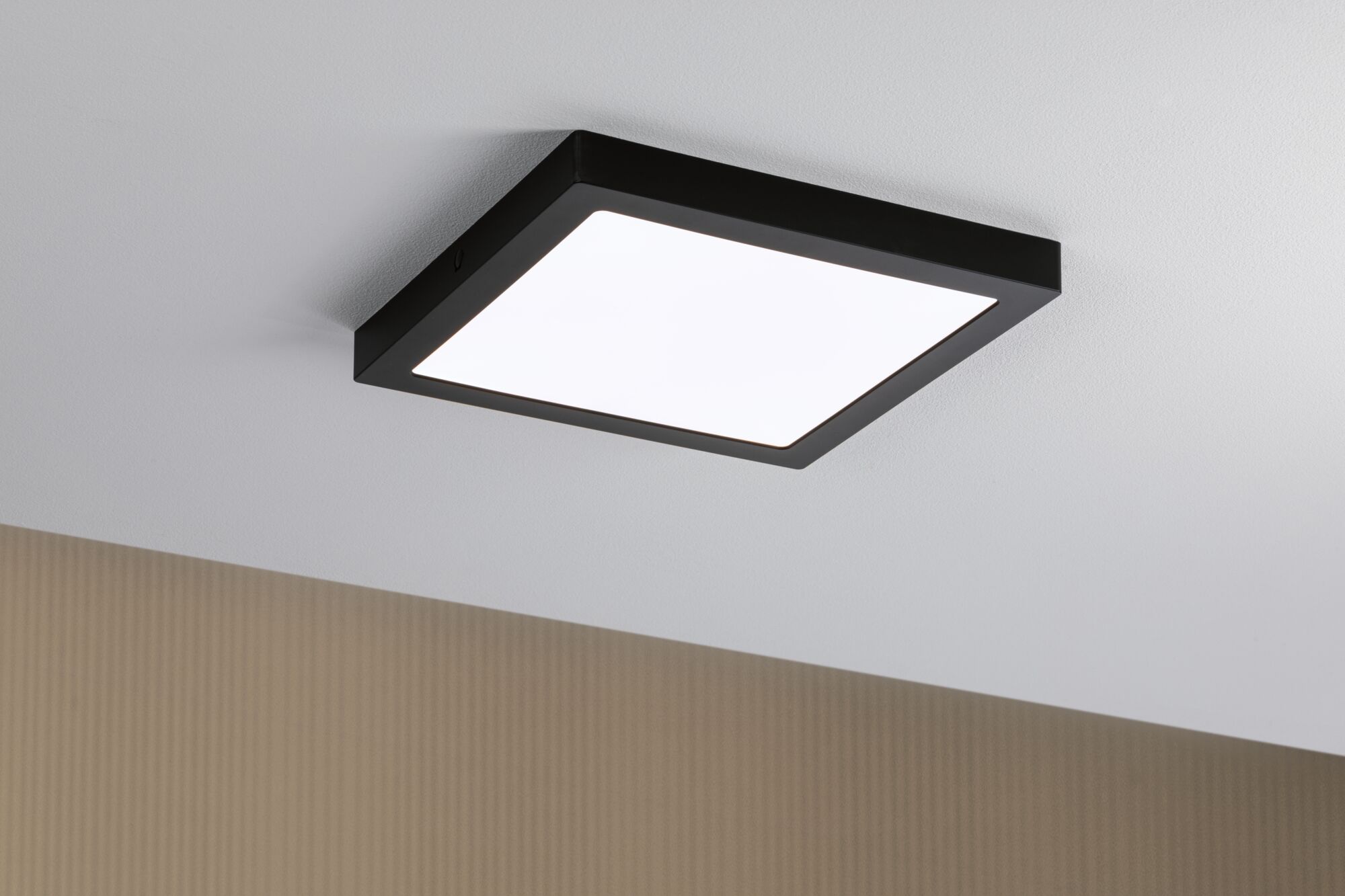

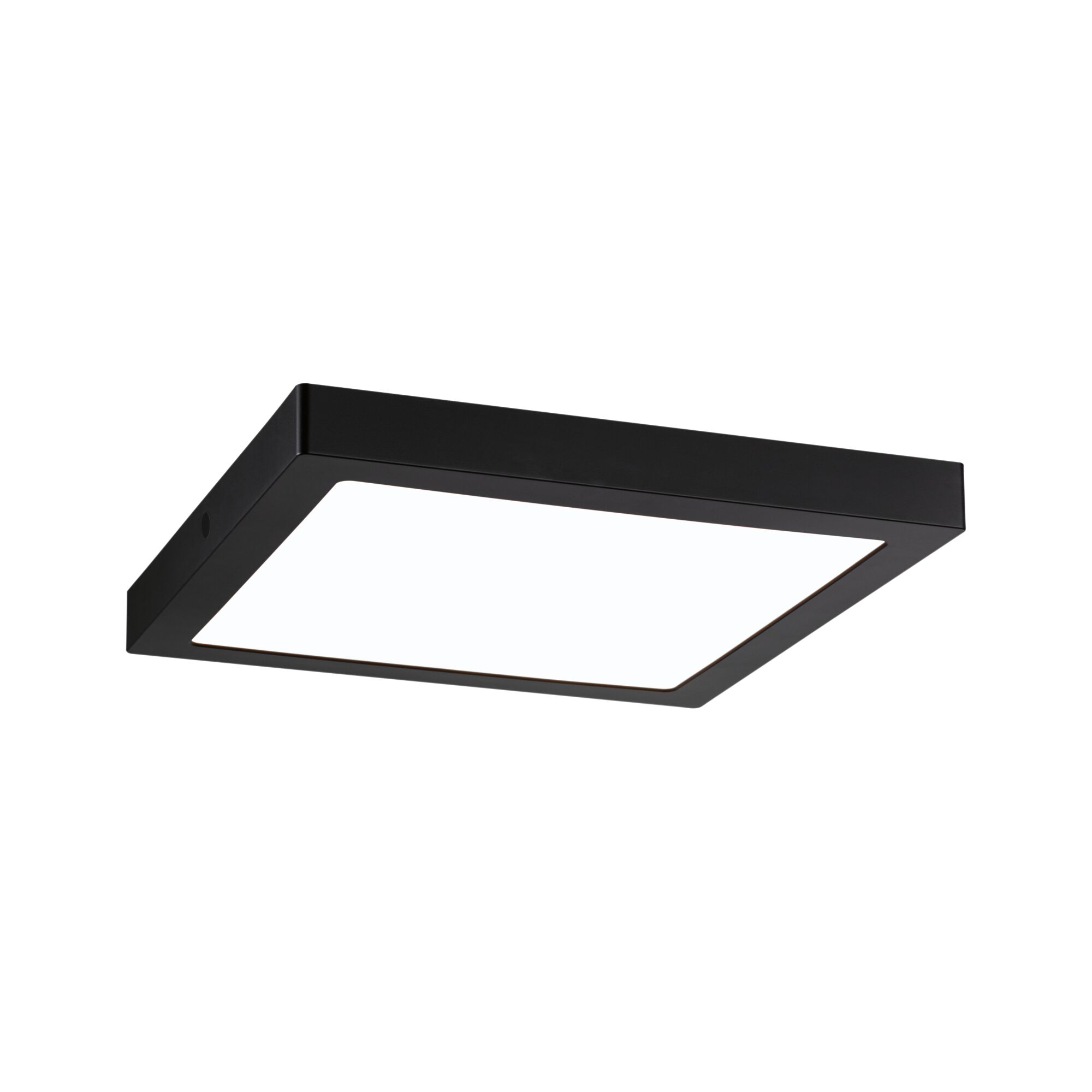

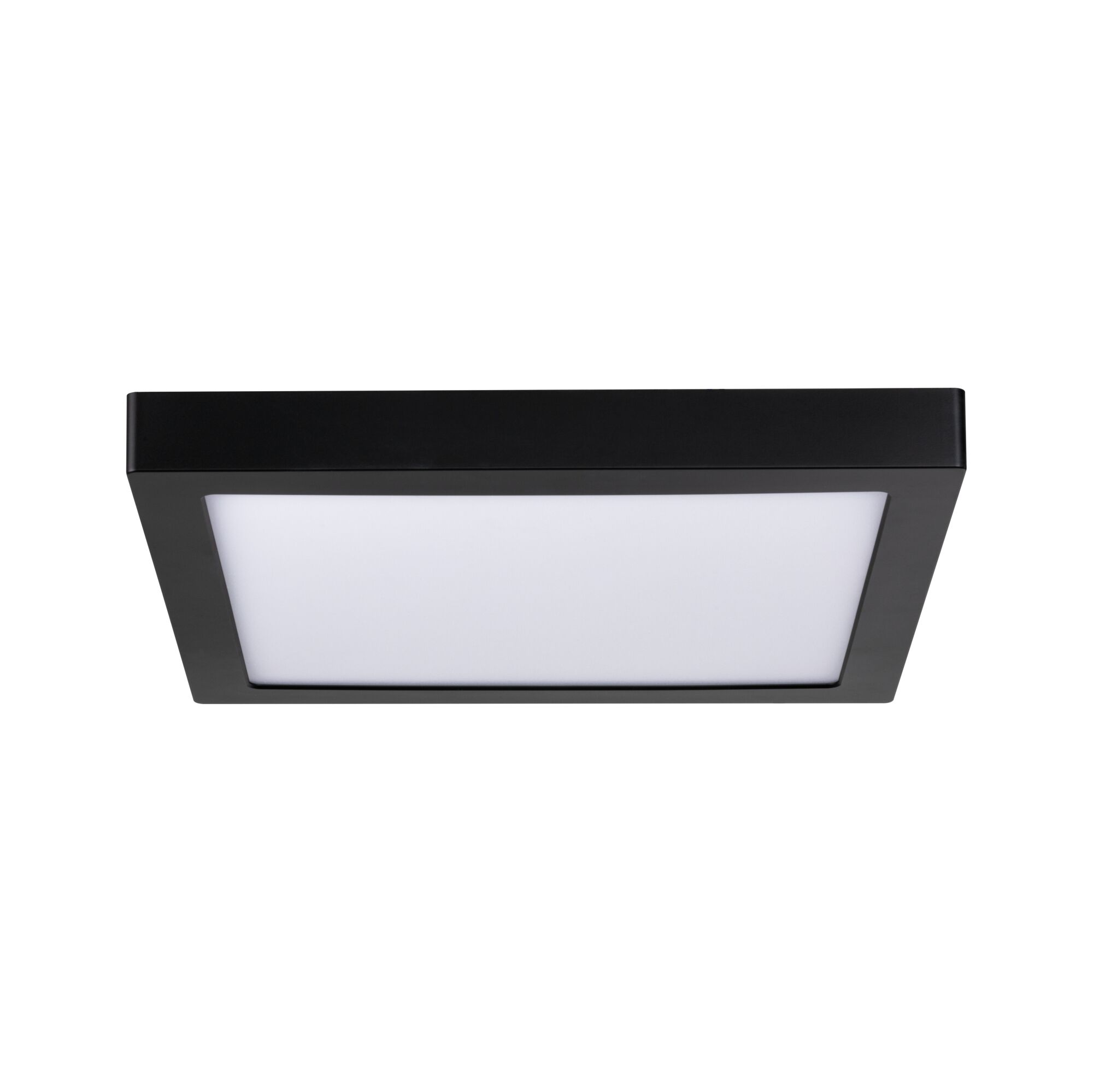

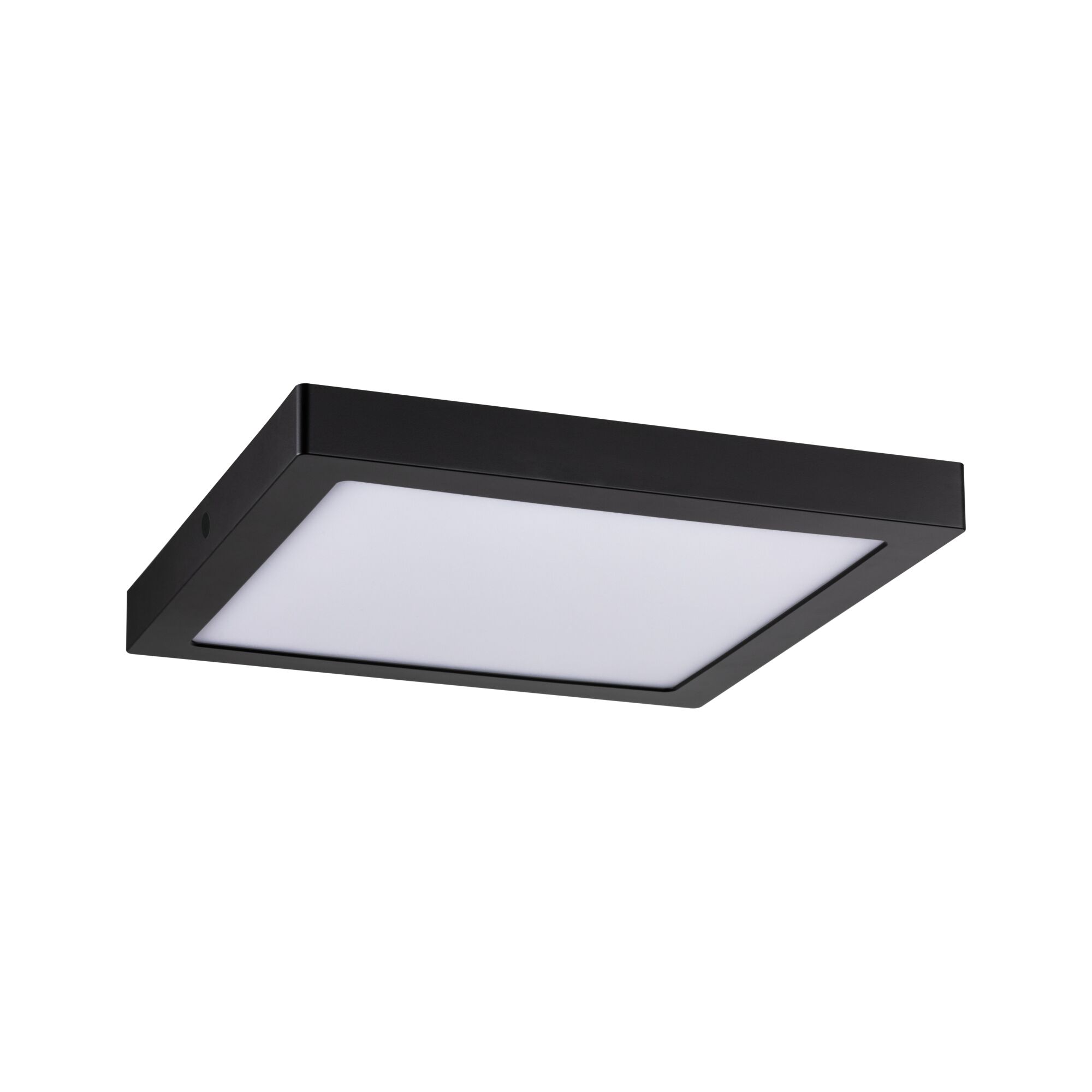

LED Panel Abia angular 300x300mm 22W 2000lm 4000K Black

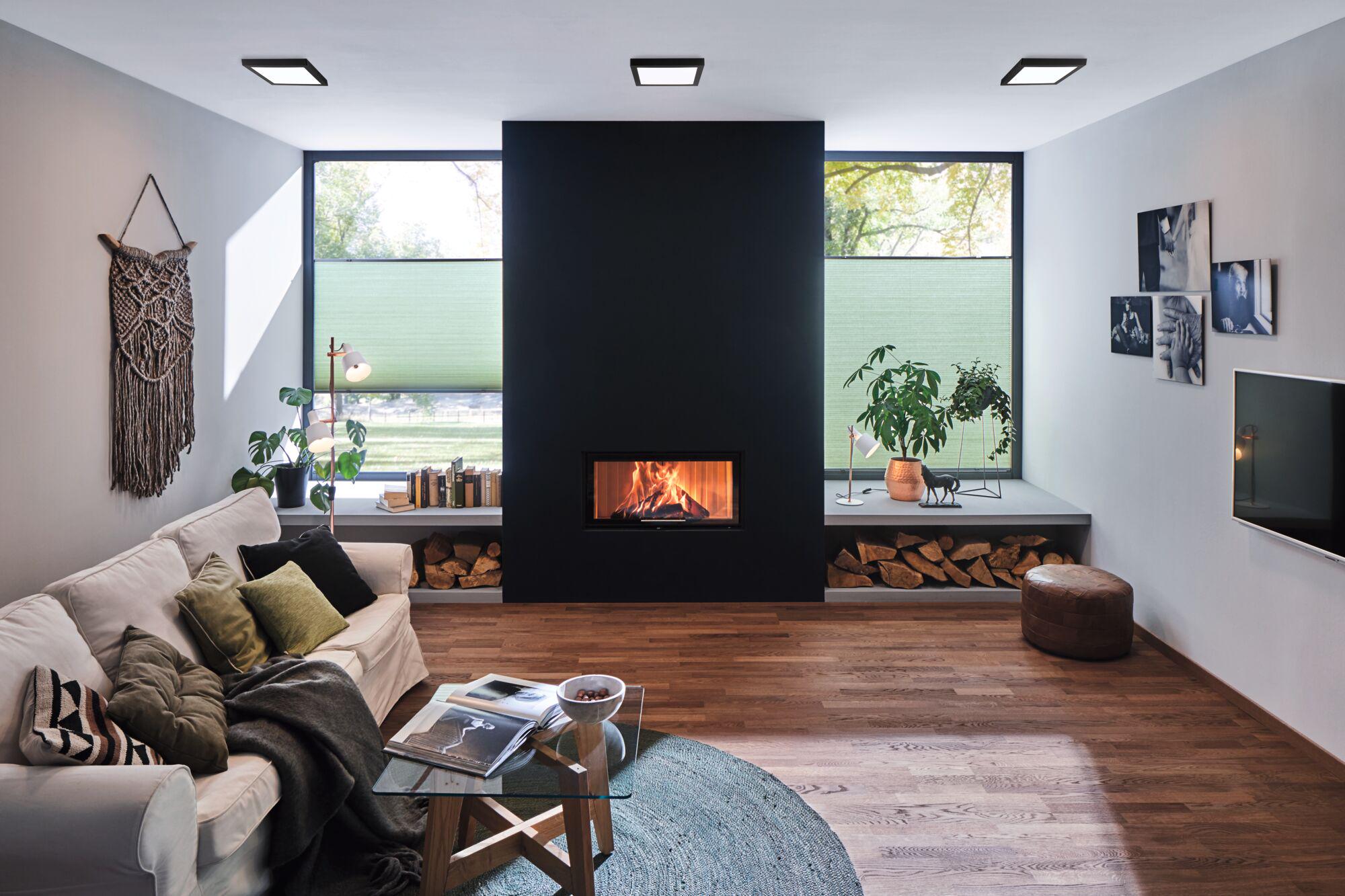

The black Abia panel combines an extremely shallow structure and uniform light distribution in an advanced design. Thanks to its subtle, unobtrusive, clean and linear design, the panel blends perfectly into modern architecture-orientated interiors.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection
- Color temperatur: 4000K - Neutral white
| Dimension | |
|---|---|

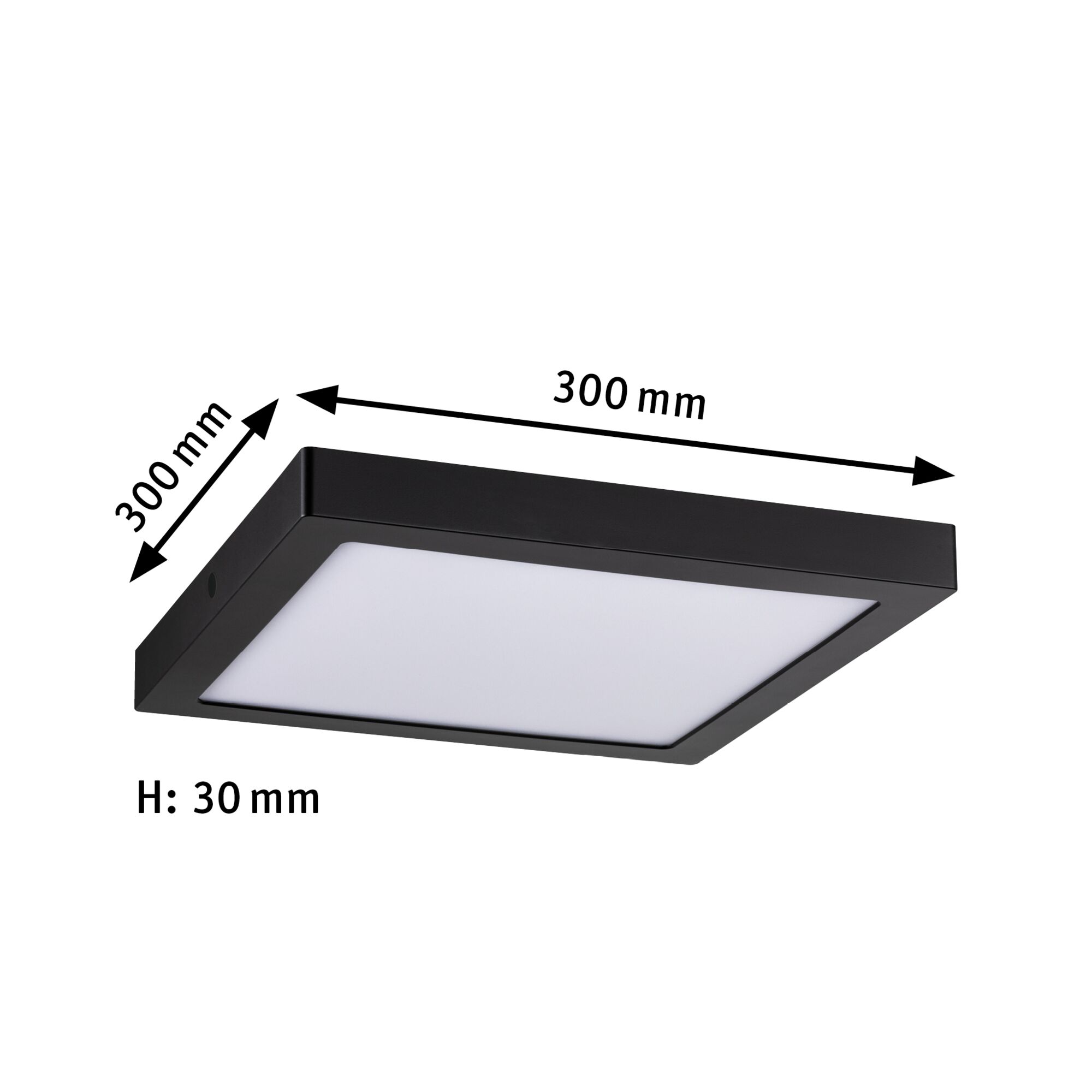

| Dimensions (Height x Width x Depth) | H: 30 x B: 300 x T: 300 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Plastic |
| Form | angular |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2000 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Neutral white, 4000 K |
| Luminous flux LED module | 3200 lm |
| Lamp Features | |
|---|---|
| Component parts | 22 W |
| Technique | LED |
| Inclusive lamp | yes |
| Incandescent Equivalent | 186 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel fest integriert |
| Dimmable | No |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 26 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
