Article-No.: 71010

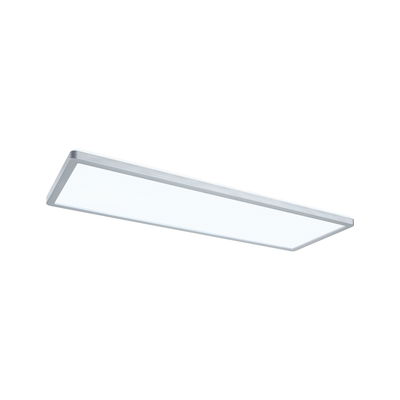

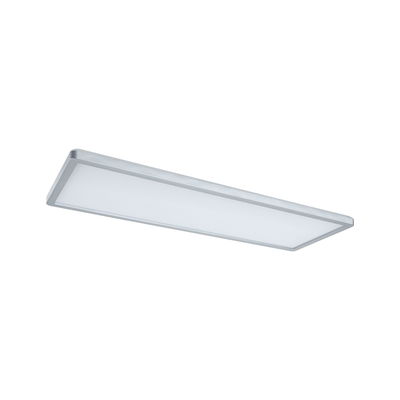

LED Panel Atria Shine Backlight

square 580x200mm 22W 1800lm 4000K Chrome matt dimmable

Form: square
Colour: Chrome matt
Light colour: 4000K
Dimension: 580x200mm
Version: 3-Step dim

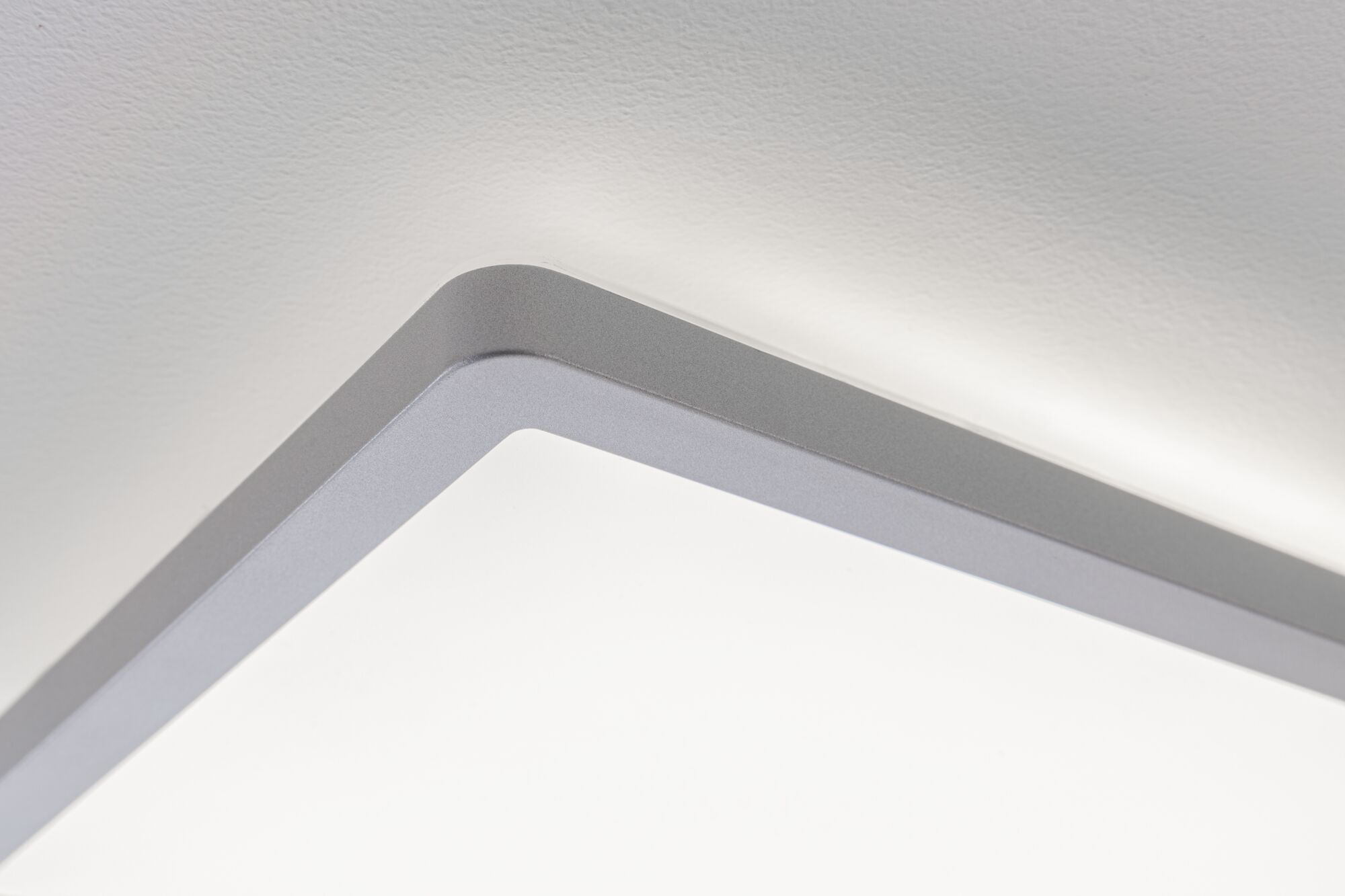

  • Backlight technology for subtle, almost floating appearance of the luminaire
  • Ultra-flat design: Installation height of only 28 mm
  • Even room light based on cutting-edge LED technology

LED Panel 3-Step-Dim Atria Shine Backlight square 580x200mm 22W 1800lm 4000K Chrome matt dimmable

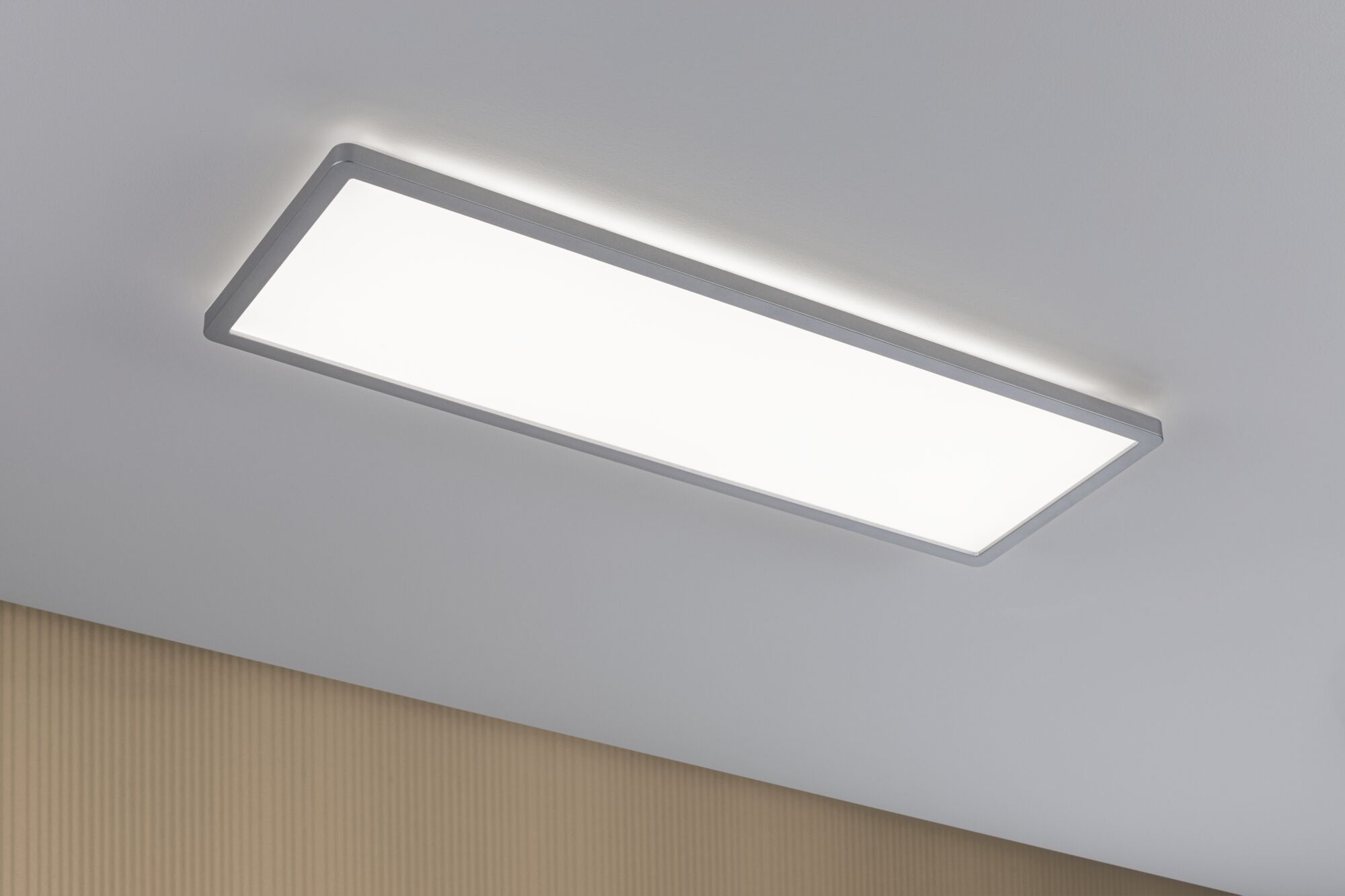

With an output of 22W, the squaree Atria Shine LED panel in Chrome matt and 580x200mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light produces uniform wide-area room illumination, while the integrated 3-step dim function allows the panel to be dimmed in three increments using a standard light switch. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
  • Backlight technology for subtle, almost floating appearance of the luminaire
  • Ultra-flat design: Installation height of only 28 mm
  • Even room light based on cutting-edge LED technology
  • Color temperatur: 4000K - Neutral white
  • Can be mounted on wall or ceiling
Dimension

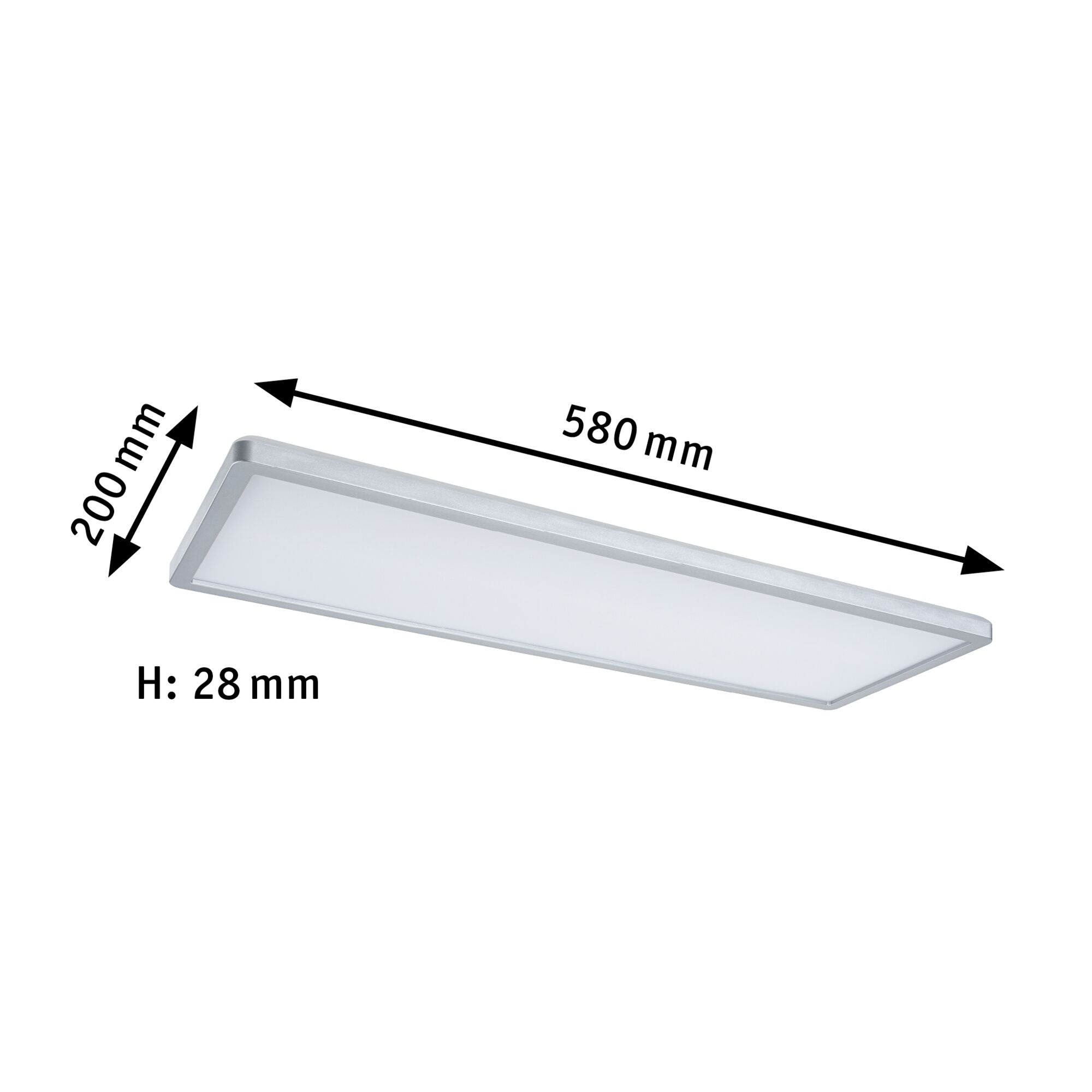

Dimensions (Height x Width x Depth) H: 28 x B: 580 x T: 200 mm
Form square
Design and Material
Colour Chrome matt
Material Plastic
Energy consumption
energy efficiency (A to G) E
Service life
lifetime 30.000 h
Light Characteristics
Color temp. 4000 K
Useful luminous flux 1.800 lm
Luminous flux LED module 2700 lm
color temp 4.000 K
Color rendering index > 80 Ra
Lamp Features
Component parts 22 W
Technique LED
IP protection IP20
Dim dimmable in 3 steps with normal light switch
Dimmable Yes
Incandescent Equivalent 160 W
Inclusive lamp
Number of component parts 1x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption 23 W
Transformer
apparent power 40 VA
Labelling
WEEE-Reg.-No DE 39236390
