Article-No.:
92469
LED Module recessed luminaireSmart Home Zigbee 3.0
Base Coin 1-piece set
round 50mm Coin 4,9W 430lm 230V dimmable 3000K Satin
round 50mm Coin 4,9W 430lm 230V dimmable 3000K Satin
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch

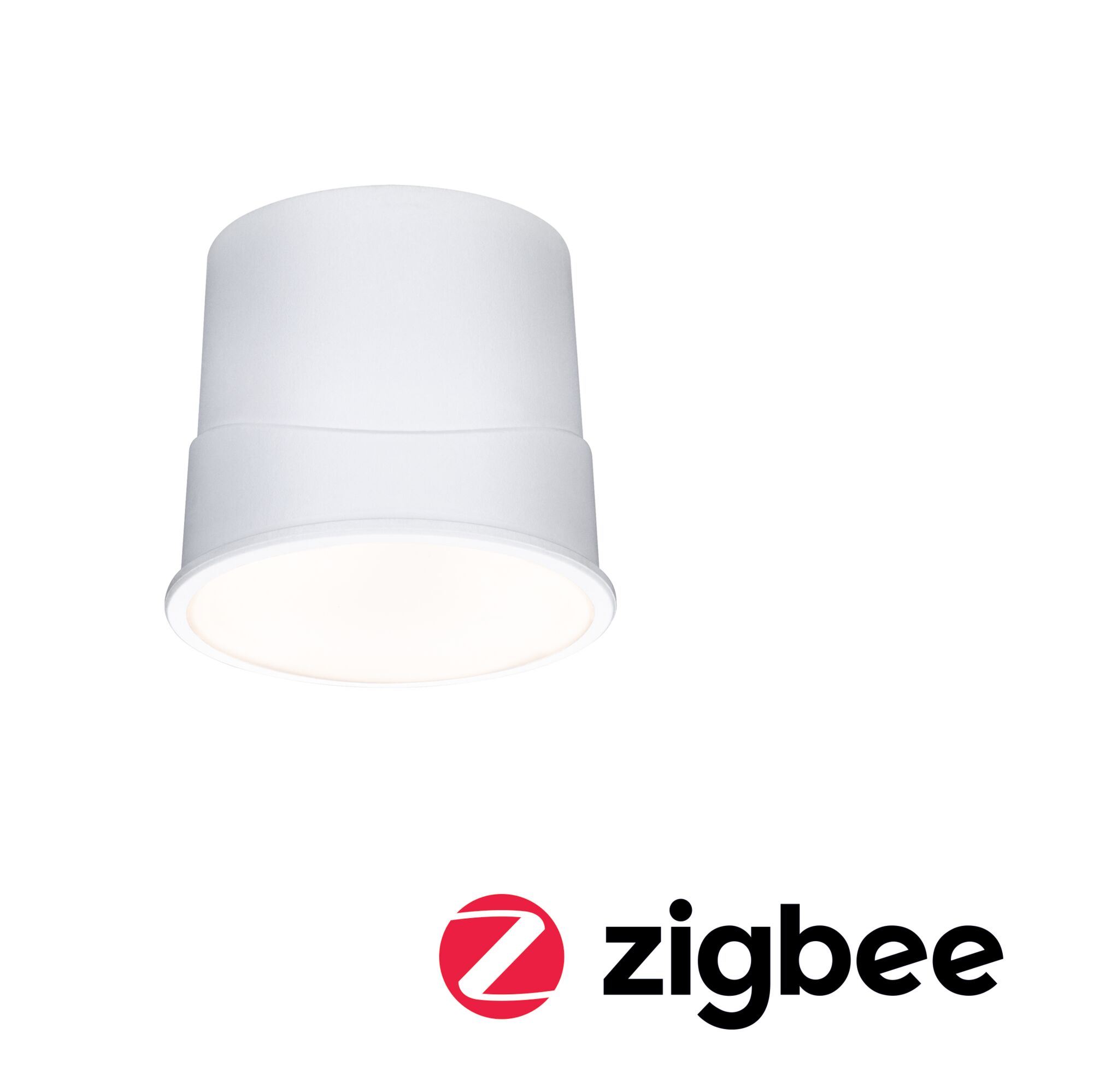

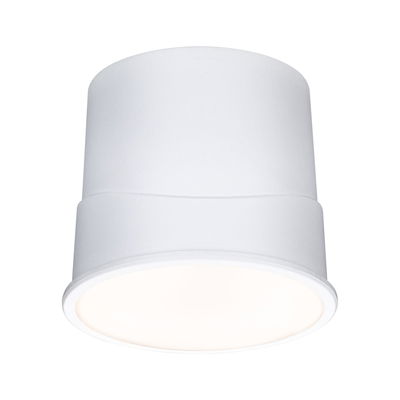

LED Module recessed luminaire Smart Home Zigbee 3.0 Base Coin 1-piece set round 50mm Coin 4,9W 430lm 230V dimmable 3000K Satin
The smart, innovative Base Coins with RGBW Zigbee 3.0 control can also be used in combination with existing lighting installations. If recessed spotlights with a diameter of 51mm are already installed, the changeover to the economical LED modules is quite simple. The old light source is removed and the RGBW Coin is inserted. Now the luminaires can be controlled individually or together via app, remote control or voice command: whether cosy dimmed warm white, matter-of-fact bright daylight white or colourful colour gradients - the combination of the Tunable White, RGB and dimming function offers countless possibilities. The LED Coins are easier to chain together, they are interchangeable and can be easily installed in shallow cavities.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- Efficient LED technology
- Infinitely dimmable
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|

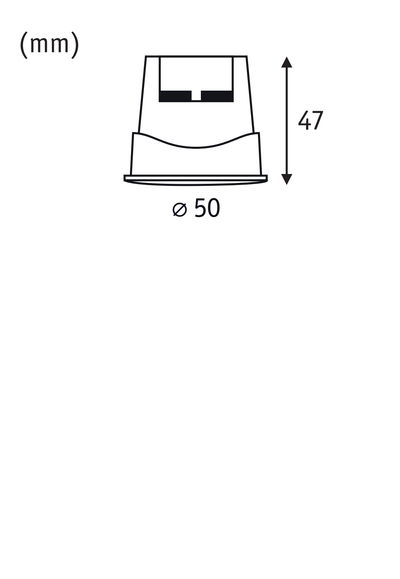

| Dimensions (Height x Width x Depth) | H: 47 mm |
| Diameter | 50 mm |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Type | Coin |
| Form | round |
| Energy consumption | |
|---|---|
| Energy consumption | 5 kWh_1000h |
| Energy efficiency | F |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 110 ° |
| Nominal luminous flux | 430 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 430 lm |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Base/Socket | Coin |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 37 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel |
| Dimmable | Yes |
| IP protection | IP20 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 4,9 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 9 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
