Article-No.:
93079
LED Module recessed luminaire
Nova Plus Coin
round 50mm Coin 6W 530lm 230V dimmable 4000K Satin
round 50mm Coin 6W 530lm 230V dimmable 4000K Satin

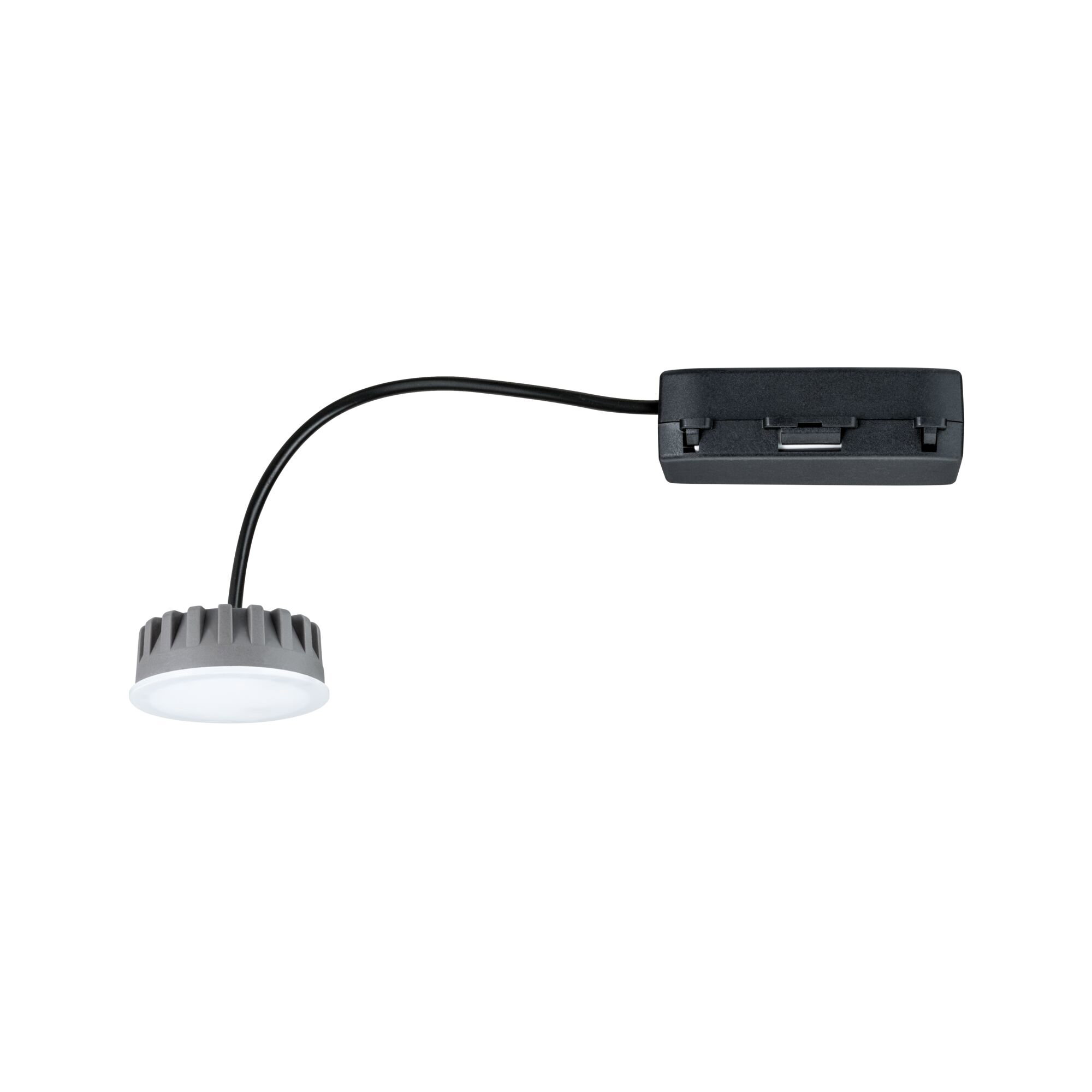

- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable

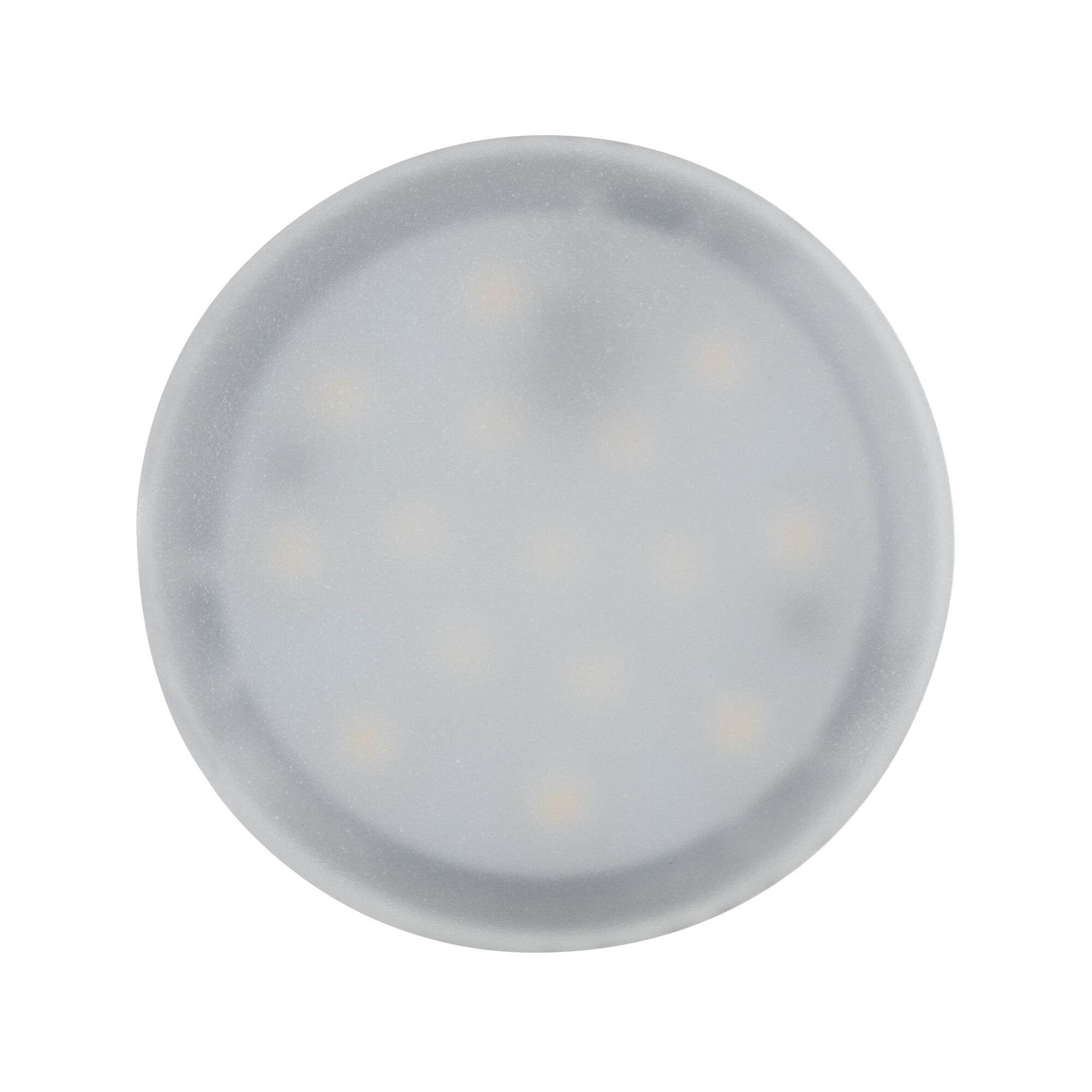

LED Module recessed luminaire Nova Plus Coin round 50mm Coin 6W 530lm 230V dimmable 4000K Satin
The innovative Nova Plus coins with a neutral white light can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!

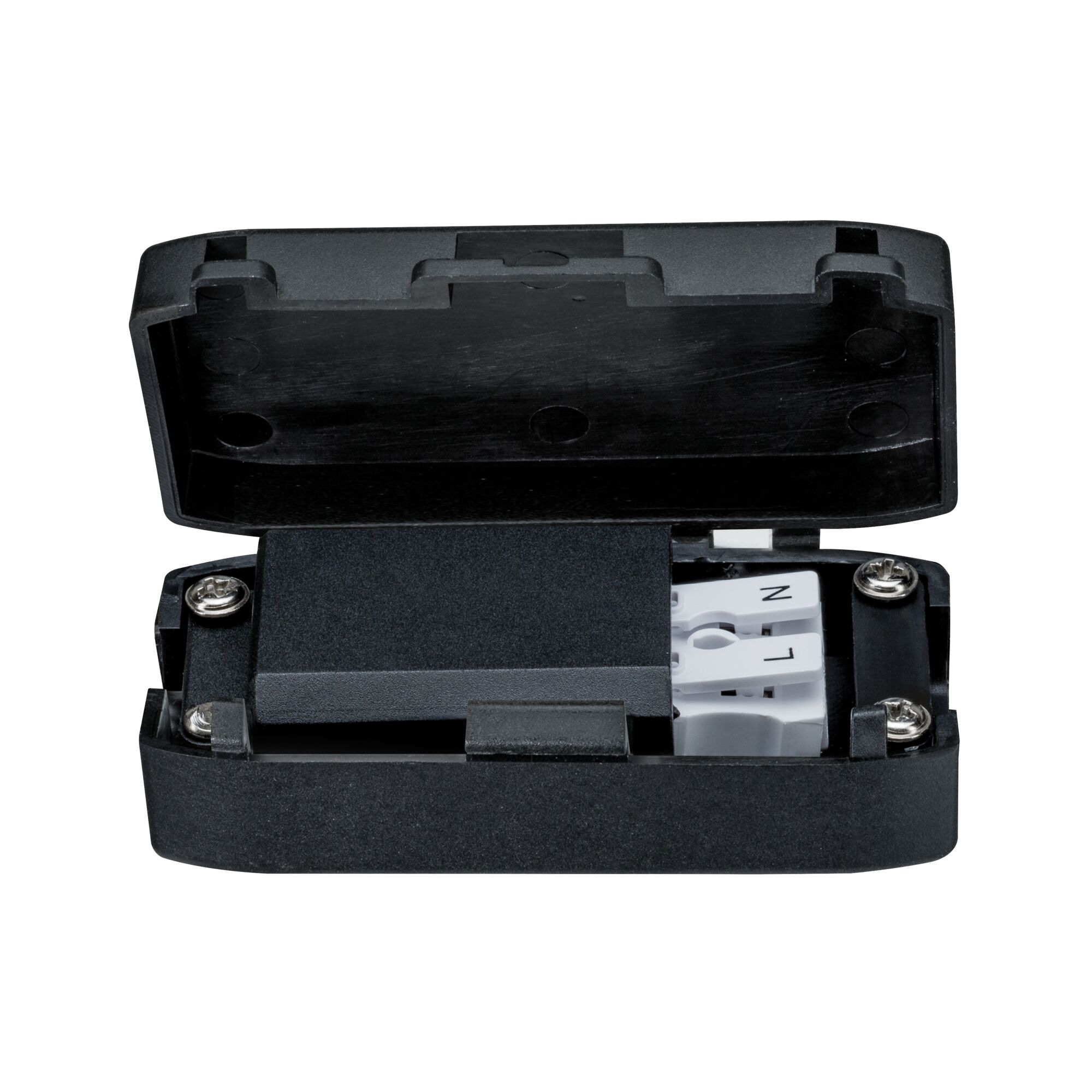

- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable
- Efficient LED technology
- Color temperatur: 4000K - Neutral white
![](https://content.paulmann.com/media/7f/9e/48/1686574576/93079_en_GB_el01.jpg)
Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 35 mm |
Ø | 50 mm |
Mounting hole | 68 mm |
Form | round |
Design and Material | |
---|---|
Colour | Satin |
Material | Plastic |
Installation | |
---|---|
can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Busch-Jäger 6513U-102 |
Energy consumption | |
---|---|
Energy efficiency (A to G) | F |
Energy consumption | 6 kWh_1000h |
Service life | |
---|---|
Lamp lumen maintenance factor 6000h | 90 % |
luminous flux at the end of lamplife | 85 % |
Number of switching cycles >= | 50000 |
Lifetime | 30000 h |
Rated life time | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 4000 K |
Beam angle | 100 ° |
Usable luminous flux | 530 lm |
color temp | 4000 K |
colour consistency | SDCM 6 |
Color rendering index | > 80 Ra |
Beam angle LED module | 118 ° |
Rated luminous flux (Lumen) | 530 lm |
Lamp Features | |
---|---|
Component parts | 6 W |
Technique | LED |
Socket | Coin |
Type | Special lamps |
Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
Inclusive lamp | yes |
Incandescent Equivalent | 43 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 7 not concerned. |
Power consumption | 6 W |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
