Article-No.:
94306
LED Module recessed luminaire
Nova Mini Coin
round 35mm Coin 4W 310lm 230V 2700K Clear
round 35mm Coin 4W 310lm 230V 2700K Clear

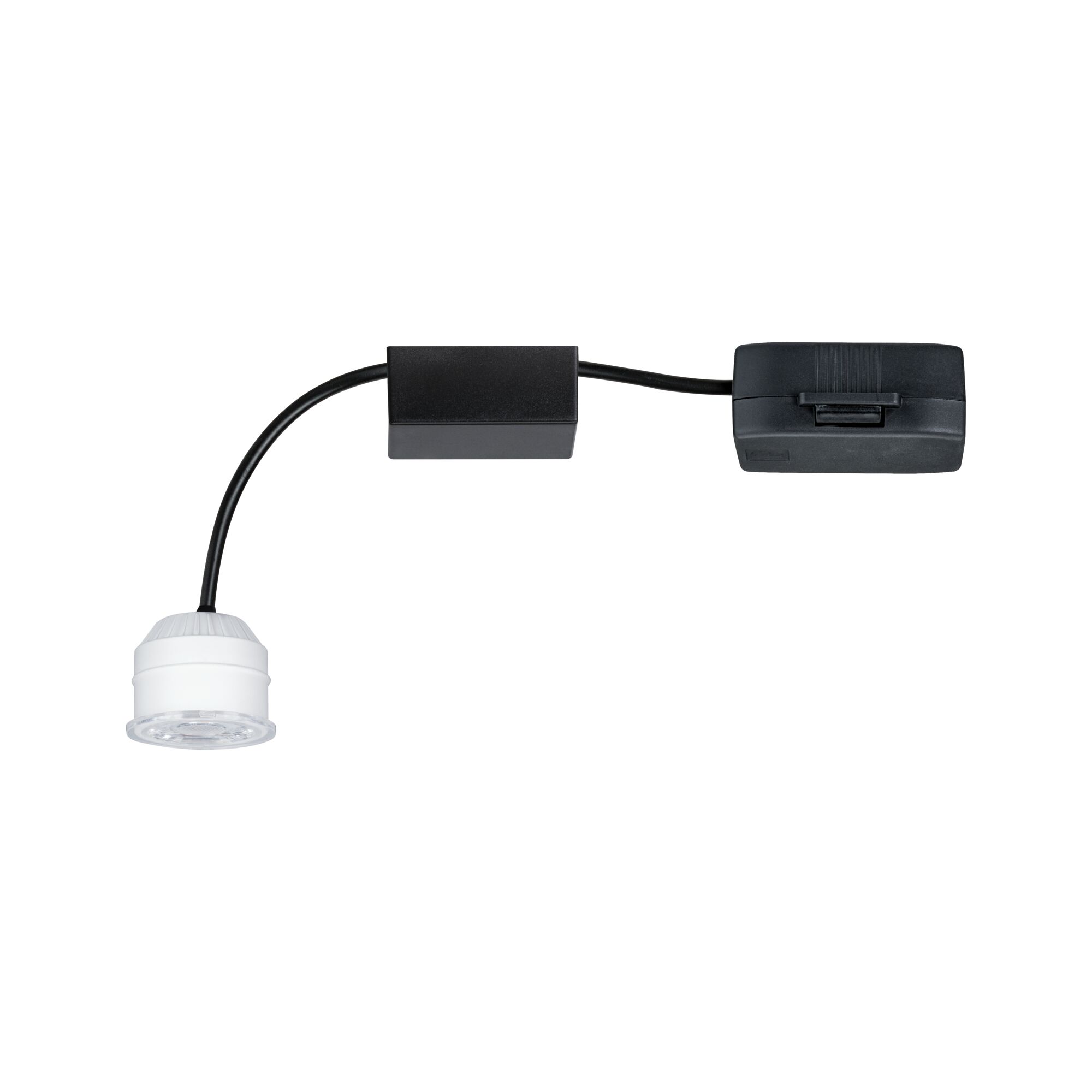

- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
LED Module recessed luminaire Nova Mini Coin round 35mm Coin 4W 310lm 230V 2700K Clear
The Nova mini Coin is ideal for the replacement of existing 35 mm installations. The unique LED lamp is exchangeable, flat and can be linked unlimited times.
- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 27 mm |
| Ø | 35 mm |
| Mounting hole | 54 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Clear |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 85 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 38 ° |
| Usable luminous flux | 310 lm |
| Colour consistency (SDCM) | 3 |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 580 cd |
| Luminous intensity | 600 cd |
| Rated luminous flux (Lumen) | 310 lm |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Technique | LED |
| Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 29 W |
| Adjustability | fixed |
| Dimmable | No |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 4 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
