Article-No.:
92477

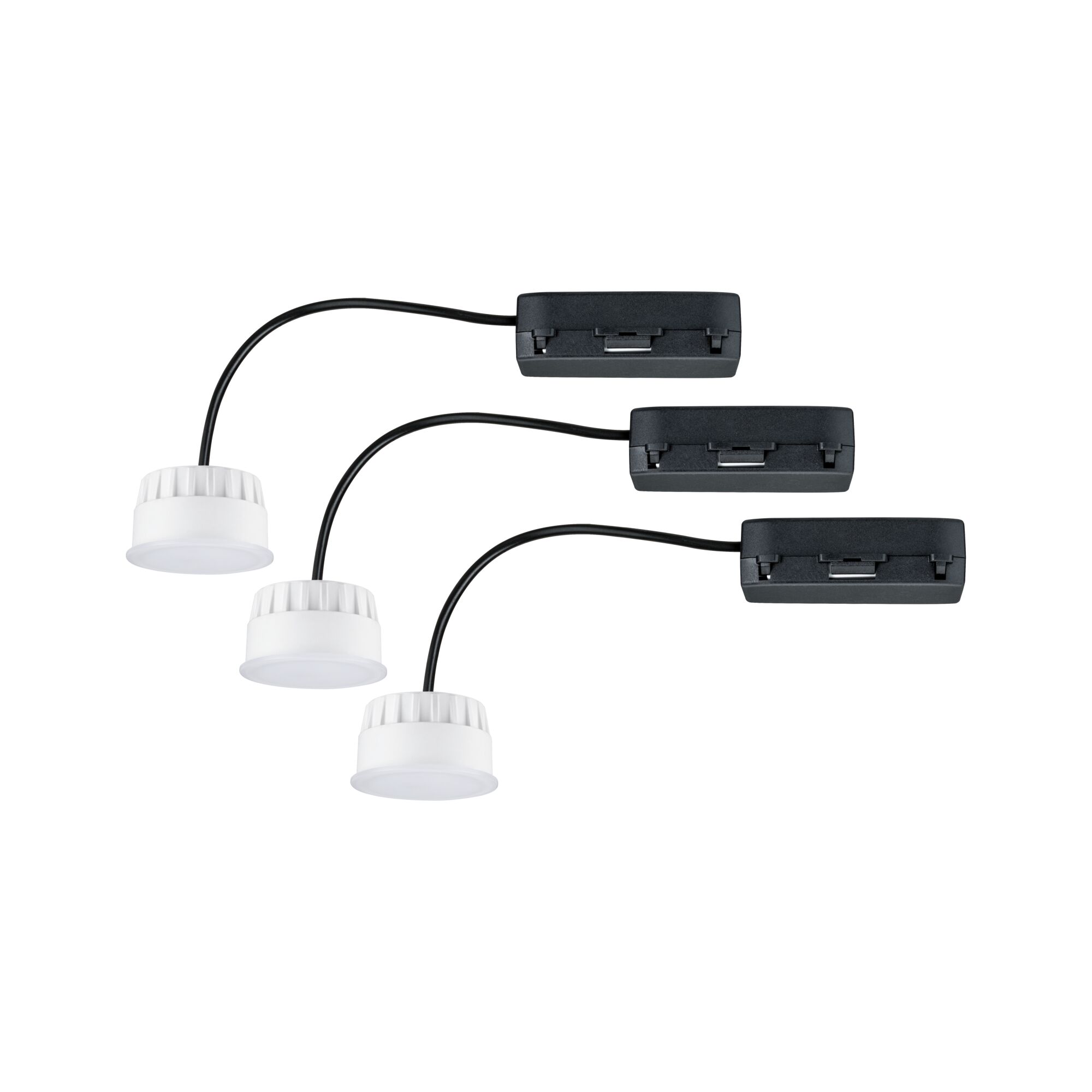

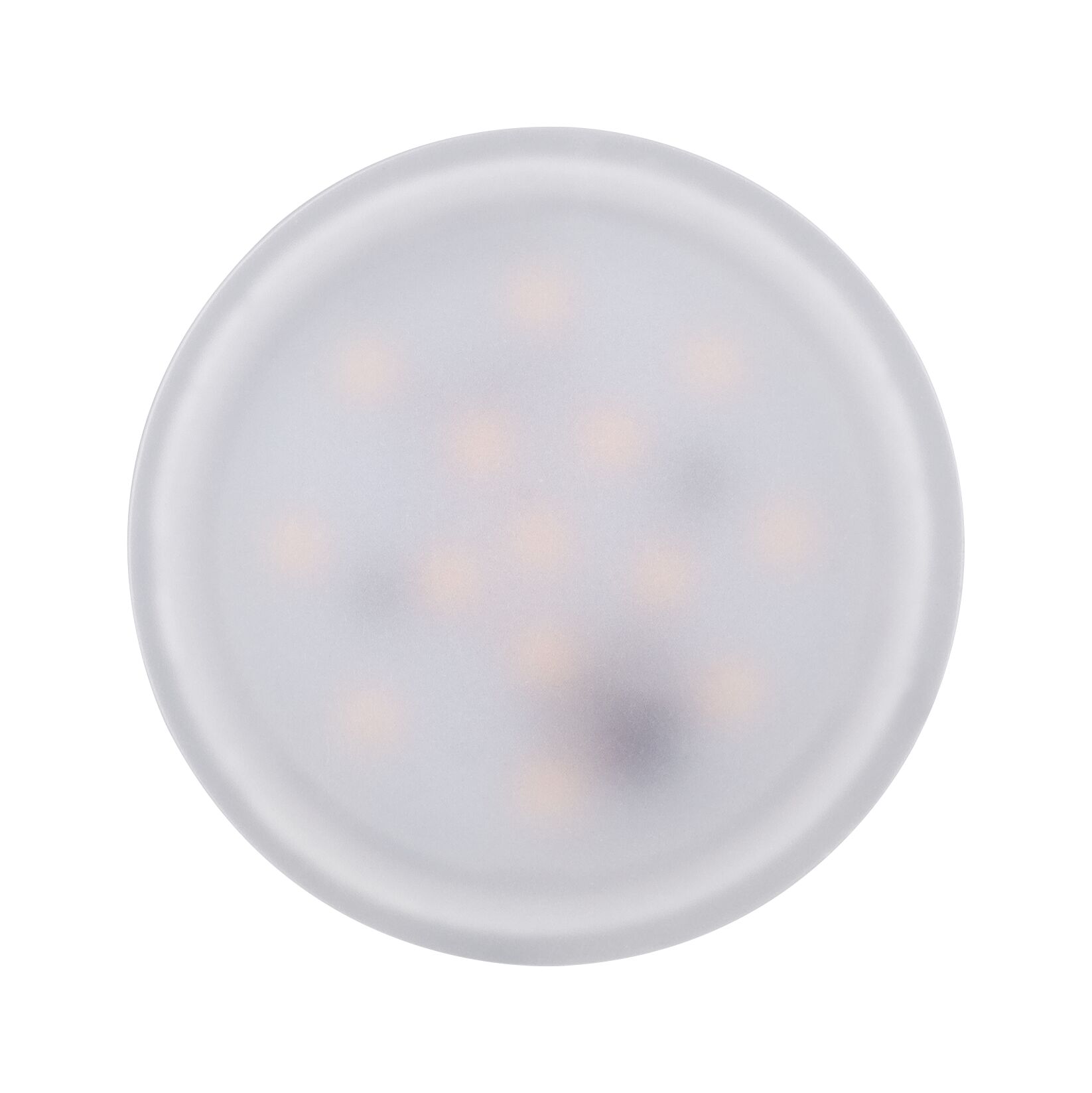

LED Module recessed luminaireEasy Dim
Choose Coin 3-piece set
round 51mm Coin 3x6,5W 3x630lm 230V dimmable 2700K Satin
round 51mm Coin 3x6,5W 3x630lm 230V dimmable 2700K Satin

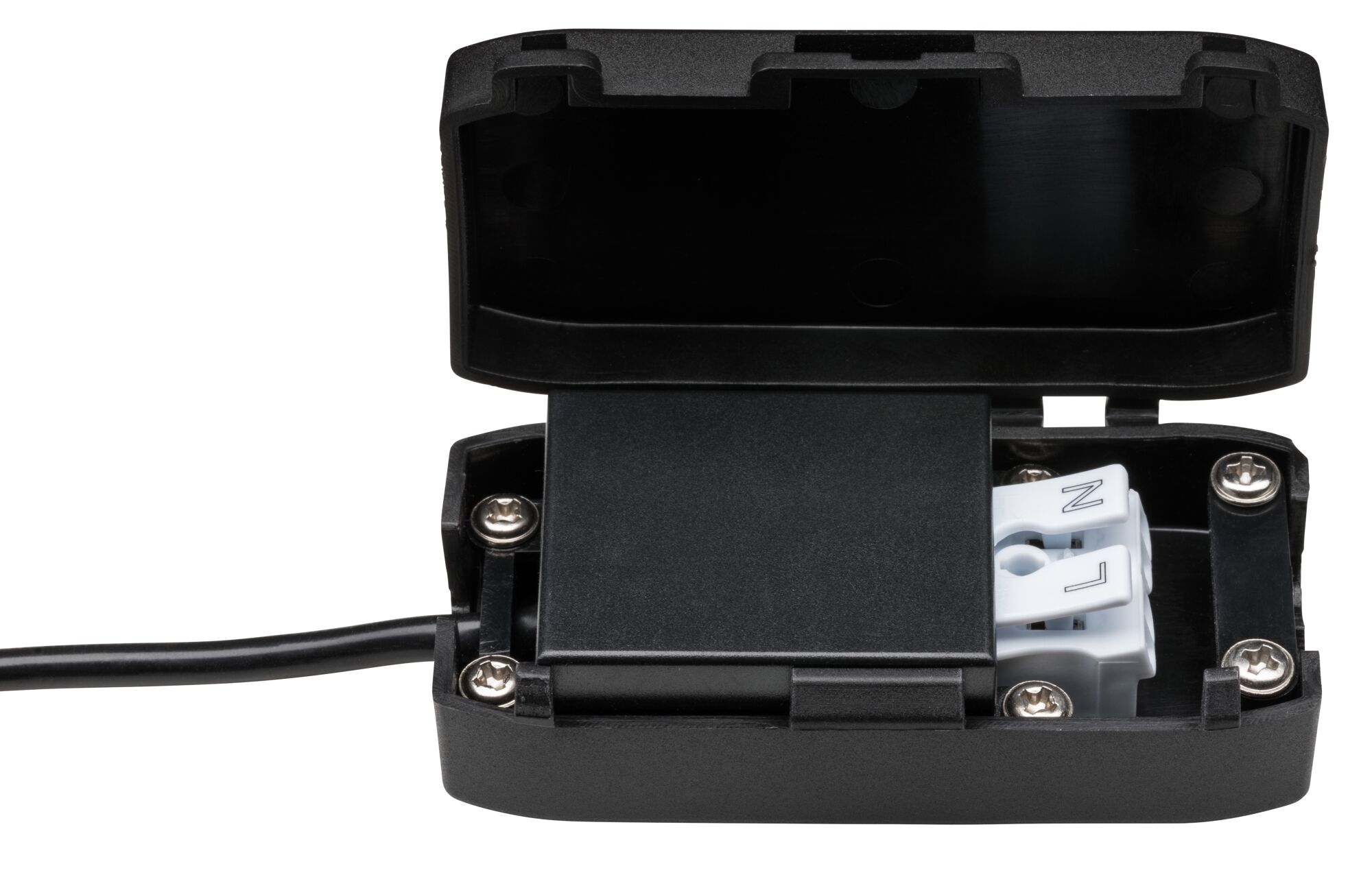

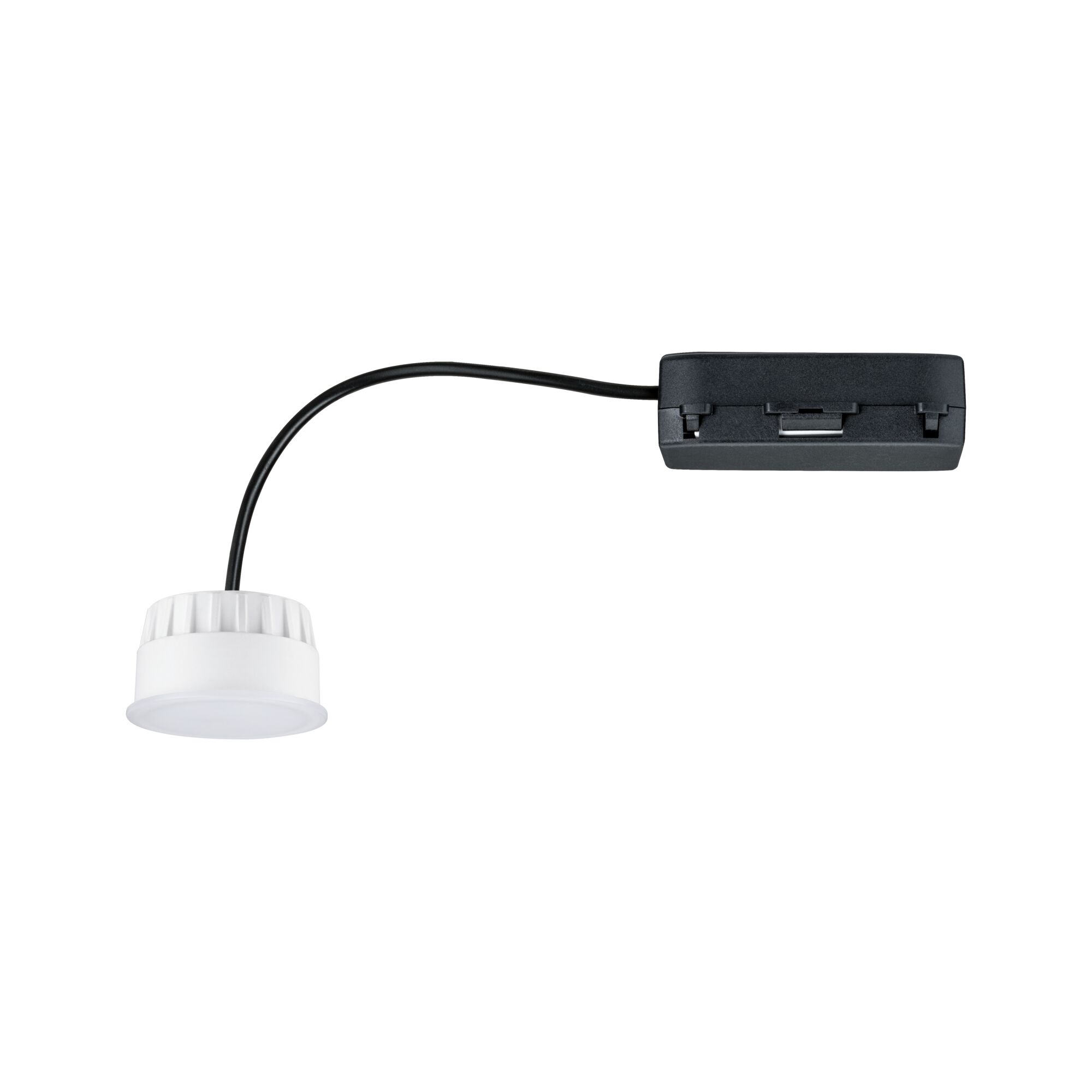

- Set of 3 LED modules and junction box with double terminal

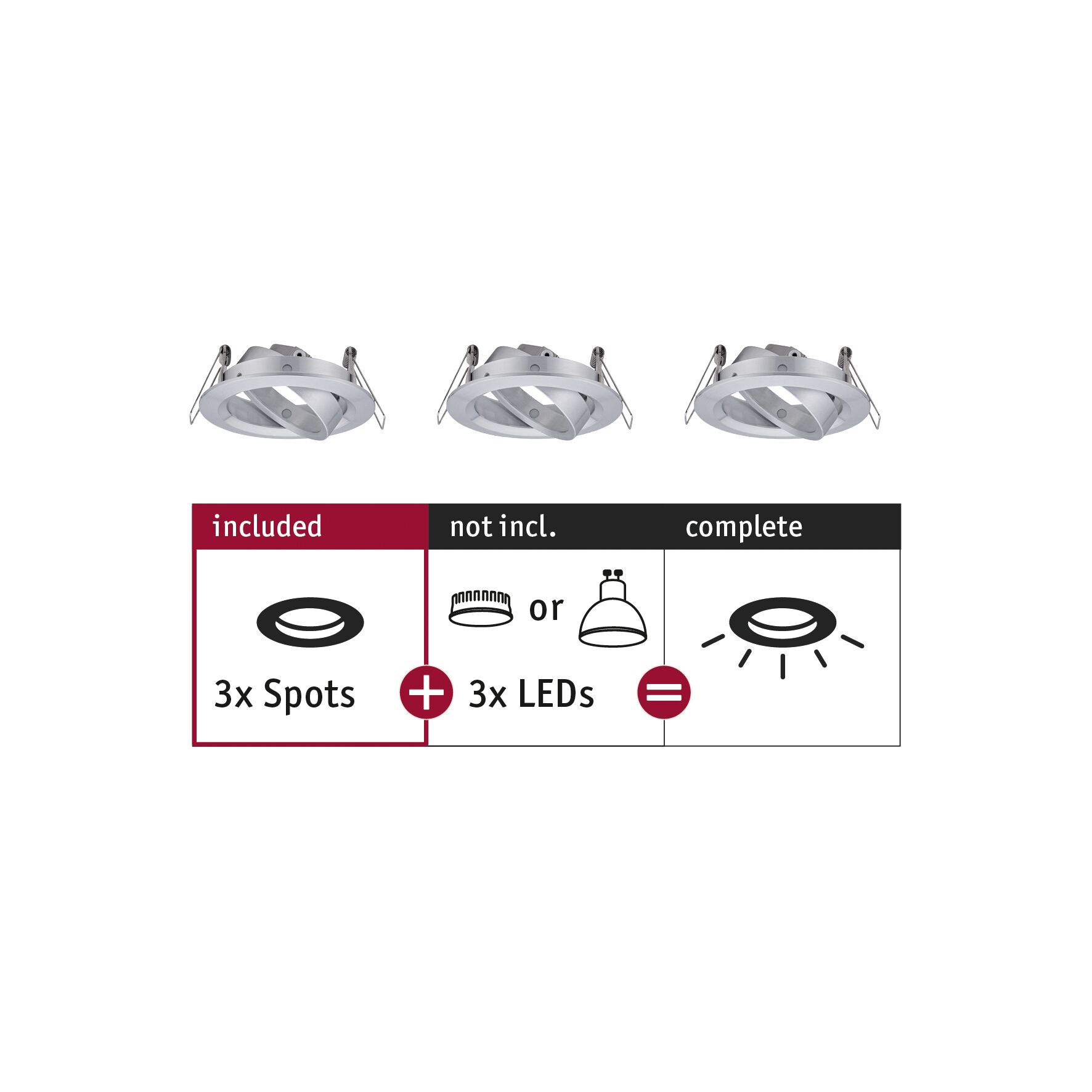

- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
LED Module recessed luminaire Easy Dim Choose Coin 3-piece set round 51mm Coin 3x6,5W 3x630lm 230V dimmable 2700K Satin

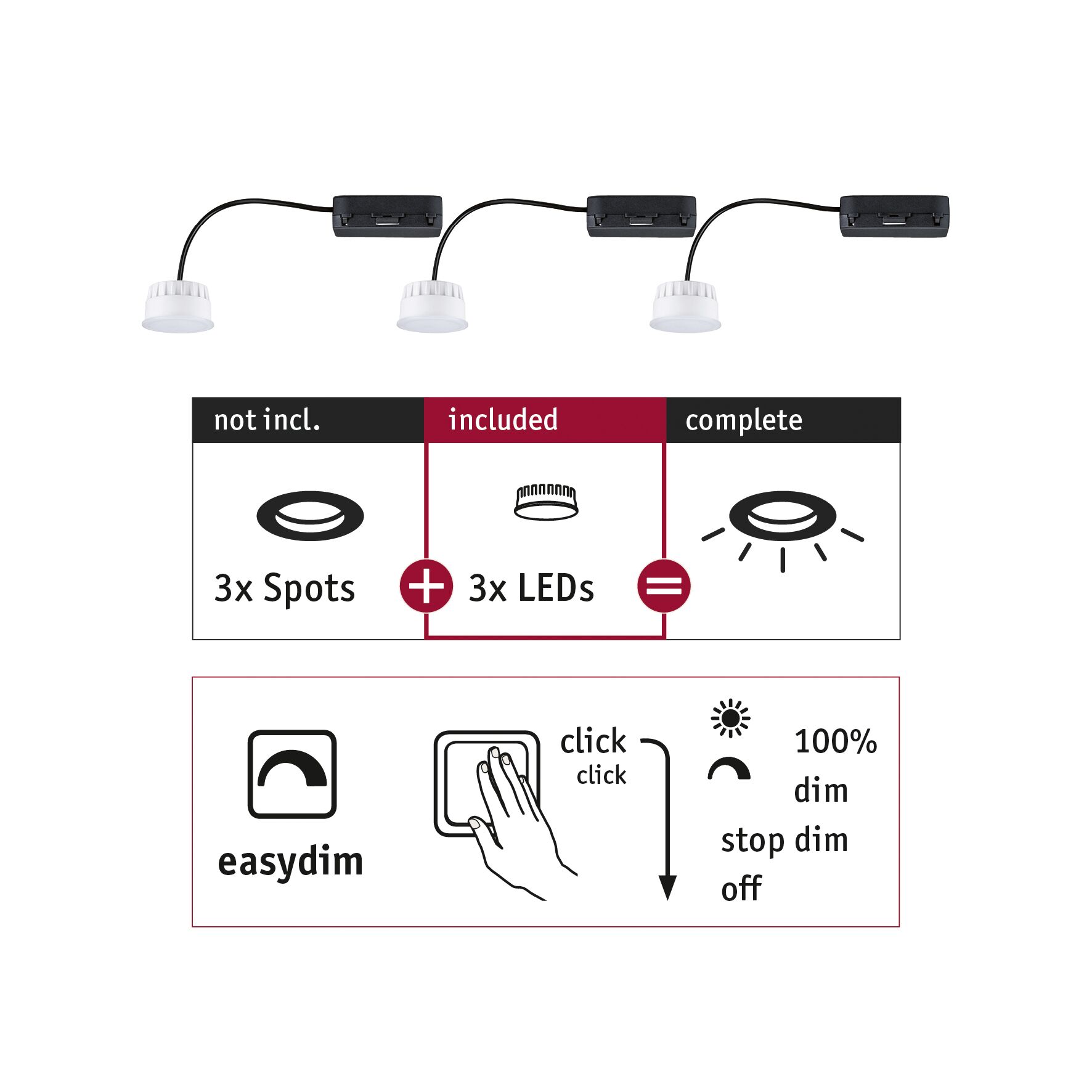

The flat Coin lamps with EasyDim are compatible with all mounting rings from the Choose series. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
| Dimension | |
|---|---|

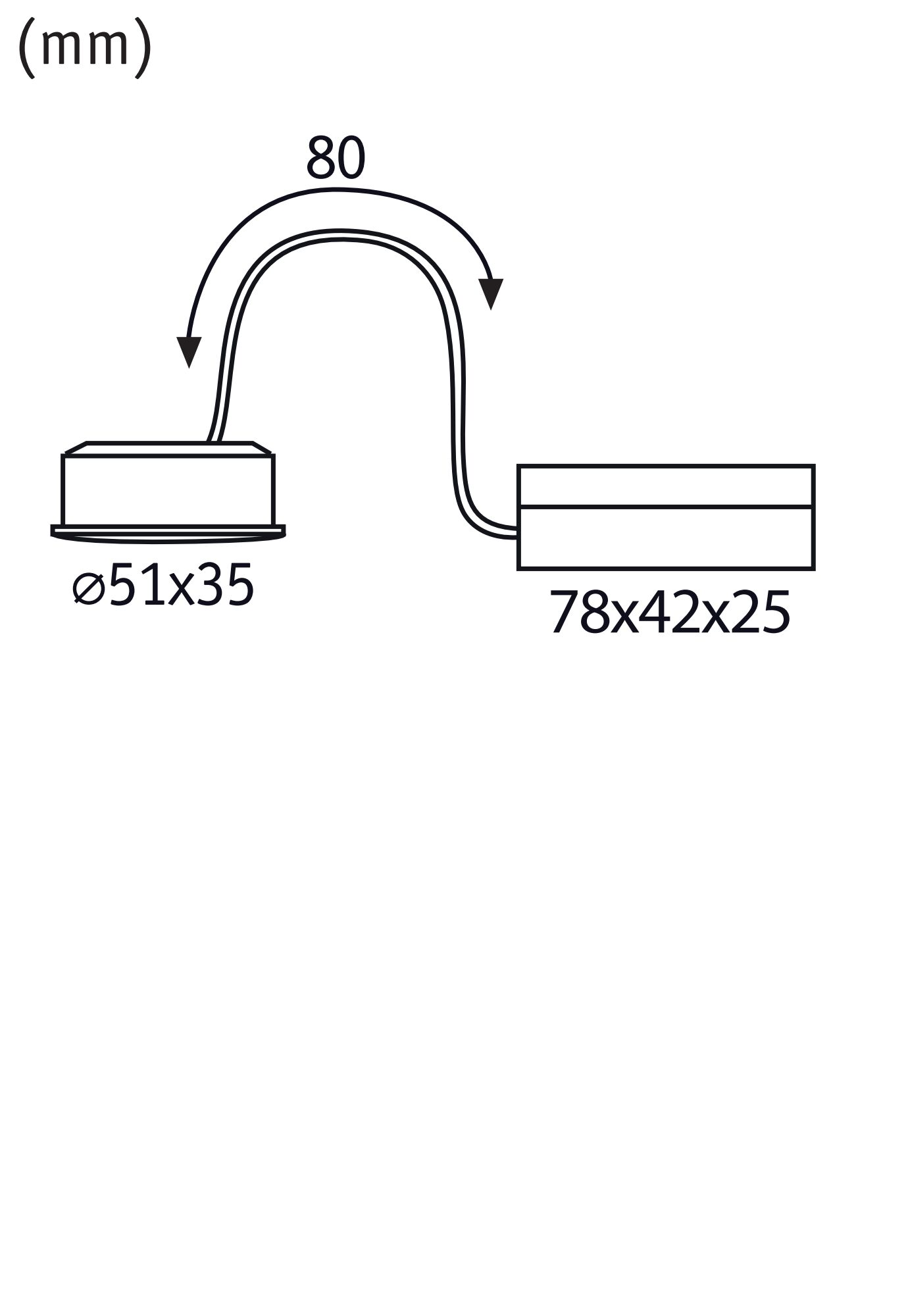

| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 51 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Energy consumption | |
|---|---|

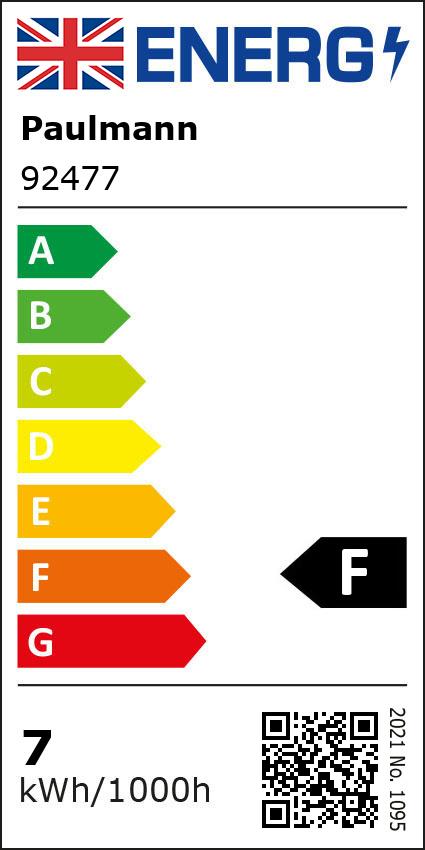

| Energy efficiency (A to G) | F |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 90 % |
| luminous flux at the end of lamplife | 85 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 630 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 630 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |

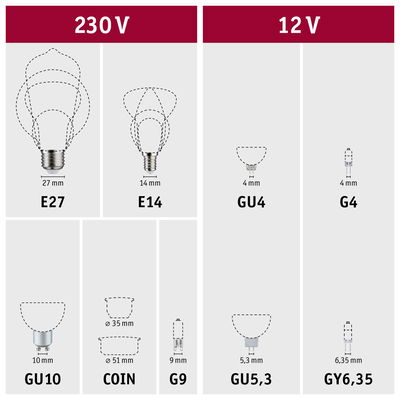

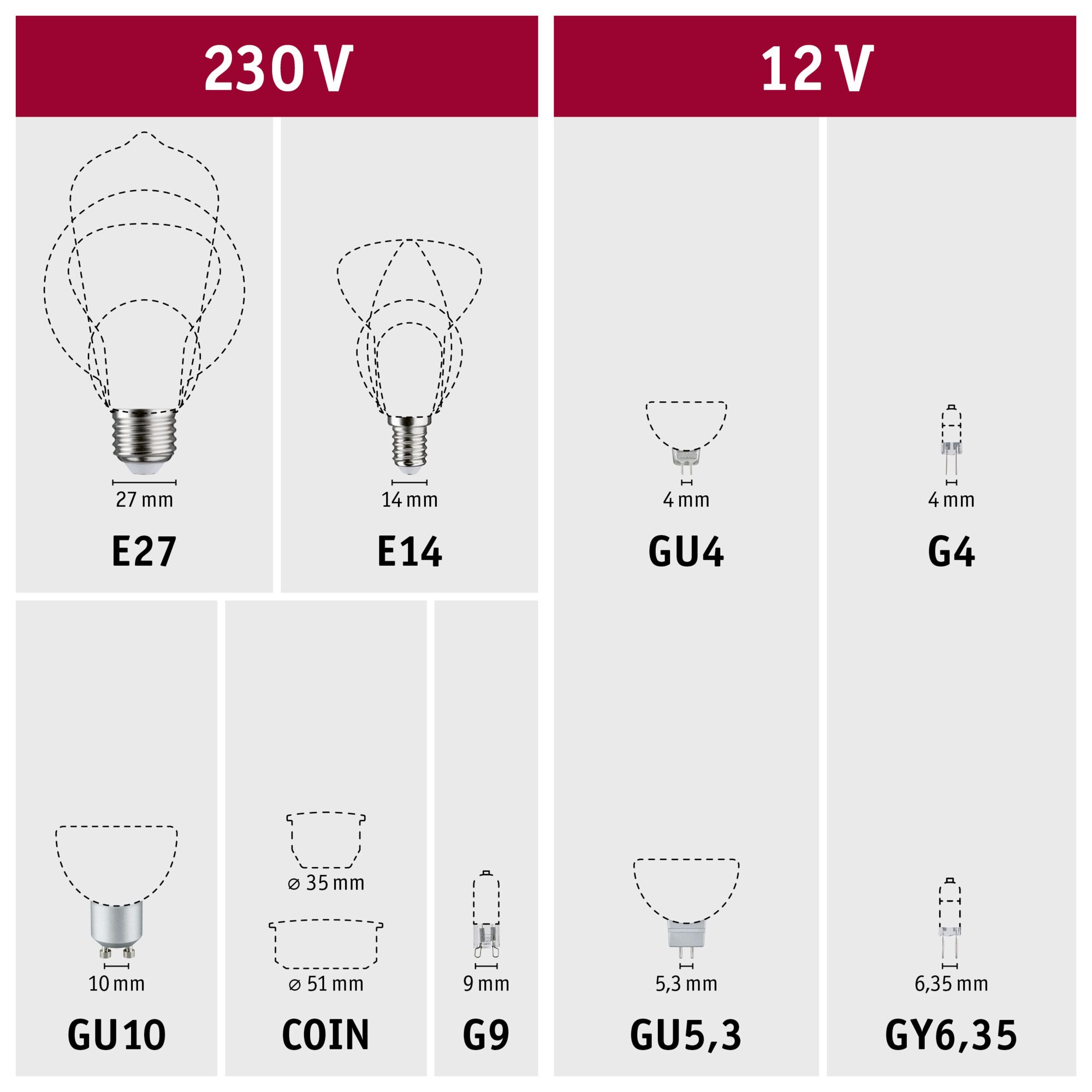

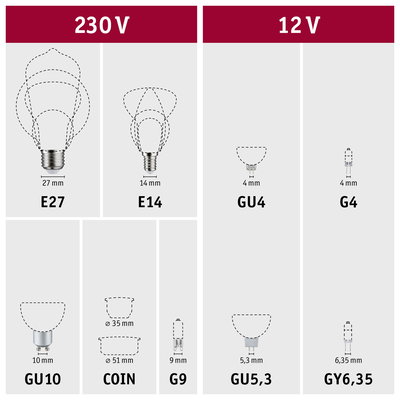

| Socket | Coin |
| Dim | EasyDim |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 50 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 6,5 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
