Article-No.:
92478
LED Module recessed luminaire
Choose Coin 3-piece set White Switch
round 51mm Coin 3x6,5W 3x580lm 230V White Switch Satin
round 51mm Coin 3x6,5W 3x580lm 230V White Switch Satin

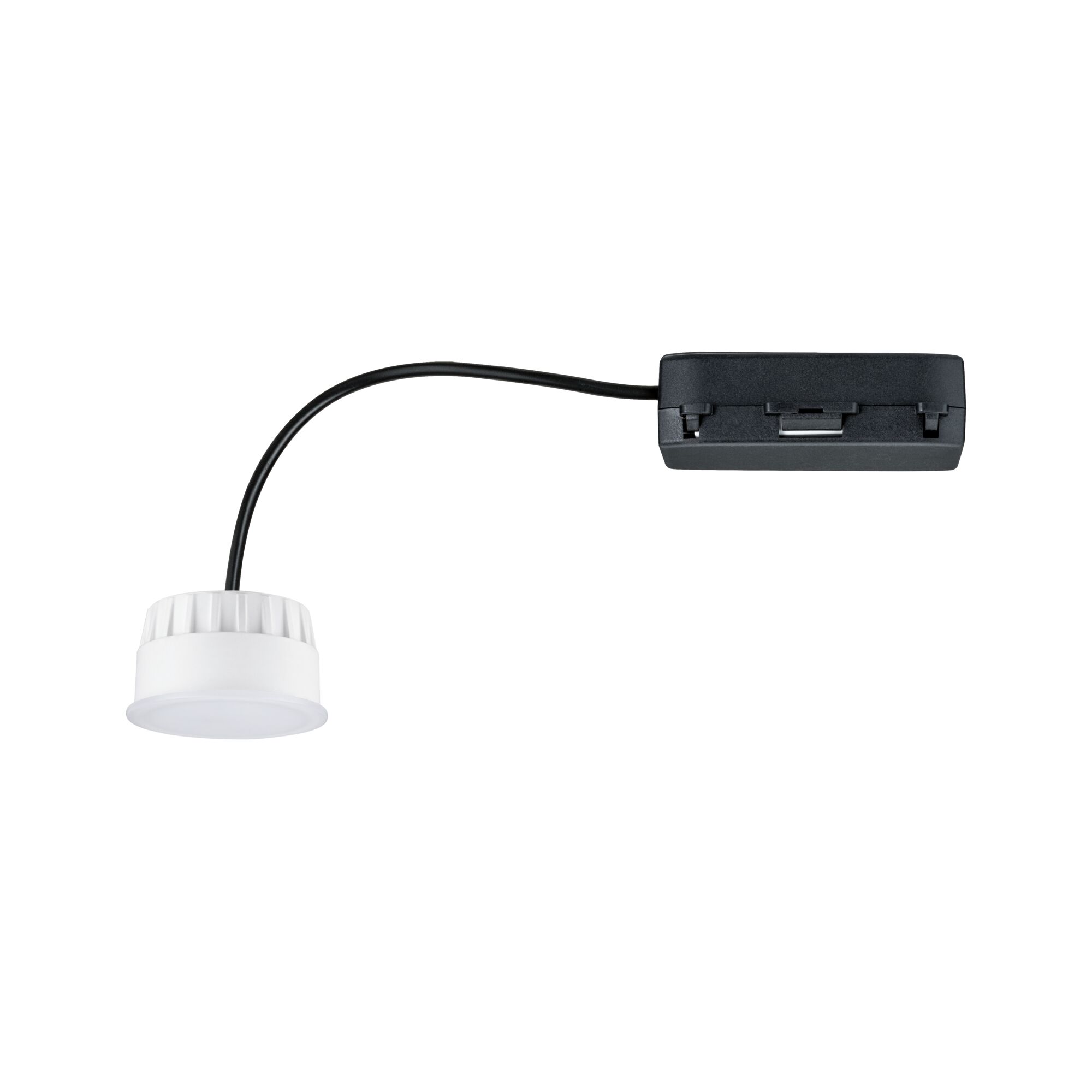

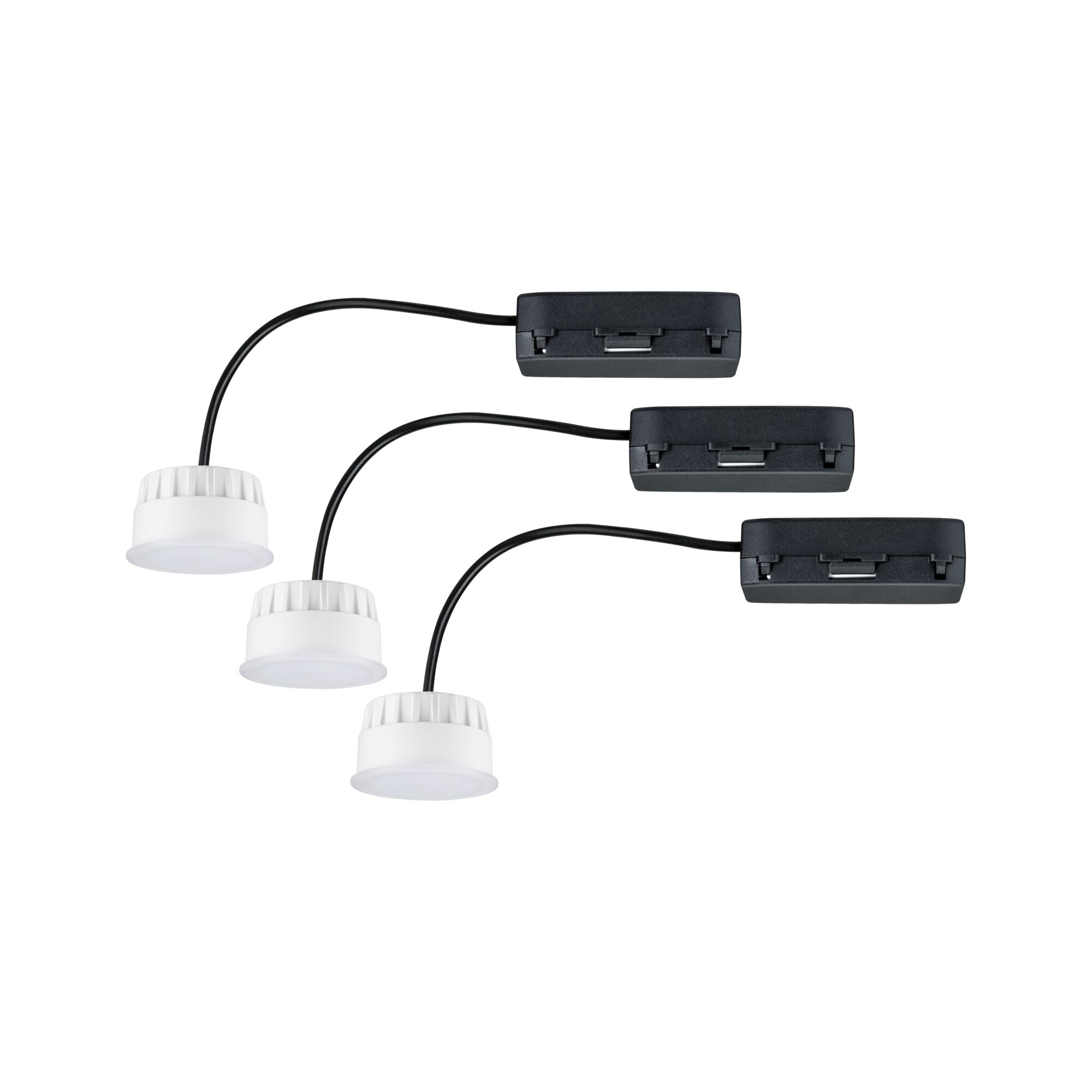

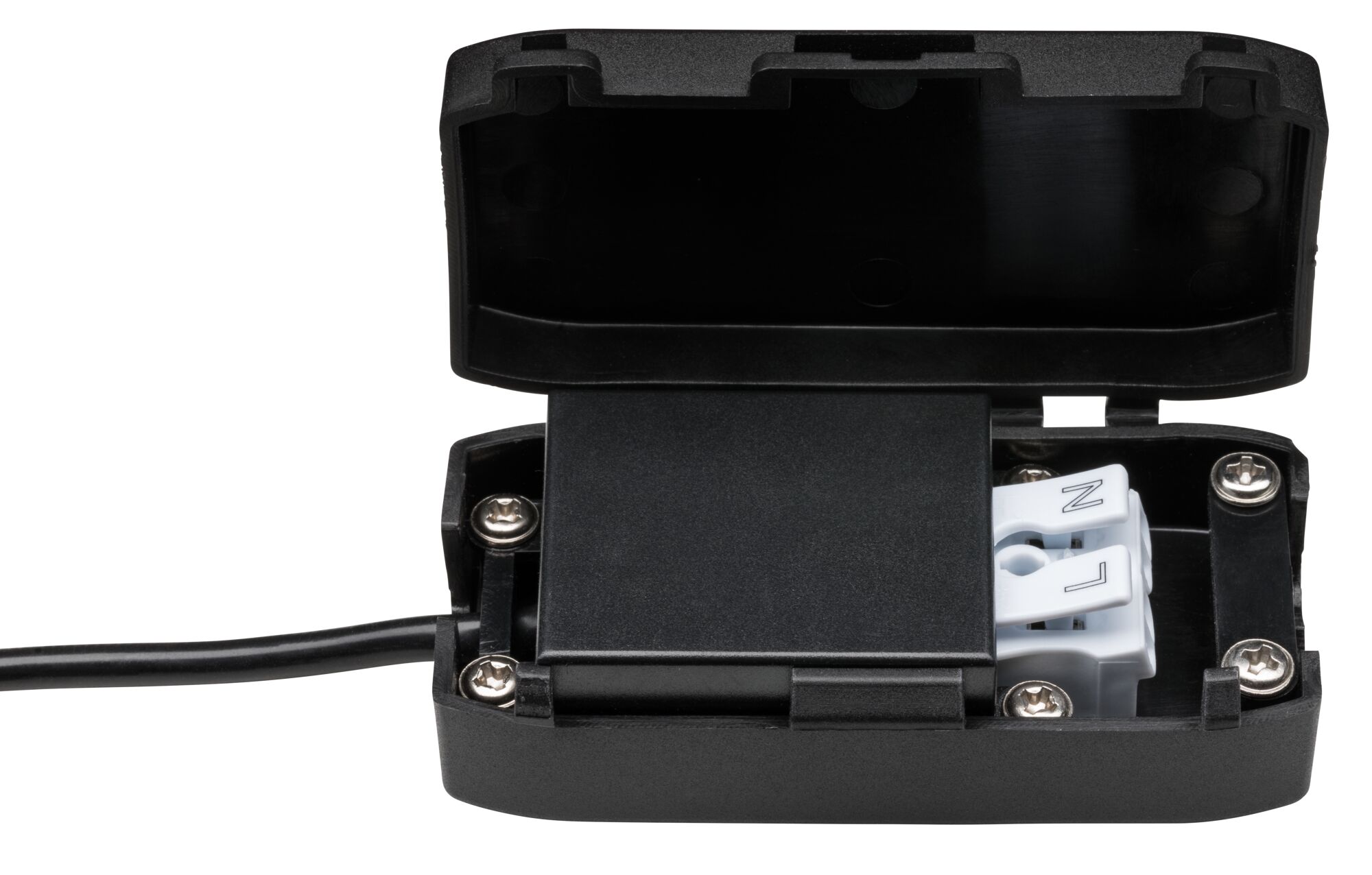

- Set of 3 LED modules and junction box with double terminal

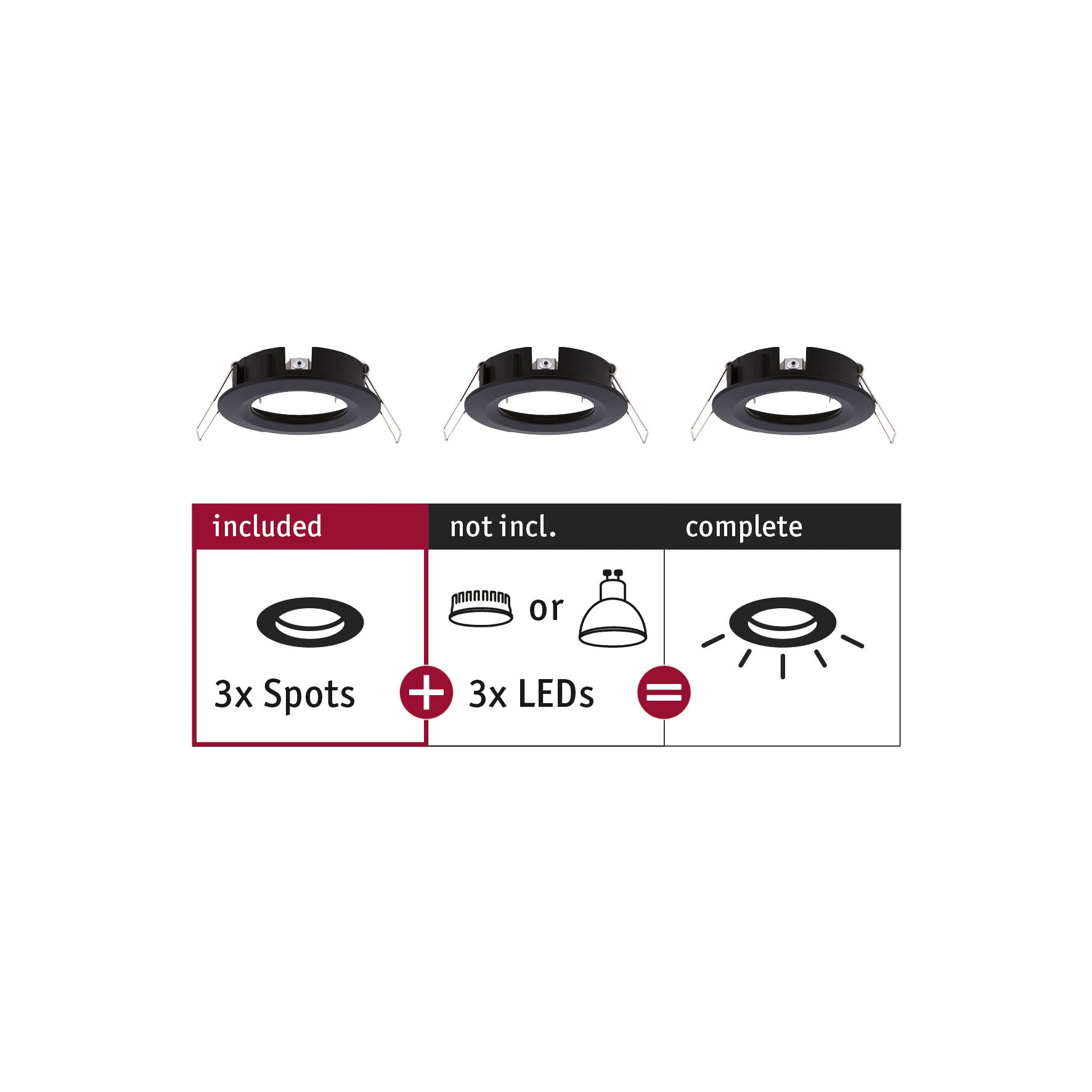

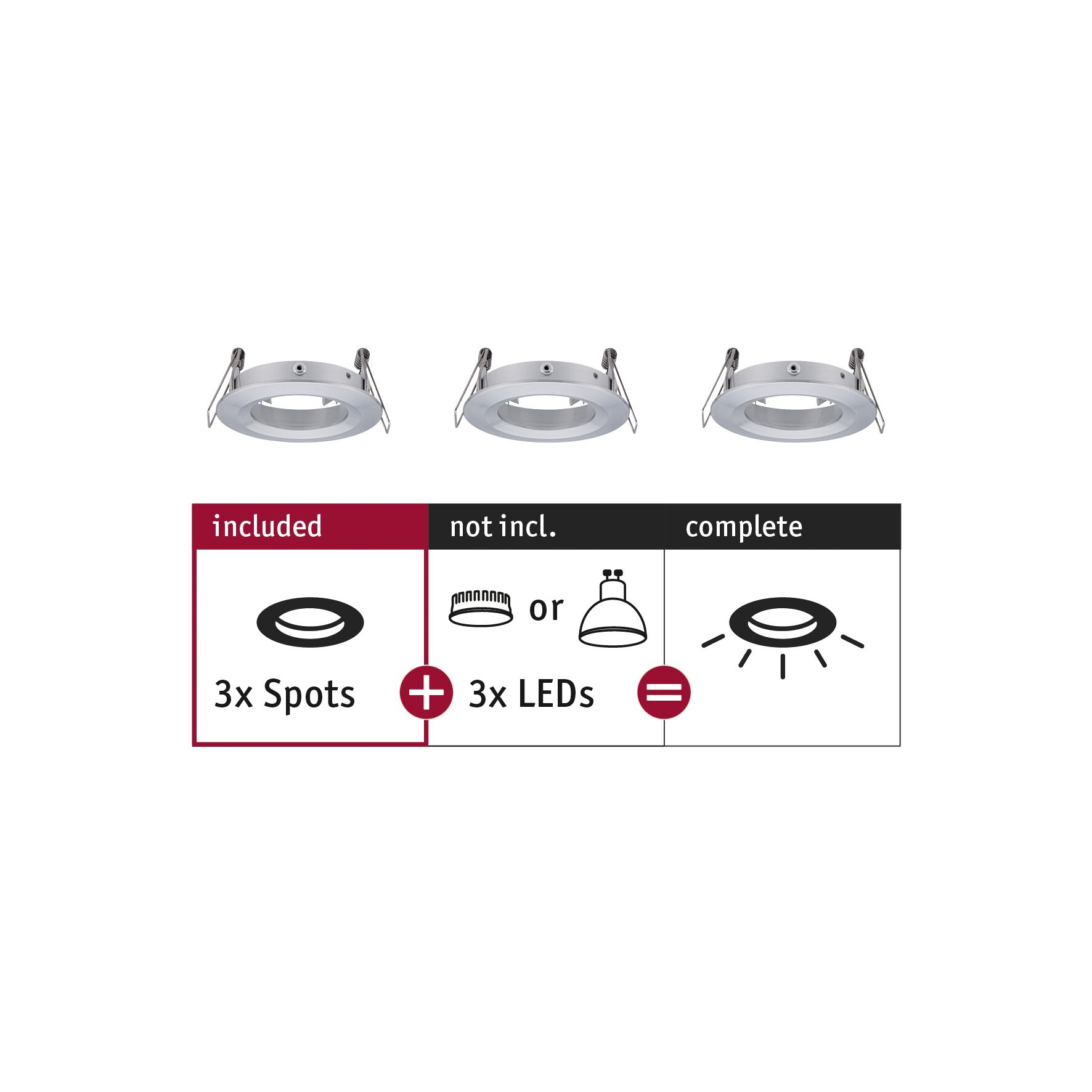

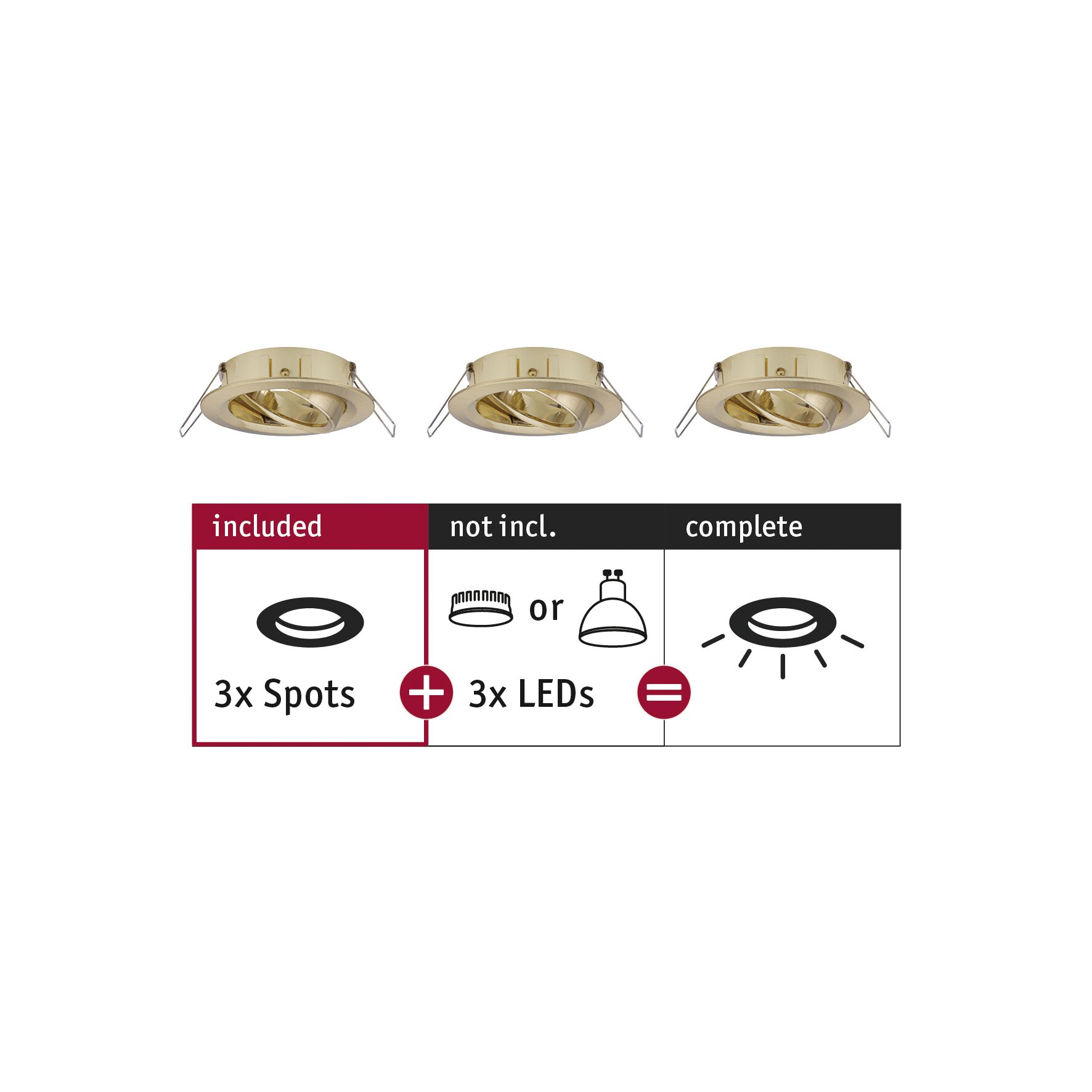

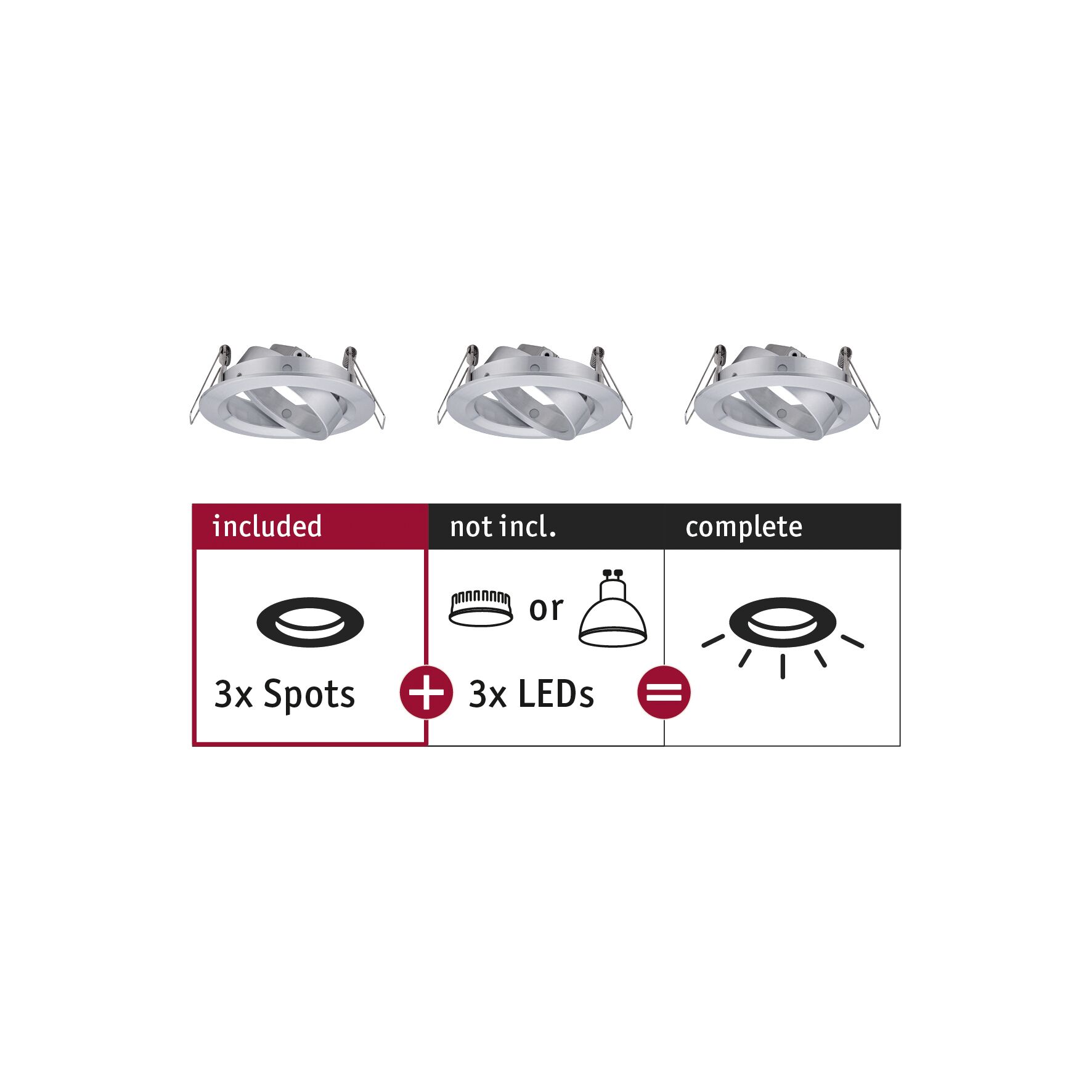

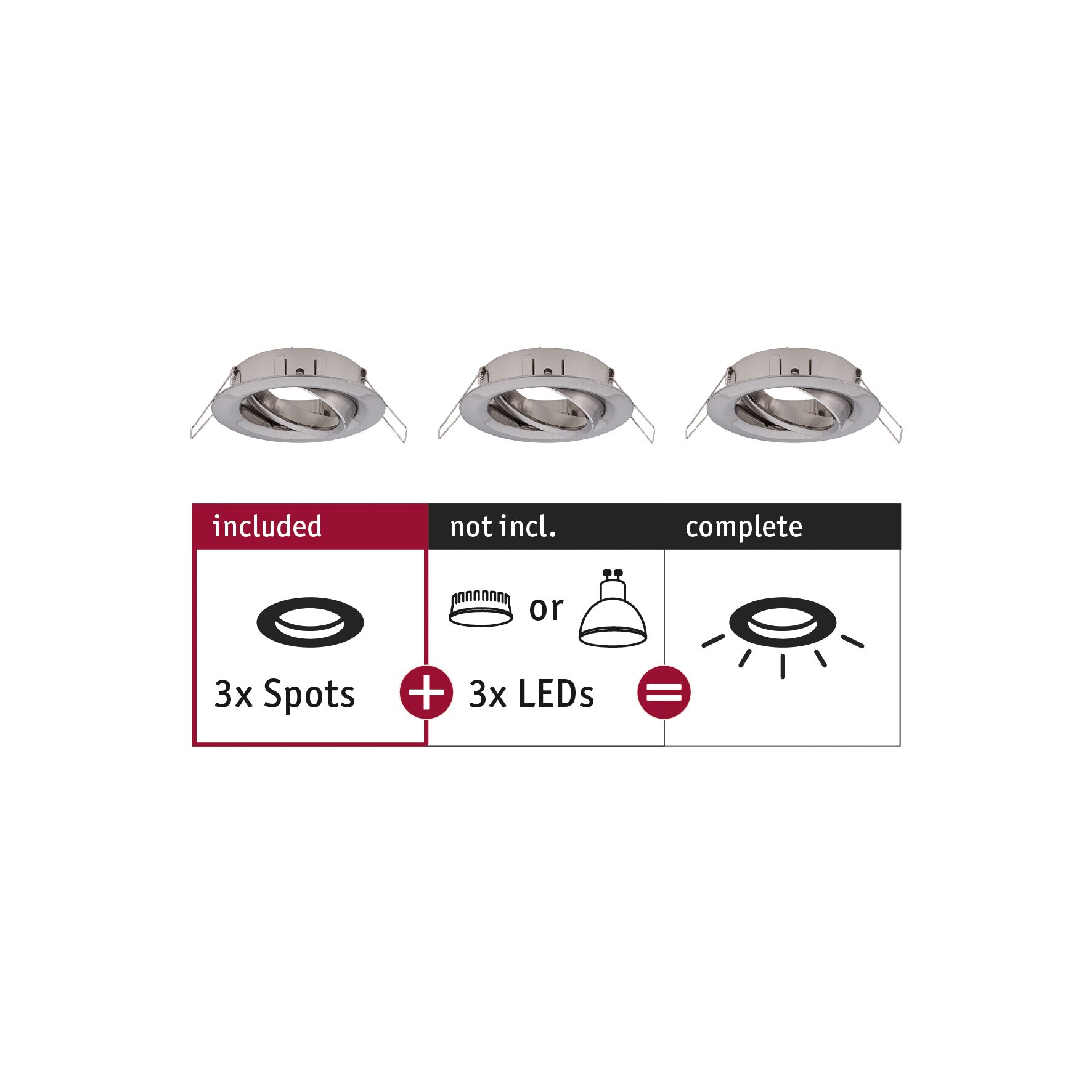

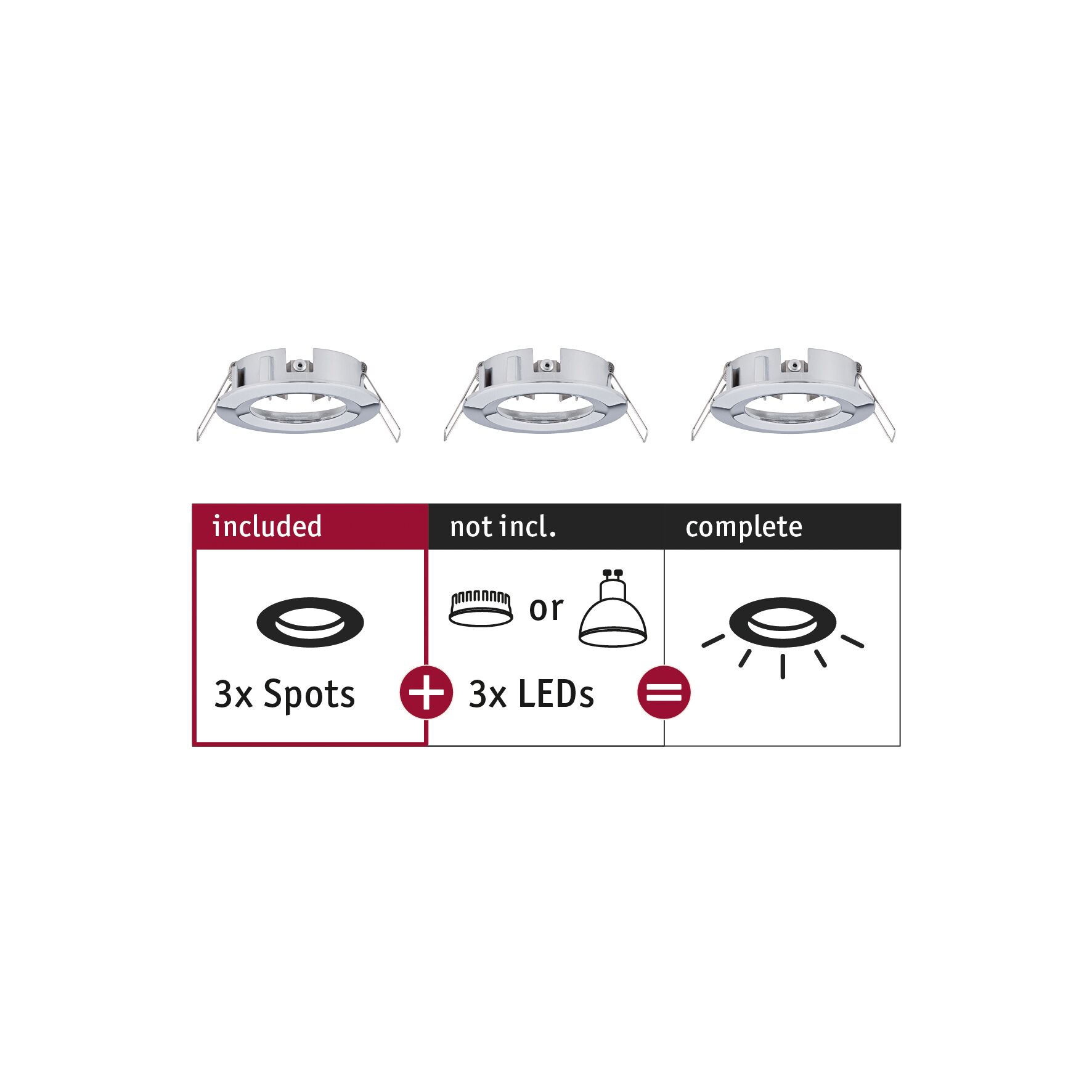

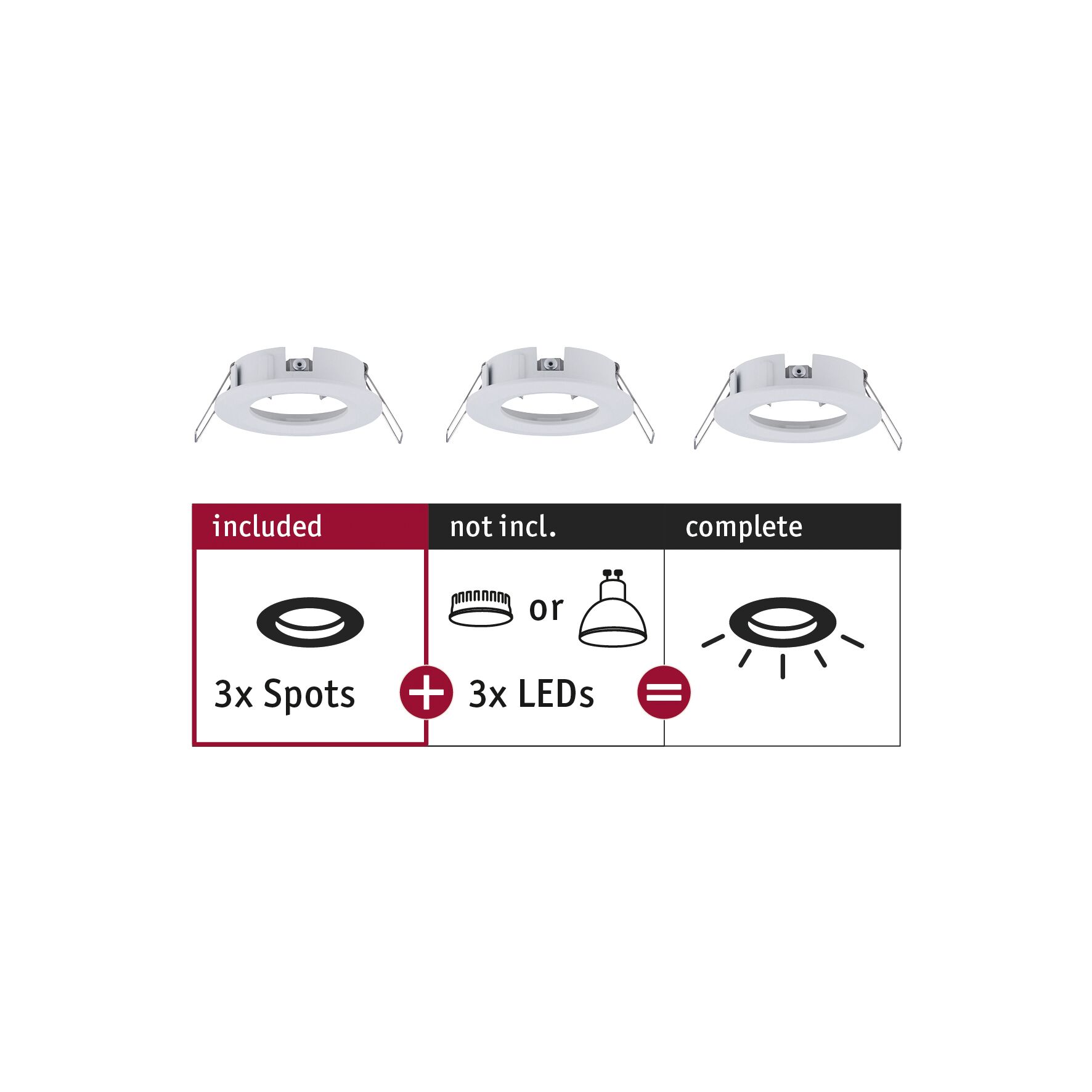

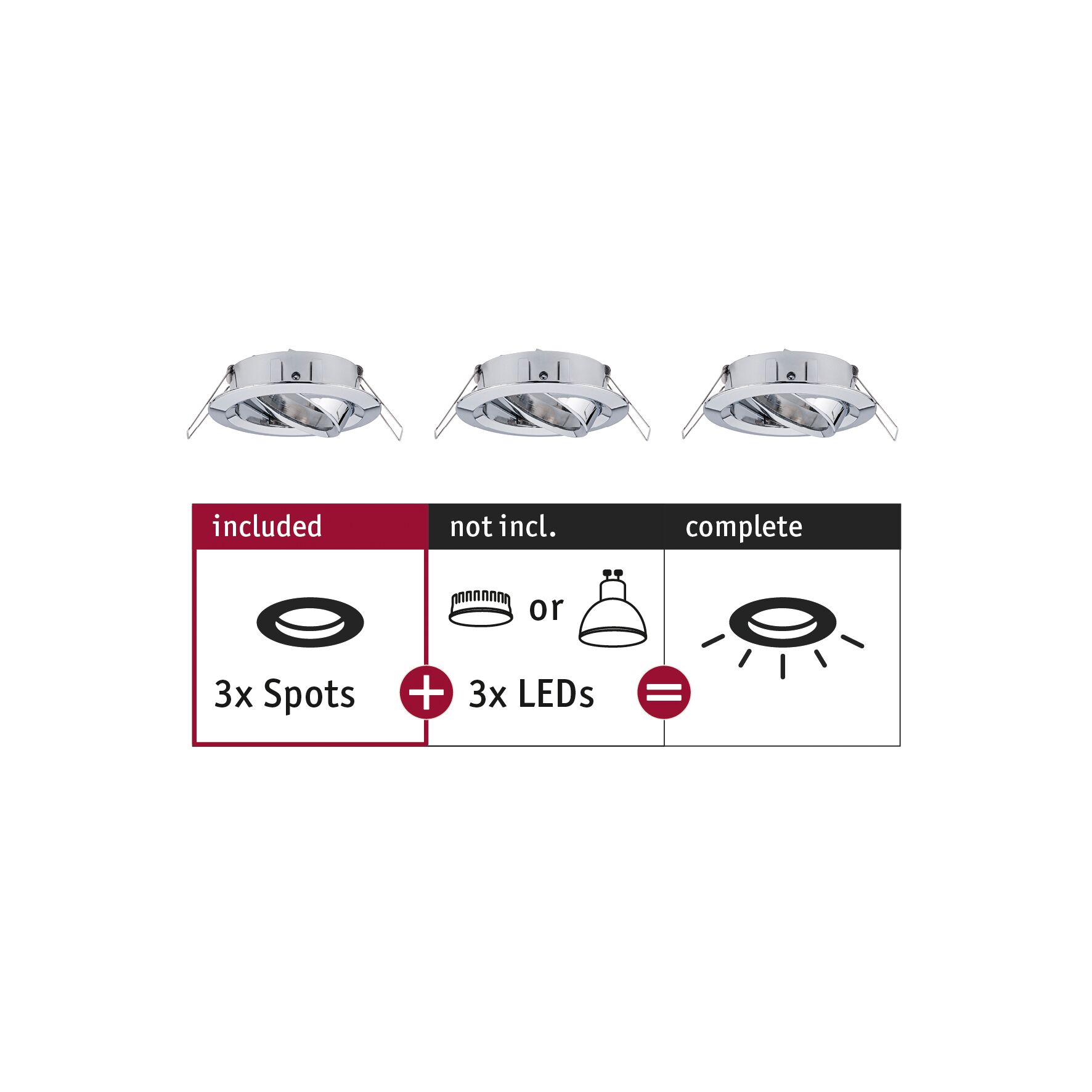

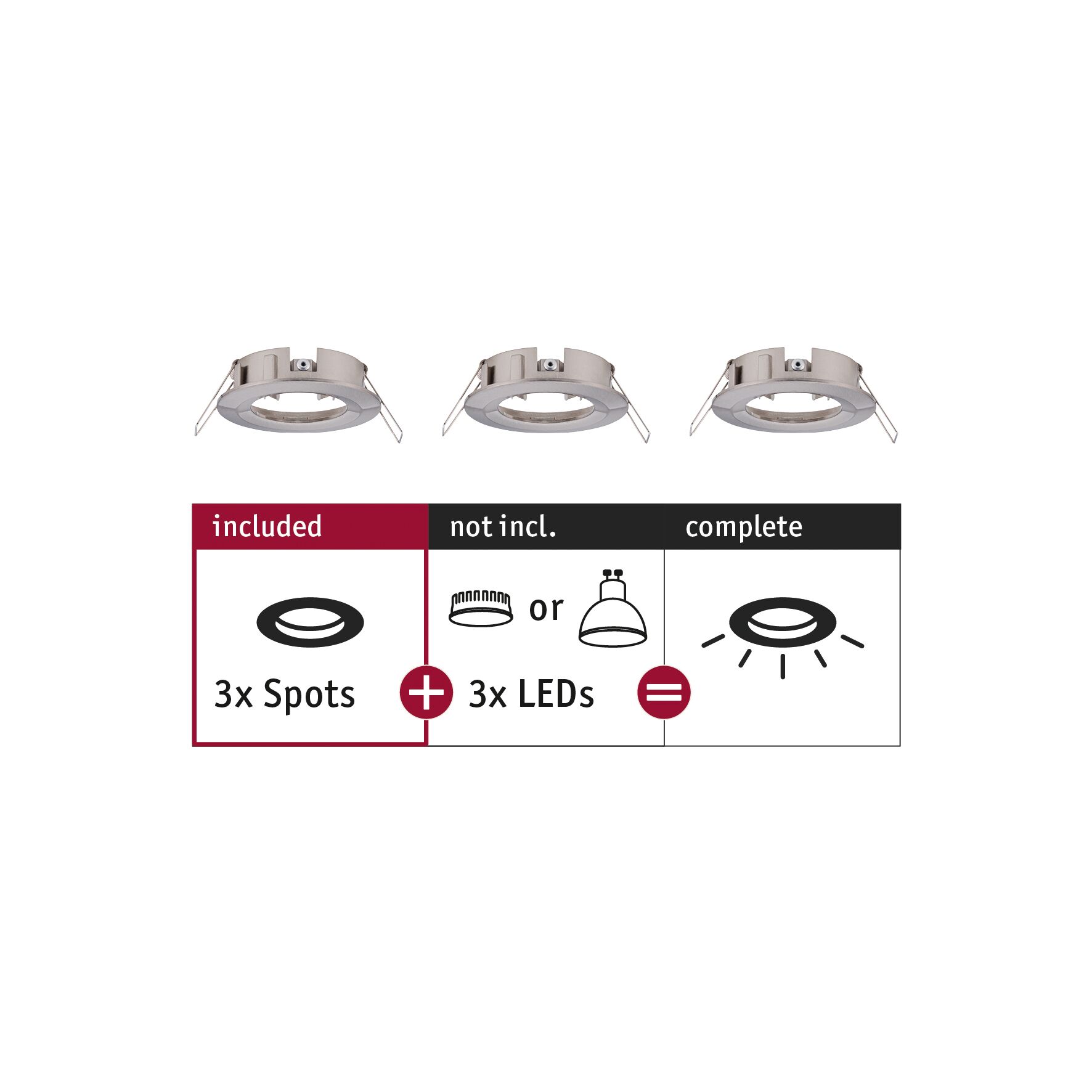

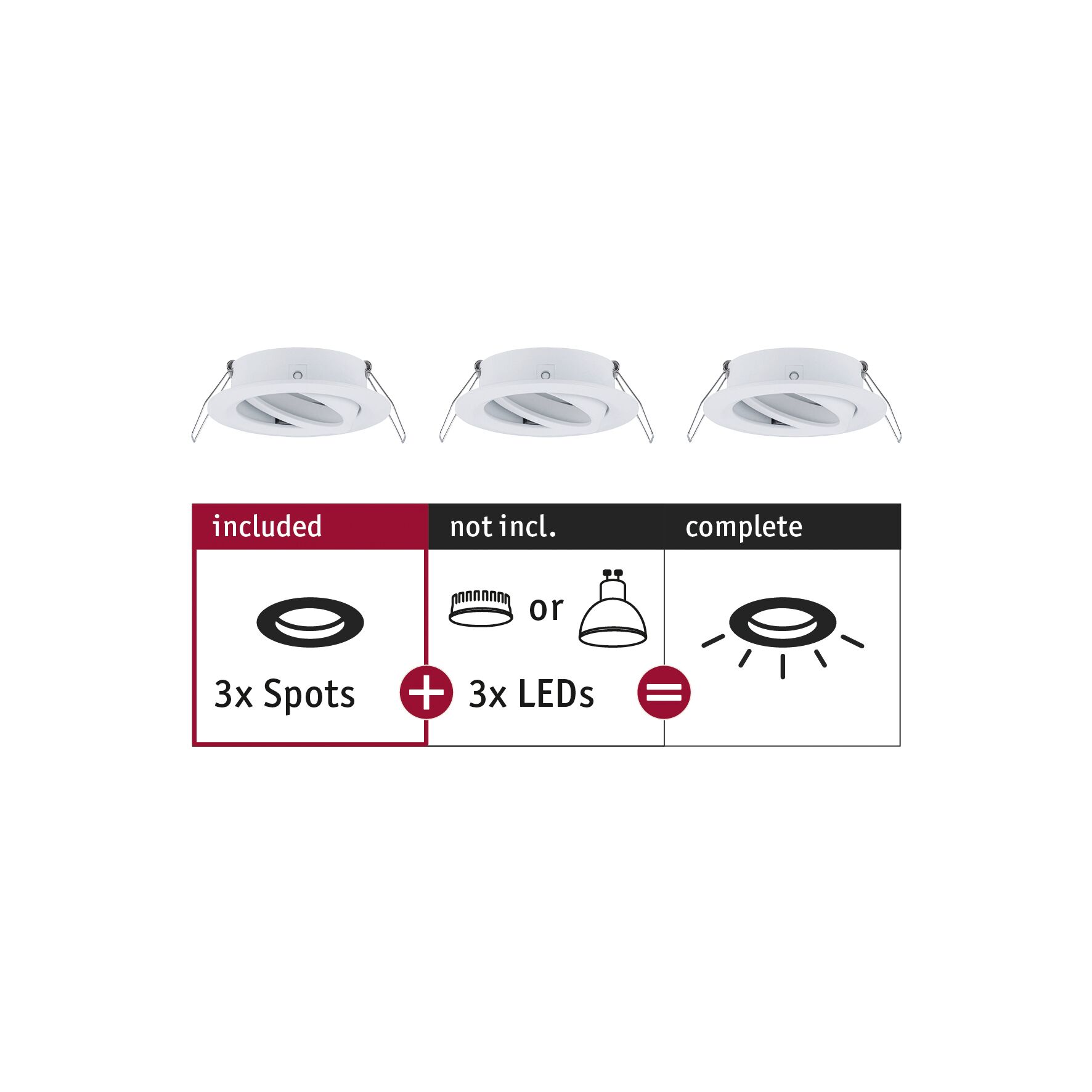

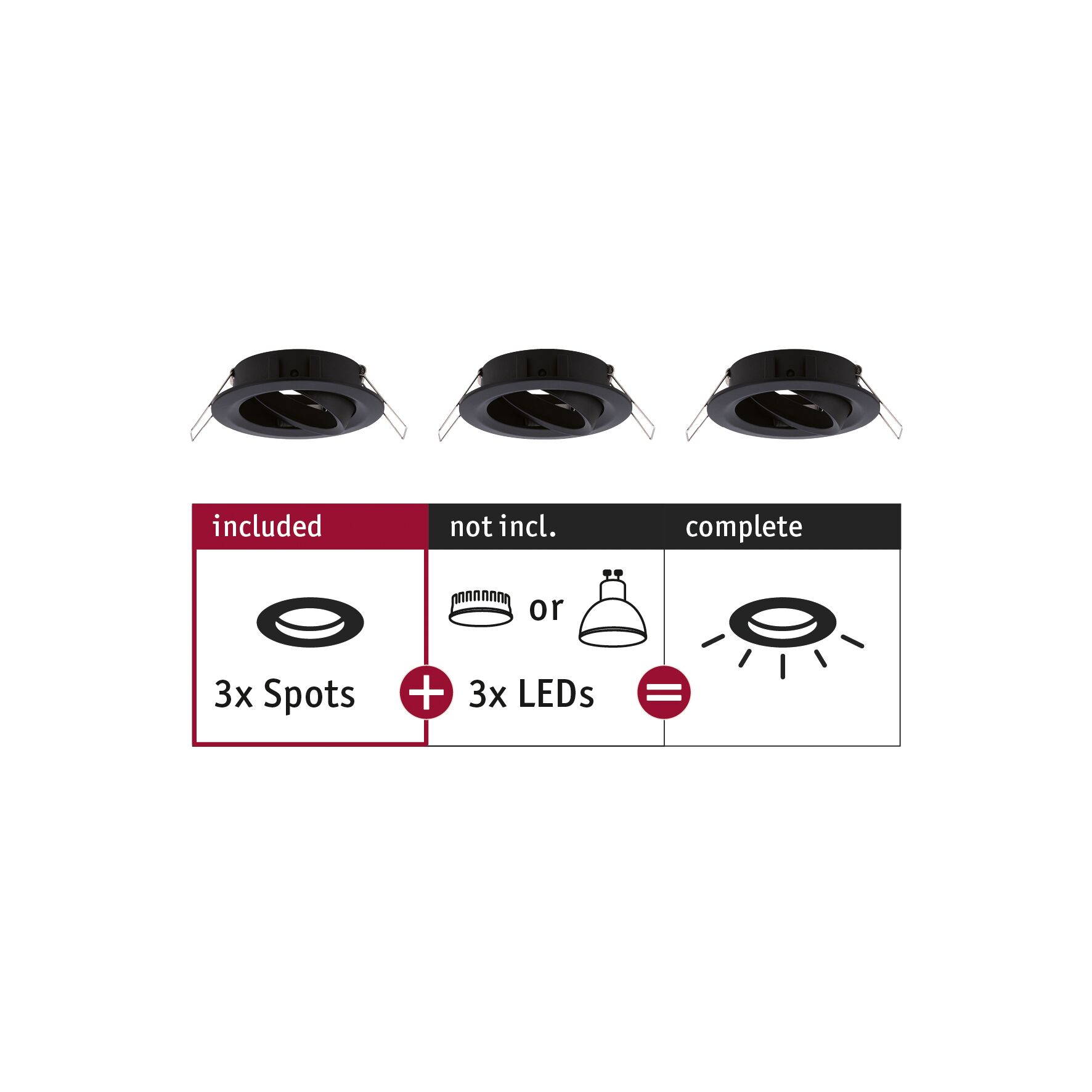

- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
LED Module recessed luminaire Choose Coin 3-piece set White Switch round 51mm Coin 3x6,5W 3x580lm 230V White Switch Satin

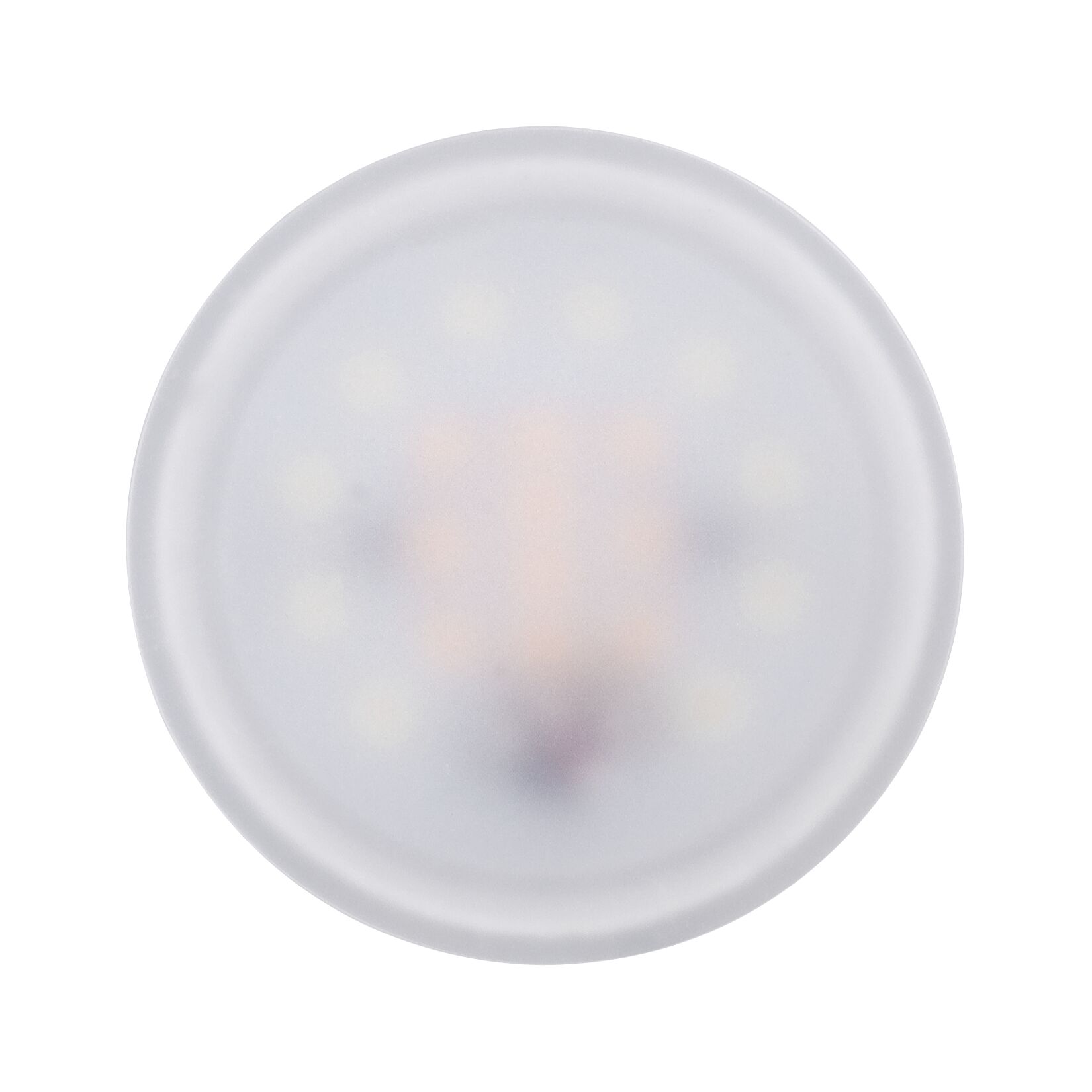

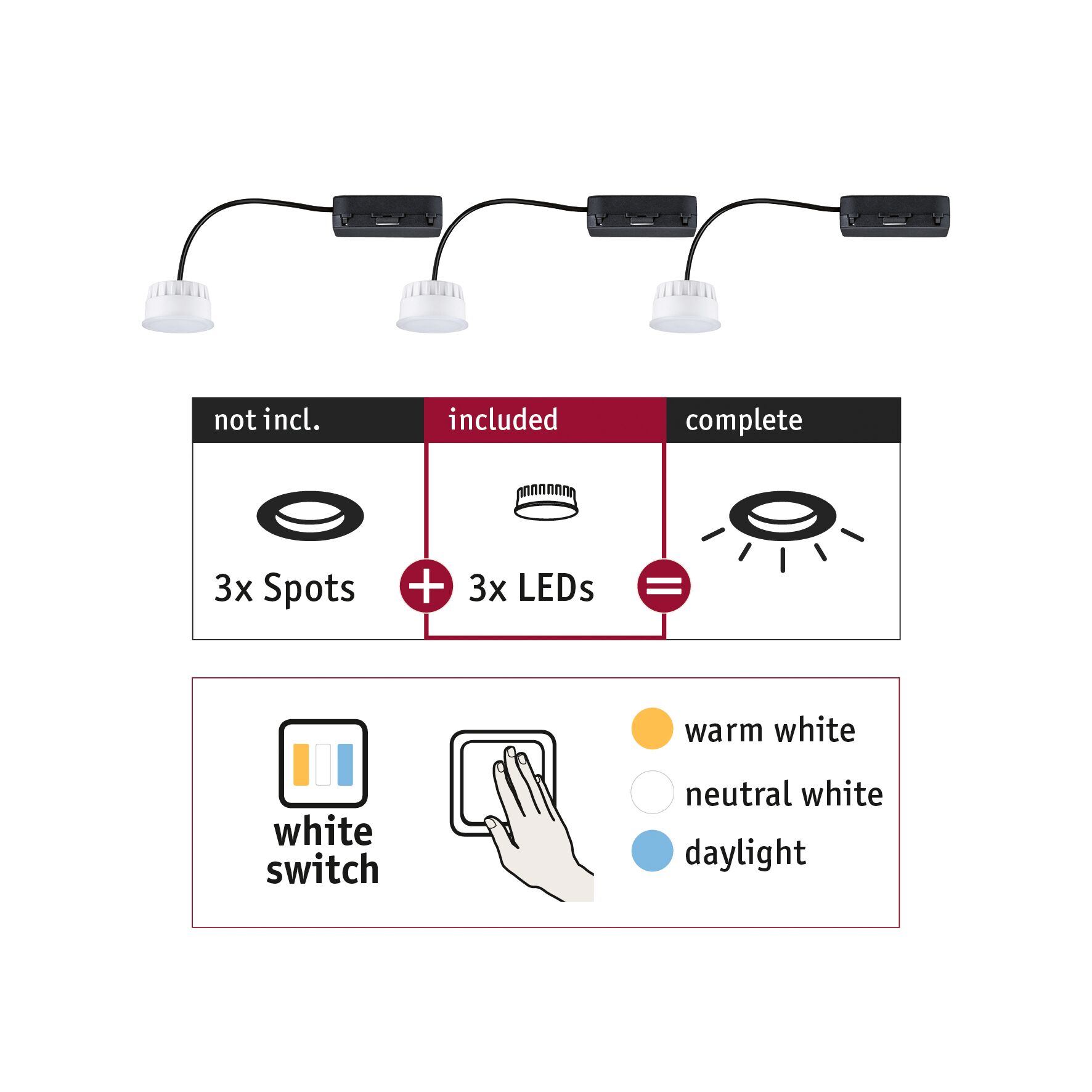

The flat Coin lamps with WhiteSwitch are compatible with all mounting rings from the Choose series. The integrated WhiteSwitch function offers three-step adjustment of the light colour with multiple pushes of a regular commercial light switch. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times

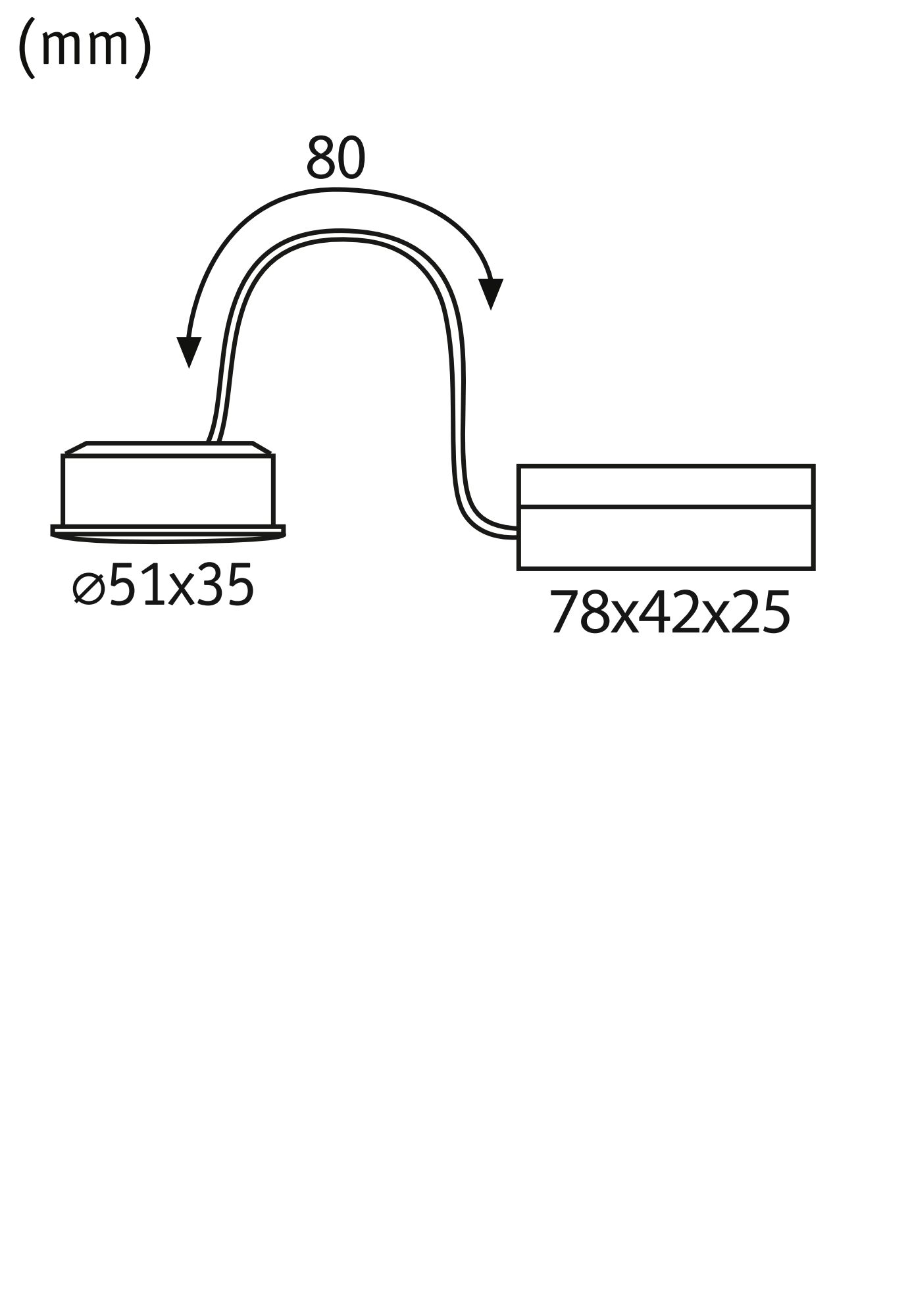

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 51 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 90 % |
| luminous flux at the end of lamplife | 85 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | White Switch |
| Beam angle | 100 ° |
| Usable luminous flux | 580 lm |
| useful luminous flux 2 | 620 lm |
| color temp | 2700 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 580 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |

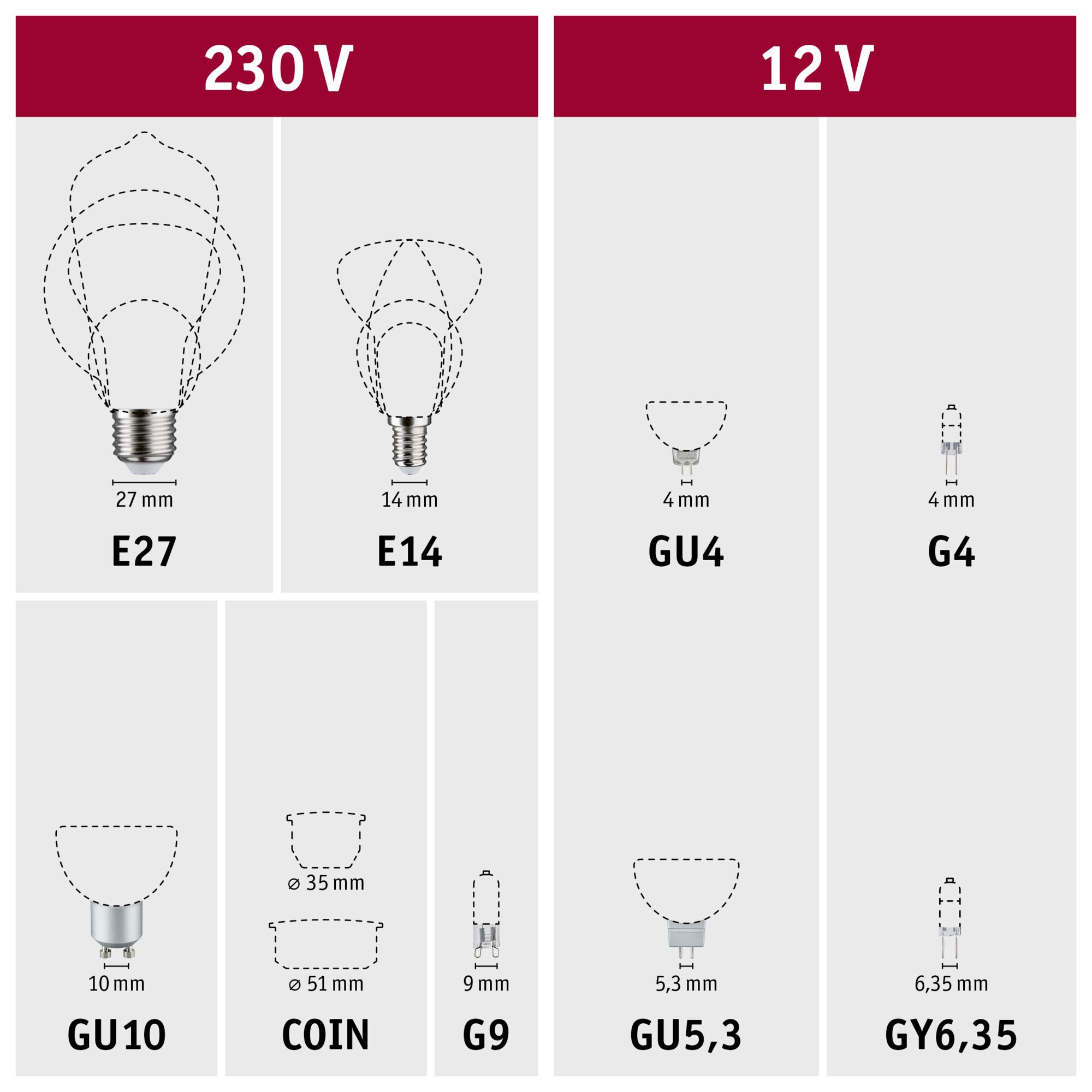

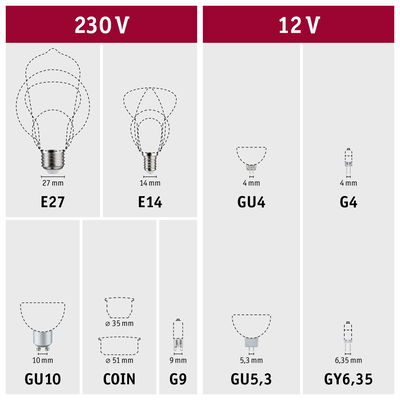

| Socket | Coin |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 49 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 6,5 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
