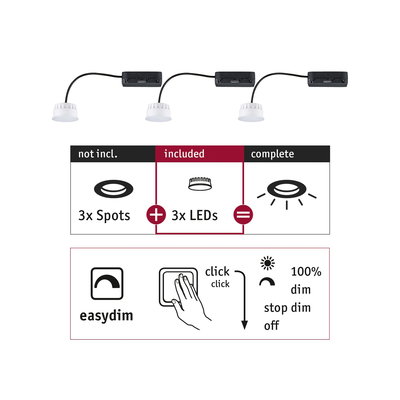

Three white LED modules with black cable and connector, including dimmer function for LED spotlights.

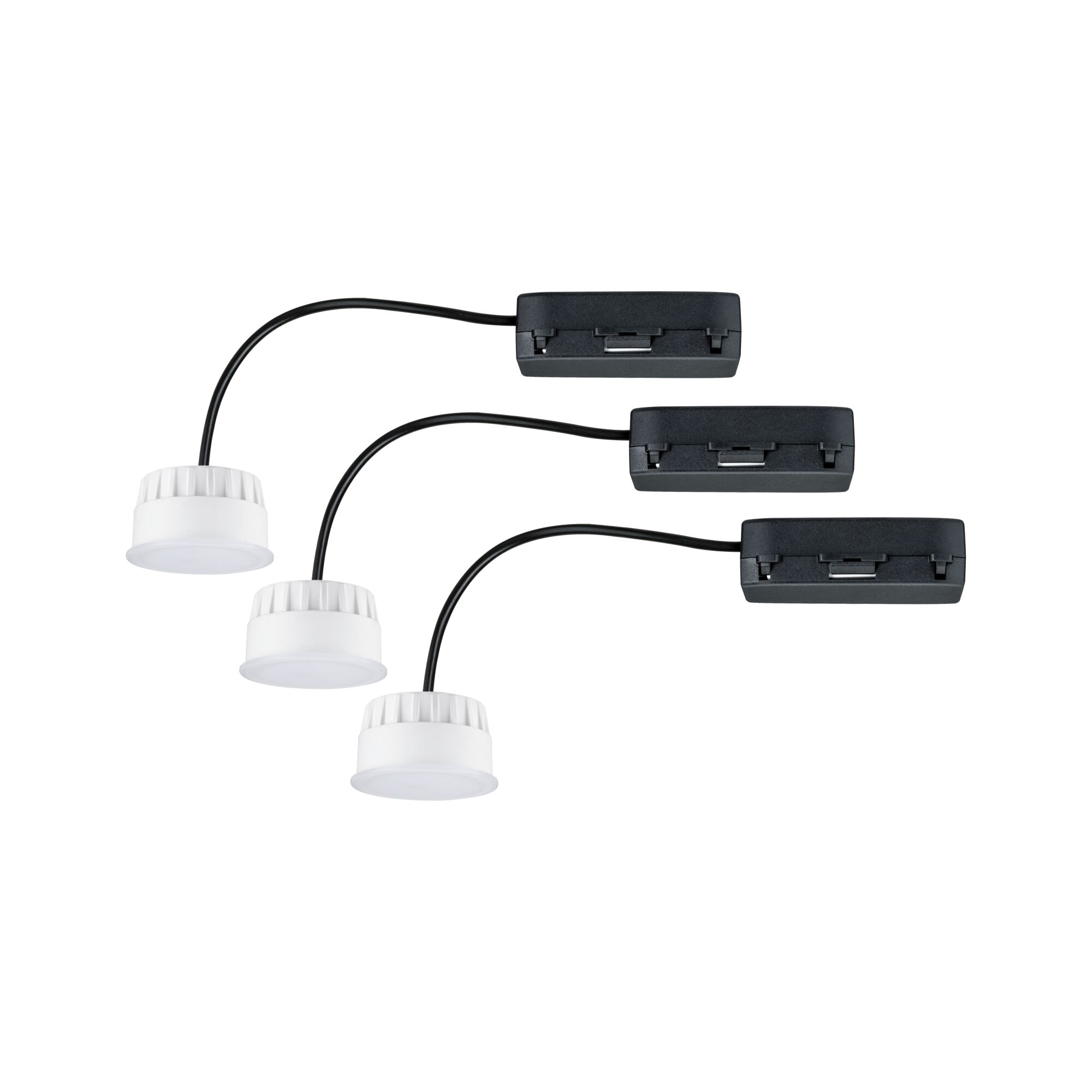

Three white LED recessed lights with black cables for modern lighting solutions

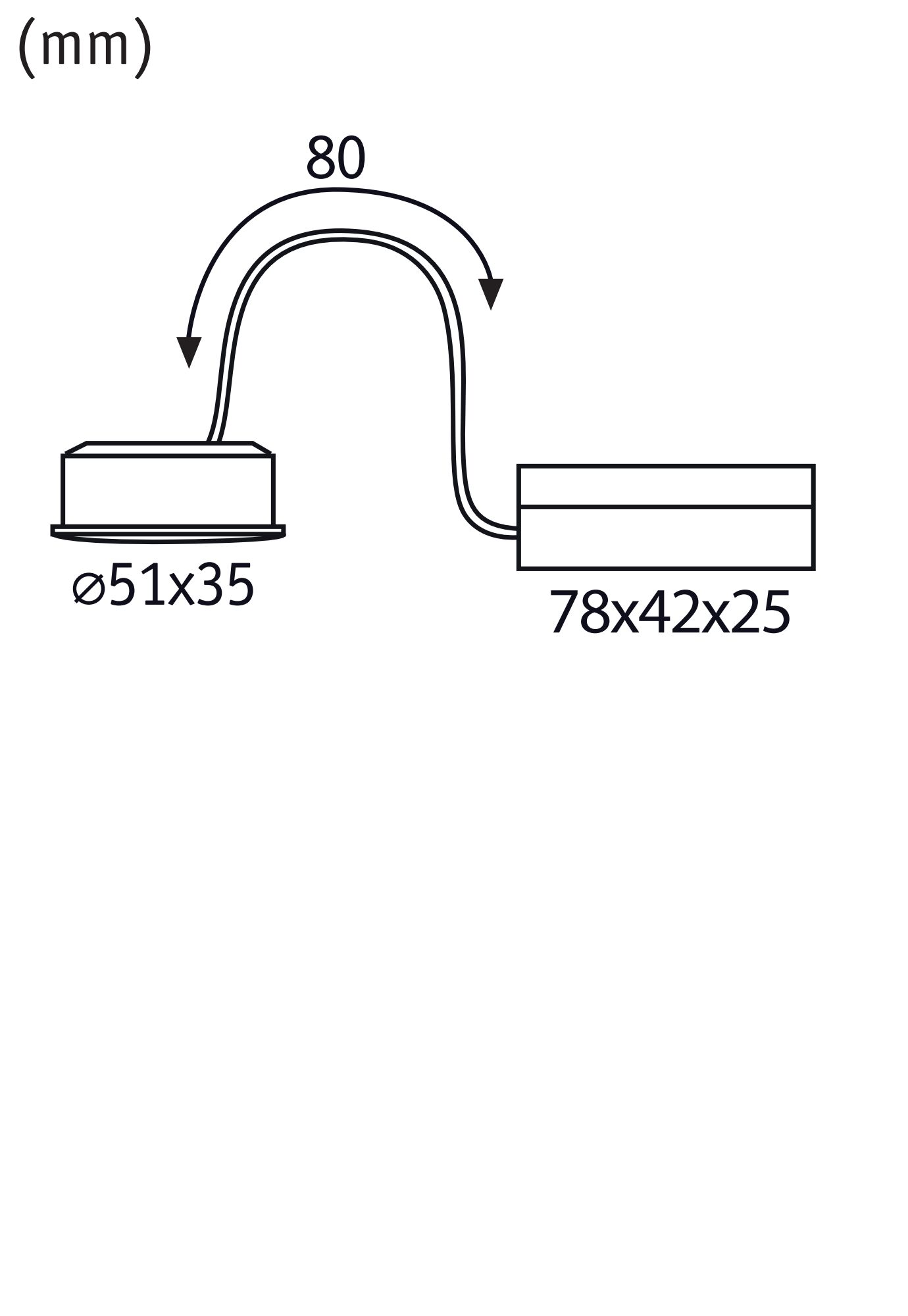

Technical drawing showing dimensions 51x35 mm and 78x42x25 mm with 80 mm cable bend
Technical drawing showing dimensions of two connected parts with 80 mm cable length, sizes 51x35 and 78x42x25 mm
Living room with yellow wall, wooden bench, table and Paulmann LED recessed spotlights for warm lighting

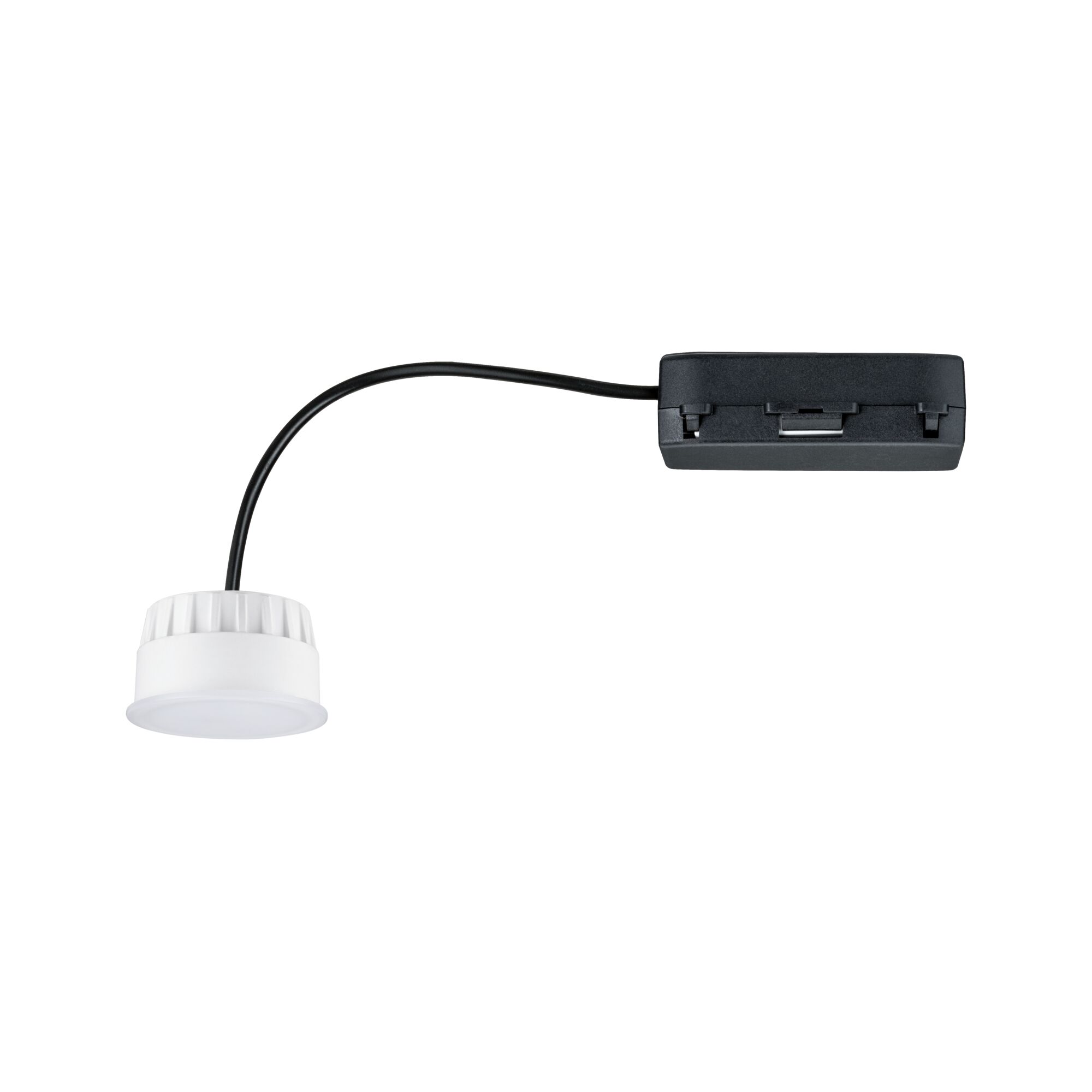

Compact white LED module with black cable and connector box for versatile lighting solutions

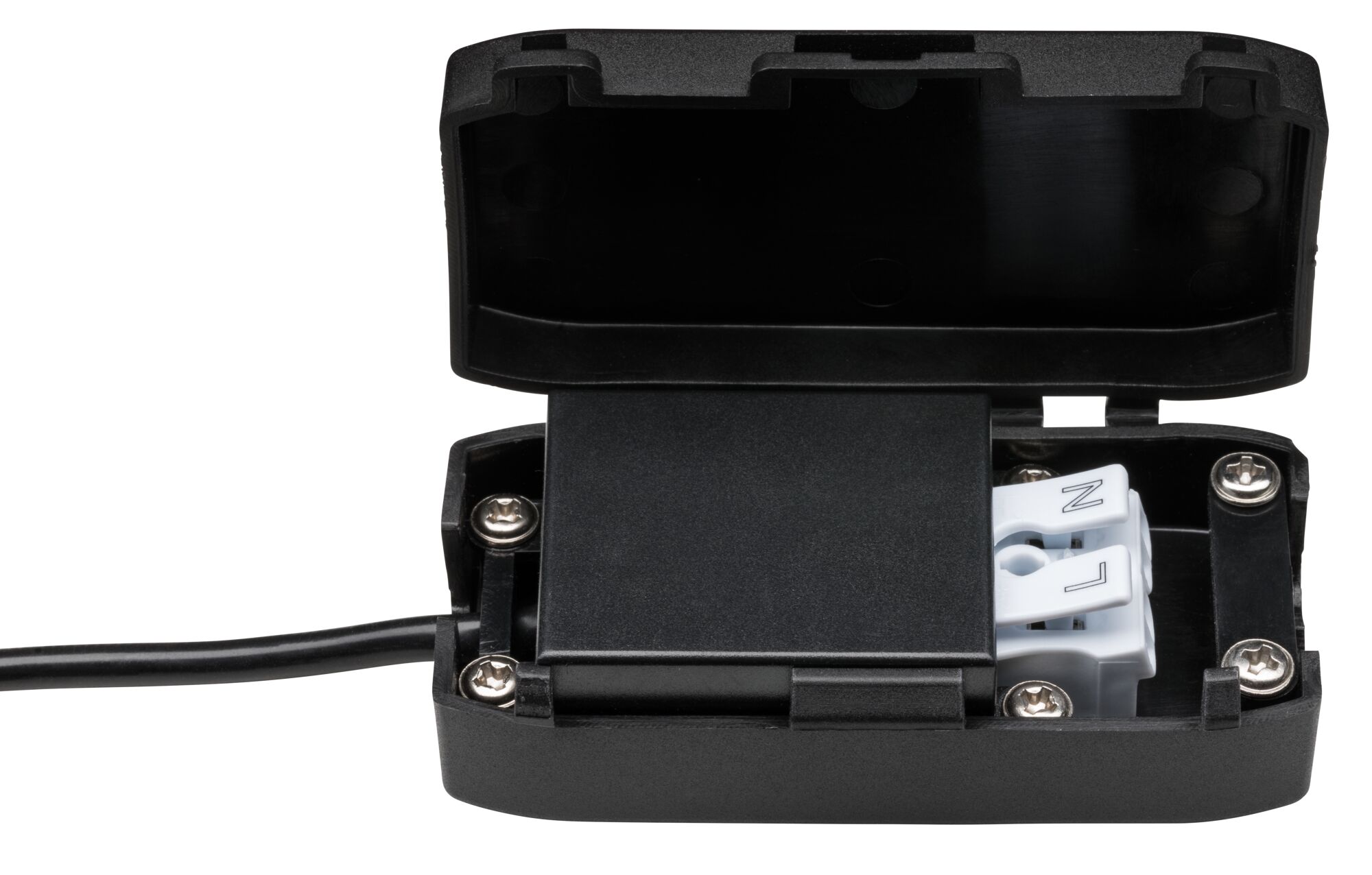

Black plastic housing with open lid and electrical terminal block for cable connection

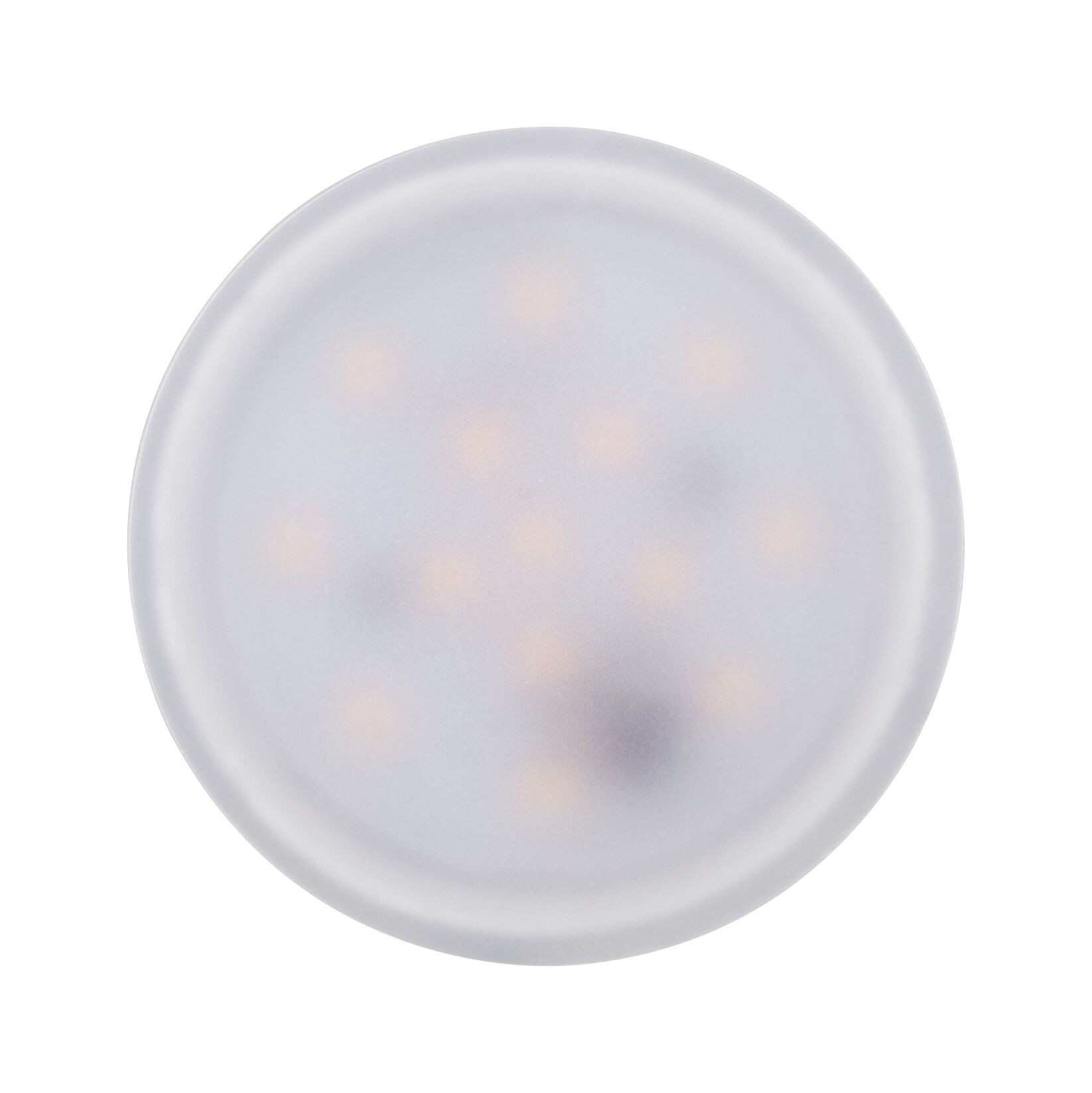

Round white LED ceiling light with frosted diffuser for modern indoor lighting
E27 7W warm white LED bulb with sustainable 100% recyclable cardboard packaging
Overview of different lamp base types for 230 V and 12 V with dimensions and labels.
White LED Coin recessed light with rotatable head and black cable for modern ceiling lighting
Three white LED modules with black cable and connector, including dimmer function for LED spotlights.
Three white LED recessed lights with black cables for modern lighting solutions
Technical drawing showing dimensions 51x35 mm and 78x42x25 mm with 80 mm cable bend
Technical drawing showing dimensions of two connected parts with 80 mm cable length, sizes 51x35 and 78x42x25 mm
Living room with yellow wall, wooden bench, table and Paulmann LED recessed spotlights for warm lighting
Compact white LED module with black cable and connector box for versatile lighting solutions
Black plastic housing with open lid and electrical terminal block for cable connection
Round white LED ceiling light with frosted diffuser for modern indoor lighting
E27 7W warm white LED bulb with sustainable 100% recyclable cardboard packaging
Overview of different lamp base types for 230 V and 12 V with dimensions and labels.
White LED Coin recessed light with rotatable head and black cable for modern ceiling lighting
Article-No.: 92477

LED Module recessed light Easy Dim Choose 3-piece set

round 51mm Coin 3x6,5W 3x630lm 230V dimmable 2700K Satin

A G F
Product Data Sheet
Version: Easy Dim
  • Set of 3 LED modules and junction box with double terminal
  • For combination with Choose! spot sets
  • Color temperatur: 2700K - Warm white
Questions about the product

LED Module recessed light Easy Dim Choose Coin 3-piece set round 51mm Coin 3x6,5W 3x630lm 230V dimmable 2700K Satin

The flat Coin light bulbs with EasyDim are compatible with all mounting rings from the Choose series. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. Choose lets you combine the recessed lights you want. The recessed lights can be linked unlimited times, no transformer is needed and all light bulbs are replaceable.
  • Set of 3 LED modules and junction box with double terminal
  • For combination with Choose! spot sets
  • Color temperatur: 2700K - Warm white
  • EasyDim – continuous dimming via an existing wall switch

Dimension
Diameter 51 mm
Dimensions (Height x Width x Depth) H: 30 mm
Built-in diameter 68 mm
net weight 290 g
Design and Material
Form round
Light source shape Coin
Colour Satin
Material Plastic
Energy consumption
Energy efficiency (spectrum A-G) F
Energy consumption 7 kWh_1000h
Service life
Lamp lumen maintenance factor 6000h 90 %
luminous flux at the end of lamplife 96 %
Number of switching cycles >= 50000
Lifetime 30000 h
Light Characteristics
Nominal luminous flux 630 lm
Color rendering index > 80 Ra
Beam angle 100 °
Colour temperature Warm white, 2700 K
Colour consistency (SDCM) 6
Lamp Features
Dimming Control EasyDim
Inclusive lamp yes
Component parts 6,5 W
light source property Light source
Incandescent Equivalent 50 W
Base/Socket Coin
Technique LED
Adjustability fixed
Dimmable Yes
Protection class Protection class II
Number of component parts 3x
Replacable 7 not concerned.
Power consumption 6,5 W
Voltage 230 V
Voltage type AC 50 Hz
Accessories
Radio control included no
Labelling
WEEE-Reg.-No DE 39236390

Downloads

Manuals

Download Installation/Montage

Product data, leaflets & safety instructions

Safety instructions
