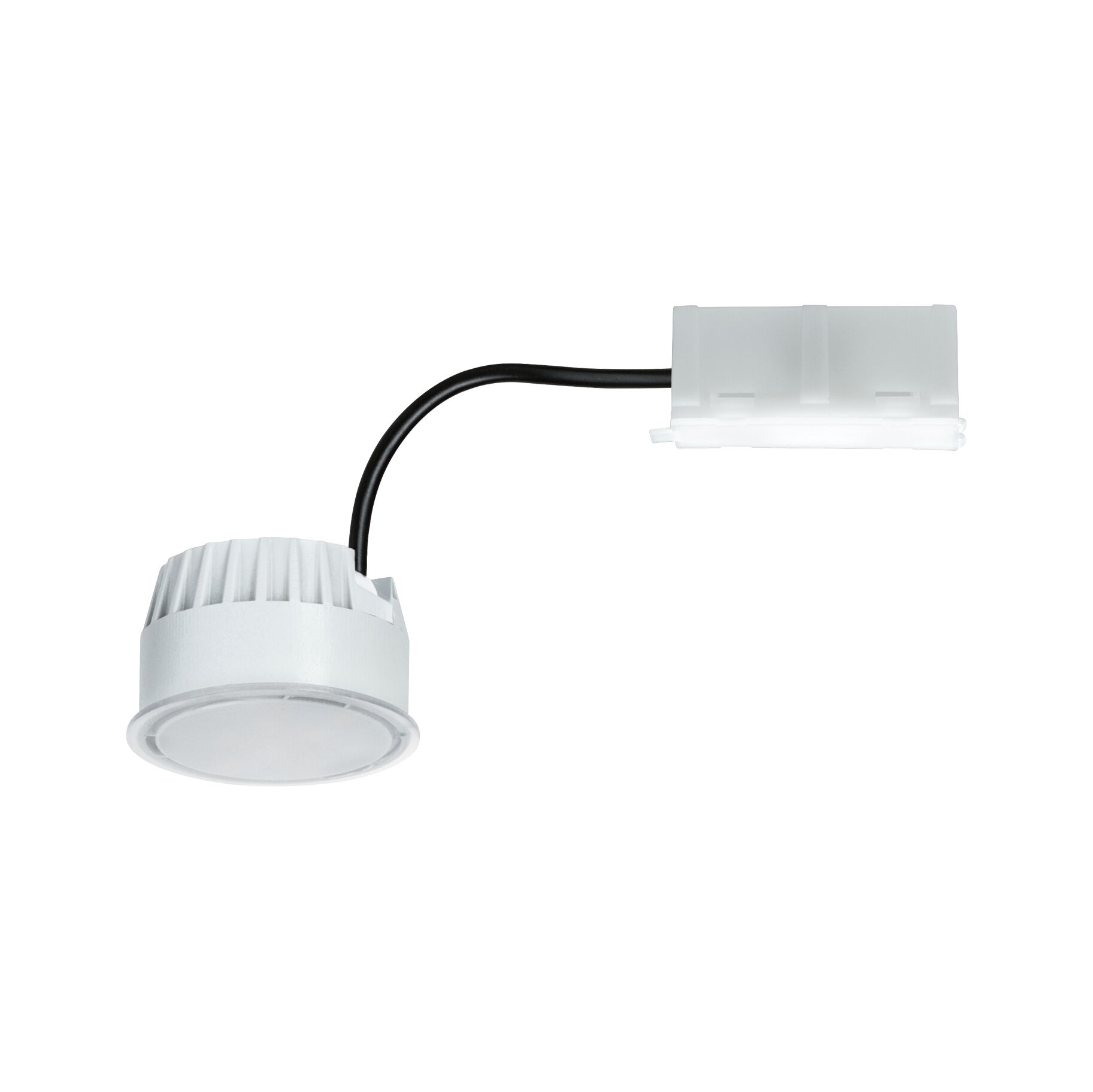

Compact white LED recessed spotlight with black cable and white connector for modern lighting
Technical drawing of LED recessed spotlight with 51 mm diameter and 80 mm cable curve.

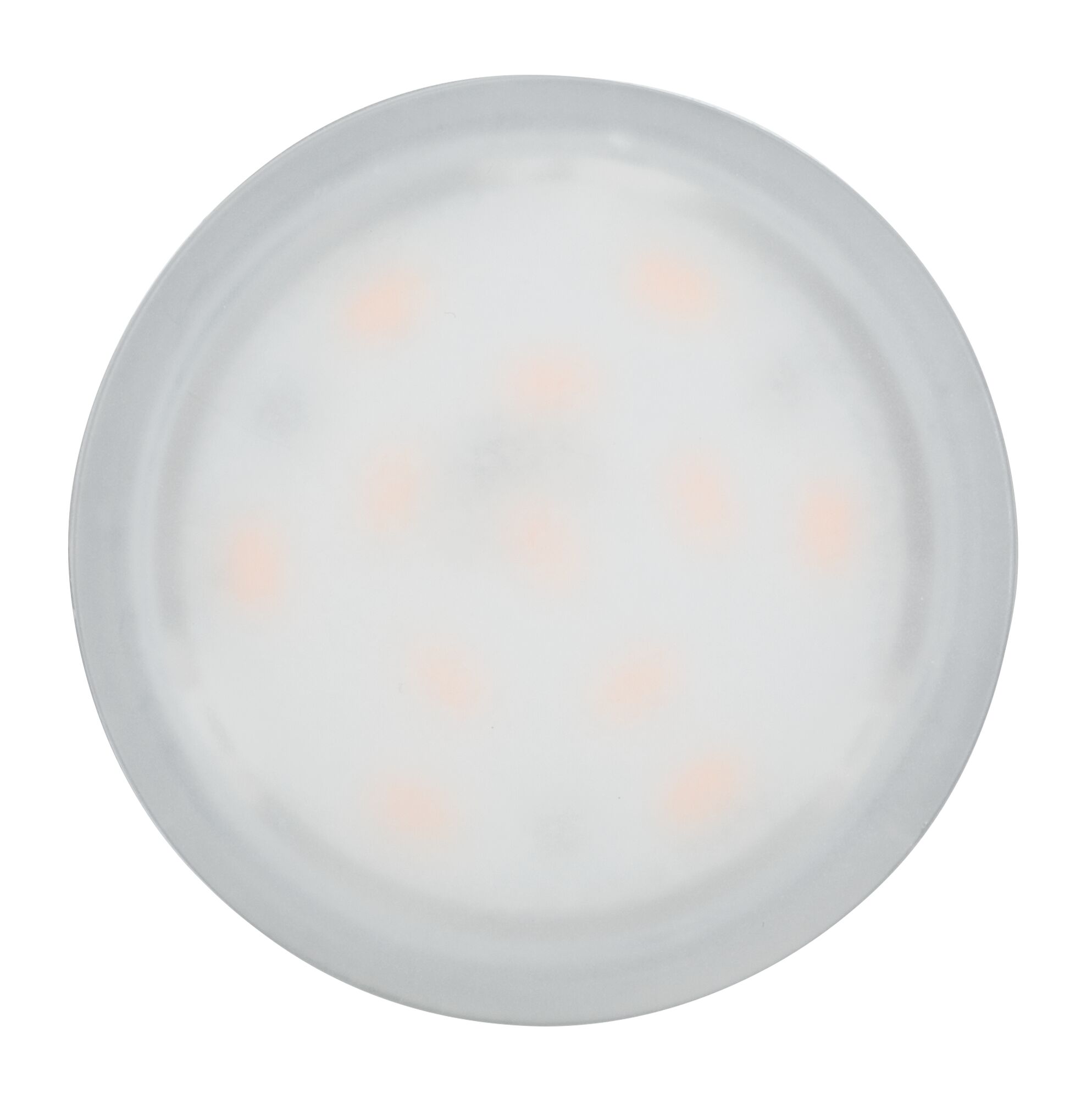

Round LED ceiling light with milky white plastic cover and warm white LEDs for living spaces

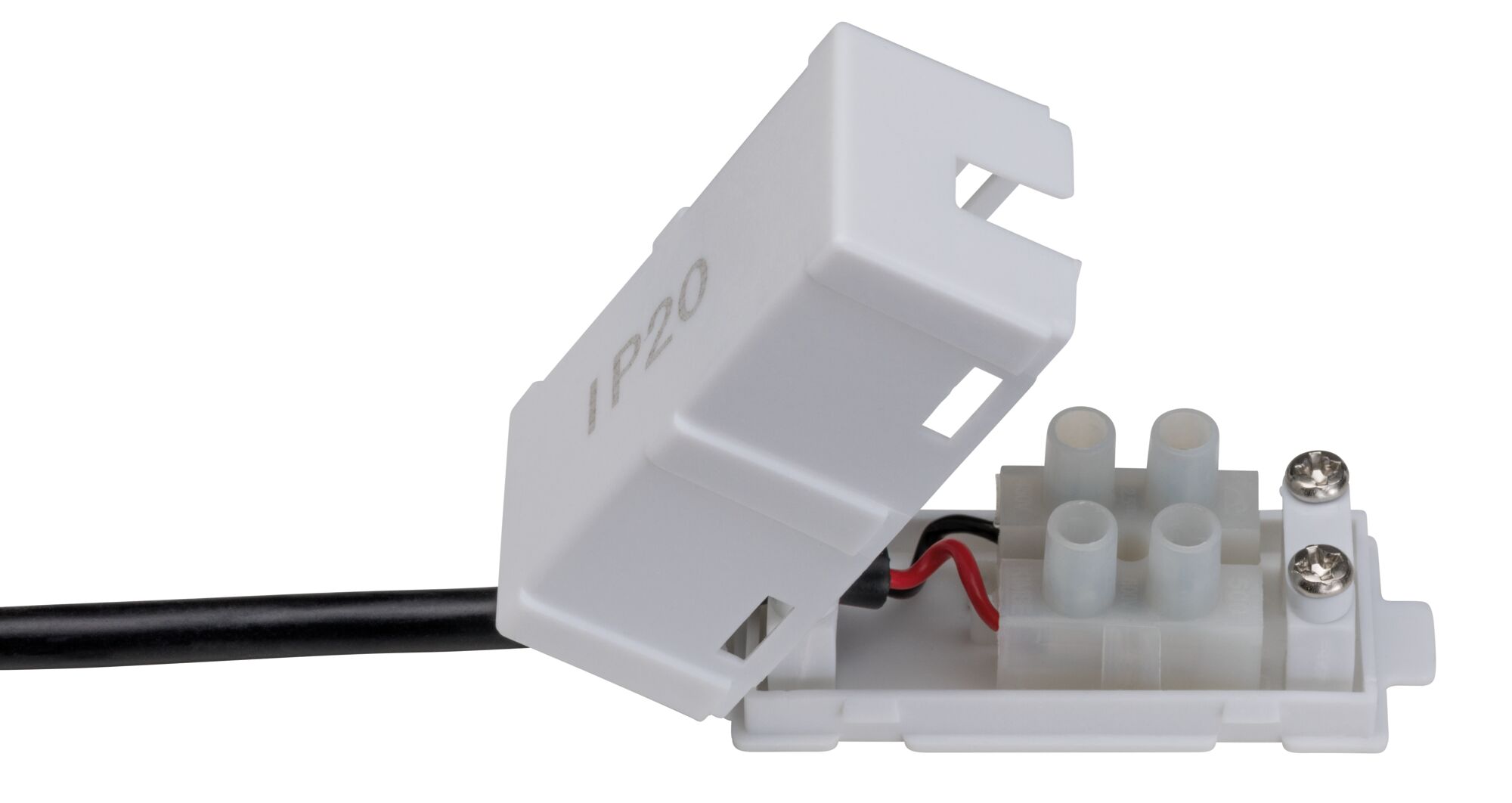

White plastic connection housing with IP20 protection and cable terminal for LED lighting
White LED Coin recessed light with rotatable head and black cable for modern ceiling lighting
Compact white LED recessed spotlight with black cable and white connector for modern lighting
Technical drawing of LED recessed spotlight with 51 mm diameter and 80 mm cable curve.
Round LED ceiling light with milky white plastic cover and warm white LEDs for living spaces
White plastic connection housing with IP20 protection and cable terminal for LED lighting
White LED Coin recessed light with rotatable head and black cable for modern ceiling lighting
Article-No.: 93077

LED Module recessed light 3-Step-Dim Base

round 50mm Coin 5W 370lm 230V dimmable 3000K Opal

A G G
Product Data Sheet
Version: 3-Step dim
  • Can be dimmed with a standard light switch, with 3 dimming levels
  • Color temperatur: 3000K - Warm white
  • Operating voltage: 230 V
Questions about the product

Icon showing three-step dimmable light with white bars on gray circle for LED lighting feature

LED Module recessed light 3-Step-Dim Base Coin round 50mm Coin 5W 370lm 230V dimmable 3000K Opal

The innovative Base coins with a three-stage dimming function can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!
  • Can be dimmed with a standard light switch, with 3 dimming levels
  • Color temperatur: 3000K - Warm white
  • Operating voltage: 230 V

Dimension
Diameter 50 mm
Dimensions (Height x Width x Depth) H: 31 mm
Built-in diameter 68 mm
net weight 95 g
Design and Material
Form round
Light source shape Coin
Colour Opal
Material Plastic
Energy consumption
Energy efficiency (spectrum A-G) G
Energy consumption 5 kWh_1000h
Service life
luminous flux at the end of lamplife 93 %
Lifetime 15000 h
Light Characteristics
Nominal luminous flux 370 lm
Color rendering index > 80 Ra
Beam angle 100 °
Colour temperature Warm white, 3000 K
Colour consistency (SDCM) 6
Lamp Features
Dimming Control Dimmable in 3 steps with normal light switch
Inclusive lamp yes
Component parts 5 W
light source property Light source
Incandescent Equivalent 34 W
Base/Socket Coin
Technique LED
Adjustability fixed
Dimmable Yes
Protection class Protection class II
Number of component parts 1x
Replacable 7 not concerned.
Power consumption 5 W
Voltage 230 V
Voltage type AC 50 Hz
Transformer
apparent power 8.5 VA
Accessories
Radio control included no
Labelling
WEEE-Reg.-No DE 39236390

Downloads

Manuals

Download Installation/Montage

Product data, leaflets & safety instructions

Safety instructions
