Article-No.:
79780
LED Floor luminaire
Smart Home Zigbee 3.0
Puric Pane
2700K 2x300lm 2x3W Black
2700K 2x300lm 2x3W Black
- Creates an inviting living ambience in the living room, bedroom, hallway, and more.
- Color temperatur: 2700K - Warm white
- Paulmann Zigbee products can generally be used with any Smart Home control panel that has a Zigbee interface.

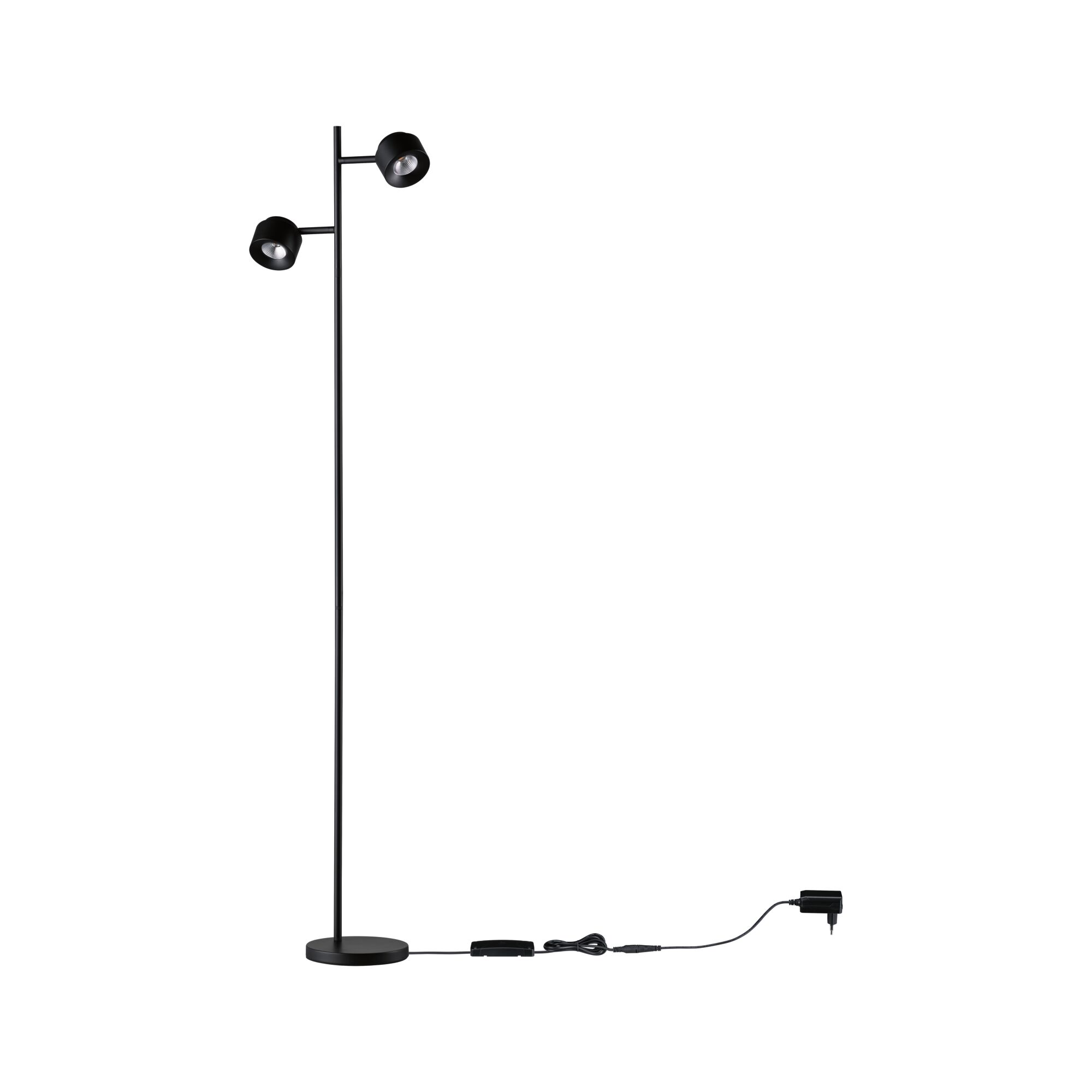

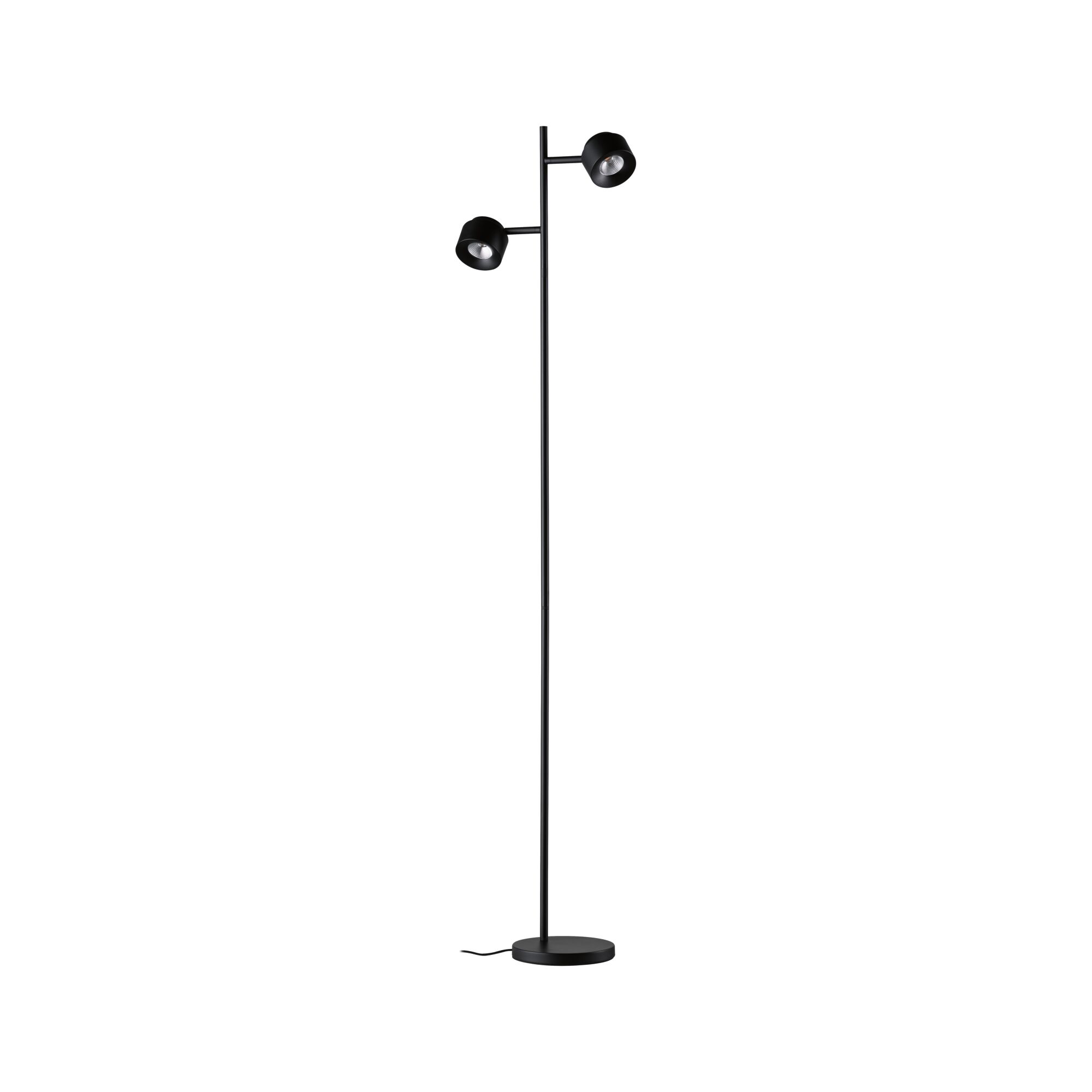

LED Floor luminaire Smart Home Zigbee 3.0 Puric Pane 2700K 2x300lm 2x3W Black

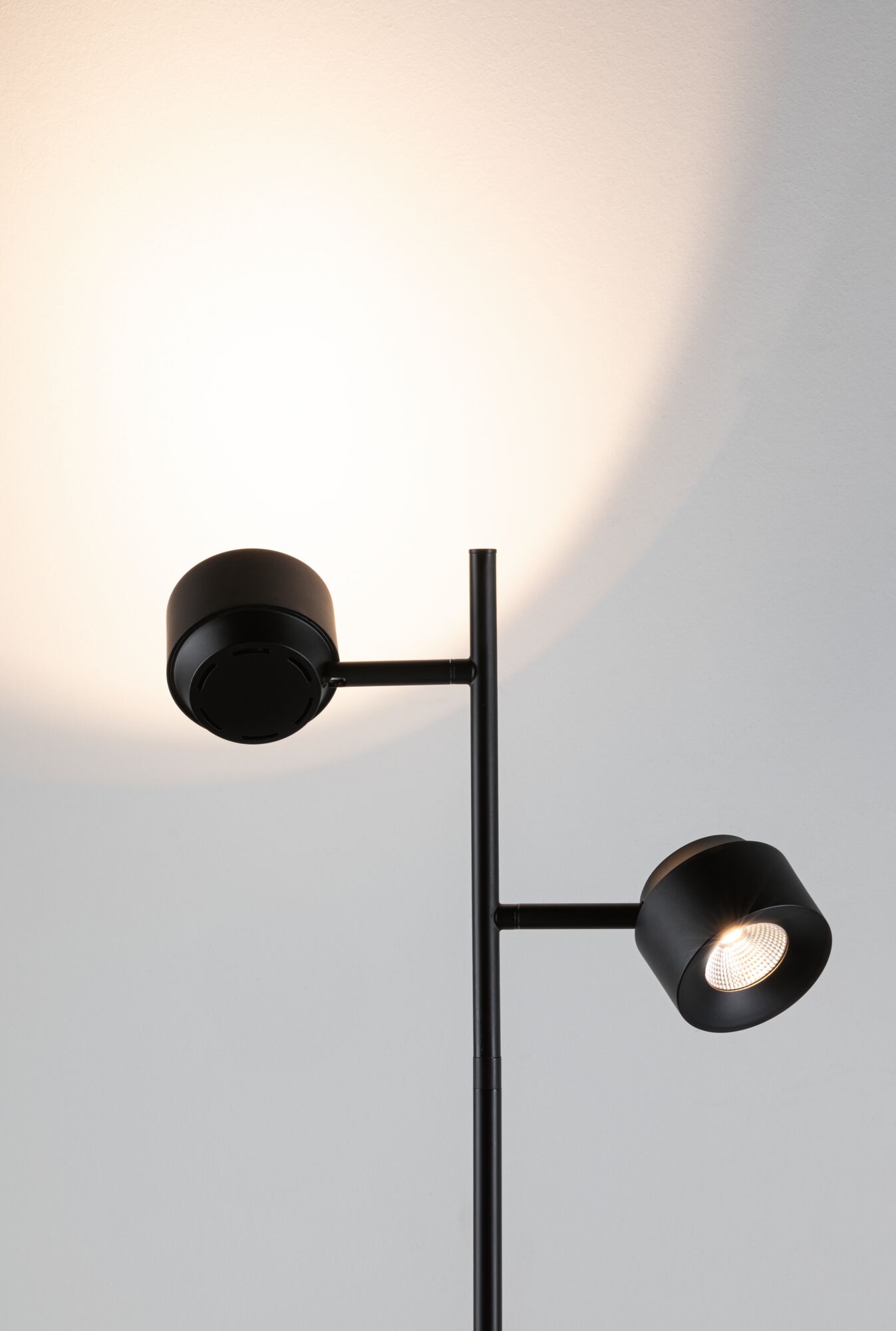

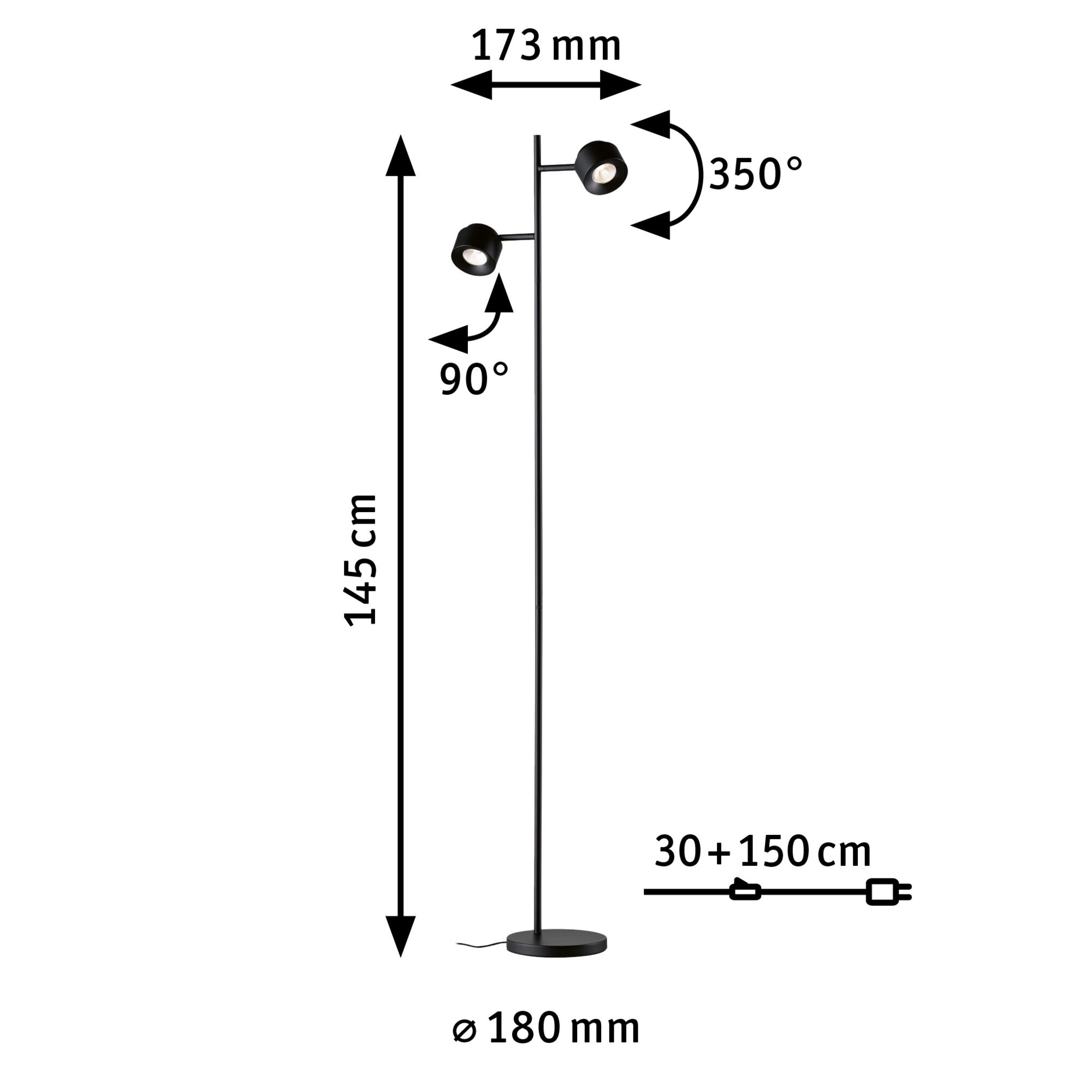

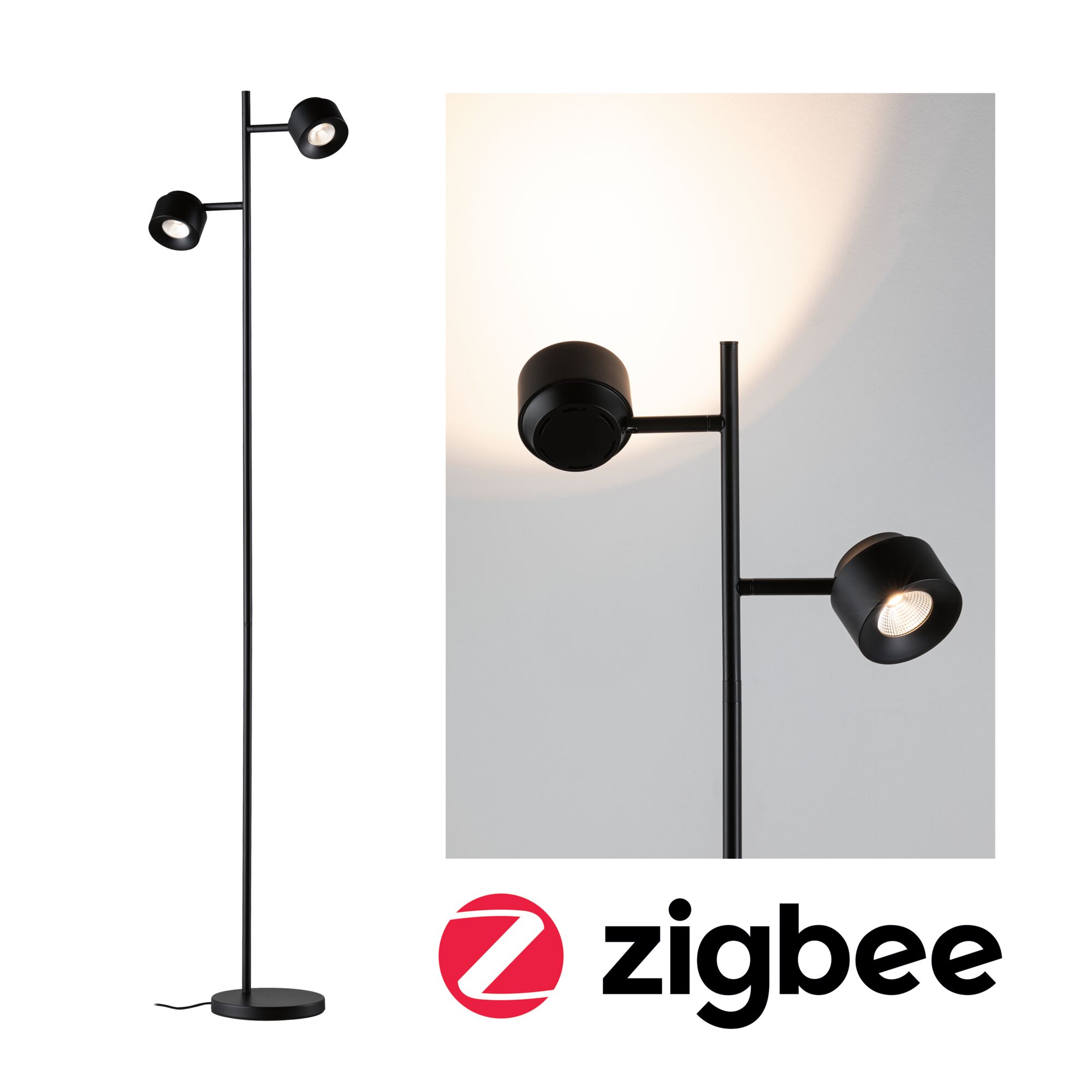

With its subtle design, the Puric Pane floor luminaire provides cosy lighting in a modern style. Thanks to its special facet lens, which directs the majority of the light emitted by the LED chip out towards the front, the floor luminaire is highly efficient and creates fascinating light effects. The two spot heads can be twisted by 350° as well as swivelled by 90°, so they can be individually aligned and ensure versatile application options for the luminaire. For example, the floor luminaire can be used as a reading light, while providing indirect lighting by casting light on the wall. It is also Zigbee 3.0 compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. In combination with other luminaires, the Puric Pane series lets you create your very own living atmosphere.
- Creates an inviting living ambience in the living room, bedroom, hallway, and more.
- Color temperatur: 2700K - Warm white
- Paulmann Zigbee products can generally be used with any Smart Home control panel that has a Zigbee interface.
- Efficient LED technology
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1450 mm |
| Ø | 180 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 48 ° |
| Usable luminous flux | 300 lm |
| Luminous flux LED module | 400 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 48 ° |
| Lamp Features | |
|---|---|
| Component parts | 3 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 59 W |
| Maximum wattage range | max. 2x6 W |
| Number of component parts | 2x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 12 W |
| Transformer | |
|---|---|
| apparent power | 14 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
