Article-No.:
79775
LED Floor luminaire
3-Step-Dim
Puric Pane
2700K 2x300lm 2x3W Black
2700K 2x300lm 2x3W Black
LED Floor luminaire 3-Step-Dim Puric Pane 2700K 2x300lm 2x3W Black

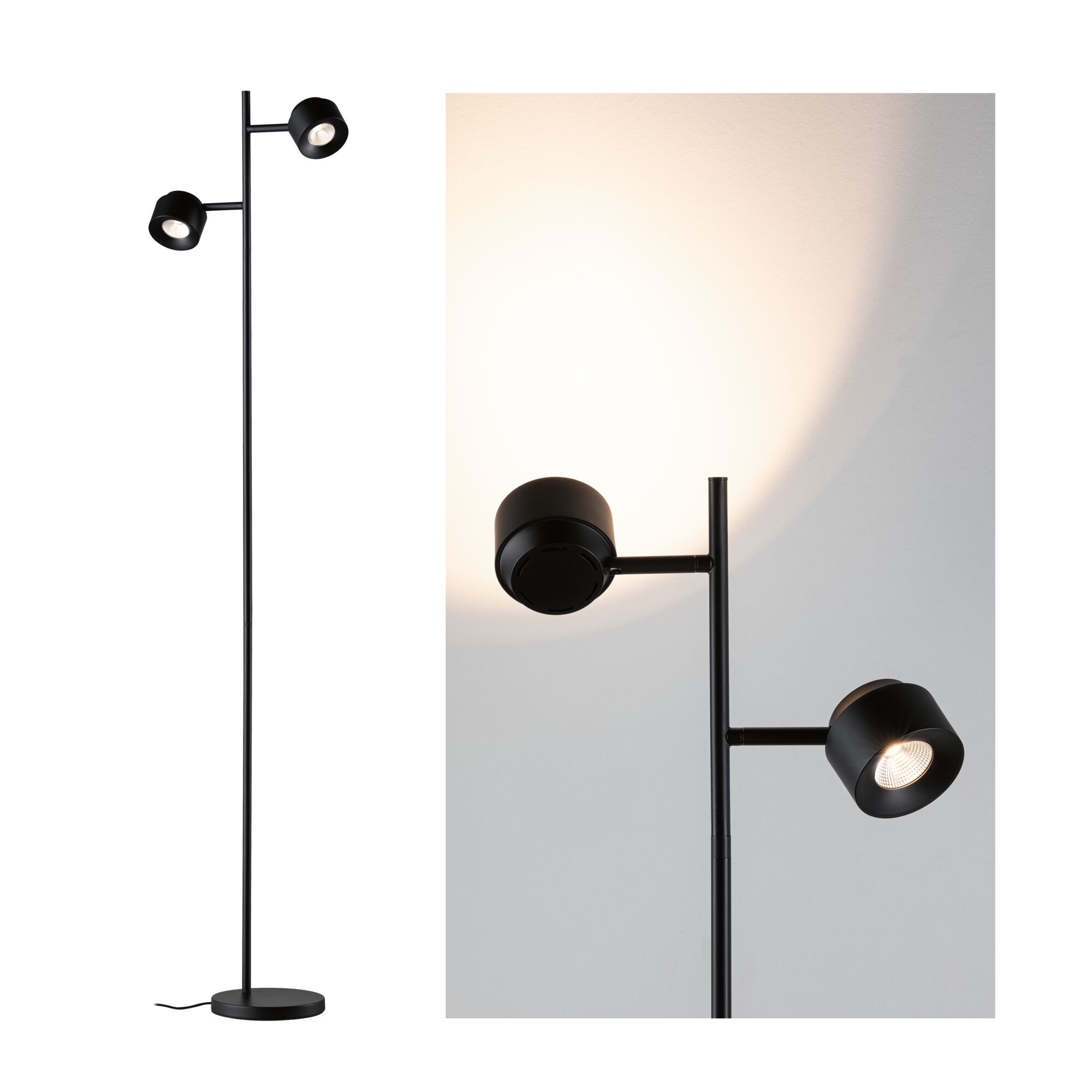

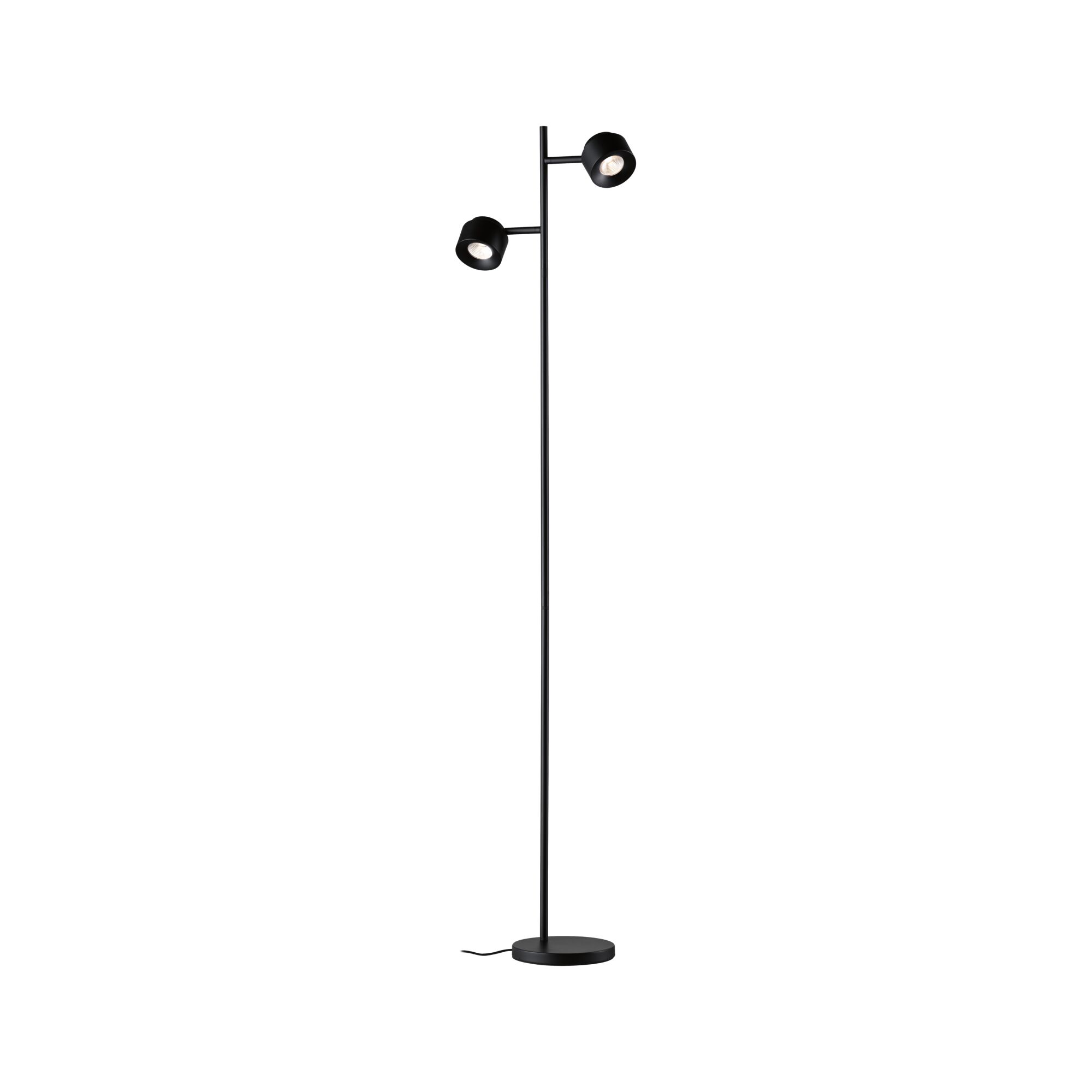

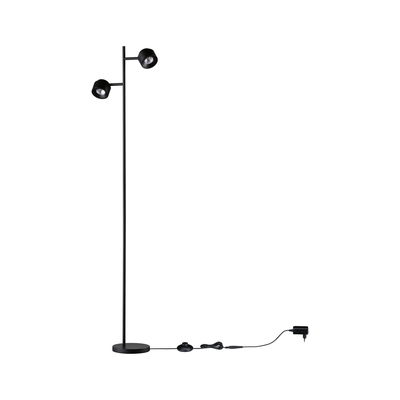

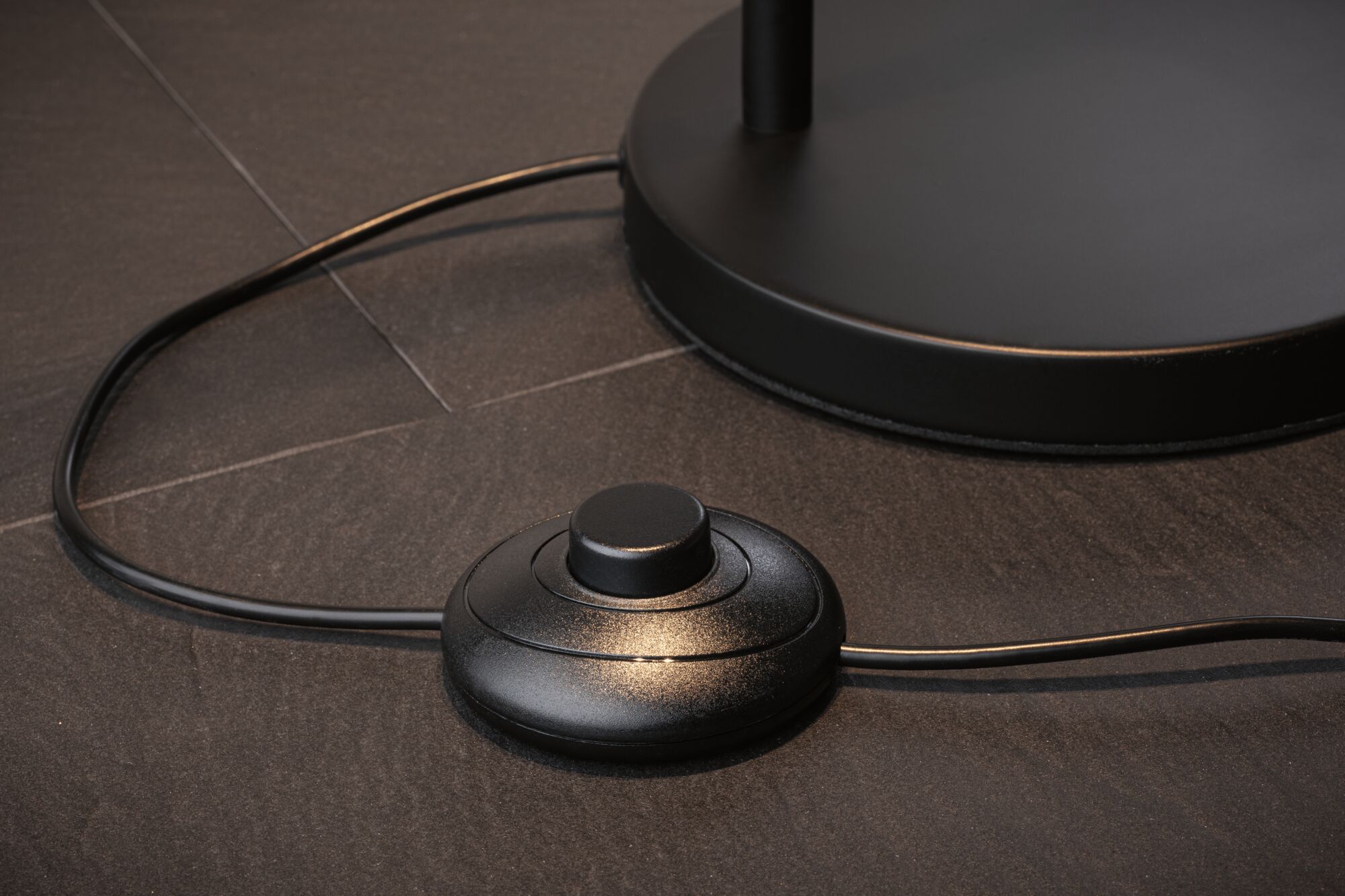

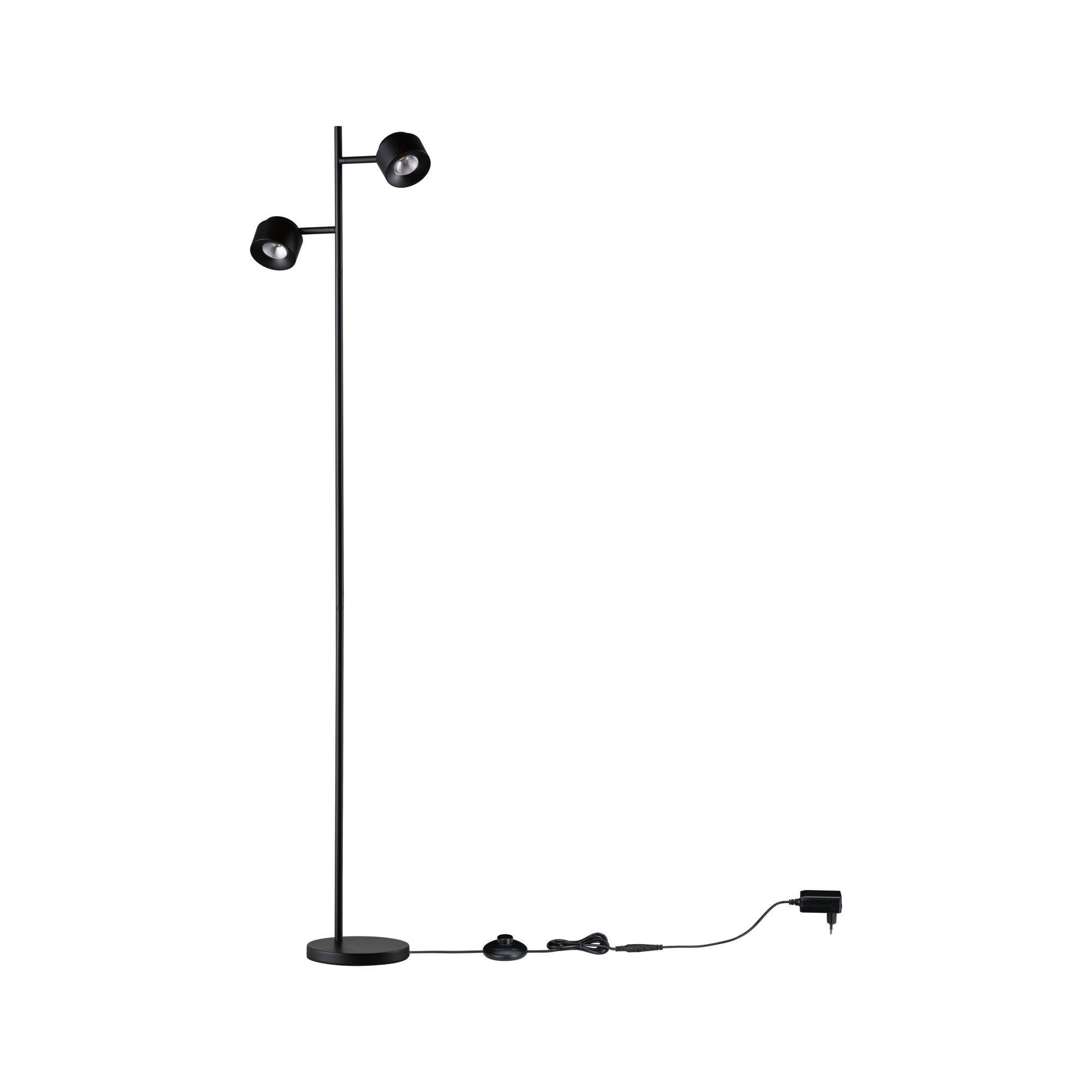

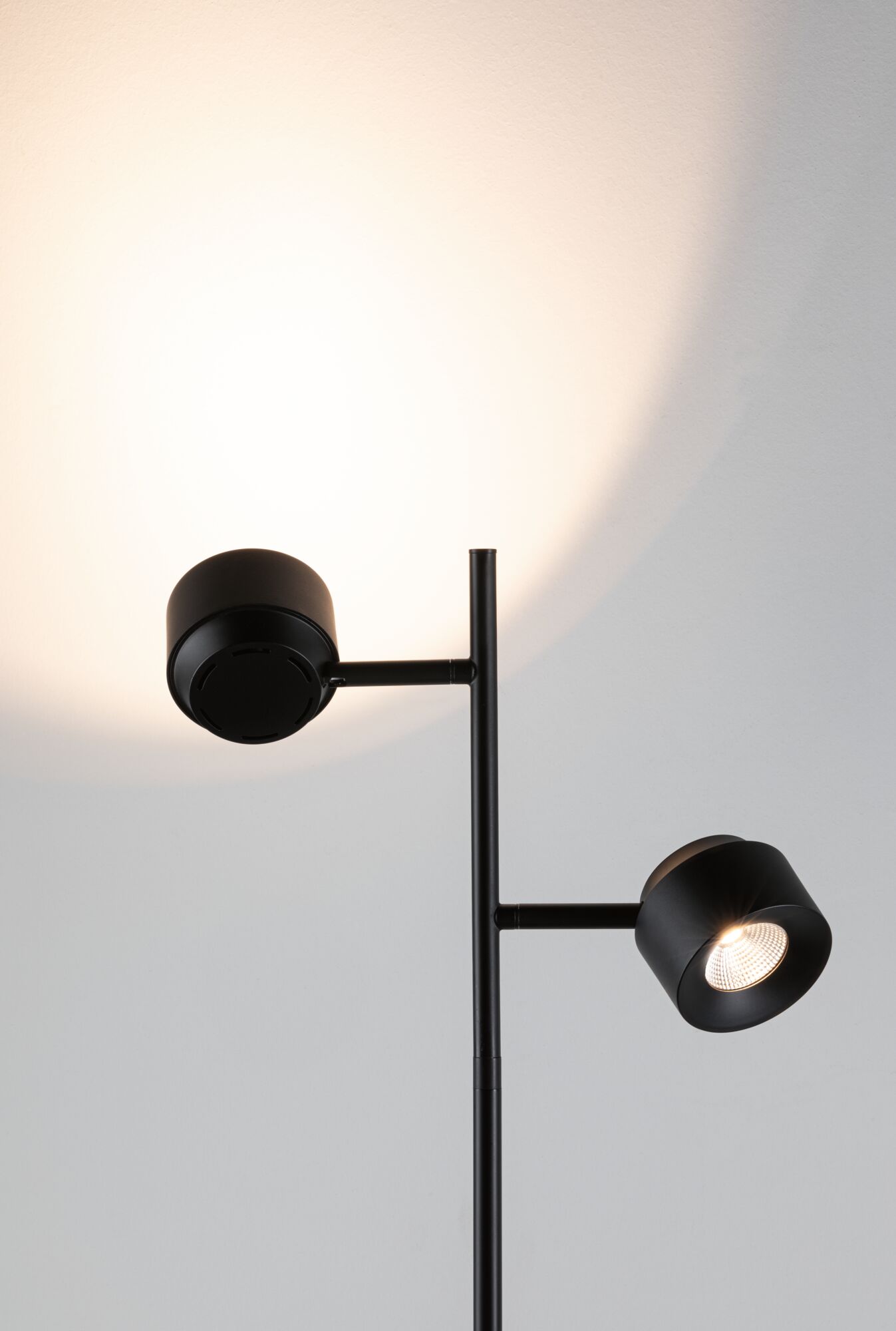

With its subtle design, the Puric Pane floor luminaire provides cosy lighting in a modern style. Thanks to its special facet lens, which directs the majority of the light emitted by the LED chip out towards the front, the floor luminaire is highly efficient and creates fascinating light effects. The two spot heads can be individually aligned and allow for many different possible applications of the luminaire. For example, the floor luminaire can be used as a reading light, while providing indirect light by casting light on the wall. In combination with other luminaires, the Puric Pane series lets you create your very own living atmosphere. Thanks to the integrated three-step dimming function, the luminaire can be dimmed in three steps by pressing the foot switch multiple times.
- Color temperatur: 2700K - Warm white
- Cable with fabric sheath
- Dimmable
| Dimension | |
|---|---|

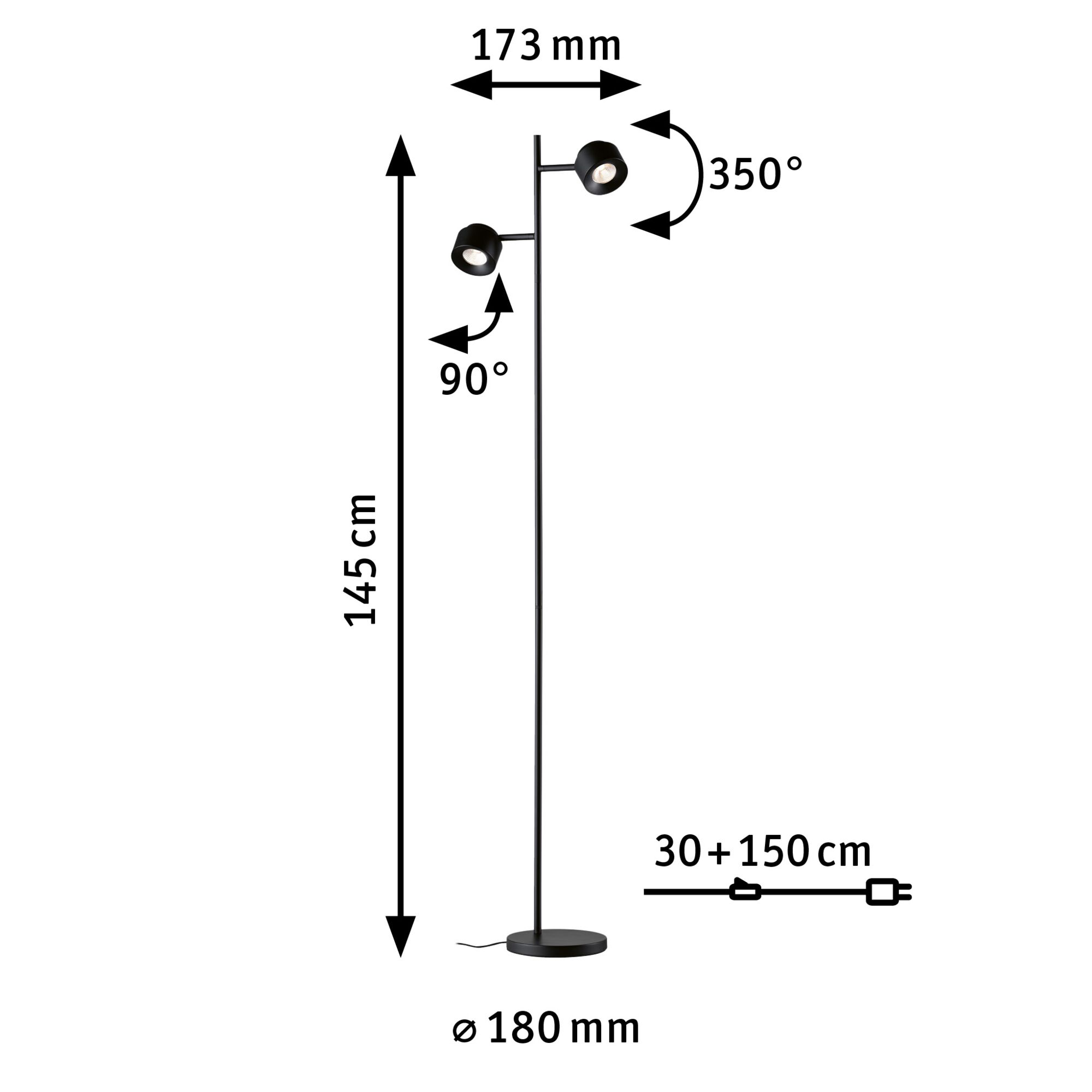

| Dimensions (Height x Width x Depth) | H: 1450 x B: 86 x T: 173 mm |
| Ø | 180 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal, Plastic |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 48 ° |
| Usable luminous flux | 300 lm |
| Luminous flux LED module | 400 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 48 ° |
| Lamp Features | |
|---|---|
| Component parts | 3 W |
| Technique | LED |
| Dim | dimmable in 3 steps with integrated switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 86 mm |
| Incandescent Equivalent | 59 W |
| Maximum wattage range | max. 2x6 W |
| Number of component parts | 2x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 12 W |
| Transformer | |
|---|---|
| apparent power | 14 VA |
