Article-No.:
94709
LED Exterior panel
Lamina Twilight-controlled motion detector (IR)
insect friendly IP44 angular 250x250mm Tunable Warm 14W 920lm 230V Black Plastic
insect friendly IP44 angular 250x250mm Tunable Warm 14W 920lm 230V Black Plastic
- Colour temperature: 2200K - gold light up to 3000K - warm white
- Decorative lighting effects highlight the wall and ceiling
- Seawater-resistant light for use by the coast
LED Exterior panel Lamina Backlight Twilight-controlled motion detector (IR) insect friendly IP44 angular 250x250mm Tunable Warm 14W 920lm 230V Black Plastic

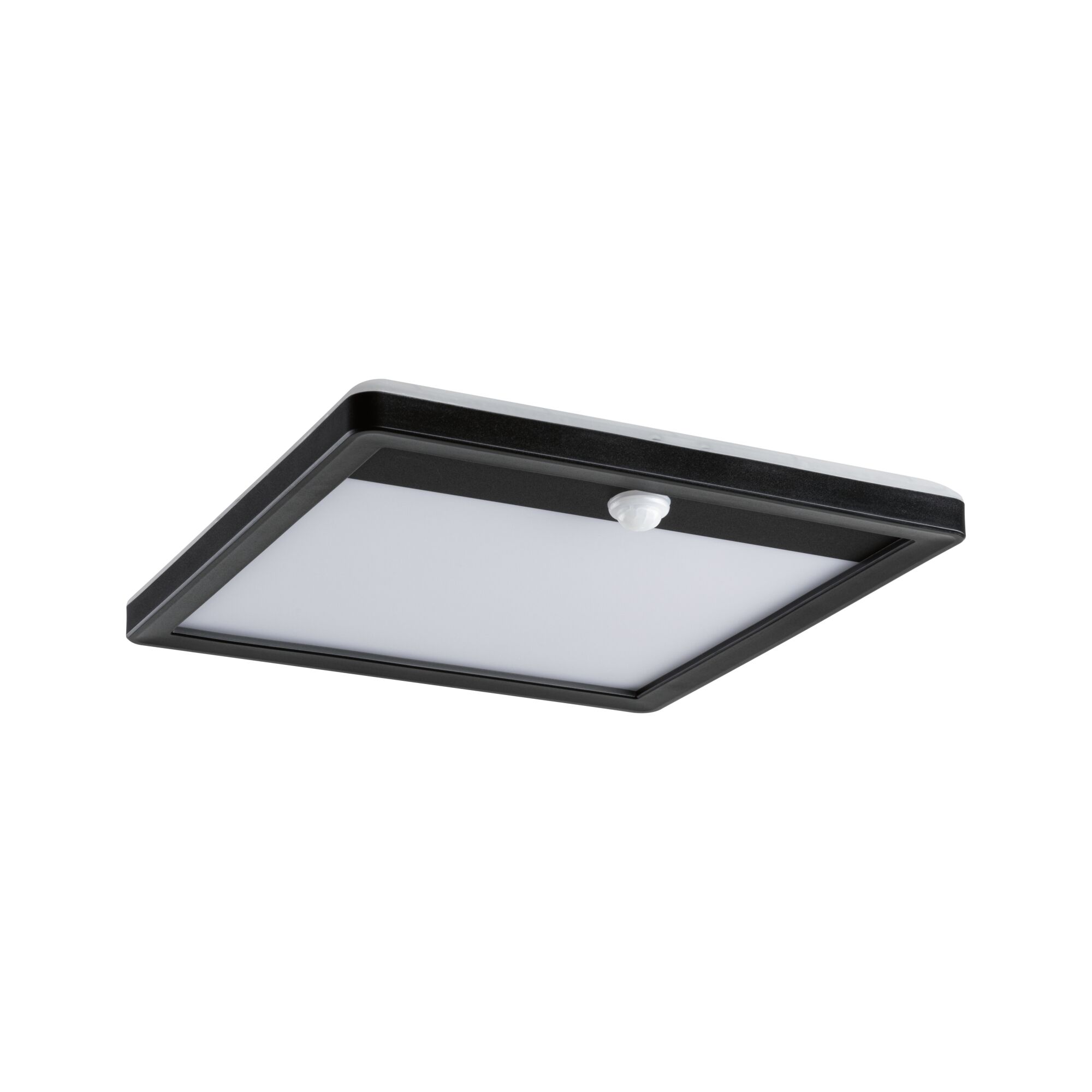

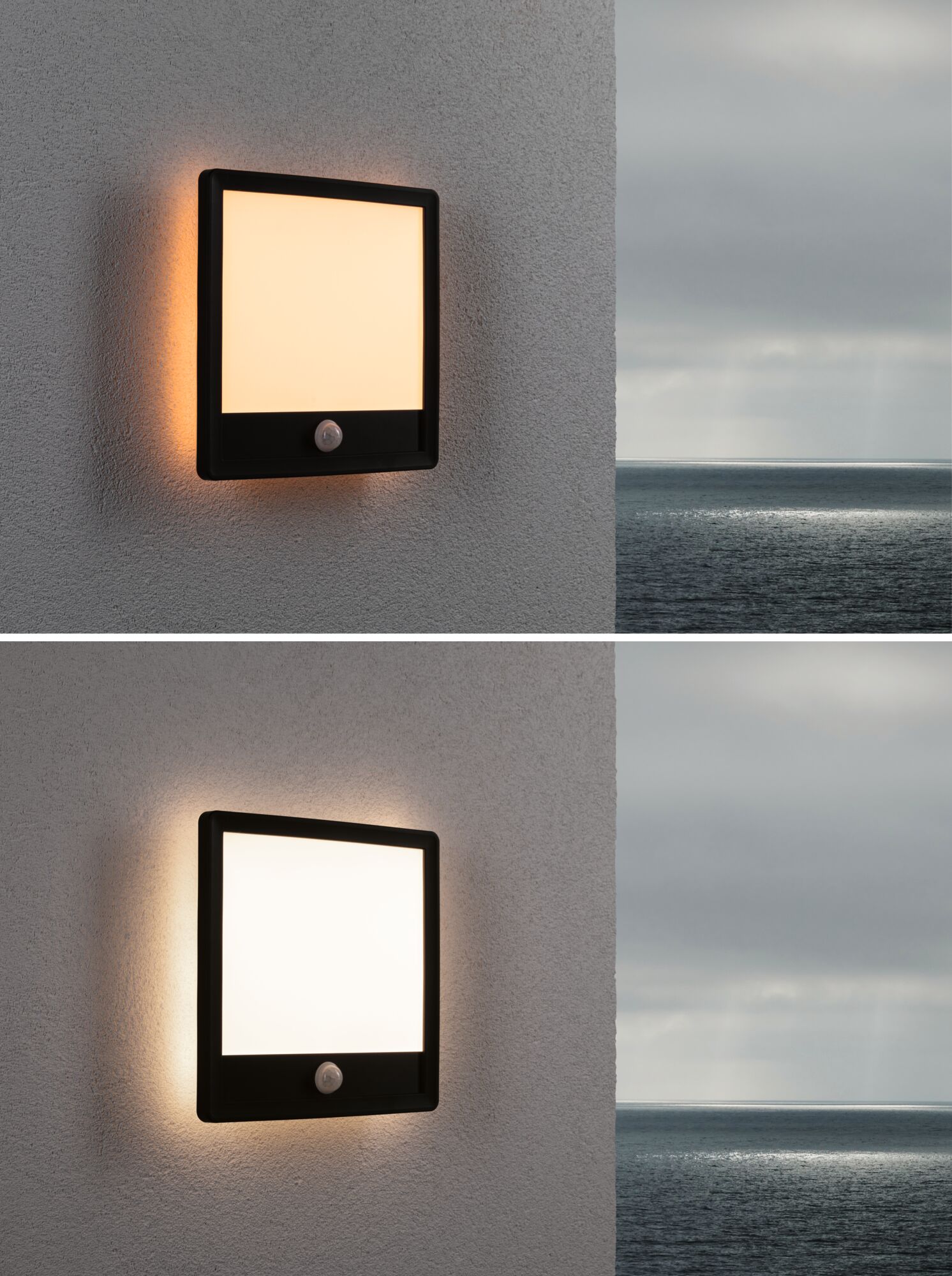

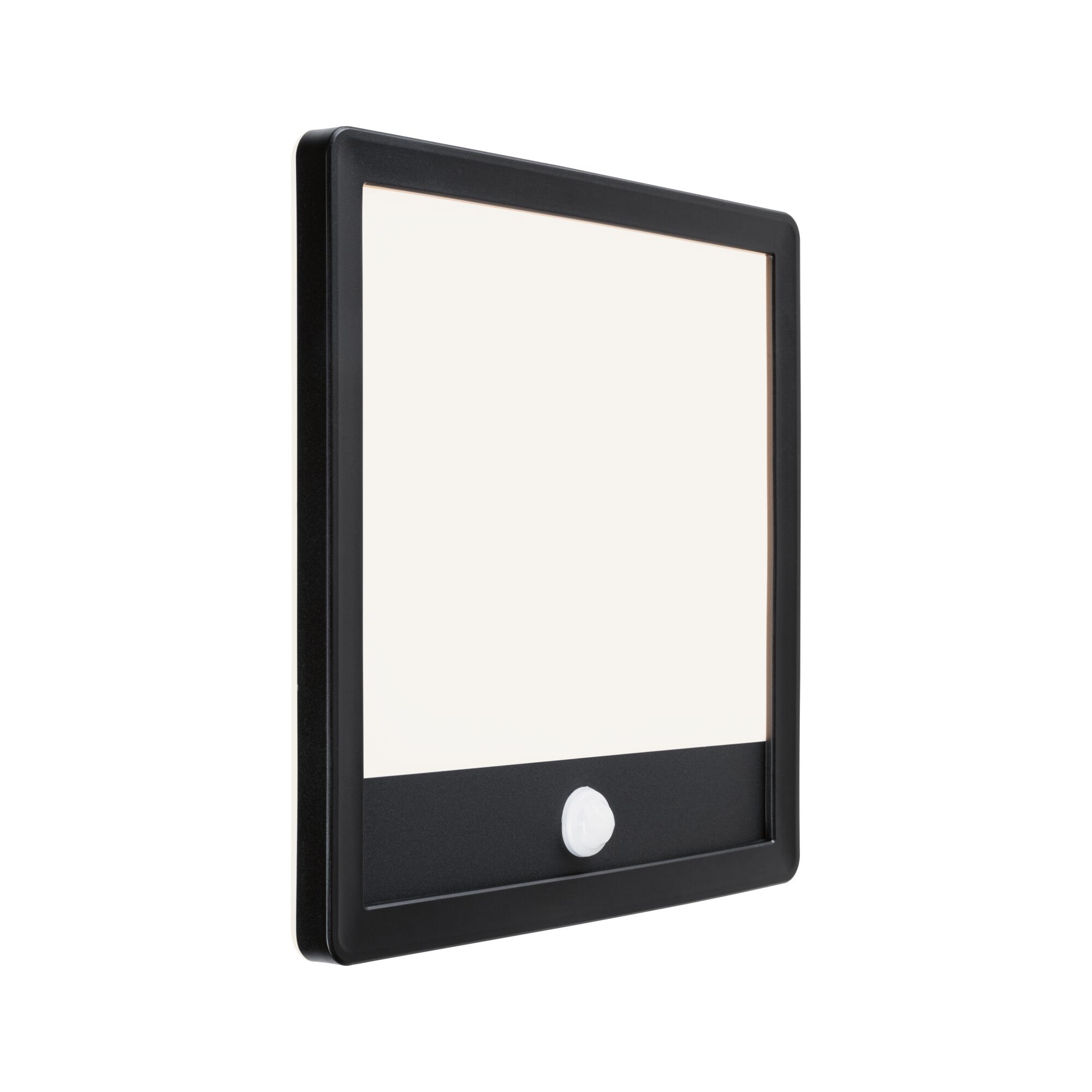

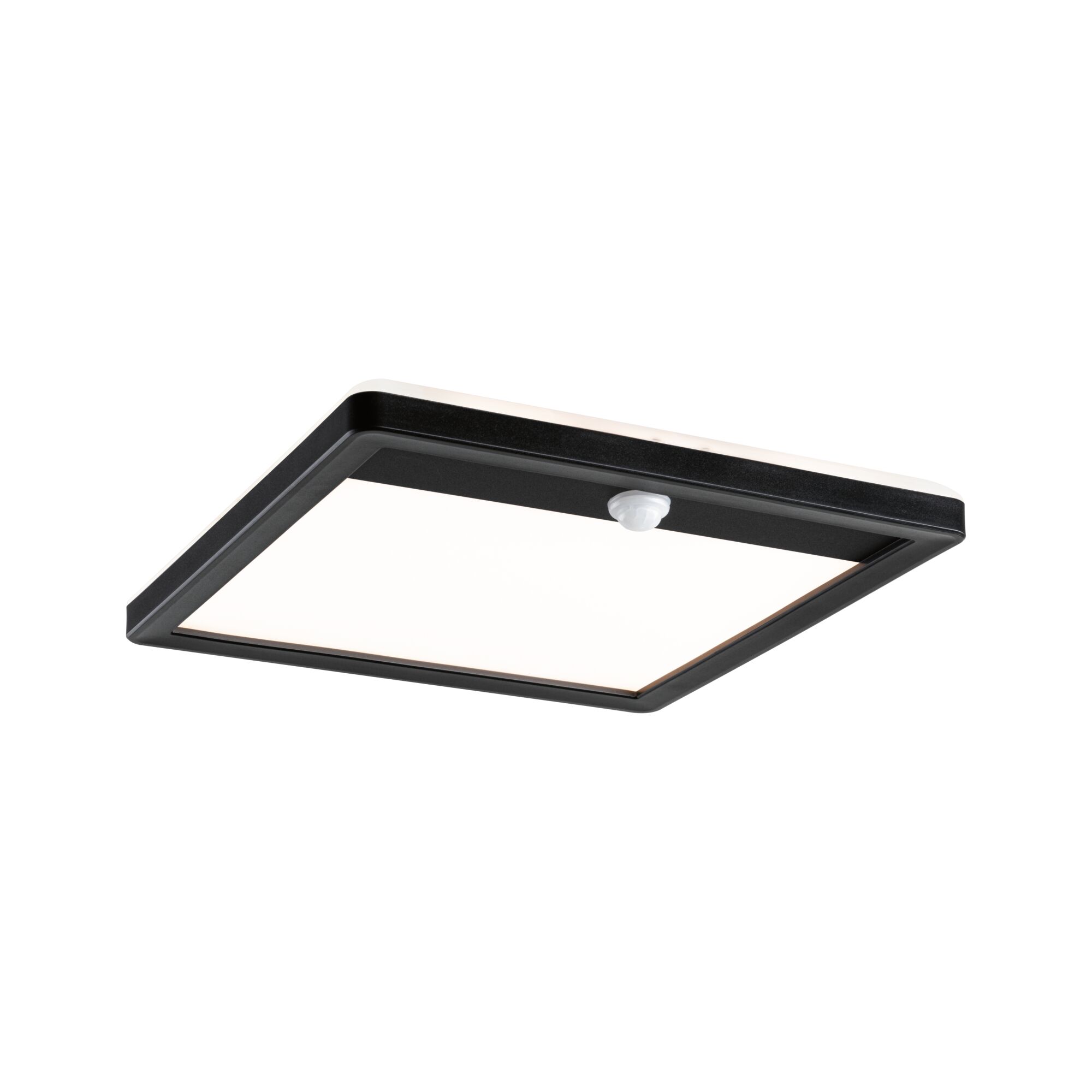

Whether mounted on the wall or ceiling, the square " Lamina " panel—with its black frame and black interior surface—emits a diffuse, warm white light. The additional ambient light creates a pleasant atmosphere and highlights the wall and ceiling. It helps with navigation in the dark and enhances safety. In its default setting, the panel emits light at 20% brightness and 2,200 Kelvin. As soon as someone approaches, the built-in motion detector switches the light to 100% brightness and 3,000 Kelvin. After about 30 seconds, the light reverts to the stored light colour and brightness. If desired, the orientation light can also be deactivated via the wall switch; in this case, the lights are controlled only by the motion detector. Additionally, the motion detector can be deactivated, in which case the lights turn on and off only via the twilight sensor. The lights emit a warm golden light (2,200 K) with a low blue component. According to studies, warm, long-wavelength light generally attracts fewer nocturnal insects than cool white light.
- Colour temperature: 2200K - gold light up to 3000K - warm white
- Decorative lighting effects highlight the wall and ceiling
- Seawater-resistant light for use by the coast
- protection of insects through conscious use of colour temperature
- Can be mounted on wall or ceiling

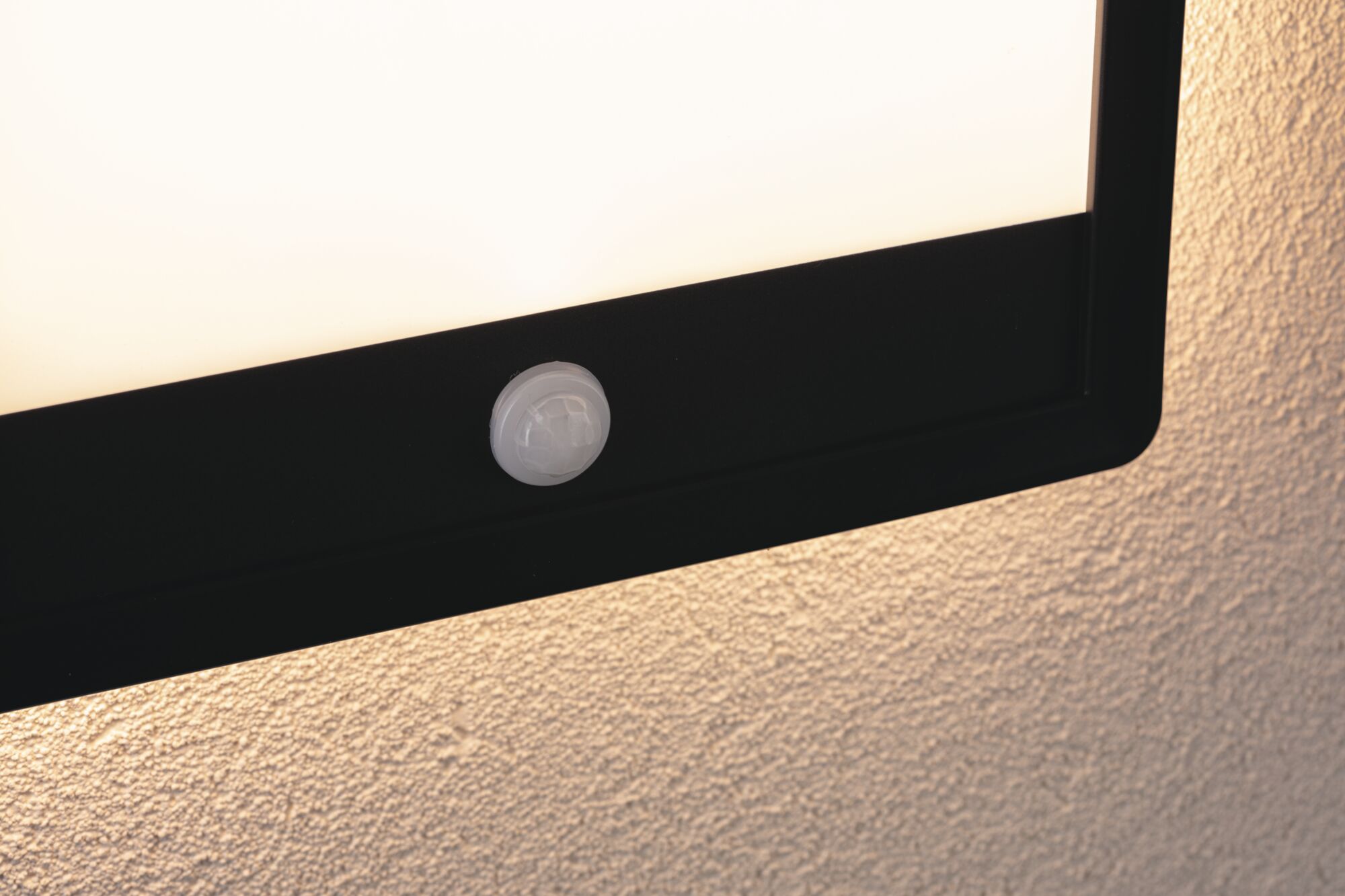

- Automatic switching with integrated motion detector
- Suitable for outdoor use
| Dimension | |
|---|---|

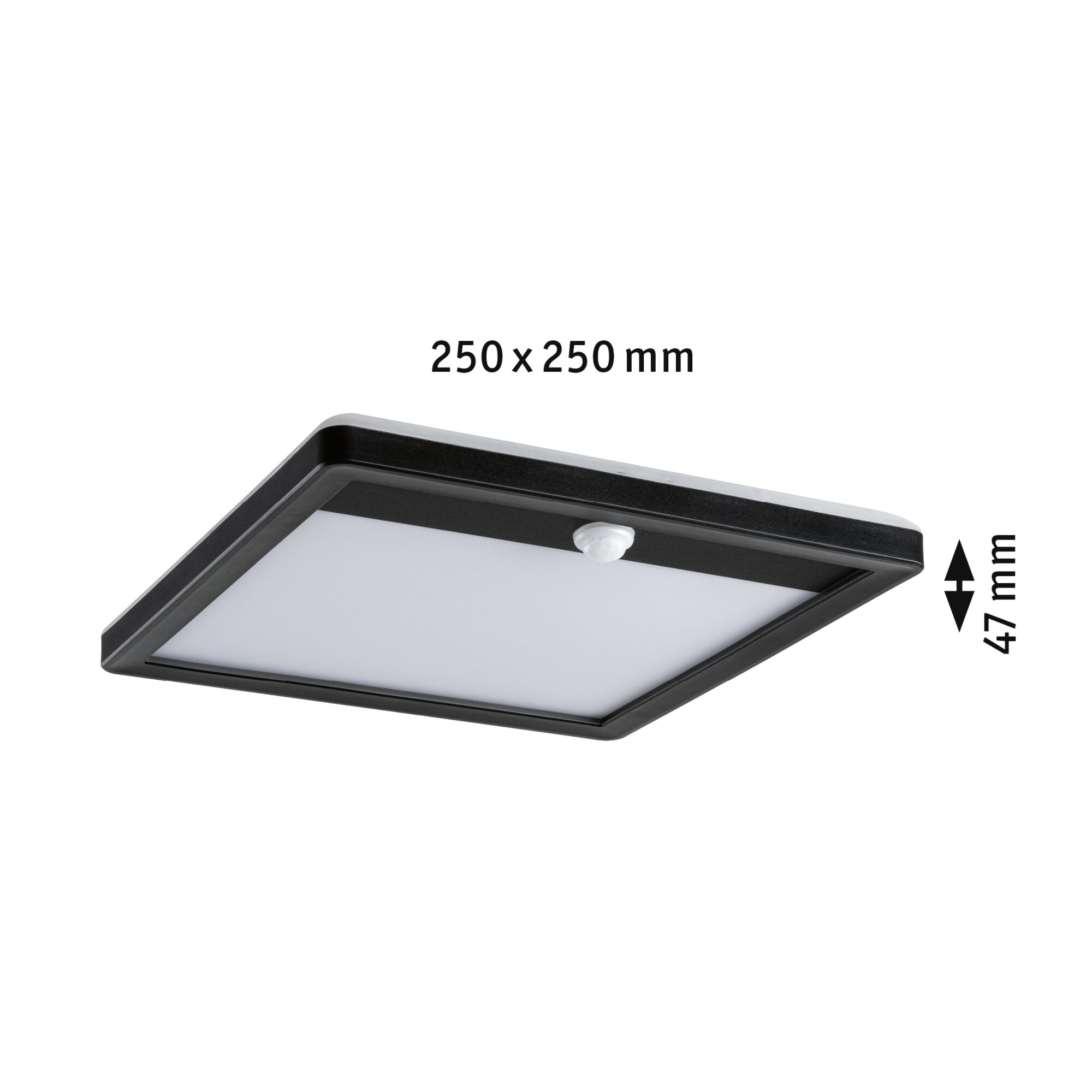

| Dimensions (Height x Width x Depth) | H: 250 x B: 250 x T: 47 mm |
| Net weight | 304 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Black |
| Material | Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Mounting location | Wall |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Features | |
|---|---|
| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 14 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 80 W |
| IP Protection | IP44 |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 16 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 920 lm |
| Colour change | Tunable Warm |
| Colour temperature to | 3000 K |
| Colour temperature | Gold light to Warm white, 2200 K |
| Luminous flux LED module | 1700 lm |
| Transformer | |
|---|---|
| apparent power | 19.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
