Article-No.:
94256
LED Exterior panel
Board
IP44 square 250x40mm 3000K 10W 900lm 230V Anthracite Aluminium
IP44 square 250x40mm 3000K 10W 900lm 230V Anthracite Aluminium

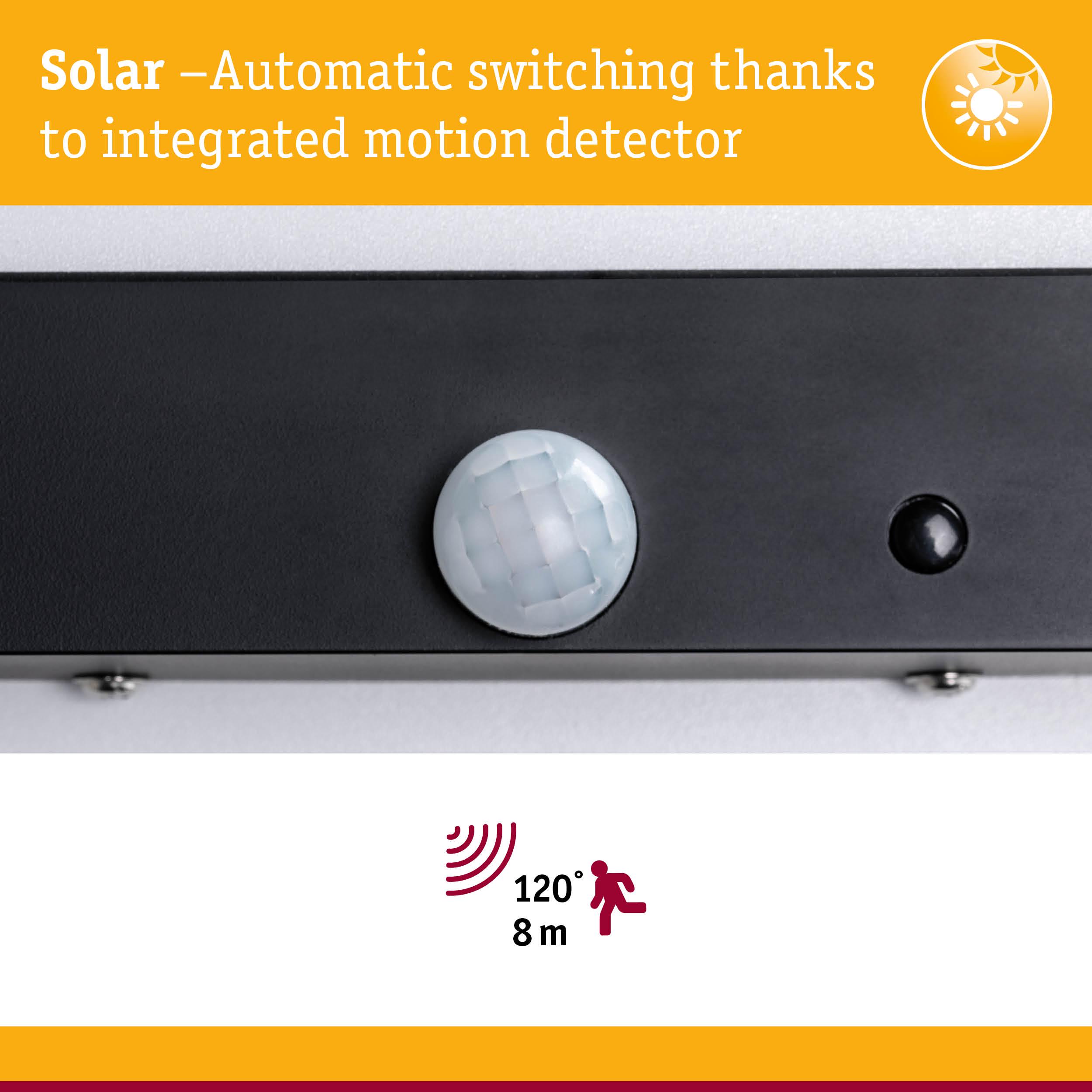

- Automatic switching with integrated motion detector
- Color temperatur: 3000K - Warm white
- For 230 V direct connection

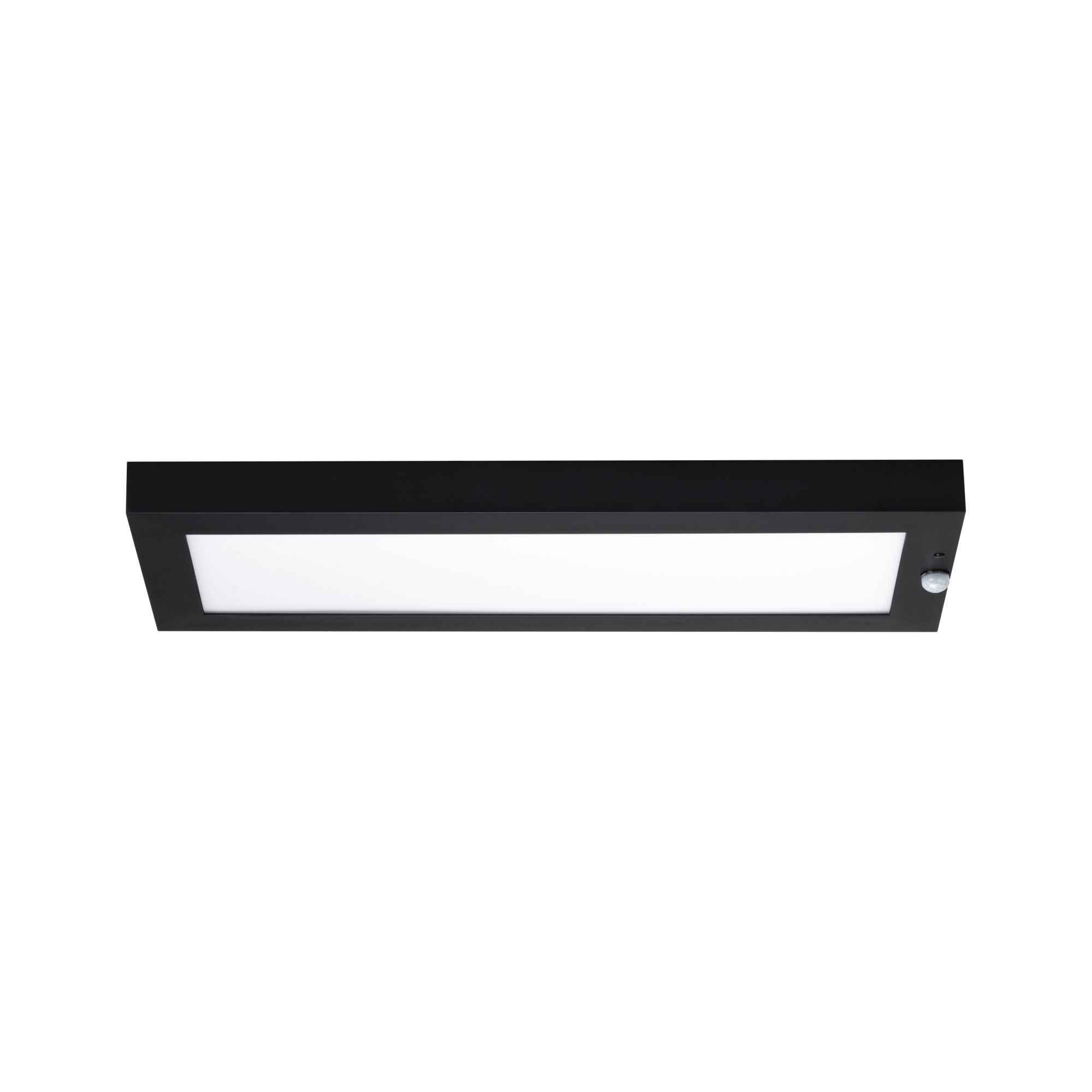

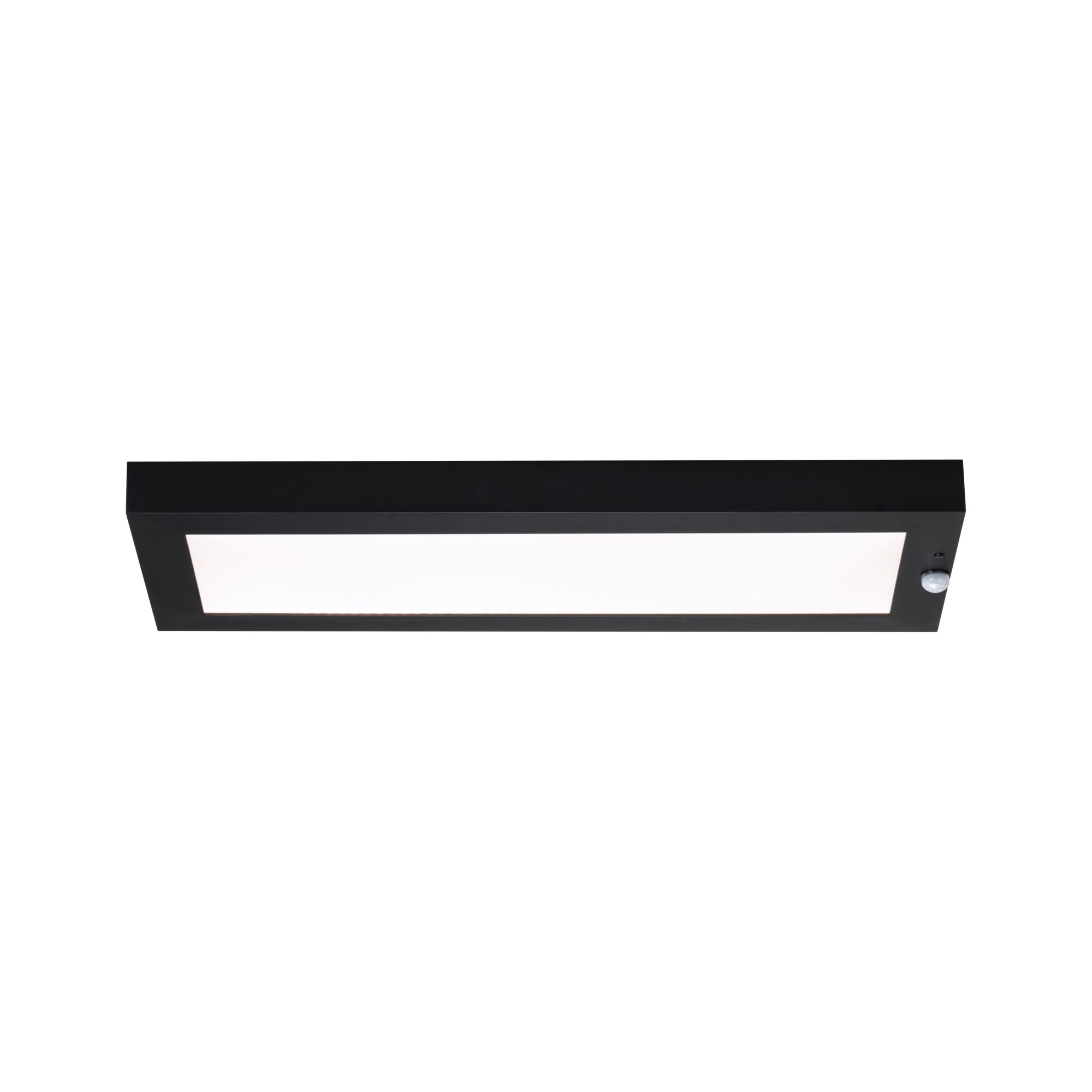

LED Exterior panel Board Twilight-controlled motion detector (IR) IP44 square 250x40mm 3000K 10W 900lm 230V Anthracite Aluminium

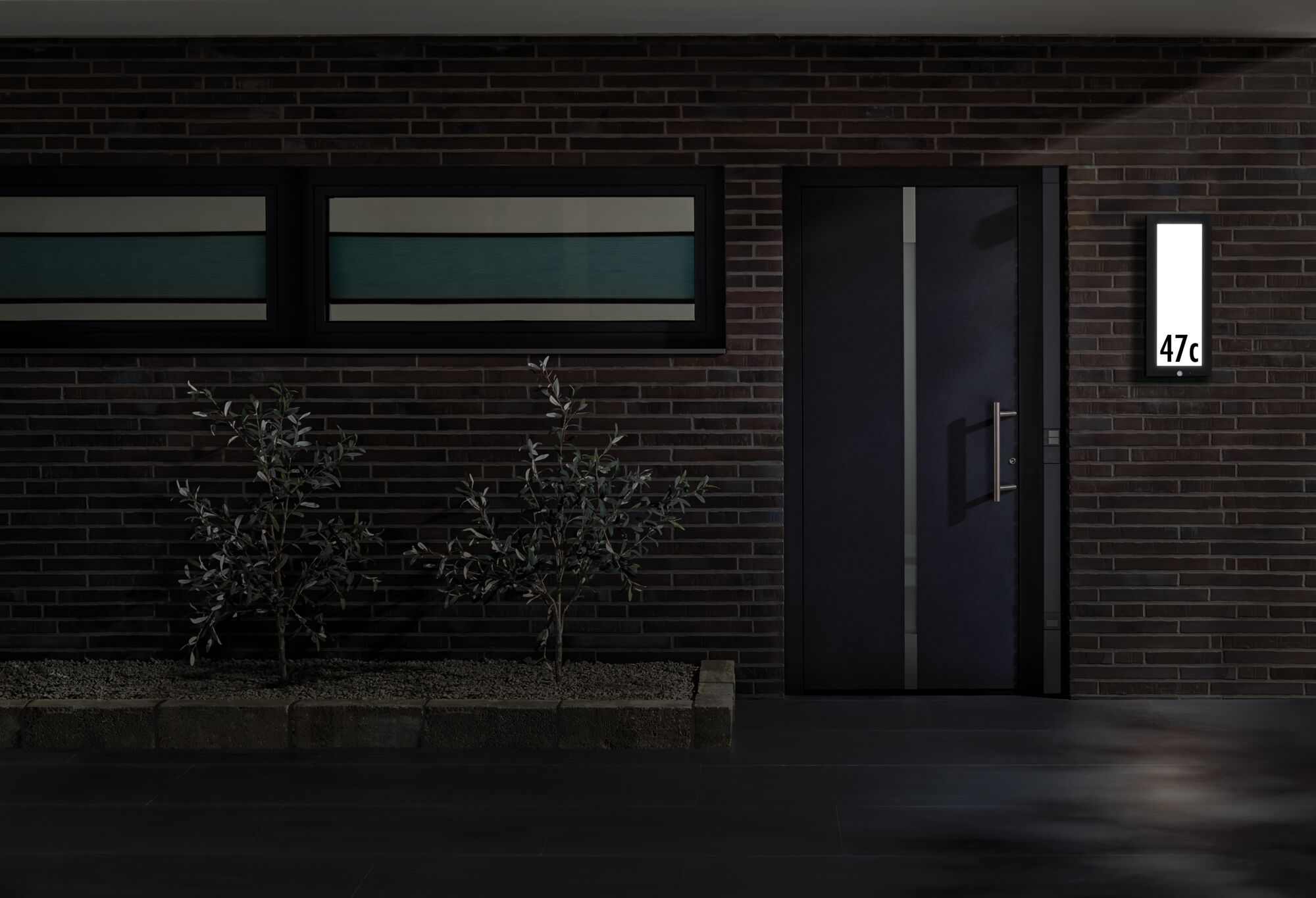

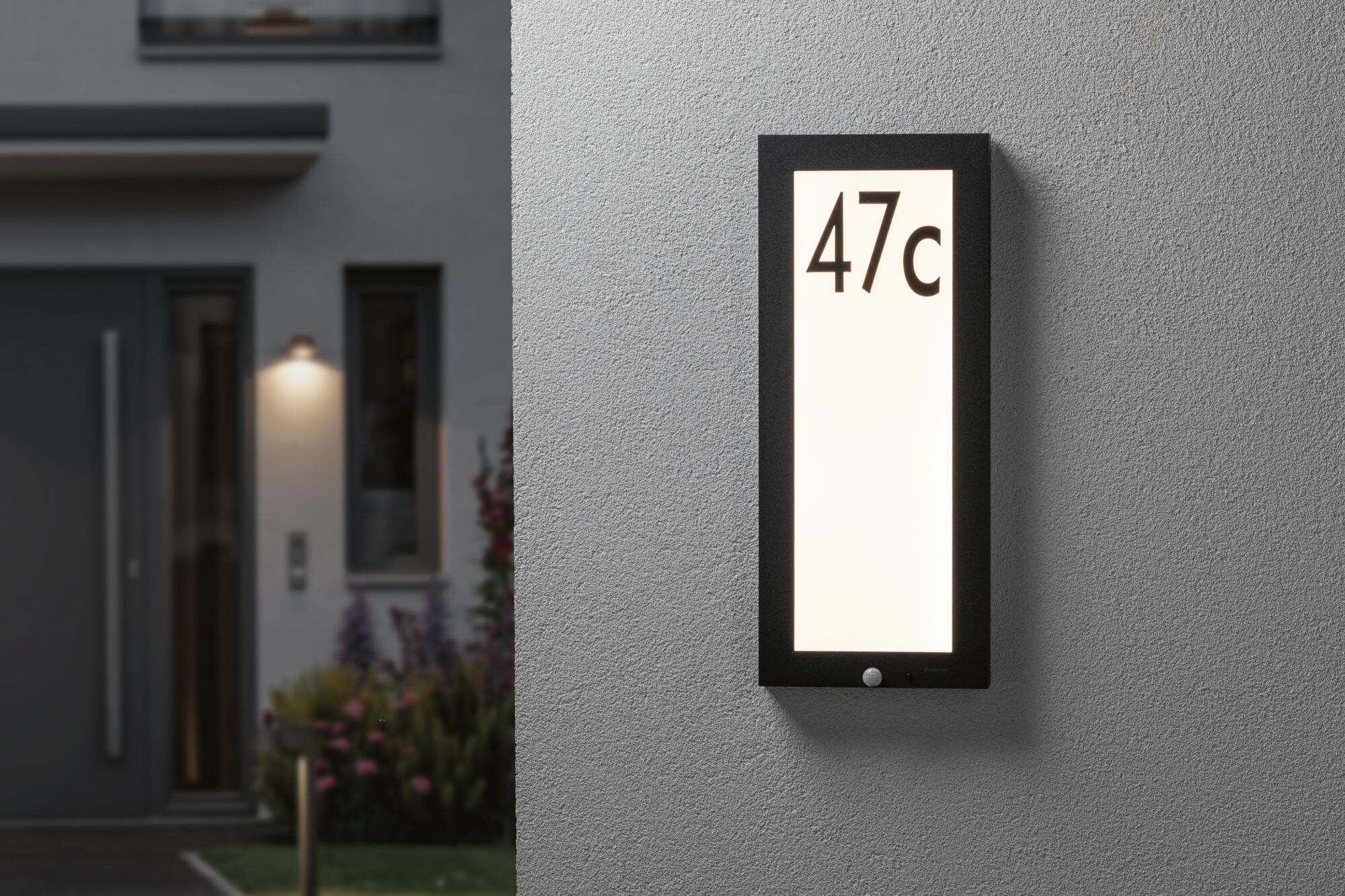

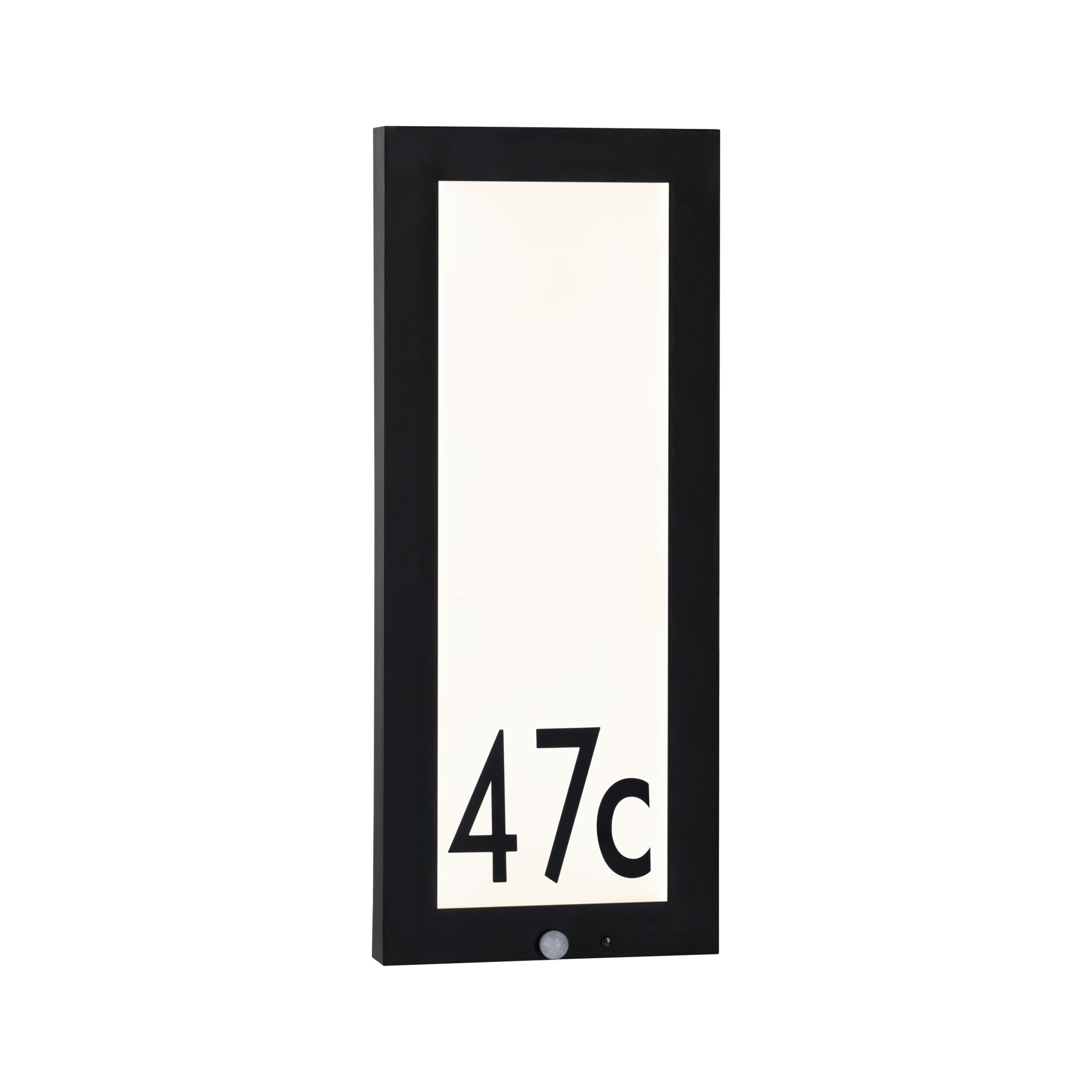

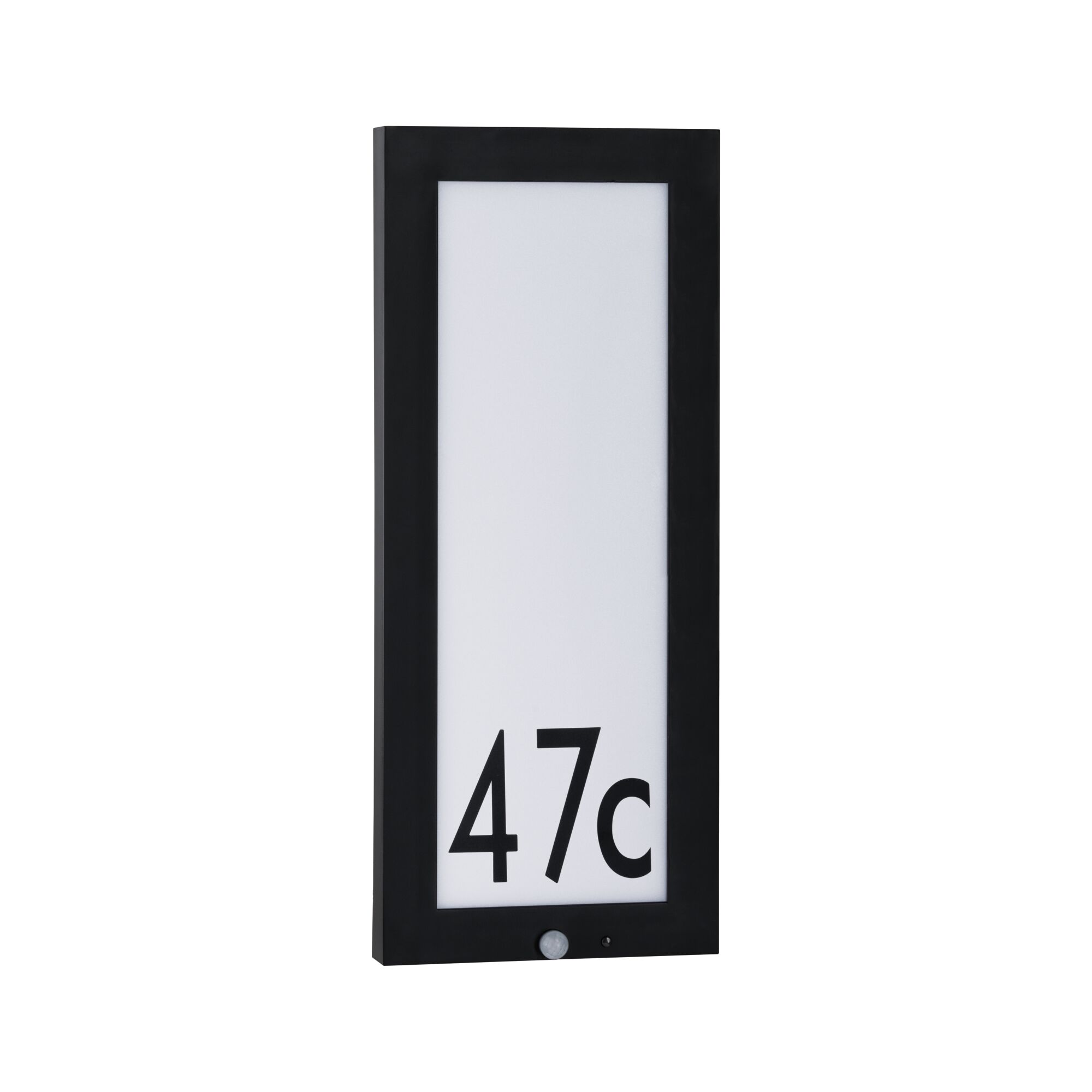

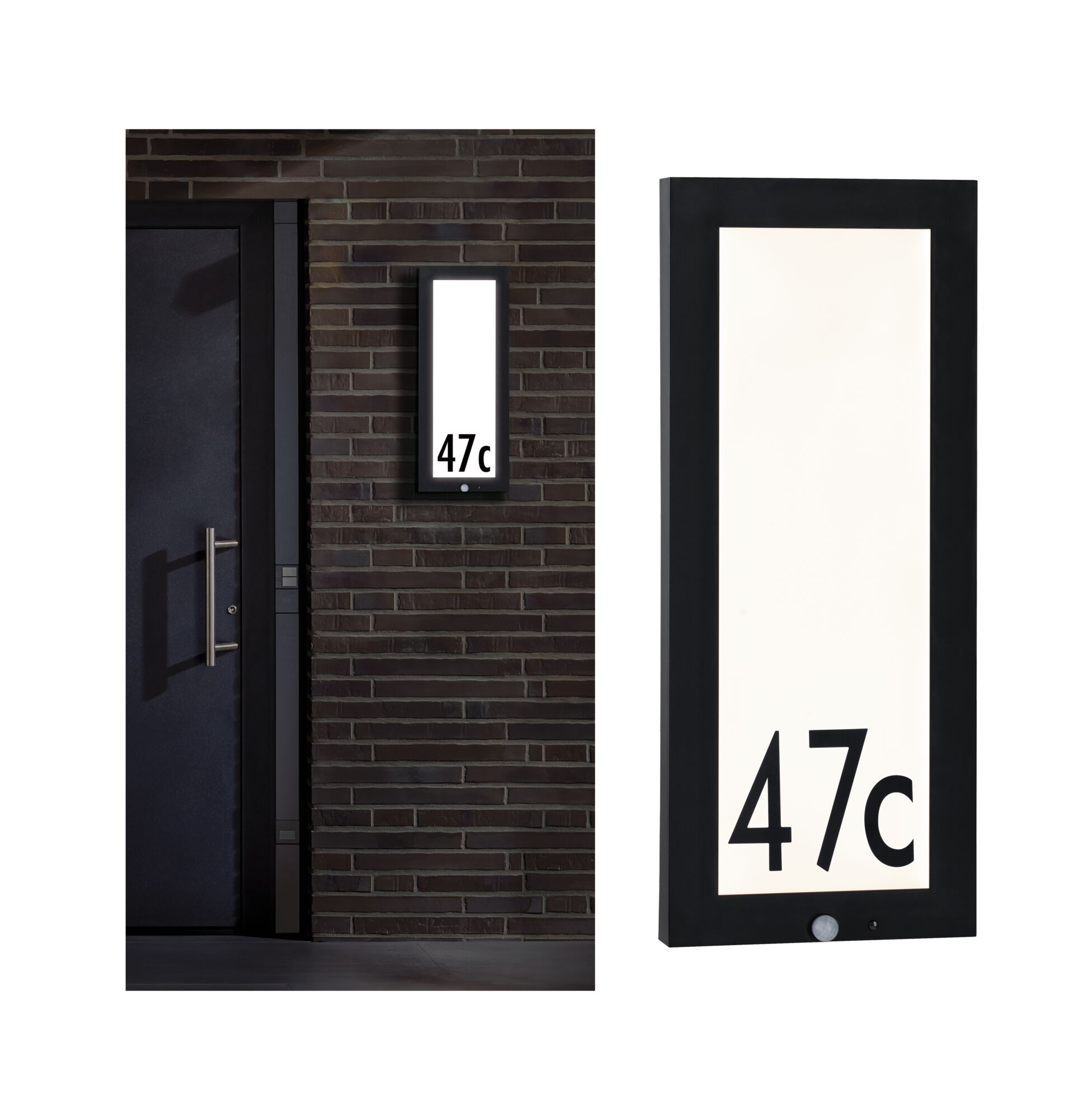

The Outdoor Panel with dimensions of 20x60 cm can be installed on the wall and on the ceiling and creates a gentle and evenly distributed light. The panel can be re-purposed as a house number luminaire by attaching the number and letter stickers provided. Choose between permanent operation or motion sensor activation.
- Automatic switching with integrated motion detector
- Color temperatur: 3000K - Warm white
- For 230 V direct connection

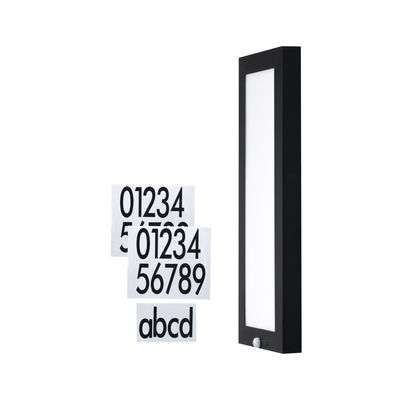

- Incl. 2 sets of numbers and 1 set of letters in black that can be bonded on individually
- protective system: IP44 – for wet-duty rooms and outdoor use
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 600 x B: 250 x T: 40 mm |
| Form | square |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Features | |
|---|---|

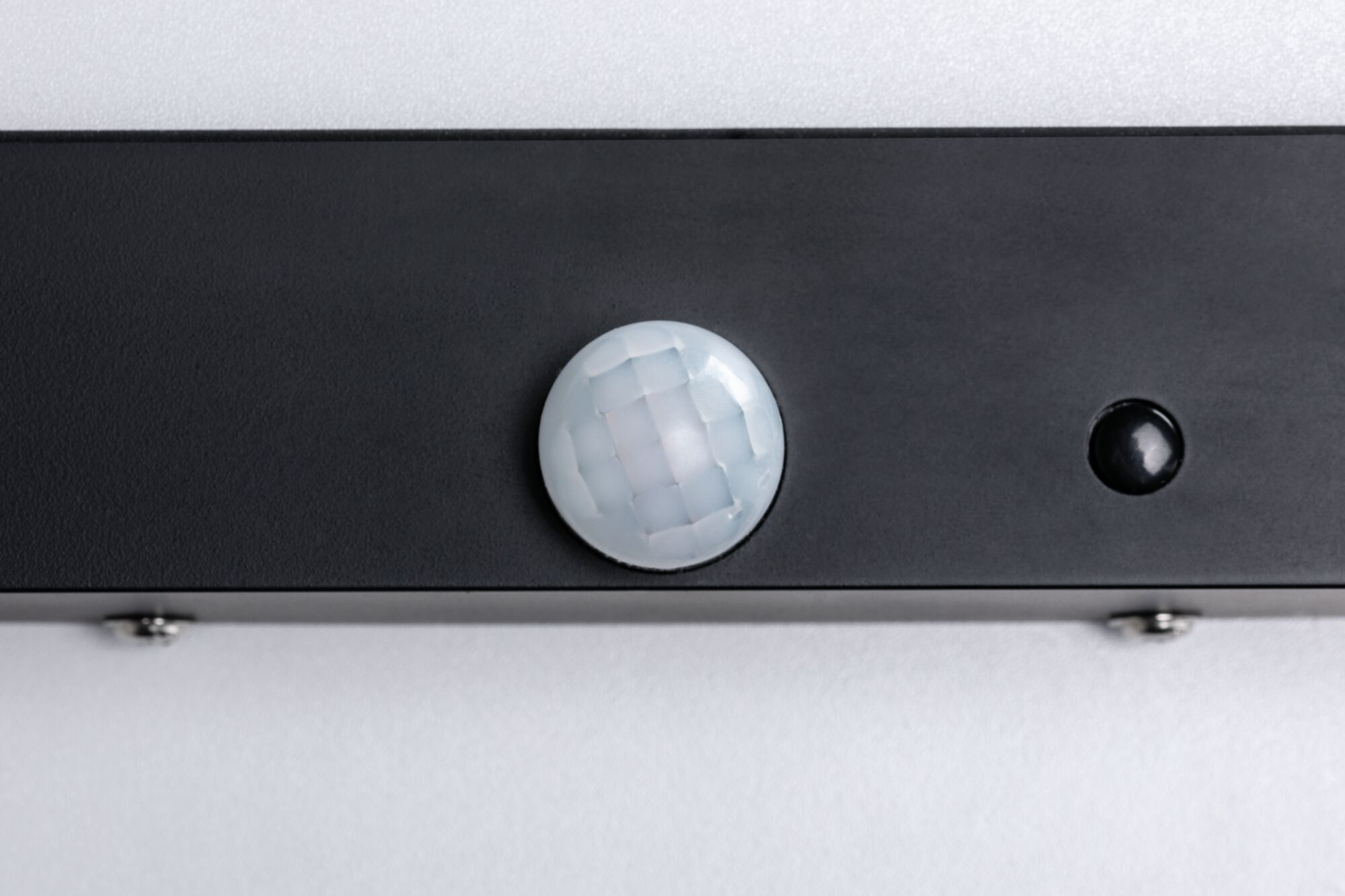

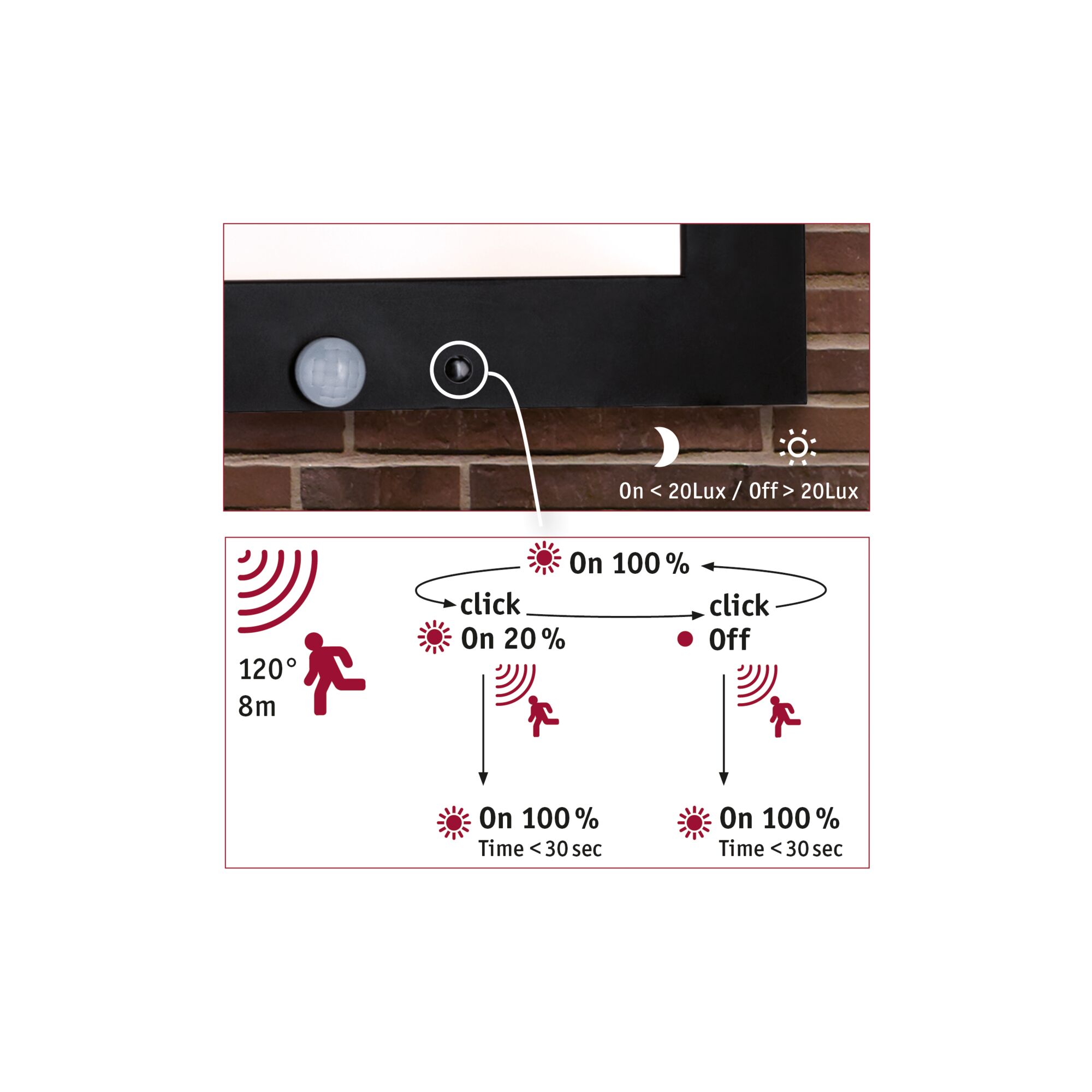

| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 900 lm |
| Luminous flux LED module | 1250 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 10 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 250 mm |
| Incandescent Equivalent | 120 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 13 W |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
