Article-No.:
93462
LED Downlight
Nova Basic Set Rigid
IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Turned aluminium
IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Turned aluminium
- Set of 3 lights incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
LED Downlight Nova Coin Basic Set Rigid IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Turned aluminium

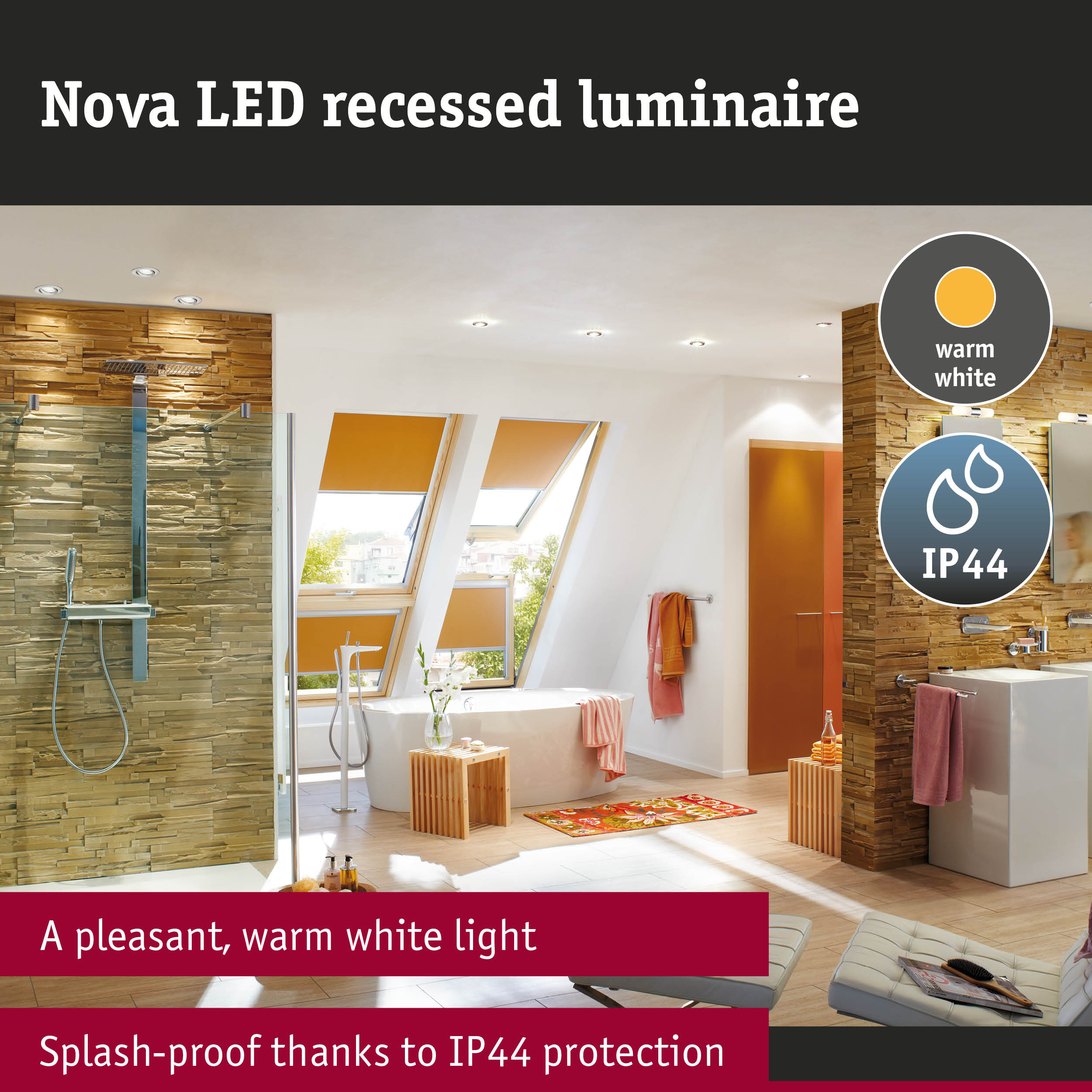

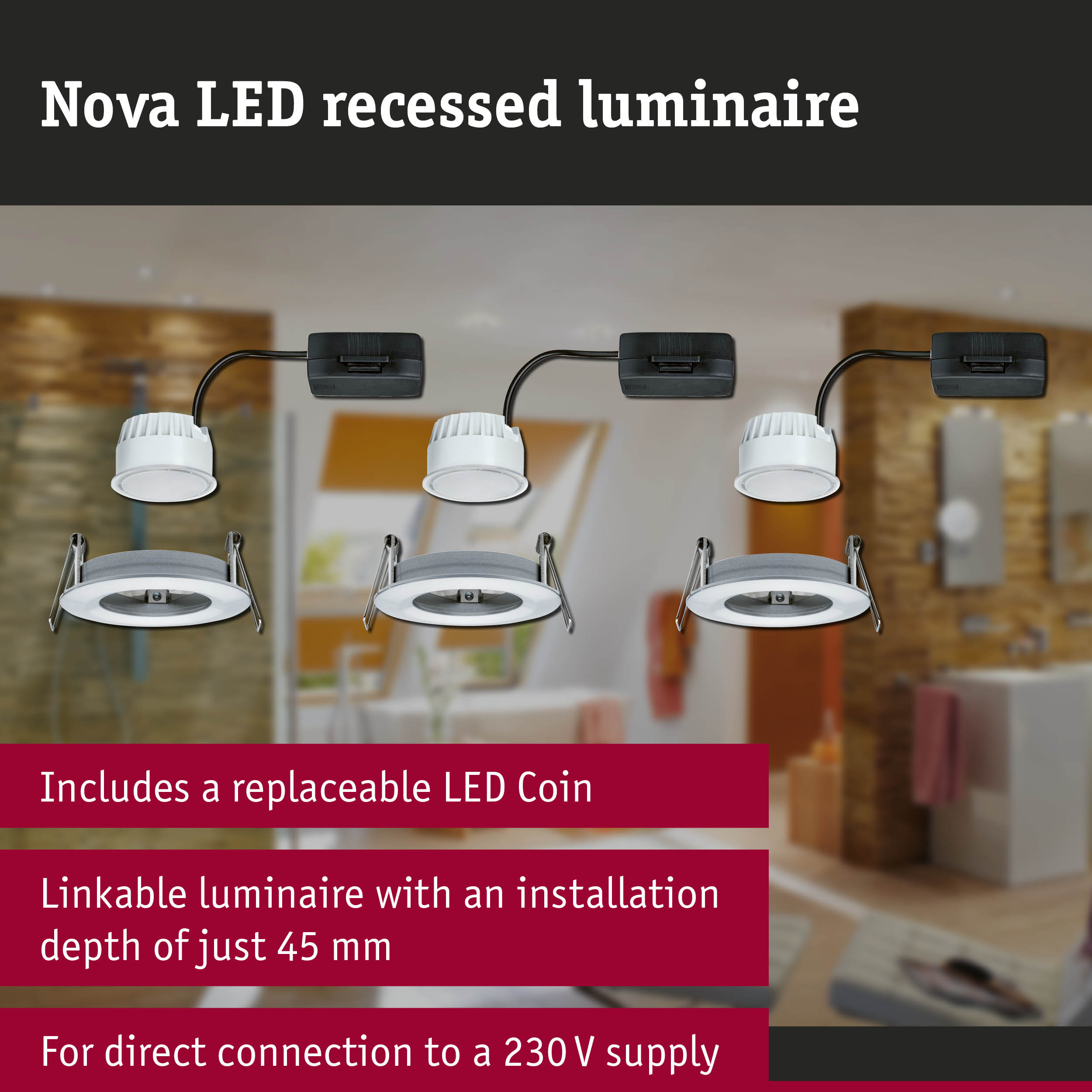

The round Nova recessed lights (3-piece set) in Turned aluminium with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single lights can be easily linked together with quick clips and without any tools, the installation will be really quick and easy. The lights even provide cosy lighting in the kitchen and bathroom, thanks to their IP44 splash protection.
- Set of 3 lights incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
| Dimension | |
|---|---|
| Diameter | 78 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| net weight | 436 g |
| Design and Material | |
|---|---|
| Form | round |
| Light source shape | Coin |
| Colour | Turned aluminium |
| Material | Aluminium |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Colour temperature | Warm white, 2700 K |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Without light source |
| Incandescent Equivalent | 40 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
