Article-No.:
92405
LED Downlight
Nova Basic Set rigid
IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Gold matt
IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Gold matt
- Set of 3 lights, 470 lm, gold matt
- Colour temperature: 2700K - Warm white
- High-quality die-cast aluminium
LED Downlight Nova Coin Basic Set rigid IP44 round 78mm Coin 3x6W 3x470lm 230V 2700K Gold matt

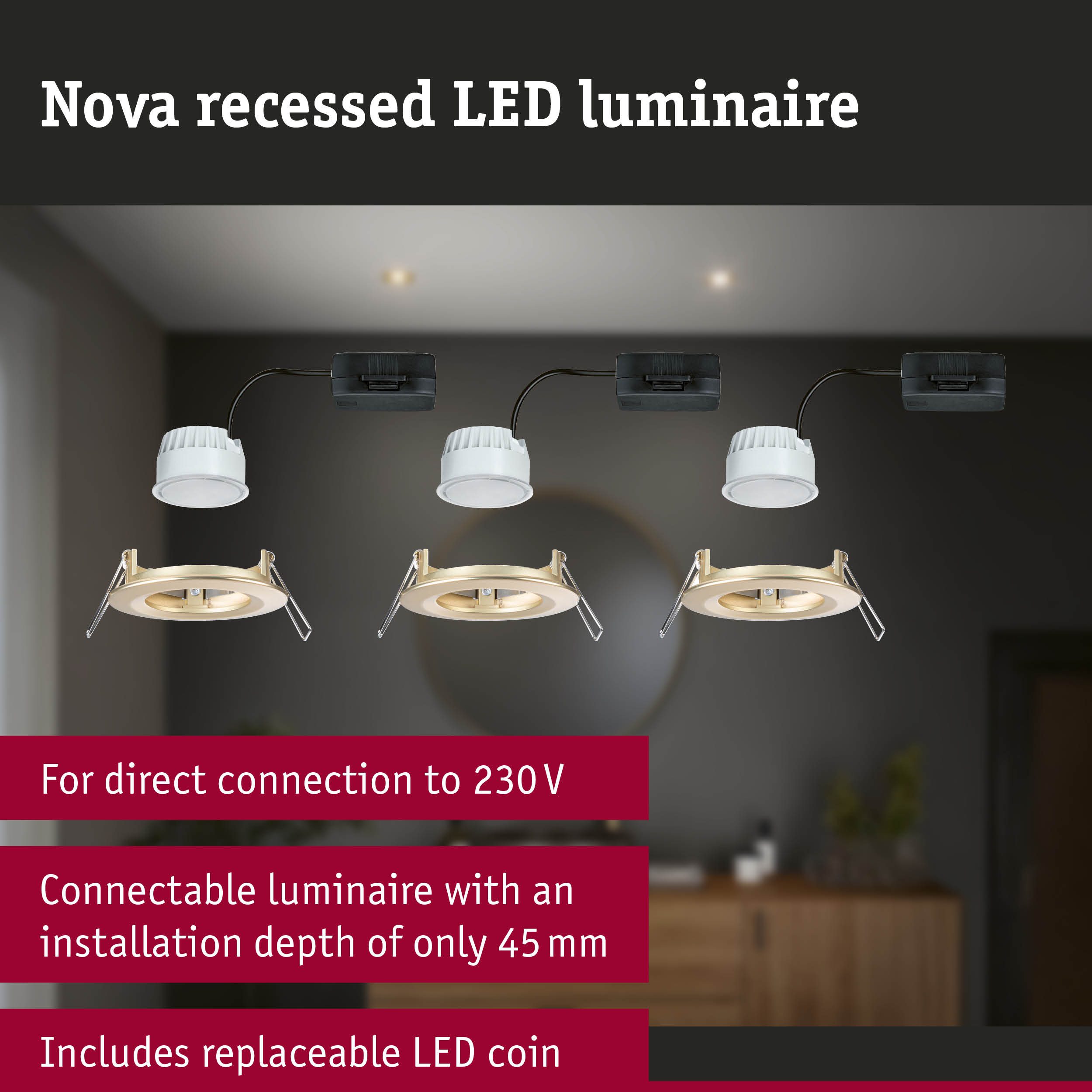

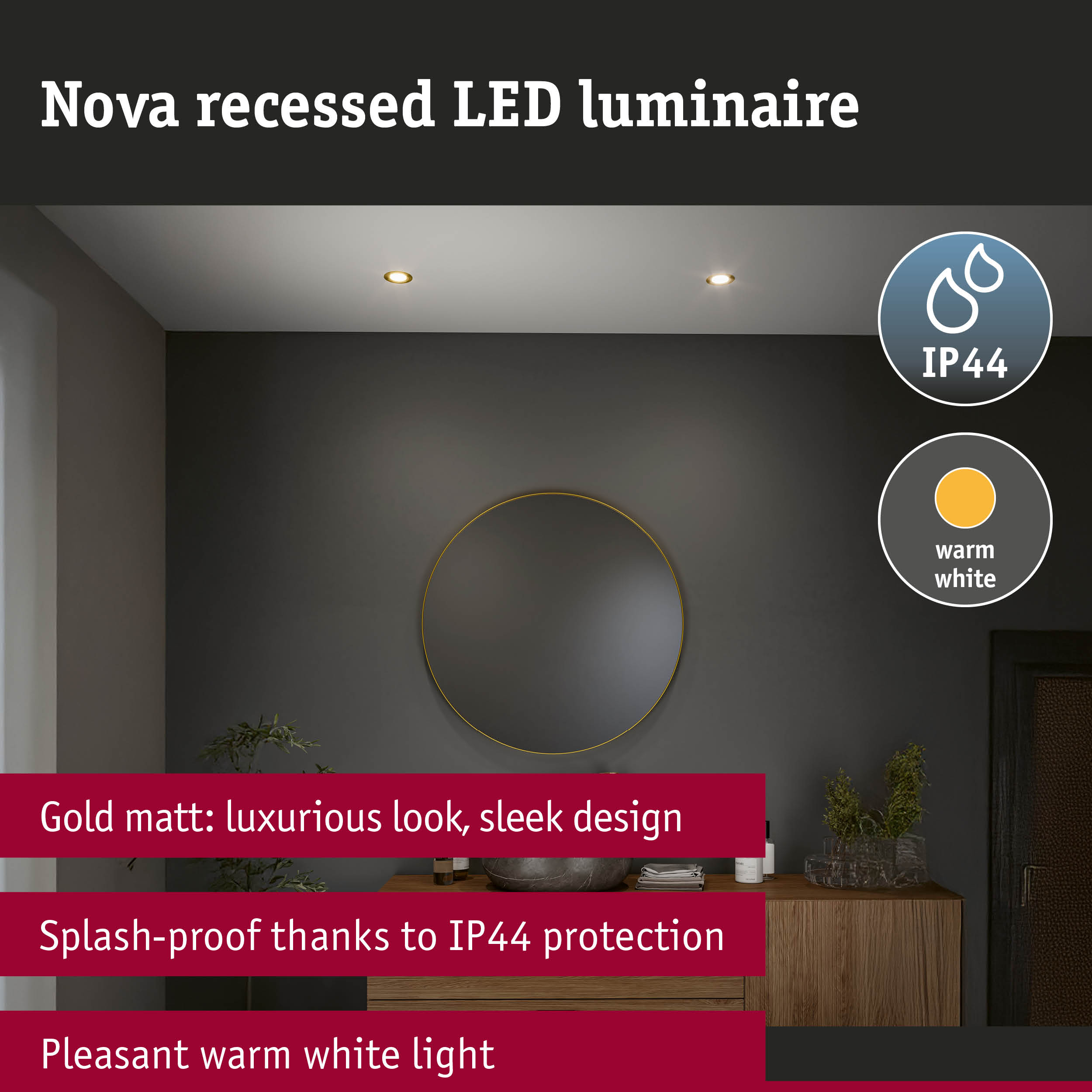

The round Nova coin recessed light (3-piece set) in gold matt with 3 x 470 lm is the perfect choice for a functional and stylish lighting design. The high IP44 protection makes this light ideally suitable for use in wet rooms, as it is additionally splash-protected. Manufactured as a durable aluminium die-cast unit with an installation depth of just 45 mm, this model is ideally suited for customised residential concepts. The minimalistic look is undisturbed by snap rings: No snap ring is needed, as the lamp is inserted back to front. The practical junction box allows a direct 230 V connection and ensures easy and unlimited interlinking of the lights. The simple mounting method with retaining springs means that the ceiling remains undamaged, even after repeated installations and removals. High-efficiency, long-life coin LED light bulbs are included in the delivery, which generate an attractive 2700 K warm white light for ambient lighting.
- Set of 3 lights, 470 lm, gold matt
- Colour temperature: 2700K - Warm white
- High-quality die-cast aluminium
- Linkable coins for direct 230V connections
- IP protection: IP44 - splash-protected
- Shallow installation depth of the Nova coin downlights
- Easy installation of the downlights
| Dimension | |
|---|---|
| Diameter | 78 mm |
| Dimensions (Height x Width x Depth) | H: 22 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| net weight | 544 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Gold matt |
| Material | Aluminium |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Colour temperature | Warm white, 2700 K |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Without light source |
| Incandescent Equivalent | 40 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
