Article-No.:
93085

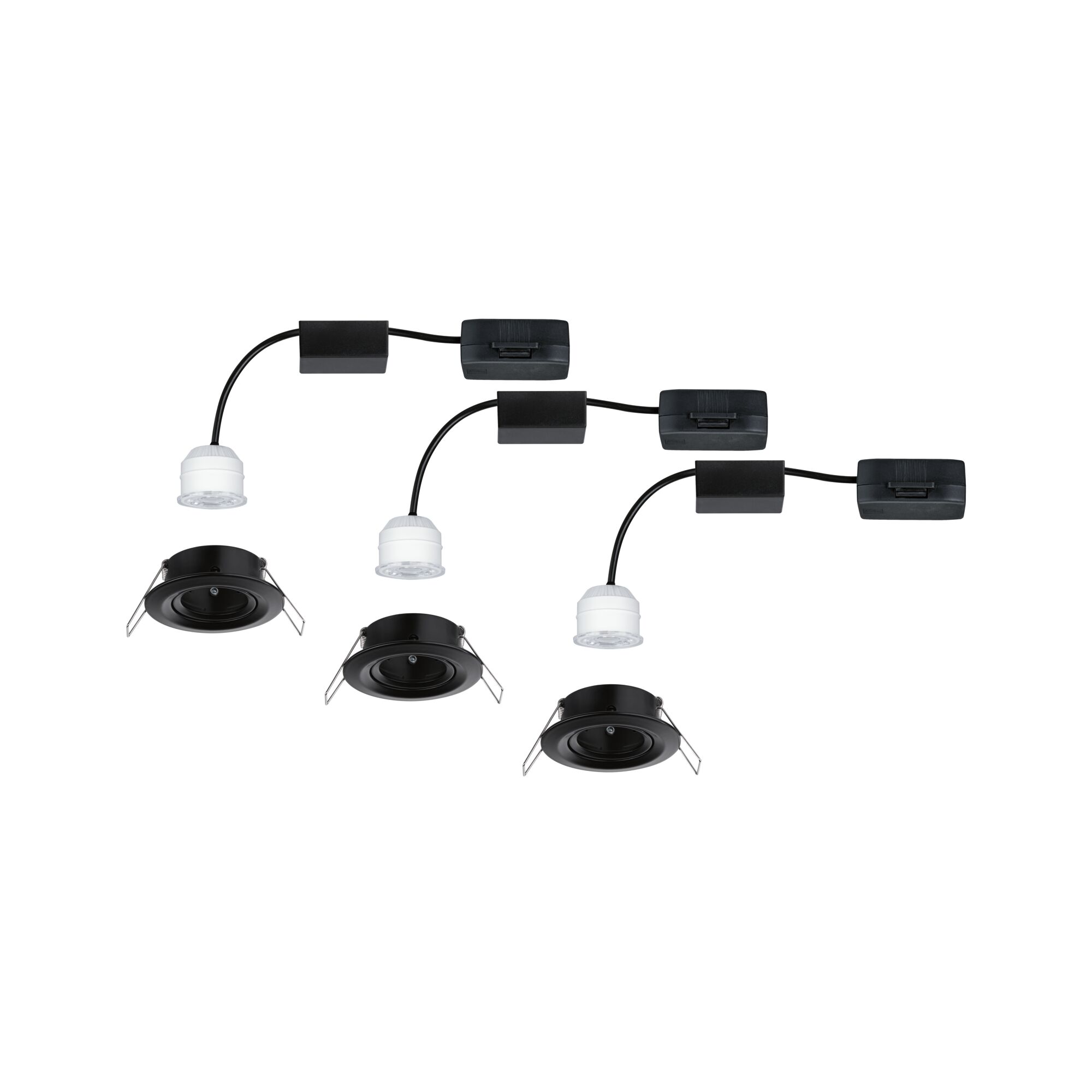

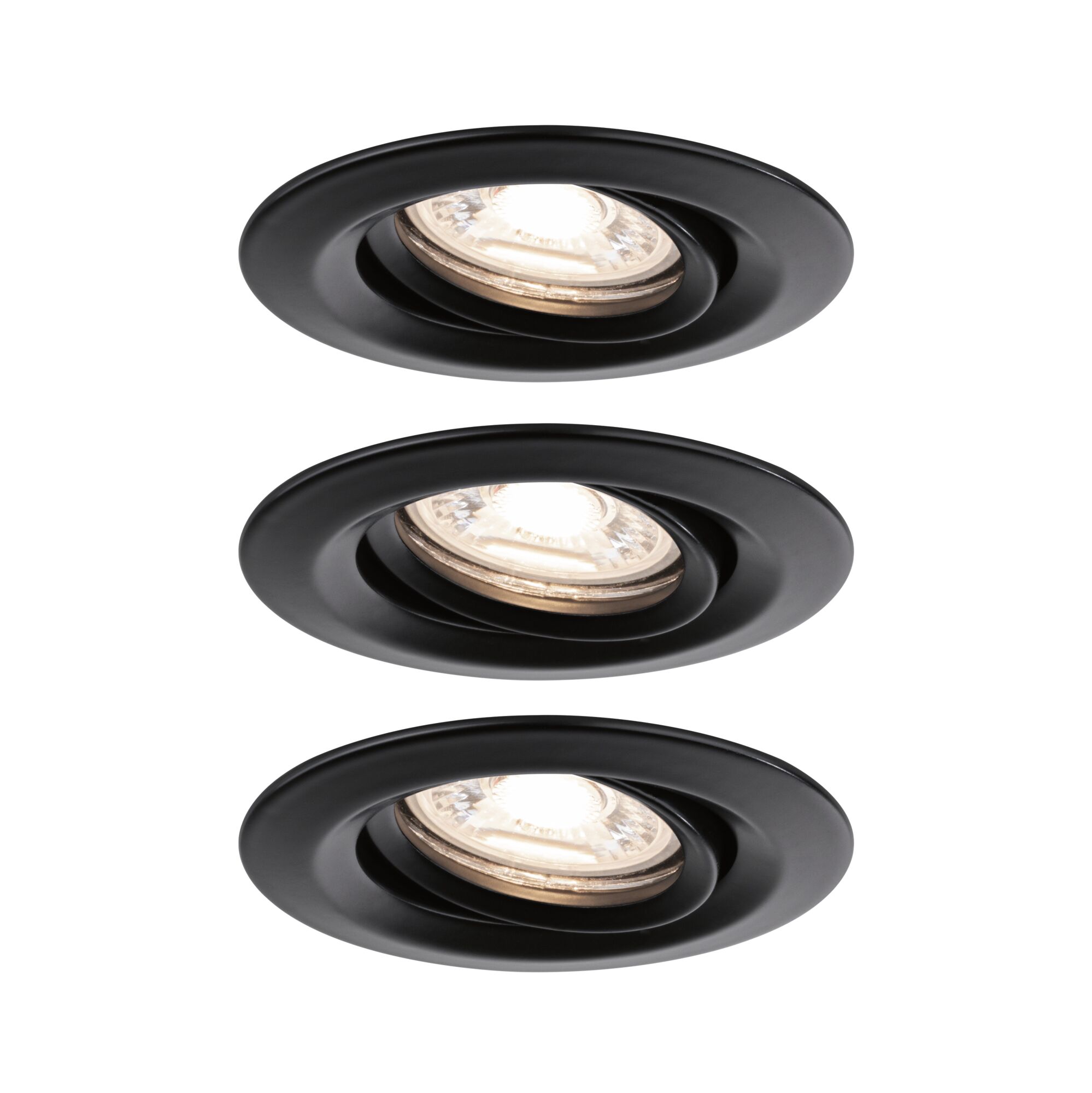

- Set of 3 lights incl. LED module
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
LED Downlight Easy Dim Nova Mini Plus Coin Basic Set Swivelling round 66mm 15° Coin 3x4W 3x310lm 230V 2700K Black matt

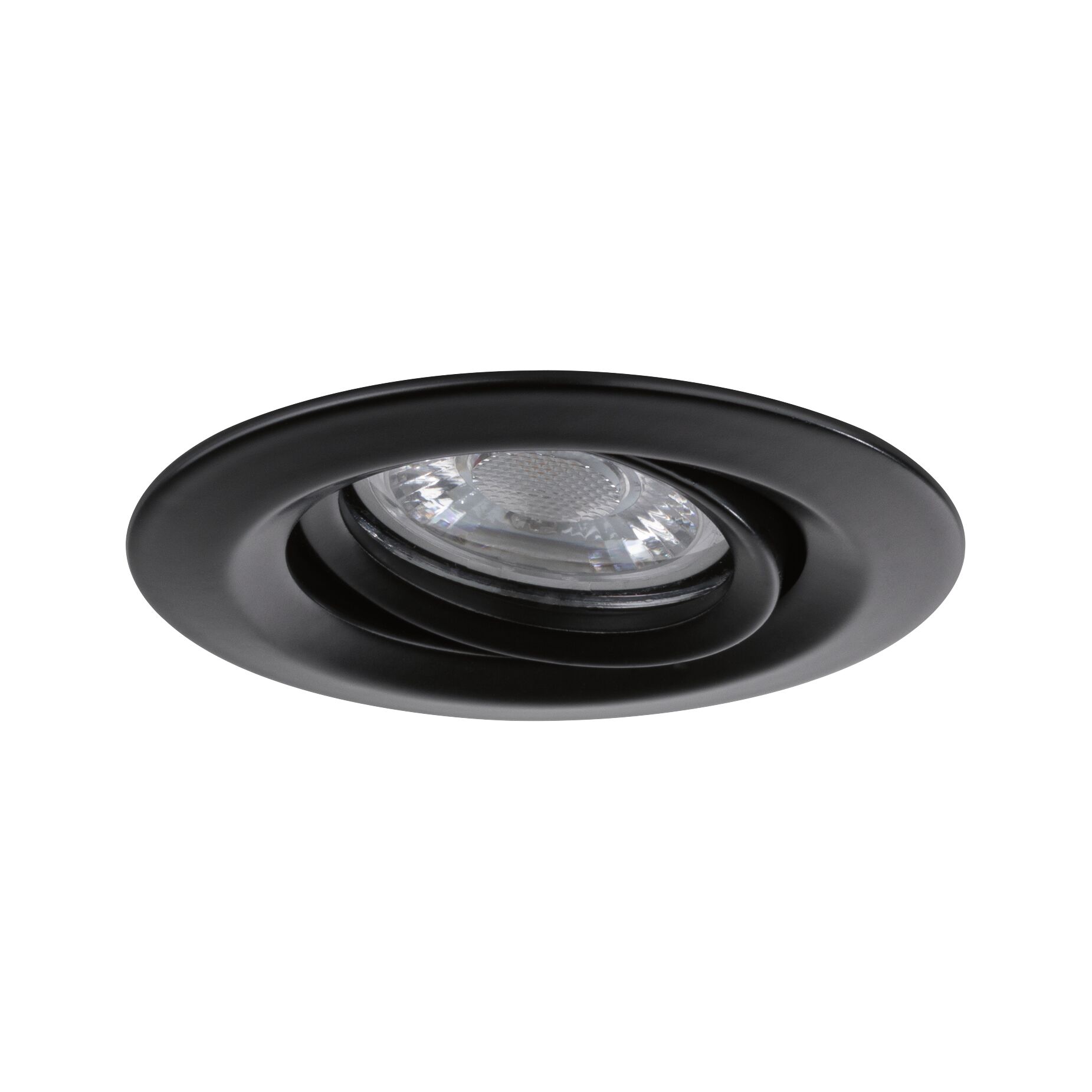

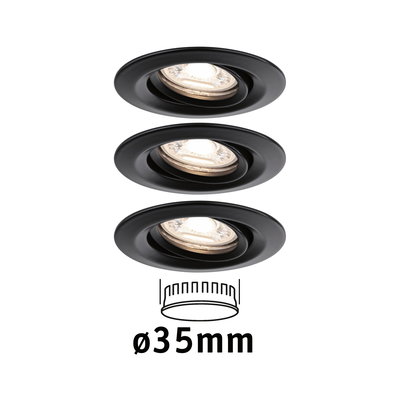

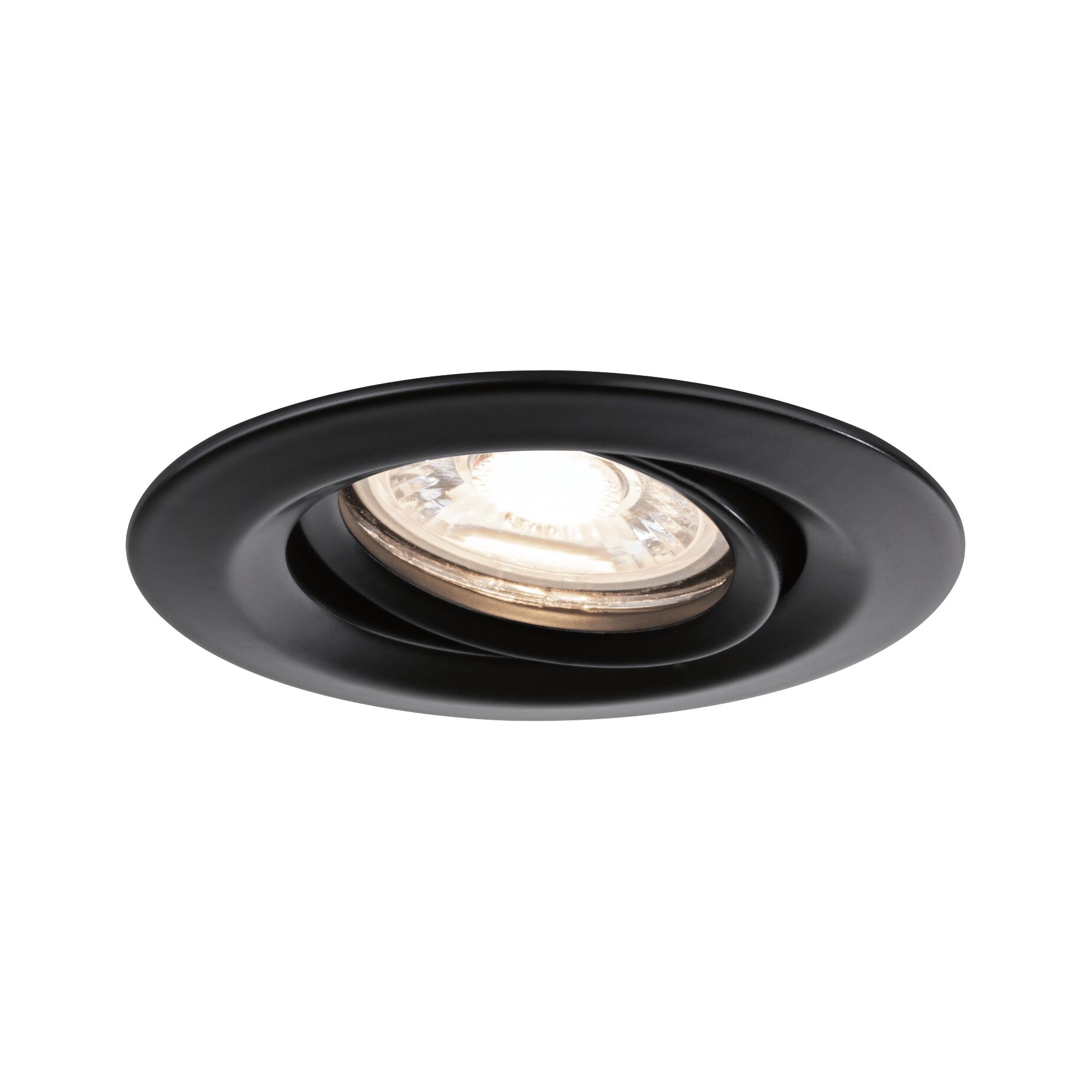

The swivelling Nova mini downlights in aluminium, with their compact size, open up a whole new range of possibilities. Thanks to the integrated EasyDim function, they can be dimmed continuously using a standard light switch. They are ideal for conservatories, spot lighting, counter-top and balcony cladding. The unique 35mm coins are interchangeable, flat and can be linked together endlessly.
- Set of 3 lights incl. LED module
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
- Colour temperature: 2700K - Warm white
| Dimension | |
|---|---|

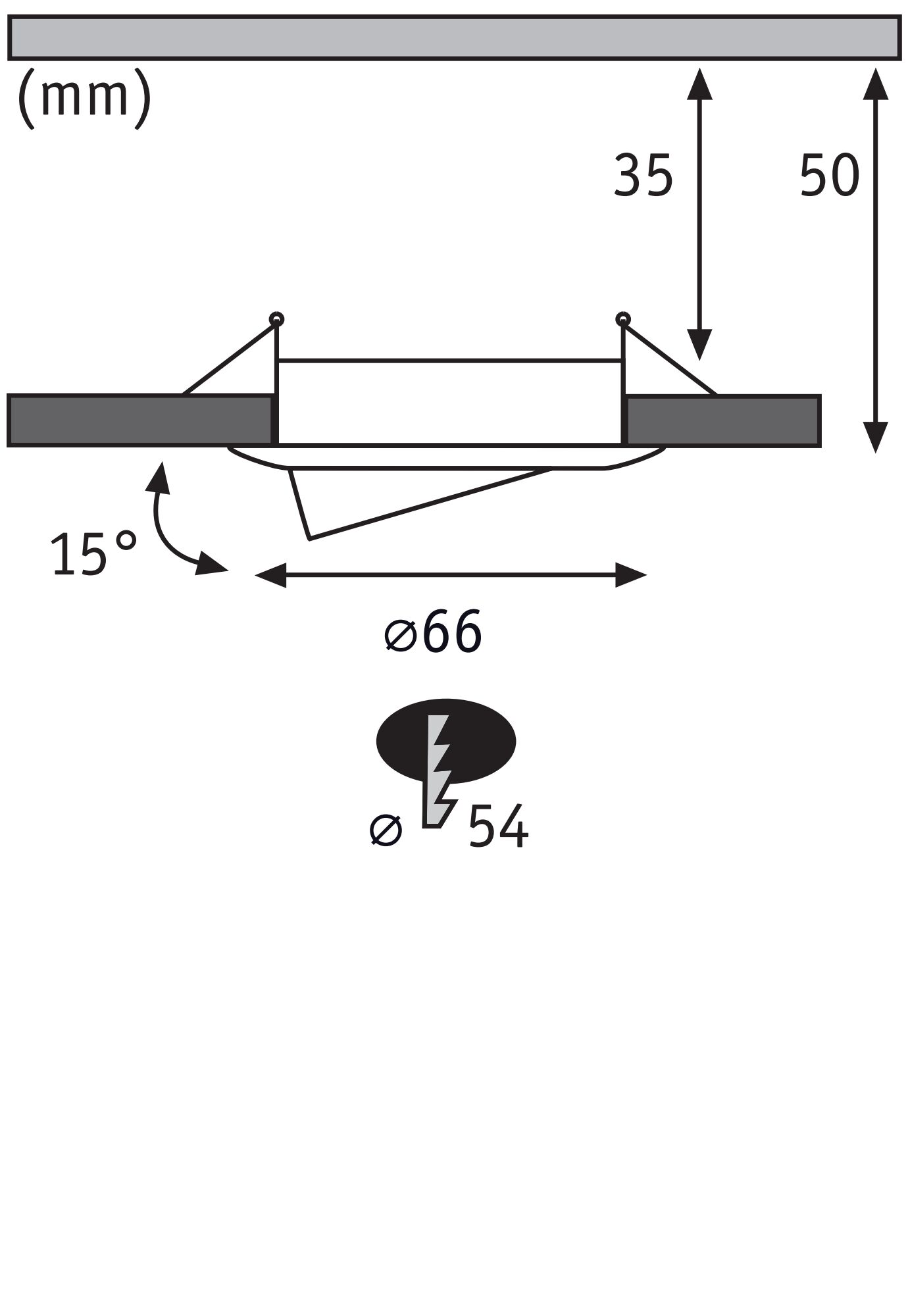

| Diameter | 66 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Built-in diameter | 54 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Net weight | 523 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Black matt |
| Material | Aluminium |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 85 % |
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | EasyDim |
| Inclusive lamp | yes |
| Component parts | 4 W |
| light source property | Without light source |
| Swivel range | 15 ° |
| Incandescent Equivalent | 29 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | swivelling/tilting |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,2 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 310 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Colour temperature | Warm white, 2700 K |
| Colour consistency (SDCM) | 3 |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 30 mm |
