Article-No.:
94954
LED Downlight
Base GU10 Flat swivelling
3x4,9W 3x550lm 230V dimmable 2700K Black matt
3x4,9W 3x550lm 230V dimmable 2700K Black matt
- Set of 3 lights
- Particularly flat gu10 flat reflector – ideal for minimal space requirements
- Can be dimmed with a standard light switch, with 3 dimming levels
LED Downlight Base GU10 Flat swivelling 3x4,9W 3x550lm 230V dimmable 2700K Black matt

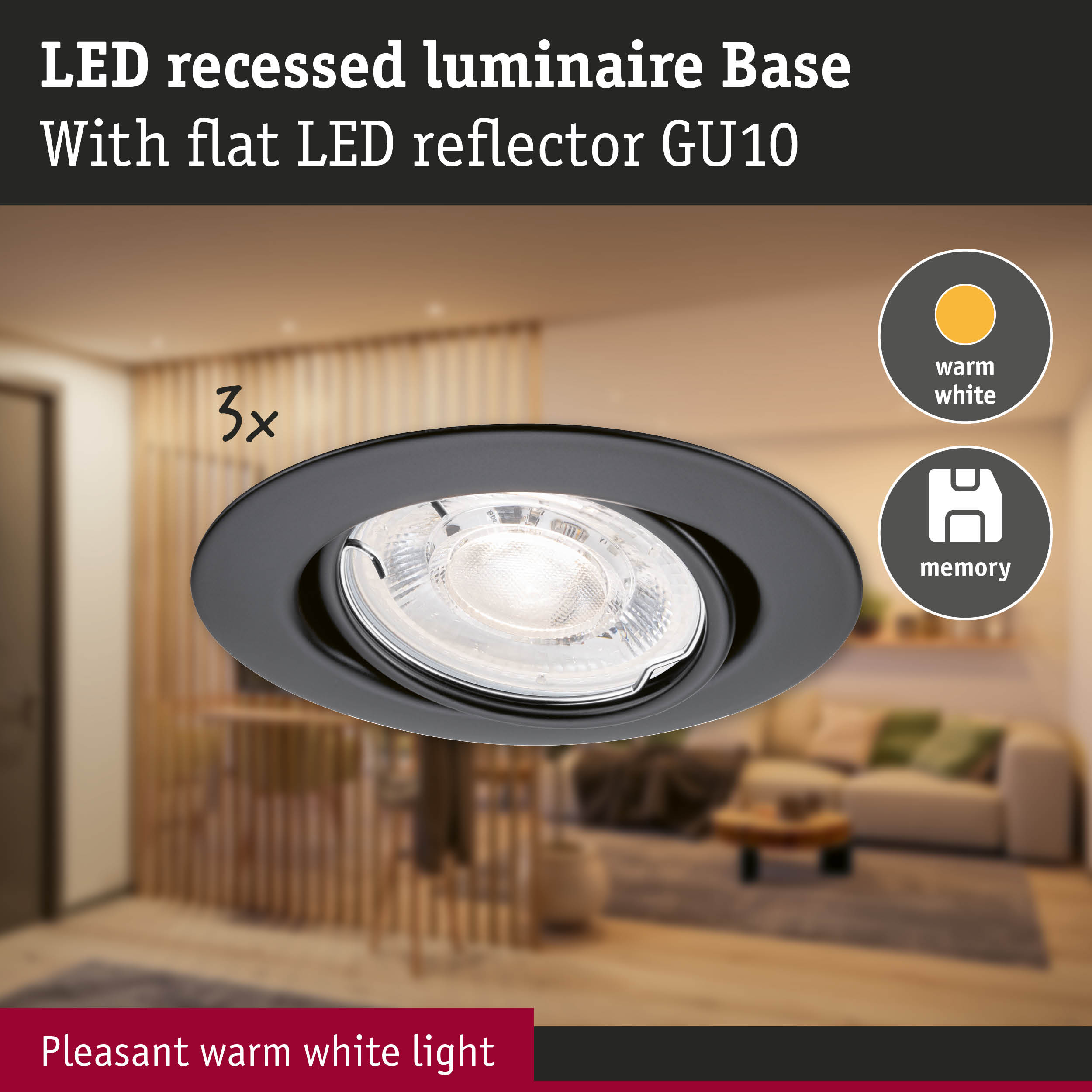

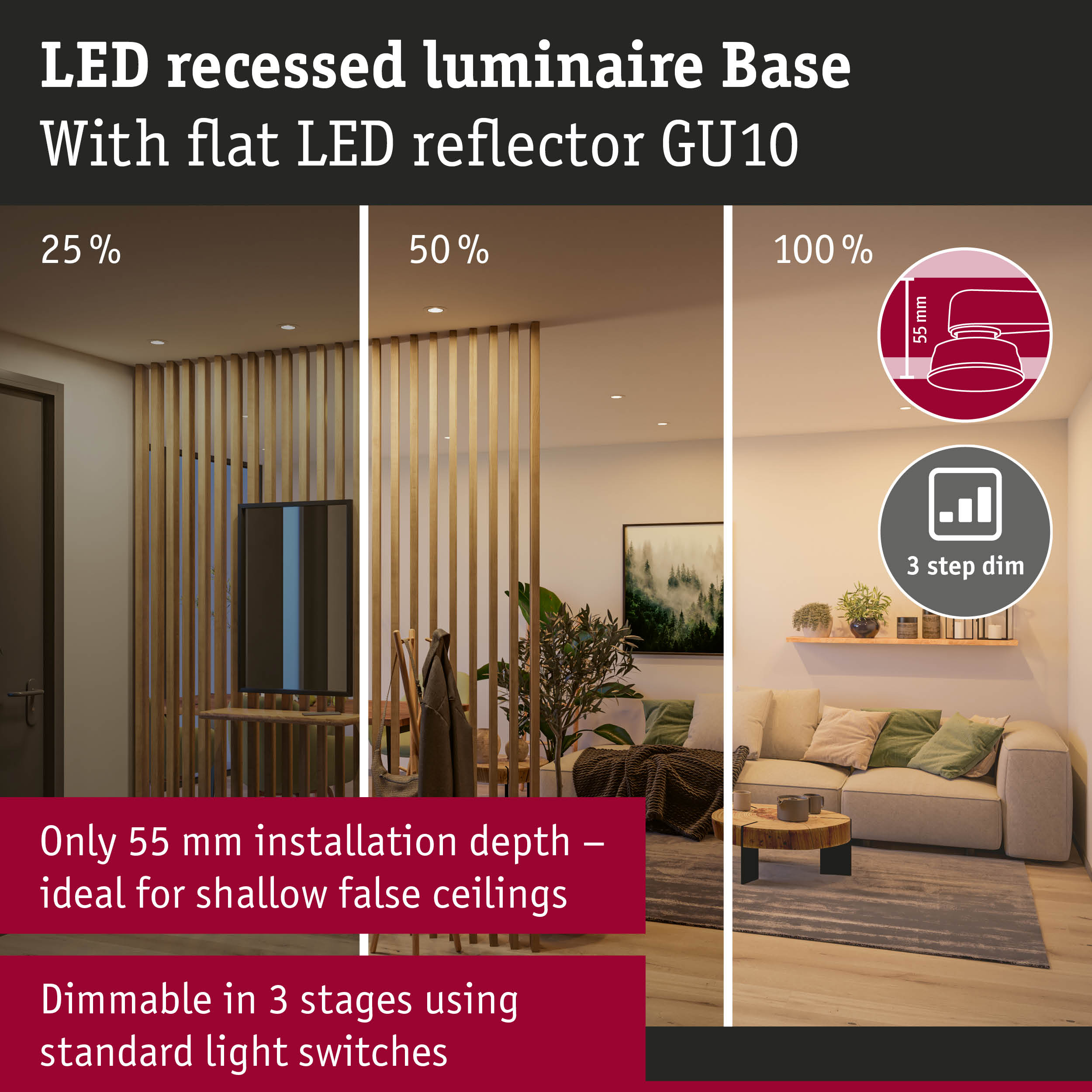

The Black matte LED recessed luminaire Base in a practical set of 3 with 3x4,9W impresses not only with its technical functions, but also with its flat GU10 Flat reflector. With an installation depth of just 55 mm, it is therefore ideal for installation in flat suspended ceilings. The brightness can be dimmed in 3 levels (100%, 50% and 25%) using a standard light switch. The color temperature of 2700 K provides a pleasant warm white light that can be directed exactly where it is needed thanks to the swivel feature. The standard drilling diameter in 68 mm standard enables the luminaire to be inserted quickly and retrofitted flexibly. Robust metal rings ensure a high-quality appearance and guarantee long-lasting use.
- Set of 3 lights
- Particularly flat gu10 flat reflector – ideal for minimal space requirements
- Can be dimmed with a standard light switch, with 3 dimming levels

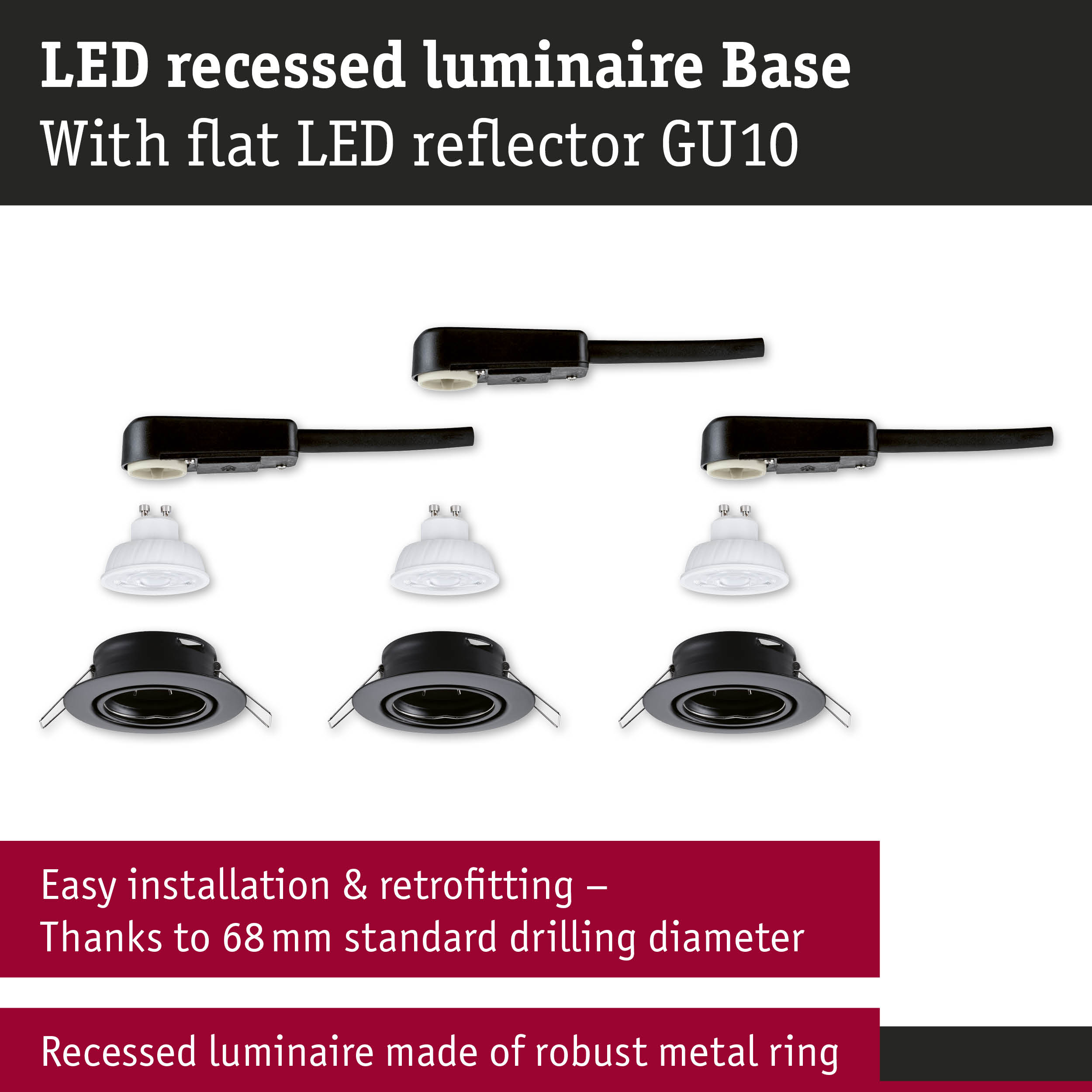

- Easy installation and retrofitting thanks to the 68 mm standard drilling diameter
- Colour temperature: 2700K - Warm white
- High-quality materials for long-lasting use
| Dimension | |
|---|---|
| Diameter | 90 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 55 mm |
| Depth of hollow wall | 40 mm |
| Net weight | 594 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Black matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Lamp Features | |
|---|---|
| Dimming Control | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Component parts | 4,9 W |
| light source property | Without light source |
| Swivel range | 20 ° |
| Incandescent Equivalent | 62 W |
| Base/Socket | GU10 |
| Technique | LED |
| Adjustability | swivelling/tilting |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 550 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 36 ° |
| Colour temperature | Warm white, 2700 K |
| Colour consistency (SDCM) | 6 |
