Article-No.:
98200
LED Downlight
3-Step-Dim
Cole 1-piece set
IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Gold matt
IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Gold matt

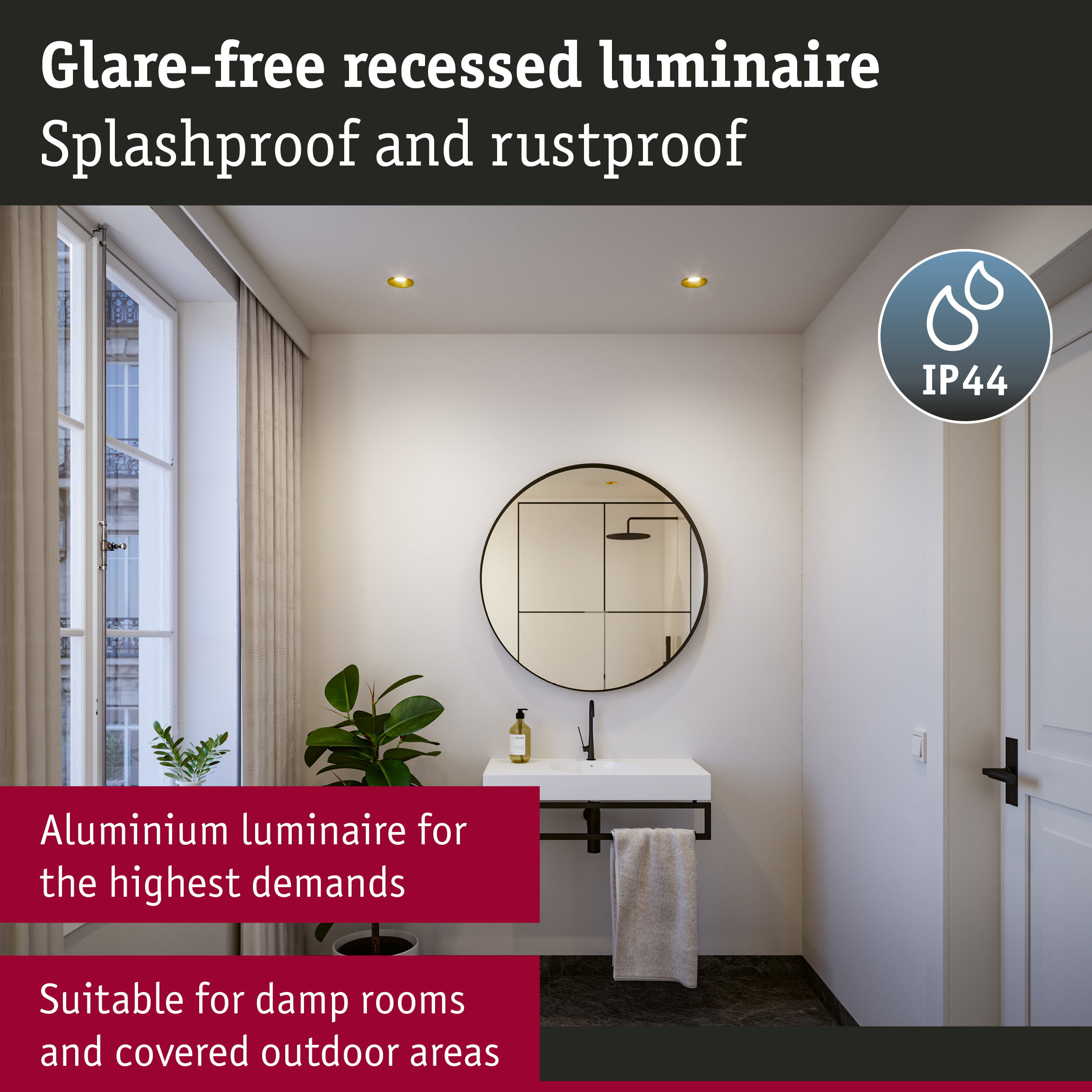

- IP protection: IP44 - splash-protected
- Incl. replaceable LED lamp

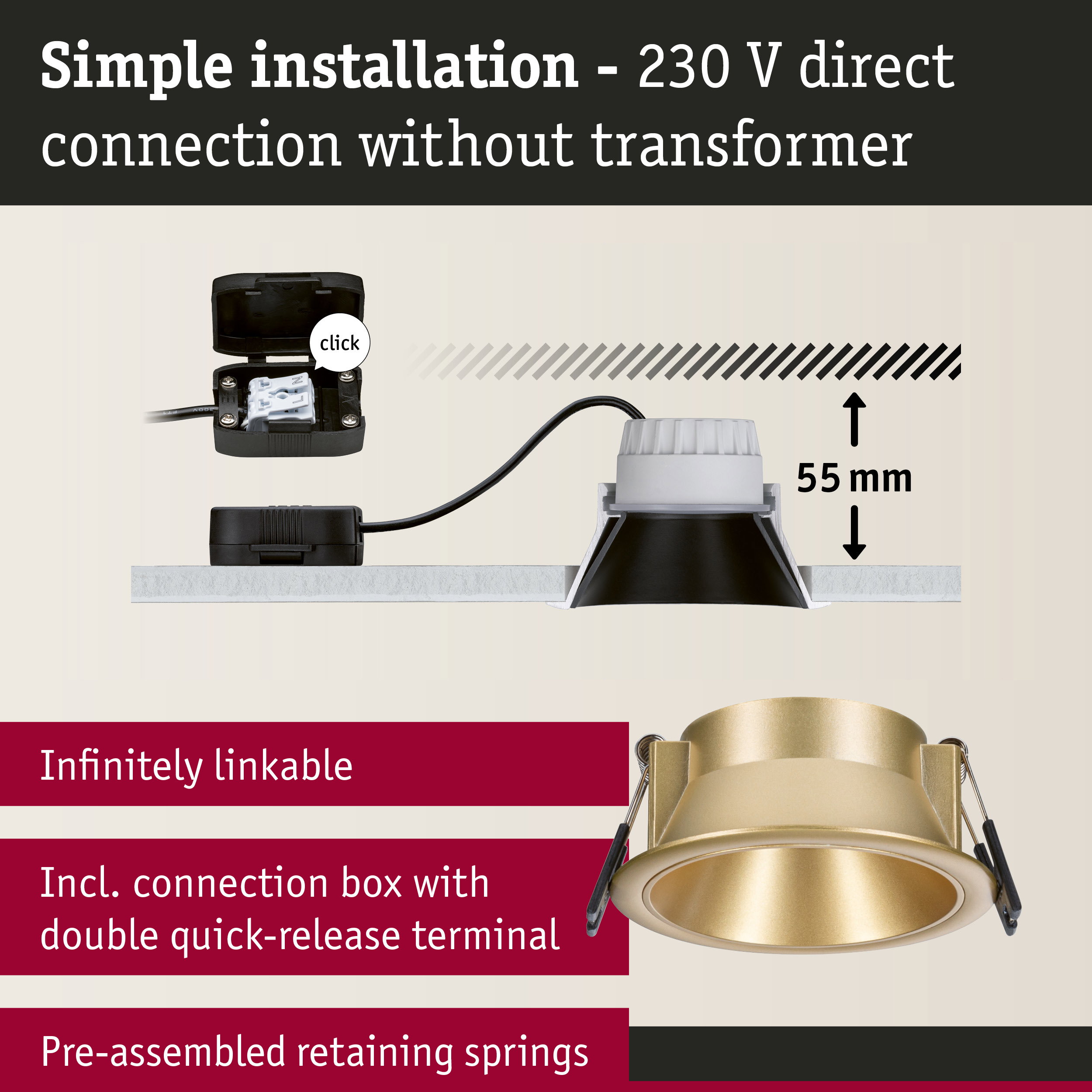

- For 230 V direct connection
LED Downlight 3-Step-Dim Cole Coin 1-piece set IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Gold matt

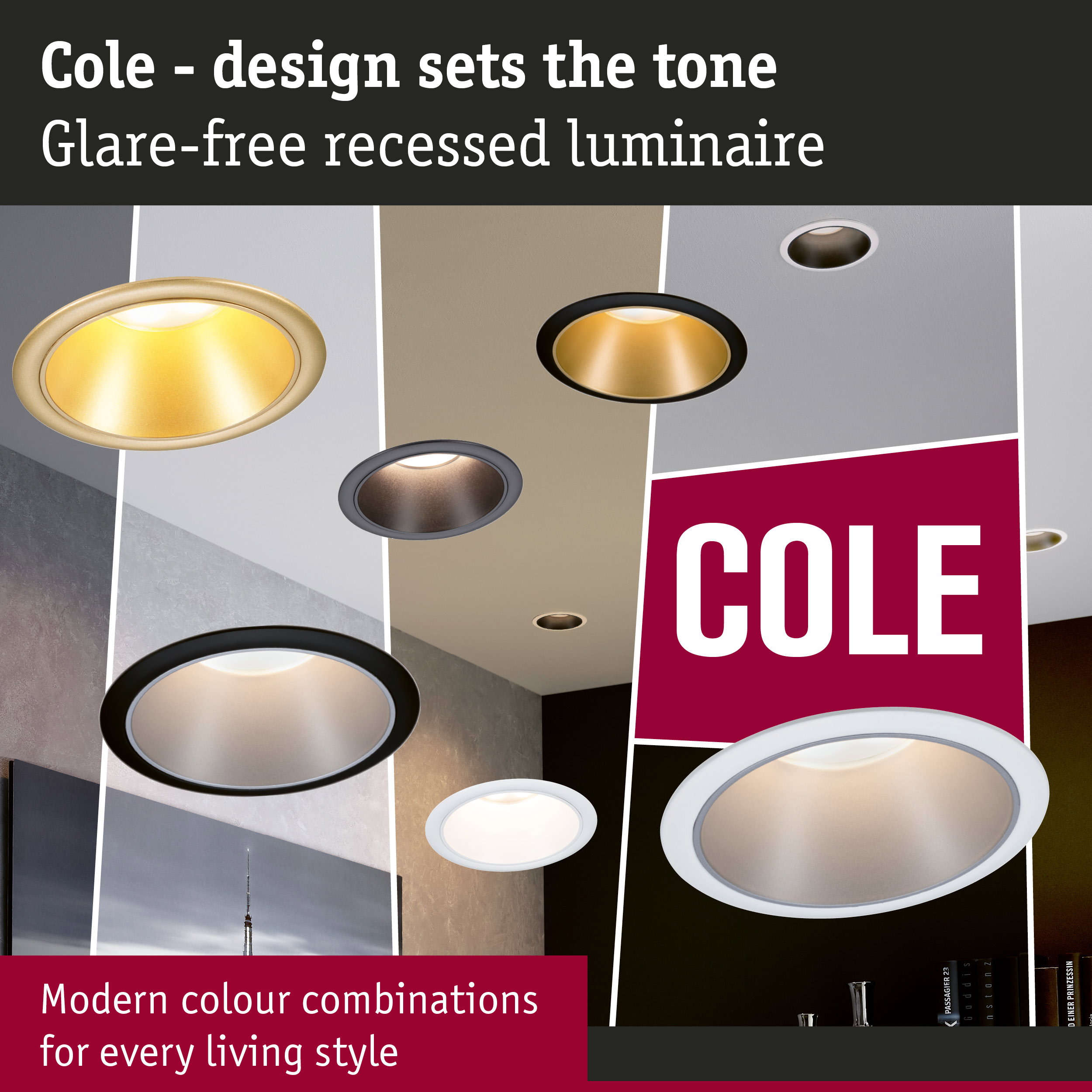

Love at second glance! The Cole recessed light in Gold matt features a recessed lamp making the light virtually disappear in the ceiling. Once you do spot it, it will be hard to look away. The light of the recessed coins is soft and glare-free. It also features some brilliant technology: the replaceable LED coin provides pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- IP protection: IP44 - splash-protected
- Incl. replaceable LED lamp
- For 230 V direct connection
- Color temperatur: 2700K - Warm white

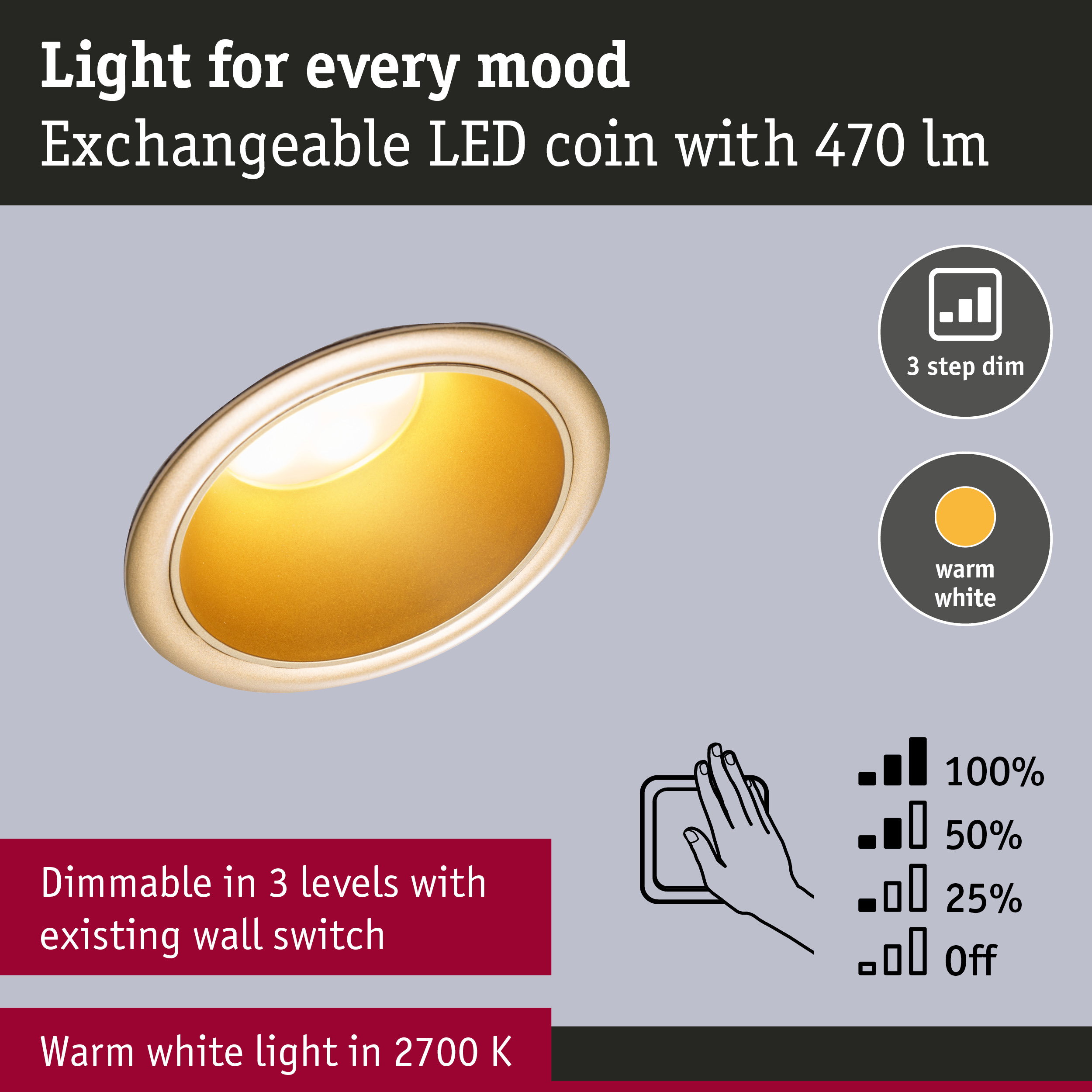

- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Diameter | 88 mm |
| Dimensions (Height x Width x Depth) | H: 38 mm |
| Built-in diameter | 80 mm |
| Mounting depth | 70 mm |
| Depth of hollow wall | 55 mm |
| net weight | 174 g |
| Design and Material | |
|---|---|
| Form | round |
| Light source shape | Coin |
| Colour | Gold matt |
| Material | Plastic, Aluminium zinc |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Colour temperature | Warm white, 2700 K |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Dimming Control | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Without light source |
| Incandescent Equivalent | 40 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 6,2 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
