Article-No.:
92458
LED Coin
Nova
50mm Coin 2,8W 505lm 230V 4000K Clear
50mm Coin 2,8W 505lm 230V 4000K Clear

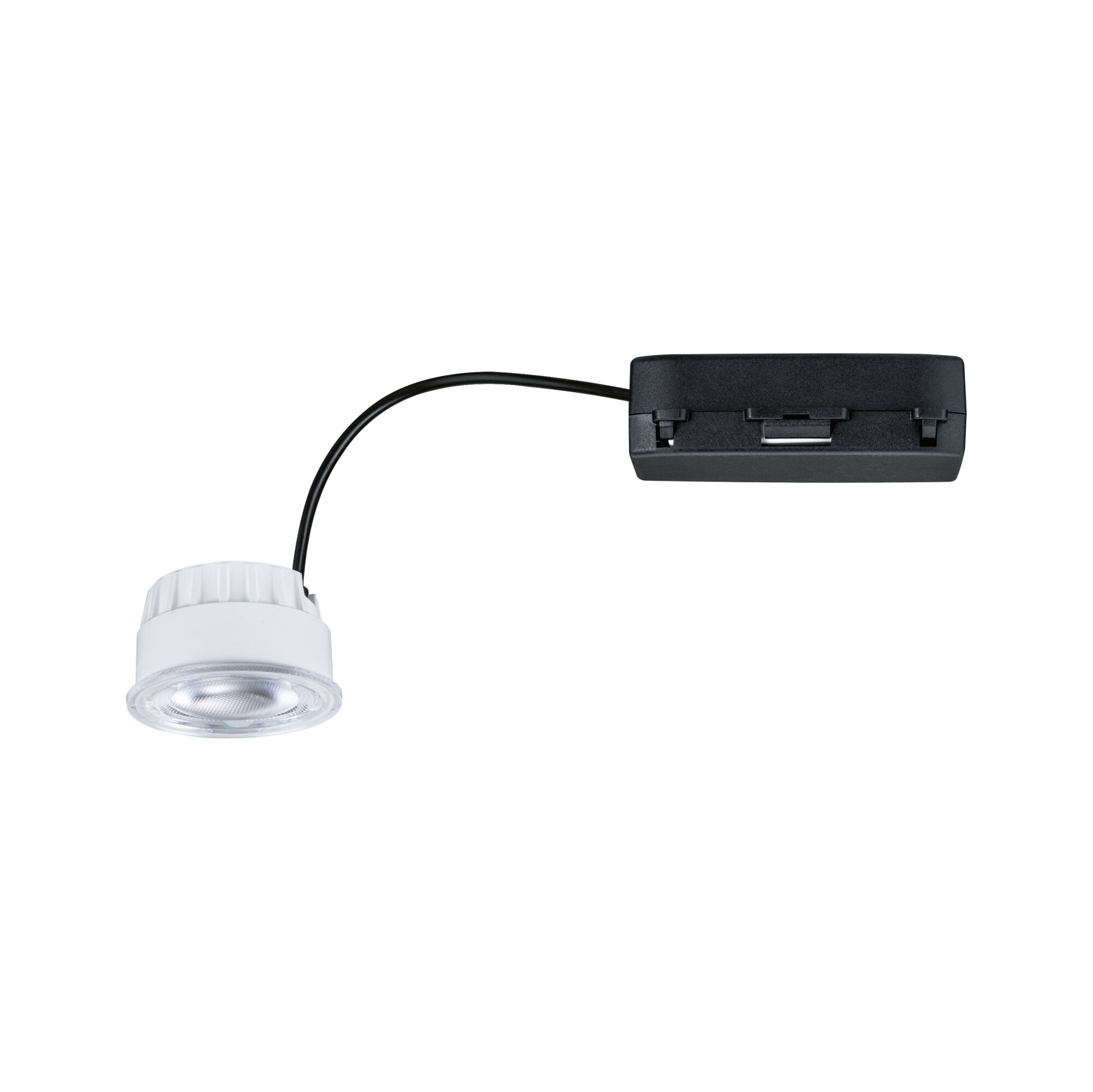

- LED module with junction box, incl. double quick terminal to loop through
- LED Nova coin with energy efficiency class A
- Resource-saving thanks to a long service life of 50,000 hours

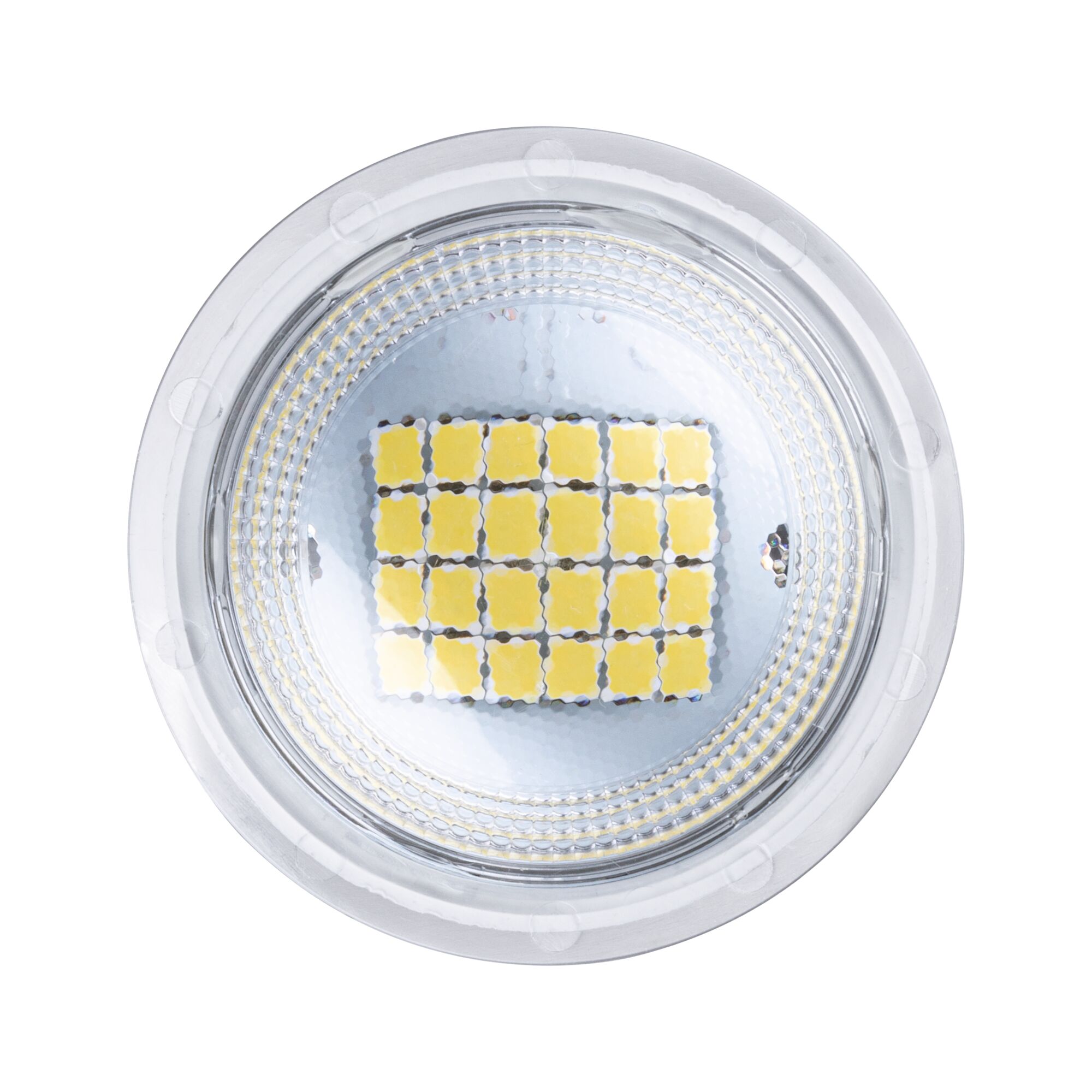

LED Coin Nova 50mm Coin 2,8W 505lm 230V 4000K Clear
The LED Nova Coin is the innovative product solution for energy-efficient and long-lasting lighting. The LED module with energy efficiency class A is particularly impressive with its significantly reduced power consumption and is also easy on the wallet thanks to the lower energy costs. With a light output of 505 lm/2.8W and a high lifetime of up to 50,000 hours, it provides a neutral white light that is particularly long-lasting. The LED Nova Coin can also be used in combination with existing lighting installations. If recessed spotlights with a diameter of 51mm are already installed, switching to the economical LED module is very easy. The old light source is removed, the Slim Coin is connected without tools using the quick-release clips, inserted and that's it!
- LED module with junction box, incl. double quick terminal to loop through
- LED Nova coin with energy efficiency class A
- Resource-saving thanks to a long service life of 50,000 hours
- Color temperatur: 4000K - Neutral white
- It is also possible to install these with shallow cavity depths
- Operating voltage: 230 V
| Dimension | |
|---|---|
| Diameter | 50 mm |
| Dimensions (Height x Width x Depth) | H: 29 mm |
| Built-in diameter | 68 mm |
| net weight | 110 g |
| Design and Material | |
|---|---|
| Light source shape | Coin |
| Colour | Clear |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) | A |
| Energy consumption | 3 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 98 % |
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 505 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 92 ° |
| Colour temperature | Neutral white, 4000 K |
| Colour consistency (SDCM) | 6 |
| Luminous intensity | 294 cd |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 2,8 W |
| light source property | Light source |
| Incandescent Equivalent | 50 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 7 not concerned. |
| Power consumption | 2,8 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 5.7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
