Article-No.:
94863

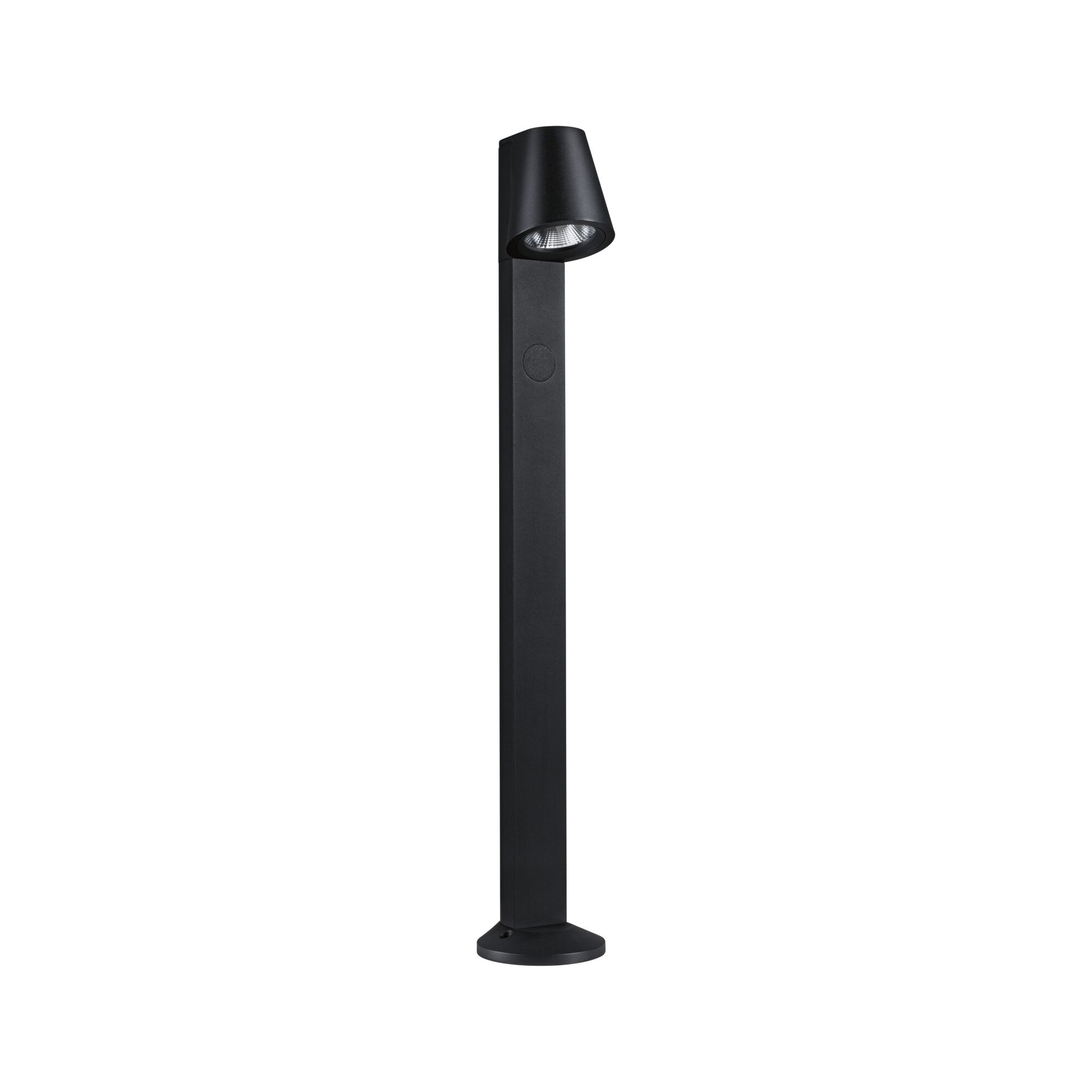

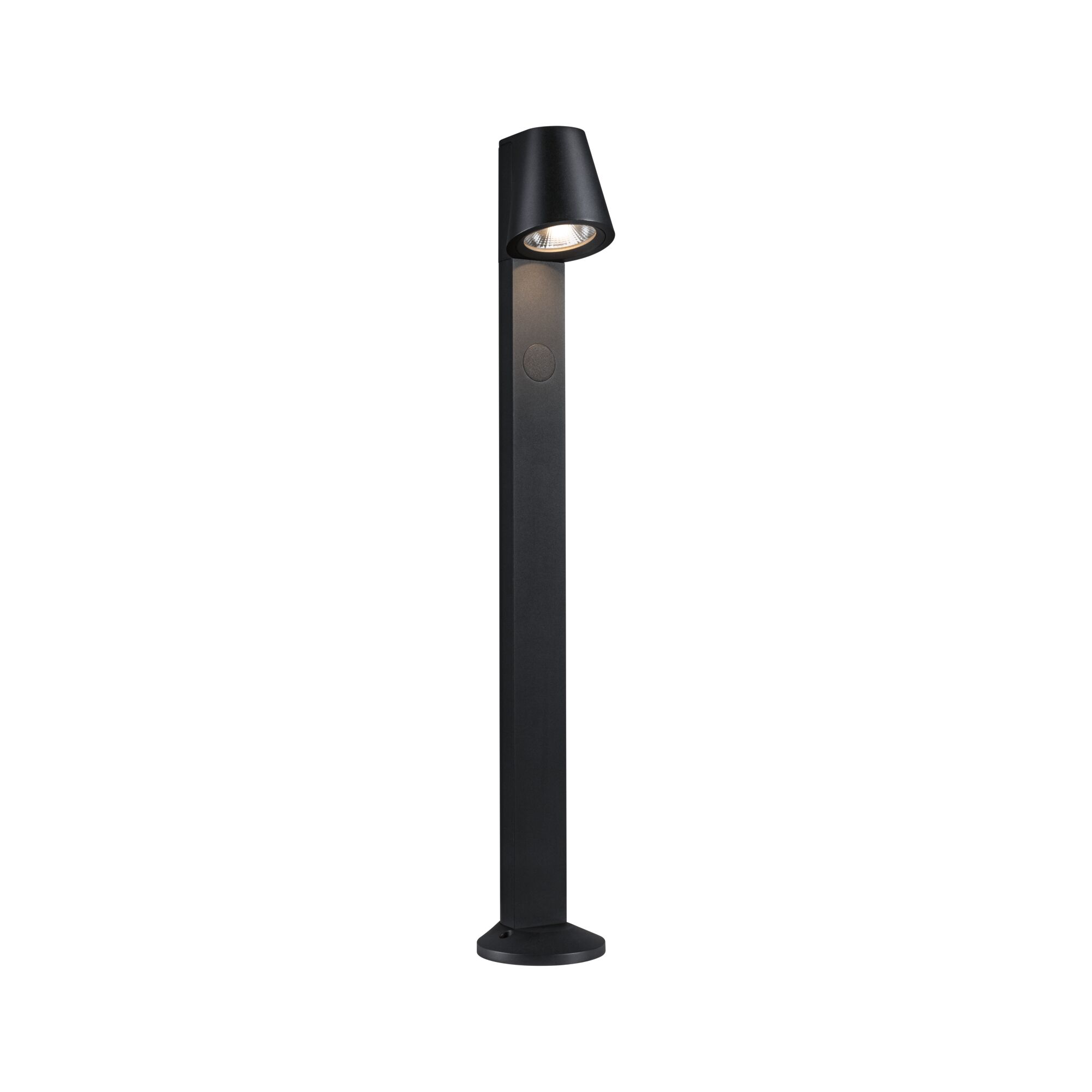

LED Bollard light
Caissa Twilight-controlled motion detector (HF)
IP44 793mm 3000K 9W 700lm 230V 65° Anthracite Aluminium
IP44 793mm 3000K 9W 700lm 230V 65° Anthracite Aluminium
- Seawater-resistant light for use by the coast

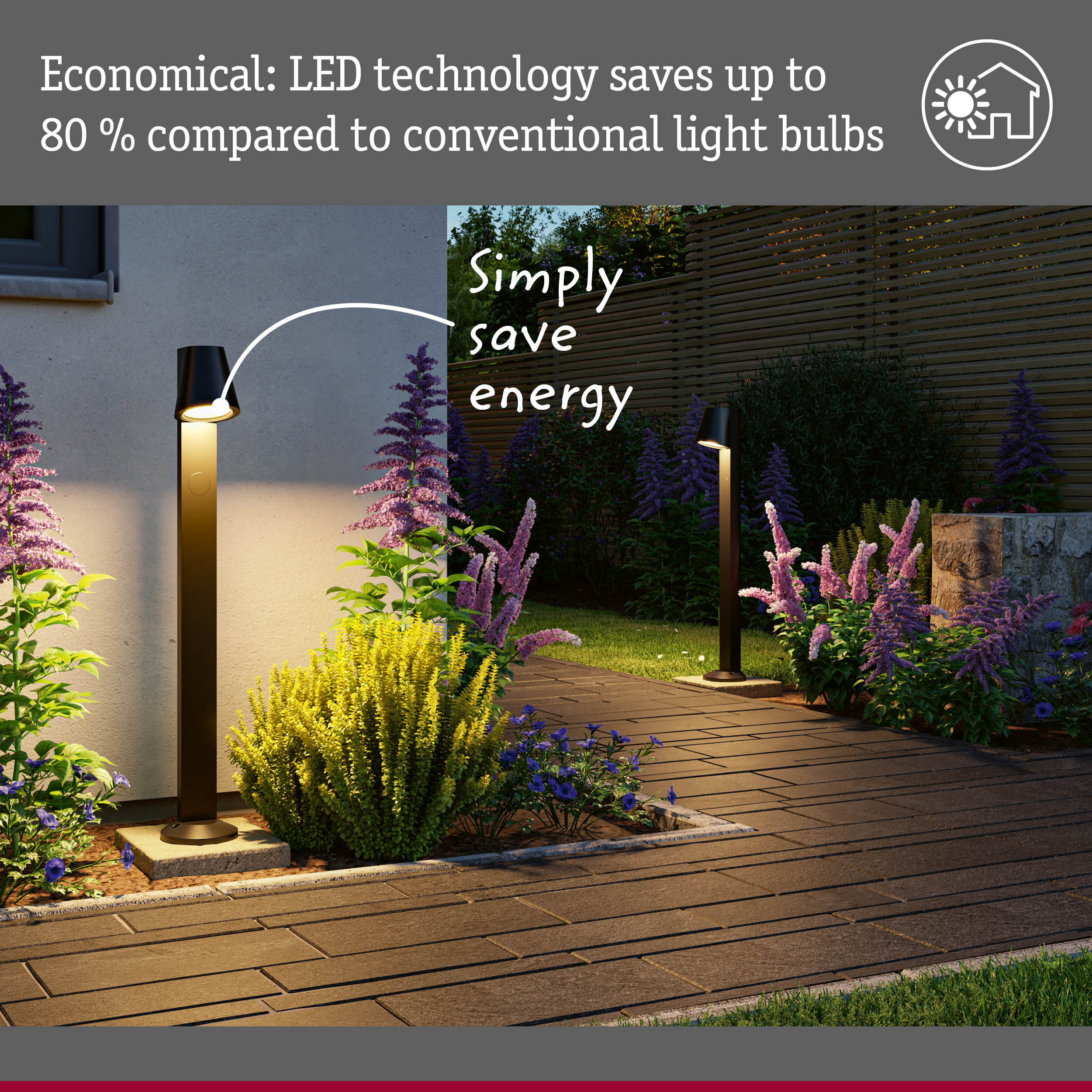

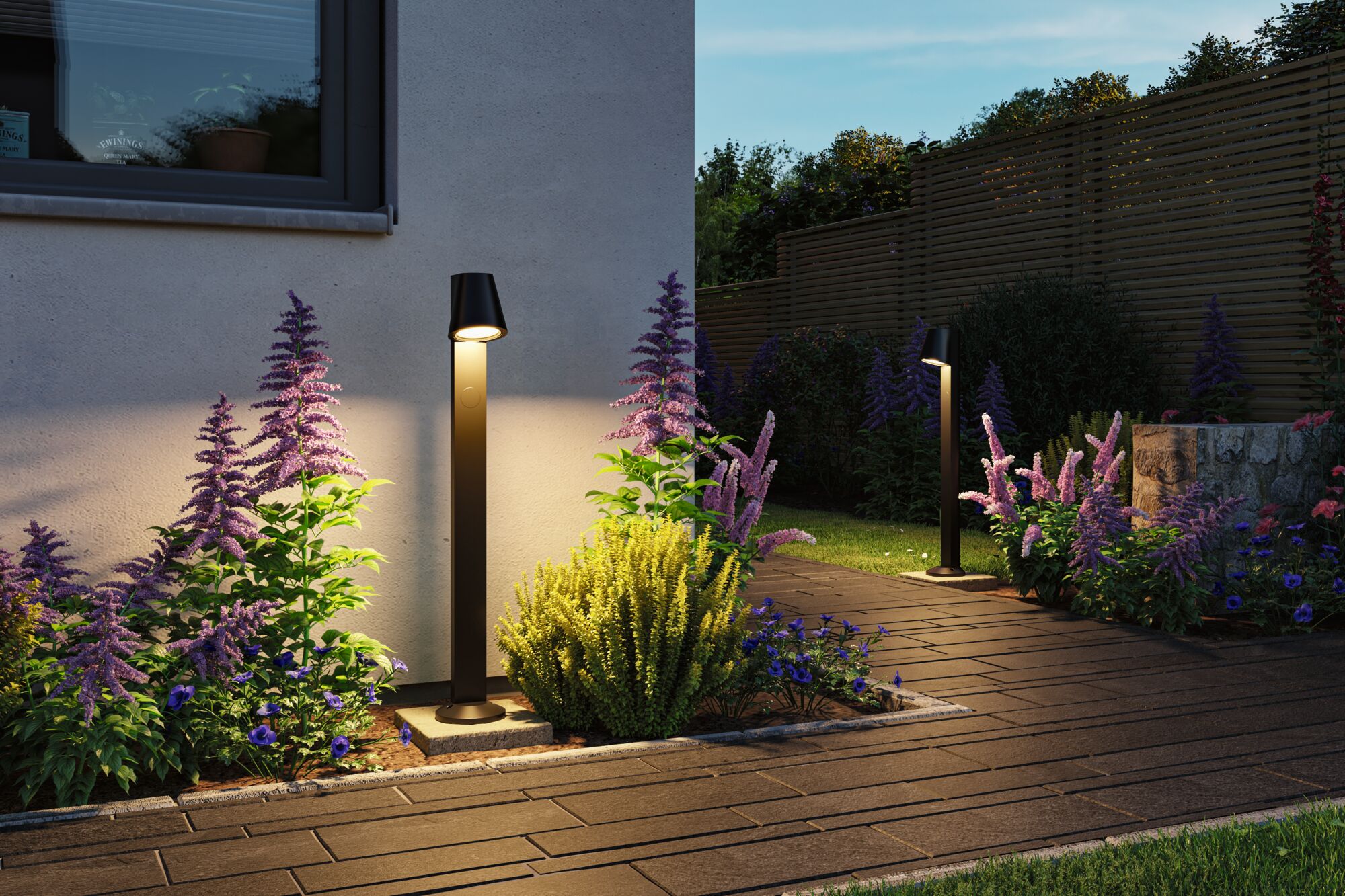

- Bollard light for optimum footpath lighting
- Suitable for outdoor use
LED Bollard light Caissa Twilight-controlled motion detector (HF) IP44 793mm 3000K 9W 700lm 230V 65° Anthracite Aluminium

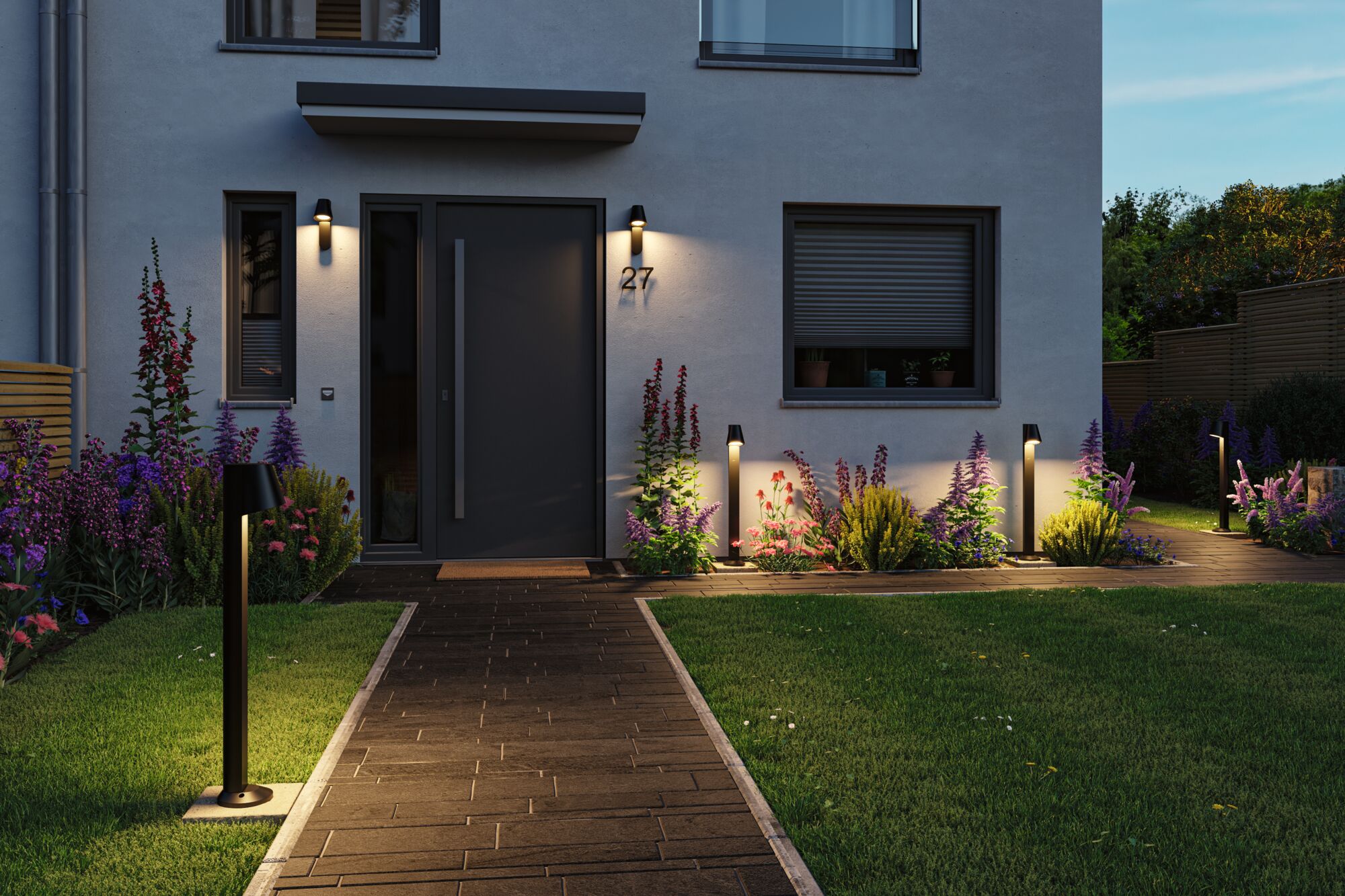

The Caissa LED bollard light, with 700 lm, has primary uses along paths leading to residential properties near the coast. The light’s surface is particularly corrosion-resistant, meaning it is less susceptible to damage from salty air. The bollard light provides uniform, warm white illumination and safely lights up the entrance area. With its anthracite colour scheme, it fits perfectly into any environment. The integrated twilight sensor switches on a continuous orientation light at 20 per cent of the total light output at dusk. As soon as the motion detector detects movement, the light switches to 100 per cent brightness. The lights then remain on for 15 seconds before switching back to the ambient light at 20 per cent output.
- Seawater-resistant light for use by the coast
- Bollard light for optimum footpath lighting
- Suitable for outdoor use
- Color temperatur: 3000K - Warm white
- Twilight switch only comes on at a certain level of darkness
- Automatic switching with integrated motion detector
- For 230 V direct connection
| Dimension | |
|---|---|

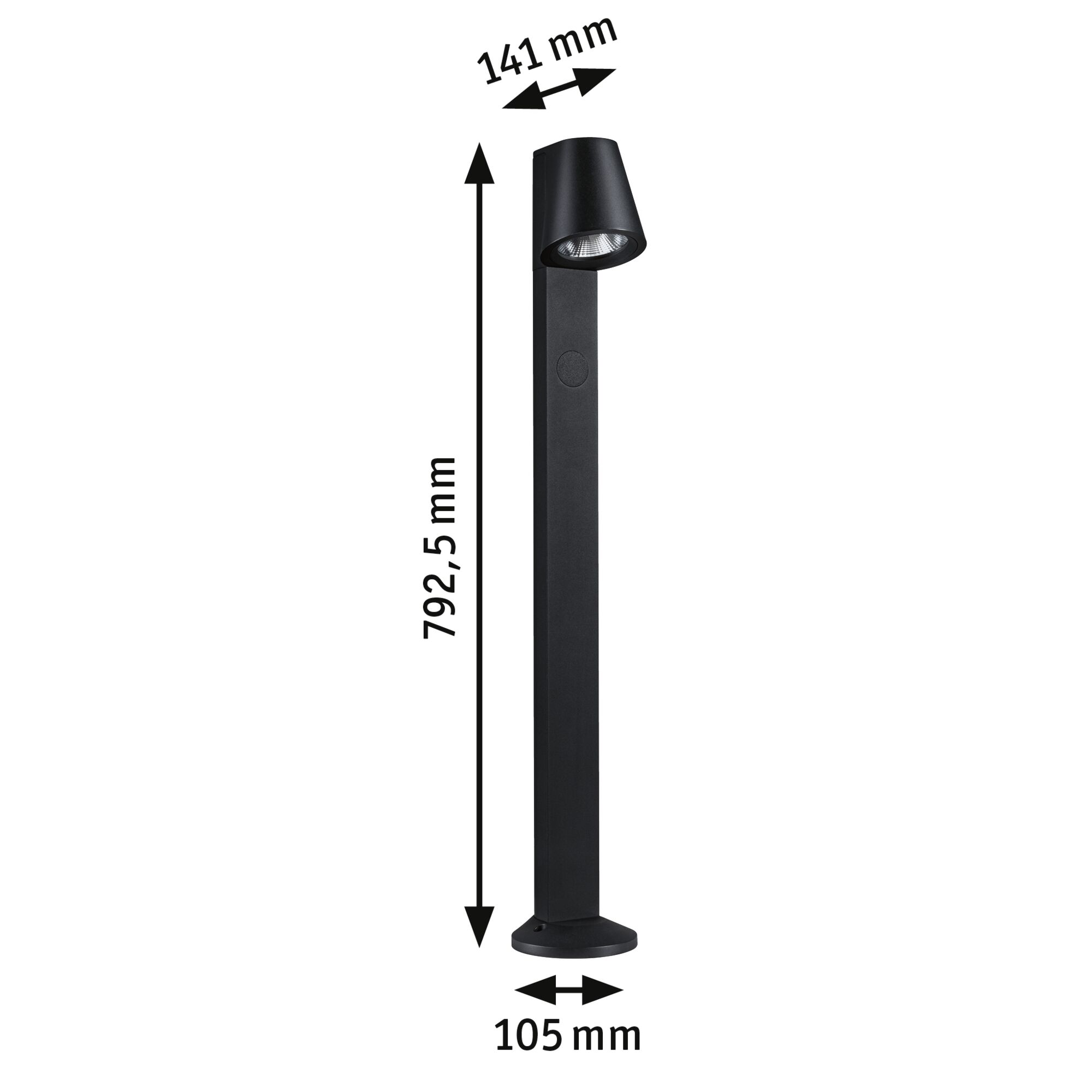

| Dimensions (Height x Width x Depth) | H: 793 x B: 105 x T: 141 mm |
| Net weight | 1939 g |
| Design and Material | |
|---|---|
| Colour | Anthracite |
| Material | Aluminium |
| Stainless | stainless |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Features | |
|---|---|

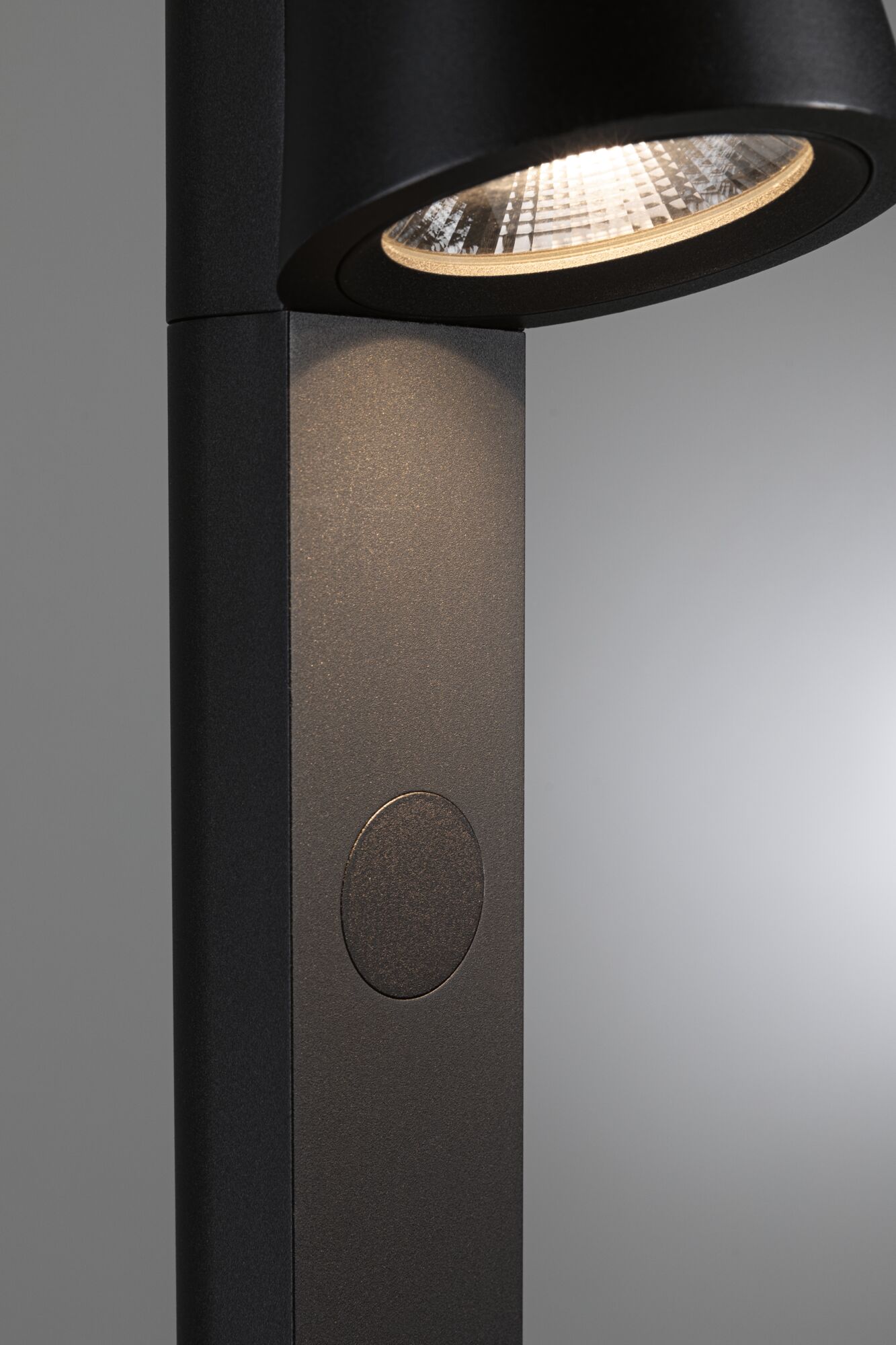

| Sensors | Twilight-controlled motion detector (HF) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 9 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 63 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 |
| Protection class | Protection class I |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 700 lm |
| Beam angle | 65 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 850 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 793 x 105 x 141 mm |
