Article-No.:
50146
In-wall actuator
Smart Home Zigbee 3.0
Dim
White
White
- permits invisible smartification of your existing lights and switching installations
- Enables simultaneous on/off and dimming controls via switch, app and voice commands

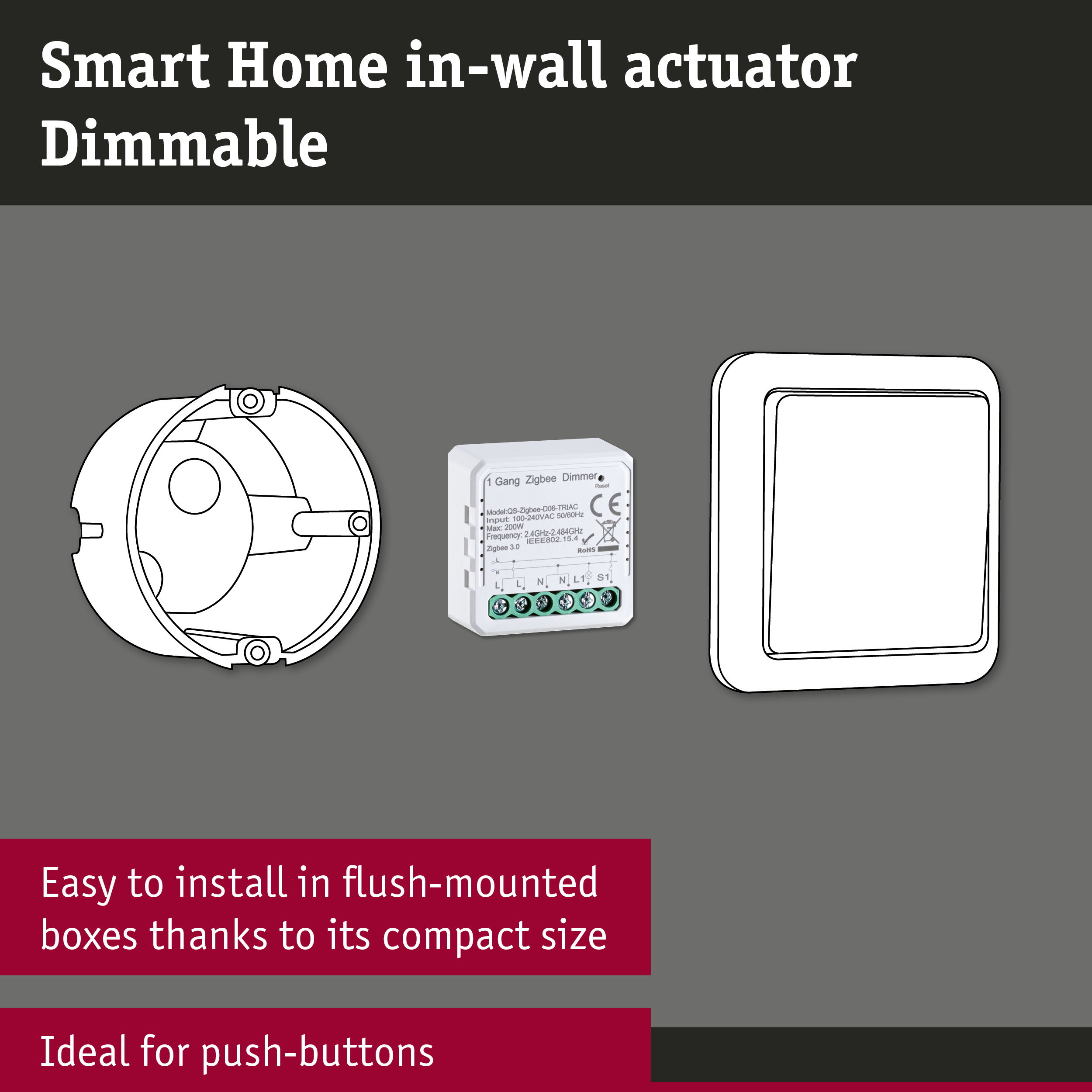

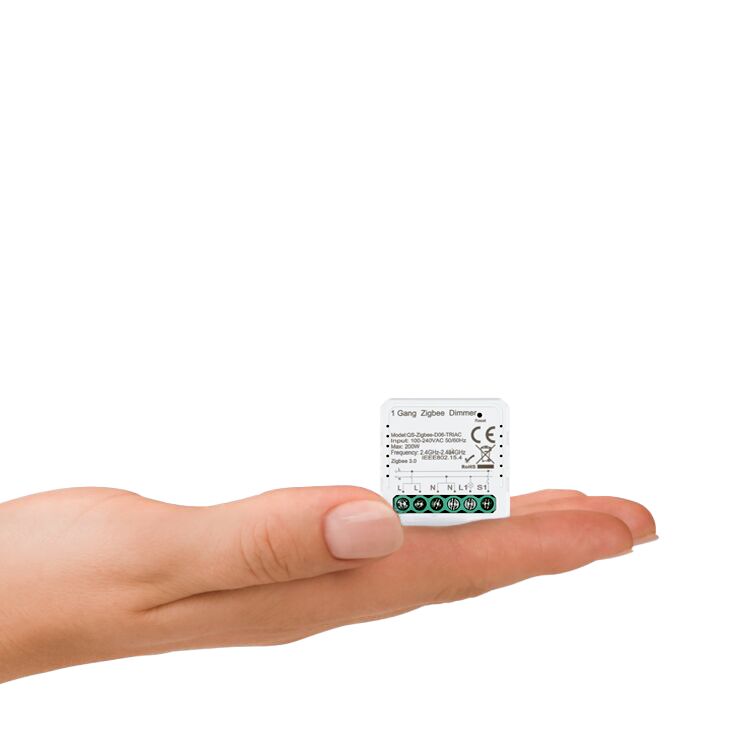

- The compact design ensures a quick and space-saving installation in flush-mounted wall boxes.

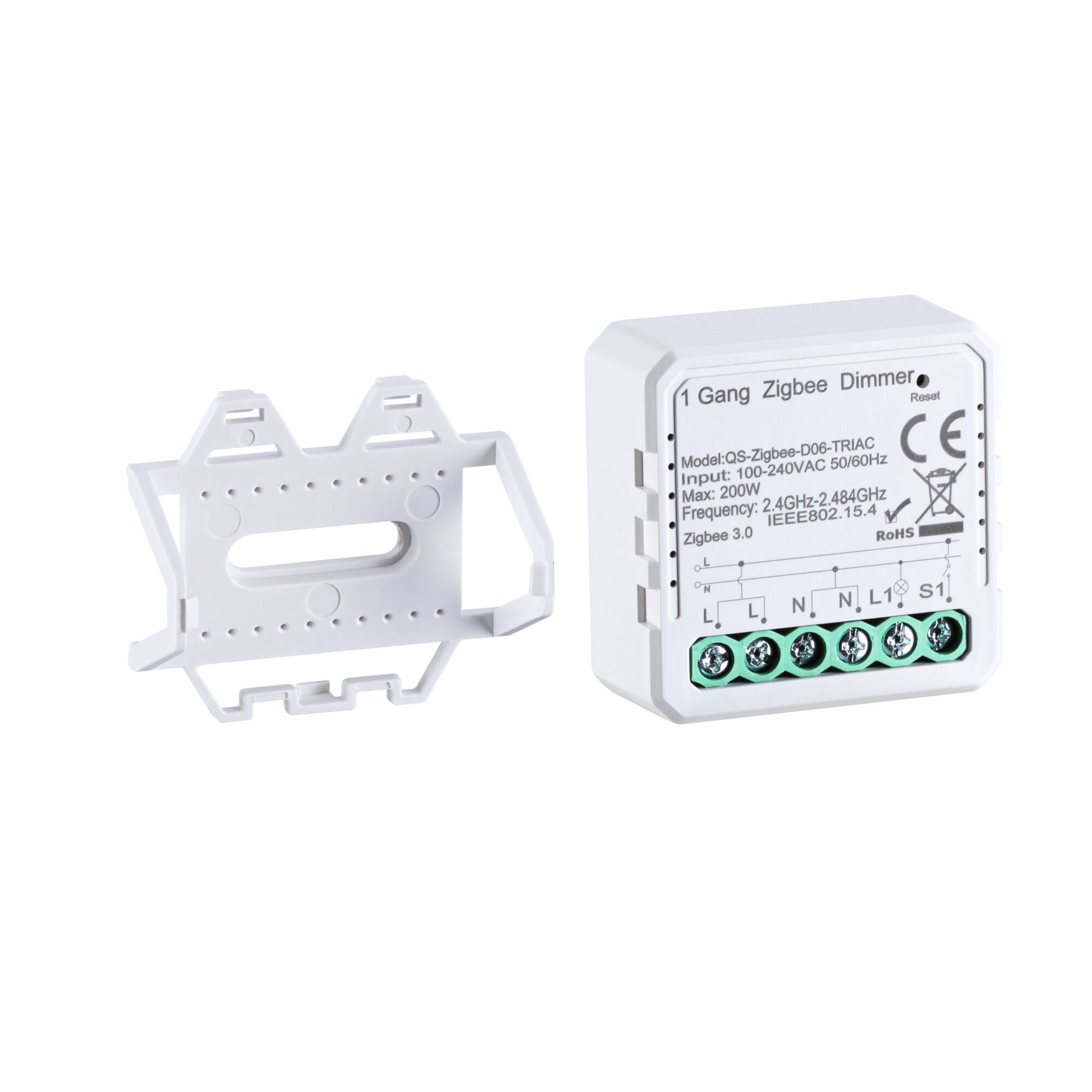

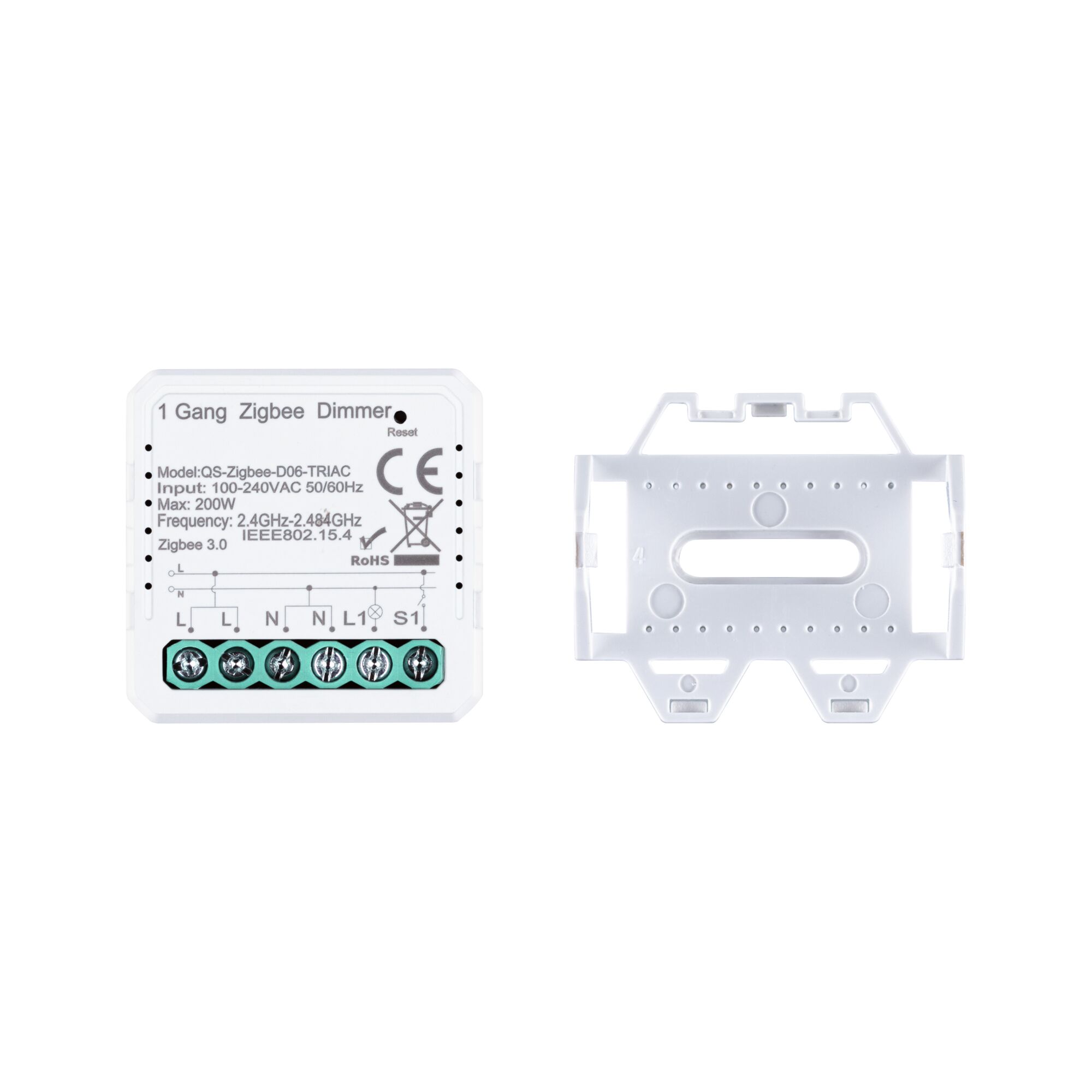

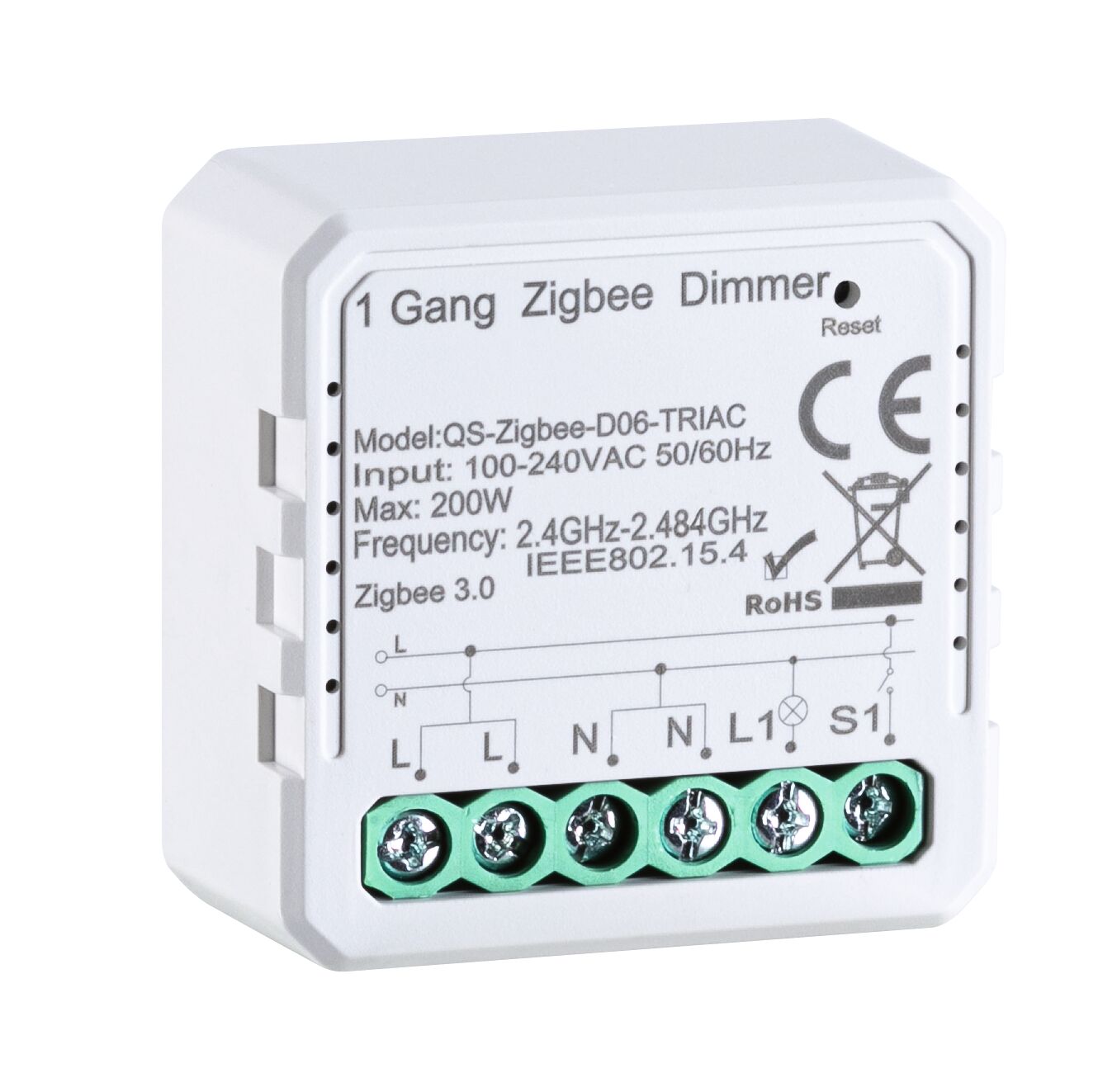

In-wall actuator Smart Home Zigbee 3.0 Dim White
The smart home in-wall actuator enables the invisible “smartification” of existing light designs and switching installations. Thanks to its compact size, it can be easily installed in flush-mount boxes and transforms the underlying electrical circuit into a smart, controllable, and dimmable System. It is ideal for push-button switches. The in-wall actuator integrates with smart homeSystemand is compatible with Zigbee 3.0 gateways, such as the Paulmann Smik gateway. It enables simultaneous on/off and dimming control via switches, an app, and voice commands. Thanks to its residue-free installation and removal, it is perfectly suited for both owner-occupied homes and rental apartments. The in-wall actuator is an innovative product for the convenient and intelligent control of living spaces.
- permits invisible smartification of your existing lights and switching installations
- Enables simultaneous on/off and dimming controls via switch, app and voice commands
- The compact design ensures a quick and space-saving installation in flush-mounted wall boxes.
- Offers an intelligent solution for the convenient control of your entire living space.
- Highly versatile flush-mounted actuator for a variety of installation options in the home
- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- The installation and removal will leave no marks – perfect for use in rental premises.
- The innovative Zigbee technology transforms traditional lights into smart light sources.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x B: 40 x T: 18 mm |
| Net weight | 61 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Wall |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dimmable | Yes |
| Maximum wattage range | max. 200 W |
| Protection class | Protection class I |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 30 m |
| Compatible smart home systems | Philips Hue Bridge 2 and Pro (except Hue Entertainment) / Amazon Echo Smart Speaker with Zigbee 3.0 interface / Paulmann smik Gateway |
