Article-No.:
78921
LED Panel
Aviar
IP44 round 220mm 13W 950lm 3000K Chrome dimmable
IP44 round 220mm 13W 950lm 3000K Chrome dimmable

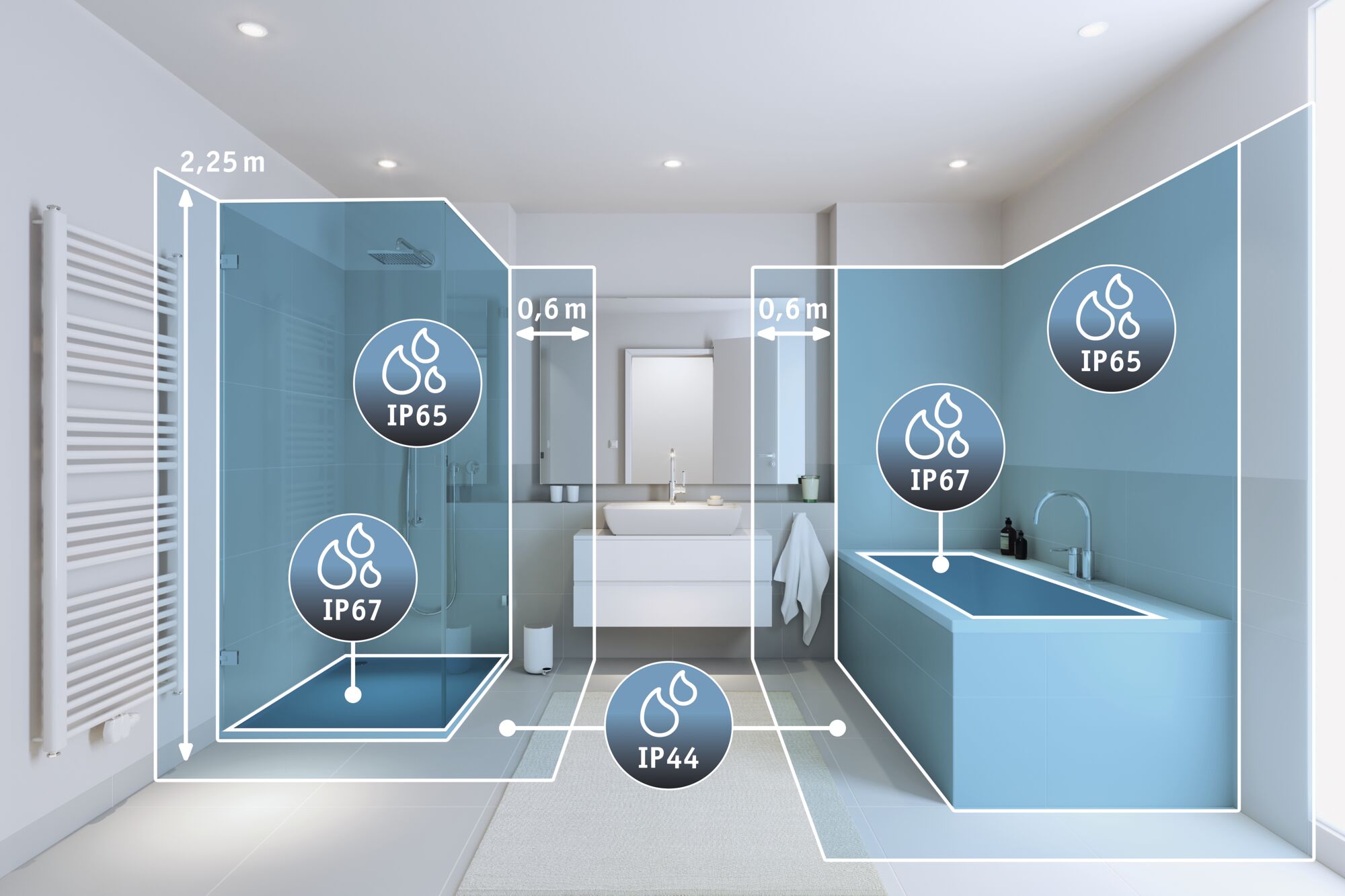

- IP44 splash-protected for damp rooms
- With integrated LED bulb
- Color temperatur: 3000K - Warm white

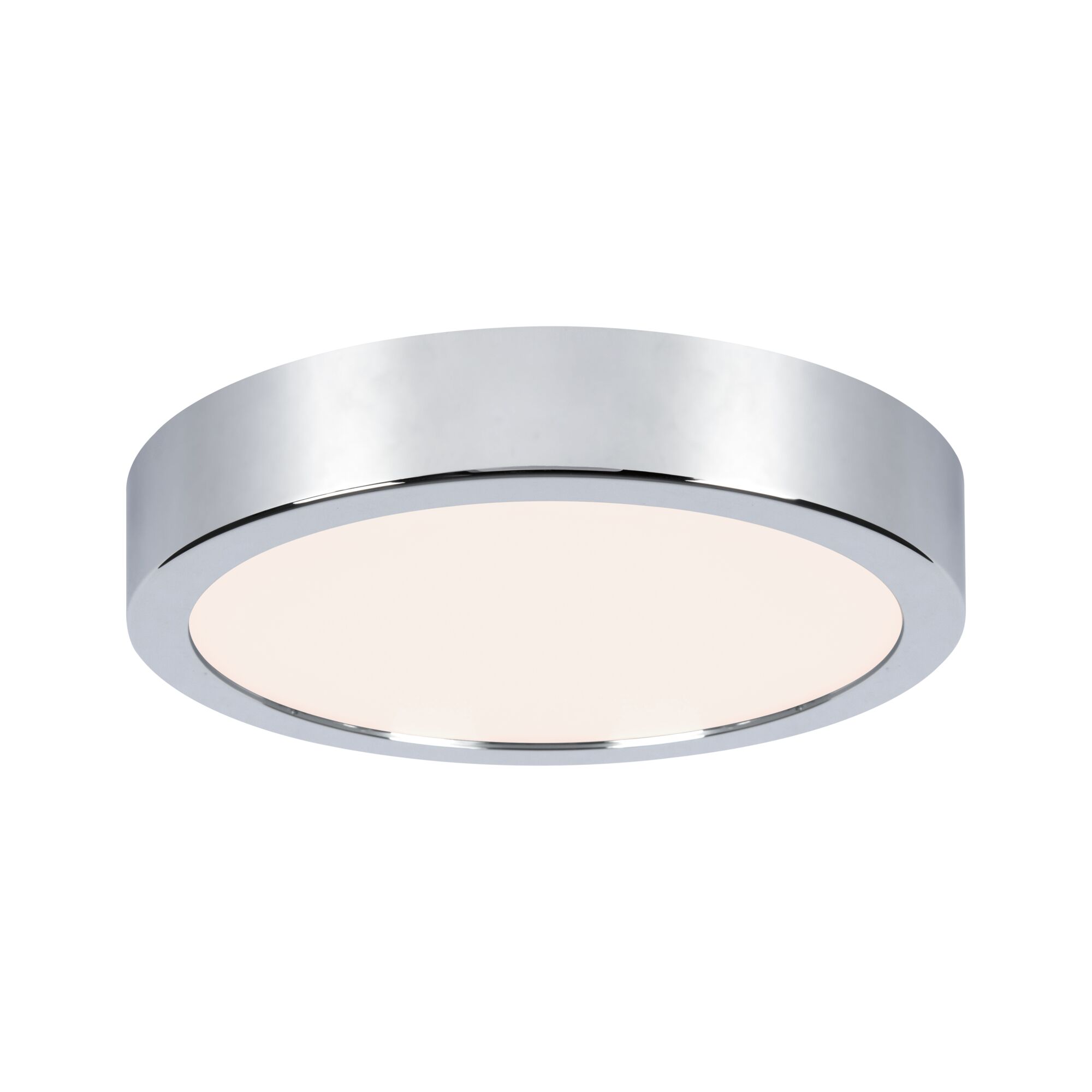

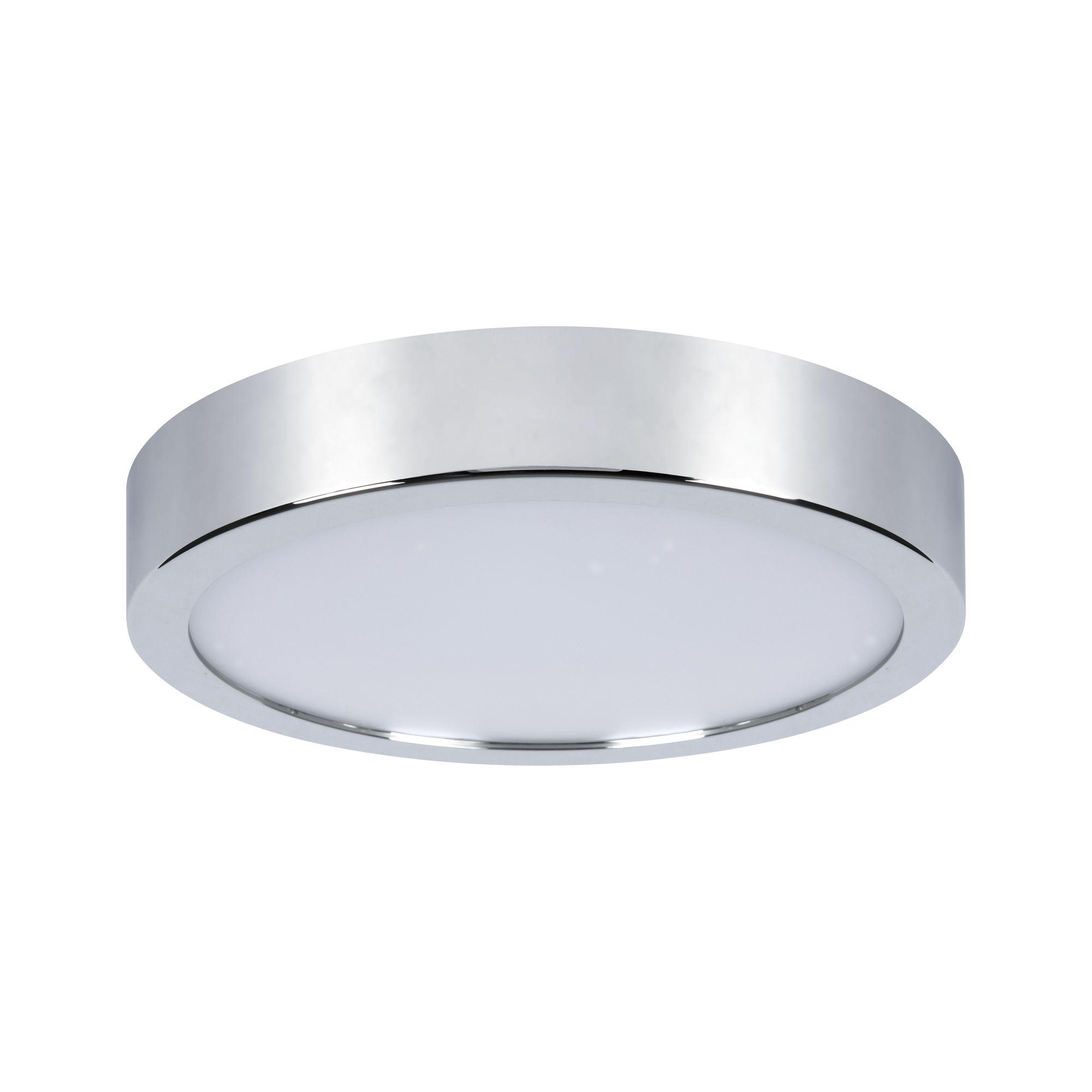

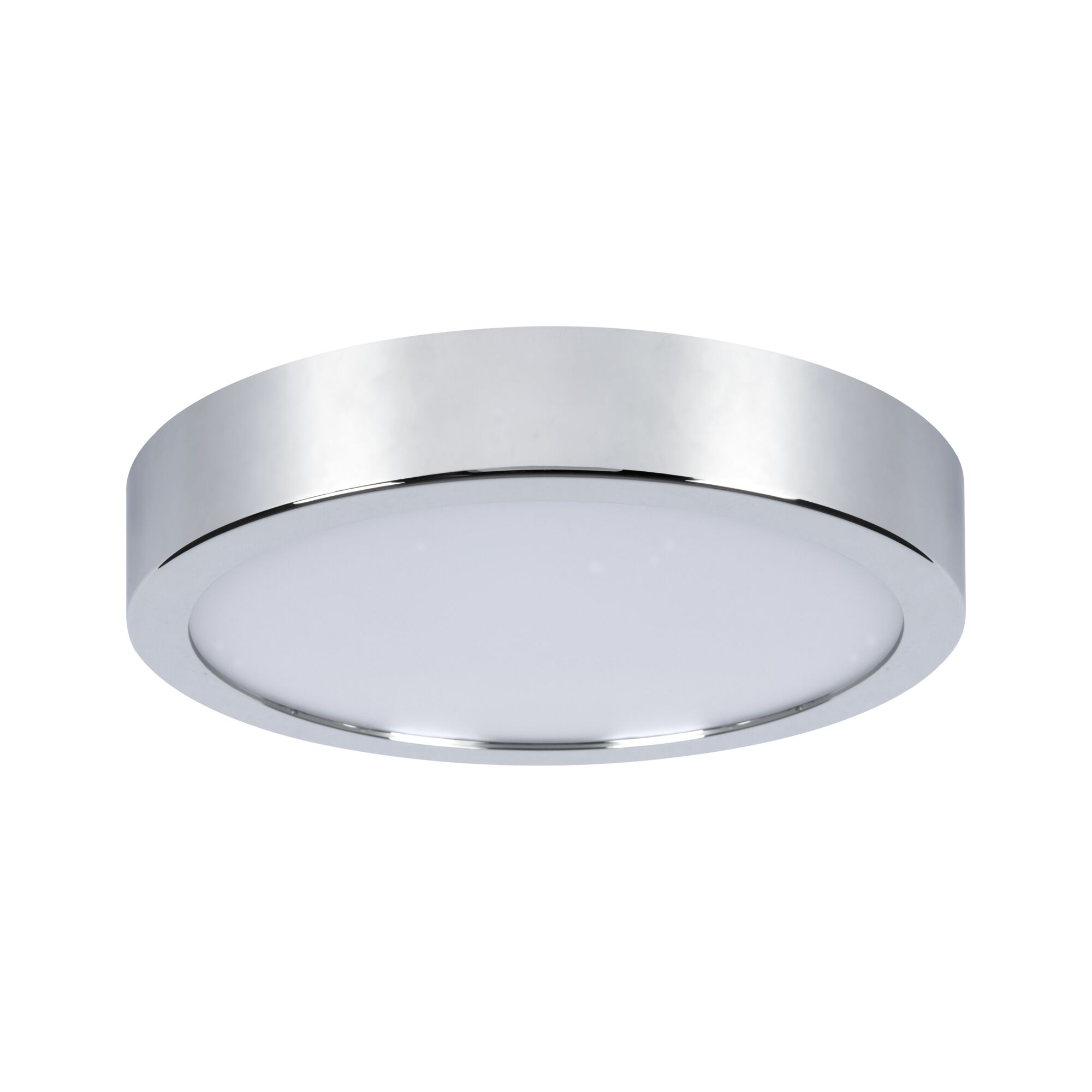

LED Panel Aviar IP44 round 220mm 13W 950lm 3000K Chrome dimmable

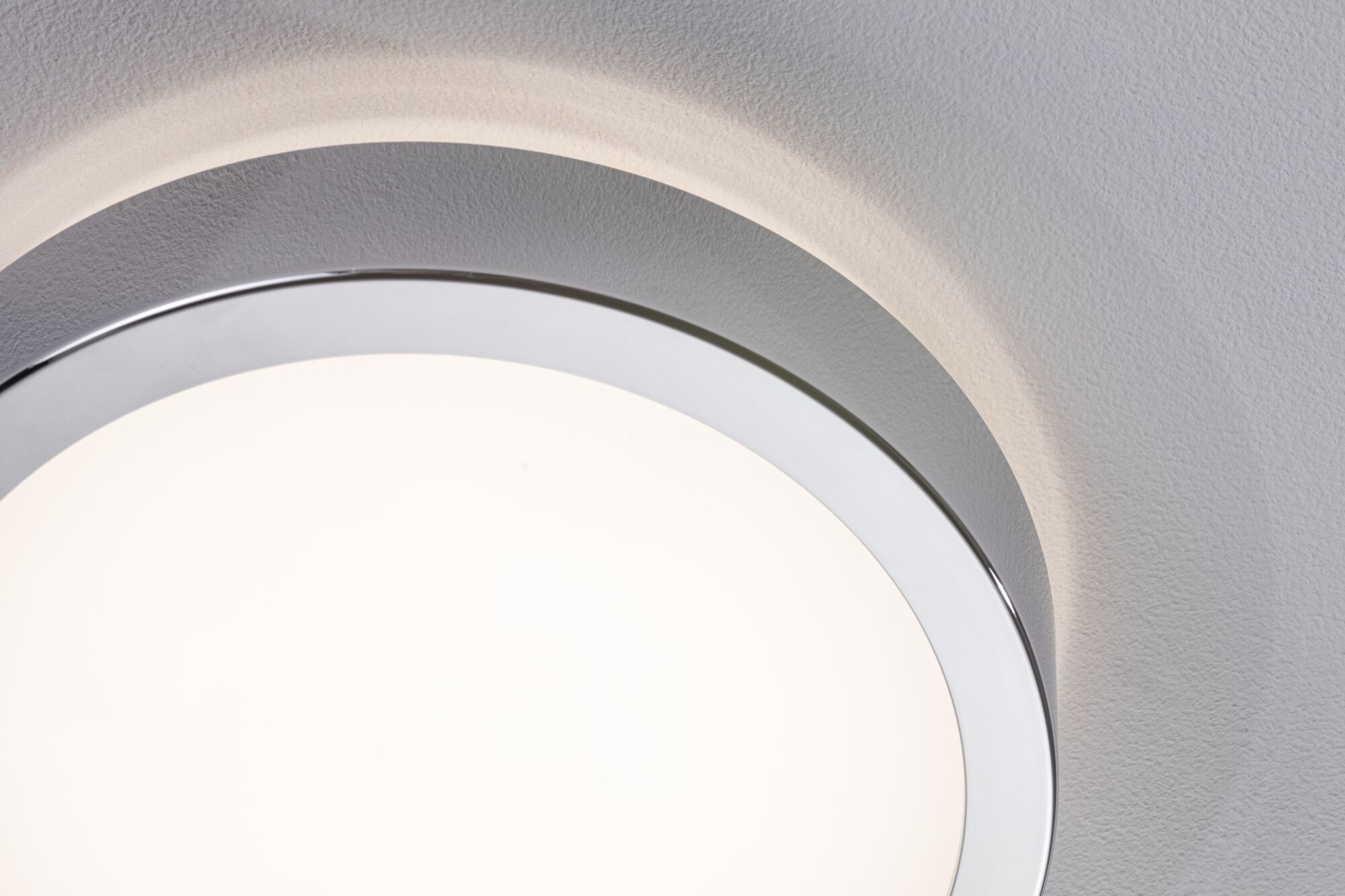

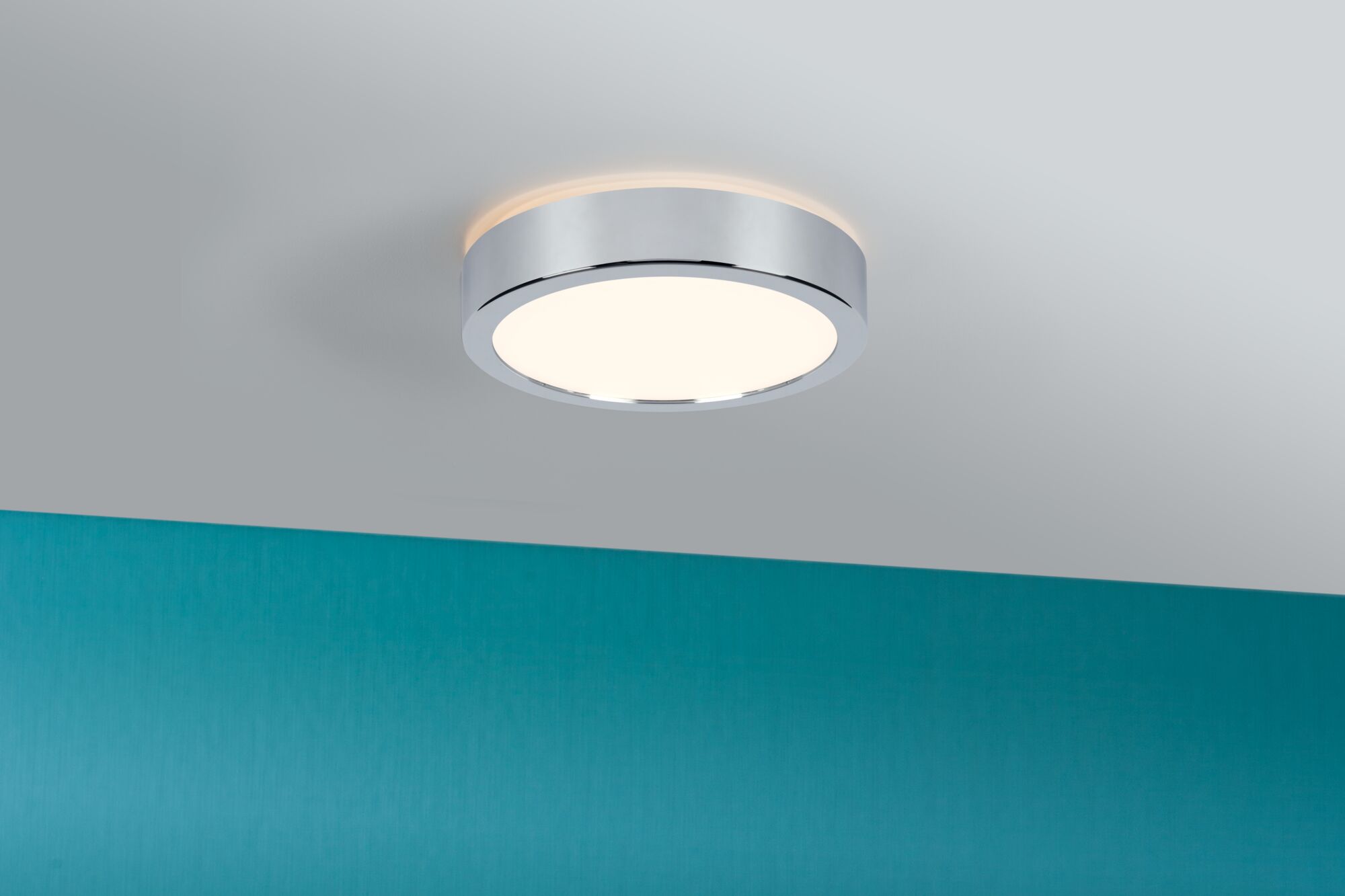

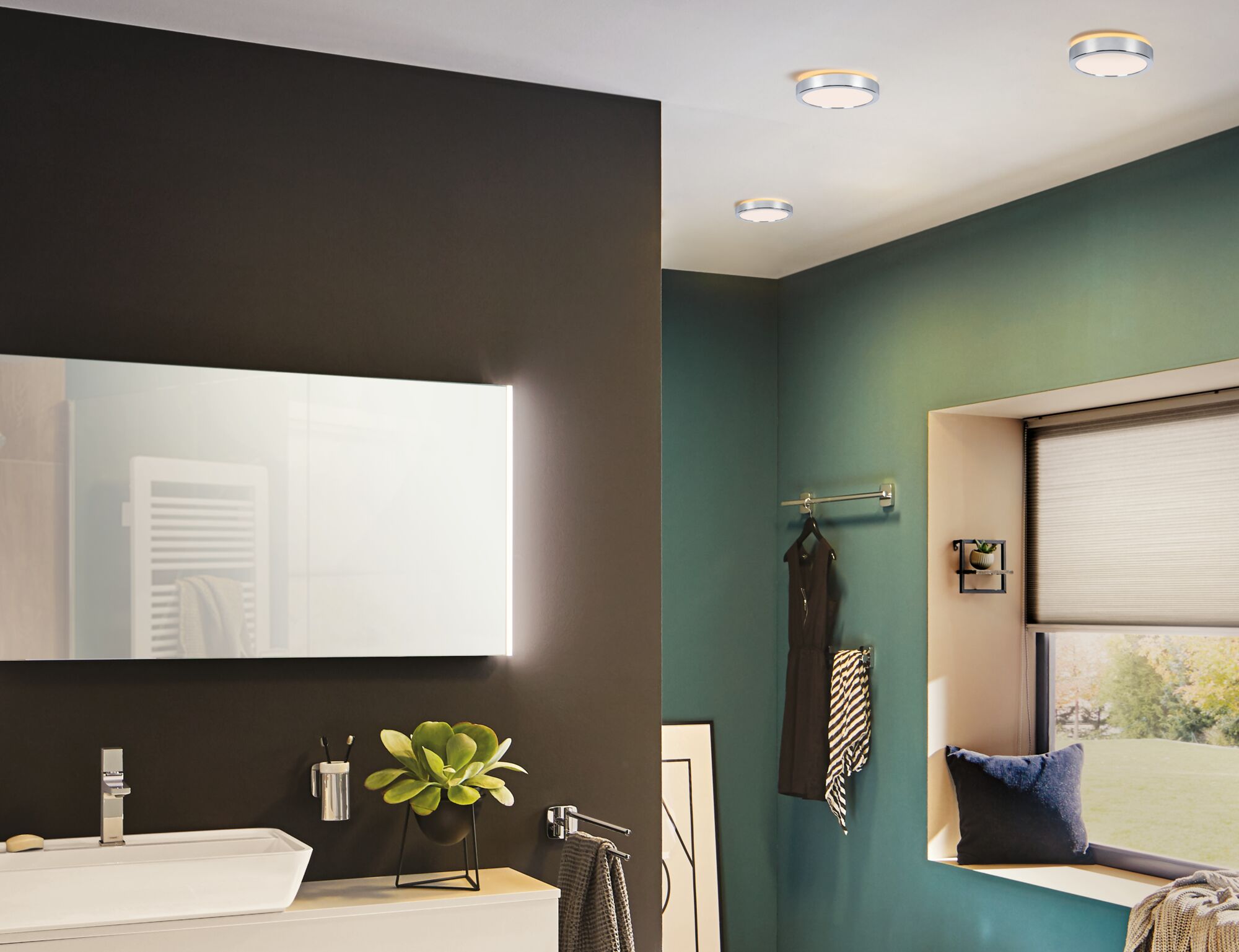

The Aviar LED panel in Chrome with an output of 13 watts is specially protected against the ingress of splash water into the luminaire and is therefore ideal for use in wet rooms. In windowless bathrooms in particular, it compensates for the lack of daylight – the bathroom is evenly and brightly illuminated in warm-white, glare-free light. The elegant look also makes the luminaire an eye-catcher in its own right. The plastic housing is particularly durable, easy to clean and, thanks to its low weight, easy to install.
- IP44 splash-protected for damp rooms
- With integrated LED bulb
- Color temperatur: 3000K - Warm white
- Even room light based on cutting-edge LED technology
- For 230 V direct connection
| Dimension | |
|---|---|

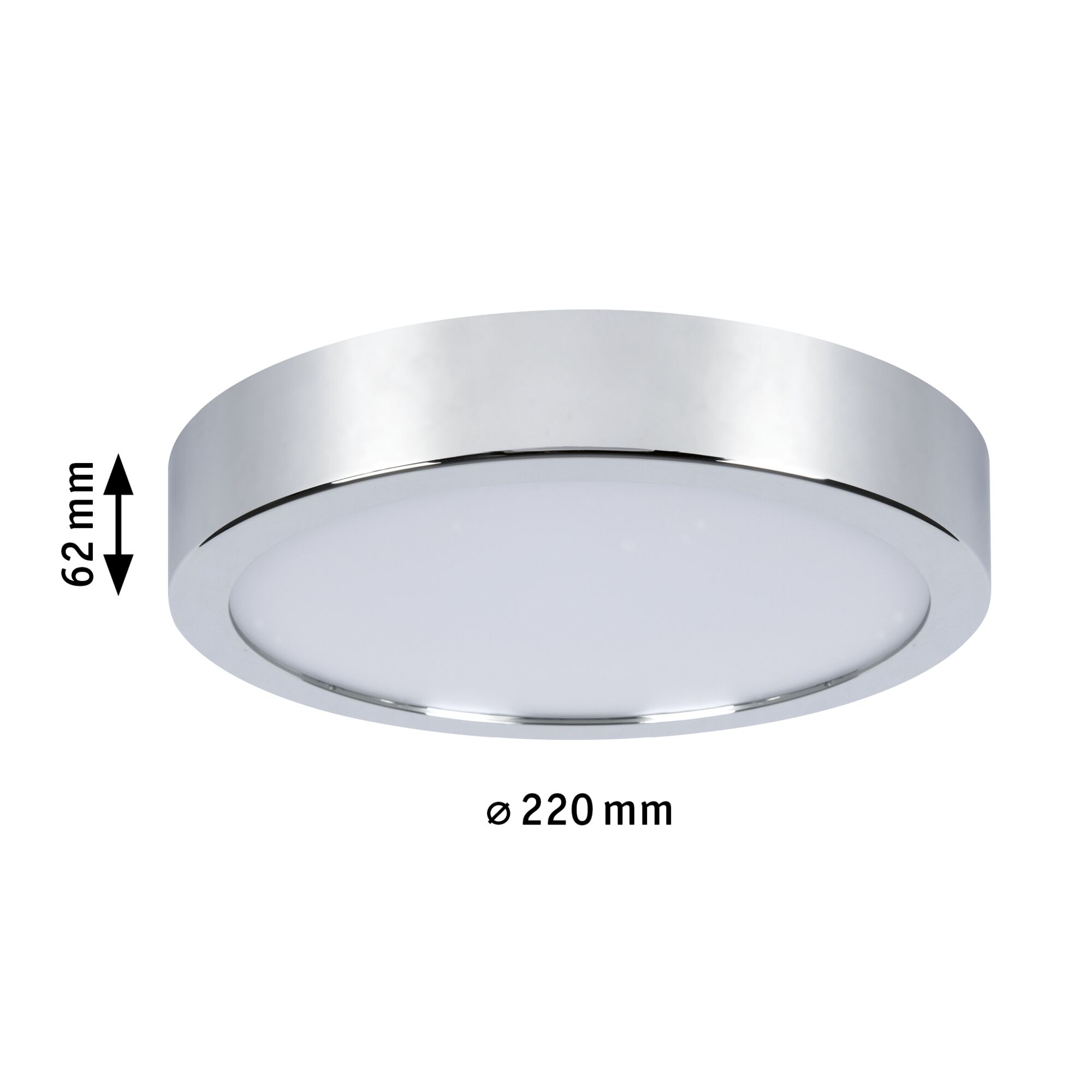

| Dimensions (Height x Width x Depth) | H: 62 mm |
| Ø | 220 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome |
| Material | Plastic |
| Installation | |
|---|---|

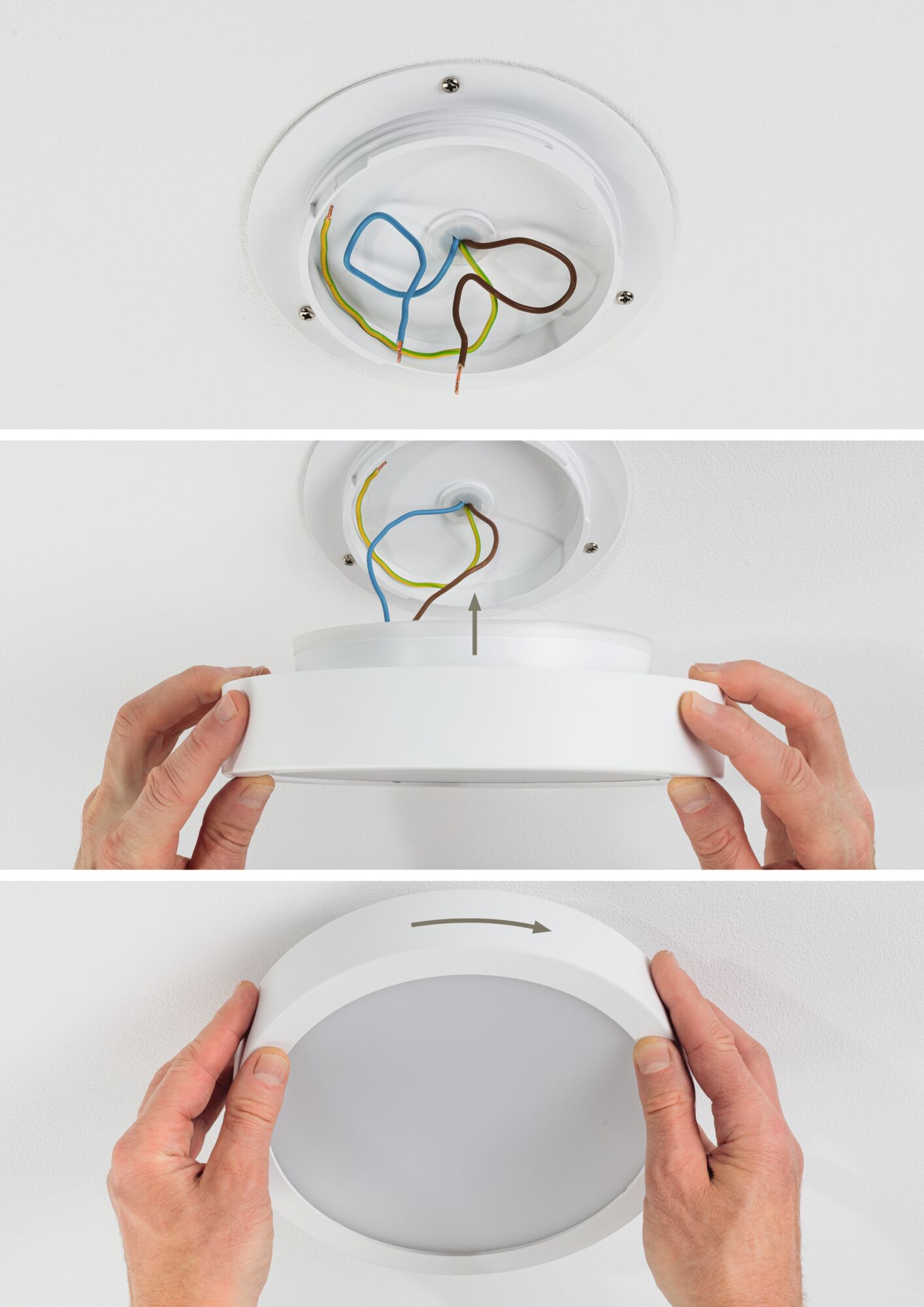

| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 950 lm |
| Luminous flux LED module | 1300 lm |
| color temp | 3.000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 13 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 94 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 14 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
