Article-No.:
78963
FlexLED
LED Strip 3D

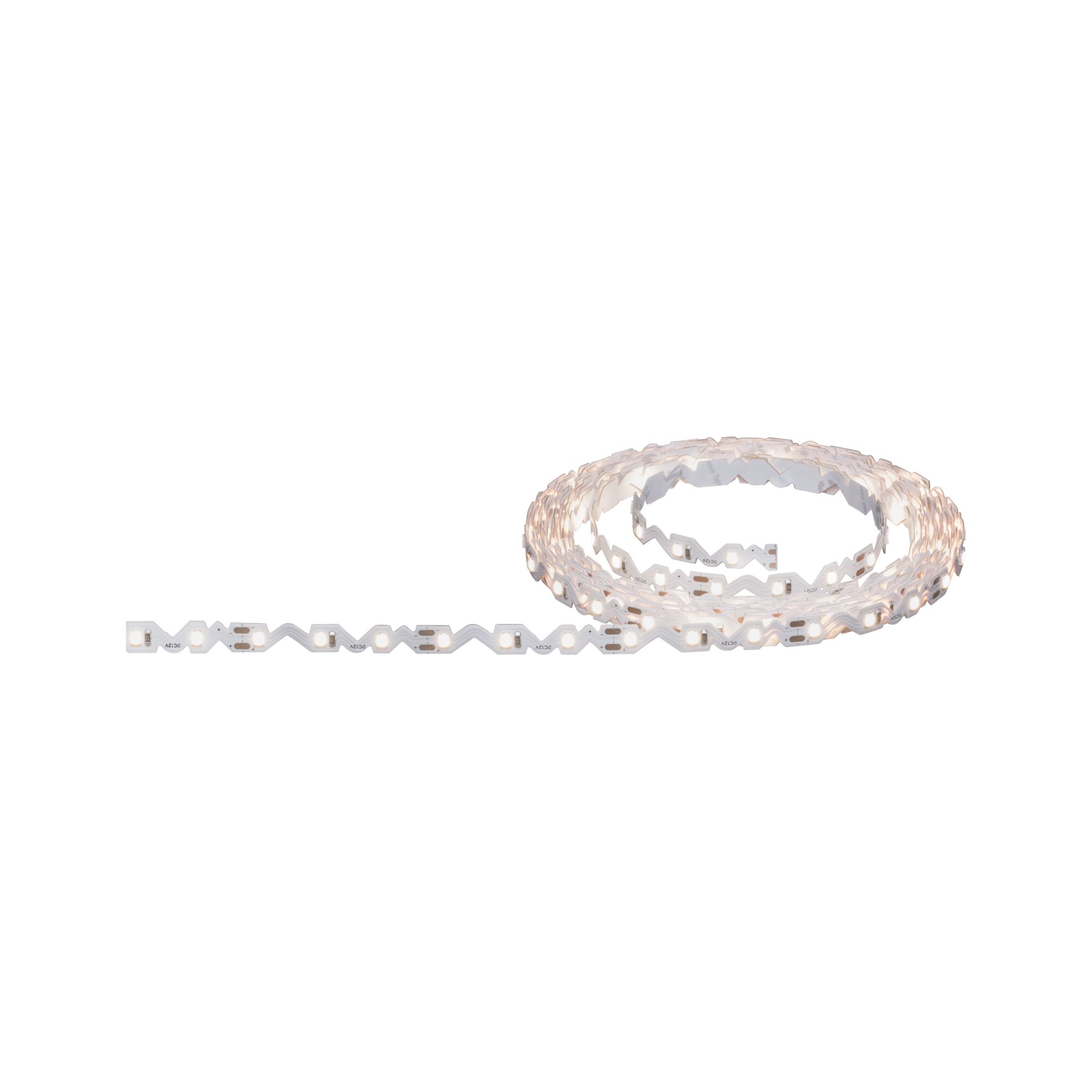

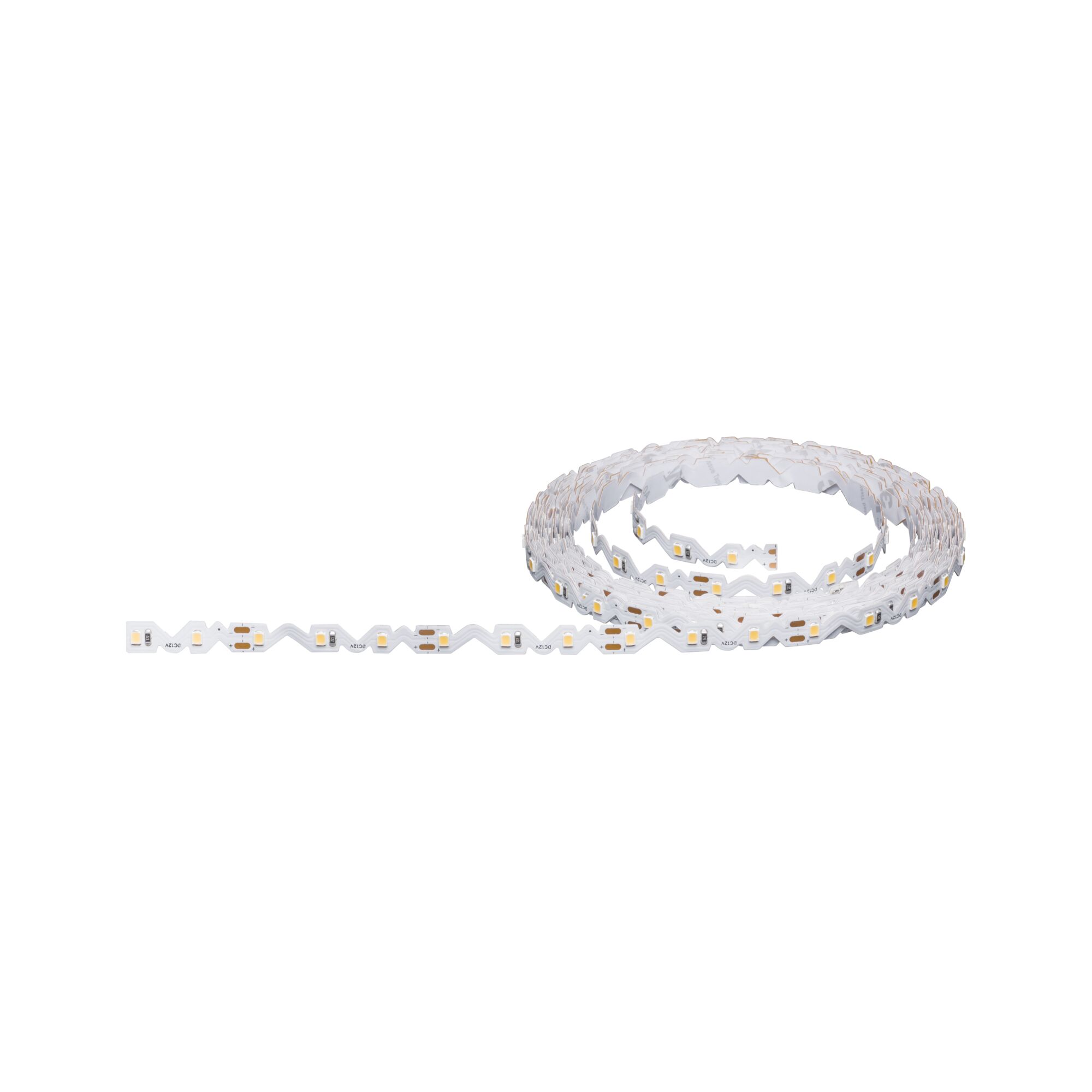

FlexLED LED Strip 3D 5m coated 10,5W 320lm/m 60 LEDs/m 3000K 12VA
5m coated 10,5W 320lm/m 60 LEDs/m 3000K 12VA
5m coated 10,5W 320lm/m 60 LEDs/m 3000K 12VA

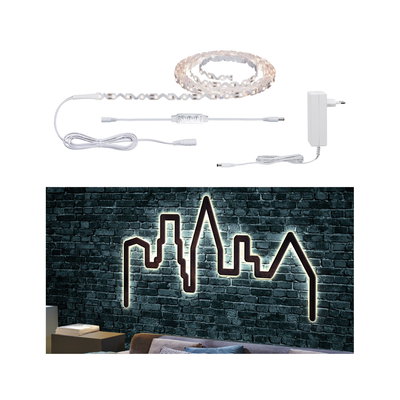

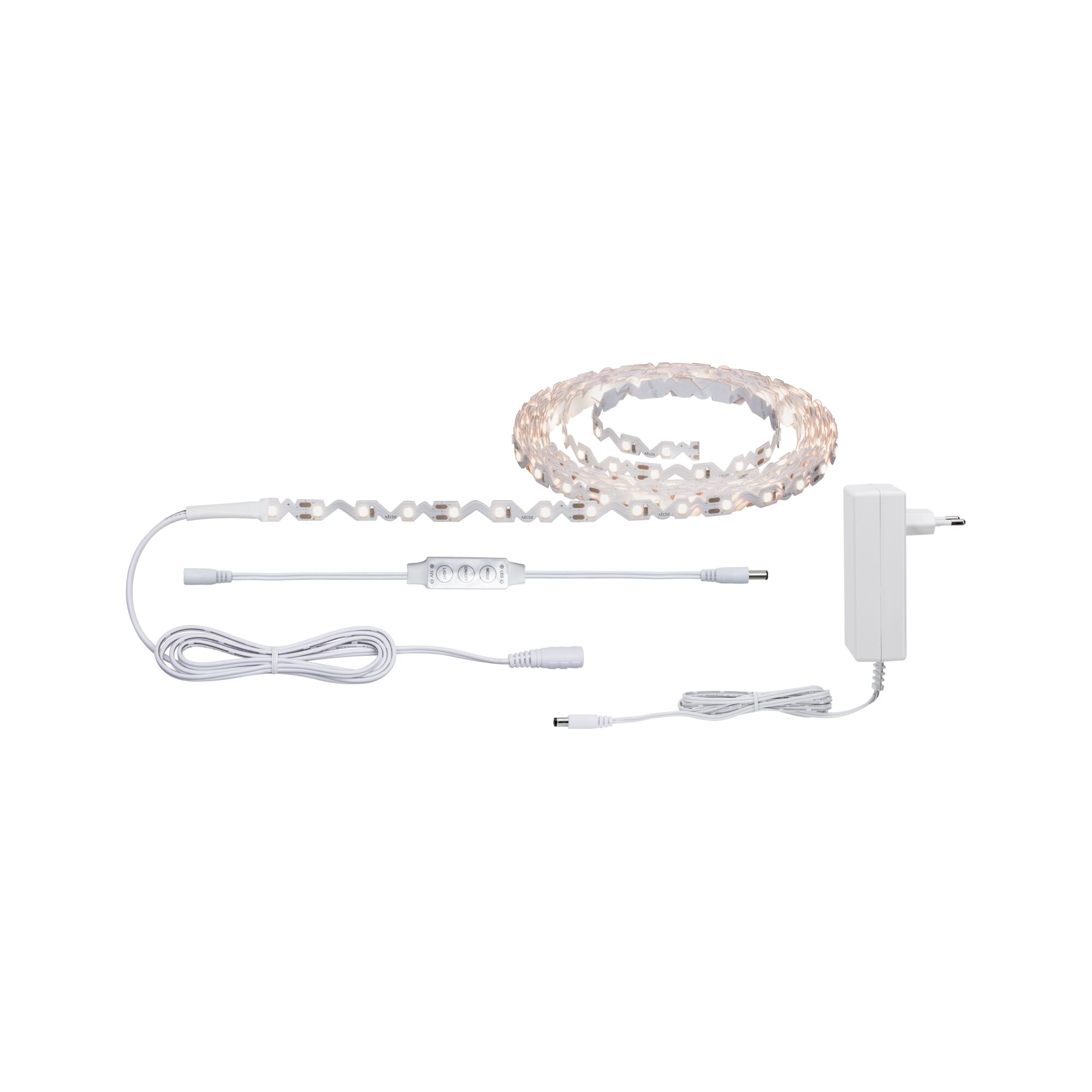

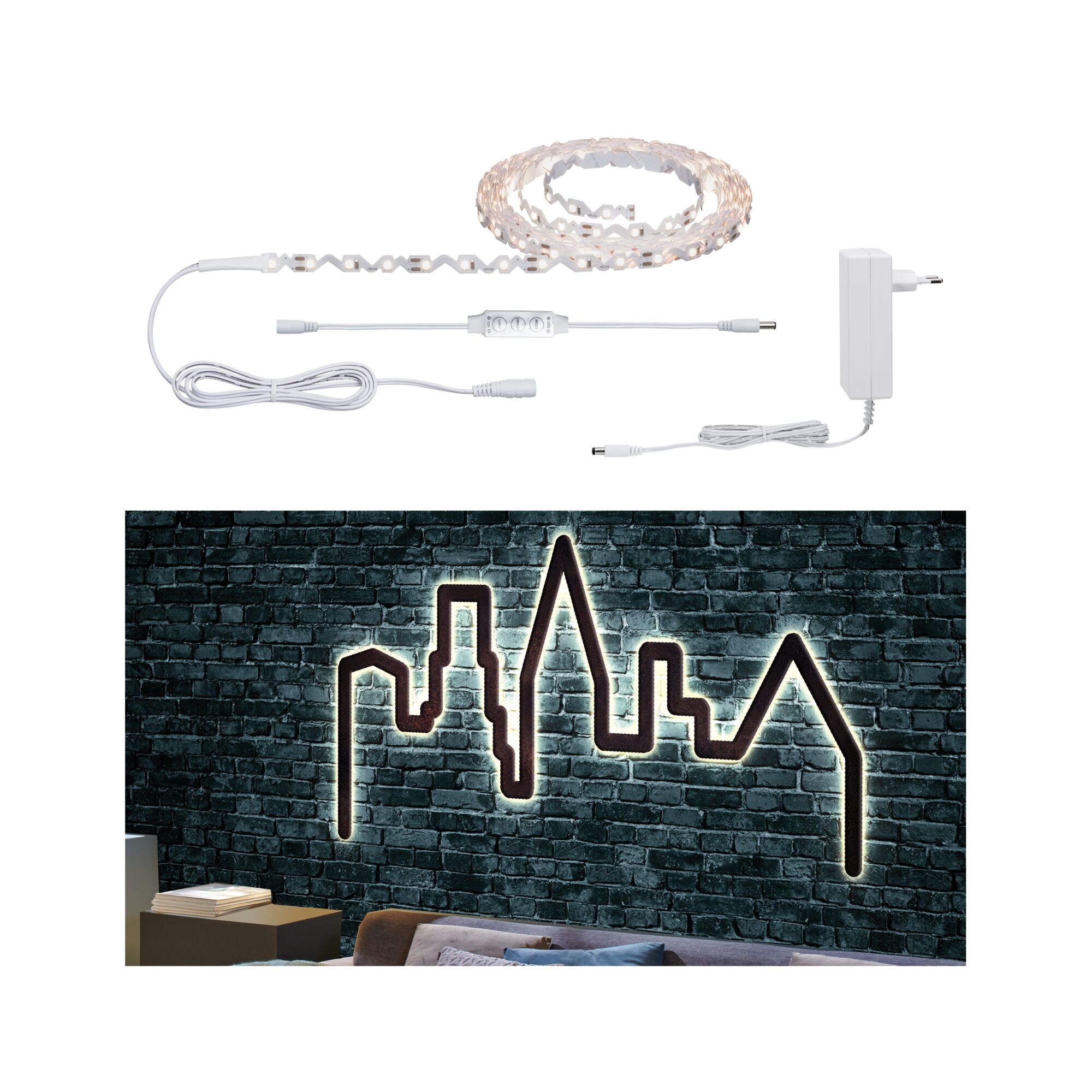

- Ready-to-use set including 230/12V power supply with power cable and plug
- Rear self-adhesive for simple installation
- Can be shortened as needed (at marked points)
FlexLED LED Strip 3D 5m coated 10,5W 320lm/m 60 LEDs/m 3000K 12VA
The flexible strips provide many fun and creative layout possibilities with their unique cut-outs. They can be bent around corners up to a minimum of 60 degrees, adapt to three-dimensional edges and curves, and create an exceptional lighting effect. Get equipped for your next DIY project with the warm white FlexLED basic set with a length of five metres.
- Ready-to-use set including 230/12V power supply with power cable and plug
- Rear self-adhesive for simple installation
- Can be shortened as needed (at marked points)
- No accessories required
- Incl. On/Off/Dim switch
- Gradually dimmable
- Different lighting effects configurable via switch
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,5 x T: 9 mm |
| Length | 5 m |
| Plug depth | 38 mm |
| Shortenability Strips | 50 mm |
| Net weight | 145 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 10,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 104 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 14 W |
| Voltage | 230/12 V |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1550 lm |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1600 lm |
| Transformer | |
|---|---|
| Transformer power range | 12 VA |
| Transformer height | 72 mm |
| Transformer width | 41 mm |
| Transformer depth | 31 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
